Akuvox Access Readers & Controllers

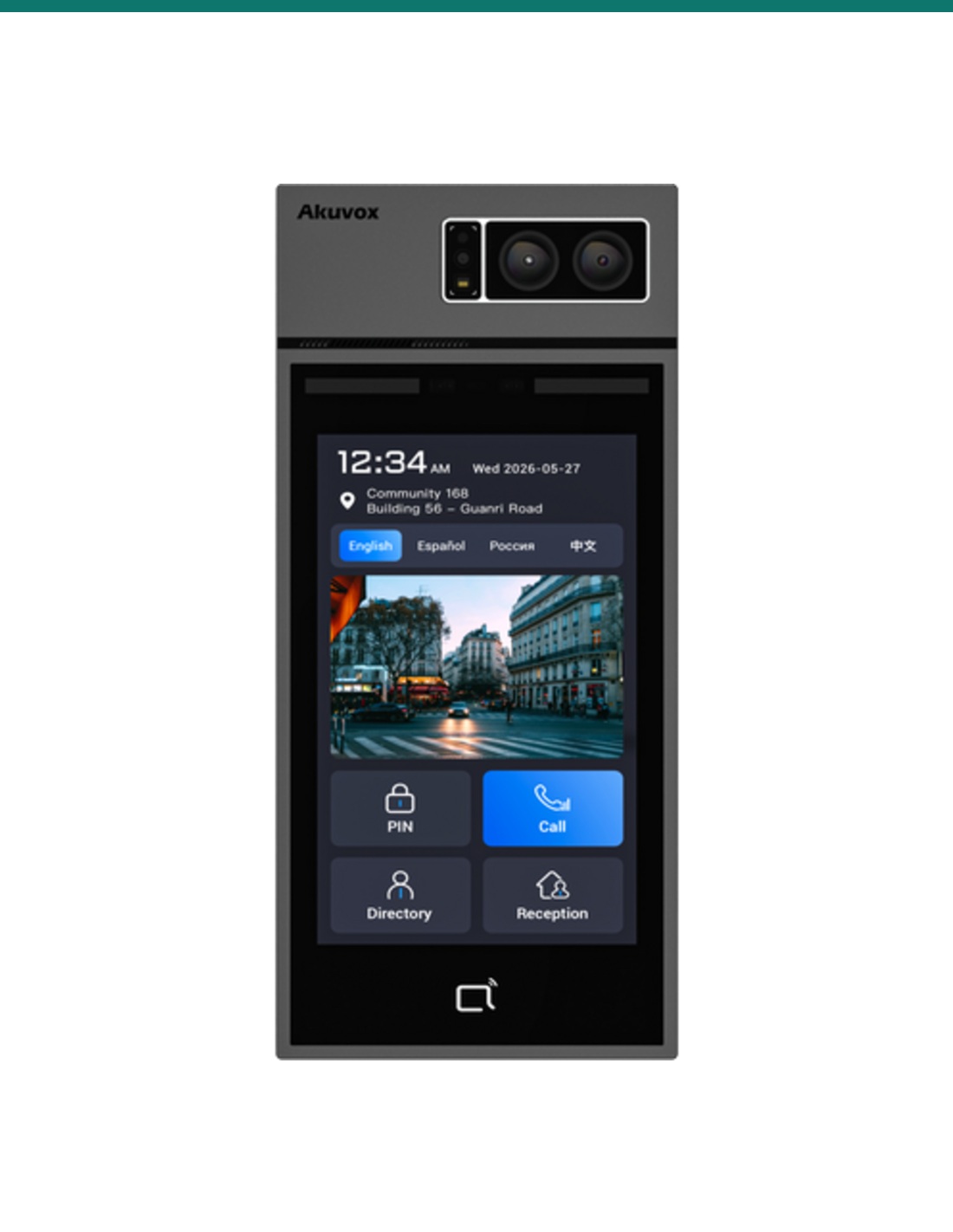

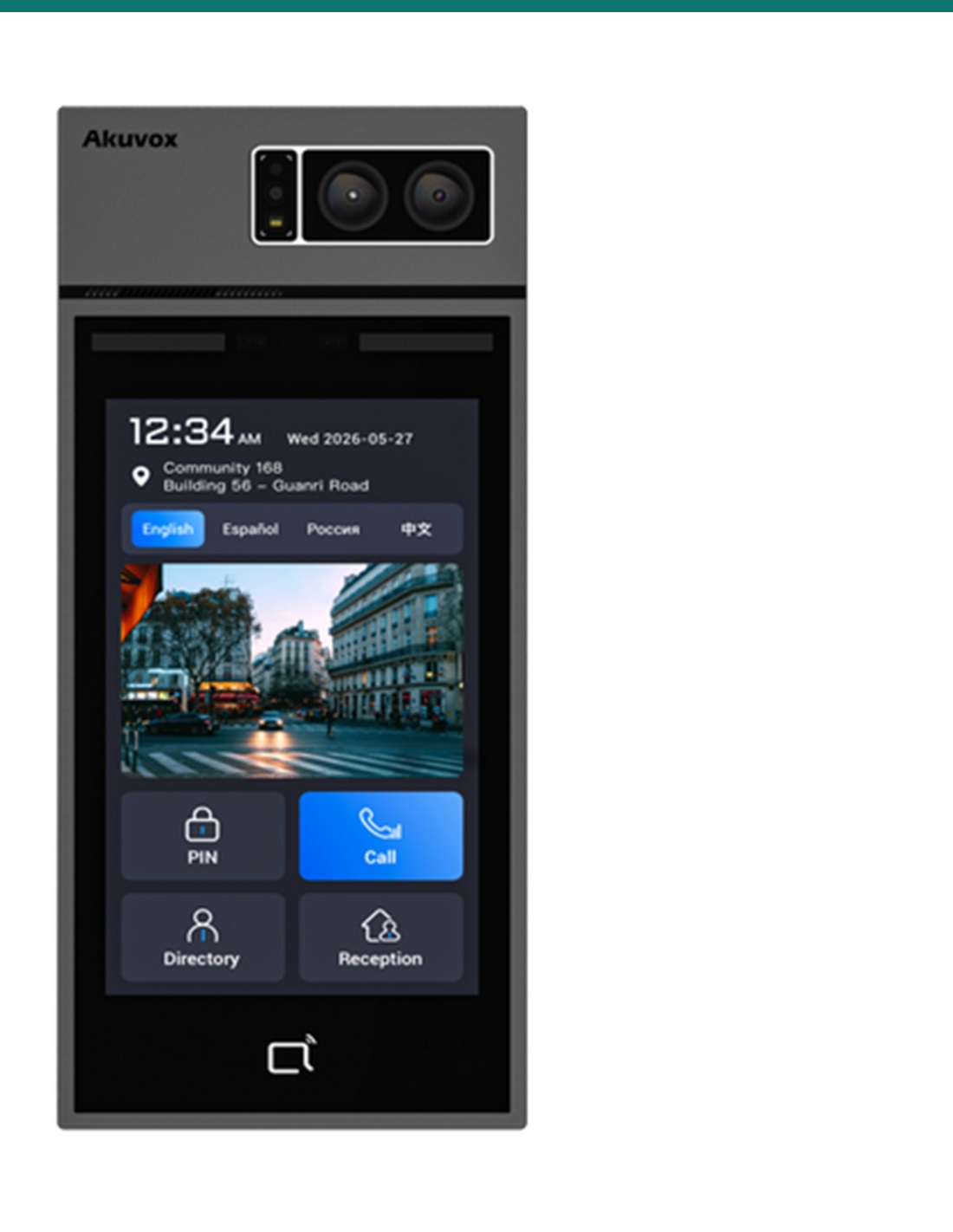

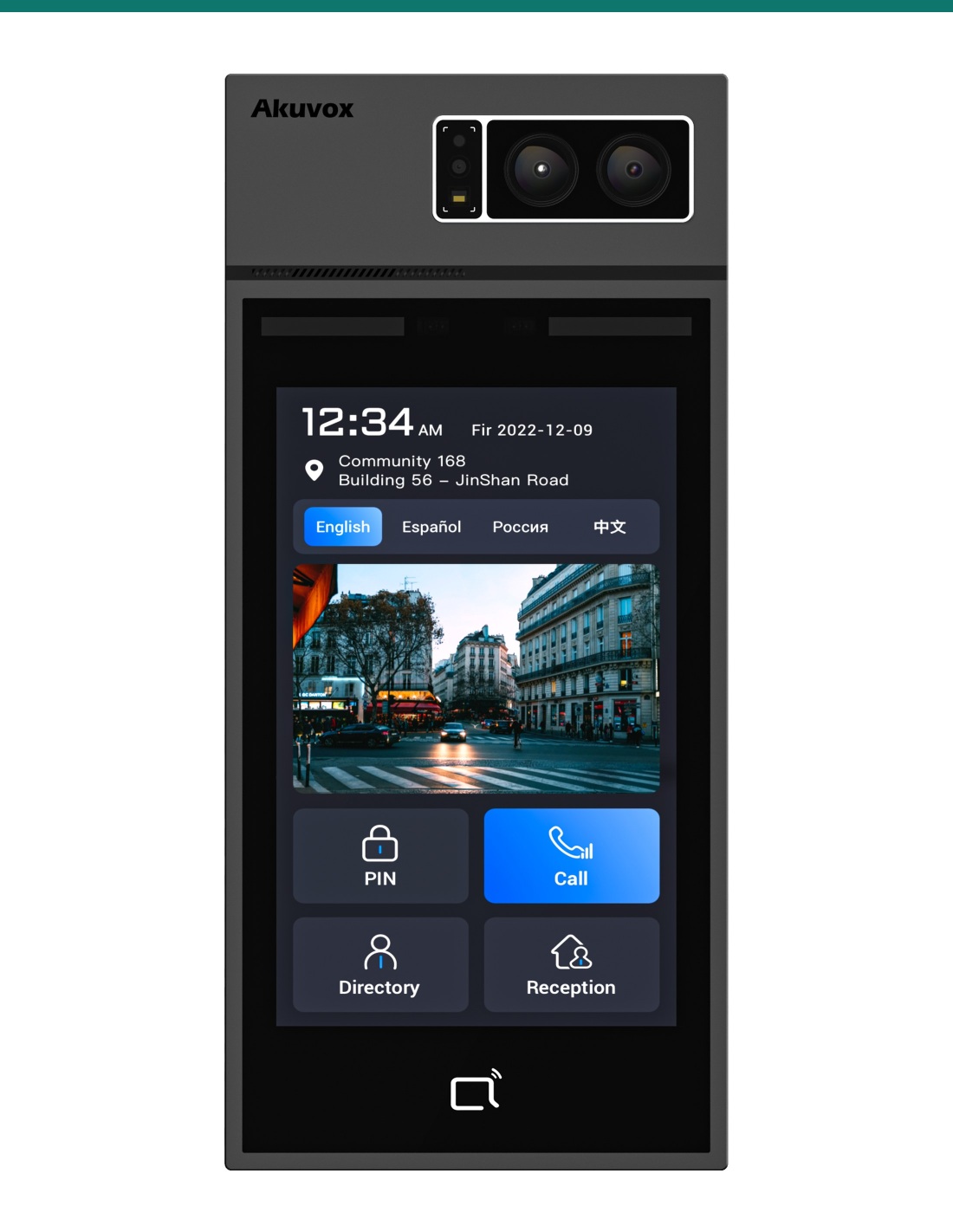

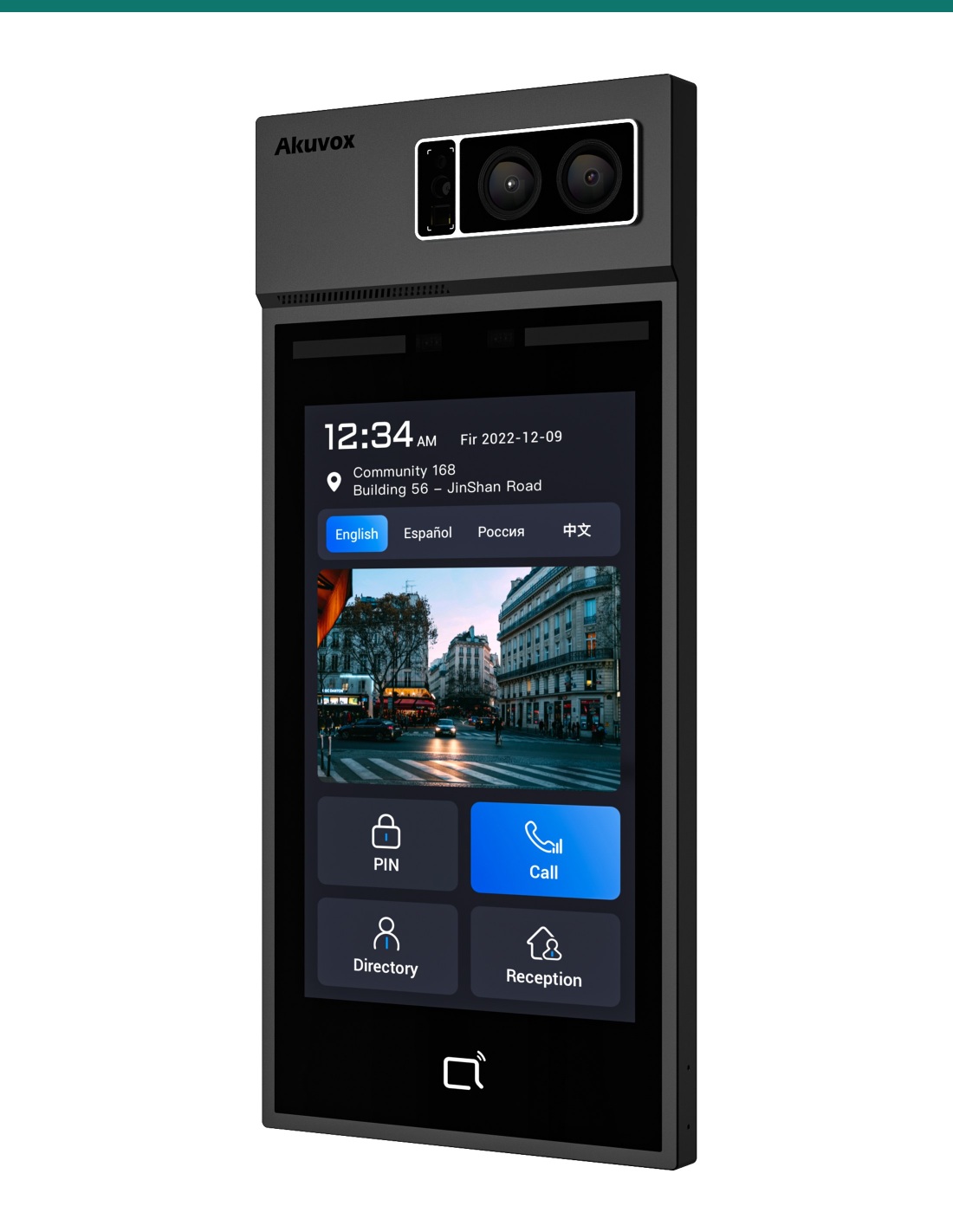

Akuvox S538 8″ Android Facial Recognition Door Phone with QR and Bluetooth Entry — AK-S538
$2,718.00 inc GST
Akuvox S538 is an 8-inch Android door phone for apartment, office and gated-community entrances. A 5 MP starlight camera with HDR, a liveness camera and a dedicated QR camera handle face, QR, card, PIN and Bluetooth entry for up to 50,000 users. Three relays, IP66 / IK08 aluminium, 802.3at PoE.
- ✓8″ IPS touchscreen (800 × 1280) on Android
- ✓Three cameras: 5 MP starlight main with HDR, liveness and QR; 1080p at 25 fps
- ✓50,000 faces · 200,000 cards · 50,000 PINs · 3 relays, 3 inputs
- ✓PoE 802.3at or 24 V DC · IP66 / IK08 · 297 × 136.4 × 29 mm

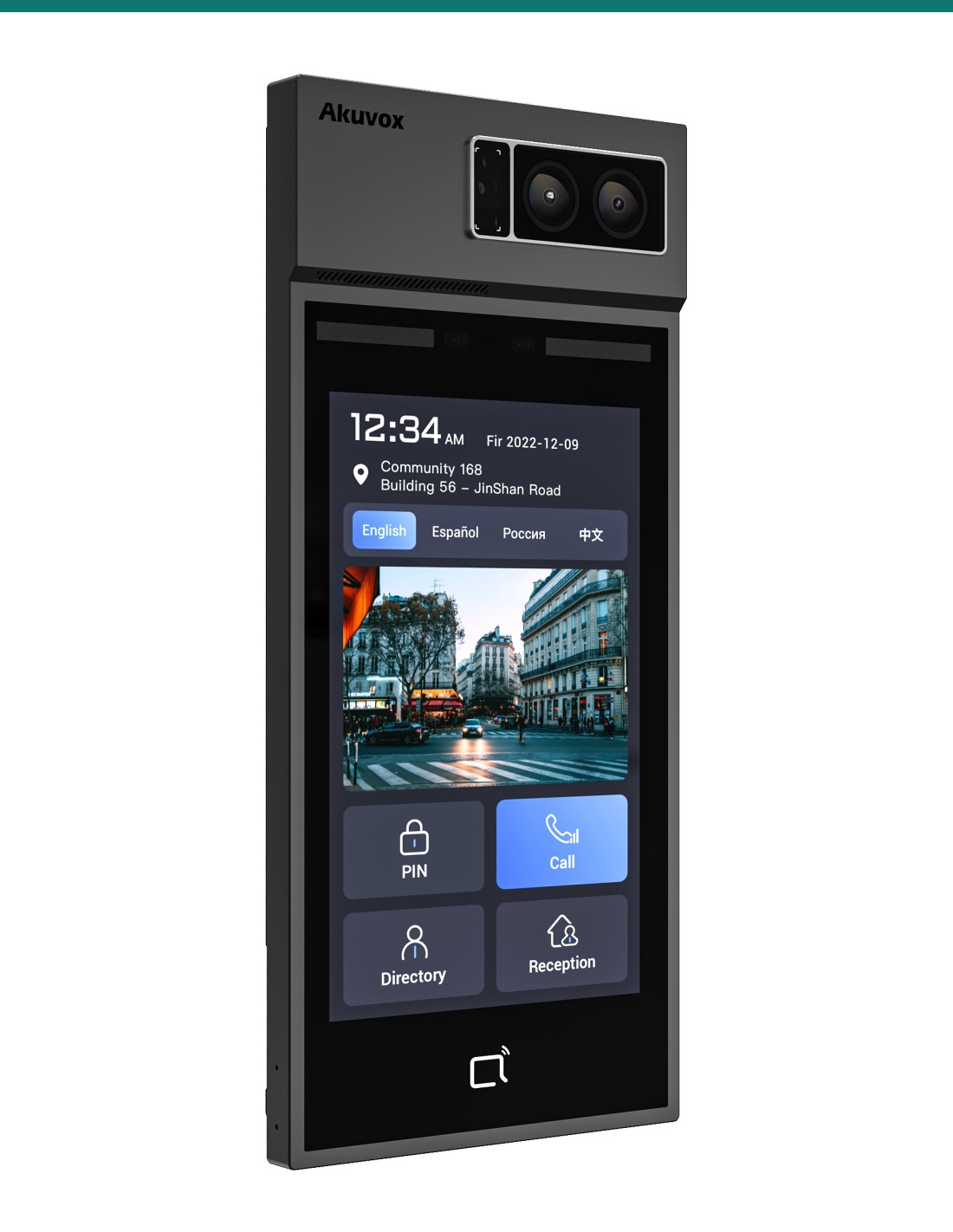

Akuvox · S538 · Android facial recognition door phone
An 8-inch door phone that sees every detail.
Three cameras, one flat aluminium panel.
The AK-S538 is Akuvox’s 8-inch Android facial recognition door station. A 5 MP starlight main camera, a liveness camera and a dedicated QR camera sit above the touchscreen, with two microphones, three relays and a dual-frequency card reader in a 297 × 136.4 mm aluminium panel.
This SKU is the S538 door station only.
You receive the S538 main unit with its wiring cover, seals, terminal blocks and fixings. Choose the S538 on-wall or in-wall installation kit — sold separately, as are rain covers, indoor monitors, PoE switch and lock hardware.
In the box
- Akuvox S538 door station
- Wiring cover, sealing ring and rubber cable plugs (large, medium, small)
- Terminal blocks and pry tool
- Torx security screw and Torx wrench, crosshead screws
- Diode for the lock circuit
What you also need(sold separately)
- S538 on-wall or in-wall installation kit
- PoE 802.3at switch / injector, or 24 V DC 2 A supply
- Akuvox indoor monitor, SmartPlus app or SIP endpoint
- Electric lock / maglock and lock PSU

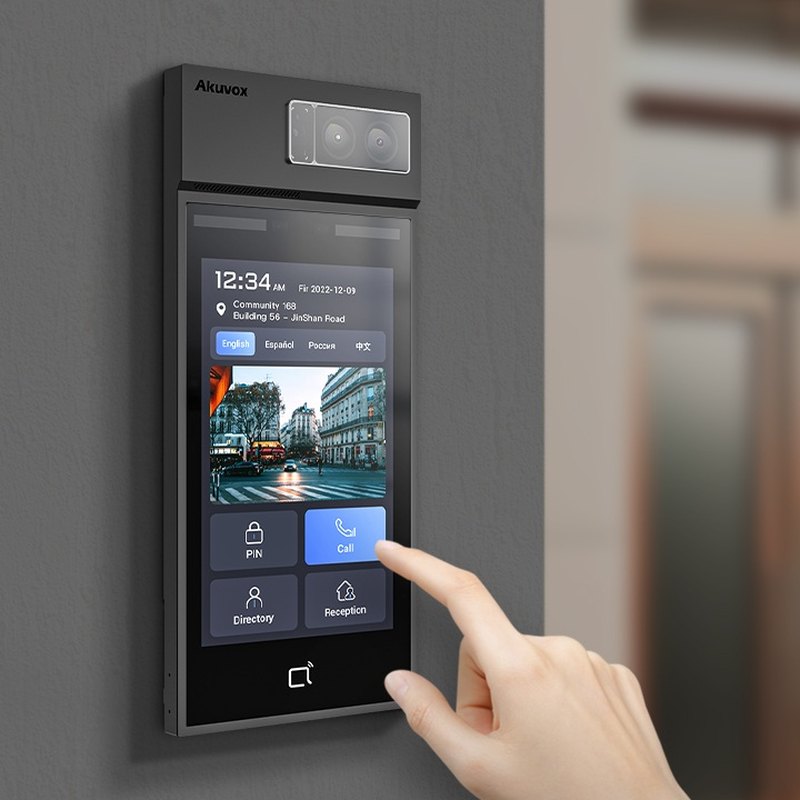

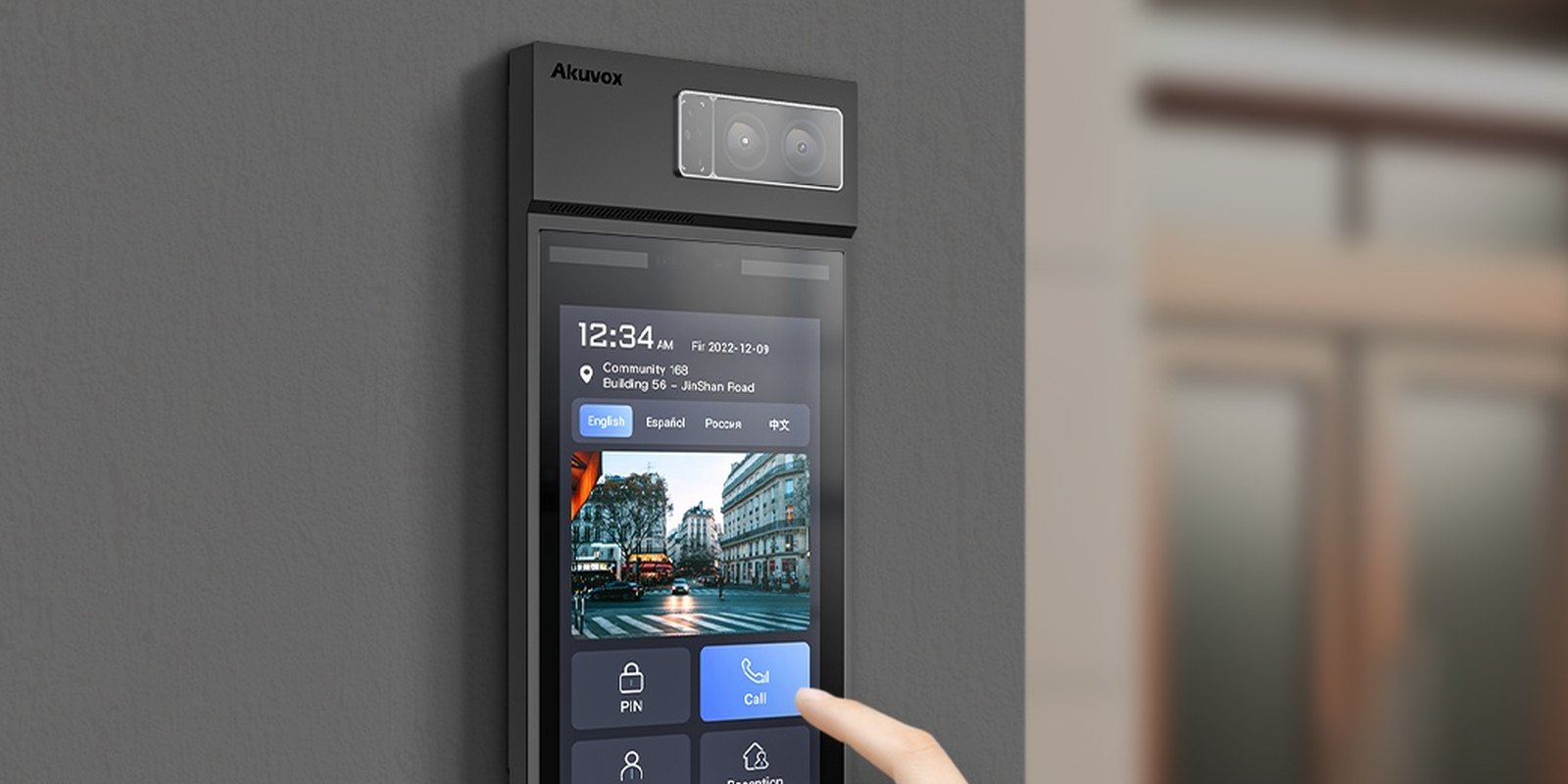

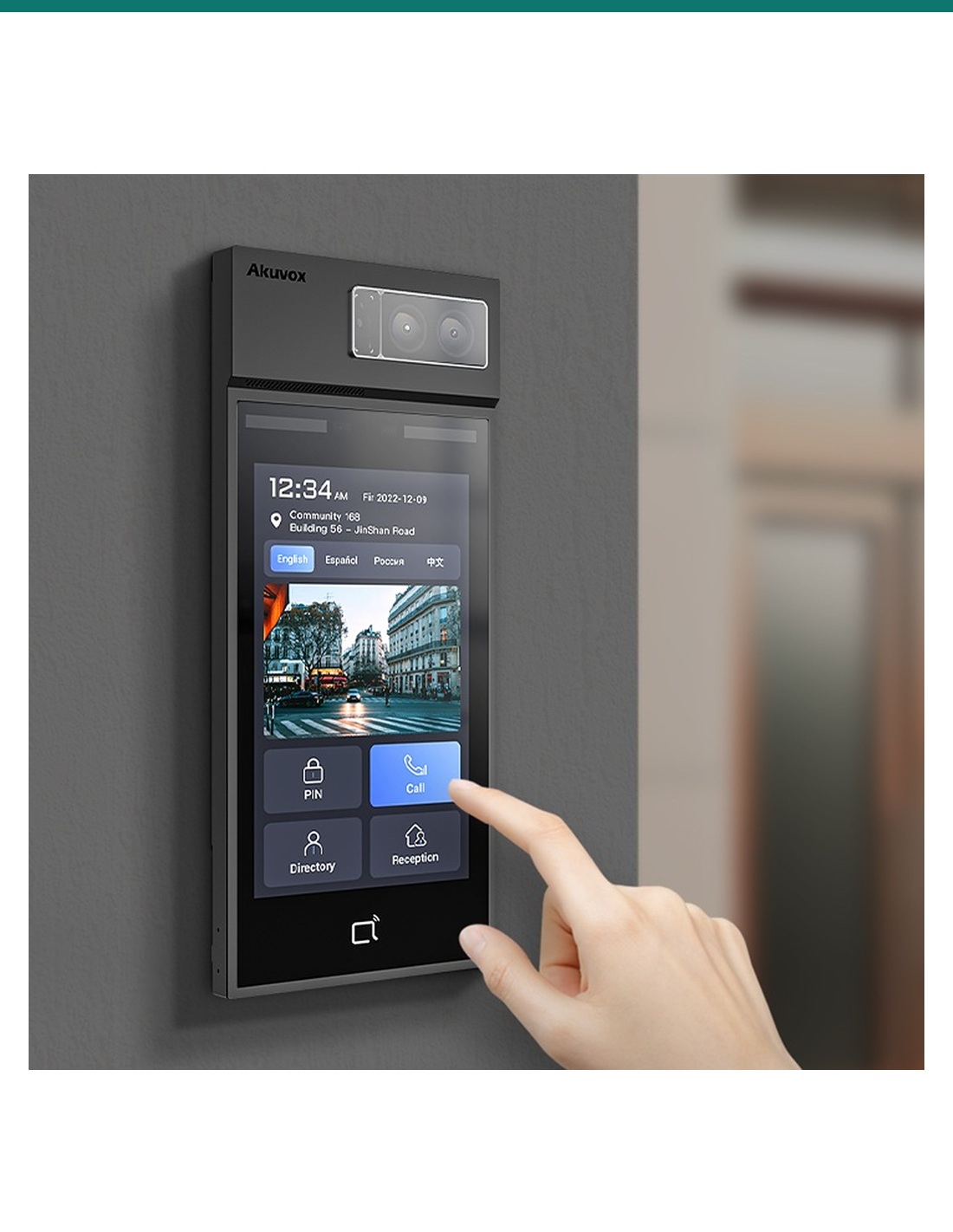

Recognised at the door, whatever the light.
Residents walk up and are recognised by face; visitors call from the directory; couriers and guests scan a QR code. Residents who prefer their phone use Bluetooth 5.0 or NFC instead of a card.
Cameras
5 MP starlight, liveness and QR.
The 5 MP main camera on a 1/2.65″ CMOS sensor adds HDR and starlight sensitivity, streaming H.264 at up to 1920 × 1080, 25 fps, across a 120° (H) / 64° (V) view. A separate liveness camera tells real people from photos or videos.
A third camera reads QR codes for visitor passes. Radar plus image motion detection flags activity at the door, with zones and distances set by the property manager. ONVIF and RTSP let your NVR record the entrance.
Screen and audio
A big screen with clear two-way audio.
The 8-inch IPS touchscreen (800 × 1280) shows the resident directory, dial pad and call screen; white and infrared LEDs plus a light sensor support the cameras after dark, down to 0.1 lux.
Two microphones and a speaker handle the call, with echo cancellation, voice activity detection and G.722 wideband audio. A line-out port can feed an external amplifier.
Access
Face, QR, card, PIN or Bluetooth.
Up to 50,000 users, 50,000 face templates, 200,000 cards and 50,000 PINs are held on the station. The reader handles 13.56 MHz and 125 kHz cards including EM, MIFARE, DESFire EV1 / EV2 / EV3 and FeliCa, plus NFC from Android phones.

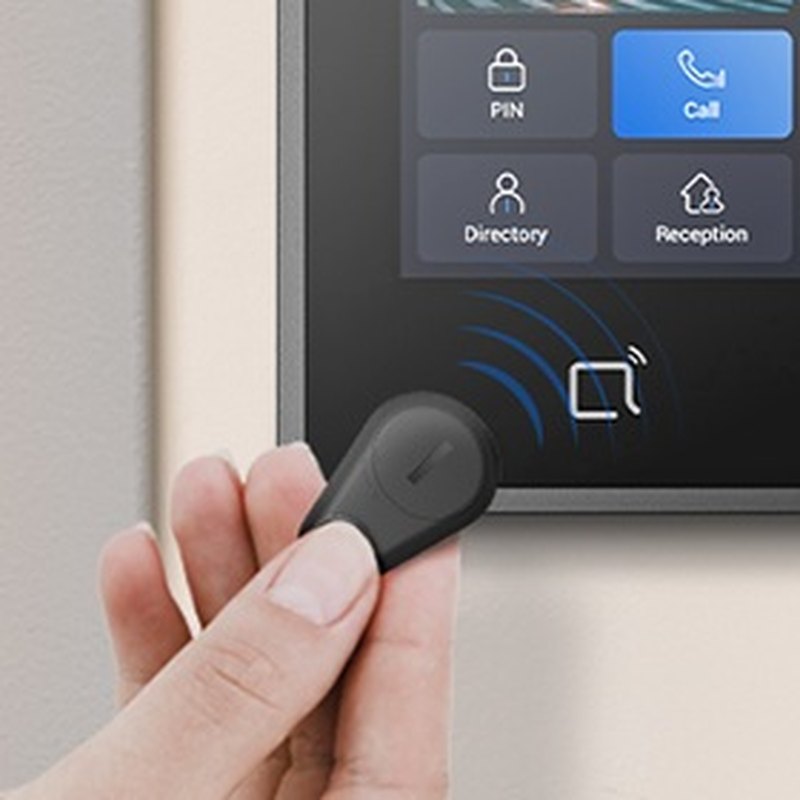

BLE 5.0 adds Bluetooth entry from a phone. Three relays and three inputs drive the door, a gate and an exit button from one station, and each relay can also be released individually by DTMF during a call.
How it works
From bare wall to recognised face.
01
Fit the kit
Install the S538 on-wall or in-wall kit; the 15° angled screw fixing makes it easier to work close to the wall.
02
Wire and power
Connect PoE 802.3at or 24 V DC, then the lock relays, exit button and door sensor inputs.
03
Register and enrol
Register to Akuvox indoor monitors, SmartPlus or your SIP PBX, then enrol faces, cards and PINs.
04
Test the door
Check face and QR entry day and night, make a test call and confirm each relay releases its lock.
At a glance
Key specs — AK-S538
Show all specifications
- Display
- 8″ IPS touchscreen, 800 × 1280
- Cameras
- 5 MP starlight main (HDR) + liveness + QR
- Field of view
- 120° (H) / 64° (V)
- Video
- H.264, up to 1920 × 1080 at 25 fps
- Unlock
- Face, card, PIN, QR code, BLE, NFC, DTMF
- Capacity
- 50,000 users · 50,000 faces · 200,000 cards · 50,000 PINs
- I/O
- 3 relays, 3 inputs, Wiegand in/out, RS485, line out
- Power
- PoE 802.3at or 24 V DC / 2 A
- Protection
- IP66 · IK08
- Size
- 297 × 136.4 × 29 mm (H × W × D)
- OS
- Android
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-S538
Physical and power
- Front panel
- Aluminium
- Display
- 8″ IPS LCD touchscreen, 800 × 1280
- Main camera
- 5 MP with starlight
- Sensors
- Light sensor, motion sensor, tamper alarm
- Microphone / speaker
- 2 / 1
- Reset button
- 1
- Ethernet
- 1 × RJ45, 10/100 Mbps adaptive
- PoE
- IEEE 802.3at
- Power input
- 24 V DC / 2 A
- Power output
- 12 V DC / 0.5 A max
- Ingress protection
- IP66
- Impact rating
- IK08
- Installation
- Flush or surface (wall) mounted
- Dimensions (H × W × D)
- 297 × 136.4 × 29 mm
- Working temperature
- −20 °C to +55 °C
- Storage temperature
- −30 °C to +70 °C
- Working humidity
- 10–90%
- Operating system
- Android
Interfaces and wireless
- Relay outputs
- 3
- Inputs
- 3
- Wiegand
- 1 channel, input or output (selectable)
- RS485
- Yes
- Line out
- Yes
- RF reader
- 13.56 MHz and 125 kHz
- NFC
- Yes (Android phones)
- Bluetooth
- BLE 5.0
Video
- Sensor
- 1/2.65″ CMOS (main camera)
- Resolutions
- CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Maximum resolution
- 1920 × 1080
- Frame rate
- 1080p at 25 fps
- Codec
- H.264
- Video technology
- HDR
- Viewing angle
- 120° (H) / 64° (V)
- Minimum illumination
- 0.1 lux
- White balance
- Auto
- Third-party video
- Compatible with NVRs (ONVIF, RTSP)
Audio
- SIP
- SIP v1 (RFC 2543), SIP v2 (RFC 3261)
- Narrowband codecs
- G.711a, G.711μ
- Wideband codec
- G.722
- DTMF
- In-band, out-of-band (RFC 2833), SIP INFO
- Processing
- Echo cancellation, voice activity detection, comfort noise generator
Door entry and capacity
- Unlock methods
- Face, EM / MIFARE card, PIN, QR code, BLE
- Relay control
- Each relay controlled individually by DTMF tones
- Camera
- Permanently operational
- Software
- Android platform for third-party apps and customisation
- Card types
- EM, MIFARE, DESFire EV1 / EV2 / EV3, FeliCa
- Users
- 50,000
- Face templates
- 50,000
- Cards
- 200,000
- PINs
- 50,000
Network and management
- Standards
- SIP and ONVIF
- Protocols
- IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- Provisioning
- Auto-provisioning
- Management
- Web portal, configuration backup / restore, firmware upgrade
- Logs
- System logs including door access logs
Pair it with
Builds a complete door entry system
Mount
S538 on-wall or in-wall kit
Required to mount the station on the wall surface or flush in a cavity.
Weather
S538 rain cover
Black on-wall and in-wall rain covers shelter the screen at exposed entrances.
Indoor
Akuvox indoor monitor
Residents answer, see the visitor and release the door from an Akuvox SIP monitor or the SmartPlus app.
Works with
Platforms and integrations
SIP PBX and softphones
SIP v1 / v2 lets the S538 call Akuvox indoor monitors, IP phones or extensions on your own PBX.
NVRs over ONVIF / RTSP
Add the entrance camera to an ONVIF or RTSP-capable NVR and record it with the rest of your CCTV.
Akuvox SmartPlus
Residents answer calls, see visitors and unlock from the SmartPlus app, with Bluetooth entry from the same phone.
Wiegand and RS485 access control
The selectable Wiegand port and RS485 connect third-party access controllers, readers and Akuvox relay modules.
Android apps
The Android platform accepts third-party software for custom directories, visitor management or branding.
Watch
See it in action
Downloads
Datasheets and guides
PDFS538 quick guideOfficial Akuvox S538 quick guide (PDF) · 1.6 MBPDFS538 DatasheetAkuvox S538 datasheet, May 2026 edition · 241 KBPDFS538 dimension drawingsPanel, wall box, flush box, bracket and rain cover drawings in mm, April 2026 · 896 KB
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
Is a mounting kit included?
No. Every S538 needs either the S538 on-wall installation kit (surface) or the S538 in-wall installation kit (flush). Matching on-wall and in-wall rain covers are also available.
What power does it need?
IEEE 802.3at (PoE+) or a 24 V DC / 2 A supply. Standard 802.3af PoE is not enough. The station also has a 12 V DC / 0.5 A output for a small lock or reader.
How many residents and credentials does it hold?
Up to 50,000 users, 50,000 face templates, 200,000 cards and 50,000 PINs.
Which cards and phones work with the reader?
13.56 MHz and 125 kHz cards — EM, MIFARE, DESFire EV1 / EV2 / EV3 and FeliCa — plus NFC on Android phones and Bluetooth (BLE 5.0) entry.
Can a photo fool the face reader?
The S538 has a separate liveness camera alongside the 5 MP main camera to tell real faces from photos or videos.
Will it record to my NVR?
Yes. The S538 supports ONVIF and RTSP, so ONVIF-capable NVRs can add the 1080p main camera as a channel.
What temperature range does it cover?
Working temperature is −20 °C to +55 °C, at 10–90% humidity. It is IP66 and IK08 rated; add a rain cover where the screen faces direct weather.
How high should it be mounted?
The Akuvox drawings place the bottom of the panel about 1,007 mm above ground, keeping the usable parts below 1,219 mm for accessible entries.
A big screen for a busy front door.
Choose the S538 for apartment lobbies, offices and gated sites that want an 8-inch Android station with QR and facial recognition.
Installation & safety notice
Low-voltage product (SELV). Power from IEEE 802.3at PoE or a 24 V DC / 2 A supply. A 12 V DC / 0.5 A output is available for a small lock or reader.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
- Audio
- 2 microphones, 1 speaker, G.711, G.722, echo cancellation
- Power
- PoE 802.3at or 24 V DC / 2 A
- Colour
- Space grey
- Capacity
- 50,000 users · 50,000 faces · 200,000 cards · 50,000 PINs
- Working Temperature
- −20 °C to +55 °C
- Brand
- Akuvox
- Display
- 8″ IPS touchscreen, 800 × 1280
- Bluetooth
- BLE 5.0
- Field of View
- 120° (H) / 64° (V)
- Protection
- IP66 / IK08
- Camera
- 5 MP starlight main camera with HDR, plus liveness and QR cameras
- Size
- 297 × 136.4 × 29 mm (H × W × D)
- Warranty
- Australian warranty
- Video
- H.264, up to 1920 × 1080 at 25 fps
- Product Type
- Facial recognition SIP door station
- Model
- S538
- Finish
- Aluminium front panel
- RF Reader
- 13.56 MHz and 125 kHz, NFC (Android phones)
- I/O
- 3 relays, 3 inputs, Wiegand in/out, RS485, line out
- OS
- Android
- Unlock
- Face, card, PIN, QR code, BLE, NFC, DTMF
- Card Types
- EM, MIFARE, DESFire EV1 / EV2 / EV3, FeliCa
In Stock - Ready to Ship
- New
In Stock - Ready to Ship
Akuvox Access Readers & Controllers
Akuvox S50 Black 13.56 MHz MIFARE Classic 1K ISO Card — AK-CARD-S50
- New
In Stock - Ready to Ship
Akuvox Mounting & Accessories

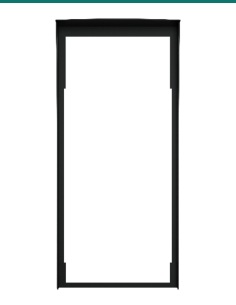

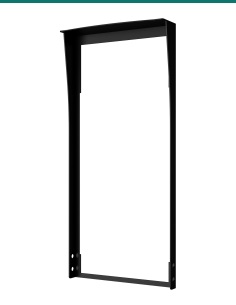

Akuvox S538 Black In-Wall Rain Cover for Flush-Mounted S538 — AK-S538INWALLH
- New
In Stock - Ready to Ship
Akuvox Mounting & Accessories

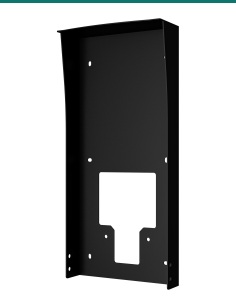

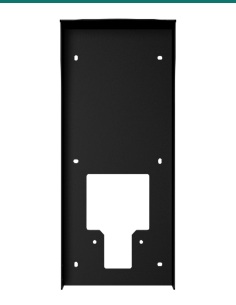

Akuvox S538 Black On-Wall Rain Cover for Surface-Mounted S538 — AK-S538ONWALLH
- New
In Stock - Ready to Ship
Akuvox Mounting & Accessories

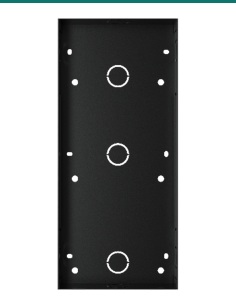

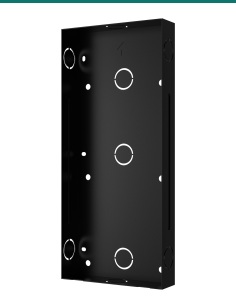

Akuvox S538 In-Wall Installation Kit for Flush Mounting — AK-S538INWALLK
- New
In Stock - Ready to Ship
Akuvox Mounting & Accessories

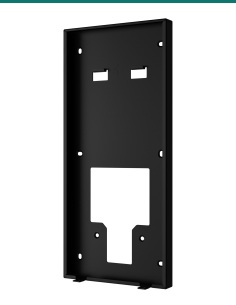

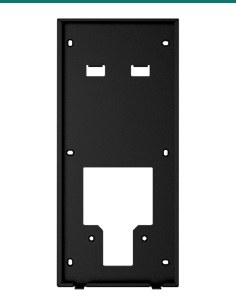

Akuvox S538 Black On-Wall Installation Kit for Surface Mounting — AK-S538ONWALLK
