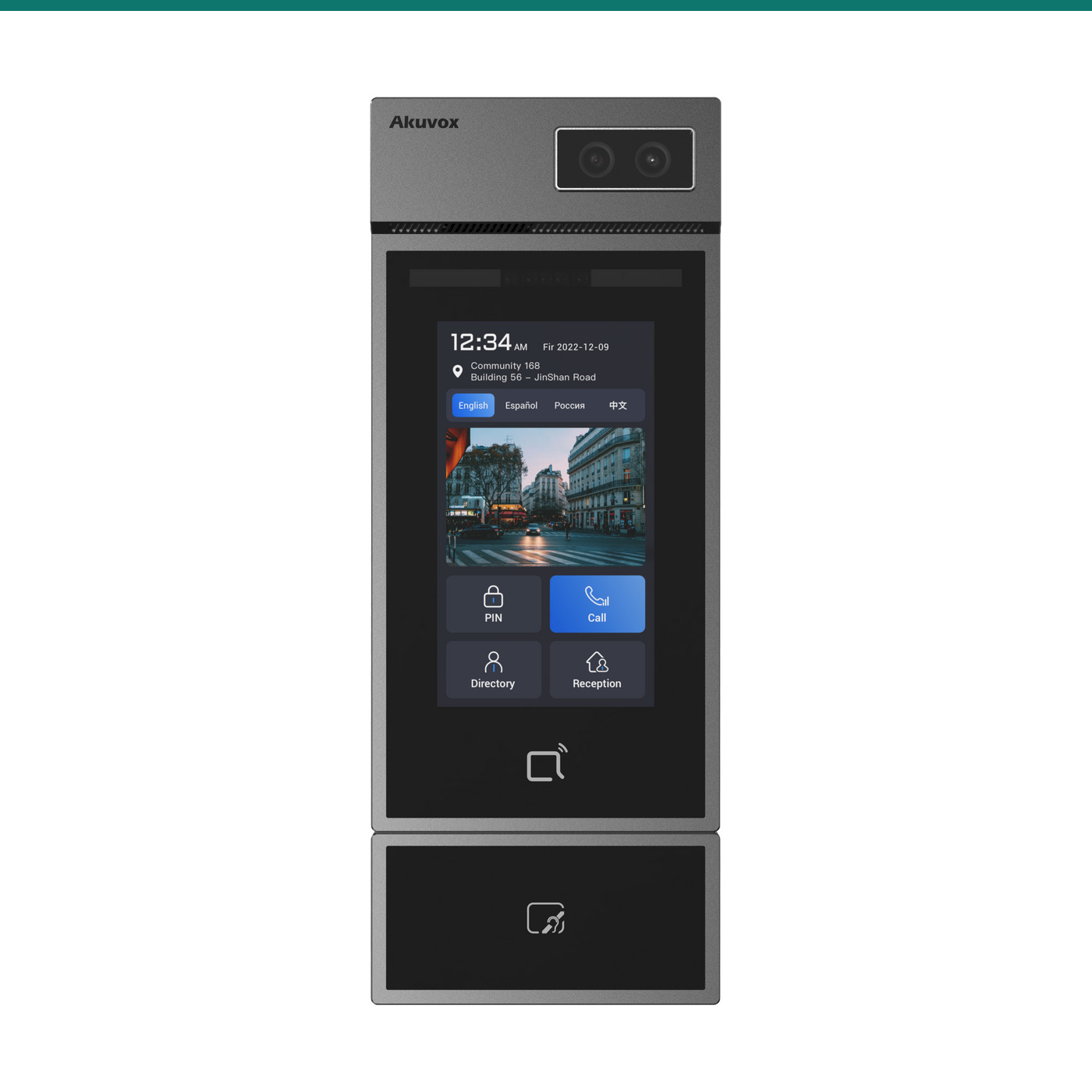

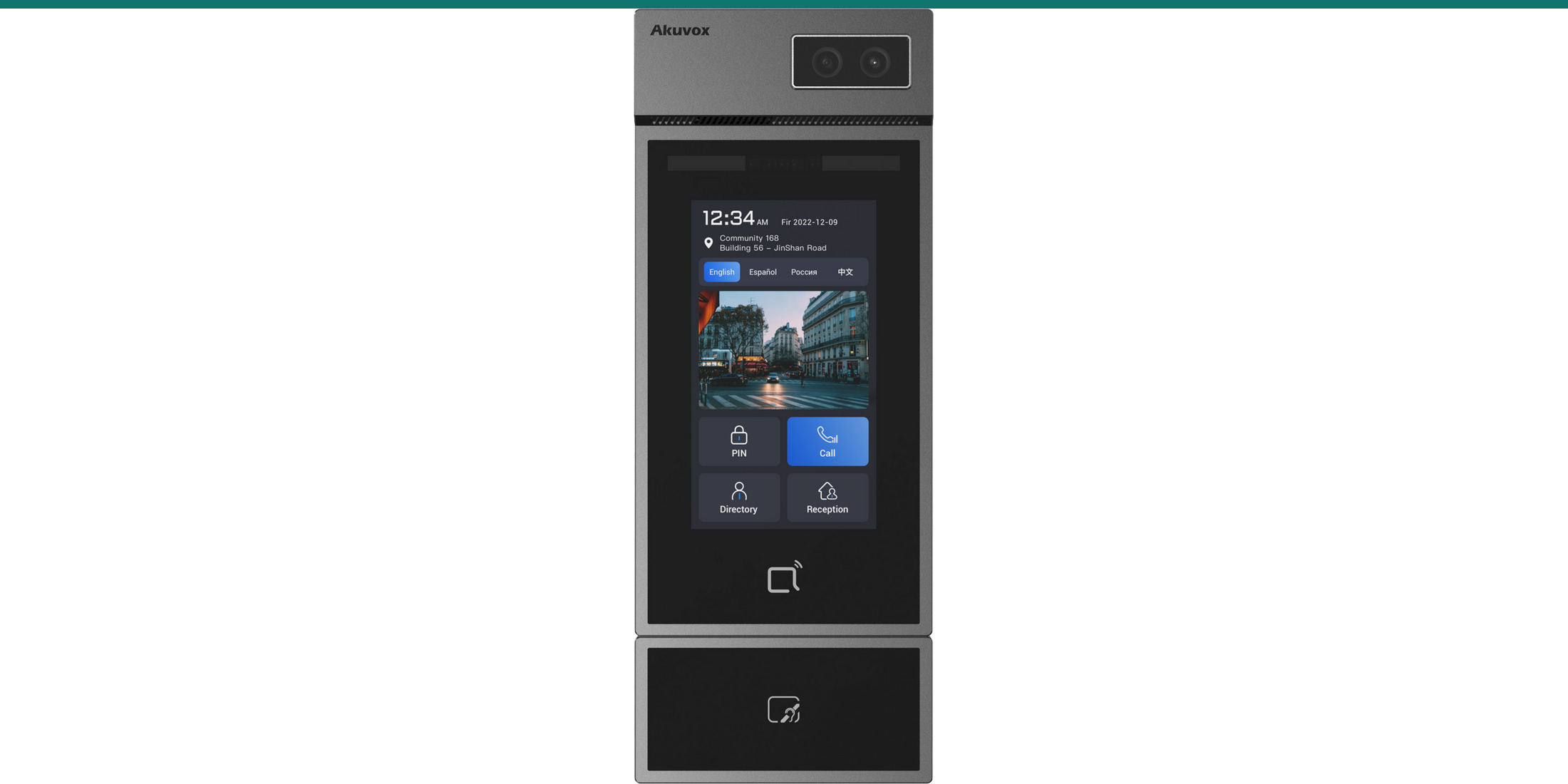

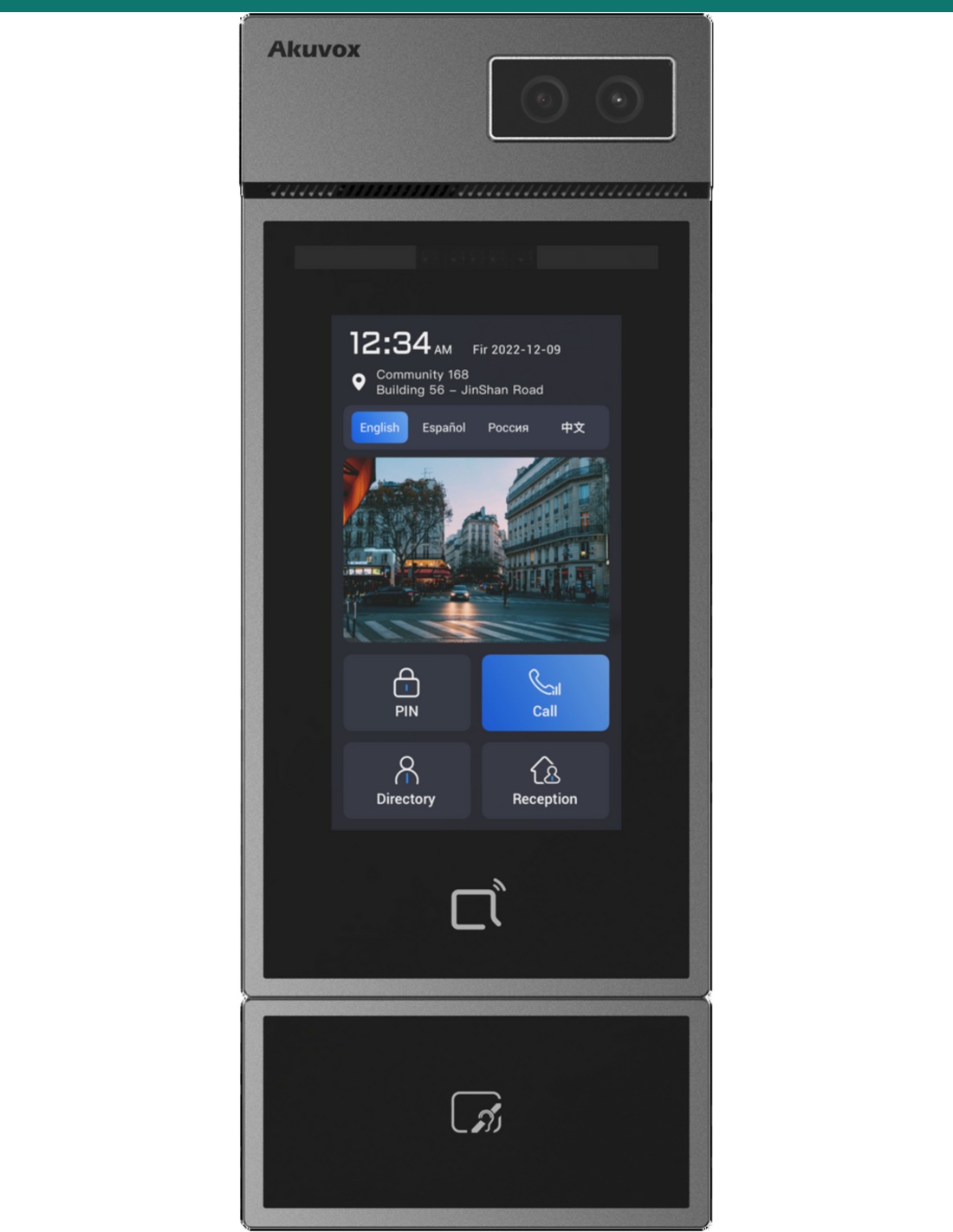

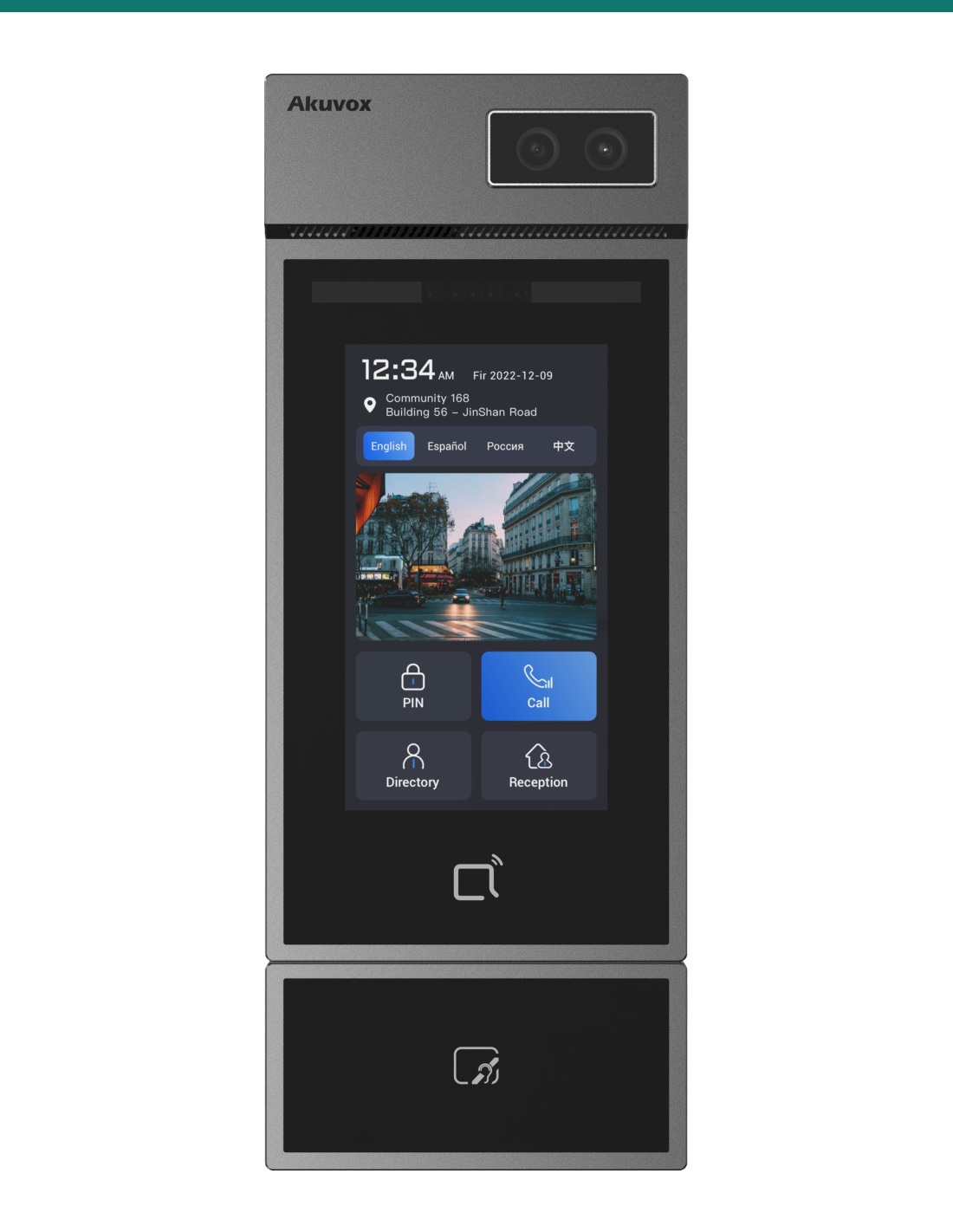

Akuvox S535 with induction loop module — front, induction loop module fitted

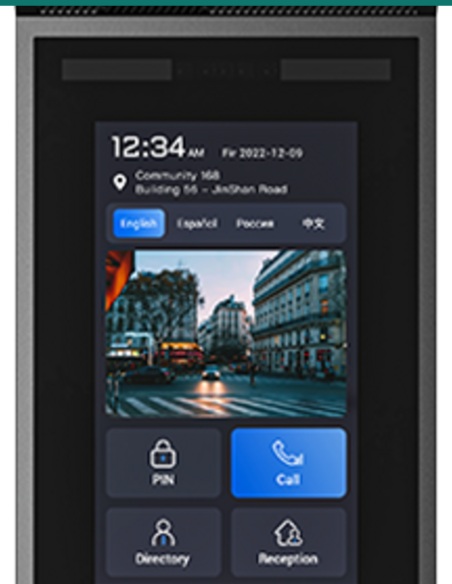

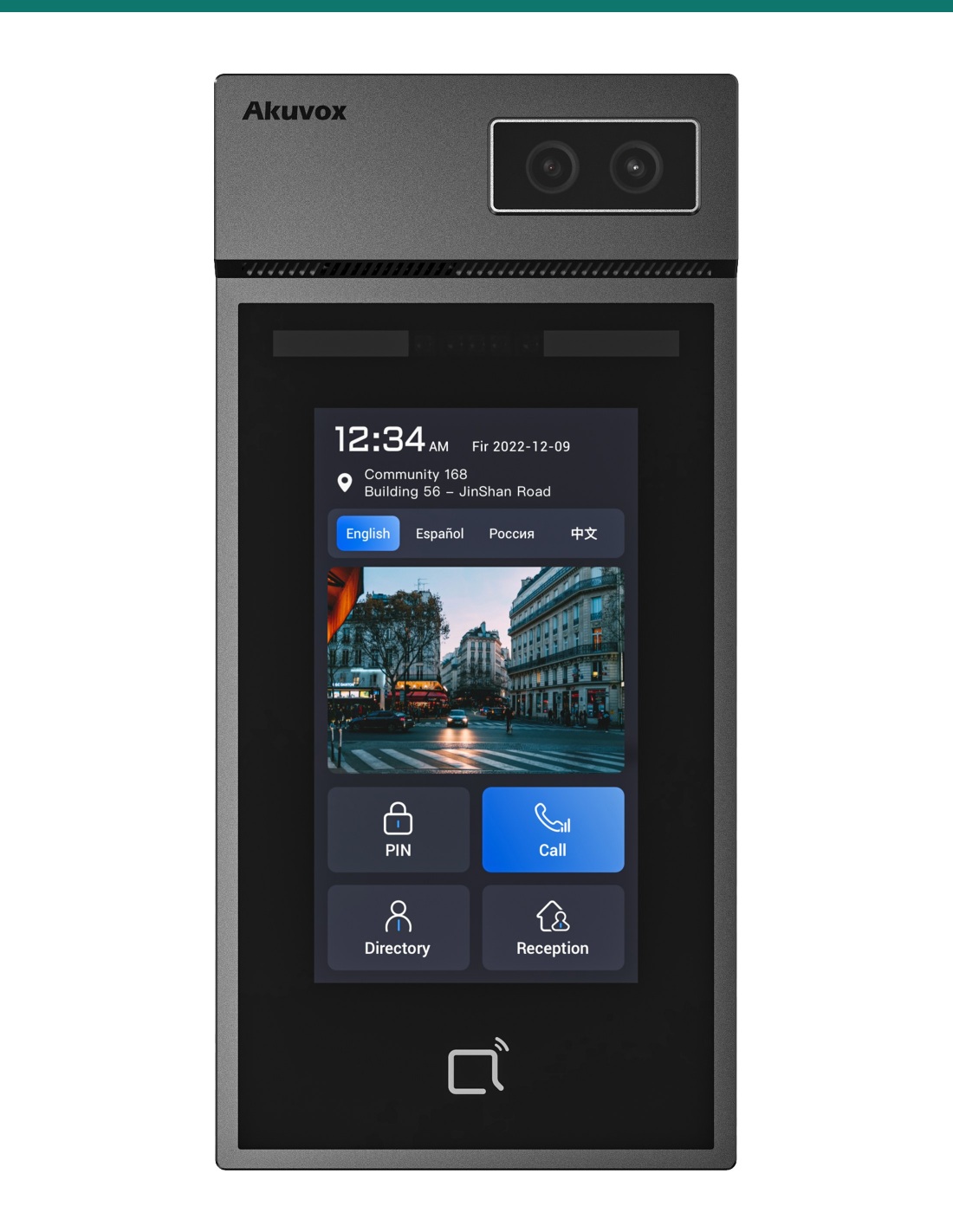

Akuvox S535 with induction loop module — S535 door phone on its own

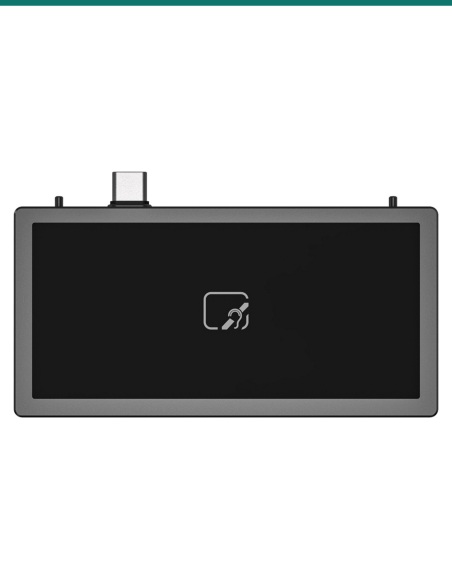

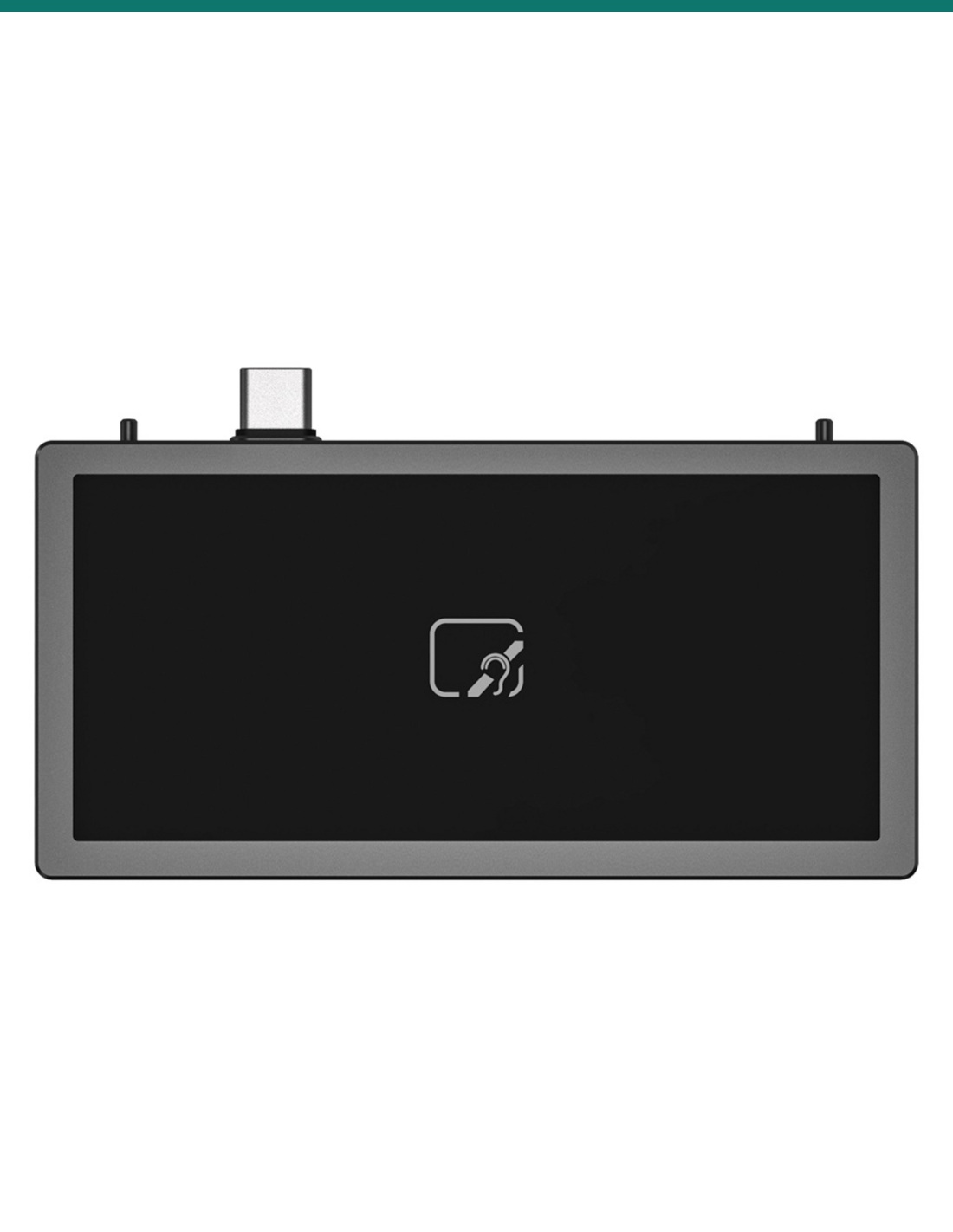

Akuvox S535 induction loop expansion module

Akuvox S535 5″ Facial Recognition Door Phone with Induction Loop Module Kit — AK-S535-IL-KIT

AK-S535-IL-KIT
In Stock - Ready to Ship
$ 1,078.50
inc-GST

or 4 interest-free payments of $269.62 with

Akuvox S535 induction loop kit pairs the 5-inch facial recognition door phone with its hearing-loop expansion module, so hearing-aid users hear the call clearly at the door. Face, card, PIN, Bluetooth and QR entry, IP66 / IK08 aluminium, PoE+.

  • ✓S535 door phone and induction loop expansion module in one SKU
  • ✓Hearing-loop audio for visitors and residents using hearing aids
  • ✓Face, card, PIN, BLE and QR code entry · 20,000 faces, 100,000 cards
  • ✓PoE 802.3at or 12 V DC · IP66 / IK08 · 260 × 100 × 27 mm assembled

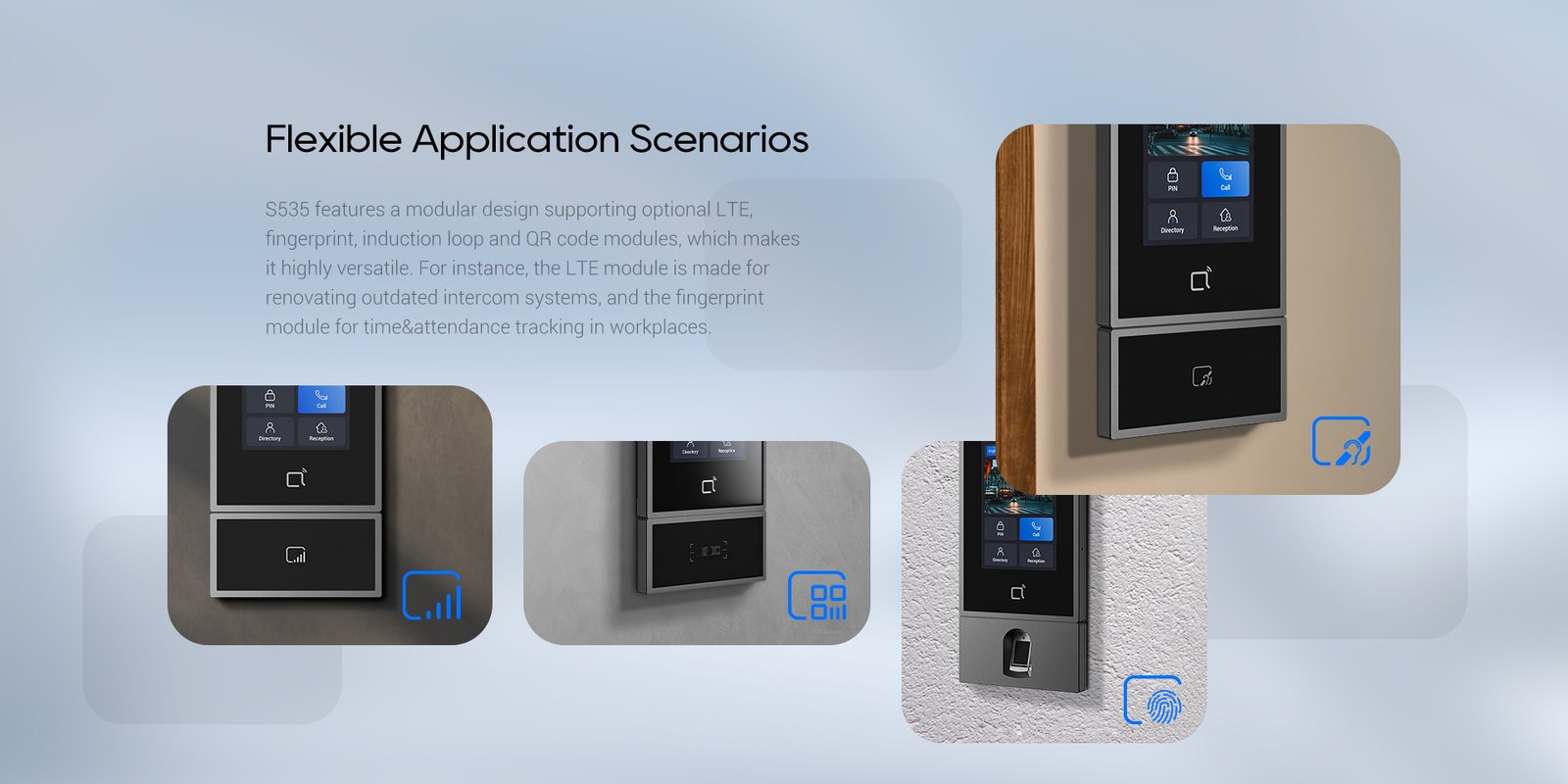

Akuvox S535 modular door phone with LTE, QR, fingerprint and induction loop modules
Akuvox · S535 · Induction loop kit

A door phone everyone can hear.
S535 with the induction loop module.

The AK-S535-IL-KIT bundles Akuvox’s S535 5-inch facial recognition door phone with the S535 induction loop expansion unit. The loop sends call audio straight to hearing aids, making the entrance easier to use for people with hearing loss.

This kit is the S535 door station plus the induction loop module.

You receive the S535 main unit with its wiring accessories and the induction loop expansion module with its fixing screws. The mounting box is not included — use the S535 box made for an expansion module.

In the box
  • Akuvox S535 door station
  • S535 induction loop expansion module and 2 shoulder screws
  • Wiring cover, cable plugs, 9-pin and 6-pin cables
  • Torx wrench, screws and diode
What you also need (sold separately)
  • S535 on-wall or in-wall box for use with a module
  • PoE 802.3at switch / injector, or 12 V DC 3–4 A supply
  • Compatible Akuvox indoor monitor, SmartPlus app or SIP endpoint
  • Electric lock / maglock and lock PSU

Clear calls for hearing-aid users.

Visitors and residents with a hearing aid switched to its loop setting hear the conversation directly, without background street noise. Everyone else gets the full S535: face entry, cards, PINs, phones and QR codes.

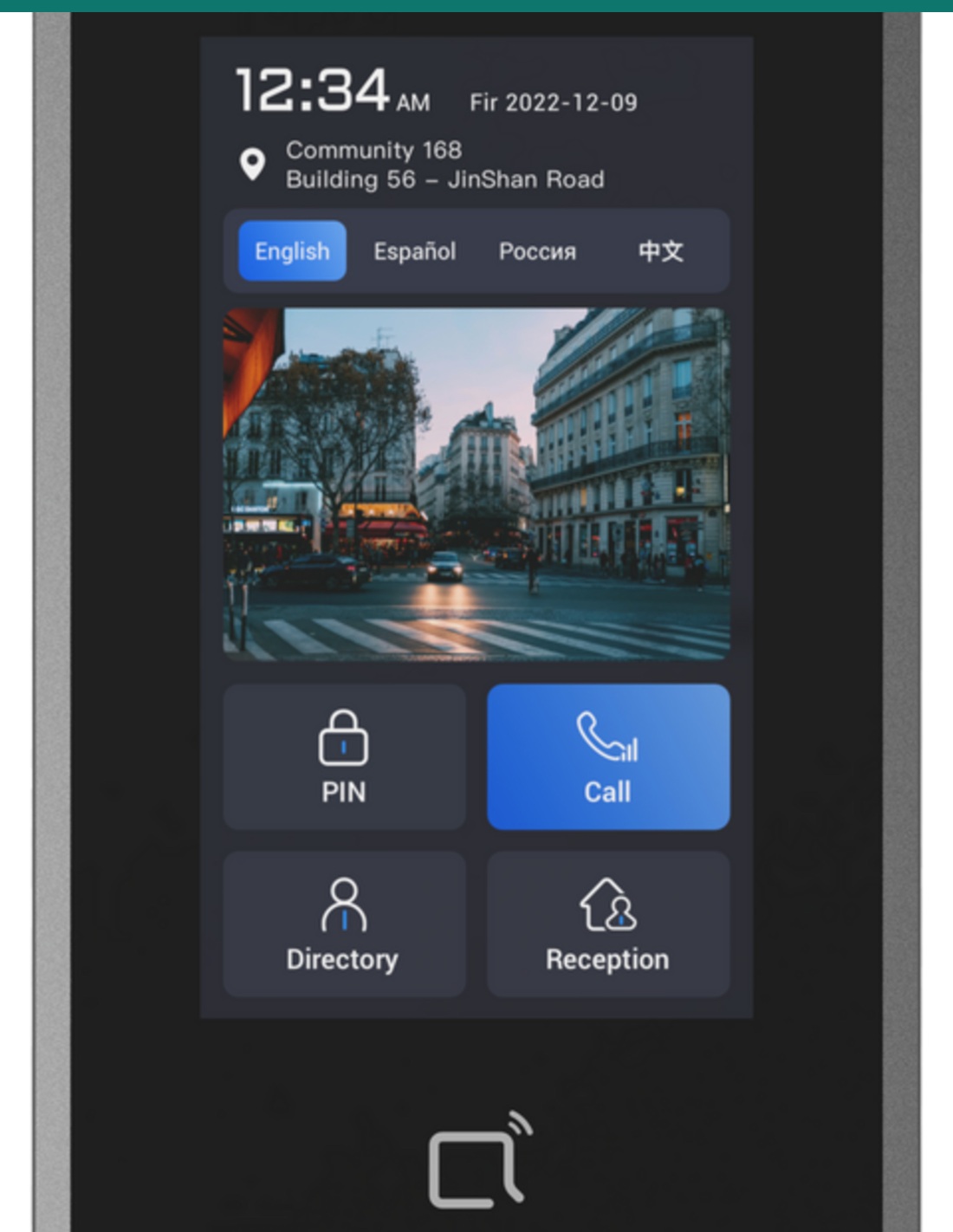

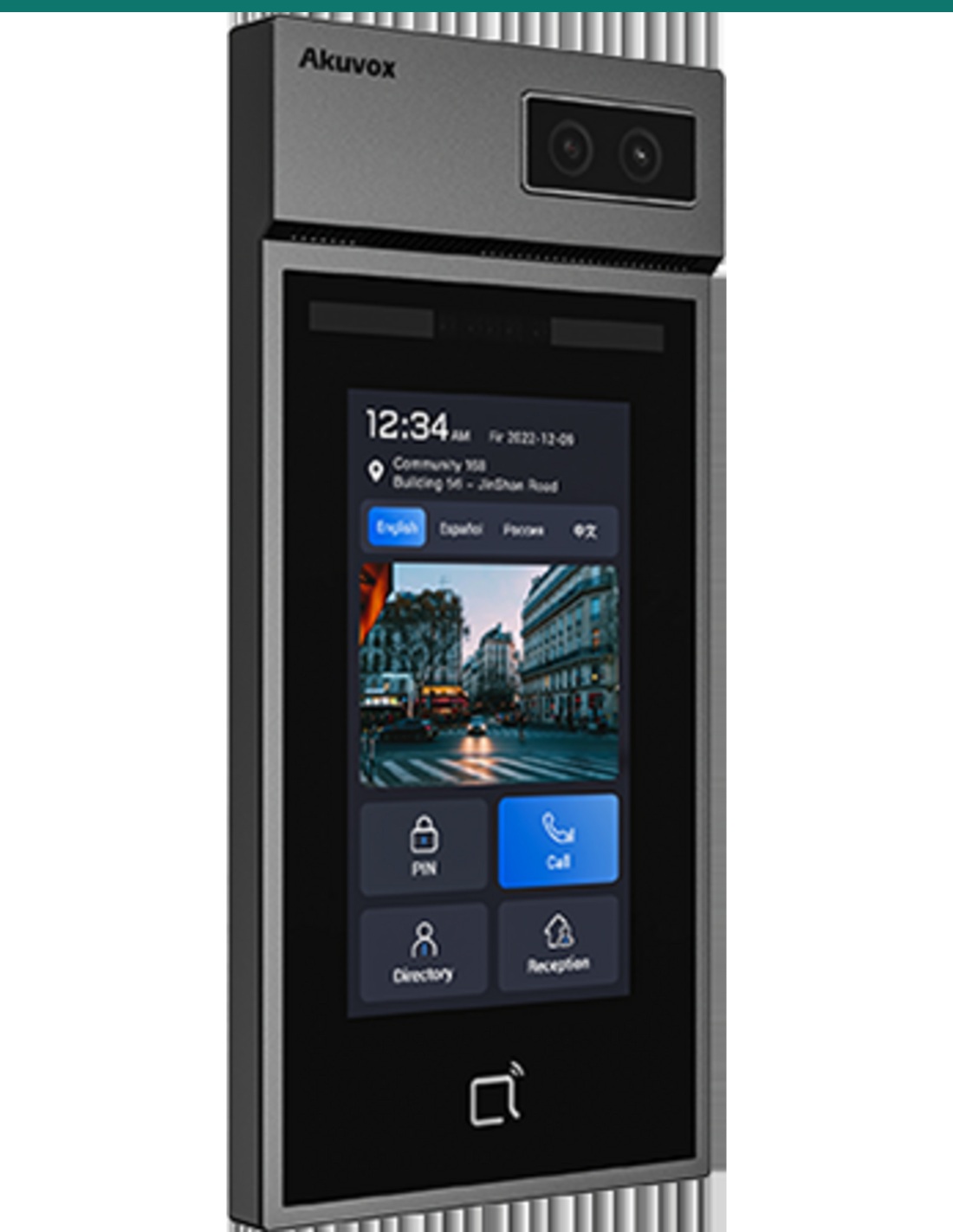

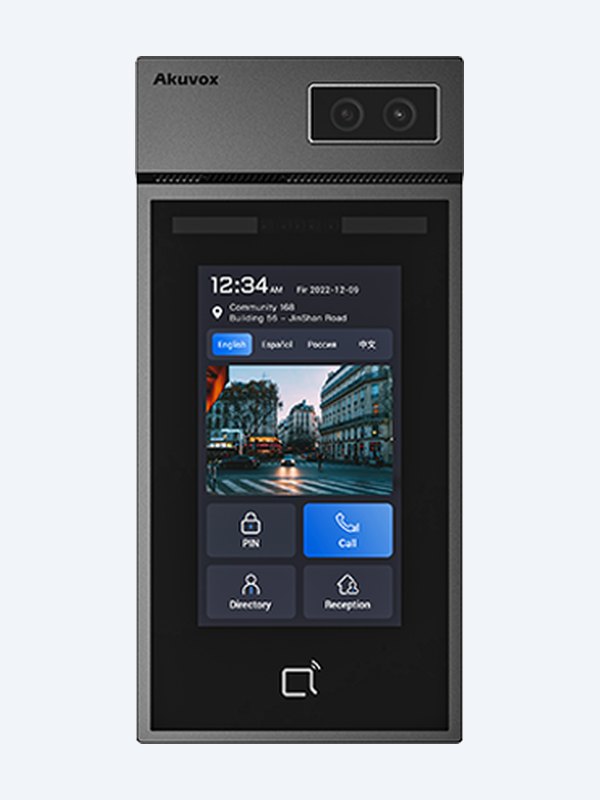

Akuvox S535 door phone front with 5-inch touchscreen

Recognition

Residents walk straight in.

A 5-inch 720 × 1280 touchscreen, a 2 MP main camera and a 2 MP face-liveness camera. Akuvox quotes face matching in under 200 ms at 99.7% accuracy.

Up to 20,000 face templates, 100,000 cards and 100,000 PINs. Visitors use the on-screen directory to call a flat; video streams over RTSP and ONVIF to your NVR.

Built for outside

IP66, IK08 and −40 °C rated.

Aluminium front panel, IP66 against water and dust and IK08 for impact, rated −40 °C to +55 °C.

The loop module plugs into the expansion port with no extra wiring and takes the plate to 260 mm tall. Mount it in the S535 box made for modules.

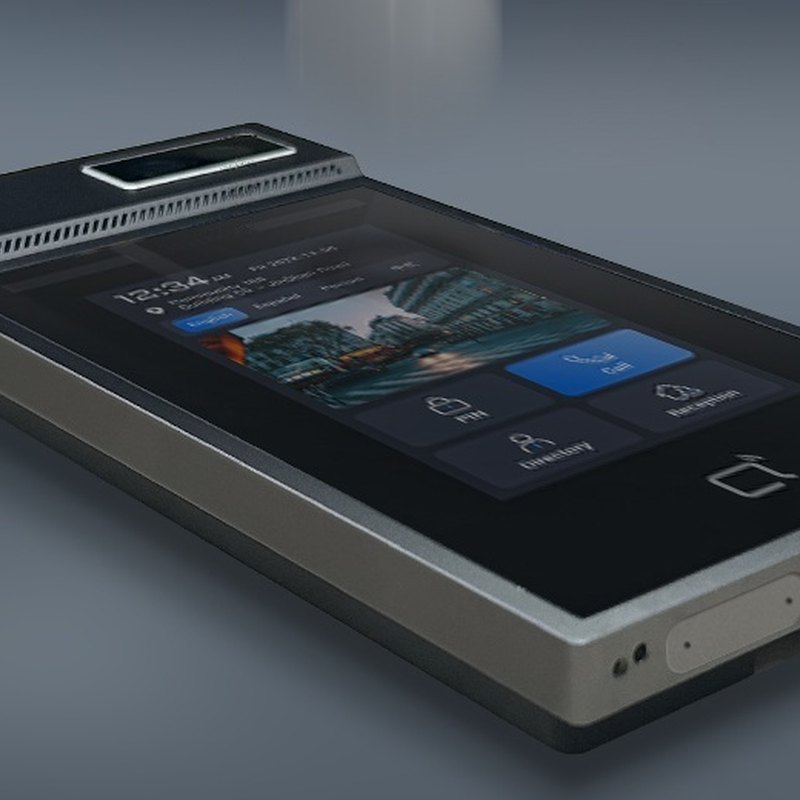

Akuvox S535 aluminium door phone rated IP66 and IK08

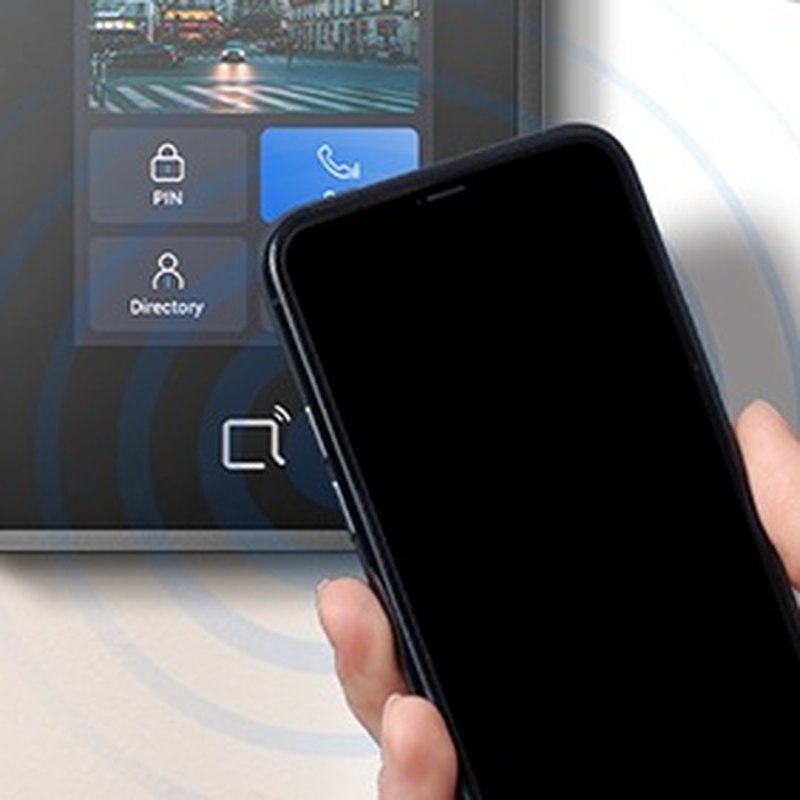

Phone tapped to an Akuvox S535 door phone for Bluetooth entry

Mobile access

Phones, cards and QR codes too.

BLE 5.0 supports hands-free entry, tap-to-go and shake-to-open with the Akuvox SmartPlus app, plus NFC and the Akuvox Bkey fob.

The 13.56 MHz and 125 kHz reader takes EM, MIFARE, DESFire EV2 / EV3 and FeliCa cards. One relay, two inputs, Wiegand and RS485 link to locks and access controllers.

How it works

From bare wall to first call.

01

Fit the box

Install the S535 on-wall or in-wall box for use with a module — it is taller than the standard box.

02

Attach the module

Remove the expansion port cover, plug in the induction loop module and secure it with the shoulder screws.

03

Wire and power

Connect PoE+ or 12 V DC and the lock, then register to Akuvox monitors, SmartPlus or your SIP PBX.

04

Test with a hearing aid

Place a call and check the loop with a hearing aid on its T setting, then confirm the relay releases the door.

Pair it with

Builds a complete door entry system

Mount

S535 box for use with modules

The taller in-wall or on-wall box made for the S535 plus one expansion module.

Indoor

Akuvox indoor monitor

Residents answer, see the visitor and release the door from an Akuvox SIP monitor or the SmartPlus app.

Credentials

MIFARE cards and fobs

Akuvox 13.56 MHz cards work with the S535 reader once enrolled.

Lock

Electric lock / maglock

The relay switches your lock power supply. Strike, maglock and PSU are separate items.

Works with

Platforms and integrations

SIP PBX and softphones

Standard SIP v1 / v2 lets the S535 call Akuvox monitors, IP phones or extensions on your own PBX.

NVRs over ONVIF / RTSP

Record the 1080p HDR entrance picture on an ONVIF or RTSP-capable NVR alongside your CCTV cameras.

Akuvox SmartPlus

Residents answer video calls, open the door and use Bluetooth or QR-code entry from the SmartPlus app.

Wiegand and RS485 access control

The selectable Wiegand port and RS485 connect third-party access controllers, readers and Akuvox relay modules.

Watch

See it in action

Installing the S535 with an expansion module
Akuvox S535 face recognition door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Is this only the induction loop module?

No. This kit includes the S535 door station and the induction loop module. The module on its own is AK-S535-IL.

Who benefits from the induction loop?

People whose hearing aids or cochlear implants have a T (telecoil) setting. Call audio is delivered straight to the device.

Which mounting box do I need?

The S535 on-wall or in-wall box made for modules. The standard S535 box is too short for the 260 mm assembled height; flush installs need a 255.5 × 94 × 34 mm opening.

What power does it need?

IEEE 802.3at PoE+, or a 12 V DC 3 A supply — 4 A if the 12 V / 500 mA output also powers a lock or reader.

Does the loop change how other people use the door?

No. Face, card, PIN, Bluetooth, NFC and QR entry and the on-screen directory work exactly as on a standard S535.

Will it record to my NVR?

Yes. The S535 supports ONVIF and RTSP, so most ONVIF-capable NVRs can add it as a camera channel.

Is an indoor monitor included?

No. Pair it with a compatible Akuvox indoor monitor, the SmartPlus app or any SIP endpoint.

An accessible entrance.

Choose the induction loop kit for apartments, aged-care, medical and public buildings where hearing-aid users need to use the intercom.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3at PoE+ or a 12 V DC, 3 A supply (4 A with the 12 V output in use). Power the station off before fitting or removing the module.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Power
PoE 802.3at or 12 V DC 3–4 A
Colour
Dark grey
Capacity
20,000 faces, 100,000 cards, 100,000 PINs
Working Temperature
−40 °C to +55 °C
Brand
Akuvox
Display
5″ IPS touchscreen, 720 × 1280
Protection
IP66 / IK08
Face Recognition
Under 200 ms, 99.7% accuracy
Camera
2 MP main + 2 MP face-liveness, 116° (H) / 62° (V)
Size
260 × 100 × 27 mm (H × W × D) assembled
Warranty
Australian warranty
Video
H.264, HDR, 1080p at 30 fps
Product Type
Facial recognition door station kit
Model
S535 + induction loop module
RF Reader
13.56 MHz and 125 kHz, NFC
I/O
1 relay, 2 inputs, Wiegand, RS485, 12 V / 500 mA output
OS
Linux
Unlock
Face, card, PIN, BLE, NFC, QR code
Hearing support
Induction loop for hearing aids (T setting)
Card Types
EM, MIFARE, DESFire EV2 / EV3, FeliCa
