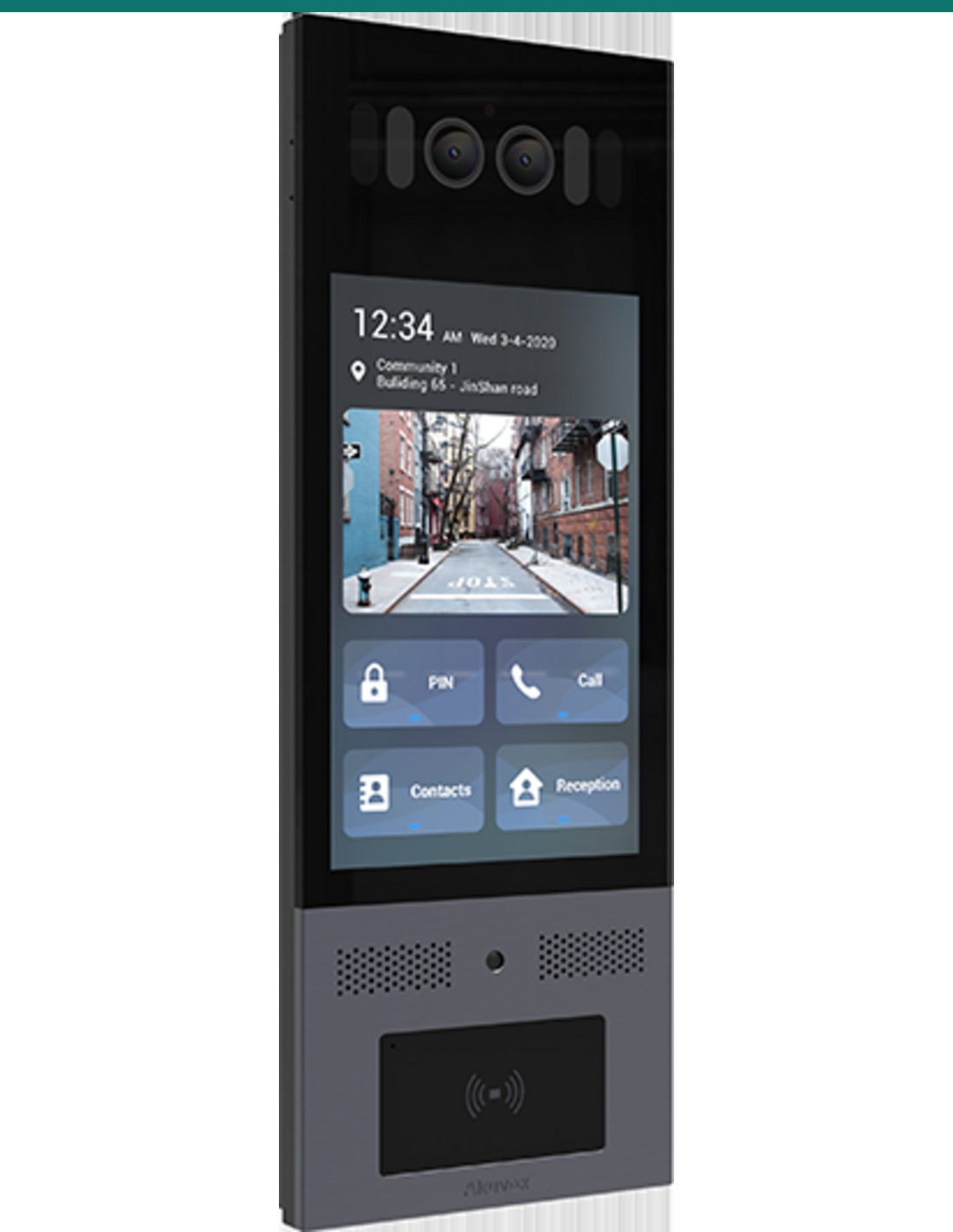

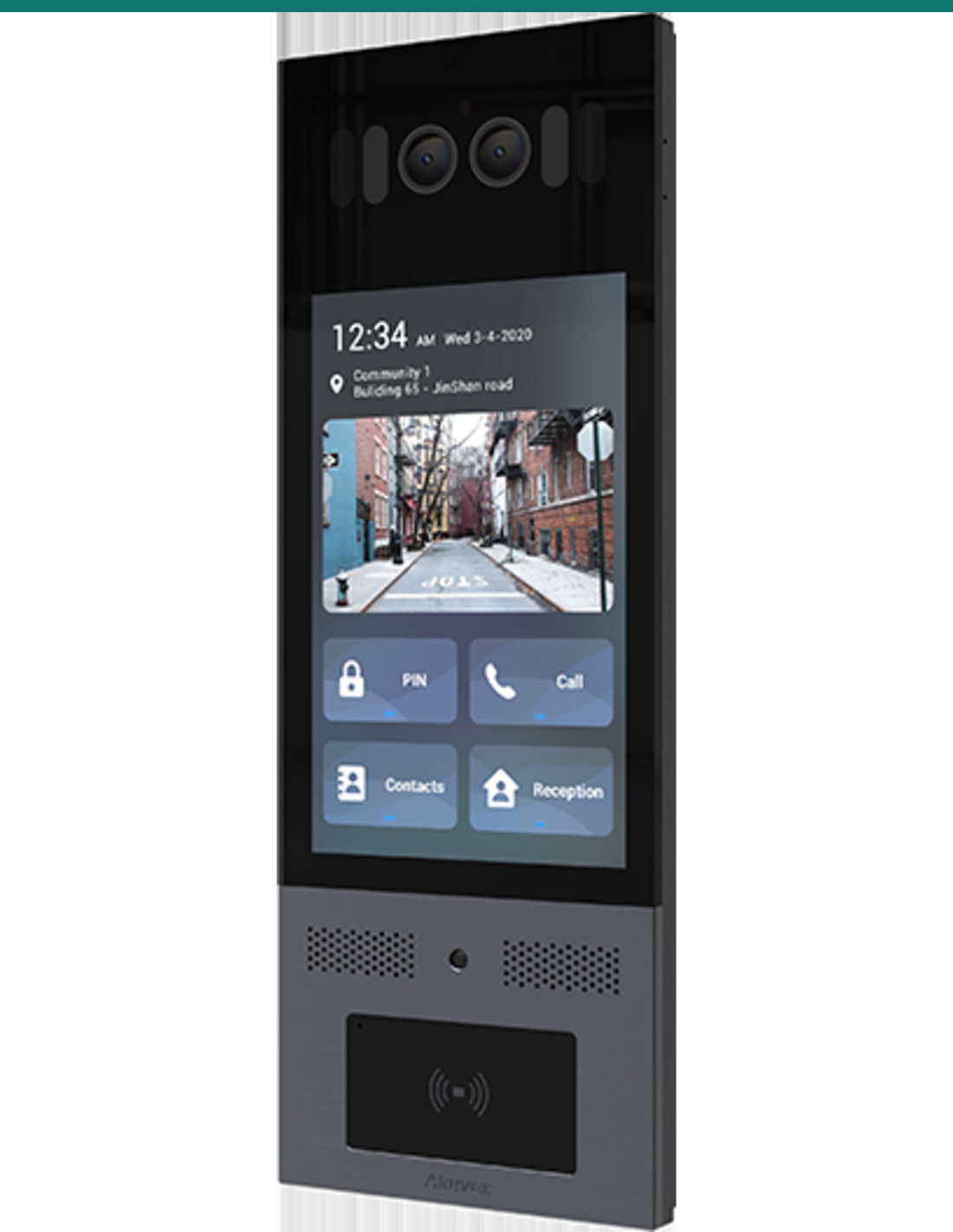

Akuvox X915S door phone — right three-quarter view

Akuvox X915S 8″ Stainless Steel Android Facial Recognition Door Phone — AK-X915S

Name: Akuvox X915S 8″ Stainless Steel Android Facial Recognition Door Phone — AK-X915S
Brand: Akuvox
SKU: AK-X915S
Price: 3028 AUD
Availability: InStock

Reference: AK-X915S

In Stock - Ready to Ship

$ 3,028.00

inc-GST

or 4 interest-free payments of $757.00 with

Akuvox X915S is an 8-inch Android door phone in 316-grade stainless steel, rated IK10 for vandal-prone entrances. A 5 MP starlight camera and 2 MP auxiliary camera handle face recognition in under 200 ms, alongside QR, card, PIN, NFC and Bluetooth entry. IP66, PoE+ — from Infront Technologies.

✓8″ IPS touchscreen (800 × 1280) on Android, 316 stainless steel panel
✓5 MP starlight HDR camera + 2 MP auxiliary, 120° (H) / 64° (V)
✓Face recognition under 200 ms at 99.7% · 20,000 faces · 100,000 cards
✓PoE 802.3at or 24 V DC · IP66 / IK10 · −40 °C to +60 °C

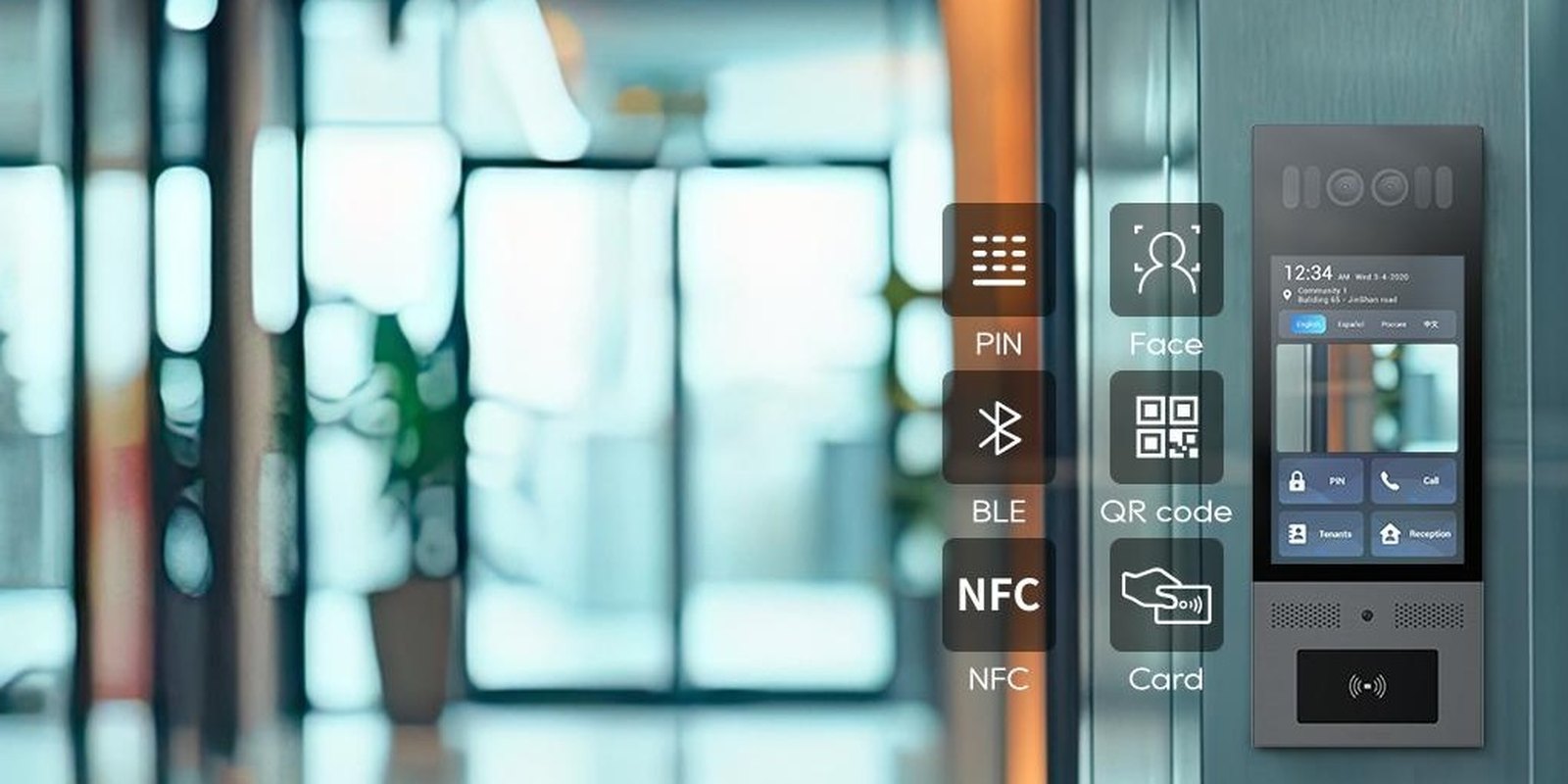

Akuvox X915S with PIN, face, BLE, QR, NFC and card entry options in a lobby

Akuvox · X915S · Stainless steel Android door phone

Stainless steel for the toughest entrances.
8-inch Android, IK10 and −40 °C rated.

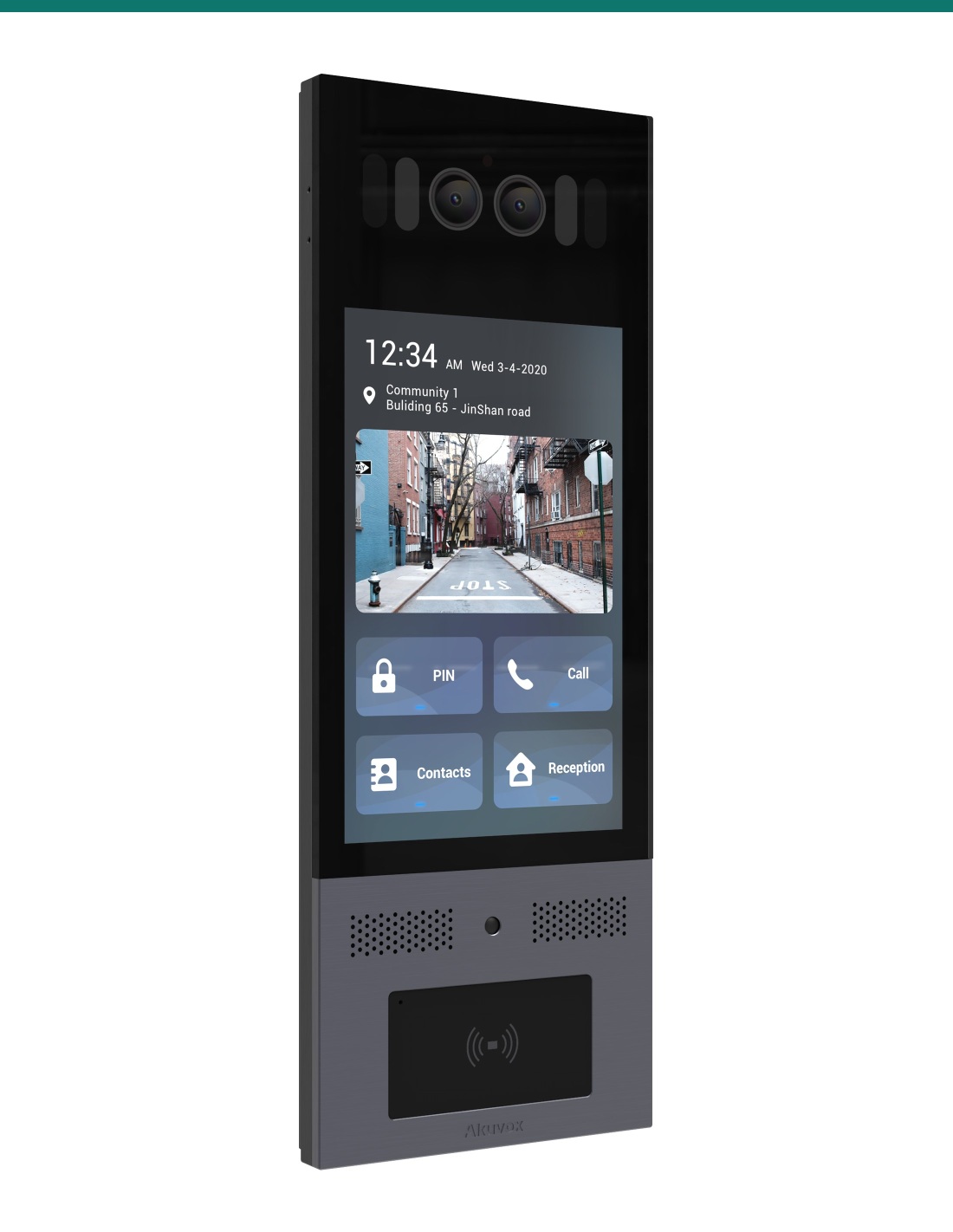

The AK-X915S is Akuvox’s 8-inch Android facial recognition door station in a 316-grade stainless steel panel. A 5 MP starlight camera, a 2 MP auxiliary camera, dual speakers and microphones, three relays and a dual-frequency card reader are built for condominiums, office buildings and gated communities.

This SKU is the X915S door station only.

You receive the X915S main unit with its wiring accessories. Choose the X915 on-wall or in-wall installation kit, and a rain hood or angle kit as needed — sold separately, as are indoor monitors, PoE switch and lock hardware.

In the box

Akuvox X915S door station
Akuvox accessory pack and quick guide

What you also need(sold separately)

X915 on-wall or in-wall installation kit
PoE 802.3at switch / injector, or 24 V DC 2.5 A supply
Akuvox indoor monitor, SmartPlus app or SIP endpoint
Electric lock / maglock and lock PSU

Six ways in, one panel.

Residents walk in by face or Bluetooth; staff use a card, NFC phone or PIN; visitors call from the 8-inch directory or scan a QR code. The SmartPlus app adds remote unlock and time-limited virtual keys.

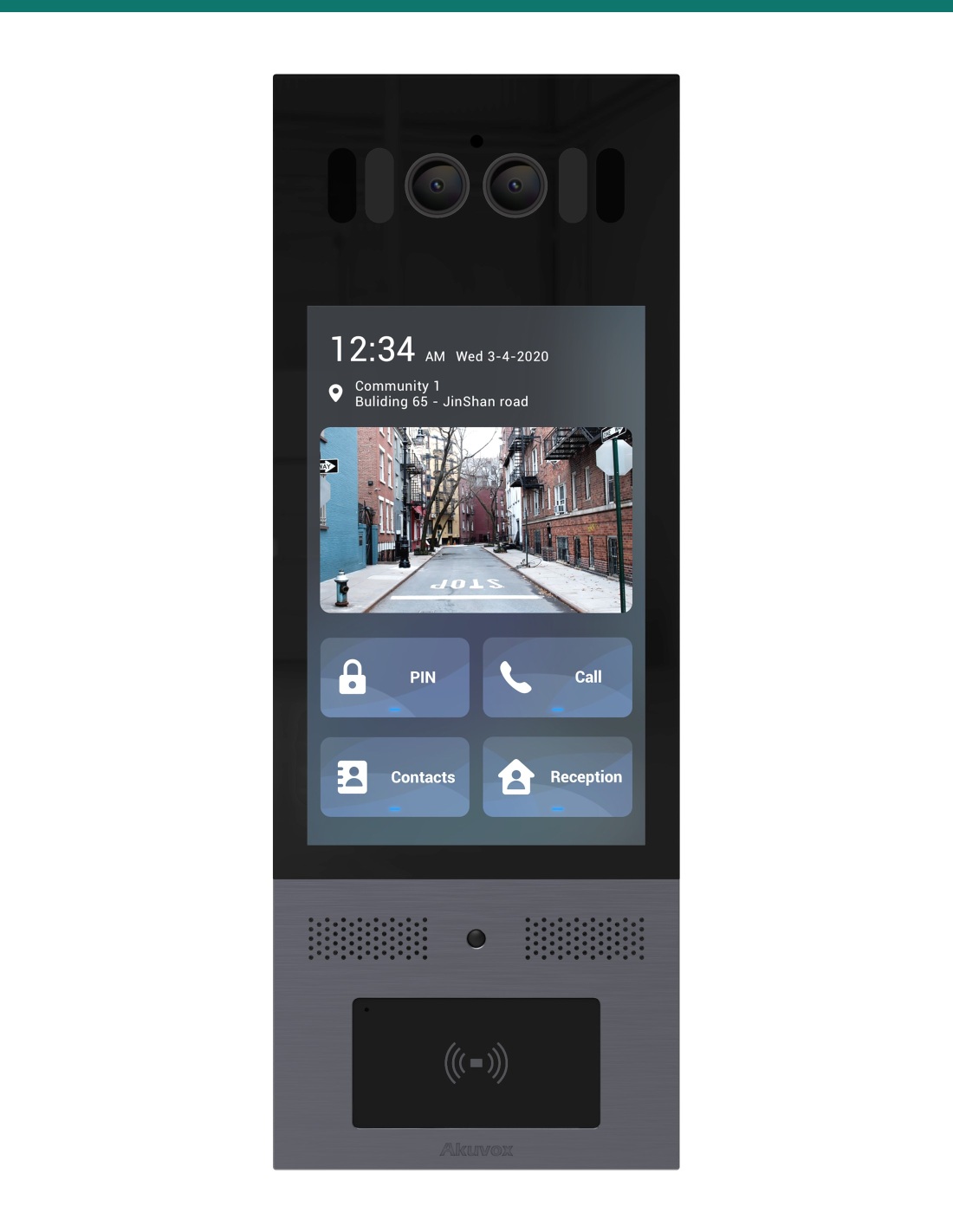

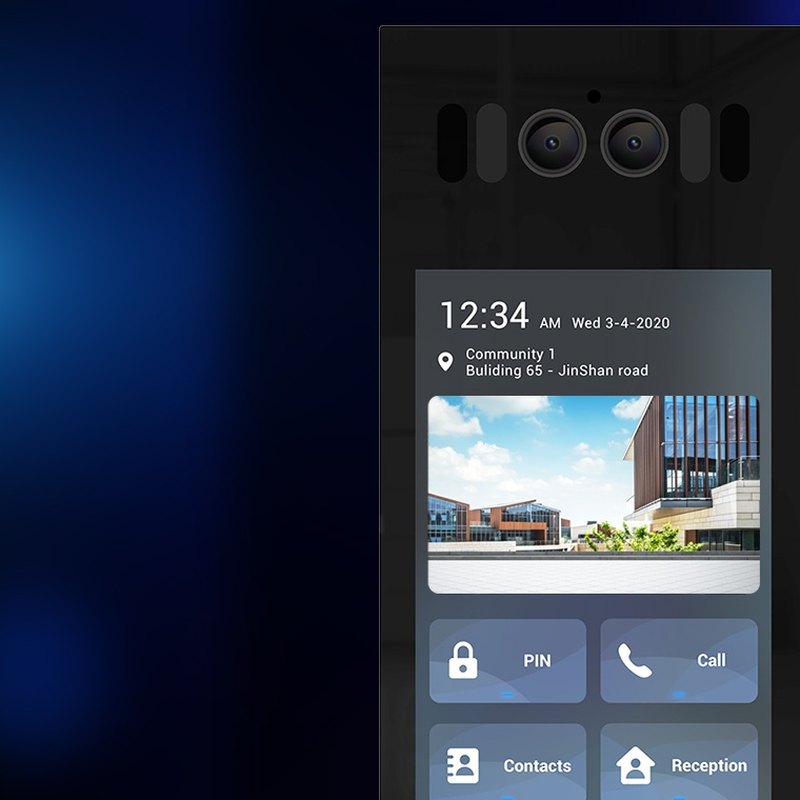

Akuvox X915S 8-inch screen and dual cameras

Recognition

Under 200 ms, day or night.

The 5 MP starlight main camera with HDR covers 120° (H) / 64° (V) and streams 1080p at 30 fps. Akuvox quotes face recognition in under 200 ms at 99.7% accuracy.

Up to 20,000 users, 20,000 face templates, 100,000 cards and 20,000 PINs are stored on the station. IR and white-light LEDs support night use down to 0.1 lux.

Build

316 stainless, IK10, IP66.

The front panel is 316-grade stainless steel, rated IK10 for impact and IP66 for dust and water. Working temperature runs from −40 °C to +60 °C.

Flush-mount or surface-mount with the X915 installation kits; add a rain hood or the on-wall angle kit to suit the entrance.

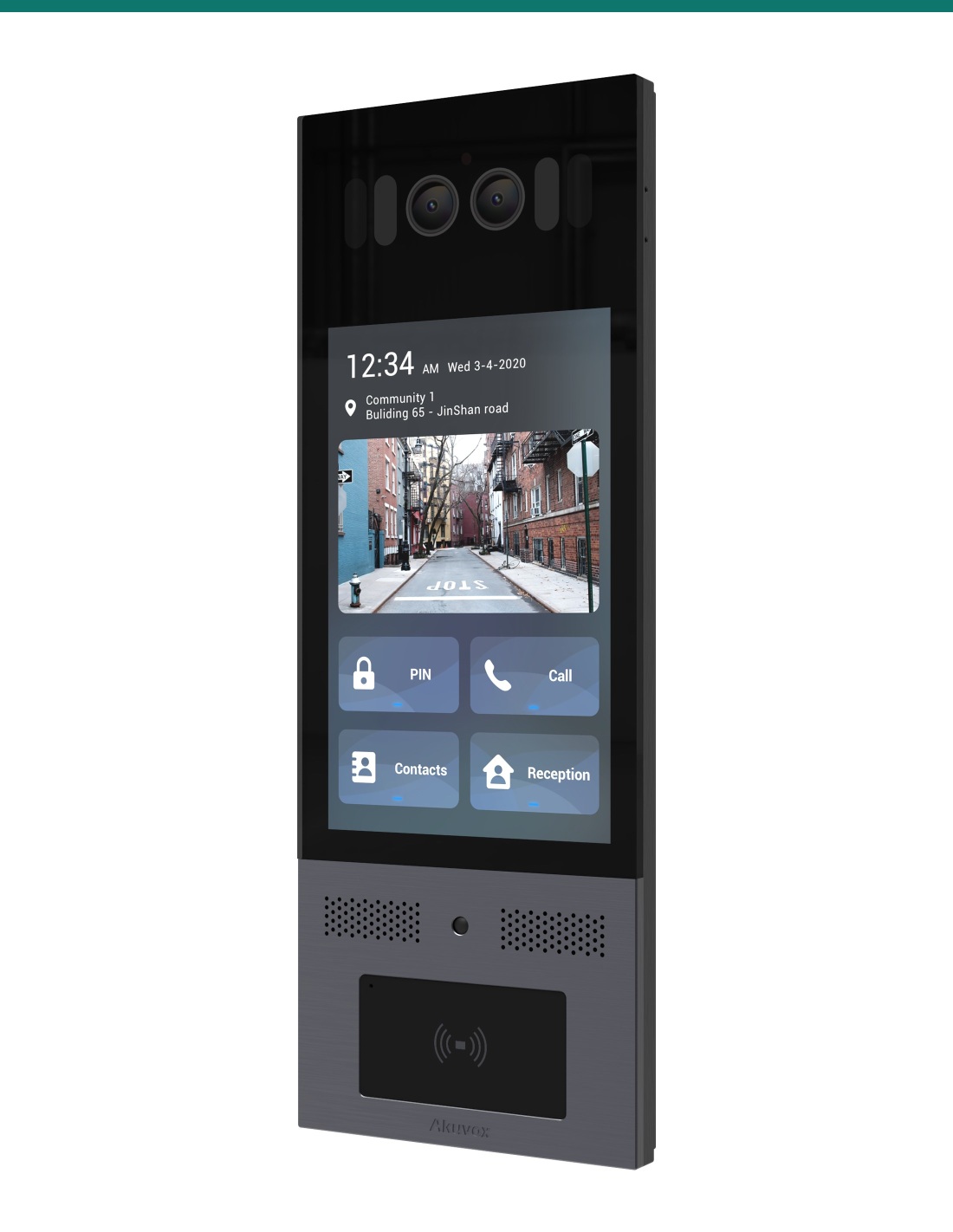

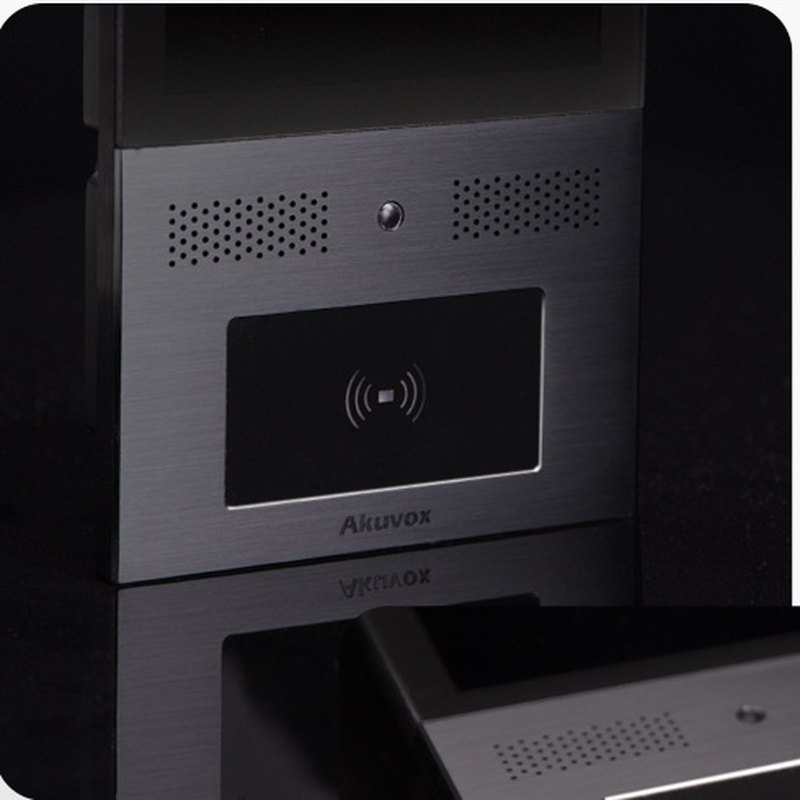

Akuvox X915S stainless steel card reader panel

Access

Three relays, open platform.

Three relays and three inputs drive doors, gates and exit buttons, with Wiegand and RS485 for access control panels. The reader handles 13.56 MHz and 125 kHz EM, MIFARE and DESFire EV1 / EV2 / EV3 cards plus NFC.

Android lets integrators install third-party apps or customise the interface, while auto-provisioning and the web portal simplify large rollouts.

How it works

From bare wall to recognised face.

Fit the kit

Install the X915 on-wall or in-wall kit, plus rain hood or angle kit if needed.

Wire and power

Connect PoE 802.3at or 24 V DC, then the lock relays, exit buttons and door sensor inputs.

Register and enrol

Test the door

Check face and QR entry day and night, make a test call and confirm each relay releases its lock.

At a glance

Key specs — AK-X915S

Brand: Akuvox
Reference: AK-X915S
Front panel: 316-grade stainless steel
Display: 8″ IPS LCD touchscreen, 800 × 1280
Cameras: 5 MP starlight main (1/2.7″ CMOS, HDR) + 2 MP auxiliary
Field of view: 120° (H) / 64° (V)
Video: H.264, up to 1920 × 1080 at 30 fps
Face recognition: Under 200 ms, 99.7% accuracy
RF reader: 13.56 MHz and 125 kHz, NFC
Card types: EM, MIFARE, DESFire EV1 / EV2 / EV3
Unlock: Face, card, PIN, QR code, BLE, DTMF
Capacity: 20,000 users · 20,000 faces · 100,000 cards · 20,000 PINs
I/O: 3 relays, 3 inputs, Wiegand, RS485, line out, tamper
Audio: 2 microphones, 2 speakers, SIP v1 / v2, G.711, G.722, echo cancellation
Network: RJ45 10/100 Mbps, ONVIF, RTSP, BLE 5.0
Power: PoE 802.3at or 24 V DC / 2.5 A
Protection: IP66 · IK10
Size: 350 × 130 × 37.9 mm (H × W × D)
Working temperature: −40 °C to +60 °C
OS: Android
Warranty: Australian warranty via Infront Technologies

Pair it with

Builds a complete door entry system

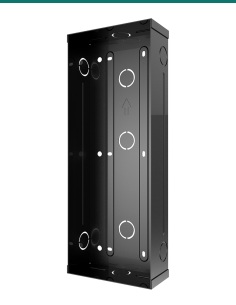

Mount

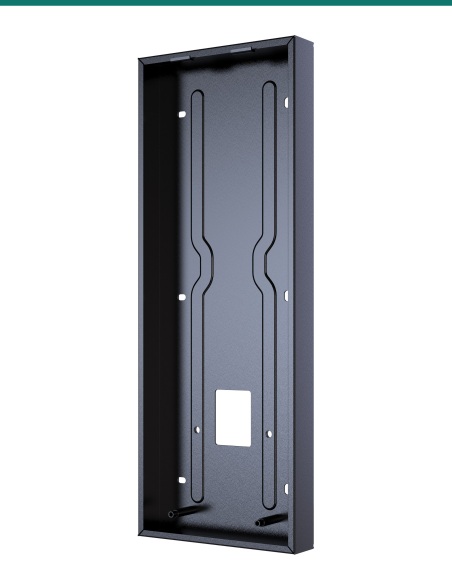

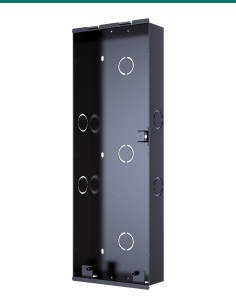

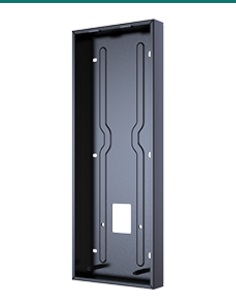

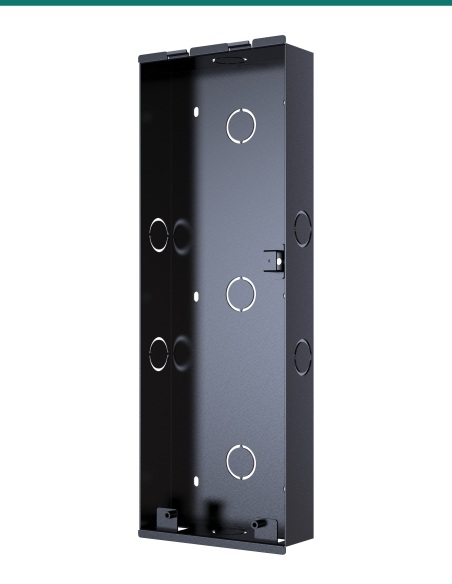

X915 on-wall or in-wall kit

Required to mount the station on the wall surface or flush in a cavity.

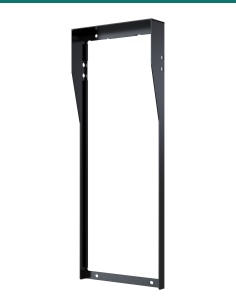

Weather

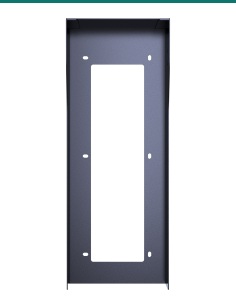

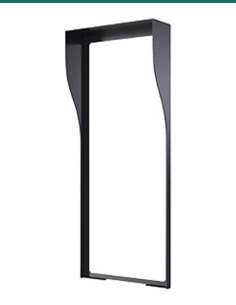

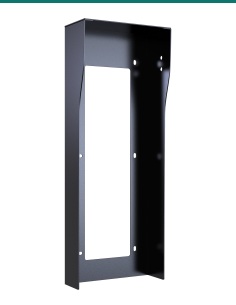

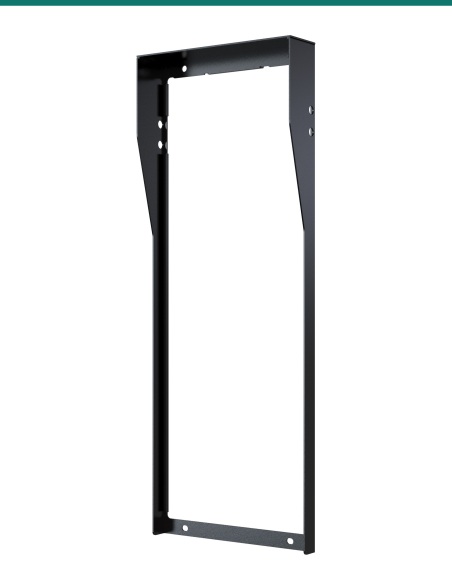

X915 rain hood

On-wall and in-wall rain hoods shelter the screen at exposed entrances.

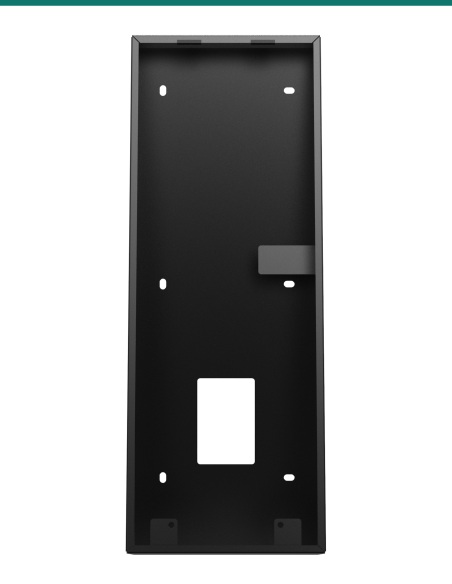

Angle

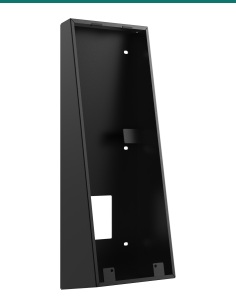

X915 on-wall angle kit

Mounts the X915 at an angle on the wall.

Indoor

Akuvox indoor monitor

Residents answer, see the visitor and release the door from an Akuvox SIP monitor or the SmartPlus app.

Watch

See it in action

Akuvox X915 door phone overview

Mounting the X915 door phone

Answers

Common questions

Is a mounting kit included?

No. Use the X915 on-wall or in-wall installation kit, sold separately. Rain hoods and an on-wall angle kit are also available.

What power does it need?

IEEE 802.3at PoE or a 24 V DC / 2.5 A supply.

How tough is it?

The 316 stainless steel panel is rated IK10 for impact and IP66 for dust and water, and works from −40 °C to +60 °C.

Does this version include palm-vein or HID readers?

No. The X915S has face, EM / MIFARE / DESFire card, NFC, PIN, BLE and QR entry. Ask us about other X915 versions.

Premium build for premium buildings.

Choose the X915S for lobbies and gates that need an 8-inch screen, facial recognition and a stainless panel that shrugs off abuse. Order through Infront Technologies for Australian supply and help pairing kits, monitors and lock control.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3at PoE or a 24 V DC / 2.5 A supply as stated on the Akuvox X915S datasheet.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
