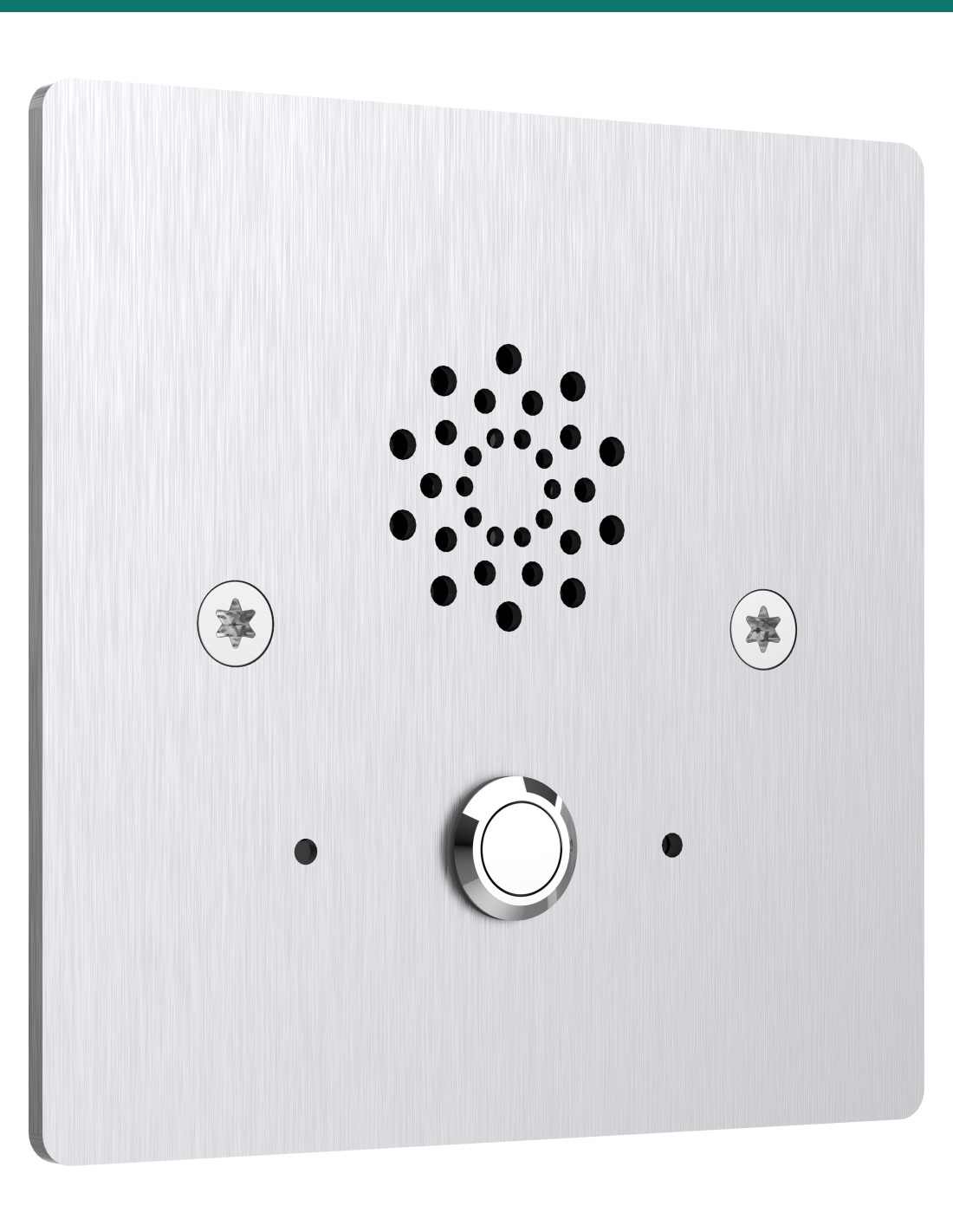

Akuvox E20S emergency intercom — left three-quarter view

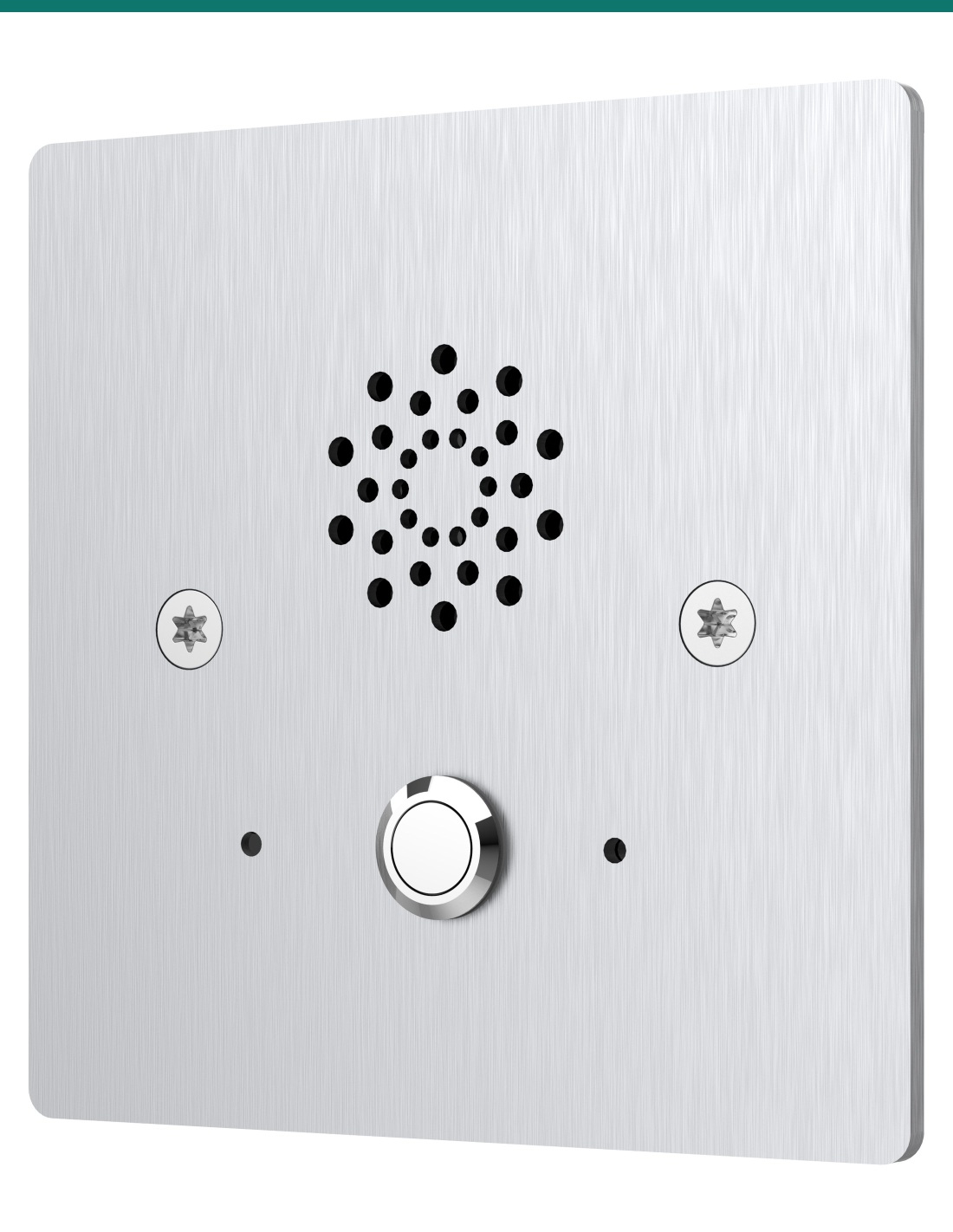

Akuvox E20S emergency intercom — right three-quarter view

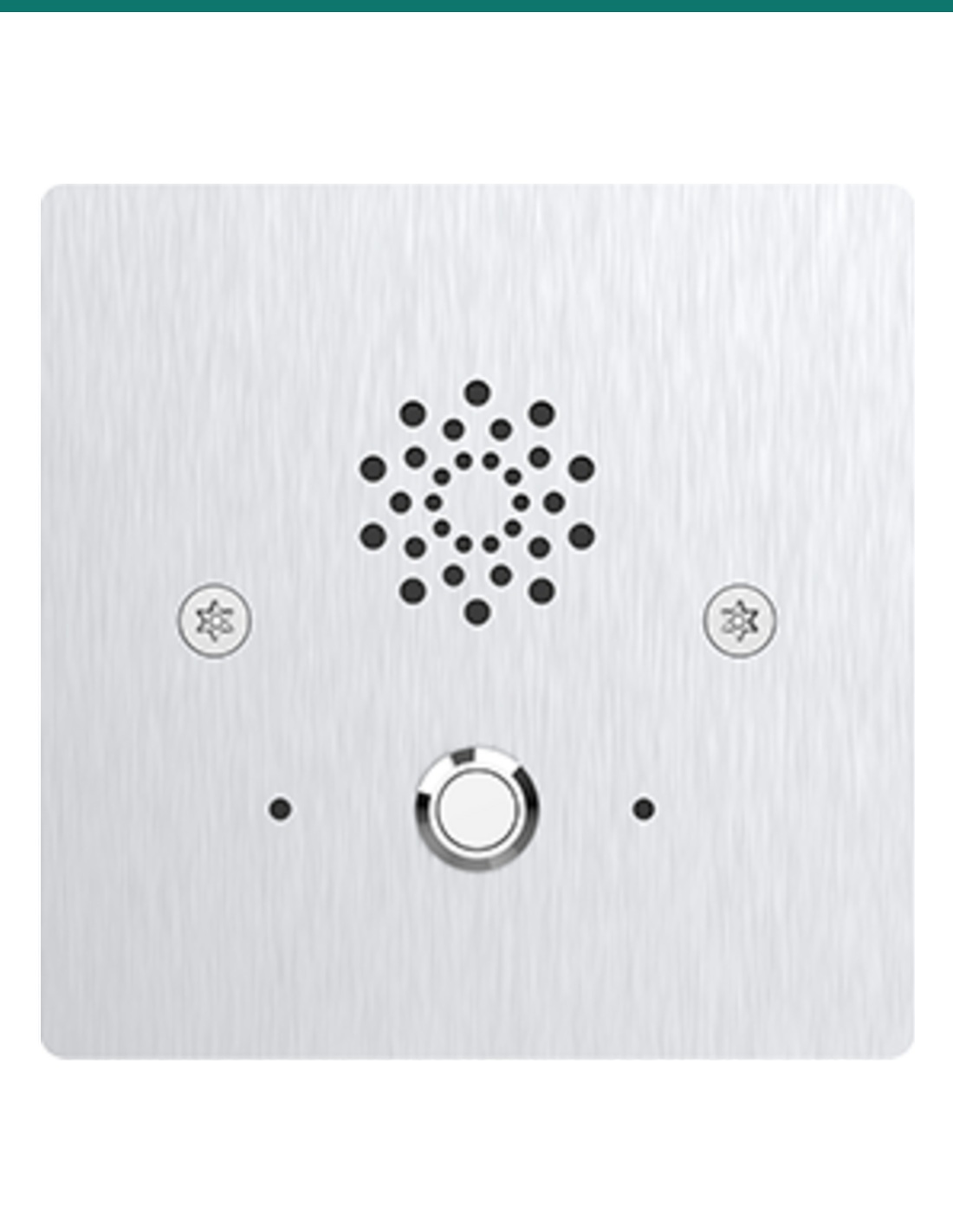

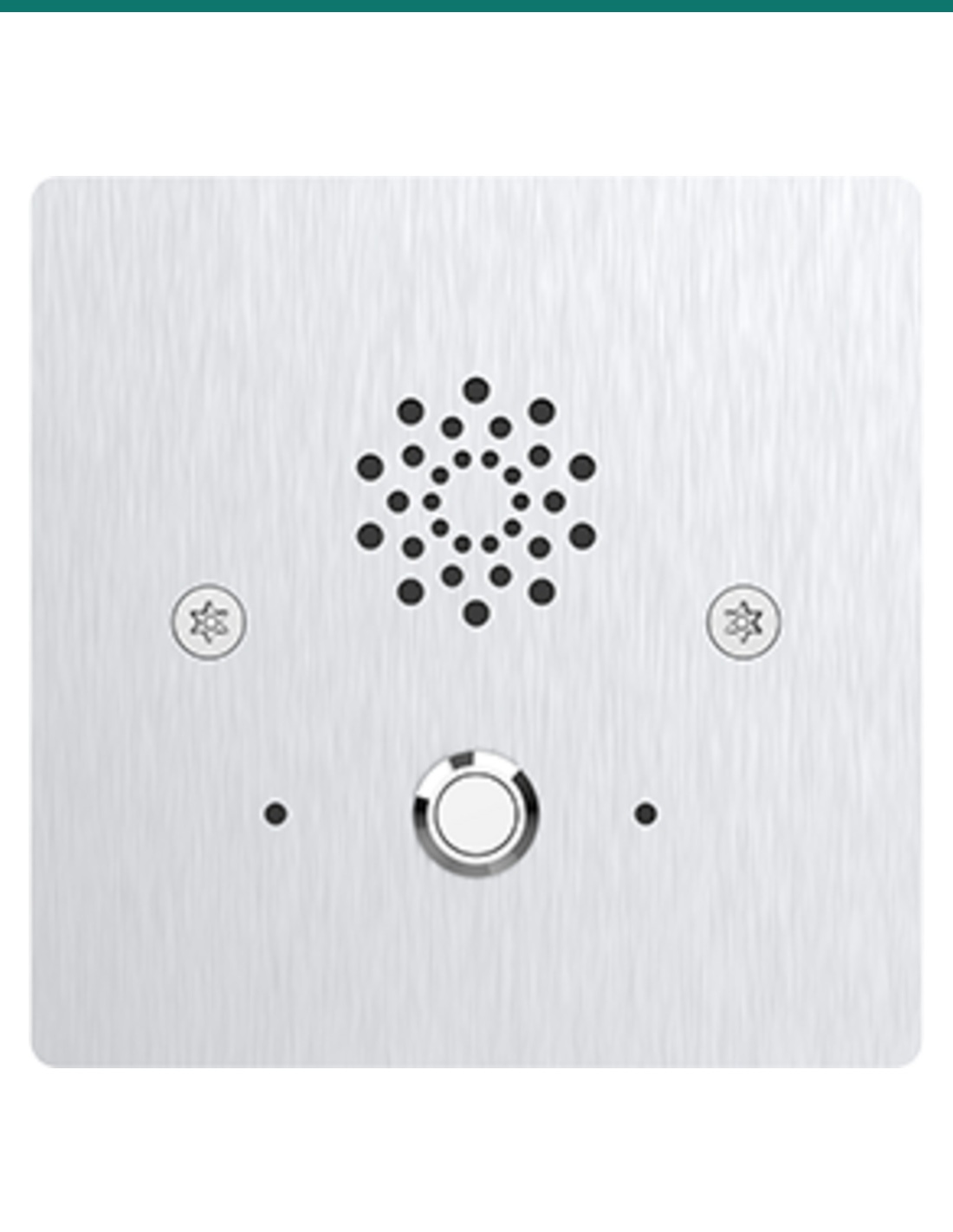

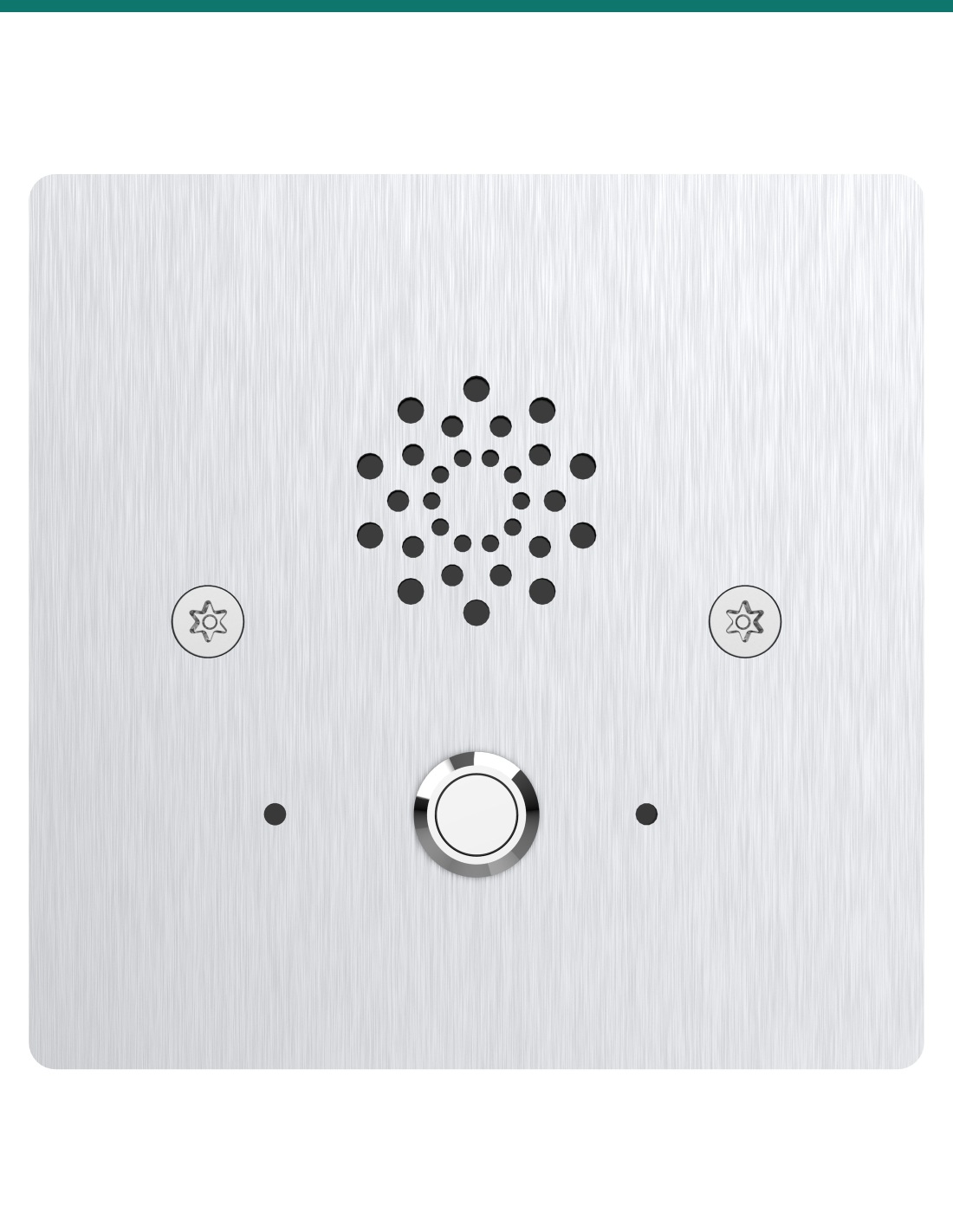

Akuvox E20S Stainless Steel SIP Emergency Push-Button Intercom — AK-E20S

Name: Akuvox E20S Stainless Steel SIP Emergency Push-Button Intercom — AK-E20S
Brand: Akuvox
SKU: AK-E20S
Price: 352 AUD
Availability: InStock

Reference: AK-E20S

In Stock - Ready to Ship

$ 352.00

inc-GST

or 4 interest-free payments of $88.00 with

Akuvox E20S is a palm-sized SIP emergency intercom: one push button, hands-free speaker and microphone, and a 316-grade stainless steel IK10 front. It flush-mounts on a standard single wall box and runs on PoE. For indoor use. Stocked in Australia by Infront Technologies.

✓One push button, hands-free two-way audio with echo cancellation
✓316-grade stainless steel front, IK10 impact rating
✓Flush-mounts on 86-type and 1299 single wall boxes · 100 × 100 × 37.7 mm
✓PoE 802.3af only · SIP v1 / v2 · G.711 and G.722 · indoor use

Akuvox E20S stainless steel SIP emergency intercom

Akuvox · E20S · SIP emergency intercom

One button for help.
Stainless, IK10, PoE.

The AK-E20S is Akuvox’s E20S push-button emergency station. Press once and it calls a guard room, reception or a SIP phone hands-free — no handset, no screen, nothing to break.

This SKU is the intercom station only.

You receive the E20S station. The in-wall box, PoE switch and the answering endpoint (indoor monitor, SIP phone or PBX) are sold separately.

In the box

Akuvox E20S emergency intercom
Quick-start guide

What you also need(sold separately)

86-type or 1299 single in-wall box (or the E20 in-wall kit)
PoE 802.3af switch or injector
SIP endpoint to answer: Akuvox indoor monitor, SIP phone or PBX

Press. Talk. Help arrives.

Lifts, car-park lobbies, disabled toilets, corridors and receptions: wherever someone may need to call for help, E20S gives them one obvious button and a clear voice line.

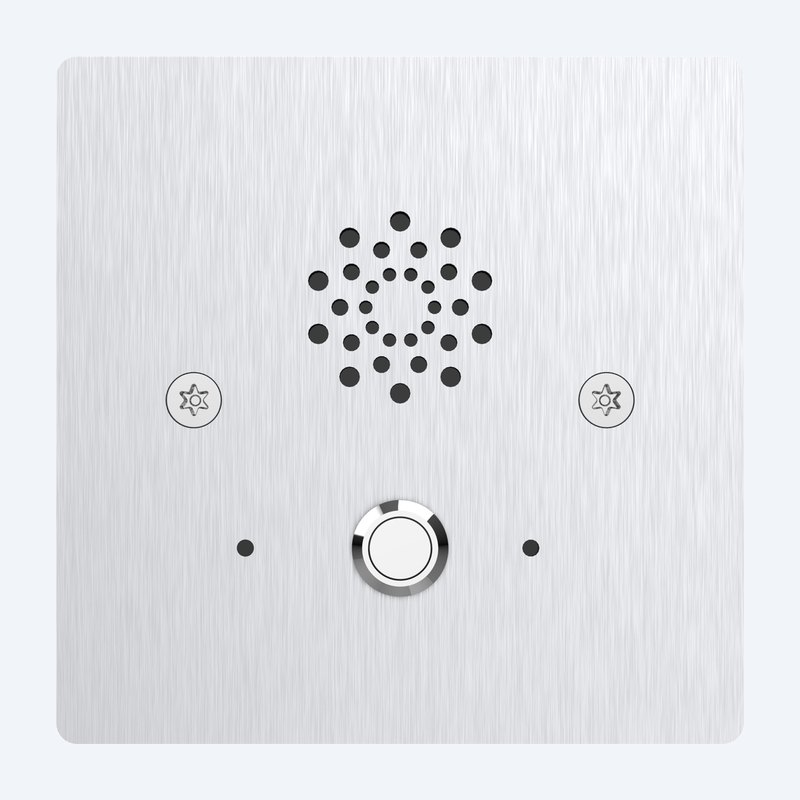

Akuvox E20S emergency intercom front view

Call

One button. Hands-free.

A single call button on the stainless front dials a pre-set SIP number. Built-in speaker and microphone with echo cancellation keep the conversation hands-free.

One SIP account, G.711a / μ and G.722 codecs, QoS and auto-answer — so a guard can also call the station back and talk straight away.

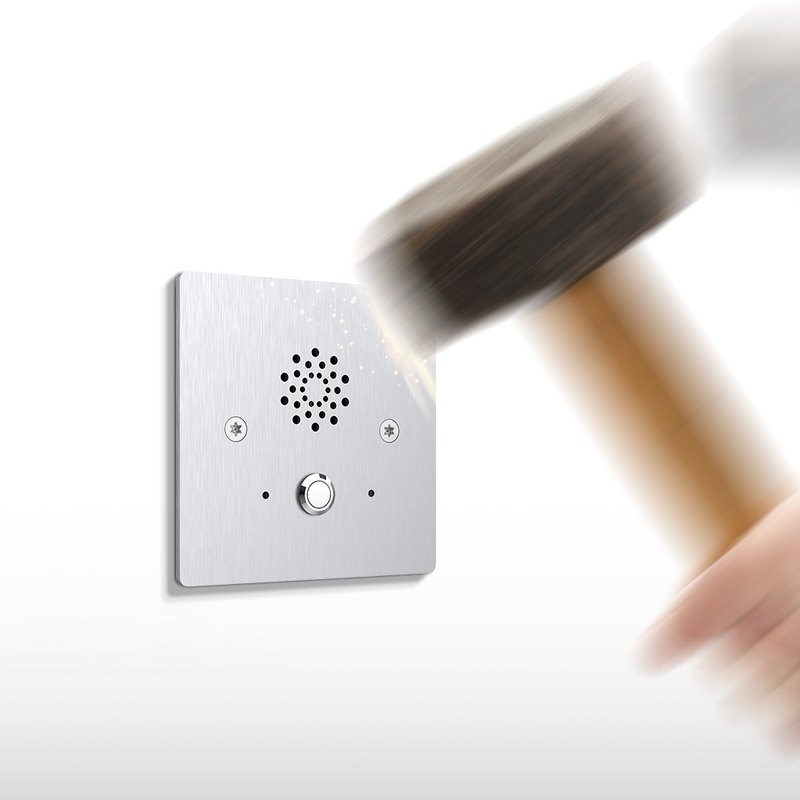

Tough

316 stainless, IK10.

The 316-grade stainless steel front is rated IK10, the top impact level, for public corridors and lifts where equipment gets knocked.

At 100 × 100 × 37.7 mm the panel sits flush over a standard single wall box. The E20S is rated for indoor use.

Akuvox E20S IK10 impact-rated stainless steel front

Install

A standard wall box and one cable.

E20S fits 86-type and 1299 single in-wall boxes. One Cat5e/Cat6 run with 802.3af PoE carries power and network.

Set DHCP or a static IP, register the SIP account, and the station is ready. NTP keeps its clock right.

How it works

From wall box to first call.

Wall box

Fit an 86-type or 1299 single in-wall box, or the E20 in-wall kit.

PoE

Run Cat5e/Cat6 with 802.3af PoE to the RJ45.

SIP

Test

Press the button and confirm the call reaches the right endpoint with clear audio.

At a glance

Key specs — AK-E20S

Brand: Akuvox
Reference: AK-E20S
Front panel: 316-grade stainless steel
Button: 1 call button
Audio: 1 microphone, 1 speaker, echo cancellation
Codecs: G.711a, G.711μ, G.722
SIP: SIP v1 / v2, 1 account, auto answer, QoS
Network: RJ45 10/100 Mbps, DHCP or static IP
Protocols: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTP, TCP, UDP
Power: PoE 802.3af only
Impact rating: IK10
Mounting: Flush, on 86-type or 1299 single wall box
Use: Indoor
Size: 100 × 100 × 37.7 mm (H × W × D)
Working temperature: −20 °C to +55 °C
OS: Linux
Warranty: Australian warranty via Infront Technologies

Pair it with

Completes a help-point system

Mount

E20 in-wall kit

Standard 86 in-wall kit to flush-mount the E20S.

Answer

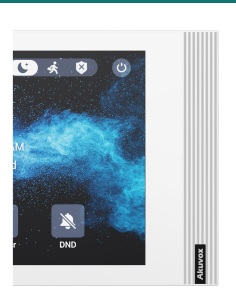

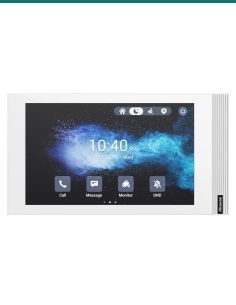

Akuvox indoor monitor

A guard room or reception monitor can answer E20S calls over SIP.

Network

PoE switch

Any IEEE 802.3af PoE switch or injector powers the station.

Answers

Common questions

Can it be used outdoors?

No. The E20S datasheet states indoor use only. For outdoor help points use the E21A (audio) or E21V (with camera), which are IP65.

How is it powered?

PoE 802.3af only — there is no DC input.

What wall box does it fit?

86-type and 1299 single in-wall boxes, or the E20 in-wall kit.

Does it have a camera or door relay?

No. E20S is an audio-only push-button station. For video, look at the E21V.

What can it call?

Any SIP endpoint: Akuvox indoor monitors, SIP desk phones or a SIP PBX.

A compact help point, local stock.

Choose E20S for indoor help points on a standard wall box. For outdoor or camera-equipped help points, look at the E21A and E21V. Order through Infront Technologies for Australian stock and SIP setup advice.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE only, as stated on the Akuvox E20S datasheet. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
