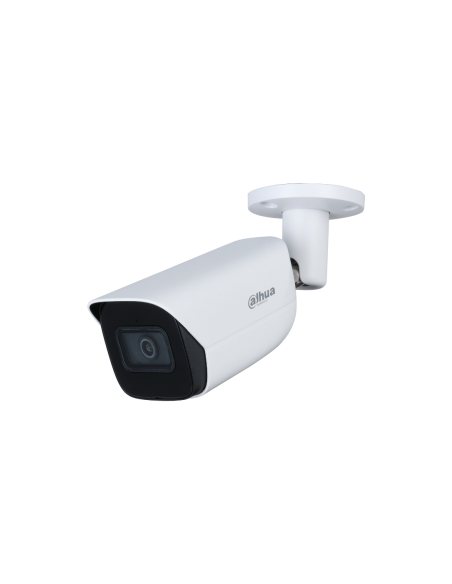

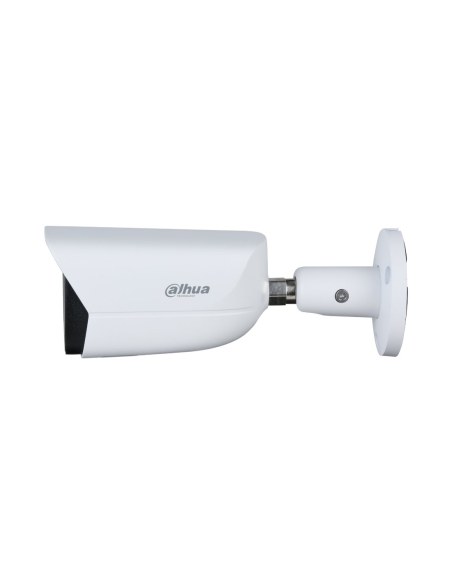

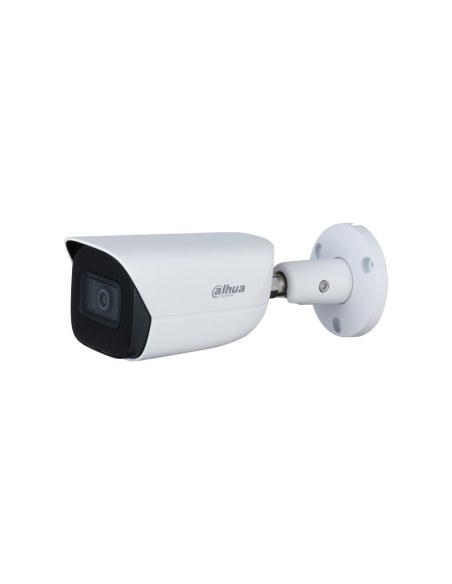

Dahua 5MP Super HD IR Fixed focal Bullet WizSense DH-IPC-HFW3541EP-AS-0280B

Dahua 5MP Super HD IR Fixed focal Bullet WizSense IP Network Camera - DH-IPC-HFW3541EP-AS-0280B

Name: Dahua 5MP Super HD IR Fixed focal Bullet WizSense IP Network Camera - DH-IPC-HFW3541EP-AS-0280B
Brand: Dahua Australia
SKU: DH-IPC-HFW3541EP-AS-0280B
Price: 134.9 AUD
Availability: InStock

Reference DH-IPC-HFW3541EP-AS-0280B

In Stock - Ready to Ship

$ 134.90

inc-GST

Records up to 5 Megapixel resolution. Equipped with a 2.8mm Fixed lens. Supports up to 2592 × 1944 pixels resolution.
Smart Motion Detection Plus (SMD+), greatly reduces false alarms in motion detection by only detecting humans and vehicles.
Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app
Supports AI Perimeter Protection allowing differentiation and recognition of vehicles and humans when using tripwire and intrusion detection.
Features up to H.265+ high-efficiency video encoding and Triple-Streaming.
Starlight technology generates clear colour images in near-complete darkness.
Built-in Infrared LED, with a maximum range of 50 meters.
Supports Power-Over-Ethernet (PoE)
Supports MicroSD Card Storage up to 256 Gigabytes.
Weather-Proof Rating (IP67).

Dahua 5MP IR Fixed focal Bullet WizSense Network Camera

DH-IPC-HFW3541EP-AS-0280B

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chips and deep learning algorithms. It focuses on humans and vehicles with high accuracy, enabling users to act fast on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple, inclusive products and solutions.

With an advanced deep learning algorithm, the Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

Camera Features:

> 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition

> Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps

> H.265 codec, high compression rate, low bit rate

> Built-in IR LED, max. IR distance: 50 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)

> Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection

> Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card, built-in Mic

> 12V DC/POE power supply

> IP67 protection

> SMD Plus

Functions:

SMD Plus

With an intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarms.

Smart H.265+ & Smart H.264+

With an advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With a deep learning algorithm, Dahua Perimeter Protection technology can recognize humans and vehicles accurately. In restricted areas (such as pedestrian areas and vehicle areas), the false alarms of intelligent detection based on the target type (such as tripwire, or intrusion) are reduced.

Starlight

Dahua Starlight technology applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee a good image effect.

Cyber Security

Dahua network camera is equipped with a series of key security technologies, such as secure authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.

Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environments with unstable voltage.

Specifications:

Camera

Image Sensor

1/2.7”5Megapixel progressive CMOS

Max. Resolution

2592 (H) ×1944 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.005 [email protected] (Color, 30IRE)

0.0005 [email protected] (B/W, 30IRE)

0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

50 m (164.0 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: Horizontal: 98°; vertical: 72°; diagonal: 130°

3.6 mm: Horizontal: 80°; vertical: 59°; diagonal: 106°

6 mm: Horizontal: 50°; vertical: 36°; diagonal: 64°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.9 m
3.6 mm: 1.6 m
6 mm: 3.2 m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

56.0 m

22.4 m

11.2 m

5.6 m

3.6mm

80.0 m

32.0 m

16.0 m

8.0 m

6mm

120.0 m

48.0 m

24.0 m

12.0 m

Professional, Intelligent

Perimeter Protection

Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search

Work together with Smart NVR to perform refined intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported

by substream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Mainstream (2592 × 1944@1–20 fps)

(2688 × 1520@1–25/30 fps)

sub-stream(704 × 576@1–25 fps/704 × 480@1–30 fps)

third stream(1280 × 720@1–25/30 fps)

Stream Capability

3 streams

Resolution

5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/streetlamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G726

Alarm

Alarm Event

No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone.

Genetec

Scene Self-adaptation (SSA)

Yes

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD Card (support max. 256 G); NAS

Browser

IE: IE8, IE9, IE11

Chrome

Firefox

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1-channel (RCA port)

Audio Output

1-channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5V DC

Alarm Output

1 channel out: 300mA 12V DC

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 5.4W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than 95%

Storage Conditions

-40°C to +60°C (-40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

192.7 mm × 70.5 mm × 66.4 mm

(7.6''×2.8''×2.6'') (L × W × H)

Net Weight

590 g (1.3lb)

Gross Weight

780 g (1.7lb)

Web 3.0 Operation Manual

Dahua Network Camera Web 3.0 Operation Manual (PDF)

Download (9.53MB)

Web 5.0 Operation Manual

Dahua Network Camera Web 5.0 Operation Manual (PDF)

Download (8.77MB)

Camera Installation Guide

Bullet Network Camera Installation Guide (PDF)

Download (1.87MB)

Camera Quick Start Guide

Dahua HD IR Bullet Network Camera Quick Start Guide (PDF)

Download (921.44KB)

IPC-HFW3541E-AS Datasheet

Dahua 5MP IR Fixed focal Bullet WizSense Network Camera IPC-HFW3541E-AS Datasheet (PDF)

Download (482.76KB)
