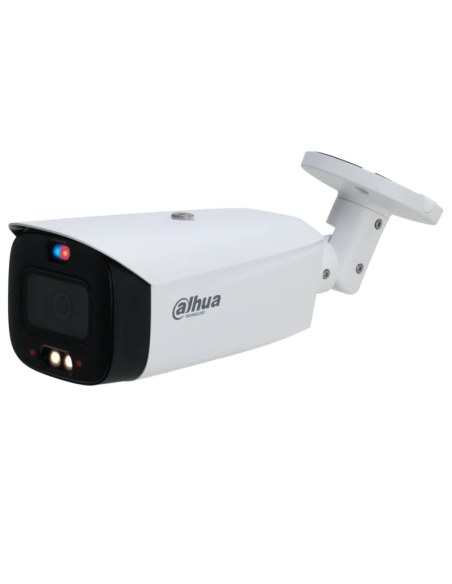

Dahua DH-IPC-HFW3849T1-AS-PV-ANZ-S2 8MP TiOC bullet, front left view

DH-IPC-HFW3849T1-AS-PV-ANZ-S2 on a ceiling bracket, front left view

DH-IPC-HFW3849T1-AS-PV-ANZ-S2 side view with sun shield and wall bracket

DH-IPC-HFW3849T1-AS-PV-ANZ-S2 close-up: red and blue light, lens and warm lights

DH-IPC-HFW3849T1-AS-PV-ANZ-S2 dimensions, 288.4 x 94.4 x 84.7 mm

1 / 5

Dahua 8MP TIOC 2.0 AI Active Deterrence Fixed 2.8mm Bullet Camera - DH-IPC-HFW3849T1-AS-PV-ANZ-S2

Name: Dahua 8MP TIOC 2.0 AI Active Deterrence Fixed 2.8mm Bullet Camera - DH-IPC-HFW3849T1-AS-PV-ANZ-S2
Brand: Dahua Australia
SKU: DH-IPC-HFW3849T1-AS-PV-ANZ-S2
Price: 332.5 AUD
Availability: InStock

SKU DH-IPC-HFW3849T1-AS-PV-ANZ-S2 In Stock - Ready to Ship

$332.50 inc GST

Dahua DH-IPC-HFW3849T1-AS-PV-ANZ-S2: an 8MP WizSense TiOC bullet with an F1.0 lens that turns on warm light, flashes red and blue and sounds a warning when a person or vehicle is detected.

✓8MP, 3840 × 2160 at up to 25/30 fps, F1.0 lens
✓Smart dual light: 30 m IR and 30 m warm light
✓Red and blue strobe, siren and voice messages
✓SMD 4.0, tripwire and intrusion with human and vehicle sorting
✓Built-in dual mic and speaker, two-way talk
✓IP67, 12 VDC or PoE

Dahua DH-IPC-HFW3849T1-AS-PV-ANZ-S2 white 8MP TiOC bullet camera with red and blue warning light

Dahua · WizSense 3 Series · TiOC 2.0

8MP that lights up and speaks up.
Smart dual light, siren and two-way talk.

This is the Australian ANZ-S2 version of Dahua's 8MP TiOC bullet: an F1.0 camera that switches from IR to warm light when a person or vehicle walks in, flashes red and blue, and plays a warning through its own speaker.

In one sentence: the DH-IPC-HFW3849T1-AS-PV-ANZ-S2 is a Dahua WizSense 3 Series 8MP fixed bullet with an F1.0 lens, smart dual light (30 m IR and 30 m warm light), red and blue strobe, siren, two-way audio, SMD 4.0 and PoE.

Camera only. Recorder and cabling are separate.

This listing is one white camera. It needs PoE or a 12 V supply for power and somewhere to store the footage. It is listed with the 2.8 mm lens; Dahua also makes a 3.6 mm lens under the same code, so confirm with us which lens is in stock when you order.

In the box

DH-IPC-HFW3849T1-AS-PV-ANZ-S2 bullet camera

You also need

A PoE NVR or 802.3af PoE switch, or a 12 VDC supply
Cat5e or Cat6 cable to the camera
A recorder, NAS or microSD card for the footage

It sees, then it reacts.

At night the camera runs on IR. When SMD 4.0 or a tripwire or intrusion rule picks up a person or vehicle, it turns on its warm light so the clip is in colour, flashes red and blue, and can sound a siren or a recorded voice message. Animals and moving leaves are filtered out, so the alarms you get are worth looking at.

Front

Two kinds of light and a strobe.

Two IR LEDs and two warm lights each reach up to 30 m. The red and blue light above the lens is the visual warning. Colour image down to 0.004 lux at F1.0, black and white to 0.0004 lux, and 0 lux with the lights on.

Lens

8MP at full frame rate.

3840 × 2160 at up to 25/30 fps through an F1.0 lens on a 1/2.7" sensor. The 2.8 mm lens covers 106° across and detects people out to 66 m (DORI).

DH-IPC-HFW3849T1-AS-PV-ANZ-S2 side view showing the sun shield and three-axis bracket

Housing

IP67, metal and plastic, three-axis bracket.

288.4 × 94.4 × 84.7 mm and 1.0 kg. Pan 0–360°, tilt 0–90° and rotate 0–360° to line up the view. Rated IP67 and −40 °C to +60 °C.

How it goes in

From cable to first warning.

Run one cable

Cat5e or Cat6 to a PoE NVR or an 802.3af PoE switch. Allow up to 9.4 W per camera on PoE. 12 VDC also works.

Fix the bracket

Screw the base to the wall or eave, then pan, tilt and rotate the bullet to frame the scene.

Add it to the recorder

Initialise the camera, then add it to a Dahua NVR, Smart PSS Lite, DSS or the DMSS app on your phone.

Set the rules and the warning

Draw tripwire or intrusion zones, tick human and vehicle, then choose the light, siren or voice message it plays.

At a glance

DH-IPC-HFW3849T1-AS-PV-ANZ-S2

Show specs

Resolution

8MP, 3840 × 2160 at up to 25/30 fps (3 streams)

Lens

Fixed F1.0; listed as 2.8 mm (3.6 mm also made, confirm with us)

Field of view

2.8 mm: 106° horizontal, 125° diagonal; 3.6 mm: 85° horizontal

DORI (detect)

2.8 mm: 66 m; 3.6 mm: 78 m

Image sensor

1/2.7" CMOS

Low light

Colour 0.004 lux, B/W 0.0004 lux at F1.0; 0 lux with the lights on

Lights

Smart dual light: IR up to 30 m and warm light up to 30 m (2 + 2 LEDs)

Deterrence

Red and blue warning light, siren and voice messages (custom import), one-tap arm and disarm

Smart detection

SMD 4.0; tripwire and intrusion with human and vehicle sorting; AI SSA

Smart Search and AcuPick with a Dahua back-end recorder

WDR and image

120 dB WDR, BLC, HLC, 3D NR, defog

Compression

H.265, H.264, Smart H.265+/H.264+, AI coding; MJPEG on the sub stream

Audio

Built-in dual mic and speaker (two-way talk); 1 in, 1 out (RCA)

Alarm

1 in (wet contact, 3–5 VDC), 1 out (wet contact, 300 mA 12 VDC)

Storage

microSD up to 512 GB per the spec table (the sheet summary says 256 GB), NAS, FTP/SFTP

Network

1 × RJ45 10/100; ONVIF Profile S, G and T

Power

12 VDC or PoE (802.3af); up to 7.7 W (12 V) or 9.4 W (PoE)

Protection

IP67, metal and plastic housing

Size and weight

288.4 × 94.4 × 84.7 mm, 1.0 kg

Operating range

−40 °C to +60 °C, humidity 95% or less

Software

DMSS (iOS, Android), Smart PSS Lite, DSS

Warranty

Dahua 3-year (36-month) warranty for 3 Series cameras, handled in Australia through InFront

DH-IPC-HFW3849T1-AS-PV-ANZ-S2 dimensions, 288.4 by 94.4 by 84.7 mm, Ø90.4 mm base

288.4 × 94.4 × 84.7 mm. Base Ø90.4 mm, three Ø4.7 mm holes on a Ø70 mm circle. Units mm (inch).

Pair it with

What this camera does not include

Recorder

A Dahua AI NVR

Powers and records the camera on one cable, and unlocks Smart Search, Quick Pick and AcuPick for people and vehicles.

Power

An 802.3af PoE switch

If the recorder has no PoE ports. Allow 9.4 W for this camera with the lights and siren on.

Cabling

Cat5e or Cat6 cable

One run per camera, up to the usual 100 m Ethernet limit.

Mounting

A junction box

Dahua lists the PFA135 junction box and PFA152-E pole mount for this camera, to hide the cable tail.

Where it is used

Where an 8MP deterrence bullet fits.

Driveways and front yards

Warm light and a voice warning when someone walks up at night.

Side gates and back yards

Tripwire on the gate line, with the strobe and siren as a first response.

Shops after hours

Shopfronts, rear doors and loading bays, with colour clips of every event.

Warehouses and yards

Human and vehicle sorting on roller doors and fence lines cuts false alarms.

Building sites

A visible strobe and recorded warning help turn people away before they come in.

Farms and sheds

SMD 4.0 filters animals, so the alarm means a person or a vehicle.

2.8 mm or 3.6 mm lens

	2.8 mm lens (listed)	3.6 mm lens
Horizontal view	106°	85°
Diagonal view	125°	102°
Detect (DORI)	66 m	78 m
Recognise (DORI)	13.2 m	15.6 m
Identify (DORI)	6.6 m	7.8 m
Close focus	1.5 m	2.2 m

Both lenses are columns of the same Dahua DH-IPC-HFW3849T1-AS-PV-ANZ-S2 datasheet. Everything else is the same. Confirm with us which lens is in stock.

Common questions

What does TiOC mean on this camera?

Dahua groups this camera under TiOC 2.0: smart dual light for colour at night, active deterrence (red and blue light, siren and voice) and WizSense AI that sorts people and vehicles, in one camera.

Is a recorder included?

No. This listing is the camera only. It records to a Dahua NVR, a NAS, FTP or a microSD card in the camera.

How is it powered?

By 802.3af PoE or 12 VDC. It draws 5.8 W on PoE at rest and up to 9.4 W with the warm light, siren and analytics all running.

How far does it see at night?

The IR reaches up to 30 m and the warm light up to 30 m. In colour it works down to 0.004 lux at F1.0, and with the lights on it records at 0 lux.

Which lens is it, 2.8 mm or 3.6 mm?

It is listed with the 2.8 mm lens, which covers 106° across. Dahua also makes a 3.6 mm version under the same code (85° across), so confirm with us which lens is in stock when you order.

How does the active deterrence work?

When a tripwire, intrusion or SMD rule triggers, the camera can flash its red and blue light, sound a siren or play a voice message. Dahua includes several messages and you can import your own. One-tap disarming in the app turns the warnings off when you are home.

Can I talk through it?

Yes. It has built-in dual microphones and a speaker for two-way talk, plus one RCA audio input and one RCA audio output.

What size microSD card does it take?

Dahua's spec table for this exact model says up to 512 GB, but the summary on the same sheet still says 256 GB. A 256 GB card is the safe choice; ask us before buying a 512 GB card.

Will it work with a non-Dahua recorder?

It supports ONVIF Profile S, G and T, so most ONVIF recorders can record it. The light, siren and AI search features work best with a Dahua NVR.

Can it be mounted outside?

Yes. It is rated IP67 and runs from −40 °C to +60 °C at up to 95% humidity.

What warranty does it have?

Dahua gives its 3 Series network cameras a 3-year (36-month) manufacturer warranty under Dahua Australia's warranty policy. Claims are handled in Australia through InFront Technologies: call 1300 736 970 or email [email protected].

Who can install the cable?

Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Plugging a patch lead into an existing outlet does not.

Supported by InFront Technologies.

Help choosing the lens, recorder or switch: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

Installation and safety

Low-voltage camera. PoE (802.3af, up to 9.4 W) or 12 VDC (up to 7.7 W). There is no mains connection on the camera. A new power point for a 12 V supply needs a licensed electrician.

Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Audio and sirens. Recording conversations is covered by state and territory surveillance laws, and sirens and lights may be subject to local council rules. Check them, and use signage, before you switch them on.

What it does not do. No Wi-Fi, no optical zoom and no face recognition. The lens is fixed.

Figures. From Dahua's DH-IPC-HFW3849T1-AS-PV-ANZ-S2 datasheet (Rev 002) on the Dahua Australia website.
