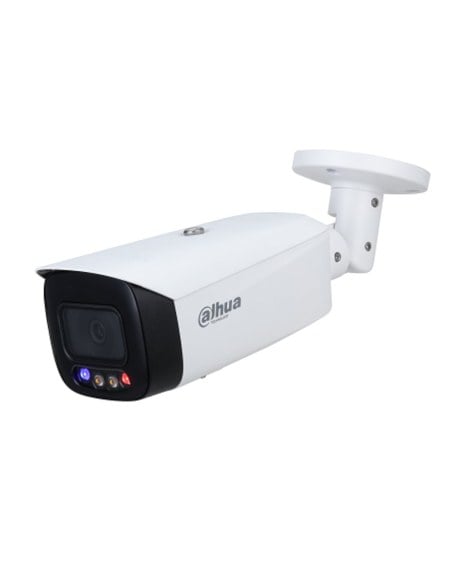

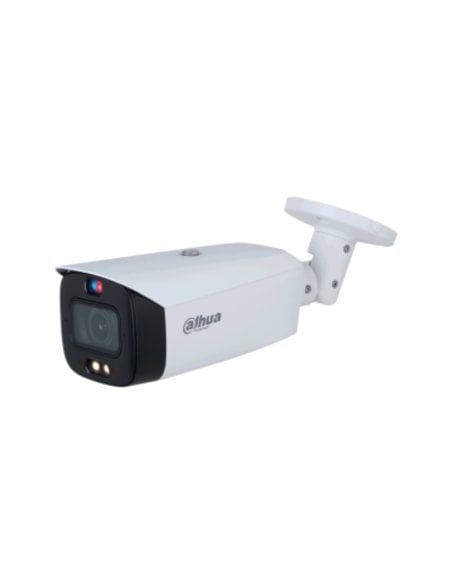

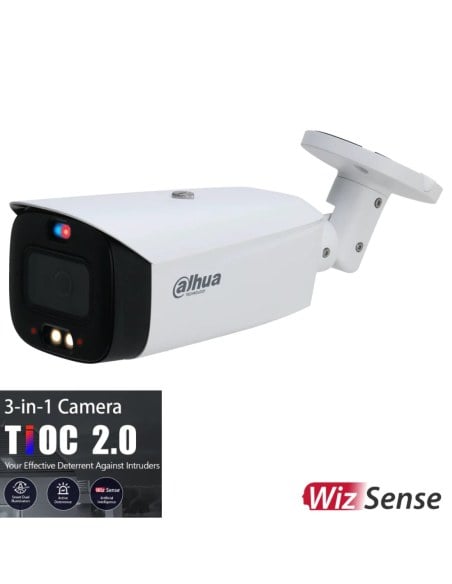

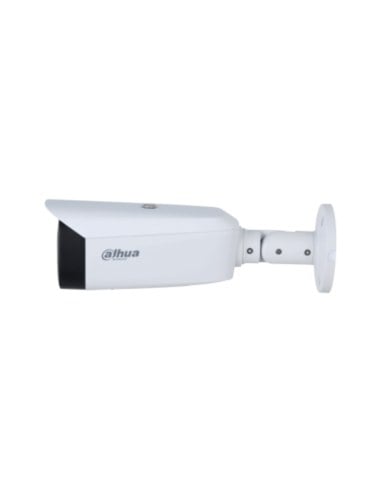

Dahua 5MP TIOC 2.0 Active Deterrence Vari-focal Bullet 2.7~13.5mm WizSense Motorised Camera
DH-IPC-HFW3549T1-ZAS-PV
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chips and deep learning algorithms. It focuses on humans and vehicles with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
With an advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
Functions
Siren And Light Active Deterrence
Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when a perimeter event occurs, to realize the deterrence and effective intervention. The camera is built into multiple voices for selection and supports customized voice importing.
Smart Dual Illuminators
Dahua Smart Dual Illuminators technology adopts smart algorithms to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshots and videos with a full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.
SMD
With an intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarms.
One-tap Disarming
Dahua One-tap Disarming function, which is convenient and easy to operate, is the switch for event linkage. Customers can close and recover event linkage through a mobile App, which meets multi-scenario needs.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environments with unstable voltage.
Specifications:
|
Camera
|
|
Image Sensor
|
1/2.7" CMOS
|
|
Max. Resolution
|
2960 (H) × 1668 (V)
|
|
ROM
|
128 MB
|
|
RAM
|
512 MB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100,000 s
|
|
Min. Illumination
|
0.003 [email protected] (Color, 30 IRE)
0.0003 [email protected] (B/W, 30 IRE)
0 lux (illuminator on)
|
|
S/N Ratio
|
﹥56 dB
|
|
Illumination Distance
|
50 m (IR)
40 m (warm light)
|
|
Illuminator On/Off Control
|
Auto/Manual
|
|
Illuminator Number
|
2 (IR LED)
2 (warm light)
|
|
Pan/Tilt/Rotation Range
|
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
|
|
Lens
|
|
Lens Type
|
Motorized varifocal
|
|
Mount Type
|
φ16
|
|
Focal Length
|
2.7 mm–13.5 mm
|
|
Max. Aperture
|
F1.0
|
|
Field of View
|
Horizontal: 113°–36°
Vertical: 57°–20°
Diagonal: 137°–40°
|
|
Iris Type
|
Fixed
|
|
Close Focus Distance
|
1.5 m
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
W
|
65.2 m
|
26.1 m
|
13.0 m
|
6.5 m
|
|
T
|
186.6 m
|
74.6 m
|
37.3 m
|
18.7 m
|
|
Professional, intelligent
|
|
IVS (Perimeter Protection)
|
Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
|
|
SMD 3.0
|
Less false alarms, longer detection distance
|
|
Intelligent Search
|
Work together with Smart NVR to perform the refined intelligent search, event extraction, and merging to event videos.
|
|
Video
|
|
Video Compression
|
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
|
|
Smart Codec
|
Smart H.265+; Smart H.264+
|
|
AI Coding
|
AI H.265; AI H.264
|
|
Video Frame Rate
|
Main stream: 2960 × 1668@ (1–20 fps)/2688 × 1520 @ (1–30 fps)
Sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps)
Third stream: 1920 × 1080@ (1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
|
|
Stream Capability
|
3 streams
|
|
Resolution
|
5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
|
|
Day/Night
|
Auto (ICR)/Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
120 dB
|
|
Scene Self-adaptation
|
Yes
|
|
White Balance
|
Auto; natural; street lamp; outdoor; manual; regional custom
|
|
Gain Control
|
Auto; Manual
|
|
Noise Reduction
|
3D NR
|
|
Motion Detection
|
OFF/ON (4 areas)
|
|
Region of Interest (RoI)
|
Yes (4 areas)
|
|
Image Stabilization
|
Electronic Image Stabilization (EIS)
|
|
Smart Illumination
|
Yes
|
|
Defog
|
Yes
|
|
Image Rotation
|
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
4 areas
|
|
Audio
|
|
Built-in MIC
|
Yes
|
|
Audio Compression
|
PCM; G.711a; G.711Mu; G.726; G.723
|
|
Alarm
|
|
Alarm Event
|
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; security exception
|
|
Network
|
|
Network
|
RJ-45 (10/100 Base-T)
|
|
SDK and API
|
Yes
|
|
Cyber Security
|
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
|
|
Protocol
|
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
|
|
Interoperability
|
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
|
|
User/Host
|
20 (Total bandwidth: 72 M)
|
|
Storage
|
FTP; SFTP; Micro SD card (support max. 256 G); NAS
|
|
Browser
|
IE: IE8/9/11
Chrome
Firefox
|
|
Management Software
|
Smart PSS; DSS; DMSS
|
|
Mobile Phone
|
iOS; Android
|
|
Certification
|
|
Certification
|
CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
|
|
Port
|
|
Audio Input
|
1 channel (RCA port)
|
|
Audio Output
|
1 channel (RCA port)
|
|
Alarm Input
|
1 channel in: 5mA 3V–5 VDC
|
|
Alarm Output
|
1 channel out: 300mA 12 VDC
|
|
Power
|
|
Power Supply
|
12 VDC/PoE (802.3af)
|
|
Power Consumption
|
Basic: 3.3 W (12 VDC); 4.4 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.4 W (12 VDC); 8.7 W (PoE)
|
|
Environment
|
|
Operating Conditions
|
–30 °C to +60 °C (–22 °F to +140 °F)/Less than 95% RH
|
|
Storage Conditions
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
Protection Grade
|
IP67
|
|
Structure
|
|
Casing
|
Metal + plastic
|
|
Dimensions
|
288.4 mm × 94.4 mm × 84.7 mm
(11.35" × 3.72" × 3.33") (L × W × H)
|
|
Net Weight
|
1.05 kg (2.31 lb)
|
|
Gross Weight
|
1.35 kg (2.98 lb)
|
