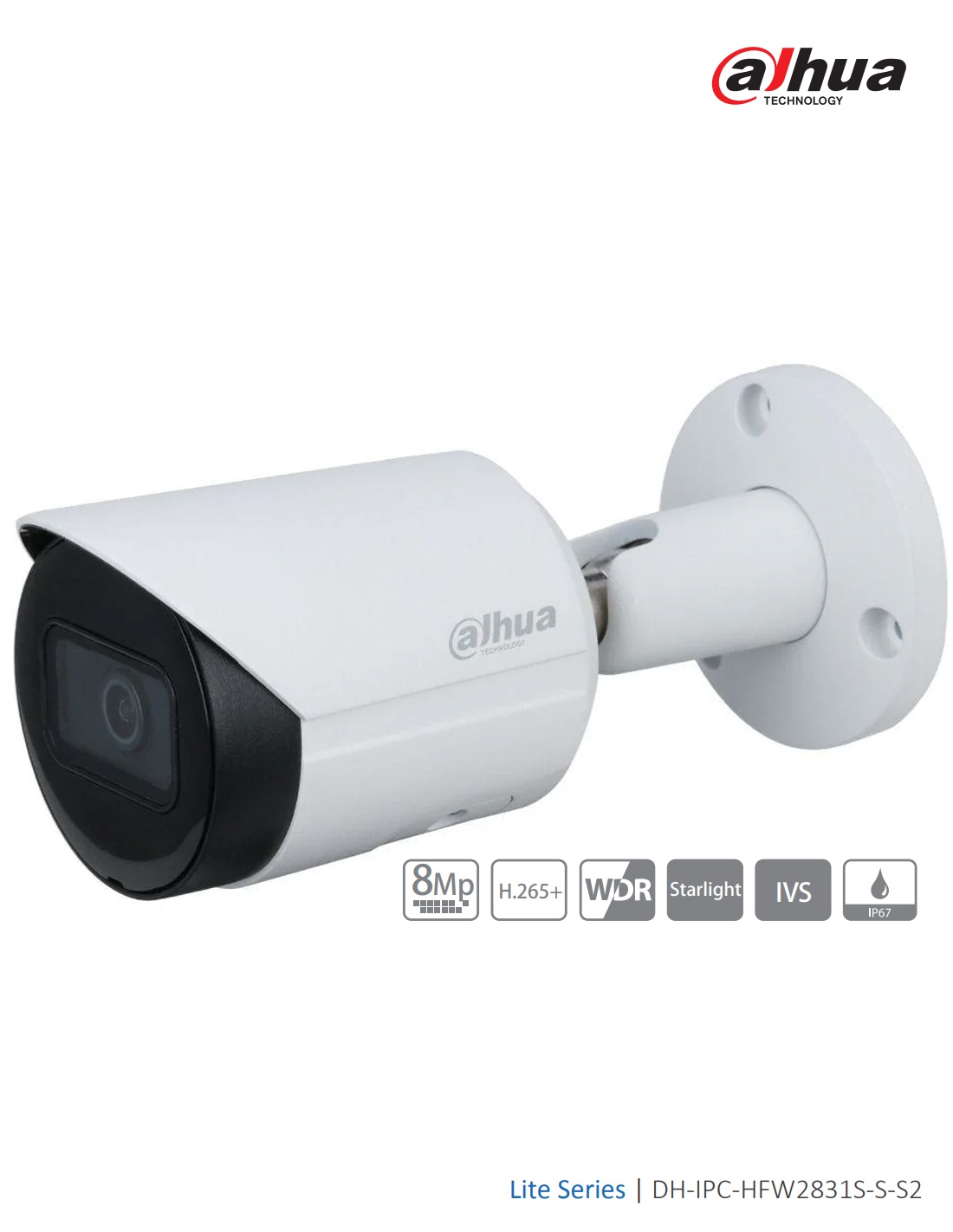

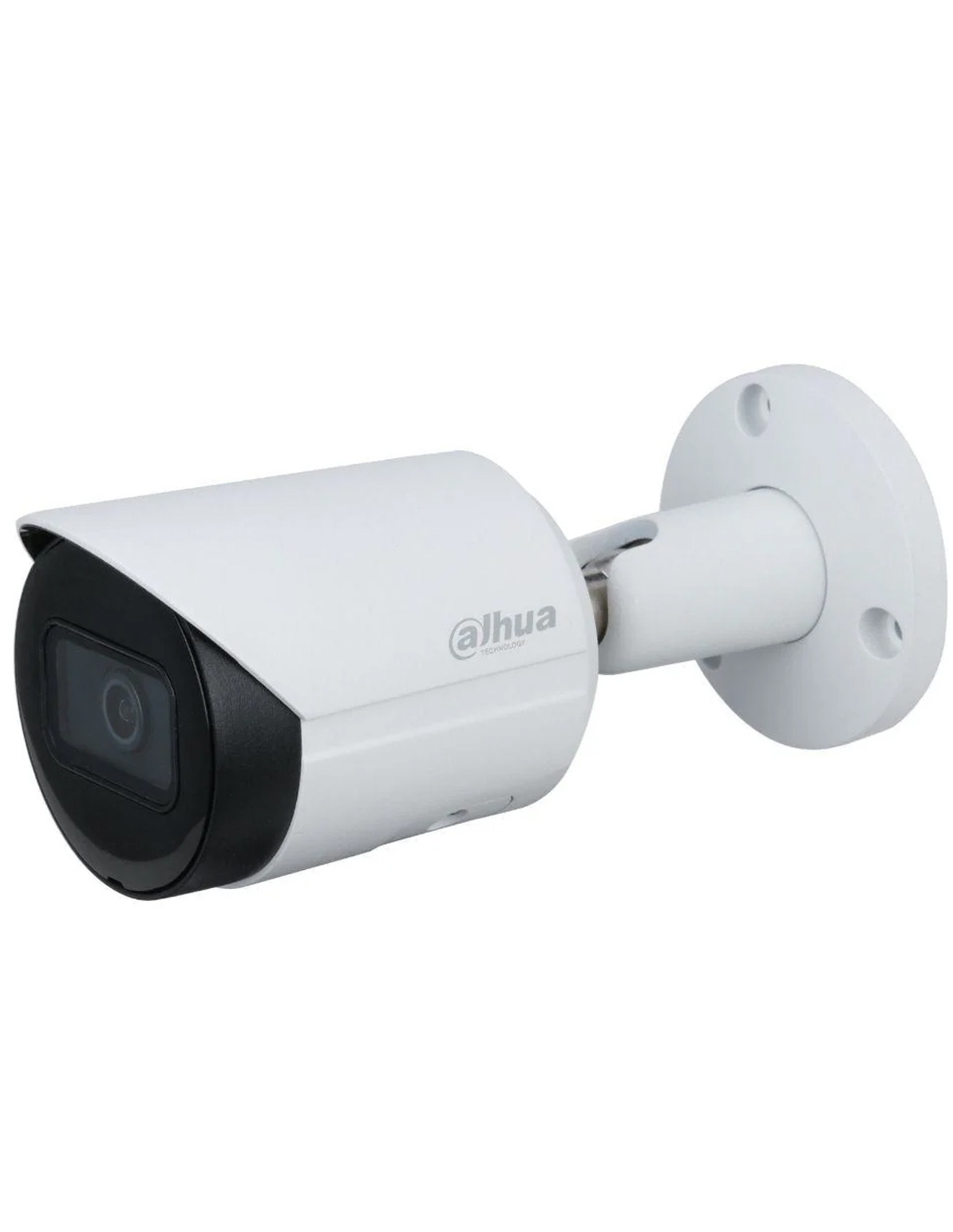

Dahua 8MP WDR IR Mini Bullet Network Camera with 2.8mm - DH-IPC-HFW2831SP-S-0280B-S2

Dahua 8MP WDR IR Mini Bullet Network Camera with 2.8mm - DH-IPC-HFW2831SP-S-0280B-S2

DH-IPC-HFW2831SP-S-0280B-S2
In Stock - Ships from Sydney
$ 171.00
inc-GST
  • 8MP, 1/2.7″ CMOS image sensor, low illuminance, high image definition
  • Outputs max. 8MP (3840 2160)@15 fps, and supports 26881520 @25/30 fps
  • Built-in IR LED, max. IR distance: 30 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Handles well in varying light conditions: includes rotation mode, Wide Dynamic Range (WDR), 3D DNR, HLC, BLC
  • Intelligent detection: Tripwire, intrusion – important for perimeter protection.
  • Supports max. 256 G Micro SD card, built-in Mic
  • 12V DC/PoE power supply
  • Ingress Protection Weather-Proof Rating: IP67 weather-resistant protection

“Vandal-Proof” Impact Protection Rating (IK10)

  Choose from Various Payment Types.

Paypal, Credit Card, ZIP Money, Afterpay, Bitcoin & Direct Deposit

  Shipping we're fast!

99% of our orders leave us the same day of ordering. Express Shipping options available at checkout.

  Fast Reponses to Warranty & Support

We answer your questions fast. Great Australian Company based out of Sydney for over 20 years.



Dahua 8MP WDR IR Mini Bullet Network Camera with 2.8mm



DH-IPC-HFW2831SP-S-0280B-S2



Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as tripwire and intrusion detection. Starlight technology generates clear images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.

With upgraded H.265 encoding technology, Dahua Lite series network camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better color images in the condition of low illumination. It supports SD card storage, dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 (Supported by some select models).



Features:

Records up to 8 Megapixel (4K Ultra HD) resolution.

Equipped with a 2.8mm Fixed lens.

Supports up to 3840 × 2160 resolution.

Features up to H.265+ high-efficiency video encoding and Dual-Streaming.

Supports Starlight technology, generates clear images in near-complete darkness.

120 dB Wide Dynamic Range (WDR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).

Intelligent Video Surveillance (IVS) technology supports smart functions such as tripwire and intrusion detection.

Built-in Infrared LED, with a maximum range of 30 meters.

Supports Power-Over-Ethernet (PoE) installations.

Supports MicroSD Card Storage up to 256 Gigabytes.

Resilient "Weather-Proof" Ingress Protection Rating (IP67).

3 Years Back-to-Base Manufacturer Warranty!



Functions:

Smart H.265+ & Smart H.264+

With an advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video and reduces the cost of storage and transmission.



WDR

With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark areas can get clear video even in a high brightness environment or with backlight shadow.



Starlight

With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in an environment of low illuminance. It widely applies to various environments of low illuminance.



IVS

With an advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.



Cyber Security

Dahua network camera is equipped with a series of key security technologies, such as secure authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device.



Protection (IP67, wide voltage)

IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can work normal after soaking in 1 m deep water for 30 minutes.

Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environments with unstable voltage.



Tech Specs:

Camera

Image Sensor

1/2.7” 8Megapixel progressive CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.009 [email protected]

S/N Ratio

>56 dB

Illumination Distance

30 m

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F2.0

F2.0

Field of View

2.8 mm: Horizontal 105° × Vertical 56° × Diagonal 125°

3.6 mm: Horizontal 87° × Vertical 47° × Diagonal 104°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.0 m
3.6 mm: 1.9 m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

74.7 m

29.9 m

14.9 m

7.5 m

3.6 mm

106.7 m

42.7 m

21.3 m

10.7 m

Smart event

IVS

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream:

3840 × 2160 (1 fps–15 fps)

2688 × 1520 (1 fps–25/30 fps)

Sub stream:

704 × 576 (1 fps–25 fps)

704 × 480 (1 fps–30 fps)

Stream Capability

2 streams

Resolution

3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps

H.265: 12 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Interoperability

ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20

Storage

FTP; SFTP; Micro SD Card (support max. 256 GB); NAS

Browser

IE

Chrome

Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 5.5W

Environment

Operating Conditions

–40°C to +60°C (–40°F to +140°F)/less than ≤ 95% RH

Storage Temperature

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

166.2 mm × Φ70 mm (6.54" × Φ2.76")

Net Weight

0.48 kg (1.1 lb)

Gross Weight

0.57 kg (1.3 lb)

Dahua is committed to providing its highest quality solutions and products with the latest technologies to enable end users to perform their business successfully. In 2001, Dahua became the first company in China to launch an 8-channel real-time embedded digital video recorder. Since then, the company has continued to invest in building strong R&D capabilities for new technology and innovation.

Dahua has invested about 10% of its annual sales revenue in R&D since 2014. The company has four research institutes – Advanced Technology Institute, Big Data Institute, Chip Institute and Video Cloud Institute -- and more than 6,000 R&D engineers and technical staff working on cutting-edge technologies in AI, IoT, Cloud services, video, cyber security, and software reliability and other technologies. Dahua has registered over 800 patents as of 2016.

Since 2014, Dahua has ranked 2nd in the global video surveillance equipment market according to an IHS report, and in 2017 Dahua ranked 3rd in the a&s international "Security 50".

Dahua’s core video surveillance product line, including network cameras, NVRs, and HD over coax, can be applied in many sectors, including banking & finance, government, industrial, retail, sports & leisure, transportation, and energy.

Featuring customized technical innovations and end-to-end services, our intelligent traffic solutions and other solutions earn customer trust by best solving their problems. Numerous major projects have been installed with Dahua solutions and products - the 2016 Rio Olympics, 2016 Hangzhou G20 Summit, Oman Avenues Shopping Mall, LAN Airlines in Peru, APEC in China, as well as many others.
