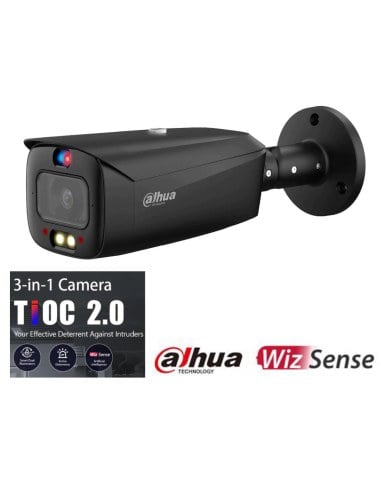

Dahua 8MP TiOC Active Deterrence 2.0 IP Bullet DH-IPC-HFW3849T1P-AS-PV-S3-BLK

Dahua 8MP TiOC Active Deterrence 2.0 IP Bullet DH-IPC-HFW3849T1-AS-PV-ANZ-BLK

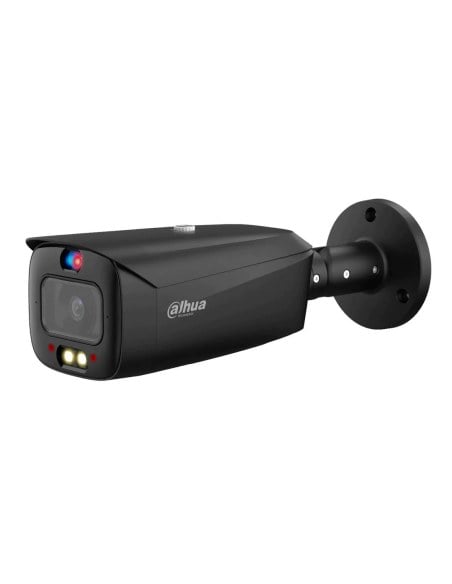

Dahua 8MP TiOC Active Deterrence 2.0 IP Bullet Fixed 2.8mm Network Camera Black - DH-IPC-HFW3849T1-AS-PV-ANZ-BLK

Name: Dahua 8MP TiOC Active Deterrence 2.0 IP Bullet Fixed 2.8mm Network Camera Black - DH-IPC-HFW3849T1-AS-PV-ANZ-BLK
Brand: Dahua Australia
SKU: DH-IPC-HFW3849T1-AS-PV-ANZ-BLK
Price: 407 AUD
Availability: InStock

Reference DH-IPC-HFW3849T1-AS-PV-ANZ-BLK

In Stock - Ready to Ship

$ 407.00

inc-GST

8MP 1/2.8'' CMOS image sensor, low luminance, and high definition image
Outputs max. 8 MP (3840 x 2160)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Intelligent monitoring: Intrusion, tripwire
Abnormality detection: Motion detection, privacy masking, scene changing & audio detection + more
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk
12 VDC/PoE power supply
IP67 protection
Sound and light alarm (red and blue lights)
SMD 4.0

Dahua 8MP TiOC Active Deterrence 2.0 IP Bullet Fixed 2.8mm Network Camera Black

DH-IPC-HFW3849T1-AS-PV-ANZ-BLK

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chips and deep learning algorithms. It focuses on humans and vehicles with high accuracy, enabling users to act fast on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

With advanced deep learning algorithms, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. It has full-color technology, which provides a better image effect in the condition of low illuminance.

Key Features:

8MP 1/2.8'' CMOS image sensor, low luminance, and high definition image
Outputs max. 8 MP (3840 x 2160)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing & audio detection + more
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk
12 VDC/PoE power supply
IP67 protection
Sound and light alarm (red and blue lights)
SMD 4.0

Functions:

Siren And Light Active Deterrence

Dahua siren and light active deterrence network camera support the light alarm and voice alarm when a perimeter event occurs, to realize the deterrence and effective intervention. The camera has built-in multiple voices for selection and supports customized voice importing.

Smart Dual Illuminators

Dahua Smart Dual Illuminators technology adopts a smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information on key events. That is, the camera links snapshots and videos with a full-colour image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.

SMD

With an intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize an effective and accurate alarm.

One-tap Disarming

Dahua One-tap Disarming function, which is convenient and easy to operate, is the switch for event linkage. Customers can close and recover event linkage through a mobile app, which meets multi-scenario needs.

Cyber Security

Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.

Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to the outdoor environment with unstable voltage.

Specifications:

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.004 [email protected] (Color, 30 IRE)
0.0004 [email protected] (B/W, 30 IRE)
0 lux (illuminator on)

S/N Ratio

﹥ 56 dB

Illumination Distance

30 m (IR)
30 m (warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)
2 (warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Field of View

2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125°
3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 2.0 m
3.6 mm: 2.8 m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

91.0 m

36.4 m

18.2 m

9.1 m

3.6 mm

107.6 m

43.0 m

21.5 m

10.8 m

Professional, intelligent

IVS (Perimeter Protection)

Tripwire: intrusion (support the classification and accurate detection of vehicles and human)

SMD 3.0

Less false alarms, longer detection distance

Intelligent Search

Work together with Smart NVR to perform refined intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Mainstream: 3840 × 2160@ (1 fps–30 fps)
Sub stream: 704 × 576@ (1 fps–25 fps)/704 × 480@ (1 fps–30 fps)
Third stream:1920 × 1080@ (1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation

Yes

White Balance

Auto; natural; streetlamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 72 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE8/9/11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

iOS; Android

Certification

CE-LVD: EN 62368-1.

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU.

FCC: 47 CFR FCC Part 15, Subpart B.

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14.

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5 VDC

Alarm Output

1 channel out: 300mA 12 VDC

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

Basic: 3.1 W (12 VDC); 4.3 W (PoE)
Max. (H.265+mainstream/IR intensity warm light on): 8.6 W (12 VDC); 11 W (PoE)

Environment

Operating Conditions

–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH

Storage Conditions

–40 °C to +60 °C (–40 °F to +140 °F)

Protection Grade

IP67

Structure

Casing

Metal + plastic

Dimensions

288.4 mm × 94.4 mm × 84.7 mm
(11.4" × 3.7" × 3.3") (L × W × H)

Net Weight

1.0 kg (2.20 lb)

Gross Weight

1.23 kg (2.71 lb)
