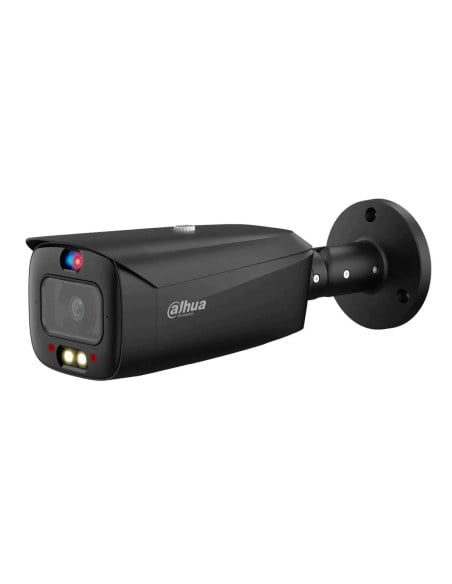

Dahua 5MP TiOC 2.0 Active Deterrence IP Bullet Fixed 2.8mm Camera DH-IPC-HFW3549T1P-AS-PV-S3-BLK

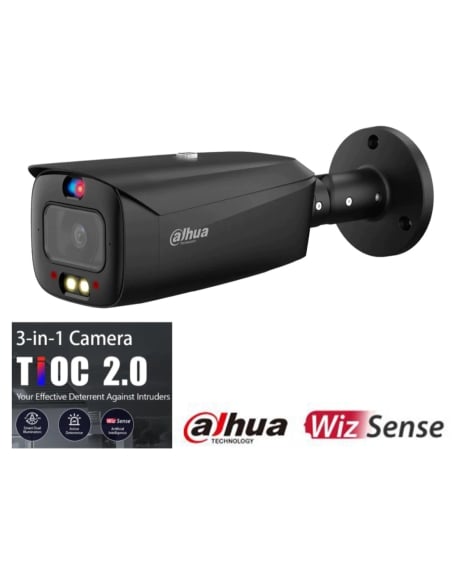

Dahua 5MP TiOC 2.0 Active Deterrence IP Bullet Fixed 2.8mm Camera



DH-IPC-HFW3549T1P-AS-PV-S3-BLK



The Dahua DH-IPC-HFW3549T1P-AS-PV-0280B-S3 Security Camera is version 2.0 of the Dahuas line of three-in-One Cameras (TiOC). Series 2.0 now have smart Dual Illuminators allowing the camera to monitor at night with infrared and when intrusions are detected activate its auxiliary illuminator LED light for full colour recording.

Three-in-One Camera (TiOC) integrates 24/7 full-colour, active deterrence and artificial intelligence into one smart and innovative solution, greatly saving time and financial costs. TiOC can accurately identify potential risks and effectively warn off intruders protecting life and property. Also has one-touch disarming. If installed on a network, these features require compatible network video recorders.



Features:

Records up to 5 Megapixel resolution. Equipped with a 2.8mm Fixed lens. Supports up to 2592 × 1944 pixels resolution.

Three-in-One Camera (TiOC) integrates 24/7 full-colour, active deterrence and artificial intelligence into one smart and innovative solution, saving time and financial costs.

Active Deterrence camera actively warns off intruders with built-in flashing lights, siren, and audible commands.

Series 2.0 supports DUAL Illuminators with IR infrared and Warm LED light

Full Colour uses a warm LED light that enables the camera to capture vivid colour video even in the dark to enhance the probability and accuracy of target recognition and feature extraction with 98% AI accuracy.

Smart Motion Detection Plus (SMD+), reduces false alarms in motion detection by only detecting humans and vehicles.

Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app

Features up to H.265+ high-efficiency video encoding and Triple-Streaming.

Starlight technology generates clear colour images in near-complete darkness.

120 dB Wide Dynamic Range (WDR). 3D Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).

Built-in Infrared LED and illuminator with a maximum range of 30 meters

Supports Power-Over-Ethernet (PoE) installations.

Supports MicroSD Card Storage up to 256 Gigabytes.

Resilient "Weather-Proof" Ingress Protection Rating (IP67).

3 Years Back-to-Base Manufacturer Warranty



Functions:

Siren And Light Active Deterrence

Dahua siren and light active deterrence network camera support the light alarm and voice alarm when a perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection and supports customized voice importing.

Smart Dual Illuminators

Dahua Smart Dual Illuminators technology adopts smart algorithms to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshots and videos with a full-colour image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.

SMD

With an intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarms.

One-tap Disarming

Dahua One-tap Disarming function, which is convenient and easy to operate, is the switch for event linkage. Customers can close and recover event linkage through a mobile App, which meets multi-scenario needs.

Cyber Security

Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.

Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environments with unstable voltage.



Specifications:

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2592 (H) × 1944 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 [email protected] (Color, 30 IRE) 0.0003 [email protected] (B/W, 30 IRE) 0 lux (illuminator on)

S/N Ratio

﹥ 56 dB

Illumination Distance

30 m (IR) 30 m (warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED) 2 (warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Field of View

2.8 mm: Horizontal: 97°× Vertical: 70°× Diagonal: 128° 3.6 mm: Horizontal: 78°× Vertical: 58°× Diagonal: 102°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.5 m 3.6 mm: 2.2 m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

66.0 m

26.4 m

13.2 m

6.6 m

3.6 mm

78.0 m

31.2 m

15.6 m

7.8 m

Professional, intelligent

IVS (Perimeter Protection)

Tripwire: intrusion (support the classification and accurate detection of vehicle and human)

SMD 3.0

Less false alarms, longer detection distance

Intelligent Search

Work together with Smart NVR to perform refined intelligent searches, event extraction and merging event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Mainstream: 2592 × 1944@ (1 fps–20 fps)/2688 × 1520 @ (1 fps–30 fps) Sub stream: 704 × 576@ (1 fps–25 fps)/704 × 480@ (1 fps–30 fps) Third stream: 1920 × 1080@ (1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

5M (2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation

Yes

White Balance

Auto; natural; streetlamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Built-in MIC

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 72 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE8/9/11 Chrome Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

iOS; Android

Certification

Certification

CE-LVD: EN 62368-1. CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14.

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5 VDC

Alarm Output

1 channel out: 300mA 12 VDC

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 2.4 W (12 VDC); 3.1 W (PoE) Max. (H.265+mainstream/IR intensity warm light on): 7.9 W (12 VDC); 9.7 W (PoE)

Environment

Operating Conditions

–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH

Storage Conditions

–40 °C to +60 °C (–40 °F to +140 °F)

Protection Grade

IP67

Structure

Casing

Metal + plastic

Dimensions

288.4 mm × 94.4 mm × 84.7 mm (11.4" × 3.7" × 3.3") (L × W × H)

Net Weight

1.0 kg (2.20 lb)

Gross Weight

1.23 kg (2.71 lb)
