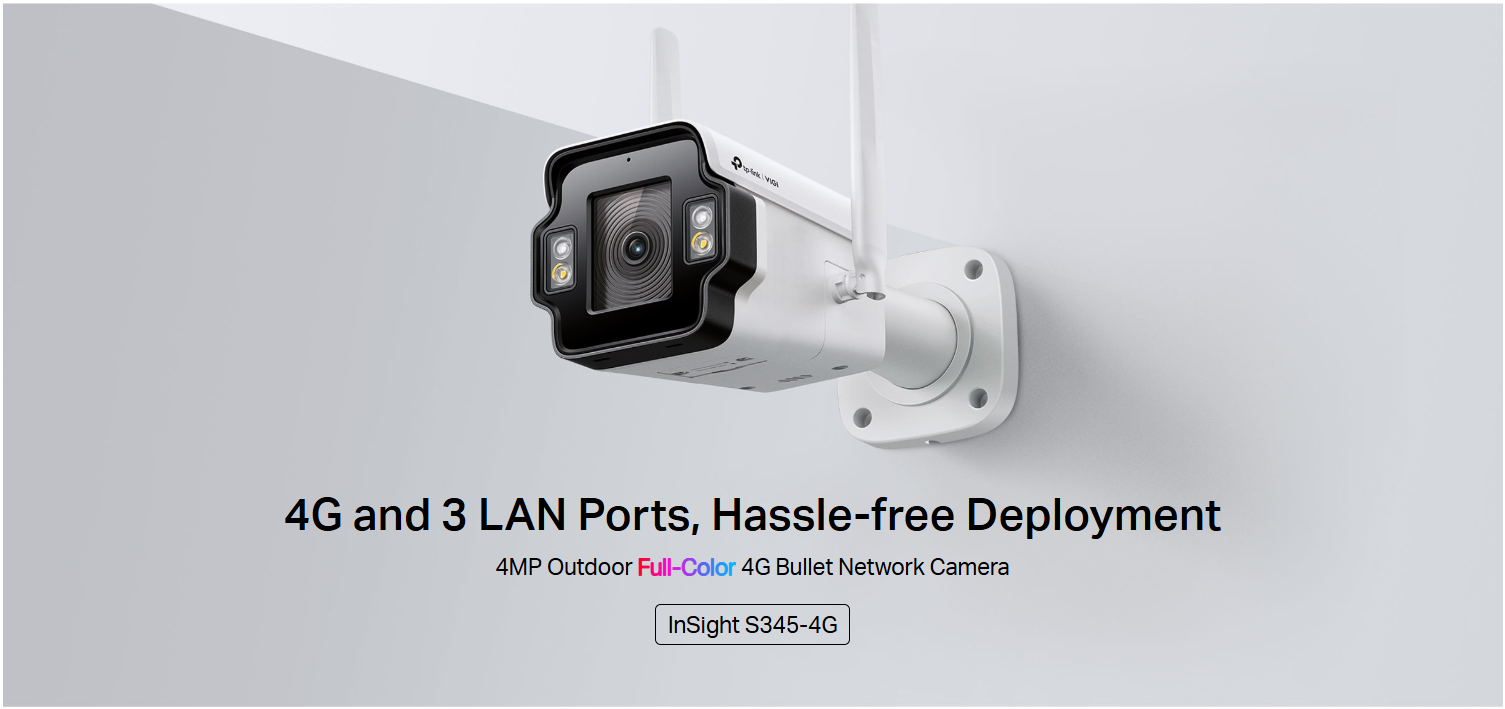

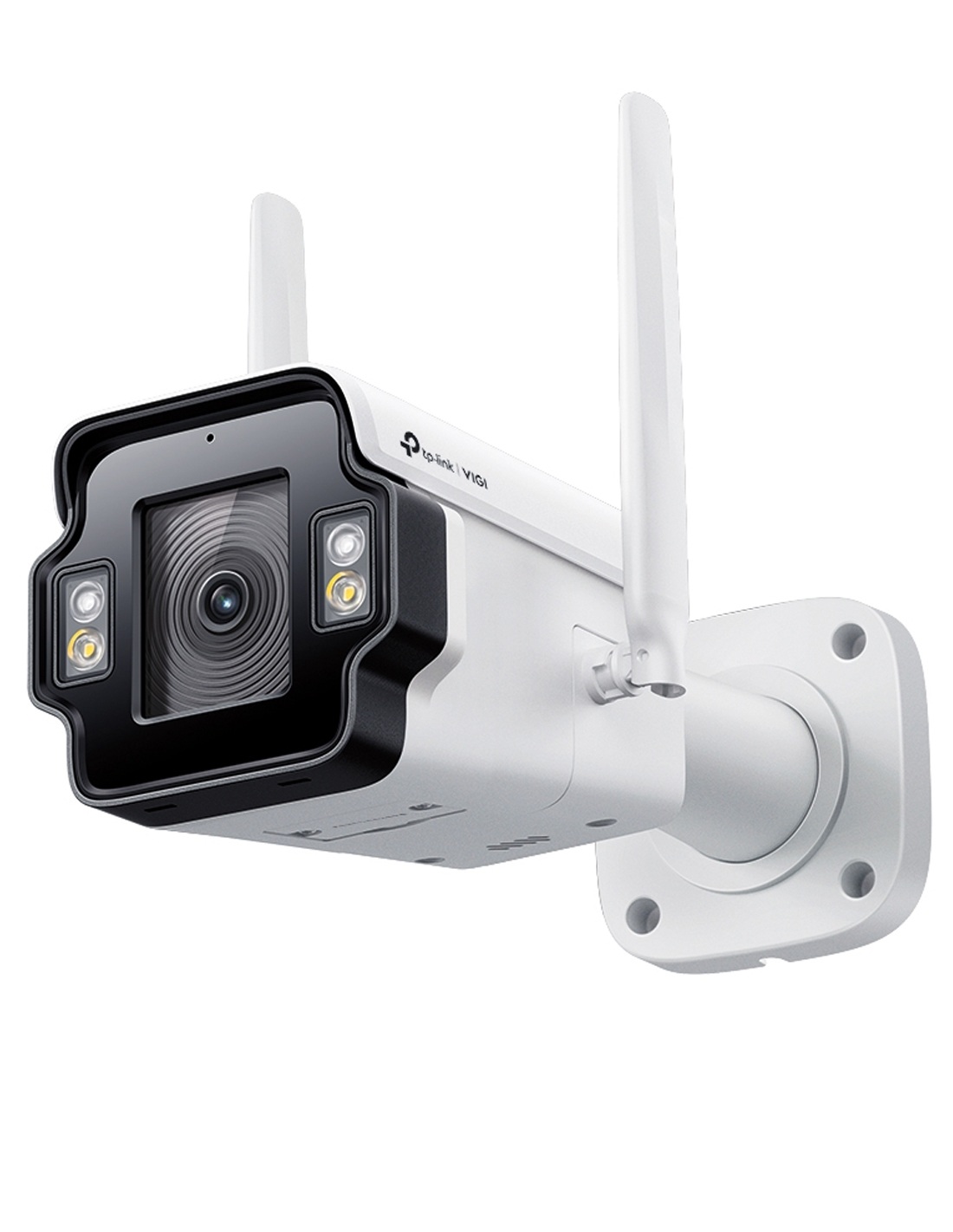

VIGI 4MP Outdoor Full-Colour 4G Bullet Network InSight-S345-4G

VIGI 4MP Outdoor Full-Colour 4G Bullet Network Camera - InSight-S345-4G

Name: VIGI 4MP Outdoor Full-Colour 4G Bullet Network Camera - InSight-S345-4G
Brand: TP-Link
SKU: InSight-S345-4G
Price: 399 AUD
Availability: InStock

Reference InSight-S345-4G

In Stock - Ready to Ship

$ 399.00

inc-GST

4MP Super-High Definition and 24h Full-Colour
4G Mobile Networking*1

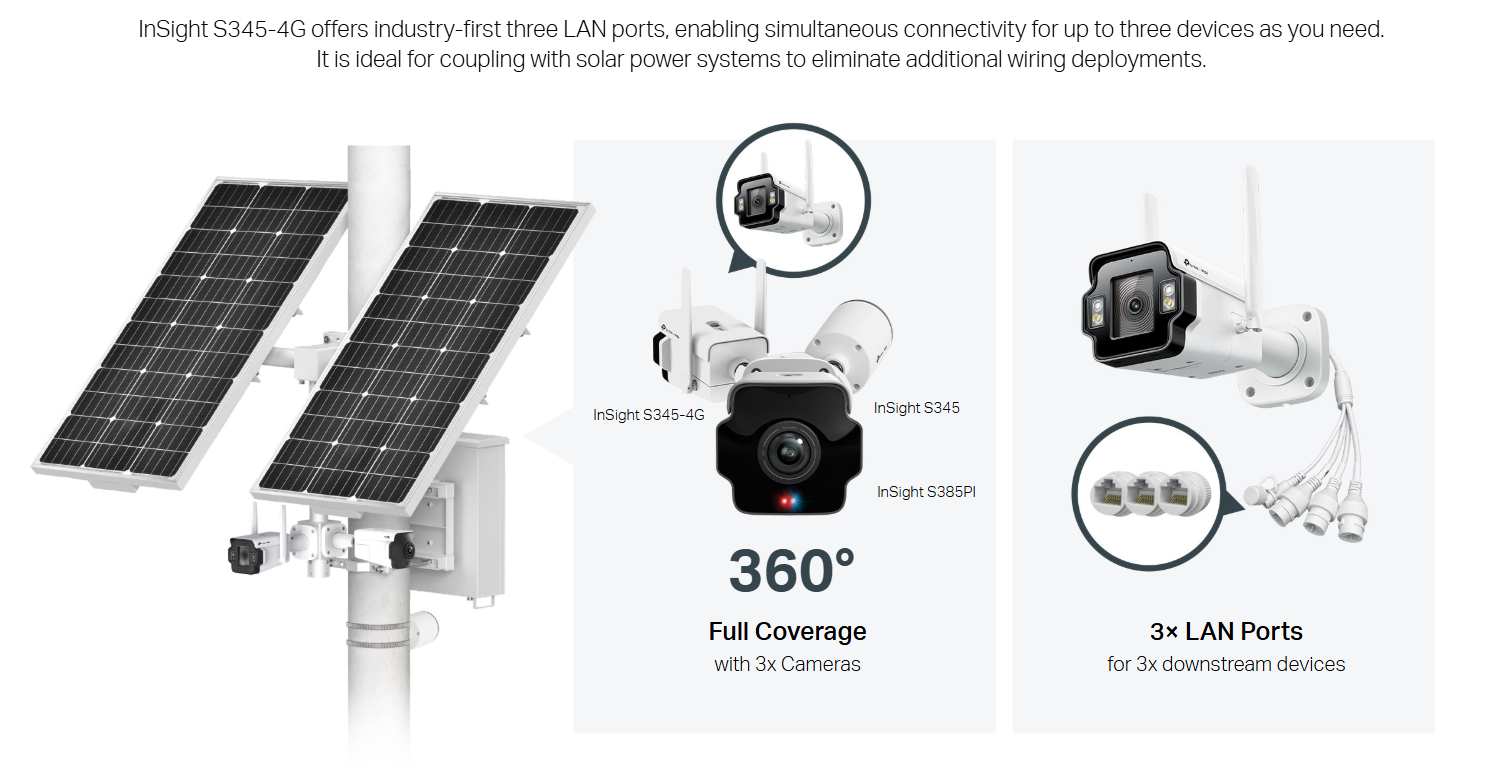

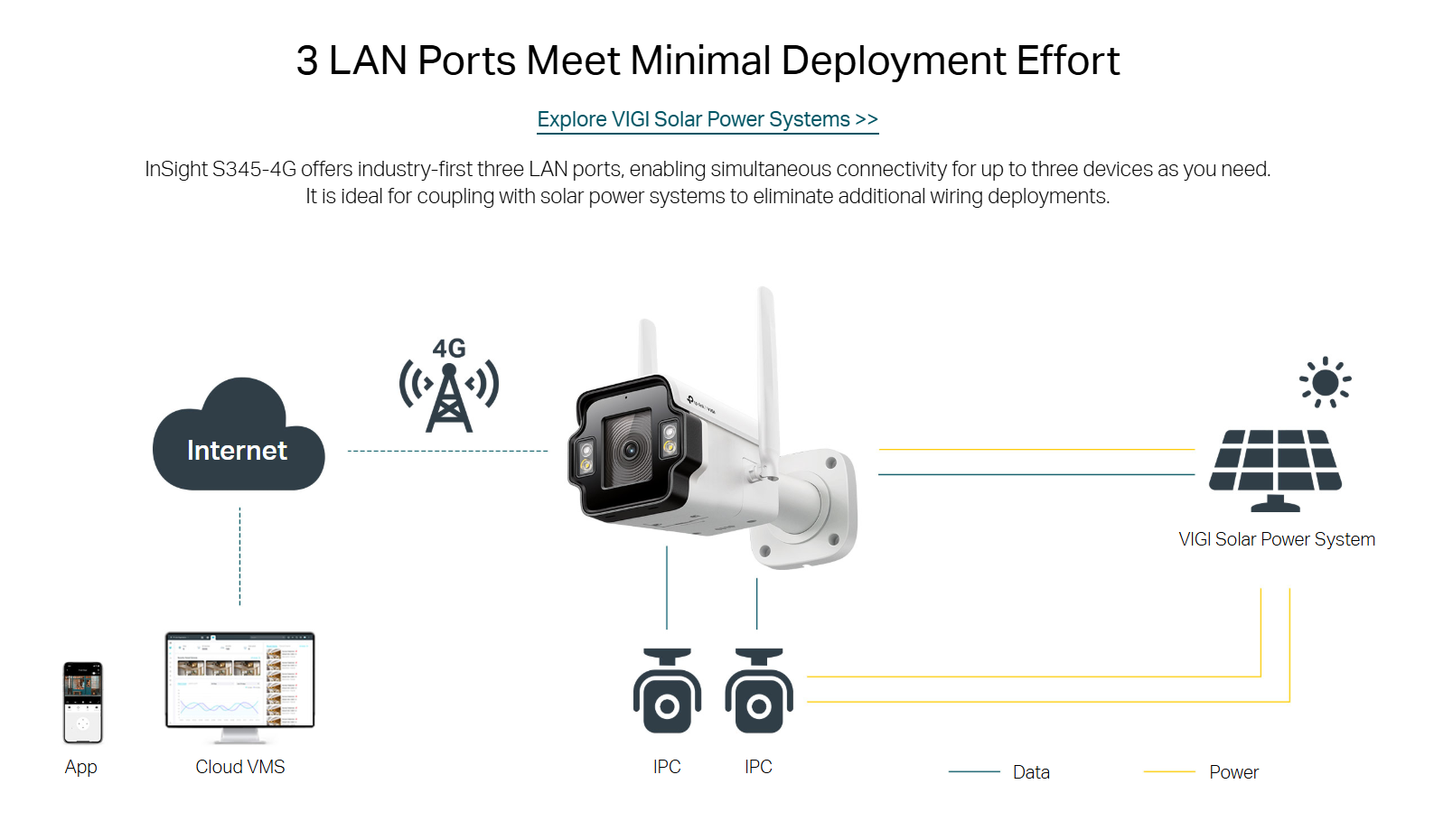

3 LAN Ports for Downstream Devices

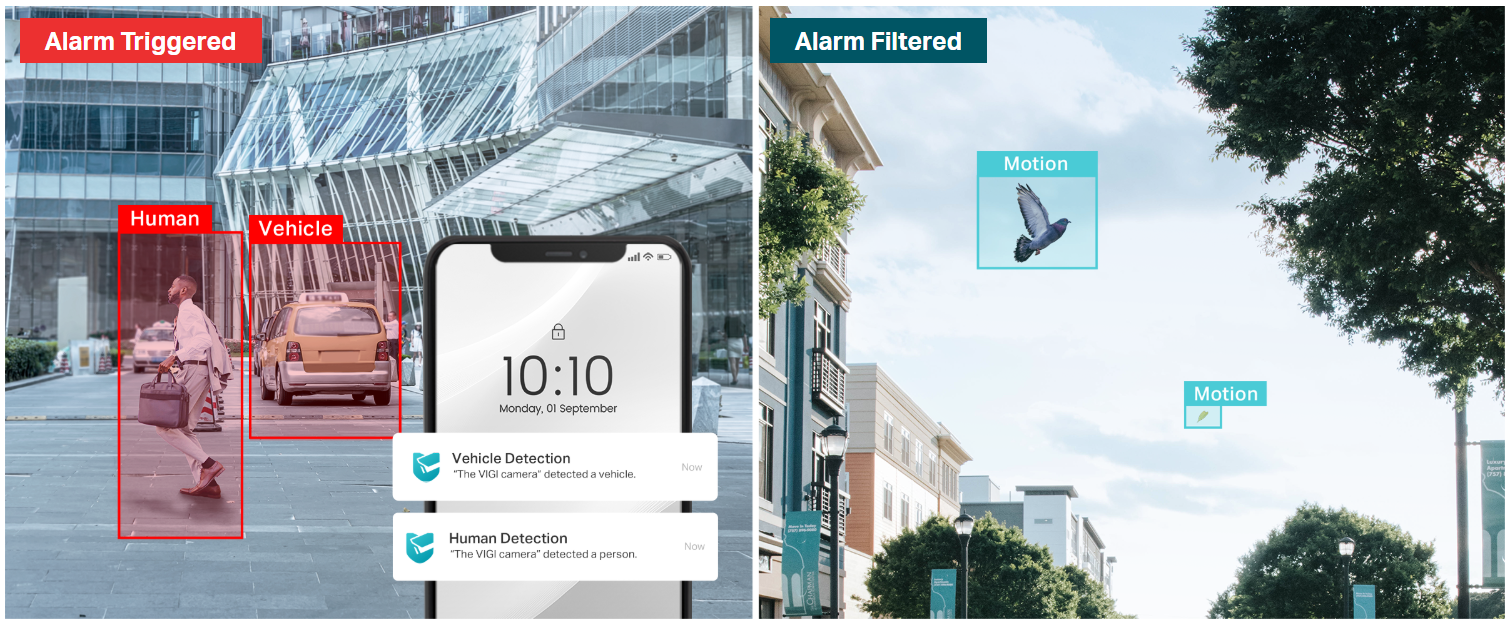

Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Active Defense and Two-Way Audio
H.265+ Compression Technology
IP66 Weatherproof

Quantity	Unit price	You Save
2	$ 359.10	$ 79.80

VIGI 4MP Outdoor Full-Colour 4G Bullet Network Camera - InSight-S345-4G

InSight-S345-4G

Enhance your property’s security with the VIGI 4MP Outdoor Full-Colour 4G Bullet Network Camera (InSight-S345-4G) — a high-performance surveillance solution designed for reliable outdoor monitoring. Featuring ultra-clear 4MP resolution, full-colour night vision, and 4G connectivity, this advanced bullet network camera ensures round-the-clock visibility even in low-light conditions. Ideal for remote areas or locations without Wi-Fi access, the InSight-S345-4G offers easy installation, real-time alerts, and robust weatherproofing, making it perfect for homes, businesses, farms, and construction sites.

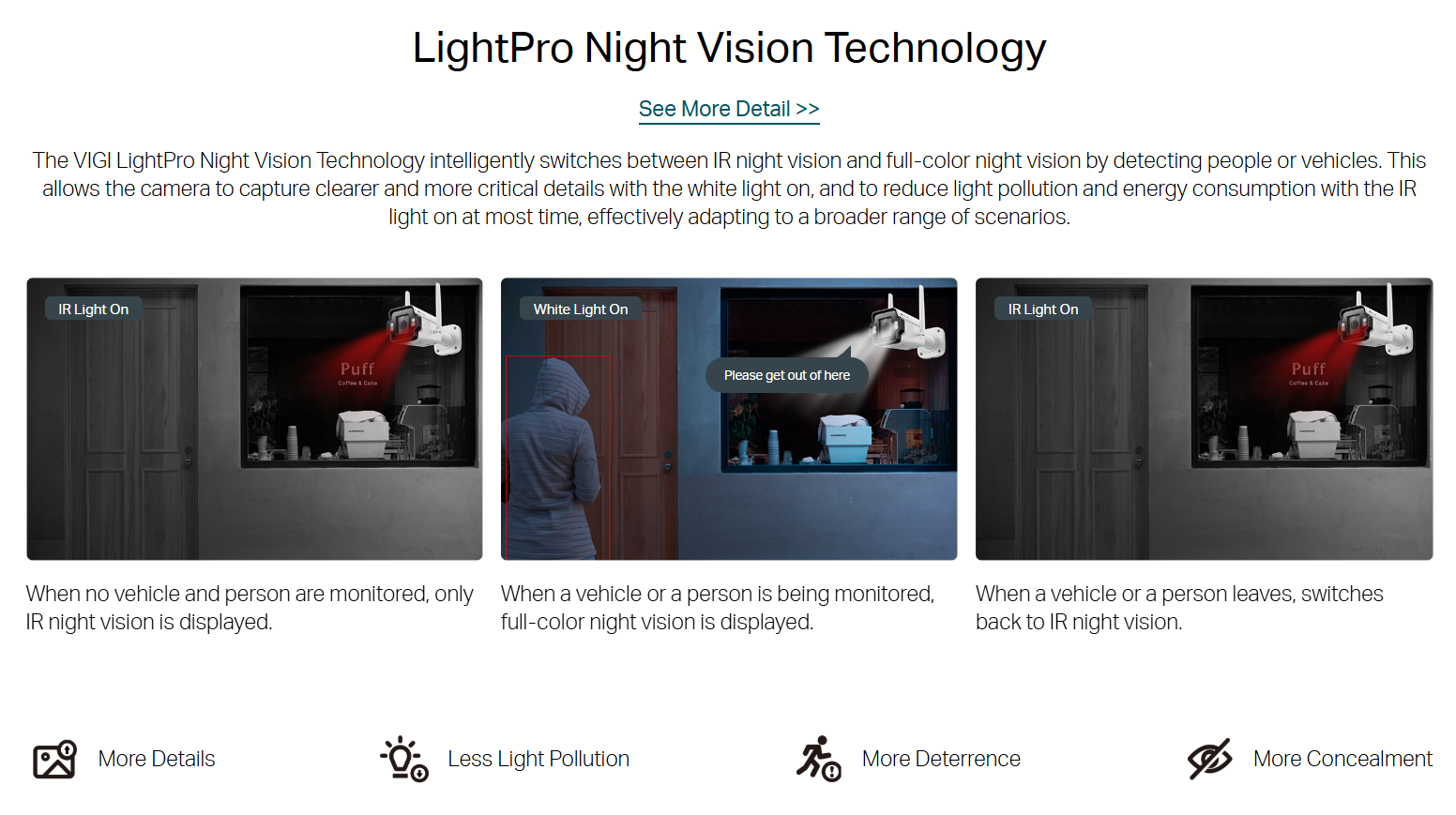

TP-Link VIGI InSight S385PI Night Vision

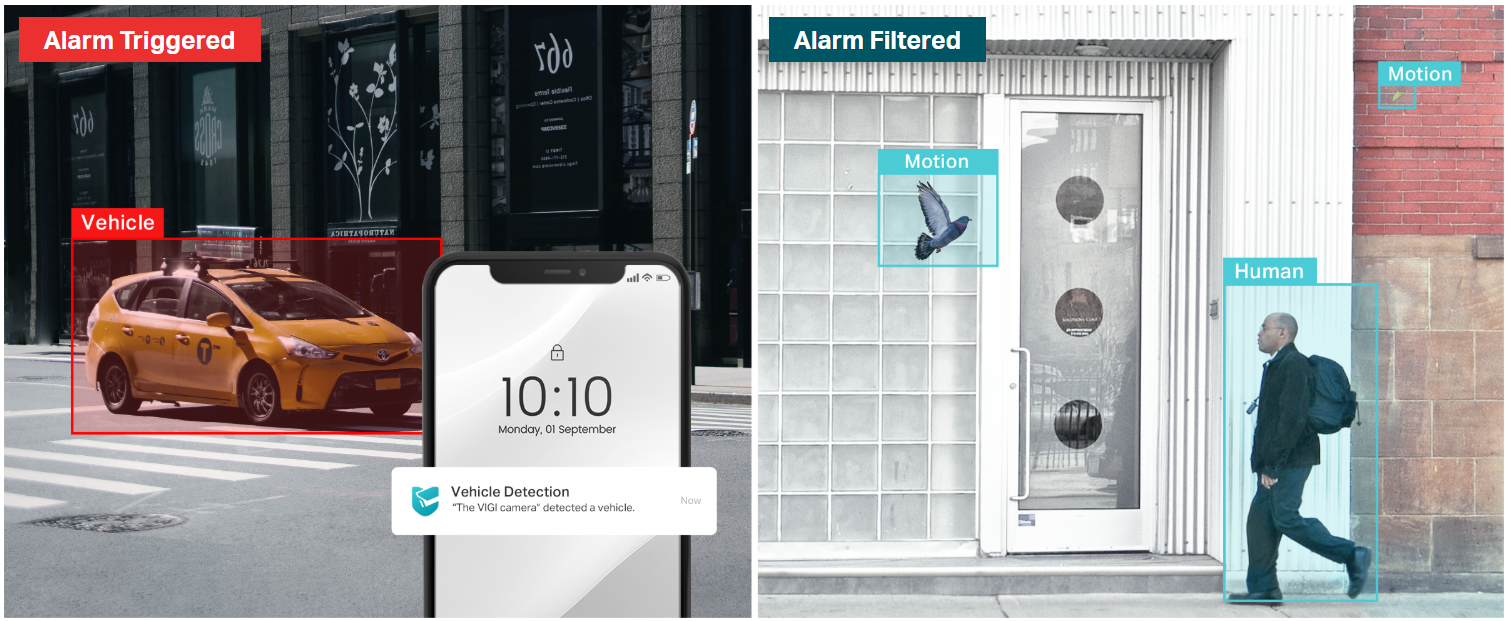

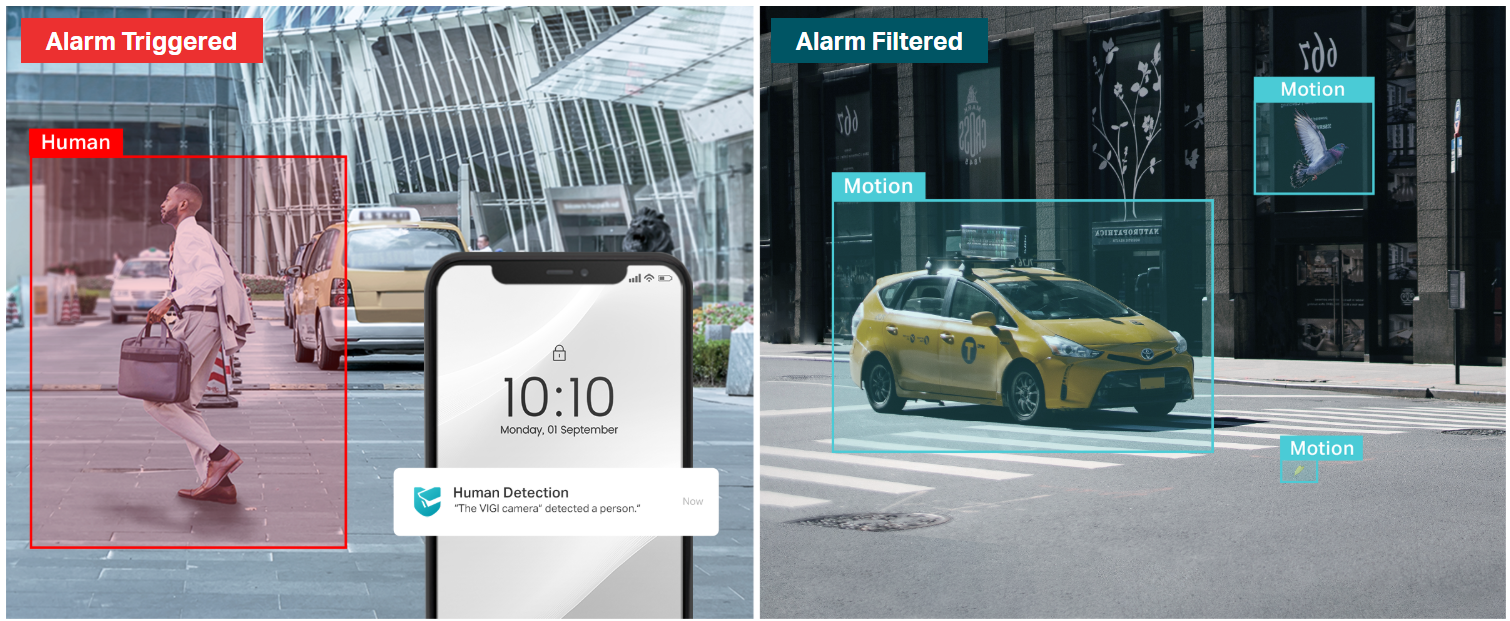

Human & Vehicle Classification

Human Detection

Only Vehicle Classification On

Why Buy From InFront Technologies?

100% Genuine Australian Stock
Fast & Secure Shipping
Expert Customer Support

TP-Link VIGI InSight S385PI Night Vision

Net Weight: 1.09 Kg
Power Supply: 12V DC 5%, Max. 10.59 W, 5.5 mm Coaxial Power Plug
Frequency: LTE-FDD: B 1/3/5/7/8/20/28, LTE-TDD: B 38/40/41, WCDMA: B 1/5/8
Operating temperature: -30 to 60C
Antenna: Quantity: 2, Type: 690~960 & 1710~2690MHz Dipole Omni-Directional Antenna, Gain: Ant1: 0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz; Ant2: 0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Audio Input: Yes (Built-in Microphone)
Audio Output: Yes (Built-in Speaker)
Category: 4
Certifications: WPS, WHQL, Energy Star, RoHS, CE, NCC, NTRA, KC, RCM, ONVIF, IP66
Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
Max. Resolution: 2688 X 1520
Protection: IP66 Weatherproof
Storage Temperature: -40 to 60C
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
DORI Distance: Detect: 80 m (262 ft)
Network Interface: 3 RJ45 10/100M LAN Ports
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light
Aperture: F1.6
Focal Length: 4 mm
FOV: Horizontal: 80.4, Vertical: 41.8, Diagonal: 98.7
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Angle Adjustment (Manual) - Range: Pan: 0 to 360, Tilt: 0 to 90, Rotate: 0 to 360
IR LED: Quantity: 2, Range: 50m, Wavelength: 850nm
White LED: Quantity: 2, Range: 30m
Main Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Main Stream Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Video Bit Rate: Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
Wide Dynamic Range: 120dB
ROI: 1 Region
API: Open Network Video Interface (Profile S/G/T)
Standard: LTE-TDD/LTE-FDD/WCDMA
SIM Type: Nano SIM*1
Basic Event: Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login)
Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing, Upload to FTP server, Send to Alarm Server, Email Alarm
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB*1
Built-in Nano-SIM Card Slot: Yes

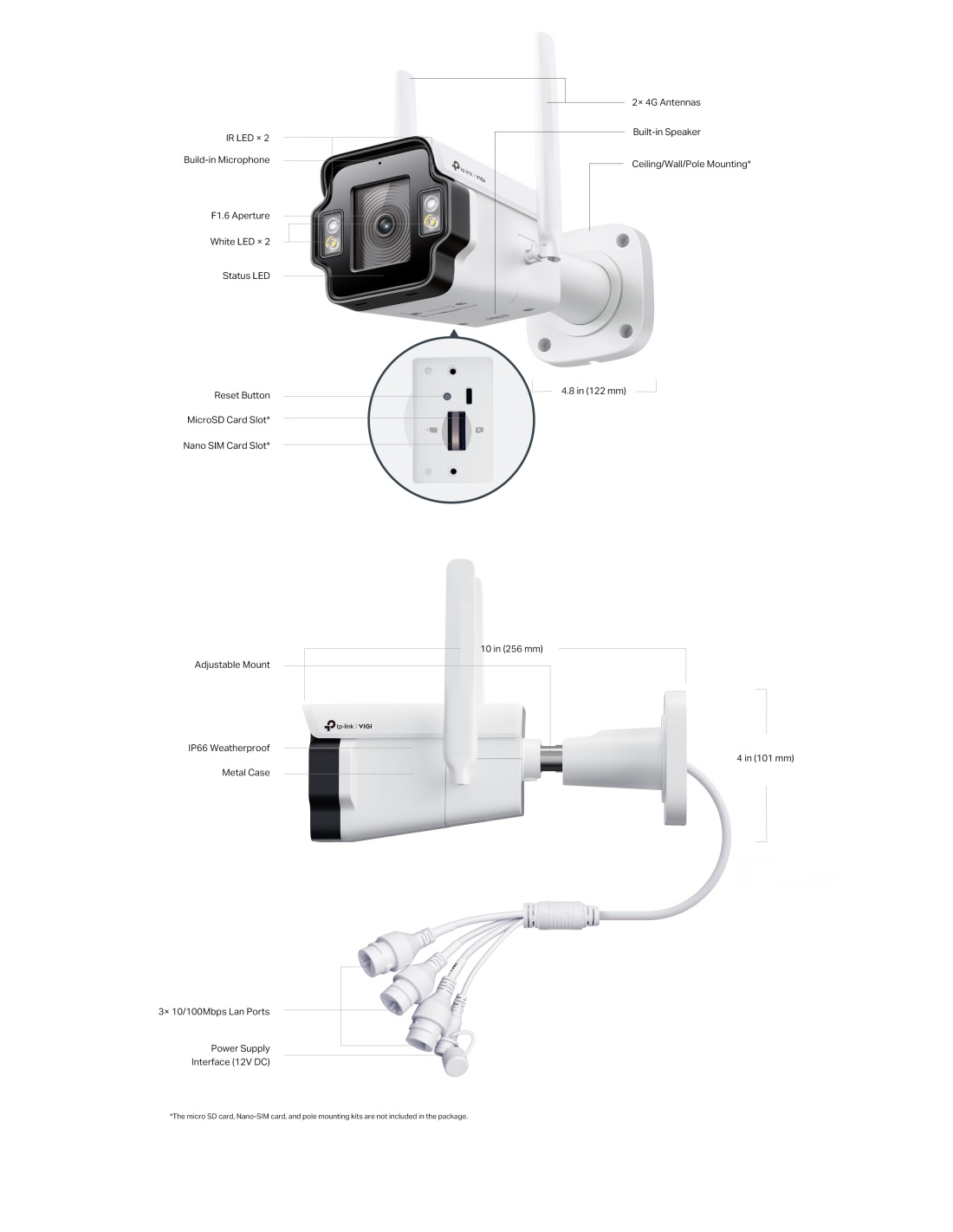

Product Dimensions (L x W x H): 10 4.8 4.0 in (256 122 101 mm) (excluding antennas)



Category	Specification
CAMERA
Image Sensor	1/2.7“ Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.6
FOV	Horizontal: 80.4°, Vertical: 41.8°, Diagonal: 98.7°
Lens Mount	M12
DORI Distance	Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)
Angle Adjustment (Manual) - Range	• Pan: 0° to 360° • Tilt: 0° to 90° • Rotate: 0° to 360°
ILLUMINATOR
IR LED	• Quantity: 2 • Range: 50m • Wavelength: 850nm
White LED	• Quantity: 2 • Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2688 X 1520
Main Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 Note: If image rotation is set to 90° or 270°, frame rate supports only up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes (Built-in Microphone)
Audio Output	Yes (Built-in Speaker)
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps (G.711 alaw)
NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S/G/T)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G
Standard	LTE-TDD/LTE-FDD/WCDMA
SIM Type	Nano SIM*1
Category	4
Frequency	• LTE-FDD: B 1/3/5/7/8/20/28 • LTE-TDD: B 38/40/41 • WCDMA: B 1/5/8
ALARM AND EVENT MANAGEMENT
Smart Event	• Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception (Illegal Login)
Alarm Linkage	• Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing • Upload to FTP server • Send to Alarm Server • Email Alarm
INTERFACES

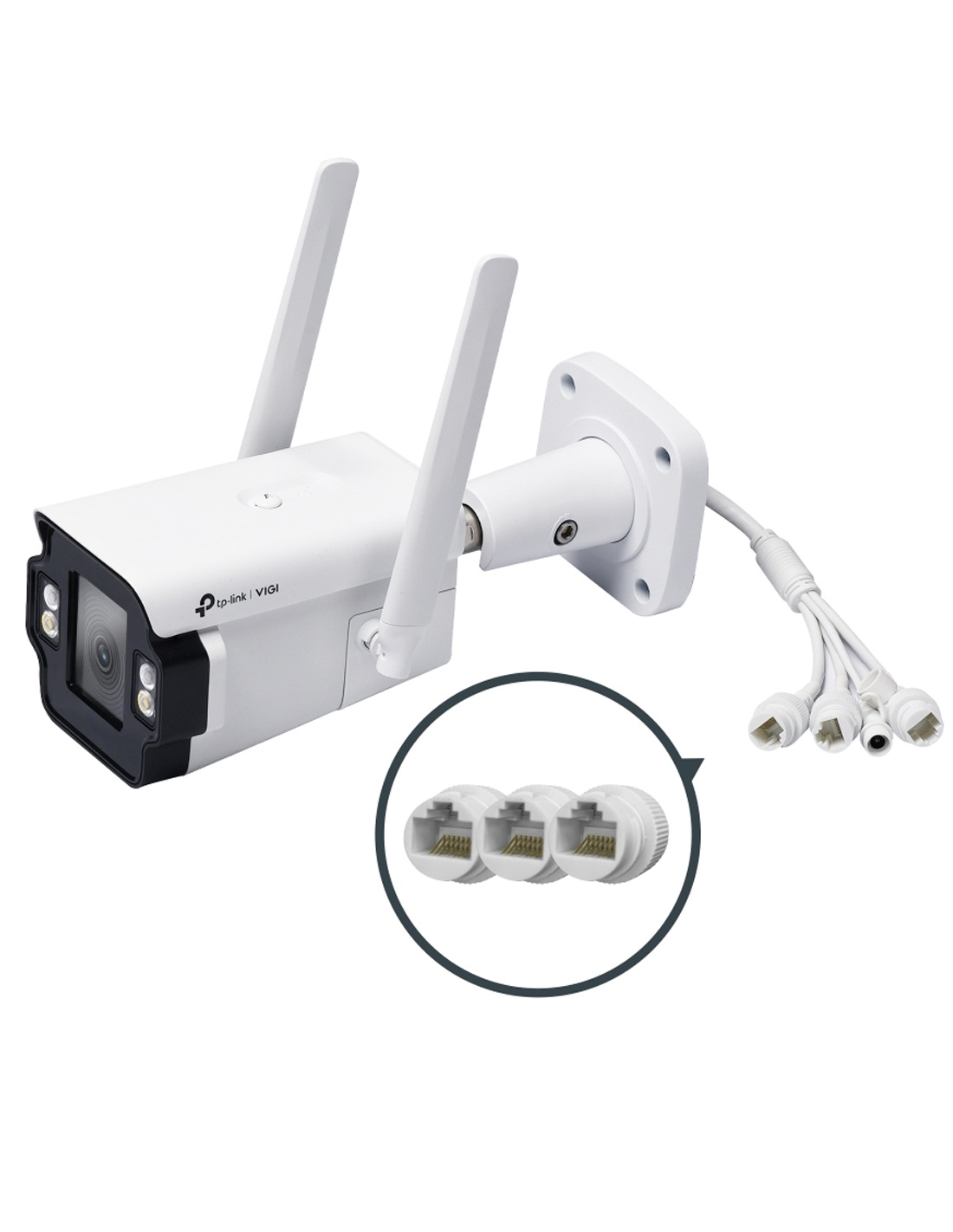

Network Interface	3 RJ45 10/100M LAN Ports
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB*1

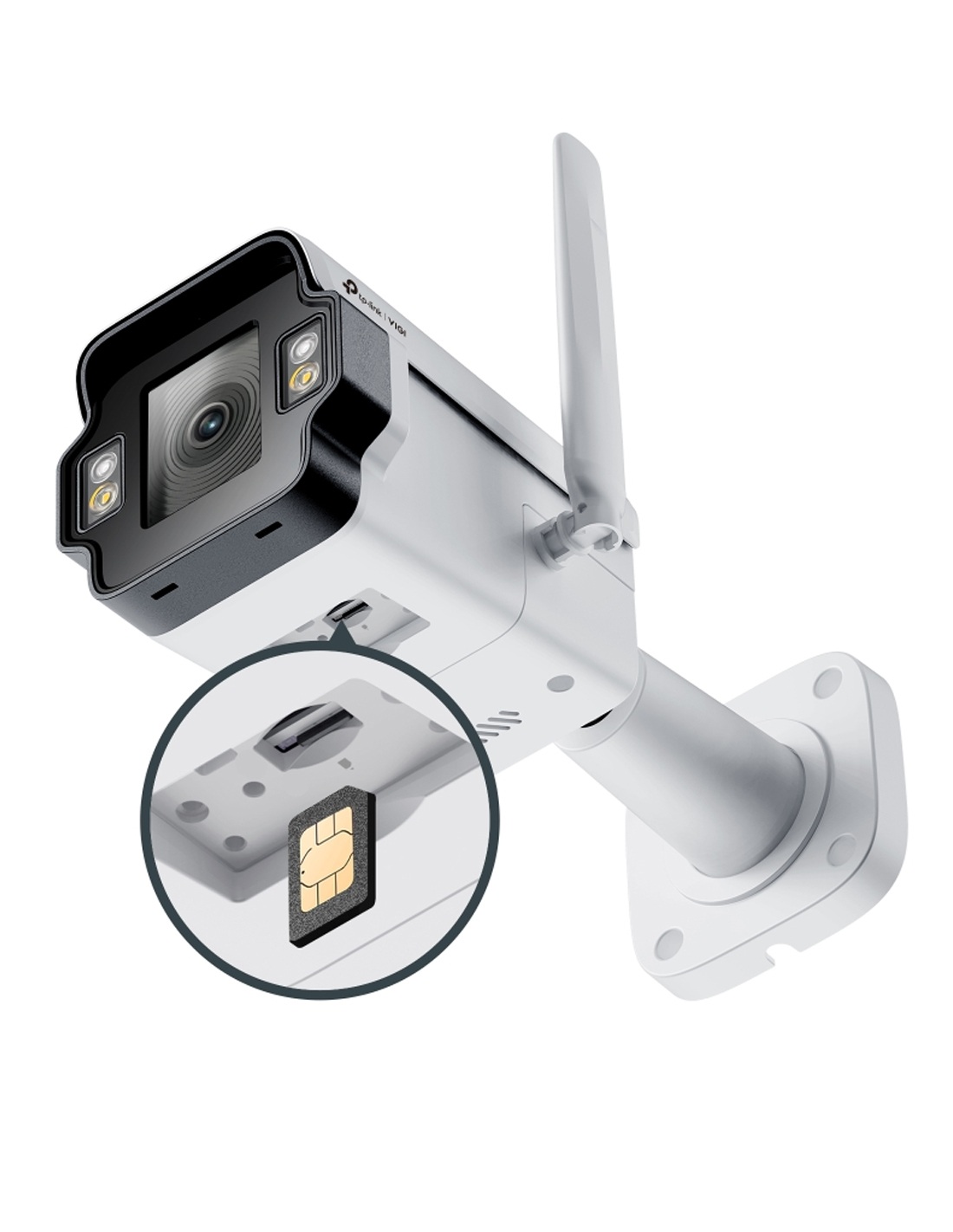

Built-in Nano-SIM Card Slot	Yes
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
GENERAL
Operating Temperature	-30℃ to 60°C
Storage Temperature	-40℃ to 60°C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)

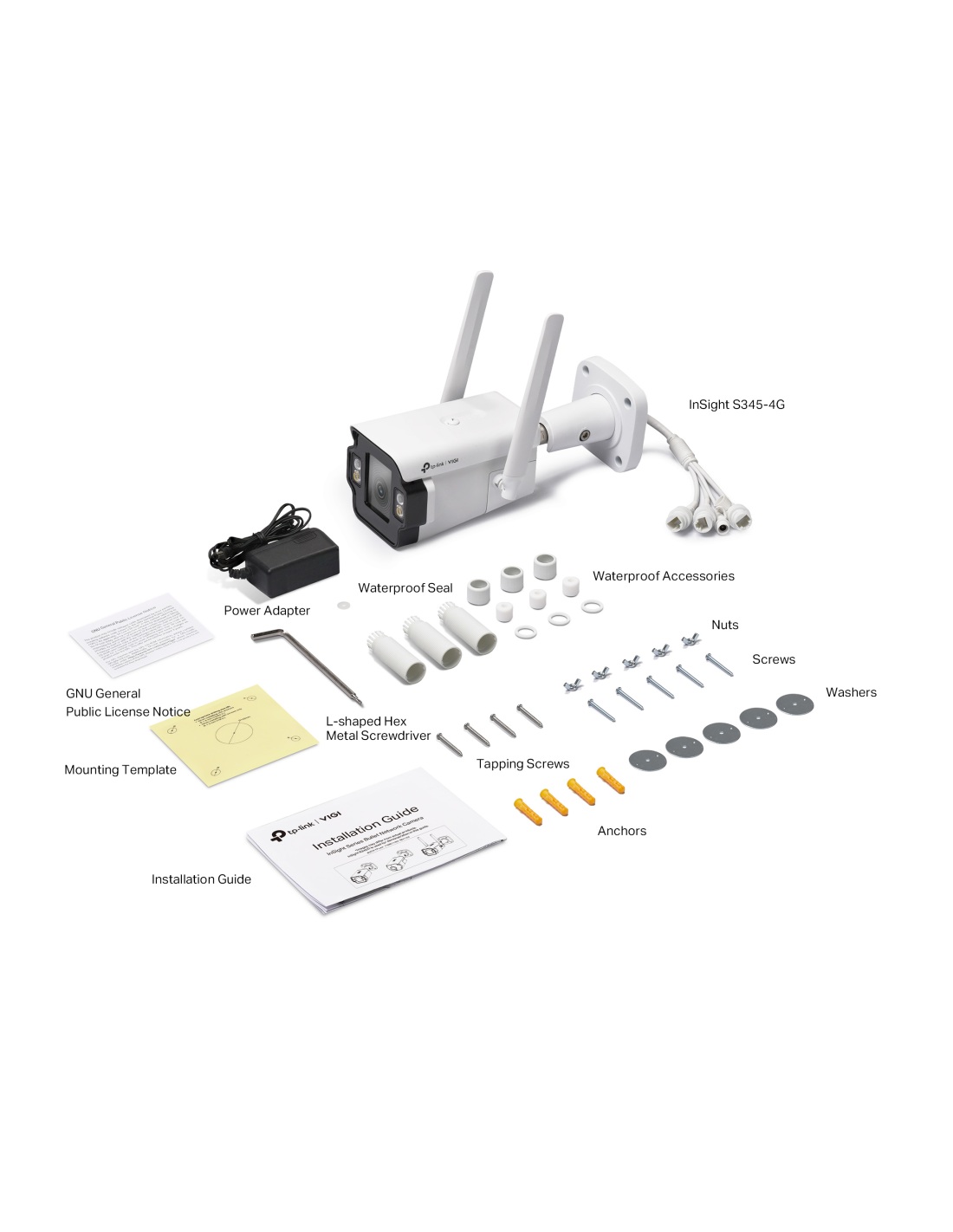

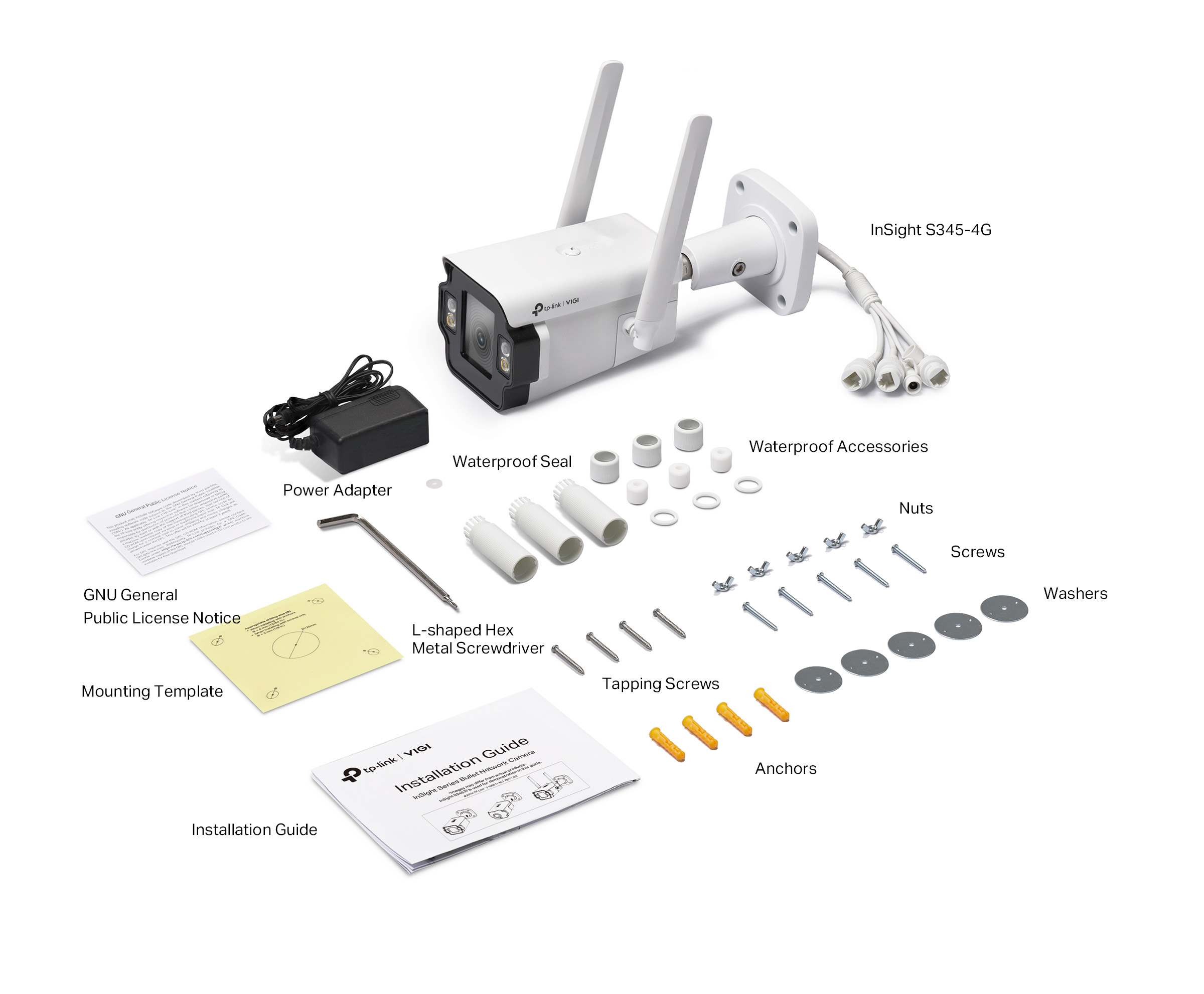

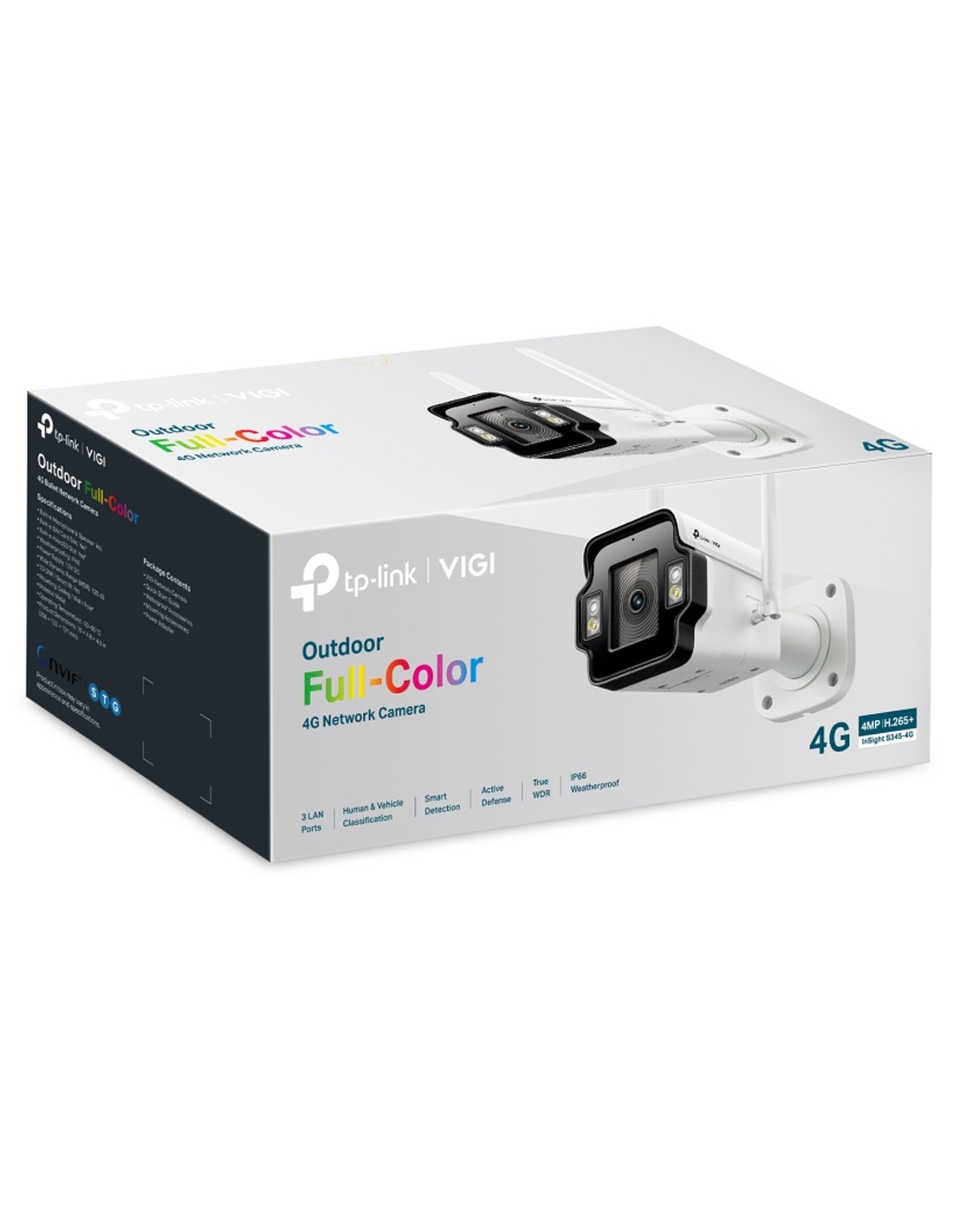

Package Contents	• VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories • Power Adapter
Material	Metal
Net Weight	1.09 Kg
Power Supply	• 12V DC ± 5%, Max. 10.59 W, 5.5 mm Coaxial Power Plug
Antenna	• Quantity: 2 • Type: 690~960 & 1710~2690MHz Dipole Omni-Directional Antenna • Gain: Ant1: 0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz; Ant2: 0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Protection	IP66 Weatherproof

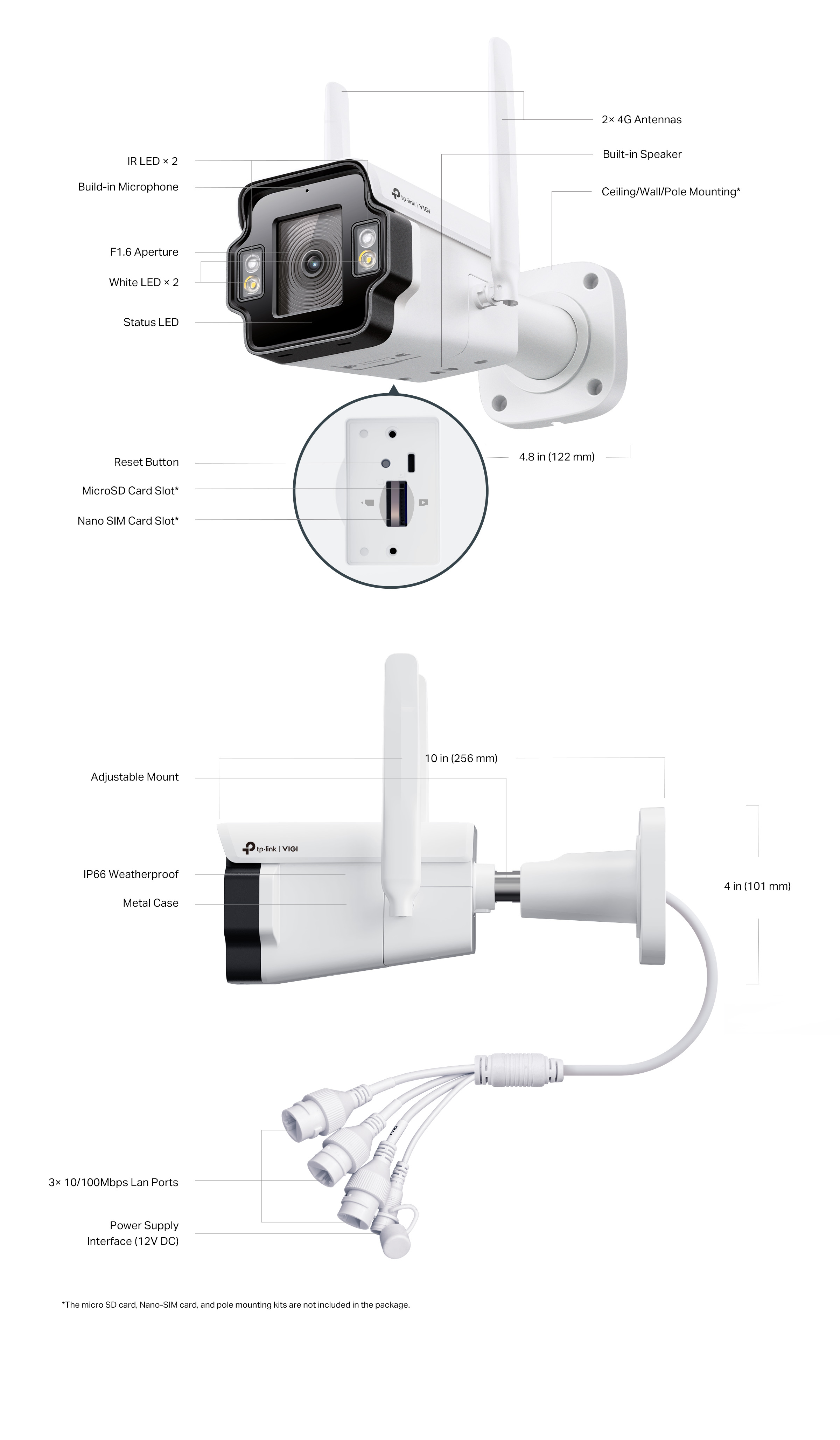

Product Dimensions (L x W x H)	10 × 4.8 × 4.0 in (256 × 122 × 101 mm) (excluding antennas)
Certifications	WPS, WHQL, Energy Star, RoHS, CE, NCC, NTRA, KC, RCM, ONVIF, IP66
