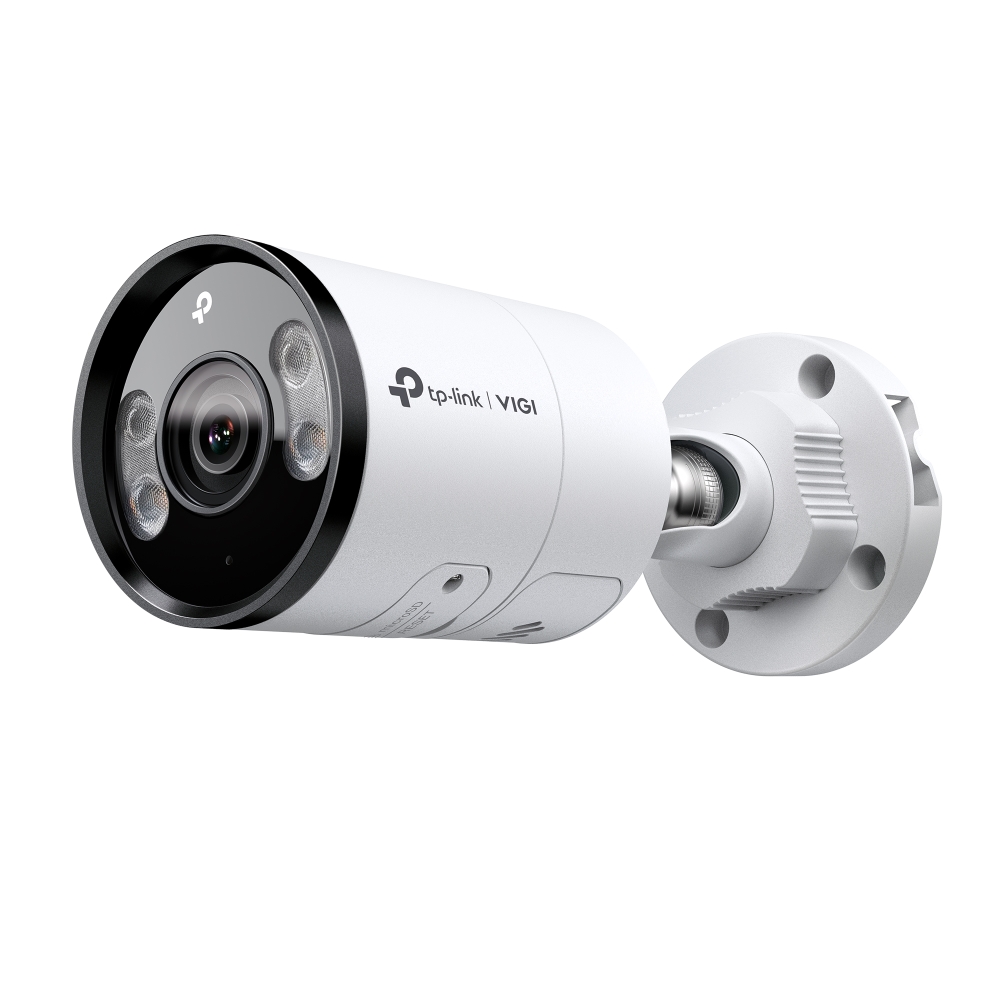

TP-Link VIGI 5MP UHD Full-Colour Bullet IP Insight-S355(4mm)

TP-Link VIGI 5MP UHD Full-Colour Bullet IP Security Camera - Insight-S355(4mm)

Name: TP-Link VIGI 5MP UHD Full-Colour Bullet IP Security Camera - Insight-S355(4mm)
Brand: TP-Link
SKU: Insight-S355(4mm)
Price: 189 AUD
Availability: InStock

Reference: Insight-S355(4mm)

In Stock - Ready to Ship

$ 189.00

inc-GST

5MP full-colour bullet
Weather / protection: IP67
Max resolution: 2880 X 1620
Lens: 4 mm
Standalone camera — NVR and mounts sold separately

TP-Link VIGI InSight S355(4mm)

5MP full-colour bullet · 4 mm

TP-Link VIGI 5MP UHD Full-Colour Bullet IP Security Camera - Insight-S355(4mm)

Overview

The Insight-S355(4mm) is a UHD colour bullet with AI human/vehicle filtering and IP67 outdoor rating.

Standalone IP camera — NVR / PoE switch / mounts sold separately. Specs below match TP-Link Australia.

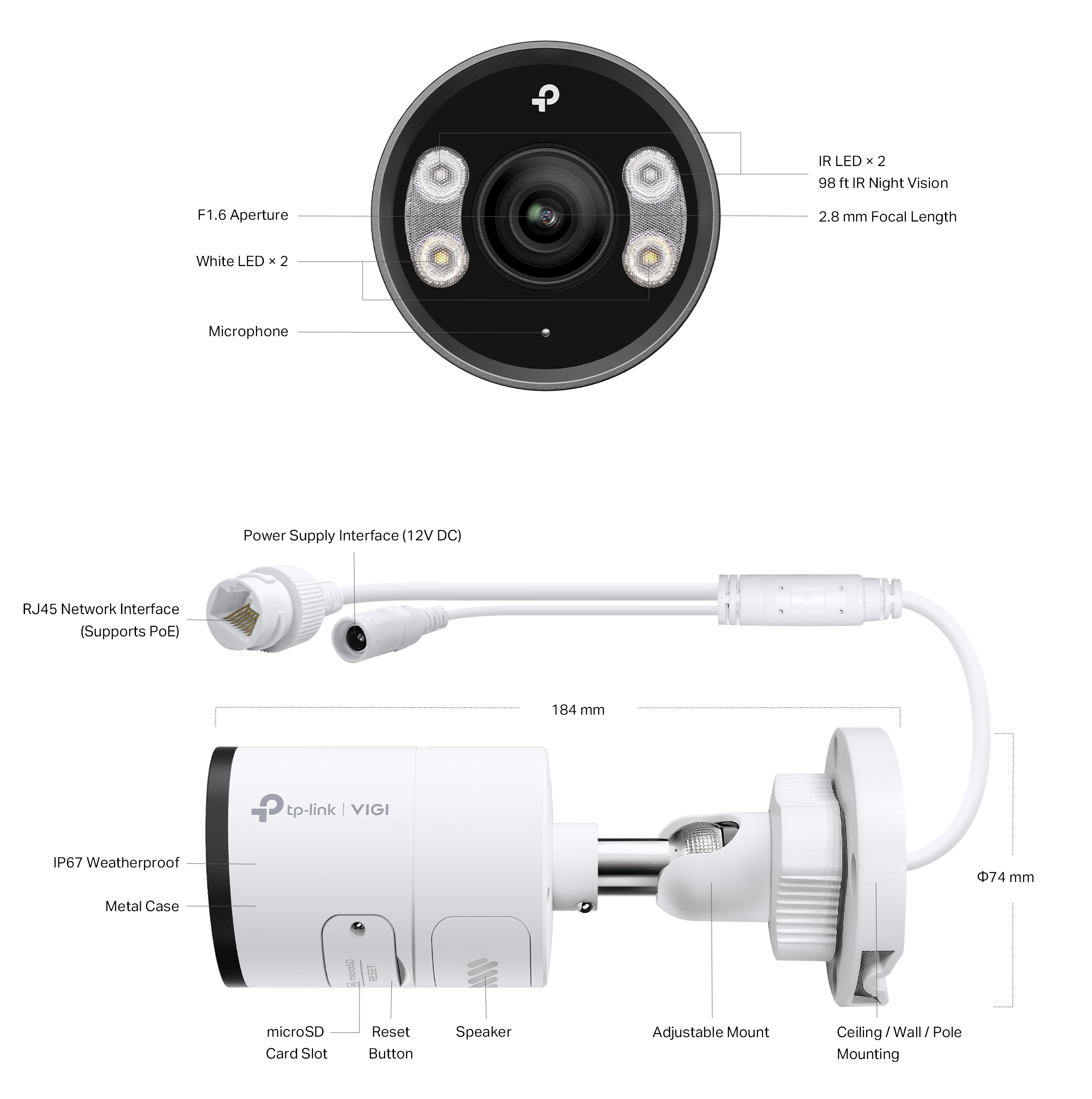

BUILD

5MP full-colour bullet

UHD colour bullet with AI human/vehicle filtering and IP67 outdoor rating. Official protection: IP67.

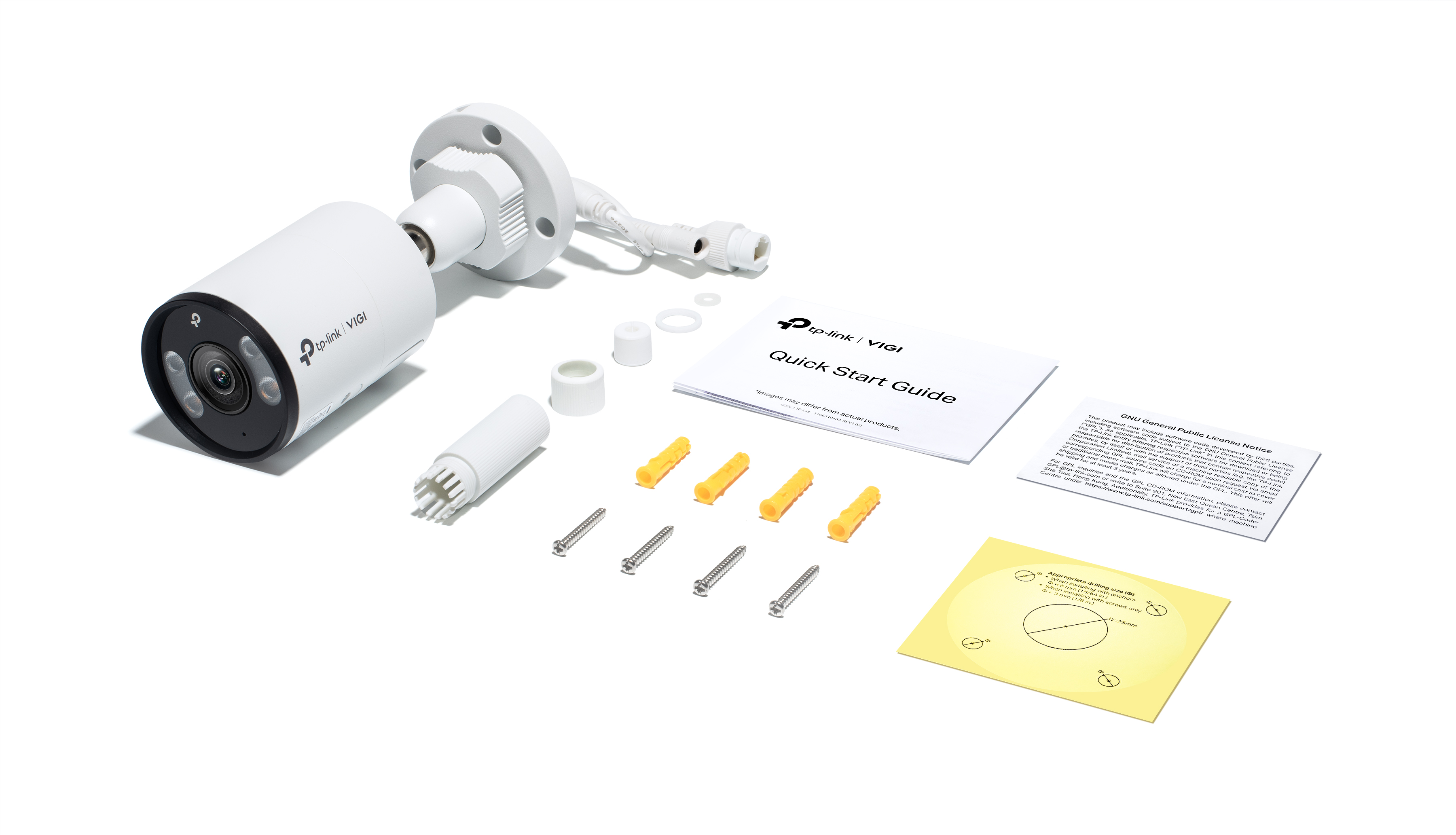

IN THE BOX

What ships with the camera

• VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories

Key specs

Specification	Detail
Max. resolution	2880 X 1620
Lens	4 mm
Image sensor	1/2.7” Progressive Scan CMOS
Protection	IP67
Power	• 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max. 10.7 W
Net weight	0.525 Kg

Full specifications are in the Specifications tab. Source: TP-Link Australia.

Recommended mounts

Official AU accessory matrix. Confirm your exact model before ordering.

VJB-300 — compact general junction box on the AU matrix
VMB-350 — pole bracket for 70–130 mm poles (bullet / PT)

Frequently asked questions

What weather / vandal rating does TP-Link publish?

TP-Link Australia lists IP67 for this model.

Which junction box or pole mount do I need?

On the AU accessory matrix this camera maps to: VJB-300 — compact general junction box on the AU matrix; VMB-350 — pole bracket for 70–130 mm poles (bullet / PT).

Is this a kit?

No — this listing is the standalone camera. NVR, cable and mounts are sold separately unless the product title says Kit.

Need help matching this camera to an NVR or mount?
Infront Technologies stocks and supports TP-Link VIGI across Australia — call 1300 736 970 or email [email protected].

Install note. Use an ACMA-registered cabler for concealed customer cabling (AS/CA S009). Specs and imagery can change at TP-Link’s discretion — verify against the current AU product page before ordering.

Net Weight: 0.525 Kg
Ingress Protection: IP67
Power: • 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max. 10.7 W
Brand: TP-Link
Image Sensor: 1/2.7” Progressive Scan CMOS
Lens: 4 mm
Max. Resolution: 2880 X 1620
Warranty: Australian Warranty via Infront Technologies
Product Family: VIGI InSight
Model: S355

Insight-S355

Download (410.03KB)

TP-Link VIGI Network Camera Junction Box - VJB-300VJB-300

TP-Link VIGI Network Camera Junction Box - VJB-300VJB-300 2

In Stock - Ready to Ship

TP-Link Surveillance Accessories

TP-Link VIGI Network Camera Junction Box - VJB-300

TP-Link

VJB-300

$ 43.00

Aluminium alloy network camera junction box Indoor / outdoor wall or ceiling mounting Dimensions: ∅125 × 130.47 × 45.7 mm (4.92 × 5.14 × 1.80 in) Weight: 364 g · VIGI White Waterproof design for cable concealment Compatible models listed in full description (broad VIGI / InSight range)

TP-Link VIGI Network Camera Pole Mounting Bracket - VMB-350VMB-350

TP-Link VIGI Network Camera Pole Mounting Bracket - VMB-350VMB-350 2

In Stock - Ready to Ship

TP-Link Surveillance Accessories

TP-Link VIGI Network Camera Pole Mounting Bracket - VMB-350

TP-Link

VMB-350

$ 39.00

SGCC galvanised + stainless steel pole mounting bracket Fits poles 70–130 mm diameter Dimensions: 105 × 100 × 39 mm (4.1 × 3.9 × 1.5 in) Weight: 392.25 g · VIGI White For listed bullet and pan-tilt cameras only Not a junction box — pair with VJB-300 / VJB-305 for cable enclosure

VIGI-C385 2.8mm Camera

Category	Specification
CAMERA
Image Sensor	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	2.8/4/6 mm
Aperture	F1.6
FOV	• 2.8 mm:Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°• 4 mm:Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°• 6 mm:Horizontal FOV: 57.3°, Vertical FOV: 31.3°, Diagonal FOV: 67.2°
Lens Mount	M12*P 0.5
DORI Distance	• 2.8 mmDetect: 64 m (210 ft)Observe: 27 m (89 ft)Recognize: 13 m (43 ft)Identify: 6 m (20 ft)• 4 mmDetect: 80 m (262 ft)Observe: 33 m (108 ft)Recognize: 16 m (52 ft)Identify: 8 m (26 ft)• 6 mmDetect: 120 m (394 ft)Observe: 50 m (164 ft)Recognize: 24 m (79 ft)Identify: 12 m (39 ft)
ILLUMINATOR
Illuminator Type	• 2× IR LED• 2× White LED
IR LED	• Quantity: 2• Range: 30m• Wavelength: 850nm
Illuminator Distance	30 m (98 ft)
White LED	• Quantity: 2• Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2880 X 1620
Main Stream	• Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:848x480, 704x576, 640x480, 640x360, 352x288, 320x240• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile*
H.265+	Main Stream Supported*
Video Bit Rate	• Main Stream: 256 Kbps to 6 Mbps• Sub-Stream: 64 Kbps to 512 Kbps
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
GENERAL
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Content	• VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories
Material	Metal
Net Weight	0.525 Kg
Power Supply	• 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max. 10.7 W
Protection	IP67
Product Dimensions (L x W x H)	7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm)
Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IC
