VIGI 5MP HD AI IR Fisheye IP Network Camera 360° 2-Way Audio - InSight-S655I

SKU InSight-S655I In Stock - Ready to Ship
$329.00 inc GST
Log in for a savingAccount holders pay less on this item. Log in to see your price.
Log inCreate free account

TP-Link VIGI InSight S655I: a 5MP fisheye camera that covers a whole room from the ceiling, with panorama and virtual PTZ views, IR night vision and two-way audio.

  • ✓360° coverage from one ceiling camera, no blind spots
  • ✓5MP (2560 × 1920) with 1.44 mm fisheye lens
  • ✓Fisheye, panorama, cylinder and up to 8 virtual PTZ views
  • ✓IR night vision up to 10 m
  • ✓Two-way audio with built-in mic and speaker
  • ✓Intrusion, line-crossing and abnormal sound alerts
  • ✓PoE powered · microSD up to 512GB · IP67 / IK10

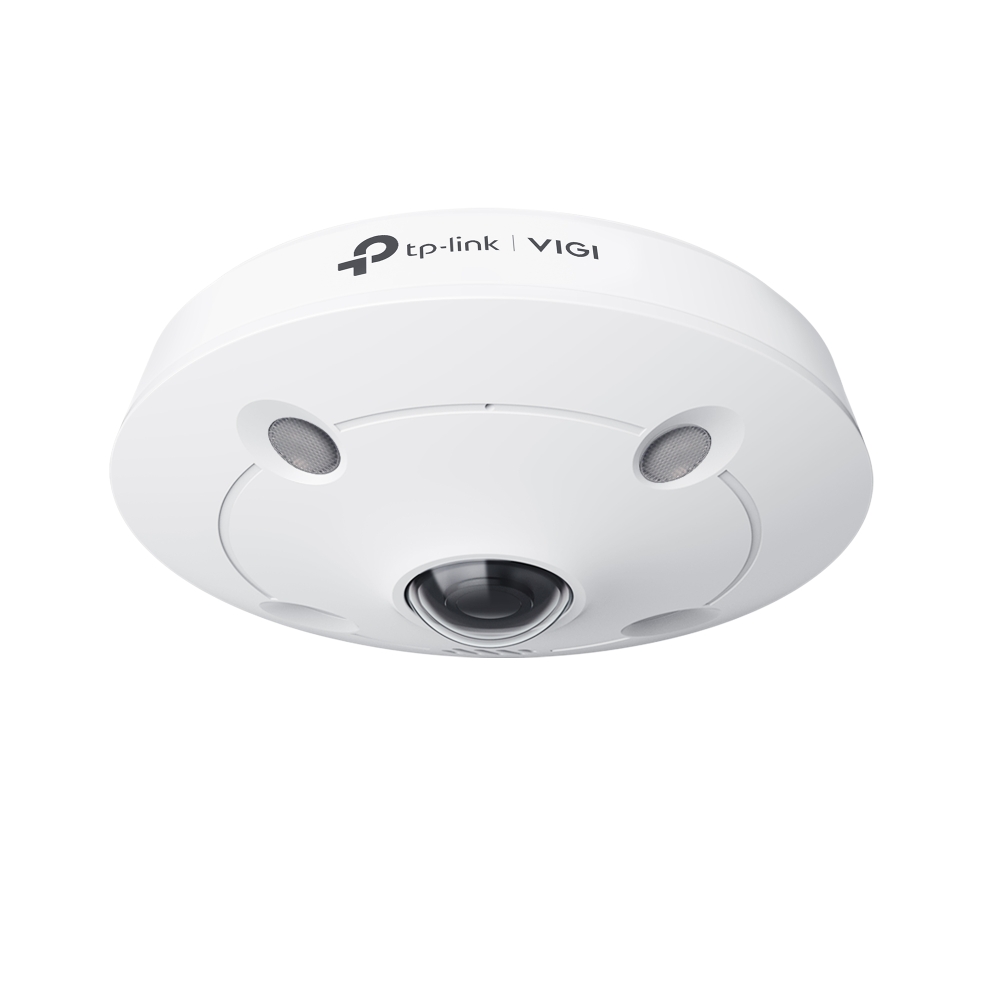

TP-Link VIGI InSight S655I 5MP fisheye camera, side and underside views
TP-Link VIGI · InSight S655I · 5MP · 360° fisheye

One camera on the ceiling,
the whole room covered.

This is the TP-Link VIGI InSight S655I, a 5MP fisheye camera. Mounted on the ceiling it sees the entire room below it, then the VIGI app and VMS turn that circle into panoramas or up to eight virtual camera views you can pan and zoom.

In one sentence: the S655I is a 5MP (2560 × 1920) 360° fisheye IP camera with 1.44 mm lens, 10 m IR, multiple dewarp display modes and ePTZ, two-way audio, smart detection, microSD up to 512GB, PoE and IP67 / IK10 protection.

The camera on its own. Add a recorder or a microSD card.

The S655I runs on one network cable from any PoE switch or recorder. It mounts on a ceiling or wall with the bracket supplied; for a neat surface finish add the VJB-240 or VJB-300 junction box.

In the box
  • VIGI S655I network camera
  • Mounting bracket, screws, anchors and template
  • Waterproof cable attachments
  • Installation guide
You also need
  • A Cat6 cable back to a PoE (802.3af/at) switch or NVR
  • A VIGI NVR, ONVIF recorder or microSD card (up to 512GB)
  • VIGI app or VIGI VMS to view the dewarped modes
  • A pendant kit, if hanging it from a high ceiling

See more, spend less.

In a shop, office or meeting room, one fisheye on the ceiling can replace several fixed cameras. In 4PTZ mode it works as four cameras at once, and you can drag each view to look at a different part of the room.

Why people buy it

Why people choose the S655I.

No blind spots

The 1.44 mm fisheye sees 180° in every direction, so from the ceiling it covers the full 360° around it.

Many views from one camera

Fisheye, 180° and 360° panorama, cylinder, AR dewarp, and up to 8 virtual PTZ views.

Fewer cameras to install

One cable and one mounting point instead of a camera in each corner.

Talk and listen

A built-in microphone and speaker give two-way audio from the app.

Smart alerts

Intrusion, line crossing, area entry and exit, and abnormal sound detection, with push notifications.

Tough and compact

Only 132 mm across and 56 mm high, in a metal housing rated IP67 and IK10.

Meeting room seen by the VIGI S655I as a fisheye circle and as four dewarped virtual camera views

4-in-1 camera

One fisheye, four camera views.

Left, the raw fisheye image of a meeting room from the ceiling. Right, the same camera in 4PTZ mode: four flat, corrected views you can each drag to a different spot. Other modes add a fisheye plus three or eight virtual PTZ windows.

VIGI S655I 360° panorama display mode unwrapping a meeting room into one wide image

Display modes

Unwrap the room into a panorama.

Switch to 360° panorama to see every wall of the room in one wide strip, or to cylinder and AR dewarp views. The VIGI app and VIGI VMS each offer their own set of modes, for both ceiling and wall mounting.

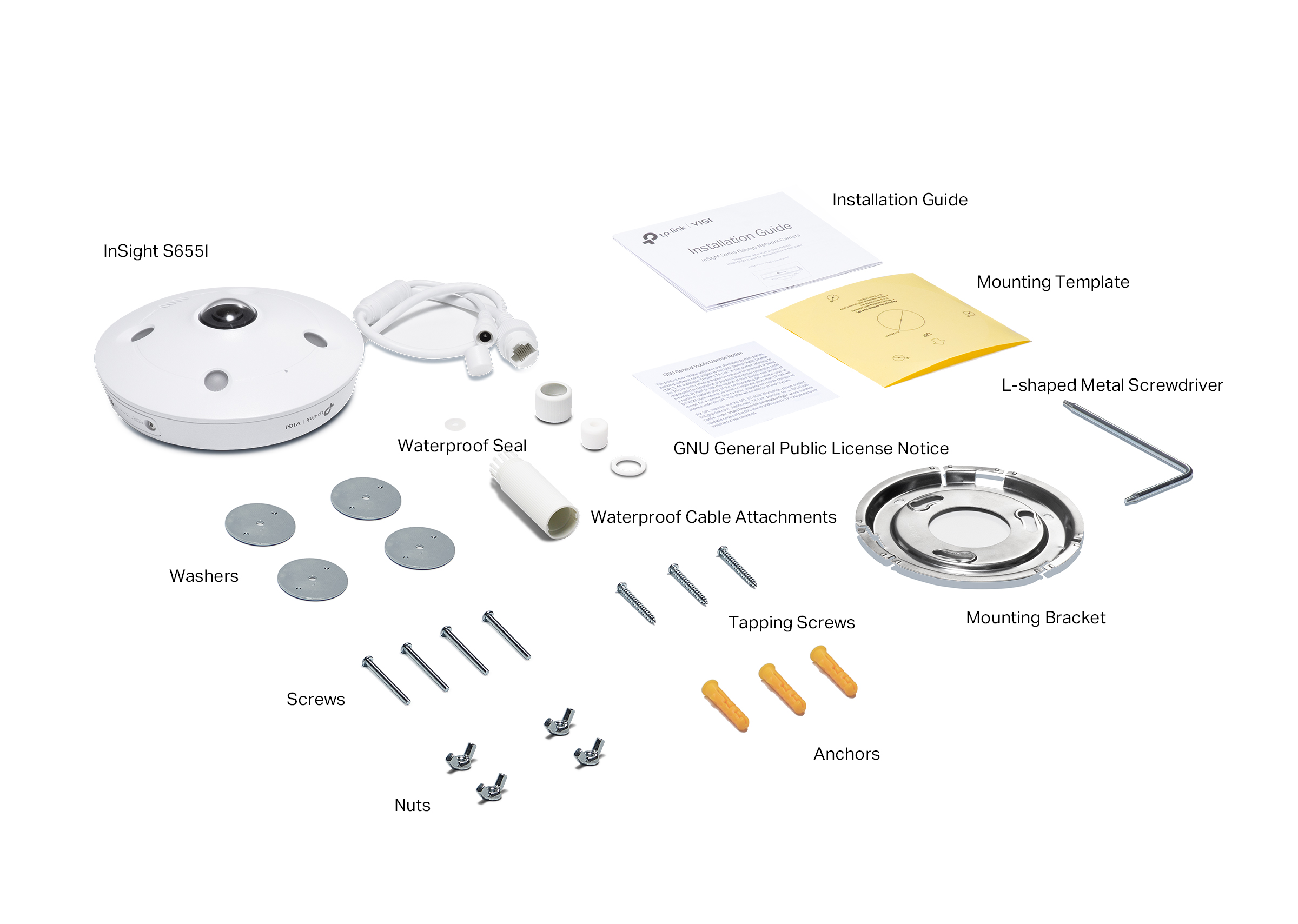

VIGI S655I fisheye camera with mounting bracket, screws, anchors, washers, template and cable attachments

In the box

Everything to mount it on a ceiling or wall.

The camera comes with a metal mounting bracket, screws, anchors, washers and nuts, an L-shaped screwdriver, a mounting template and waterproof cable attachments. A microSD card and pendant mounting kit are not included.

How it goes in

From the box to recording in four steps.

01

Choose ceiling or wall

Ceiling mounting in the centre of the room gives the full 360°. Wall mounting gives a 180° panorama of the room in front.

02

Fix the bracket

Use the template to drill, fit the bracket and run one Cat6 cable through it.

03

Connect and fix

Plug in the cable, fit the waterproof attachment if needed, and fix the camera to the bracket.

04

Pick your views

Add it in the VIGI app or VMS, set the mounting type, then choose fisheye, panorama or PTZ views and alerts.

Pair it with

What goes with it.

Mounting

VJB-240 junction box

A slim surface box for fisheye and dome cameras that hides the cable joint.

Mounting

VJB-300 junction box

A compact box that keeps the connectors tidy under the camera.

Recording

VIGI PoE NVR

Powers the camera over one cable and records around the clock.

Storage

microSD card

Up to 512GB in the camera for standalone recording or backup.

Where it is used

Where a fisheye works best.

Retail shops

The whole shop floor from one camera in the middle of the ceiling.

Offices and meeting rooms

Every desk and doorway without a camera in each corner.

Reception and waiting areas

Counters, seating and entries in one view.

Corridors and junctions

All the paths that meet at one point.

Fisheye or 180° panoramic?

InSight S655IInSight S485PIInSight S385DPS
StyleFisheyeTurret domeDual-lens bullet
Coverage360° from the ceiling180° × 86°180° × 51°
Resolution2560 × 1920 (5MP)3840 × 2160 (4K)5456 × 1520
Night visionIR to 10 mIR to 20 mColourPro, IR and white light to 50 m
Red-blue lights, alarm I/ONoYesYes
Best forWhole rooms from the ceilingWide areas from a wallWide outdoor areas in colour

All three have two-way audio, smart detection, microSD up to 512GB, PoE and IP67 / IK10 ratings. Figures from TP-Link.

Common questions

What does a fisheye camera do?

It uses a very wide 1.44 mm lens that sees 180° in every direction. From the ceiling that covers the whole room around it, and the software flattens the round image into normal-looking views.

What display modes does it have?

On VIGI VMS with ceiling mounting: fisheye, AR dewarp, 180° and 360° panorama, cylinder, 2PTZ, 4PTZ, and fisheye or panorama combined with 3, 6 or 8 PTZ windows. The VIGI app offers fisheye, 180° and 360° panorama, fisheye + 3PTZ, 4PTZ, cylinder and AR dewarp.

What is ePTZ?

Electronic pan, tilt and zoom. You drag and zoom within the fisheye image to look at one area, without any moving parts in the camera.

Can I mount it on a wall?

Yes. Wall mounting gives a 180° panoramic unwrap of the room in front, with its own set of fisheye and PTZ display modes. A pendant mount kit (not included) suits high ceilings.

Indoors or outdoors?

TP-Link designs it for small indoor areas such as shops and offices. The housing is still rated IP67 and IK10, so it handles covered outdoor areas, dust and knocks.

How far can it identify a person?

TP-Link’s DORI figures are detect 28.8 m, observe 12 m, recognise 5.7 m and identify 2.8 m. It suits rooms rather than long distances.

Does it see in the dark?

Yes, in black and white. Four infrared LEDs reach about 10 m, with Smart IR to stop close objects washing out.

Can I talk through it?

Yes. It has a built-in microphone and speaker for two-way audio. It has no external alarm or audio terminals.

Is a recorder or memory card included?

No. The S655I is sold as the camera on its own. Record to a microSD card in the camera (up to 512GB, not included), or to a VIGI NVR or to an ONVIF recorder.

How is it powered?

Over the network cable from a PoE switch or PoE recorder (802.3af/at, up to 12.14 W), or from a 12 V DC adapter if you have no PoE. One Cat6 cable carries power and video up to 100 m.

Is there a monthly fee?

Not for local recording. Footage saved to a microSD card or a recorder on your own network has no ongoing cost.

What warranty does it have?

3-year TP-Link Australia warranty, handled through InFront Technologies. Contact us first and we will look after the claim with you.

Supported by Infront Technologies.

Not sure which camera suits the spot, or which recorder to pair it with? Call 1300 736 970 or email [email protected] with a photo or rough sketch of the area and we will help you plan it. Australian stock, local technical support, trade welcome.

Installation and safety

Cabling. In Australia, network cable fixed inside walls or ceilings must be installed by a registered cabler. Plugging ready-made patch leads into the camera and recorder is fine to do yourself.

Working at height. Use a stable ladder or platform and have someone with you when mounting cameras under eaves, on poles or on high walls.

Privacy and audio. Aim cameras at your own property. Recording conversations is covered by state surveillance laws, so check the rules for your state before turning on the microphone.

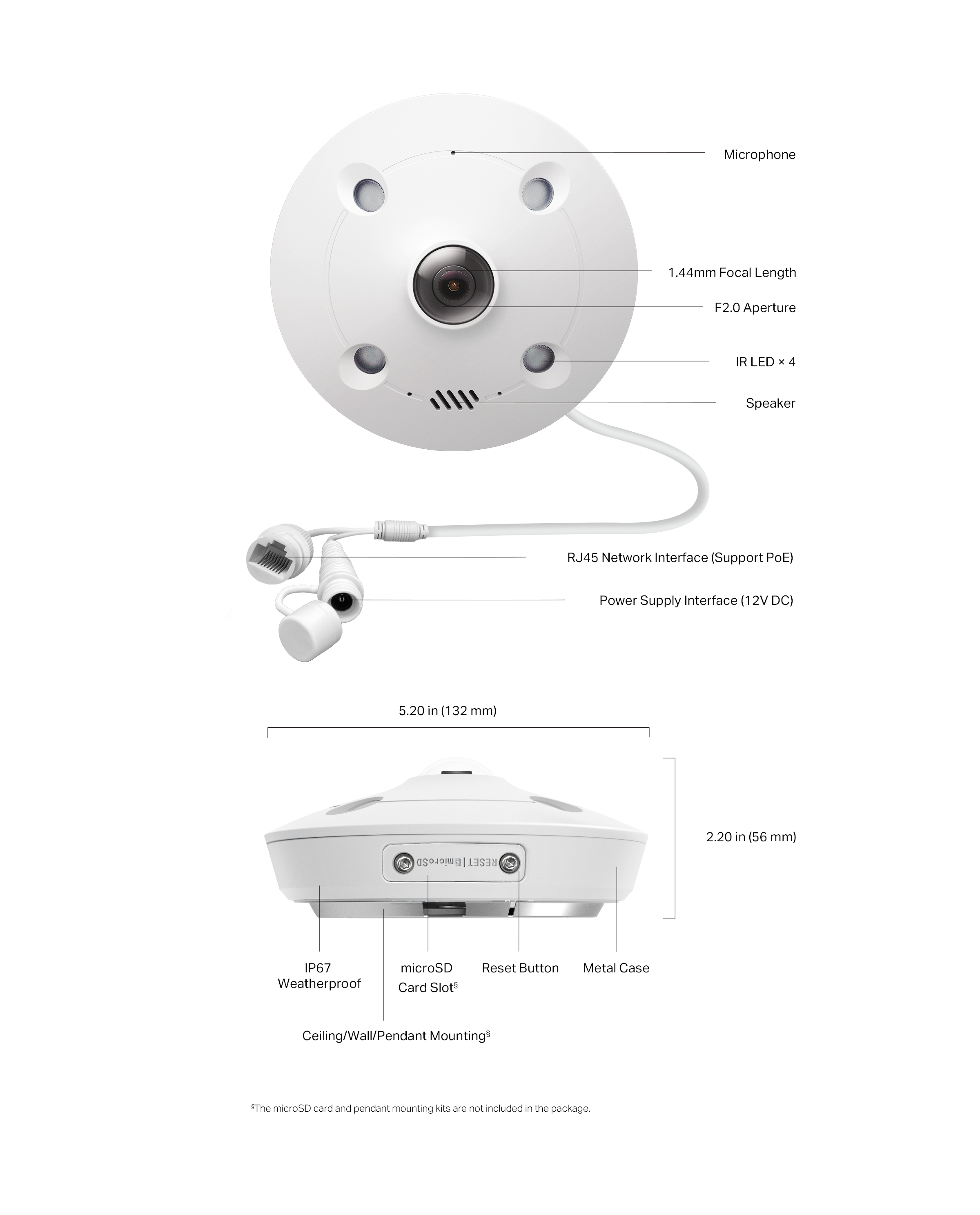

Dimensions
132 × 132 × 56 mm
Audio
Two-way; built-in mic and speaker
Weight
0.44 kg (0.48 kg with mounting accessories)
Power
PoE 802.3af/at (max 12.14 W) or 12 V DC (max 11.76 W)
Video Compression
H.265+, H.265, H.264+, H.264
Resolution
5MP (2560 × 1920)
Brand
TP-Link VIGI
IP Rating
IP67
Interoperability
ONVIF Profile G, S, T
Image Sensor
1/2.7" Progressive Scan CMOS
Lens
1.44 mm fixed fisheye, F2.0
Minimum Illumination
Colour 0.01 lux; 0 lux with IR
Field of View
180° (360° coverage from the ceiling)
Mounting
Ceiling, wall, pendant
Network
1 × RJ45 10/100, PoE
Wide Dynamic Range
120 dB true WDR
Warranty
3-year TP-Link Australia warranty, handled through InFront Technologies
Product Type
5MP IR fisheye IP camera
Onboard Storage
microSD up to 512GB
Model
InSight S655I
Smart detection
Intrusion, line crossing, region entry/exit, abnormal sound
Night Vision
IR up to 10 m
Vandal Rating
IK10
Display Modes
Fisheye, panorama, cylinder, AR dewarp, 2/3/4/8 PTZ
TP-Link VIGI VJB-240 wall junction box in white, angled view TP-Link VIGI VJB-240 wall junction box in white, angled view 2
CompareComparing Quick view
In Stock - Ready to Ship
TP-Link Surveillance Accessories

TP-Link VIGI Network Camera Junction Box - VJB-240

TP-Link
VJB-240
$ 34.00
TP-Link VIGI VJB-240: a white aluminium wall junction box that holds a VIGI dome, turret or fisheye camera off the wall, with the cable joints hidden inside.✓Fits 25 VIGI dome, turret and fisheye models✓Wall mount with a separate fixing bracket✓Bottom or side cable exit✓181 × 134 × 59 mm, 533 g✓Aluminium alloy and SGCC steel, white
TP-Link VIGI VJB-300 junction box in white, angled view with side outlet TP-Link VIGI VJB-300 junction box in white, angled view with side outlet 2
CompareComparing Quick view
In Stock - Ready to Ship
TP-Link Surveillance Accessories

TP-Link VIGI Network Camera Junction Box - VJB-300

TP-Link
VJB-300
$ 44.00
TP-Link VIGI VJB-300: a white aluminium junction box for 43 VIGI and InSight cameras, for walls or ceilings, inside or out, with the cable joints hidden behind the camera.✓Fits 43 VIGI and InSight models✓Wall or ceiling, indoor or outdoor✓Waterproof cable parts included✓Ø125 × 45.85 mm, 0.37 kg✓Aluminium alloy, white
TP-Link VIGI NVR2016H-16MP V2 16-channel PoE recorder, front three-quarter view TP-Link VIGI NVR2016H-16MP V2 16-channel PoE recorder, front three-quarter view 2
CompareComparing Quick view
In Stock - Ready to Ship
TP-Link NVR's Network Video Recorders

TP-Link VIGI 8MP 4K-UHD VIGI 16 Channel PoE+ Network Video Recorder -...

TP-Link
VIGI-NVR2016H-16MP-V2
$ 549.00
TP-Link VIGI NVR2016H-16MP V2: a 16-channel recorder with sixteen built-in PoE+ ports, two drive bays and alarm terminals. Choose the drive size in the options.✓16 IP channels, recording up to 8MP✓16 PoE+ ports, 140 W total✓320 Mbps incoming bandwidth✓2 SATA bays, up to 16TB each✓6 alarm inputs, 4 outputs✓Gigabit LAN, 4K HDMI and VGA
TP-Link VIGI NVR1008H-8MP 8-channel PoE recorder, front three-quarter view TP-Link VIGI NVR1008H-8MP 8-channel PoE recorder, front three-quarter view 2
CompareComparing Quick view
In Stock - Ready to Ship
TP-Link NVR's Network Video Recorders

TP-Link VIGI 8MP 4K UHD 8Ch PoE+ 113W V1.2 VIGI-NVR1008H-8MP MP-Model

TP-Link
VIGI-NVR1008H-8MP
$ 299.00
TP-Link VIGI NVR1008H-8MP (V1.20): an 8-channel recorder with eight built-in PoE+ ports, a 113 W PoE budget and one drive bay. Choose the drive size in the options.✓8 IP channels, recording up to 8MP✓8 PoE+ ports, 113 W total✓80 Mbps incoming bandwidth✓1 SATA bay, up to 16TB✓4K HDMI and VGA output✓VIGI app for remote viewing
TP-Link InSight 8MP 4K-UHD Full-Colour Turret IP Security InSight-S485(4mm) TP-Link InSight 8MP 4K-UHD Full-Colour Turret IP Security InSight-S485(4mm) 2
CompareComparing Quick view
In Stock - Ready to Ship
TP-Link Security Cameras

TP-Link InSight 8MP 4K-UHD Full-Colour Turret IP Security Camera - InSight-S485(4mm)

TP-Link
InSight-S485(4mm)
$ 229.00
TP-Link VIGI InSight S485 4K (8MP) outdoor turret camera with a 4 mm lens, colour night vision and AI people and vehicle detection.✓4K (8MP) (3840 × 2160) with 1/2.7" sensor and F1.6 lens✓4 mm lens, 91.5° horizontal view✓Colour night vision with 4 white LEDs, 30 m✓AI human and vehicle classification, people and vehicle search✓Two-way audio, audible...
VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic Turret IP InSight-S485PI VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic Turret IP InSight-S485PI 2
CompareComparing Quick view
In Stock - Ready to Ship
TP-Link Security Cameras

VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic Turret IP Network Camera - InSight-S485PI

TP-Link
InSight-S485PI
$ 399.00
TP-Link VIGI InSight S485PI: an 8MP (4K) turret dome camera with a 180° panoramic lens, 20 m infrared night vision, red-blue warning lights and smart detection.✓180° × 86° view from a 1.65 mm panoramic lens✓8MP 4K (3840 × 2160) on a 1/2.7" sensor✓IR night vision up to 20 m✓Red-blue warning lights, alarm sound and custom voice✓People, vehicle, intrusion...
VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic Bullet IP InSight-S385PI VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic Bullet IP InSight-S385PI 2
CompareComparing Quick view
In Stock - Ready to Ship
TP-Link Security Cameras

VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic Bullet IP Network Camera - InSight-S385PI

TP-Link
InSight-S385PI
$ 429.00
TP-Link VIGI InSight S385PI: an 8MP (4K) outdoor bullet camera with a 180° panoramic lens, 20 m infrared night vision, red-blue warning lights and smart detection.✓180° × 86° view from a 1.65 mm panoramic lens✓8MP 4K (3840 × 2160) on a 1/2.7" sensor✓IR night vision up to 20 m✓Red-blue warning lights, alarm sound and custom voice✓People, vehicle, intrusion...
CAMERA
Image Sensor 1/2.7” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination Color: 0.01 Lux; 0 Lux with IR light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 1.44 mm
Aperture F2.0
FOV Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV:180°
Lens Mount M12*P0.5
DORI Distance Detect: 28.8 m (94 ft)
Observe: 12 m (39 ft)
Recognize: 5.7 m (19 ft)
Identify: 2.8 m (9 ft)
Fisheye Display
Installation Ceiling Mount; Wall Mount; Pendant Mount§
Display Mode • Ceiling Mount:
Fisheye, AR Dewarp, 180 Panorama, 360 Panorama,
Cylinder, 2PTZ, 4PTZ, Fisheye + 8PTZ, Fisheye + 3PTZ,
360 Panorama + 8PTZ, 360 Panorama + 6PTZ,
360 Panorama + PTZ

• Wall Mount:
Fisheye, 360 Panoramic Unwrap, 360 Panoramic Unwrap+3PTZ,
360 Panoramic Unwrap+8PTZ, 4PTZ, Fisheye + 3PTZ,
Fisheye + 8PTZ
Angle Adjustment (Manual)
Range N/A
ILLUMINATOR
IR LED • Quantity: 4
• Range: 10m
• Wavelength: 850nm
White LED N/A
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2560 × 1920
Main Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
2560 × 1920, 2256 × 1696, 2048 × 1536, 1280 × 960

Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If WDR is on, the frame rate only supports up to 15fps.
Sub-Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
640 × 480, 320 × 240

Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If WDR is on, the frame rate only supports up to 15fps.
Bit Rate Control CBR, VBR
Video Compression • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings • Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range 120dB
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF Yes
API Open Network Video Interface (Profile S/T/G)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Abnormal Sound Detection
Basic Event • Motion Detection
• Video Tampering Detection
• Exception ( Illegal Login)
Alarm Linkage • Memory Card Video Recording
• Message Push
• Audible Warning
Linkage Method N/A
Output Notification • Message Push
• Email Alarm
• Upload Capture to FTP
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Material Metal
Net Weight • 0.44 Kg (without Mounting Accessories)
• 0.48 Kg (with Mounting Accessories)
Power Supply • 12V DC ± 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 12.14W
Protection IP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H) 5.2 × 5.2 × 2.2 in (132 × 132 × 56mm)
Certifications CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF; IP67; IK10

TP-Link IP Security Cameras
INFRONTTECH Promotional Banner INFRONTTECH Promotional Banner INFRONTTECH Promotional Banner

Need help choosing?

Tell us about your property and we'll recommend the right cameras and recorder.

07 5609 4910

Sydney 02 8814 6008
[email protected]

Mon–Fri, 9am–5pm AEST

14 suggested items

Suggested add-ons / alternatives

20 related items

More in this category

Saved to your wishlist Find it any time in your account. View list
