TP-Link VIGI Network Camera Junction Box - VJB-305VJB-305

TP-Link VIGI Network Camera Junction Box - VJB-305

Name: TP-Link VIGI Network Camera Junction Box - VJB-305
Brand: TP-Link
SKU: VJB-305
Price: 49 AUD
Availability: InStock

Reference: VJB-305

In Stock - Ready to Ship

$ 49.00

inc-GST

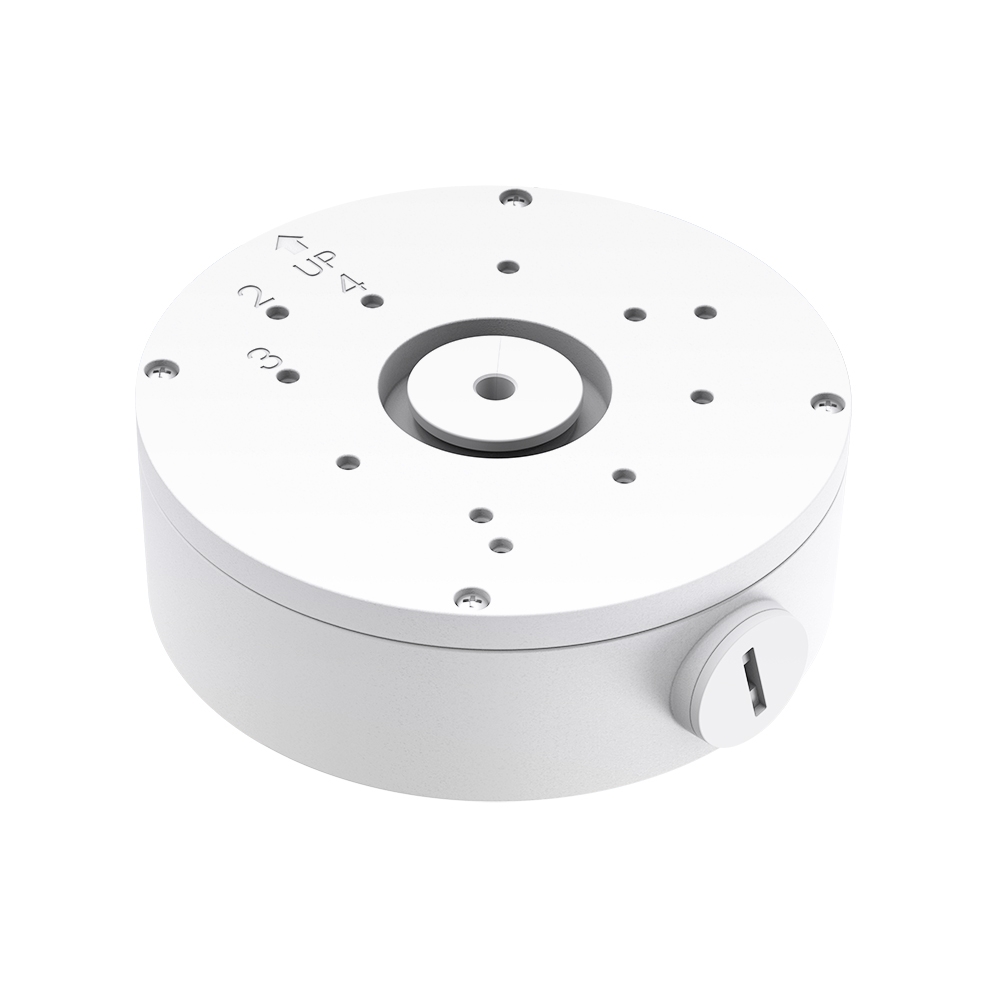

Larger aluminium alloy network camera junction box
Indoor / outdoor wall or ceiling mounting

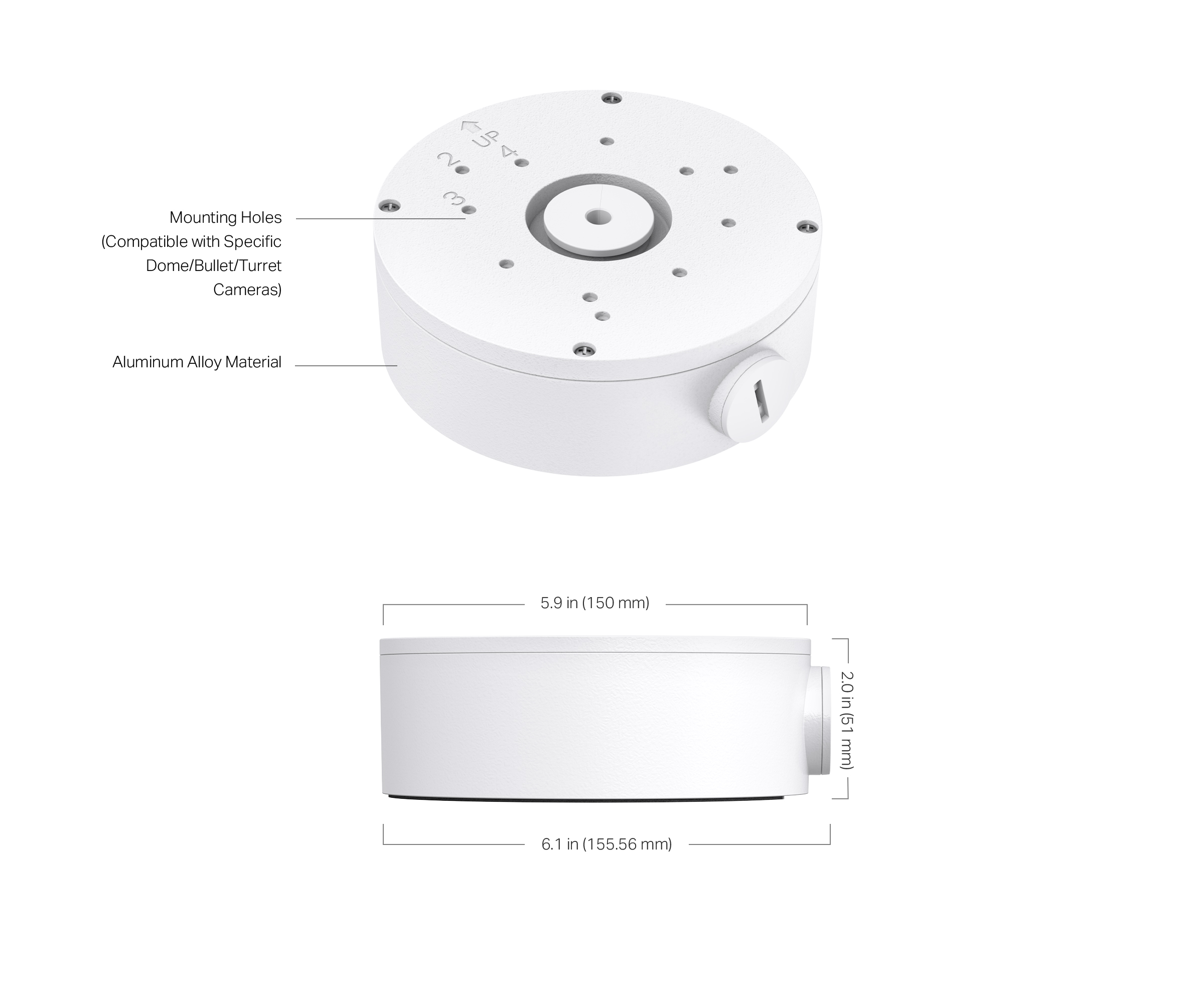

Dimensions: 155.56 × 150 × 51 mm (6.1 × 5.9 × 2.0 in)
Weight: 416 g · VIGI White
For listed InSight models only (see description)
Not a drop-in for VIGI C-series — use VJB-300 for those

TP-Link VIGI VJB-305

Larger junction box for listed InSight cameras.

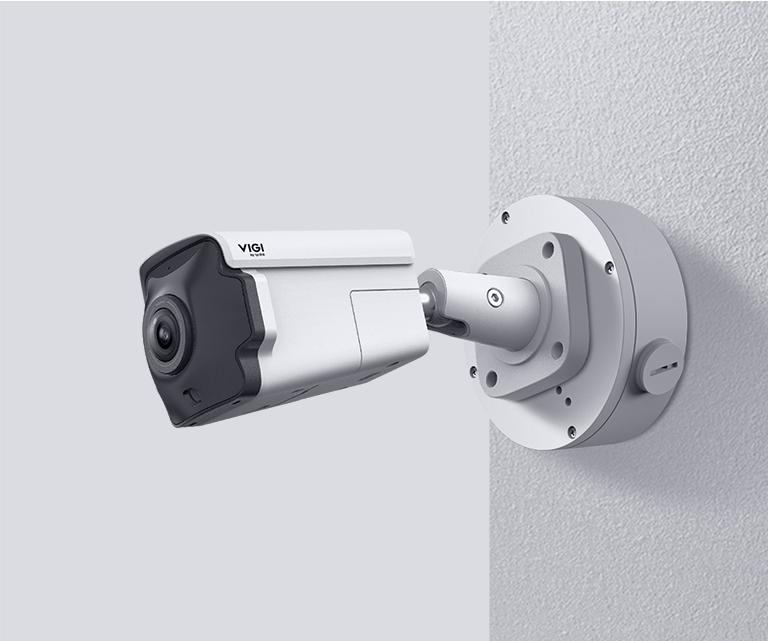

VIGI camera mounted on VJB-305 junction box

Overview

Larger aluminium junction box — 155.56 × 150 × 51 mm, 416 g — for listed InSight models only. Not a C-series box.

ADD-ON ACCESSORY — INSIGHT MODELS ONLY

C355 / C385 / C455 / C485 / C540 use VJB-300. VJB-305 is only for the eight InSight models below.

In the box

VIGI VJB-305 junction box
Mounting accessories
Waterproof accessories

What you also need (sold separately)

Compatible InSight camera
Cat 5e / Cat 6 Ethernet
PoE NVR or PoE switch

SIZE

Bigger than VJB-300.

155.56 × 150 × 51 mm · 416 g. More room for cable slack. Waterproof accessories included; no published IP rating.

FIT

Eight InSight models.

S245ZI, S445ZI, S485PI, S345ZI, S345-4G, S385PI, S385DPS, LPR345Z — that is the AU list. Everything else is a different SKU.

POLE

Bullets often need VMB-350.

Listed InSight bullets also take VMB-350 on poles. Junction box ≠ pole bracket — order both when needed.

Install in four steps

Confirm modelCheck your InSight SKU is on the eight-model list.
Mount the baseTemplate, drill, fix the larger base for wall or ceiling.
WaterproofFit waterproof cable attachments before hanging the camera.

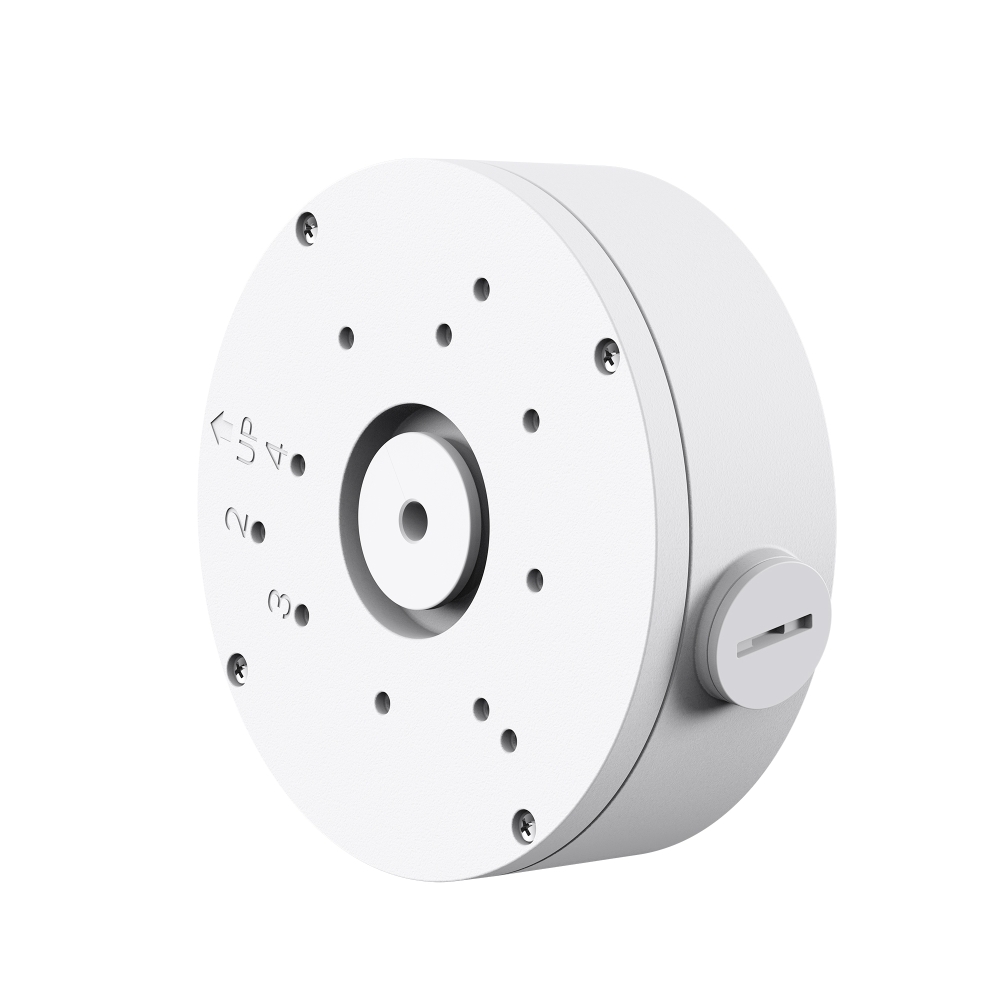

Fit cameraUse the QIG hole map, bolt on, close the cover.

Compatible camera models

From TP-Link Australia’s VIGI accessory matrix. Listed models and higher hardware versions are supported.

InSight

InSight LPR345Z · InSight S245ZI · InSight S345-4G · InSight S345ZI · InSight S385DPS · InSight S385PI · InSight S445ZI · InSight S485PI

Source: tp-link.com/au/vigi-accessories/product-list/ (VJB-305 filter).

Key specs — VJB-305

Specification	Detail
Product type	VIGI Network Camera Junction Box
Model	VJB-305
Material	Aluminium alloy
Appearance	VIGI White
Weather protection	Waterproof design (no published IP rating)
Mounting	Indoor / outdoor wall or ceiling
Product dimensions	155.56 × 150 × 51 mm (6.1 × 5.9 × 2.0 in)
Weight	416 g
Compatibility	InSight S245ZI, S445ZI, S485PI, S345ZI, S345-4G, S385PI, S385DPS, LPR345Z
Package contents	Junction box, mounting accessories, waterproof accessories
Warranty	Australian warranty via Infront Technologies

Pair it with

BULLET: InSight S345ZI / S345-4G / S385PI — Primary InSight bullets on the VJB-305 list.
TURRET / DOME: InSight S445ZI / S485PI / S245ZI — Listed turret and dome bodies for this larger box.
LPR: InSight LPR345Z — Licence-plate bullet on the same junction pattern.
C-SERIES: Use VJB-300 instead — C355, C385, C455, C485, C540 — not VJB-305.

Frequently asked questions

Is this IP67?

No. Earlier marketplace copy claiming IP67 was incorrect. TP-Link does not publish an IP rating for VJB-305.

Same size as VJB-300?

No. VJB-305 is 155.56 × 150 × 51 mm; VJB-300 is ∅125 × 130.47 × 45.7 mm.

Will it fit VIGI C485?

No. C485 uses VJB-240 / VJB-300. VJB-305 is InSight-only on the AU matrix.

Do I still need a pole mount?

For round poles, yes — add VMB-350 for listed InSight bullets. VJB-305 alone is a wall/ceiling junction box.

Ordering an InSight on the VJB-305 list?
Infront Technologies stocks and supports TP-Link VIGI across Australia — call 1300 736 970 or email [email protected] for a compatibility check before you order.

Installation note. The VJB-305 is a passive mounting accessory. Confirm the wall or pole can support at least three times the combined camera + mount weight. Concealed customer cabling must be installed by an ACMA-registered cabler (AS/CA S009). Verify your camera against the current AU matrix before ordering.

Dimensions: 155.56 × 150 × 51 mm
Weight: 416 g
Material: Aluminium Alloy
Colour: VIGI White
Brand: TP-Link
Mounting: Indoor / outdoor wall or ceiling
Package Contents: Junction box, mounting accessories, waterproof accessories
Warranty: Australian Warranty via Infront Technologies
Product Type: Network Camera Junction Box
Product Family: VIGI Accessory
Model: VJB-305
Compatibility: InSight S245ZI, S445ZI, S485PI, S345ZI, S345-4G, S385PI, S385DPS, LPR345Z
