VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic InSight-S485PI

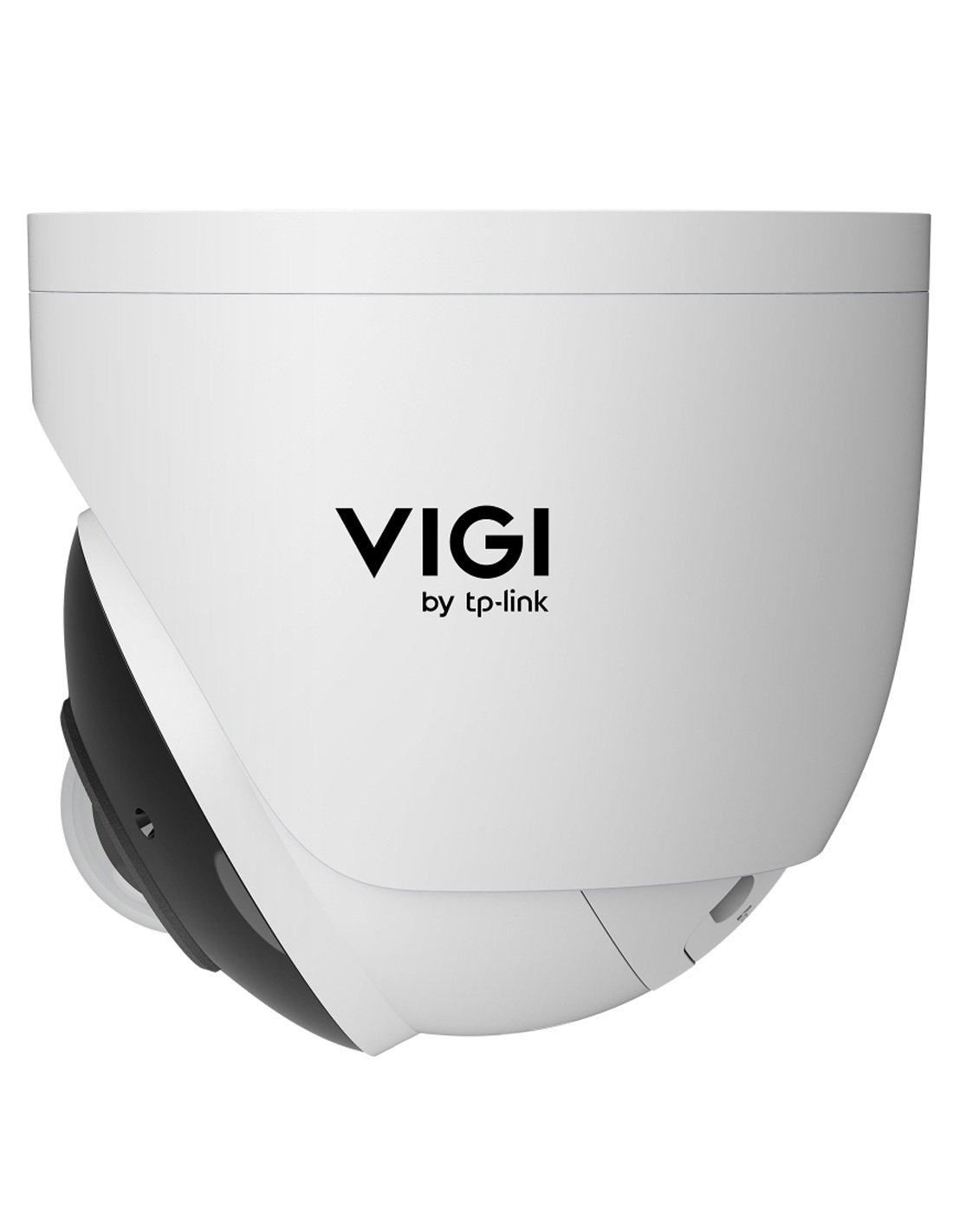

VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic Dome IP Network Camera - InSight-S485PI

Name: VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic Dome IP Network Camera - InSight-S485PI
Brand: TP-Link
SKU: InSight-S485PI
Price: 399 AUD
Availability: InStock

Reference InSight-S485PI

In Stock - Ready to Ship

$ 399.00

inc-GST

180° Panorama View with Huge Vision
4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m)
Red-Blue Warning Lights with Stronger Deterrence
People & Vehicle Analytics
Human & Vehicle Classification
Smart Detection

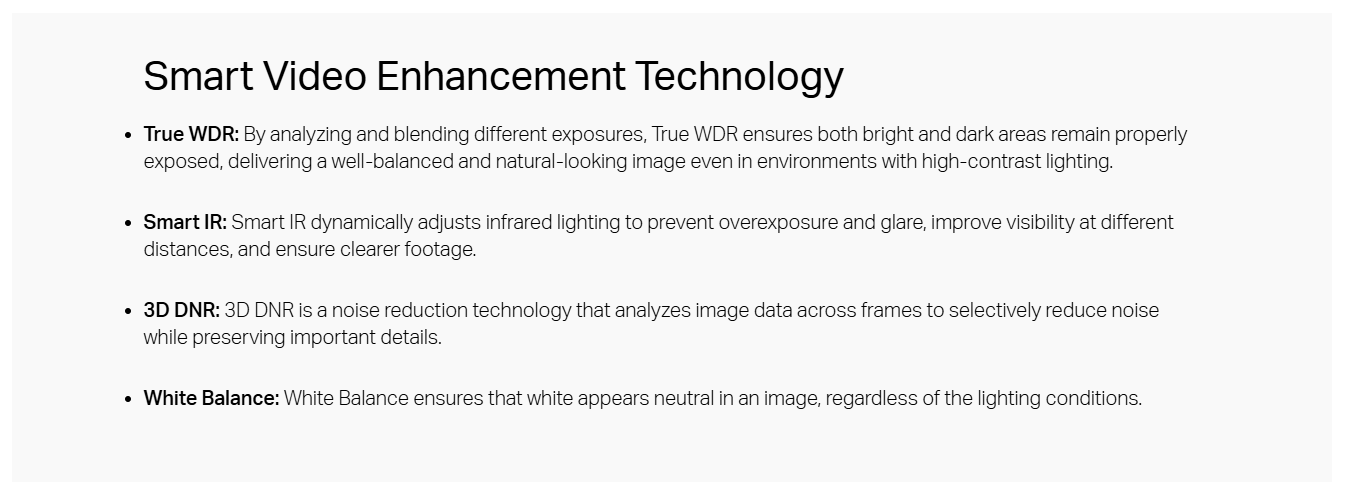

Smart Video Enhancement Technology

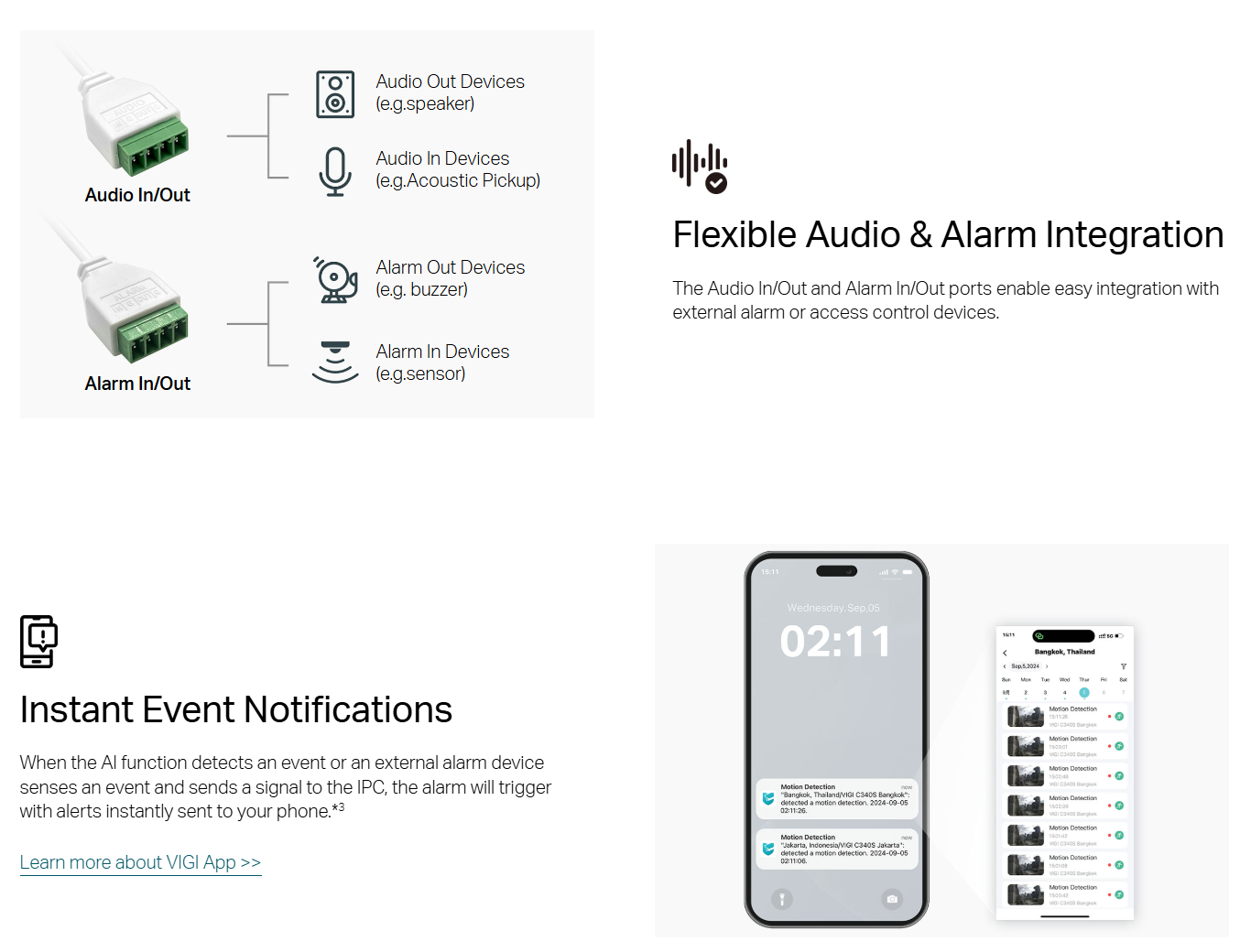

Audio and Alarm Interface Available
IP67 Weatherproof and IK10 Vandal Proof

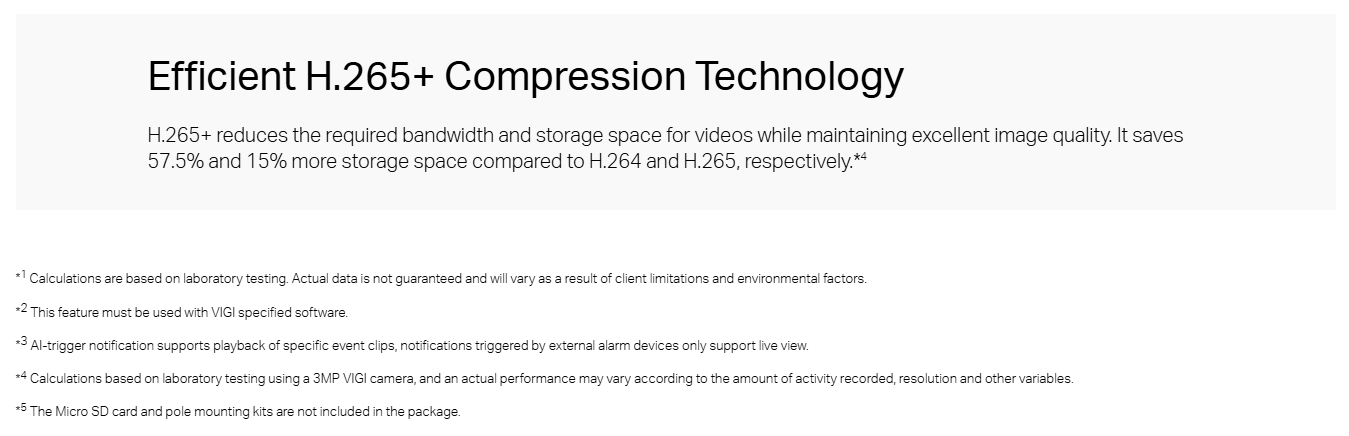

H.265+ Compression Technology

TP-Link VIGI InSight-S485PI 8MP Outdoor IR Panoramic Dome Camera

8MP Ultra HD | 180° Panoramic View | Smart AI Analytics | Active Defence | IP67 Weatherproof

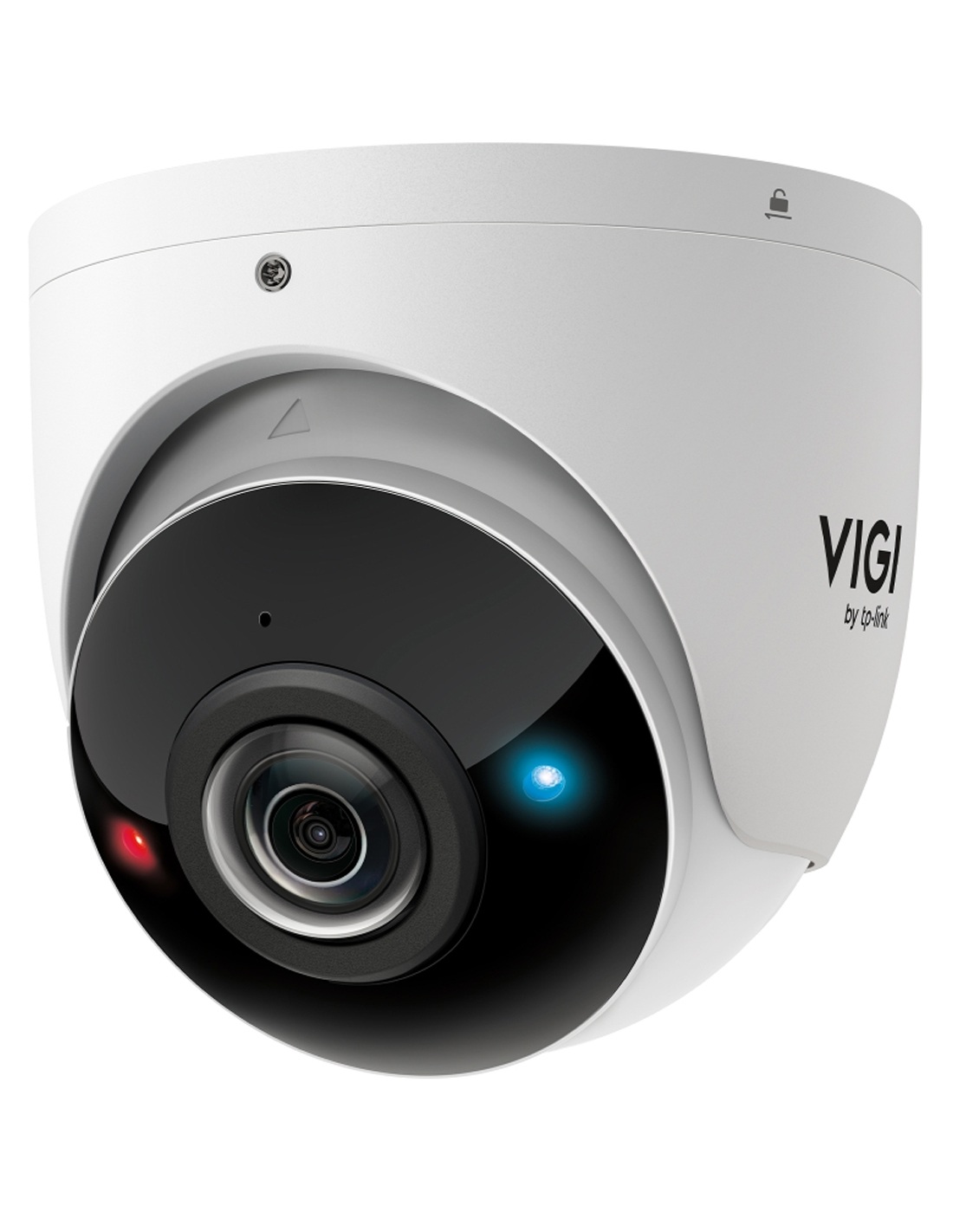

VIGI InSight-S485PI Outdoor Dome Camera

Enhance your outdoor surveillance with the VIGI InSight-S485PI. This professional-grade panoramic dome camera delivers 8MP Ultra-HD clarity, 180° wide-area coverage, and intelligent AI detection for people and vehicles. With built-in IR night vision, active deterrence via red and blue warning lights, and rugged IP67 weatherproof construction, it provides reliable protection for exposed environments.

Key Features & Benefits

8MP Ultra-HD Resolution — Capture crisp 3840 × 2160 video for highly detailed footage.
180° Panoramic Coverage — Wide-area monitoring reduces blind spots and the need for multiple cameras.
Smart AI Analytics — Detects human and vehicle movement with precision, reducing false alarms.
Active Defence with Warning Lights — Red and blue lights activate on detection to deter intruders.
IR Night Vision — Clear visibility up to 20 meters in complete darkness.
Weather & Vandal Resistant — IP67-rated for weatherproofing and IK10-rated for vandal resistance.
H.265+ Compression — Optimised video storage without sacrificing image quality.
PoE Powered — Simple single-cable installation via Power over Ethernet.
Audio Recording — Capture sound alongside video for comprehensive surveillance.

VIGI S485PI Active Deterrence Features

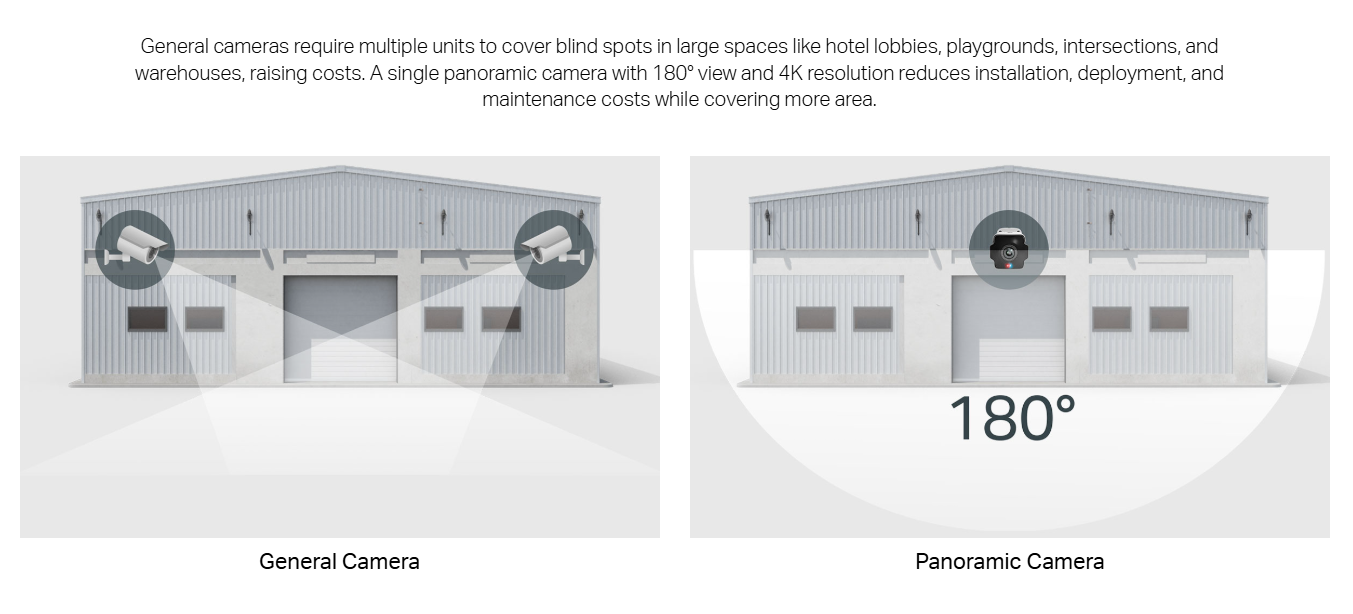

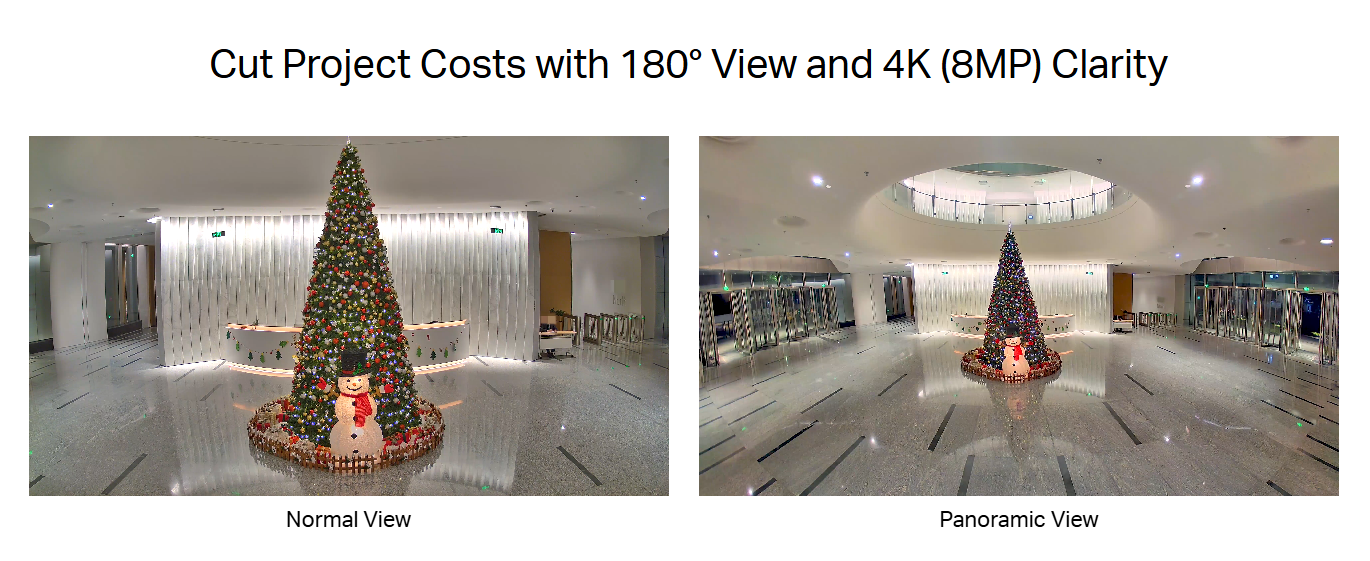

VIGI 180° Panoramic View

VIGI Dome Camera Installation Example

VIGI S485PI AI Smart Detection

Real-World Applications

Parking Lots & Entrances — 180° view with deterrence lights ideal for vehicle access points and entrances.

Retail & Commercial Sites — Wide-area coverage reduces camera count, simplifying security for large premises.

Warehouses & Industrial Yards — High-definition monitoring in exposed outdoor zones with weatherproofing.

Public Infrastructure — Durable, vandal-resistant surveillance for transport hubs, utilities, and civic spaces.

Schools & Education — Monitor playgrounds, entrances, and shared spaces with panoramic coverage.

VIGI S485PI Weatherproof Housing

VIGI Panoramic AI Detection

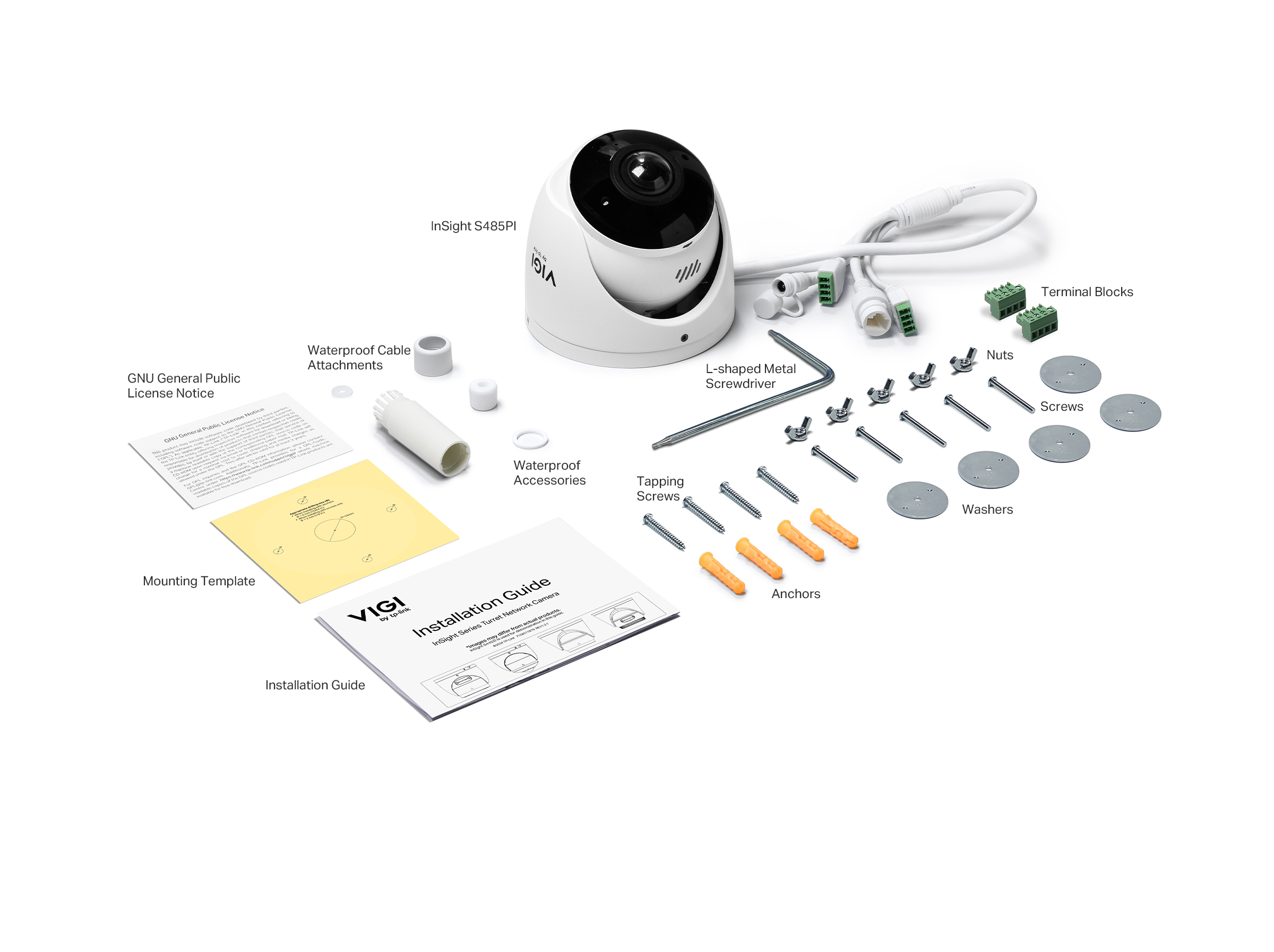

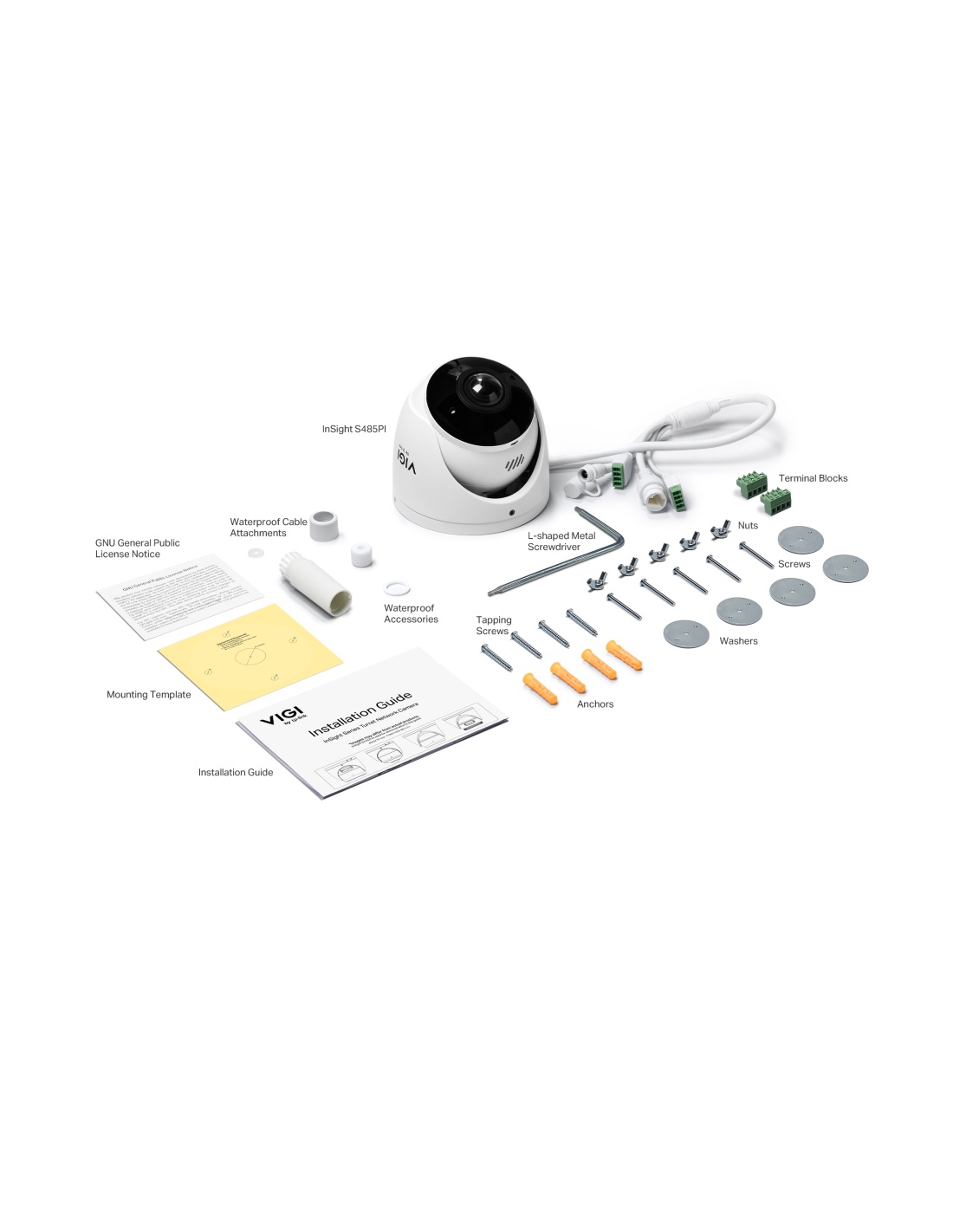

What’s in the Box

VIGI S485PI Box Contents

Protect large outdoor spaces with confidence — The VIGI InSight-S485PI combines ultra-HD clarity, panoramic coverage, AI detection, and active defence for high-performance outdoor security applications.

Net Weight: 0.76 Kg
Power Supply: 12V DC 5%, Max. 18 W, PoE: 802.3at, class 4, Max. 21 W
Operating temperature: -30 to 60 C
Power: DC Power Port, PoE: 802.3at, class 4, Max. 21 W
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
Alarm: 1 Alarm In, 1 Alarm Out, Red-Blue Warning Lights
Audio Input: Built-in microphone
Certifications: CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10
Protection: IP67 Waterproof, IK10 Vandal Proof
Storage Temperature: -40 to 60 C
DORI Distance: Detect: 144.36 ft, Observe: 60.15 ft, Recognize: 28.87 ft, Identify: 14.44 ft
Product Dimensions: 4.4 4.4 4.3 in (112.3 112.3 110.2 mm)
FOV: Horizontal: 180, Vertical: 86, Diagonal: 180
Main Stream Frame Rate: 50Hz: 1-25fps, 60Hz: 1-30fps
Sub-Stream Frame Rate: 50Hz: 1-25fps, 60Hz: 1-30fps
Video Bit Rate: Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 1024 Kbps
ROI: 4 Region
Audio Sampling Rate: 8 KHz
Client: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser: Chrome 57+, Firefox 52+, Safari 11+, Edge 91+
Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login), Alarm Input Device
Angle Adjustment Range: Pan: 0 to 360, Tilt: 0 to 75, Rotation: 0 to 360
IR LED Range: 65.62 ft (20 m)
IR LED Wavelength: 850 nm
Video Max. Resolution: 3840x2160
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

CAMERA
Image Sensor	1/2.7“ Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto

LENS
Type	Fixed Focal Lens
Focal Length	1.65 mm
Aperture	F2.0
FOV	1.65mm: • Horizontal FOV: 180° • Vertical FOV: 86° • Diagonal FOV: 180°
Lens Mount	M12
DORI Distance	1.65mm • Detect: 144.36 ft (44 m) • Observe: 60.15 ft (18.33 m) • Recognize: 28.87 ft (8.8 m) • Identify: 14.44 ft (4.4 m)

Angle Adjustment (Manual)
Range	Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

ILLUMINATOR
IR LED	Quantity: 4 Range: 65.62 ft (20 m) Wavelength: 850 nm
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	3840x2160
Main Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 1024 Kbps

Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	4 Region
OSD Setting	Yes

AUDIO
Audio Communication	Two-Way Audio
Audio Input	Built-in Microphone Audio In Interface
Audio Output	Built-in Speaker Audio Out Interface
Audio Compression	Yes
Audio Sampling Rate	8 KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
Smart Event	• Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) • Alarm Input Device
Alarm Linkage	• Memory Card Video Recording • Upload to FTP Server • Alarm Output Device • Push Notifications • Send to Alarm Server • Active Defence-Sound Alarm • Active Defence-Light Alarm • Email Alarm

Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.3

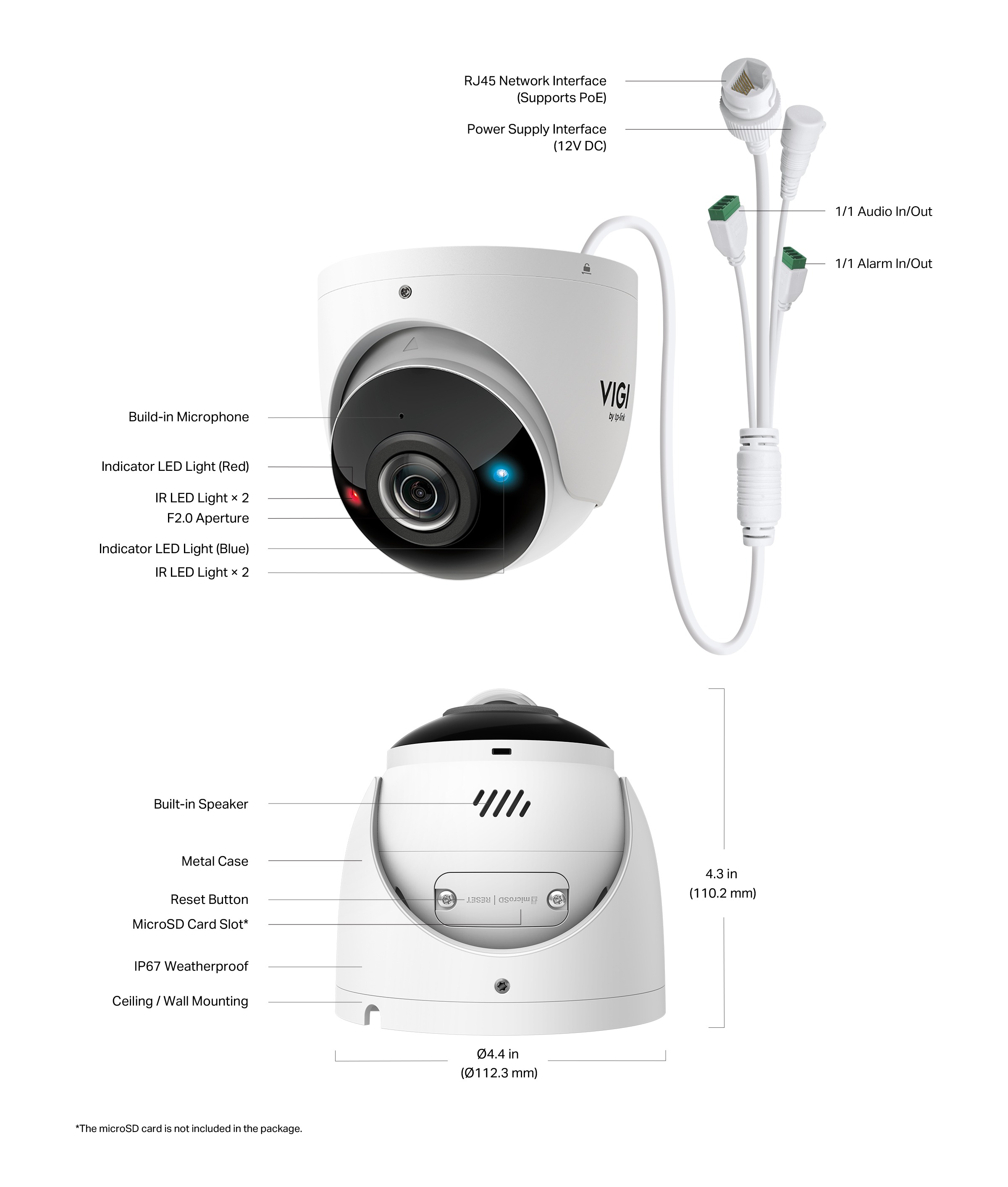

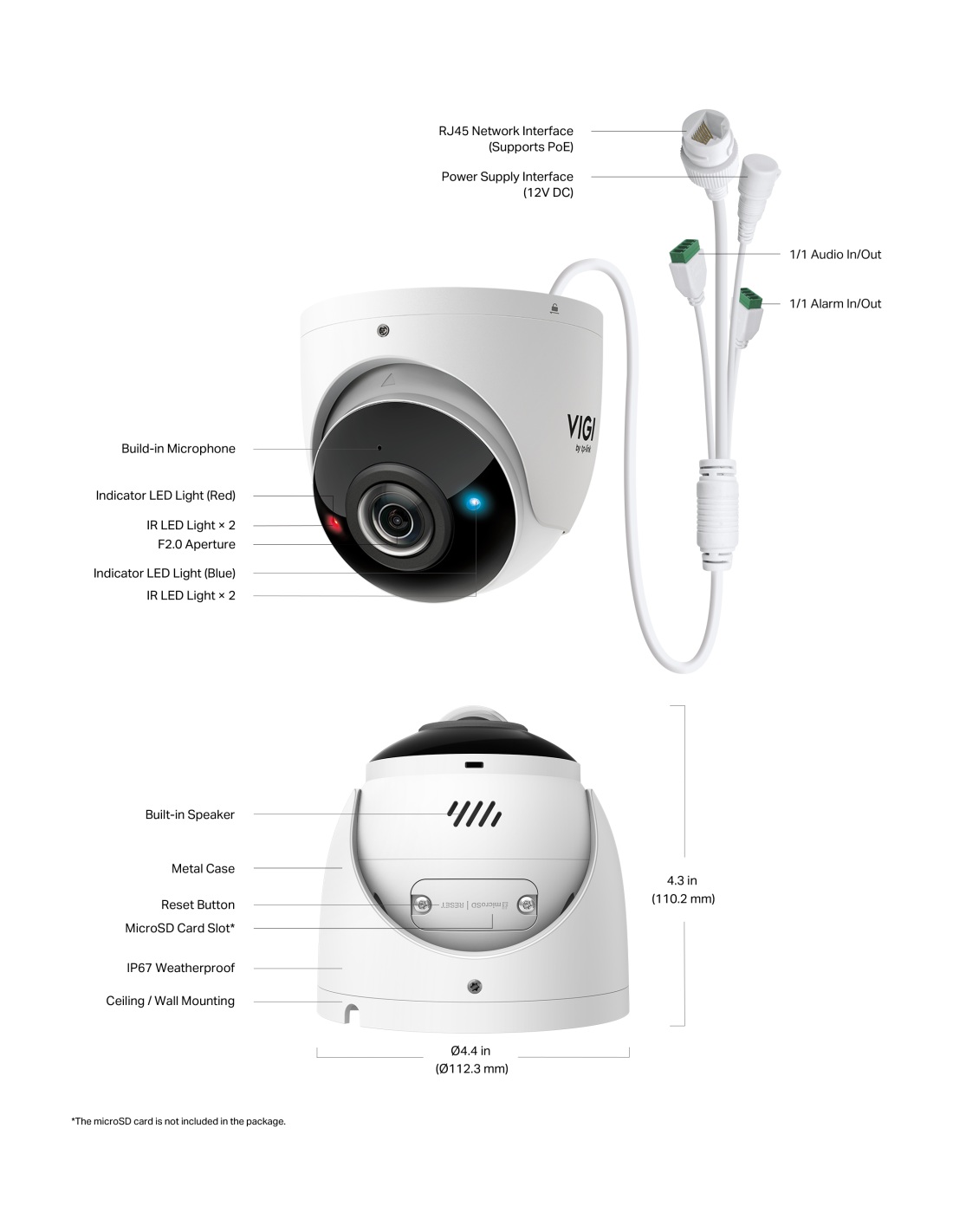

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	1 Alarm In, 1 Alarm Out Red-Blue Warning Lights
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	1 Audio In, 1 Audio Out

GENERAL
Operating Temperature	-30 to 60 °C
Storage Temperature	-40 °C to 60 °C
Operating Humidity	95% or Less (Non-condensing)
Storage Humidity	95% or Less (Non-condensing)
Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Material	Metal
Net Weight	0.76 Kg
Power Supply	• 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug • PoE: 802.3at, class 4, Max. 21 W
Protection	IP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H)	4.4 × 4.4 × 4.3 in (112.3 × 112.3 × 110.2 mm)
Certifications	CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10
