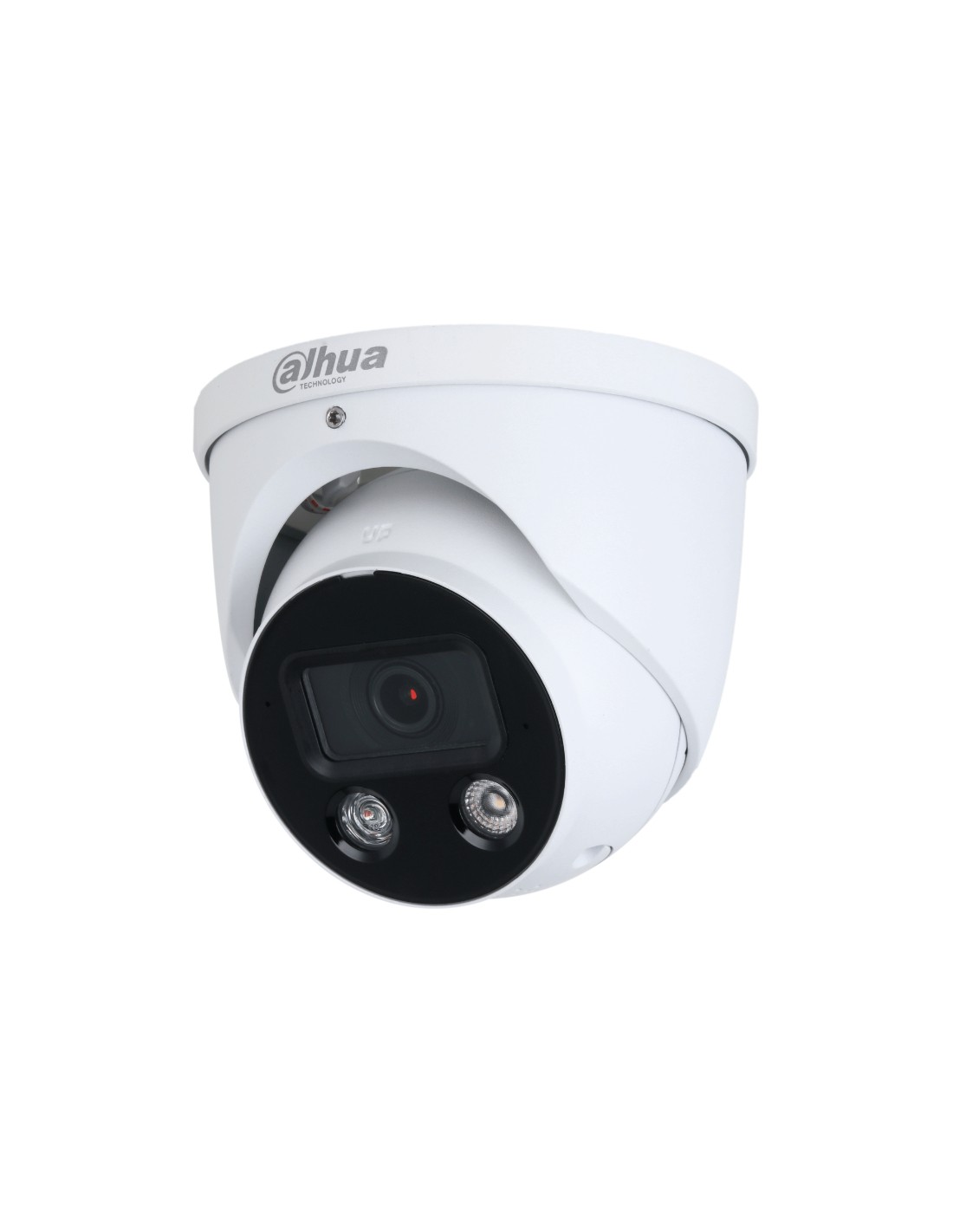

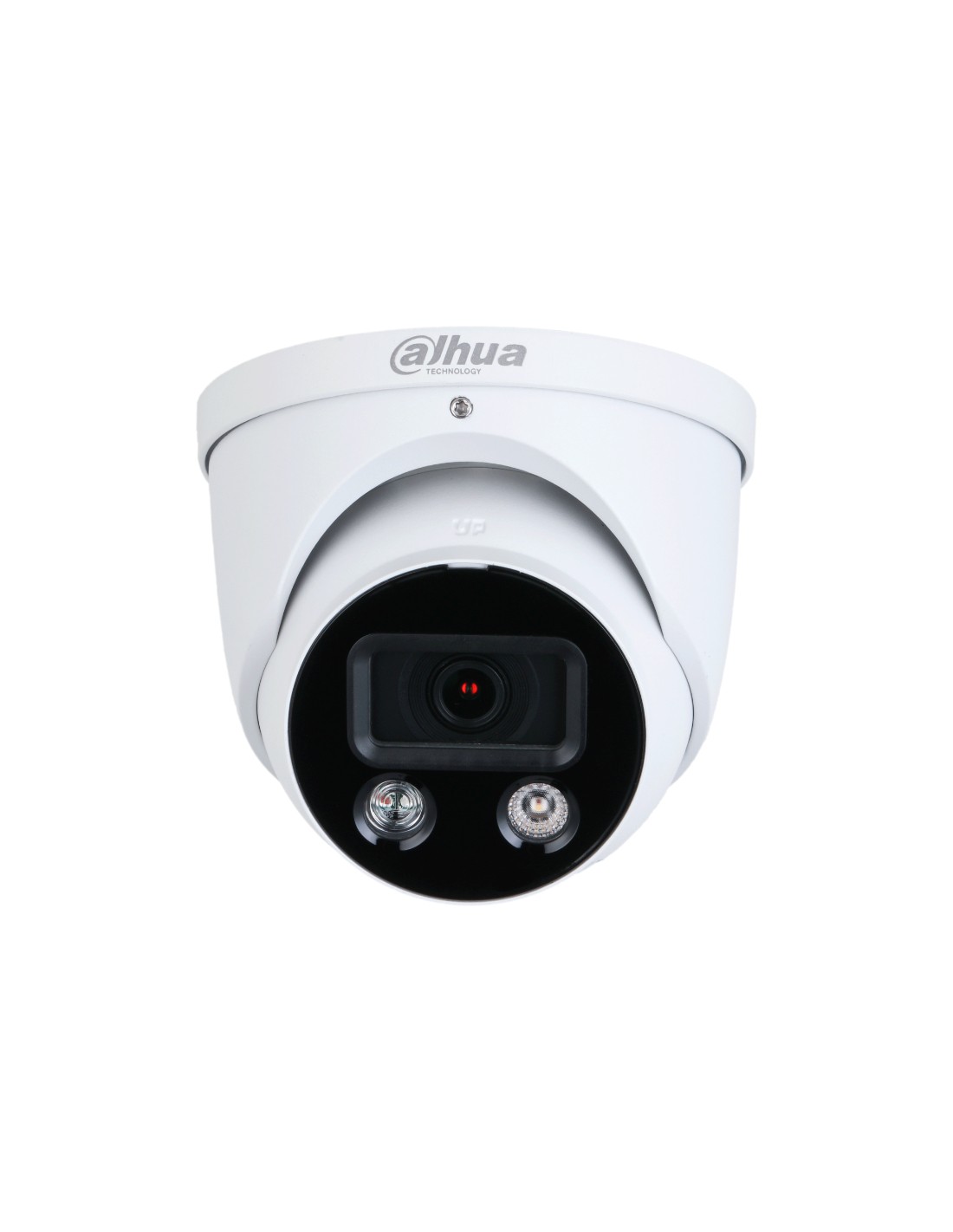

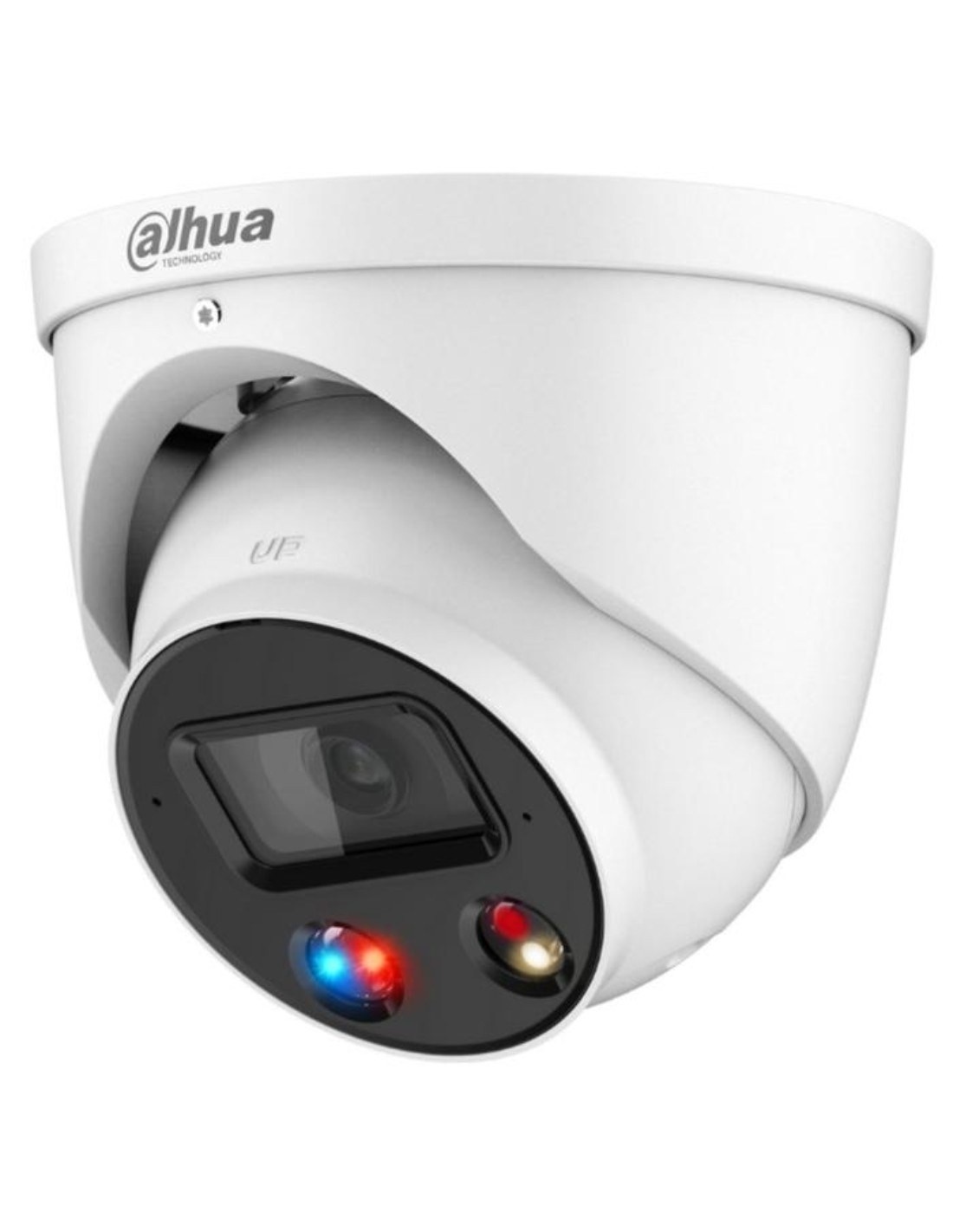

Dahua TiOC 8MP AI S2 Version AcuPick IP Dome Camera | Full-Col Starlight Night Vision - DH-IPC-HDW3849H-AS-PV-ANZ-S2

DH-IPC-HDW3849H-AS-PV-ANZ-S2
In Stock - Ready to Ship
$ 320.00
inc-GST
  • 8MP 1/2.7'' CMOS sensor with high-definition low-light performance.
  • Outputs 8MP Ultra HD (3840x2160) at 25/30 fps.
  • Efficient H.265 codec for high compression and low bit rate.
  • Built-in warm light and IR LED with a 30m range for both.
  • Advanced image processing: WDR, 3D NR, HLC, BLC, and digital watermarking.
  • AI-powered monitoring: Intrusion, tripwire detection, and human/vehicle classification.
  • Abnormality detection: Motion, privacy masking, scene changes, and various system alerts.
  • Alarm and audio features: 1 input/output each, dual mic, speaker, and two-way talk.
  • Supports 256GB Micro SD card and PoE/12VDC power supply.
  • IP67 weatherproof, sound/light alarm with red/blue lights, and SMD 4.0 technology.
  • AI SSA and customizable alarm areas with one-tap arming/disarming.



Dahua TiOC 8MP AI AcuPick IP Dome Camera | Full-Colour Starlight Night Vision - DH-IPC-HDW3849H-AS-PV-ANZ-S2



DH-IPC-HDW3849H-AS-PV-ANZ-S2



Looking for a high-performance security solution? The Dahua 8MP TIOC 2.0 Active Deterrence Turret Fixed Camera offers cutting-edge technology, superior image quality, and robust features for home and business surveillance. Ideal for day and night monitoring, this advanced turret camera is designed to provide peace of mind with its active deterrence capabilities.Key Features of Dahua 8MP TIOC 2.0 Camera

Smart Motion Detection Technology: Close-up view of the Dahua TiOC camera highlighting its SMD+ human and vehicle detection capabilities, designed to minimize false alarms for reliable security monitoring

Black Verison is Available Here >>


  1. Crystal-Clear 8MP Ultra HD Imaging

    • Powered by an advanced 1/2.7'' CMOS sensor, the camera delivers 8MP resolution (3840x2160) with clear, high-definition images even in low-light conditions.
  2. Dual Light Technology – IR and Warm Light LEDs

    • Features built-in infrared (IR) and warm light LEDs with a range of up to 30m, ensuring optimal clarity in total darkness and color detail in dim lighting.
  3. H.265 Compression Technology

    • Reduce bandwidth and storage usage with advanced H.265 codec, allowing for ultra-low bit rates without compromising video quality.
  4. AI-Powered Intelligent Detection

    • Supports intrusion and tripwire detection with accurate classification of humans and vehicles.
    • Features SMD 4.0 technology for improved motion detection and false alarm reduction.
  5. Active Deterrence & Two-Way Audio

    • Equipped with red and blue warning lights and a built-in dual microphone and speaker for two-way talk, enabling active deterrence and direct communication.
  6. Versatile Alarm & Audio Integration

    • Includes 1 alarm input/output and 1 audio input/output, enhancing integration with additional security systems.
  7. Weatherproof Design

    • Built to withstand harsh outdoor conditions with an IP67-rated enclosure, ensuring reliable performance in all weather.
  8. Storage & Power Options

    • Supports up to 256GB Micro SD card for edge storage.
    • Compatible with 12VDC or PoE power supply for flexible installation.
  9. Enhanced Monitoring Capabilities

    • Advanced features include WDR, 3D NR, HLC, BLC, and digital watermarking, ensuring high-quality footage in challenging lighting conditions.
    • One-tap arming/disarming for quick operation.
  10. Easy Setup and Compatibility

    • Supports integration with Dahua’s apps for seamless smartphone monitoring and control.

Why Buy from InFront Technologies?

At InFront Technologies, we are committed to providing top-notch surveillance solutions tailored to Australian homes and businesses. Our products are competitively priced, include detailed installation guides, and come with local support.


Specifications at a Glance

Feature Details
Resolution 8MP (3840x2160) Ultra HD
Image Sensor 1/2.7'' CMOS
Night Vision Range 30m (IR and Warm Light LEDs)
Video Compression H.265 / H.264
Audio 2-Way Audio
Power Supply 12VDC / PoE
Protection Rating IP67 (Weatherproof)
Storage Up to 256GB Micro SD Card

Applications

  • Home security
  • Retail and commercial properties
  • Warehouses and industrial sites
  • Perimeter monitoring

Keywords for SEO:

  • Buy Dahua 8MP TIOC 2.0 Camera in Australia
  • High-quality CCTV cameras for home and business
  • Active deterrence security camera Australia
  • IP67-rated weatherproof cameras
  • PoE surveillance cameras in Australia
  • 8MP turret camera for outdoor security
Camera
Image Sensor 1/2.7" CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 256 MB
RAM 2 G
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.004 [email protected] (Color, 30 IRE)
0.0004 [email protected] (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio >56 dB
Illumination Distance Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto; Manual
Illuminator Number 1 (IR LED); 1 (Warm light)
Angle Adjustment Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.0
Field of View 2.8 mm: H: 106°; V: 55°; D: 125°
3.6 mm: H: 85°; V: 45°; D: 102°
Iris Control Fixed
Close Focus Distance 2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft)
DORI Distance LensDetectObserveRecognizeIdentify

2.8 mm
66.0 m (216.54 ft)   26.4 m (86.61 ft)   13.2 m (43.31 ft)   6.6 m (21.65 ft)

3.6 mm
78.0 m (255.91 ft)   22.2 m (72.83 ft)   15.6 m (51.18 ft)   7.8 m (25.59 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) that defines how well a viewer can distinguish persons or objects within a covered area. These numbers do not reflect intelligent function distances. Refer to the installation manual or project design tools for intelligent function distances.
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (supports classification and accurate detection of vehicle and human)
SMD SMD 4.0
AcuPick Uses deep learning to match targets (people/vehicles) and quickly locate them in live/recorded video
AI SSA Deep learning algorithms adjust image parameters to suit conditions
Smart Search Works with Smart NVR to do refined intelligent search, event extraction and merging of event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265 (≥25% compression), AI H.264 (≥25% compression)
Video Frame Rate Main stream: 3840 × 2160 @ (1 fps–25/30 fps)
Sub stream: 704 × 576@(1–25 fps) / 704 × 480@(1–30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*Max. frame rates for each stream. For multiple streams, the total encoding capacity is shared.
Stream Capability 3 streams
Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728 / 2592 × 1944);
4M (2688 × 1520 / 2560 × 1440); 3M (2048 × 1536 / 2304 × 1296);
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720);
D1 (704 × 576 / 704 × 480); VGA (640 × 480); CIF (352 × 288 / 352 × 240)
Bit Rate Control CBR/VBR/ABR
Video Bit Rate H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270°
Mirror Yes
Privacy Masking 4 areas
LDC Yes
Audio
Built-in MIC Yes
Built-in Speaker Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Interoperability ONVIF (Profile S; Profile G; Profile T); CGI
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (max. 256 GB); NAS
Browser IE 9/11, Chrome, Firefox
Management Software Smart PSS Lite; DSS; DMSS
Mobile Client iOS; Android
Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; X.509 certificate (generation/import); syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Certification
Certifications CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12 VDC; PoE
Power Consumption Basic: 4.5 W (12 VDC); 5.8 W (PoE)
Max. (H.265+ WDR + warm light + siren and light active deterrence + intelligence on):
8.6 W (12 VDC); 10.1 W (PoE)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Protection IP67
Structure
Casing Material Metal
Product Dimensions Φ122.0 mm × 110.9 mm (4.80" × Φ4.37")
Net Weight 0.75 kg (1.65 lb)
Gross Weight 0.92 kg (2.03 lb)
