Dahua DH-IPC-HDW3849H-AS-PV-PRO-ANZ 8MP TIOC AcuPick Fixed Turret Camera with AI, White
Dahua DH-IPC-HDW3849H-AS-PV-PRO-ANZ: a white 8MP WizSense metal turret with an F1.0 lens, 30 m warm light and IR, a siren and red-blue strobe, and two-way talk.
- ✓8MP, 3840 × 2160, F1.0 lens (2.8 or 3.6 mm)
- ✓30 m IR and 30 m warm light, colour at night
- ✓Siren, voice messages and red-blue strobe
- ✓Two-way talk: dual mic and speaker
- ✓SMD 4.0, tripwire and intrusion, AcuPick
- ✓IP67 metal housing, PoE or 12 VDC
Description

8MP that sees, lights and speaks up.
Colour at night, siren and red-blue strobe.
This is the DH-IPC-HDW3849H-AS-PV-PRO-ANZ in white: a metal 8MP turret with an F1.0 lens, warm light and IR to 30 m, a built-in siren and strobe, and two-way talk through its own mic and speaker.
In one sentence: the DH-IPC-HDW3849H-AS-PV-PRO-ANZ is a Dahua WizSense 3 Series 8MP (3840 × 2160) fixed turret with an F1.0 lens, 30 m IR and 30 m warm light, siren and red-blue strobe deterrence, two-way audio, SMD 4.0, AcuPick and an IP67 metal housing.
Camera only. Recorder and cabling are separate.
This listing is one camera. It needs PoE or a 12 V supply for power and somewhere to store the footage. Dahua makes it with a 2.8 mm or a 3.6 mm lens: confirm with us which lens is in stock when you order.
- DH-IPC-HDW3849H-AS-PV-PRO-ANZ turret camera
- A PoE NVR or PoE switch, or a 12 VDC supply
- Cat5e or Cat6 cable to the camera
- A recorder, NAS or microSD card (up to 512 GB) for the footage
It does more than record.
When someone crosses a line or enters a zone you drew, the camera can switch on its warm light, flash red and blue, and play a siren or a recorded warning. SMD 4.0 sorts people and vehicles from animals and moving leaves, so those responses are kept for real targets.

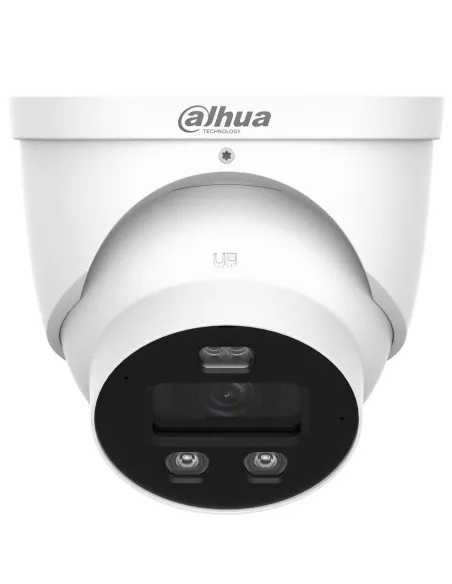

Front
8MP through an F1.0 lens.
A 1/1.8" sensor records 3840 × 2160 at up to 25/30 fps. Colour holds down to 0.0004 lux at F1.0. The two multi-core lights give IR to 30 m and warm light to 30 m, and 120 dB WDR keeps detail in bright doorways.

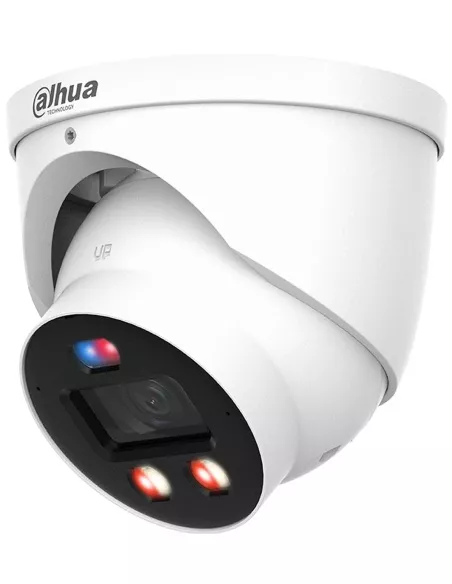

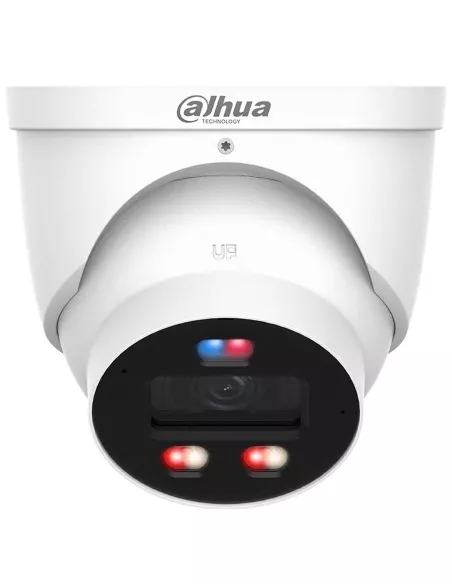

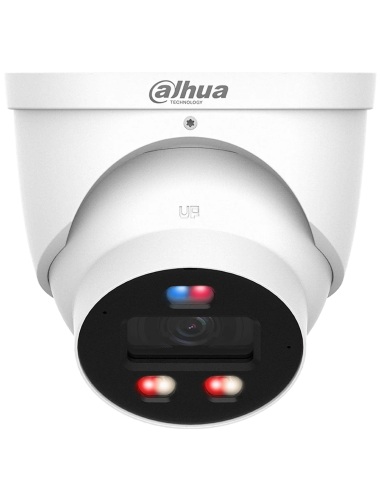

Active deterrence
Strobe, siren and a voice.
Red and blue lights and a built-in speaker (up to 110 dB at 10 cm) answer a tripwire or intrusion event. Choose one of the built-in voices or import your own message. One tap in the DMSS app arms or disarms the responses.

Housing
Metal, IP67, three-axis ball.
Metal casing, Ø 122 × 116.1 mm and 0.8 kg. Pan 0–360°, tilt 0–78° and rotate 0–360° to frame the view. Rated IP67 and −40 °C to +60 °C.
How it goes in
From cable to first alert.
01
Run one cable
Cat5e or Cat6 to a PoE NVR or PoE switch. The camera draws up to 10 W on PoE. A 12 VDC supply also works.
02
Fix the base
Three Ø 4.5 mm holes on an 84 mm circle. Pan, tilt and rotate the ball to frame the scene, then tighten it.
03
Add it to the recorder
Set the password on first login, then add the camera to a Dahua NVR, DSS or Smart PSS Lite, and to the DMSS app.
04
Draw the rules
Set tripwire or intrusion zones for people, vehicles or both, then choose what the light, strobe and siren do.
At a glance
DH-IPC-HDW3849H-AS-PV-PRO-ANZ
Show specs
Resolution
8MP, 3840 × 2160 at up to 25/30 fps
Lens
Fixed F1.0, 2.8 mm or 3.6 mm (confirm with us)
Field of view
2.8 mm: 109° horizontal; 3.6 mm: 93° horizontal
DORI (detect)
2.8 mm: 82 m; 3.6 mm: 100 m
Image sensor
1/1.8" progressive CMOS
Low light
Colour 0.0004 lux at F1.0; 0 lux with the lights on
Lights
2 multi-core lights: IR up to 30 m, warm light up to 30 m, Smart Dual Light
Deterrence
Red and blue strobe, siren and voice messages, one-tap disarm
WDR
120 dB, plus BLC, HLC, 3D NR and defog
Compression
H.265, H.264, Smart H.265+/H.264+, AI coding; MJPEG on the sub stream
Streams
3 streams, 3 kbps to 16384 kbps
Smart detection
SMD 4.0; tripwire and intrusion with human and vehicle sorting; stay and loitering detection; face detection
Search
AcuPick with a Dahua back-end device
Audio
Built-in dual mic and speaker (two-way talk); 1 in, 1 out (RCA)
Alarm
1 in (wet contact), 1 out (wet contact, 300 mA 12 VDC)
Storage
microSD up to 512 GB, NAS, FTP/SFTP
Network
1 × RJ45 10/100; ONVIF Profile S, G, T and M
Power
12 VDC or PoE; up to 8.2 W (12 V) or 10 W (PoE)
Protection
IP67, metal casing
Size and weight
Ø 122 × 116.1 mm, 0.8 kg
Operating range
−40 °C to +60 °C, humidity 95% or less
Software
DMSS (iOS, Android), Smart PSS Lite, DSS, DoLynk Care
Warranty
Dahua 3-year manufacturer warranty, handled in Australia through InFront

Ø 122.0 × 116.1 mm. Three Ø 4.5 mm mounting holes on an Ø 84 mm circle. Units mm [inch].
Pair it with
What this camera does not include
Recorder
A Dahua WizSense PoE NVR
Powers and records the camera on one cable, and adds AcuPick searches for people and vehicles in the footage.
Power
A PoE switch
If the recorder has no free PoE ports. Allow 10 W for this camera with the lights and siren in use.
Cabling
Cat5e or Cat6 cable
One run per camera, up to the usual 100 m Ethernet limit.
Mounting
Dahua PFA137 junction box
Dahua's optional box for this camera. It hides the cable joint under the base on walls and eaves.
Where it is used
Where a talking 8MP turret earns its keep.
Driveways and front yards
Light up and warn someone at the car before they reach the door.
Side gates and back yards
Tripwire on the gate, with a siren that tells them they have been seen.
Shopfronts after hours
Colour footage of the entry, and a voice warning at the roller door.
Warehouses and yards
Vehicle and human sorting on gates and loading docks, 30 m of light at night.
Farm sheds and machinery
Two-way talk to speak to visitors, and a strobe for anyone who should not be there.
Strata car parks
Loitering detection in common areas, recording to the building NVR.
2.8 mm or 3.6 mm lens
| 2.8 mm lens | 3.6 mm lens | |
|---|---|---|
| Horizontal view | 109° | 93° |
| Diagonal view | 131° | 111° |
| Detect (DORI) | 82 m | 100 m |
| Recognise (DORI) | 16.4 m | 20 m |
| Identify (DORI) | 8.2 m | 10 m |
| Close focus | 3.2 m | 4.4 m |
Both lenses are columns of the same Dahua DH-IPC-HDW3849H-AS-PV-PRO datasheet. Everything else is the same. Confirm with us which lens is in stock.
Common questions
What does this TiOC PRO camera do that a plain camera does not?
It puts three jobs in one housing: colour video at night with its warm light, AI perimeter detection of people and vehicles, and active deterrence with a red-blue strobe and siren. It also has two-way talk.
Is a recorder included?
No. This listing is the camera only. It records to a Dahua NVR, a NAS or a microSD card of up to 512 GB.
How is it powered?
By PoE or by 12 VDC. It draws up to 10 W on PoE or 8.2 W on 12 VDC with the warm light, siren and analytics all running.
How far does it see at night?
Up to 30 m with IR and up to 30 m with warm light. In colour it works down to 0.0004 lux at F1.0, and with its lights on it records at 0 lux.
Which lens should I choose, 2.8 mm or 3.6 mm?
2.8 mm covers 109° across and detects out to 82 m. 3.6 mm covers 93° and detects out to 100 m. Dahua makes both, so confirm with us which lens is in stock when you order.
What sets off the siren and strobe?
Perimeter events: a tripwire crossing or an intrusion into a zone you draw, filtered for people, vehicles or both. You choose the light, strobe and sound for each rule, and can disarm them with one tap in DMSS.
Can I talk through the camera?
Yes. It has a built-in dual microphone and a speaker, so you can listen and talk back from the DMSS app or a Dahua recorder.
Can I use my own warning message?
Yes. The camera has several built-in voices and Dahua lets you import a custom audio file.
What is AcuPick?
A Dahua search feature. Used with a Dahua back-end device such as a WizSense NVR, it matches people and vehicles so you can pick a target and find it quickly in live and recorded video.
Will it work with a non-Dahua recorder?
It supports ONVIF Profile S, G, T and M, so most ONVIF recorders can record it. AcuPick needs a Dahua back-end device, and Dahua lists DMSS, Smart PSS Lite, DSS and DoLynk Care as its software.
Can it be mounted outside?
Yes. It is rated IP67 with a metal casing, and runs from −40 °C to +60 °C at up to 95% humidity.
Who can install the cable?
Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Plugging a patch lead into an existing outlet does not.
Supported by InFront Technologies.
Help choosing the lens, recorder or switch: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.
Installation and safety
Low-voltage camera. PoE (up to 10 W) or 12 VDC (up to 8.2 W). There is no mains connection on the camera. A new power point for a 12 V supply needs a licensed electrician.
Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.
Audio and siren. Recording conversations is covered by state and territory surveillance laws, and a siren near homes should respect local noise rules. Check them, and use signage, before you switch the microphone or siren on.
What it does not do. No optical zoom, no Wi-Fi, and the lens is fixed at the size you order.
Figures. From Dahua's DH-IPC-HDW3849H-AS-PV-PRO datasheet (Rev 002, 2025), linked from the Dahua Australia page for the -ANZ model.
| Camera | |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 256 MB |
| RAM | 2 G |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0008 [email protected] (Color, 30IRE) 0.0004 [email protected] (B/W, 30IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 2 (Multi-core (IR + warm) light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
|---|---|
| Lens Type | Fixed-focal |
| Lens Mount | M16 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 109°; V: 59°; D: 131° 3.6 mm: H: 93°; V: 50°; D: 111° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 3.2 m (10.50 ft) 3.6 mm: 4.4 m (14.44 ft) |
| DORI Distance | Lens Detect Observe Recognize Identify 2.8 mm 82.0 m (269.03 ft) 32.8 m (107.64 ft) 16.4 m (53.81 ft) 8.2 m (26.90 ft) 3.6 mm 100.0 m (328.08 ft) 40.0 m (131.23 ft) 20.0 m (65.62 ft) 10.0 m (32.81 ft) DORI (Detect, Observe, Recognize, Identify) is a standard (EN-62676-4) for defining the ability of a viewer to distinguish persons or objects within a covered area. The numbers here do not reflect intelligent function distances. Refer to the installation manual or design tool for those. |
| Intelligence | |
|---|---|
| IVS (Perimeter Protection) | Intrusion, tripwire (supports classification & accurate detection of vehicle & human) |
| SMD | SMD 4.0 |
| AcuPick | Deep learning algorithms with back-end devices to match & locate person/vehicle targets quickly |
| AI SSA | Deep learning algorithms for parameter auto-adjustment based on scene conditions |
| Smart Search | Works with Smart NVR for refined intelligent search, event extraction & event video merging |
| Video | |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265 (≥25% compression), AI H.264 (≥25% compression) |
| Video Frame Rate | Main stream: 3840 × 2160 @ (1 fps–25/30 fps) Sub stream: 1920 × 1080 @ (1–25/30 fps) Third stream: 1920 × 1080 @ (1–25/30 fps) *Max. frame rates shown; multiple streams share encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3200 × 1800); 5M (3072 × 1728); 4M (2688 × 1520 / 2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576 / 704 × 480); VGA (640 × 480); CIF (352 × 288 / 352 × 240) |
| Bit Rate Control | CBR/VBR/ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° up to 2688 × 1520) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| LDC | Yes |
| Audio | |
|---|---|
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception |
| Network | |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S; Profile G; Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (up to 512 GB); NAS |
| Browser | IE11, Chrome, Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS; Android |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; X.509 certificate generation/import; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Certification | |
|---|---|
| Certifications | CE-LVD: EN 62368-1; CE-EMC: Directive 2014/30/EU |
| Port | |
|---|---|
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
|---|---|
| Power Supply | 12 VDC; PoE |
| Dual Power Backup | If both power adapter and PoE are provided, removing one source does not reboot the device. It continues running with the other supply. |
| Power Consumption | Basic: 4.1 W (12 VDC); 6 W (PoE) Max. (H.265+ WDR + warm light + siren + light deterrence + intelligence on): 8.2 W (12 VDC); 10 W (PoE) |
| Environment | |
|---|---|
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67 |
| Structure | |
|---|---|
| Casing Material | Metal |
| Product Dimensions | Φ122.0 mm × 116.1 mm (4.80" × Φ4.57") |
| Net Weight | 0.8 kg (1.76 lb) |
| Gross Weight | 1.0 kg (2.20 lb) |
