Dahua DH-IPC-HFW3867E-AS-IL-ANZ 8MP Smart Dual Light IP Camera with 30m IR & AI Features
Dahua DH-IPC-HFW3867E-AS-IL-ANZ: a white 8MP WizSense metal bullet with Smart Dual Light, IR and warm light to 30 m, SMD 4.0 people and vehicle detection, a built-in mic and alarm and audio ports.
- ✓8MP, 3840 × 2160, F1.4 lens (2.8 or 3.6 mm)
- ✓Smart Dual Light: IR and warm light to 30 m
- ✓SMD 4.0, tripwire and intrusion, AcuPick
- ✓Built-in mic, 1 alarm and 1 audio in and out
- ✓microSD up to 512 GB
- ✓IP67 metal housing, PoE or 12 VDC
Description

8MP bullet, smart dual light.
IR to 30 m, colour when someone walks in.

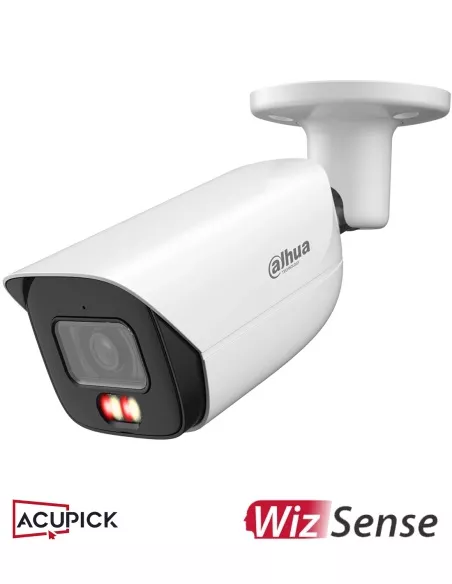

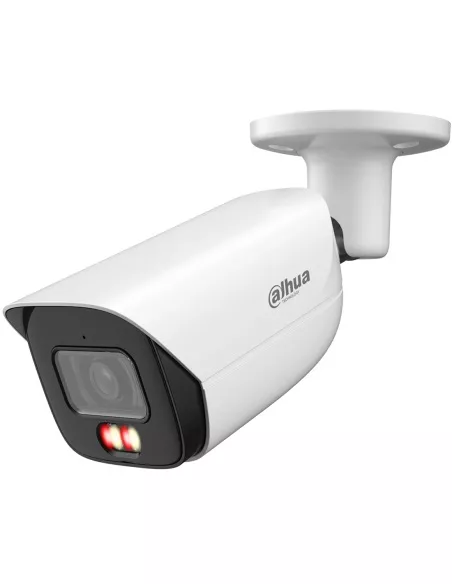

This is the DH-IPC-HFW3867E-AS-IL-ANZ: a white metal 8MP bullet whose two multi-core lights run IR at night and switch to warm light when a person or vehicle enters the scene, with a built-in mic plus alarm and audio ports.
In one sentence: the DH-IPC-HFW3867E-AS-IL-ANZ is a Dahua WizSense 3 Series 8MP (3840 × 2160) fixed bullet with an F1.4 lens, Smart Dual Light IR and warm light to 30 m, SMD 4.0, tripwire and intrusion for people and vehicles, a built-in mic, alarm and audio ports and an IP67 metal housing.
Camera only. Recorder and cabling are separate.
This listing is one white bullet camera; the bracket is part of the camera. It needs PoE or a 12 V supply for power and somewhere to store the footage. Dahua makes it with a 2.8 mm or a 3.6 mm lens: confirm with us which lens is in stock when you order.
- DH-IPC-HFW3867E-AS-IL-ANZ bullet camera
- A PoE NVR or 802.3af PoE switch, or a 12 VDC supply
- Cat5e or Cat6 cable to the camera
- A recorder, NAS or microSD card (up to 512 GB) for the footage
Quiet IR, then colour on cue.
Most nights the camera runs on IR, so there is no white light shining at the neighbours. When a person or vehicle enters the area, Smart Dual Light turns the warm light on and the clip is recorded in full colour. When they leave, it goes back to IR. SMD 4.0 keeps animals and moving leaves from setting it off.

Lens and lights
8MP and 30 m of light.
A 1/2.7" sensor records 3840 × 2160 at up to 25/30 fps through an F1.4 lens. The two multi-core lights each hold IR and warm light: IR reaches 30 m and warm light 30 m. Colour holds down to 0.007 lux, and 120 dB WDR keeps detail in bright doorways.

Bracket
Wall or eave, aimed in three axes.
The bracket pans 0–360°, tilts 0–90° and rotates 0–360°, so the bullet can hang under an eave or stand off a wall. Its sunshield hood keeps glare and rain off the lens window.

Housing
Metal, IP67, 610 g.
Metal casing, 192.7 × 70.5 × 66.4 mm and 610 g. Rated IP67 and −40 °C to +60 °C. The base takes three Ø 4.5 mm screws on a 56 mm circle.
How it goes in
From cable to first alert.
01
Run one cable
Cat5e or Cat6 to a PoE NVR or an 802.3af PoE switch. The camera draws up to 10 W on PoE. A 12 VDC supply also works.
02
Fix the bracket
Three Ø 4.5 mm holes on a 56 mm circle, or a Dahua junction box such as the PFA130-E. Aim the bullet and lock the bracket.
03
Add it to the recorder
Set the password on first login, then add the camera to a Dahua NVR, DSS or Smart PSS Lite, and to the DMSS app.
04
Set the light and the rules
Choose how Smart Dual Light behaves, then draw SMD 4.0, tripwire or intrusion zones for people, vehicles or both.
At a glance
DH-IPC-HFW3867E-AS-IL-ANZ
Show specs
Resolution
8MP, 3840 × 2160 at up to 25/30 fps
Lens
Fixed F1.4, 2.8 mm or 3.6 mm (confirm with us)
Field of view
2.8 mm: 110° horizontal; 3.6 mm: 86° horizontal
DORI (detect)
2.8 mm: 84.8 m; 3.6 mm: 98.7 m
Image sensor
1/2.7" progressive CMOS
Low light
Colour 0.007 lux, B/W 0.0007 lux at F1.4; 0 lux with the lights on
Lights
2 multi-core lights (IR + warm): IR up to 30 m, warm light up to 30 m, Smart Dual Light
WDR
120 dB, plus BLC, HLC, 3D NR and defog
Compression
H.265, H.264, Smart H.265+/H.264+, AI coding; MJPEG on the sub stream
Streams
3 streams, 3 kbps to 16384 kbps
Smart detection
SMD 4.0; tripwire and intrusion with human and vehicle sorting; AI SSA
Search
AcuPick with a Dahua back-end device
Audio
Built-in mic; 1 audio in and 1 audio out (RCA); no built-in speaker
Alarm
1 in (wet contact, 5 mA 3–5 VDC), 1 out (wet contact, 300 mA 12 VDC)
Storage
microSD up to 512 GB, NAS, FTP/SFTP
Network
1 × RJ45 10/100; ONVIF Profile S, G, T and M
Power
12 VDC or PoE 802.3af; up to 8 W (12 V) or 10 W (PoE)
Protection
IP67, metal casing
Size and weight
192.7 × 70.5 × 66.4 mm, 610 g
Operating range
−40 °C to +60 °C, humidity 95% or less
Software
DMSS (iOS, Android), Smart PSS Lite, DSS, DoLynk Care
Colour
White (a black version is listed separately)
Warranty
Dahua 3-year manufacturer warranty, handled in Australia through InFront

192.7 × 70.5 × 66.4 mm. Base Ø 70 mm with three Ø 4.5 mm holes on an Ø 56 mm circle. Units mm [inch].
Pair it with
What this camera does not include
Recorder
A Dahua WizSense PoE NVR
Powers and records the camera on one cable, and adds Quick Pick and AcuPick searches for people and vehicles.
Power
An 802.3af PoE switch
If the recorder has no free PoE ports. Allow 10 W for this camera with the warm light on.
Cabling
Cat5e or Cat6 cable
One run per camera, up to the usual 100 m Ethernet limit.
Mounting
Dahua PFA130-E junction box
Dahua's water-proof box for this bullet. It hides the cable tail and joints behind the bracket on walls and eaves.
Where it is used
Where an 8MP dual light bullet fits.
Driveways and front yards
IR all night, colour the moment a car or person comes up the drive.
Side gates and back yards
Tripwire on the gate for people only, so pets and wildlife do not raise alarms.
Shopfronts and car parks
A visible bullet over the entry, with colour clips of anyone there after hours.
Warehouses and yards
Vehicle and human sorting on gates and loading docks, 30 m of light at night.
Farm sheds and machinery
The alarm output can switch a siren or light when the tripwire is crossed.
Strata and apartments
Common areas and bin rooms recording to the building NVR, with low white-light spill.
2.8 mm or 3.6 mm lens
| 2.8 mm lens | 3.6 mm lens | |
|---|---|---|
| Horizontal view | 110° | 86° |
| Diagonal view | 132° | 100° |
| Detect (DORI) | 84.8 m | 98.7 m |
| Recognise (DORI) | 17.0 m | 19.7 m |
| Identify (DORI) | 8.5 m | 9.9 m |
| Close focus | 1.4 m | 1.9 m |
Both lenses are columns of the same Dahua DH-IPC-HFW3867E-AS-IL-ANZ datasheet. Everything else is the same. Confirm with us which lens is in stock.
Common questions
Is a recorder included?
No. This listing is the camera only. It records to a Dahua NVR, a NAS or a microSD card of up to 512 GB.
How is it powered?
By IEEE 802.3af PoE or by 12 VDC. It draws up to 10 W on PoE or 8 W on 12 VDC with the warm light and analytics running.
How far does it see at night?
Up to 30 m with IR and up to 30 m with warm light. In colour it works down to 0.007 lux at F1.4, and with its lights on it records at 0 lux.
What does Smart Dual Light do?
It keeps the IR on at night, then switches the warm light on when a target enters the scene so the event is recorded in colour. When the target leaves, it goes back to IR.
Which lens should I choose, 2.8 mm or 3.6 mm?
2.8 mm covers 110° across and detects out to 84.8 m. 3.6 mm covers 86° and detects out to 98.7 m. Dahua makes both, so confirm with us which lens is in stock when you order.
What does SMD 4.0 filter?
It classifies what set off motion detection and filters out non-targets such as small and large animals. Tripwire and intrusion rules can be set for people, vehicles or both.
Does it record sound?
Yes. It has a built-in microphone, and an RCA audio input and output. There is no built-in speaker, but a powered speaker can be connected to the audio output.
What are the alarm ports for?
One wet-contact input (5 mA, 3–5 VDC) for a sensor or switch, and one wet-contact output (300 mA, 12 VDC) that can trigger a siren, light or relay when a rule fires.
Is it a bullet or a turret?
A bullet. The camera sits in a metal tube with a sunshield hood, on a bracket that pans, tilts and rotates. For the same camera in a turret, see the DH-IPC-HDW3867EM-S-IL-ANZ.
Will it work with a non-Dahua recorder?
It supports ONVIF Profile S, G, T and M, so most ONVIF recorders can record it. AcuPick and Quick Pick need a Dahua back-end device.
Can it be mounted outside?
Yes. It is rated IP67 with a metal casing, and runs from −40 °C to +60 °C at up to 95% humidity.
What warranty does it have?
Dahua gives its 3 Series network cameras a 3-year (36-month) manufacturer warranty under Dahua Australia's warranty policy. Claims are handled in Australia through InFront Technologies: call 1300 736 970 or email [email protected].
Supported by InFront Technologies.
Help choosing the lens, recorder or switch: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.
Installation and safety
Low-voltage camera. PoE 802.3af (up to 10 W) or 12 VDC (up to 8 W). There is no mains connection on the camera. A new power point for a 12 V supply needs a licensed electrician.
Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.
Audio. Recording conversations is covered by state and territory surveillance laws. Check them, and use signage, before you switch the microphone on.
What it does not do. No built-in siren, strobe or speaker, no optical zoom and no Wi-Fi. The lens is fixed at the size you order.
Figures. From Dahua's DH-IPC-HFW3867E-AS-IL-ANZ datasheet (Rev 002) on the Dahua Australia website.
