Akuvox R20B two-button SIP video door phone with card reader

Akuvox R20B 2-Button SIP Video Door Phone — AK-R20B2BONWALL

Name: Akuvox R20B 2-Button SIP Video Door Phone — AK-R20B2BONWALL
Brand: Akuvox
SKU: AK-R20B2BONWALL
Price: 380.05 AUD
Availability: InStock

Reference: AK-R20B2BONWALL

In Stock - Ready to Ship

$ 380.05

inc-GST

Akuvox R20B (2-button, on-wall) is a compact SIP video door phone for two apartments, offices or gates. Two call buttons with name plates, a 2 MP wide-angle camera and a built-in 13.56 MHz / 125 kHz card reader. IP65 aluminium body, PoE. Stocked in Australia by Infront Technologies.

✓Two call buttons with name plates — R20BX2 hardware
✓2 MP camera, 110° (H) / 58° (V), H.264 up to 1080p
✓RFID 13.56 MHz and 125 kHz · 2 relays · SIP and ONVIF
✓PoE 802.3af, IP65, on-wall 185 × 85 × 24 mm

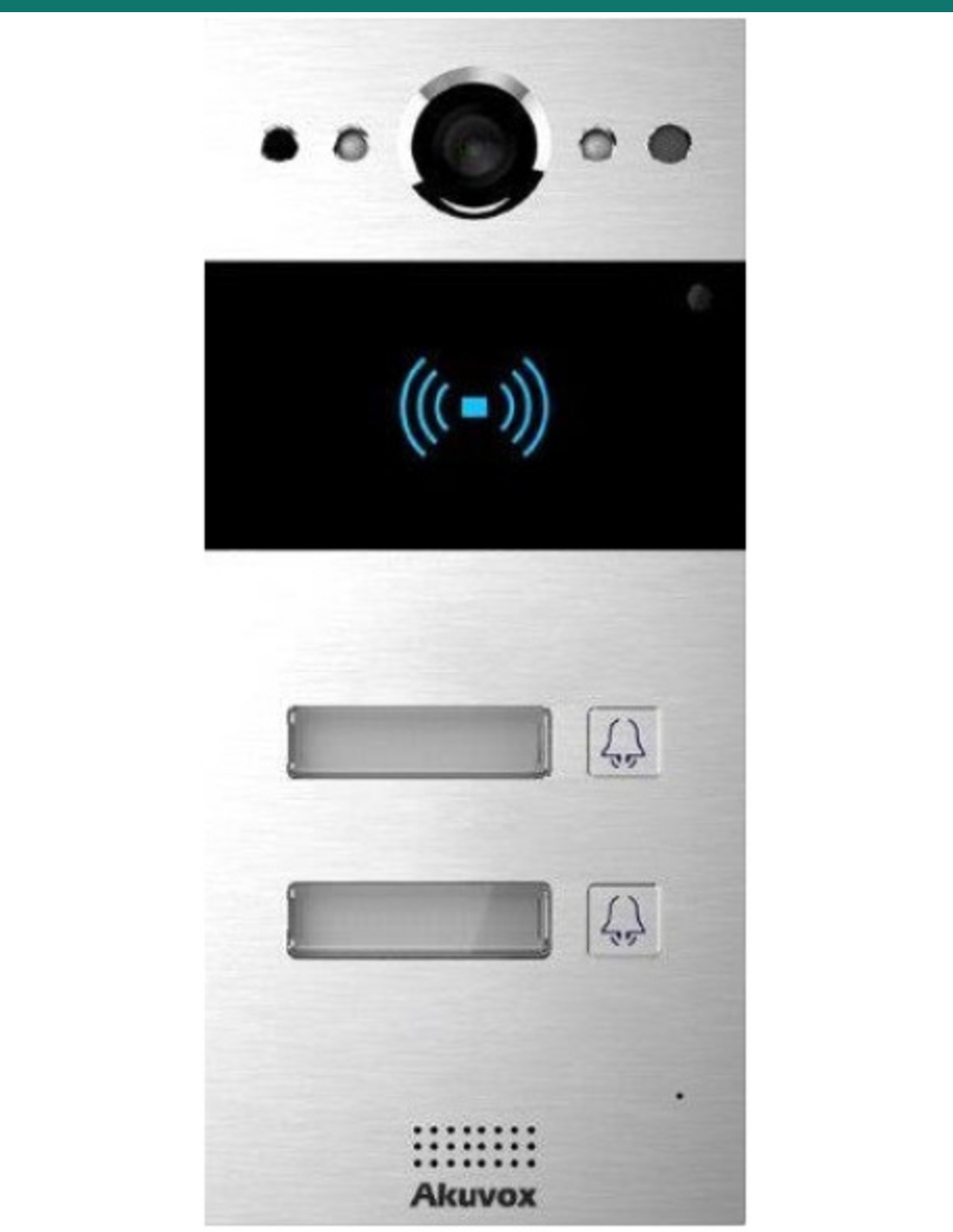

Akuvox R20B two-button SIP video door phone

Akuvox · R20B · 2-button door station

Two buttons. Clear video.
A compact SIP door phone, not a mounting kit.

The AK-R20B2BONWALL is Akuvox’s R20BX2: two call buttons, 2 MP camera and card reader in an IP65 aluminium panel. Typical for duplexes, small offices and gates where a full directory screen is more than you need.

This SKU is the on-wall door station.

You receive the R20B two-button video door phone. An indoor monitor, electric lock, PoE injector and any flush box or rain cover are sold separately. It is not a bracket or accessory.

In the box

Akuvox R20BX2 on-wall door phone
Mounting hardware (where supplied)
Quick-start documentation

What you also need (sold separately)

Compatible Akuvox indoor monitor or SIP endpoint
PoE 802.3af (or local 12 V if using a PSU — confirm on the datasheet)
Lock hardware on the two relay outputs

Unsure what’s compatible? See Pair it with below or contact us before ordering.

Built for tight entries.

R20B is Akuvox’s compact multi-button family. This listing is the two-button on-wall version (R20BX2 datasheet V4.0): Linux, SIP, ONVIF, two relays, card reader.

Buttons

Two name plates, two calls.

Each row is a label window plus a bell button. Typical for two dwellings or two departments sharing one entry.

The same family goes up to five buttons — do not order this SKU if you need three or five flats on one plate.

Video

See the landing before you unlock.

2 MP CMOS, 110° × 58° viewing angle, H.264 up to 1080p / 30 fps, IR for night, ONVIF for an NVR.

Two-way SIP audio with echo cancellation. Codecs G.711, G.722 and G.729 as listed on the datasheet.

Access

Card reader and lock relays on board.

13.56 MHz and 125 kHz RFID, two relays, two inputs, Wiegand and RS485. Capacity 4,000 users / 20,000 cards.

IP65 aluminium panel. On-wall size 185 × 85 × 24 mm; flush-mount uses a deeper box (see the R20B in-wall kit).

How it works

From doorbell to door.

Choose on-wall or flush

This SKU is the on-wall body. Flush work needs the R20B in-wall box, sold separately.

PoE and SIP

802.3af to the RJ45, then register to indoor monitors or a SIP PBX.

Label the two buttons

Print name plates and map each button to the right indoor station or ring group.

Enrol cards if you use them

Load EM / MIFARE / DESFire credentials on the web portal.

At a glance

Key specs — AK-R20B2BONWALL

Brand: Akuvox
Family: R20B compact SIP door phone
Camera: 2 MP, 110° (H) / 58° (V), automatic lighting
Video: H.264 up to 1080p / 30 fps
Audio: SIP two-way with echo cancellation
RF reader: 13.56 MHz and 125 kHz
I/O: 2 relays, 2 inputs, Wiegand, RS485, 1× RJ45 10/100
Power: PoE 802.3af
Protection: IP65
Body: Aluminium-alloy front panel
On-wall size: 185 × 85 × 24 mm (H × W × D)
Operating temperature: −30 °C to +60 °C
OS: Linux
Warranty: Australian warranty via Infront Technologies
This SKU: R20BX2 on-wall (AK-R20B2BONWALL)
Call buttons: 2
Capacity: 4,000 users · 1,000 contacts · 20,000 cards

Pair it with

Typical building blocks

Indoor

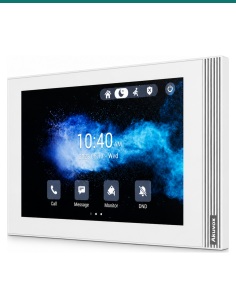

Akuvox indoor monitor

Pair with a compatible Akuvox SIP indoor station so residents can see and speak to visitors.

Flush

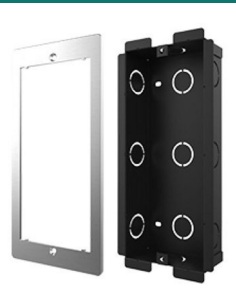

R20B in-wall box

If the plate must sit flush, add the R20K/R20B in-wall installation kit rather than cutting ad-hoc.

Lock

Electric lock / maglock

Door station relays switch a lock PSU — they are not a complete lock kit on their own.

Network

PoE switch or injector

Use a PoE switch or injector that matches the station’s IEEE class (af or at).

Answers

Common questions

Is this a mounting accessory?

No. It is the two-button video door phone. Mounts and rain covers are separate SKUs.

Two buttons or two stations?

One station, two call buttons. Each button rings the indoor endpoint you configure.

PoE class?

IEEE 802.3af.

Outdoor?

IP65. Still specify a rain cover where the soffit does not shelter the panel.

Stocked for Australian installs.

Order R20B two-button through Infront Technologies when you need a compact SIP door station rather than a touchscreen directory phone.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE as stated on the Akuvox R20BX2 datasheet. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed structured data / intercom cabling is customer cabling under AS/CA S009 and must be performed by an ACMA-registered cabler. Any electric lock, maglock or dedicated lock PSU is a separate electrical/security install and may require a licensed electrician or security installer.

Specifications in good faith. Firmware features and packing details can change at Akuvox’s discretion — verify the attached datasheet (where provided) for your hardware revision before ordering. Stocked and supported by Infront Technologies.
