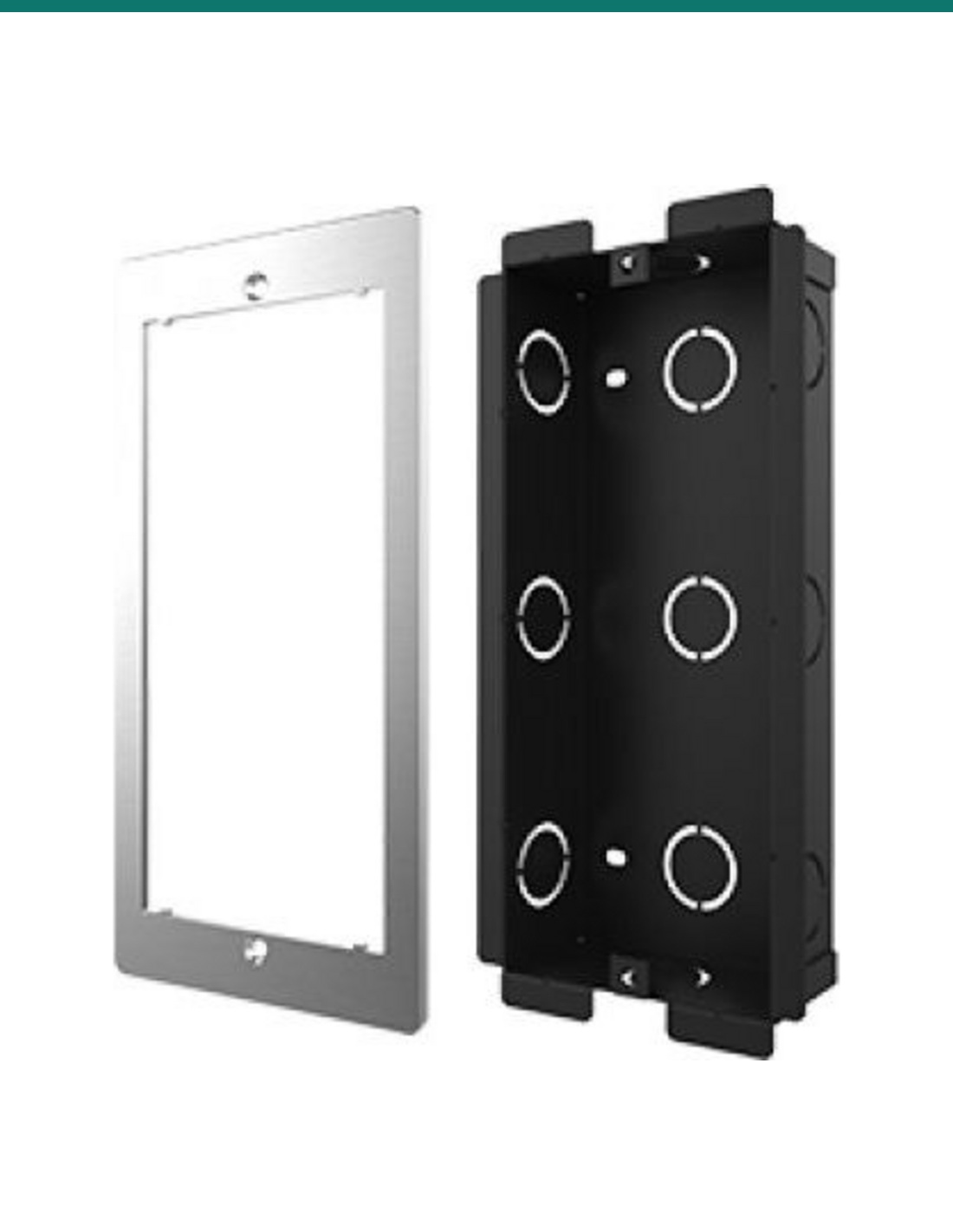

Akuvox R20K / R25K / R20B silver in-wall installation kit — flush box
Akuvox R20K / R25K / R20B silver in-wall installation kit — silver decoration panel
1 / 2

Akuvox R20K / R25K / R20B Silver In-Wall Installation Kit — AK-R20KR20BINWALLK

SKU AK-R20KR20BINWALLK In Stock - Ready to Ship
$58.00 inc GST

Akuvox R20K / R25K / R20B in-wall kit in silver recesses a 185 × 85 mm R20K keypad, R25K or R20B multi-button door phone into the wall. It contains the flush-mounting box, the silver flush-mounting bracket, wall fixings, Torx screws and the Torx wrench.

  • ✓Flush-mounting box plus silver flush-mounting bracket
  • ✓Fits Akuvox R20K, R25K and R20B (2–5 buttons)
  • ✓Wall cut-out 207 × 89 × 40 mm (H × W × D)
  • ✓Station locks in with two M4×15 Torx screws



Description

Akuvox · R20K / R25K / R20B · Silver in-wall kit

Recess the keypad door phone.
Silver frame, flush finish.

The AK-R20KR20BINWALLK is the Akuvox flush-mounting kit for the 185 × 85 mm R20 family. The box goes into a 207 × 89 × 40 mm recess and the door phone locks into it with Torx screws, leaving a slim silver border at the wall face.

Mounting hardware only.

Everything to flush-mount one R20K, R25K or R20B. The door phone and in-wall rain hood are sold separately.

In the box
  • Flush-mounting box
  • Flush-mounting bracket (silver)
  • 2 × M4×15 Torx screws
  • 4 × ST4×20 screws and 4 plastic wall anchors
  • Torx wrench
What you also need(sold separately)
  • Akuvox R20K, R25K or R20B door phone
  • A 207 × 89 × 40 mm wall recess with cable entry
  • Optional: R20K / R25K / R20B in-wall rain hood

Flush, neat and harder to tamper with.

A recessed station sits close to the wall face, hides its cabling and is held by Torx screws rather than hanging on a surface bracket.

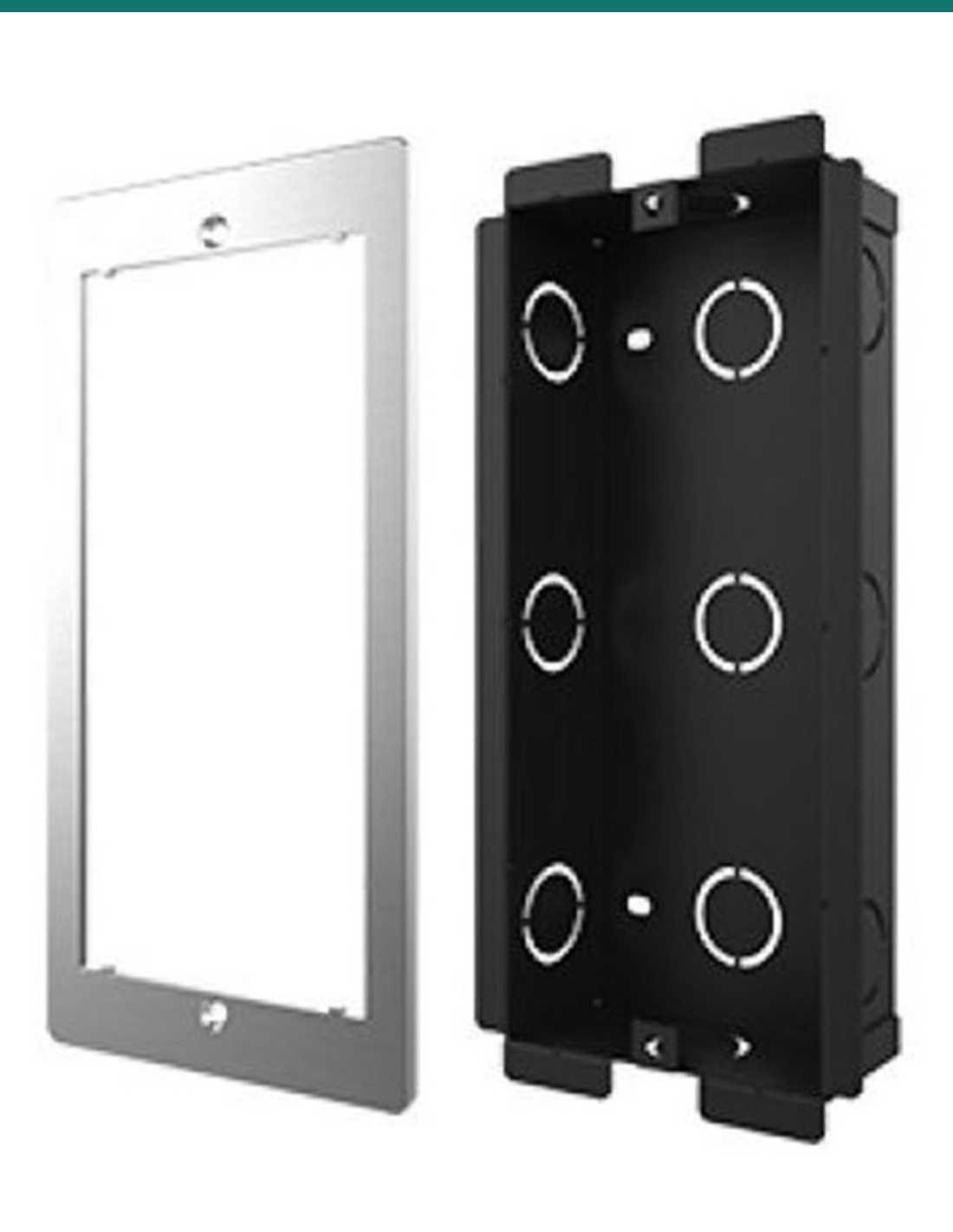

Akuvox R20K / R20B silver in-wall kit

What you get

Box, frame and Torx fixings.

The steel flush-mounting box takes the cables and the body of the door phone; the silver flush-mounting bracket finishes the opening at the wall face.

Two M4×15 Torx screws lock the station in, so it cannot be removed without the Torx wrench.

One kit, three models

Same recess for R20K, R25K and R20B.

All three use the 185 × 85 × 24 mm housing, so the kit and the 207 × 89 × 40 mm recess are the same whichever model you fit.

Add the in-wall rain hood on exposed entries.

Akuvox R20K in-wall kit silver frame

How it works

From bare wall to flush door phone.

01

Cut the recess

Cut a 207 × 89 × 40 mm (H × W × D) hole with all cables inside it.

02

Fix the box

Mark and drill four 6 mm holes, 25 mm deep, then fix the flush-mounting box with four ST4×20 screws and anchors. Fill gaps with cement or non-corrosive adhesive.

03

Fit the station

Wire the door phone, place it into the box and lock it with the two M4×15 Torx screws.

Pair it with

Completes a flush install

Door phone

Akuvox R20K, R25K or R20B

Keypad, fisheye-keypad and multi-button stations in the 185 × 85 mm housing.

Weather

R20K / R25K / R20B in-wall rain hood

Shields a recessed station on exposed entries.

Answers

Common questions

Which door phones does it fit?

Akuvox R20K, R25K and R20B with 2, 3, 4 or 5 buttons. It is too tall for the R20A / R25A, which have their own kit.

What size hole do I need?

Akuvox specifies a 207 × 89 × 40 mm (H × W × D) recess that can take all the cables.

What is different about the black kit?

The colour of the frame (AK-R20KINWALLK-B). Choose the one that matches your door phone.

Match the frame to the station.

Choose silver to suit your door phone; the black kit is AK-R20KINWALLK-B. For R20A / R25A use the R20A in-wall kit instead.

Installation & safety notice

Akuvox’s guide also allows a simpler install with the box set in cement or adhesive and no wall screws, with lower vandal resistance.

Colour
Silver frame
Brand
Akuvox
Warranty
Australian Warranty via Infront Technologies
Product Type
Flush-mount installation kit
Model
R20K / R20B in-wall kit
Includes
Flush-mounting box, flush-mounting bracket, screws, anchors, Torx wrench
Compatible with
Akuvox R20K, R25K, R20B (2–5 buttons)
Wall Cut-out
207 × 89 × 40 mm (H × W × D)
