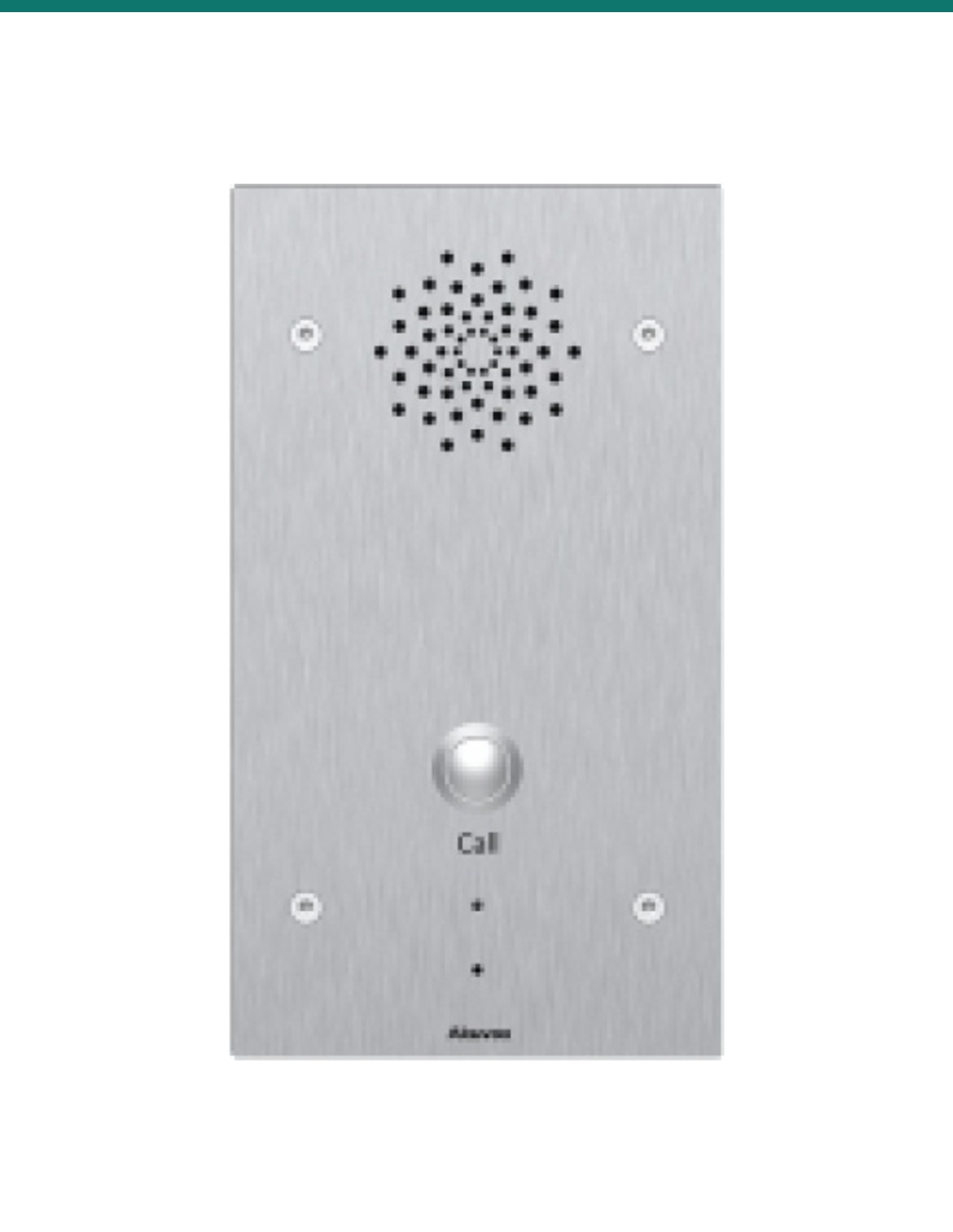

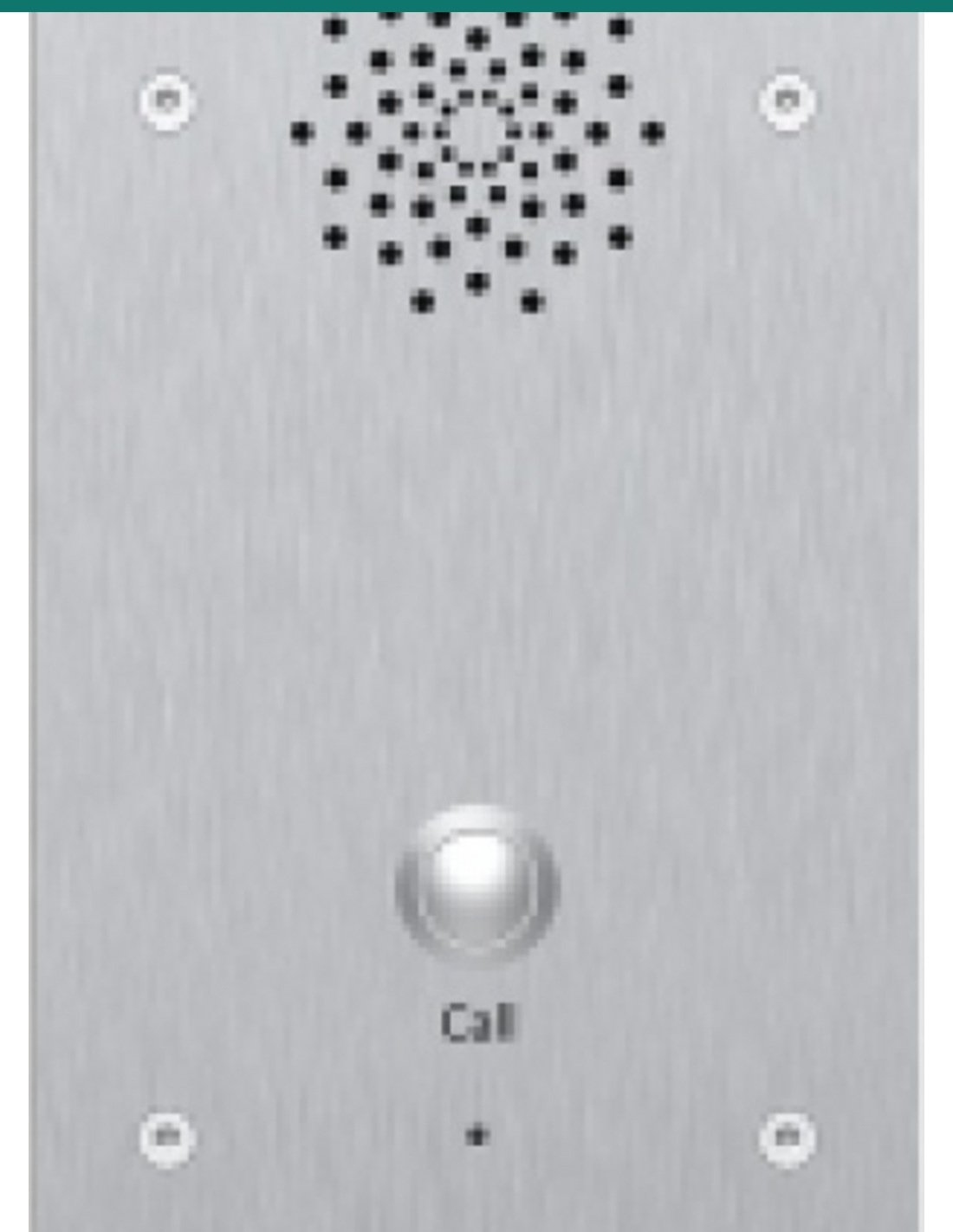

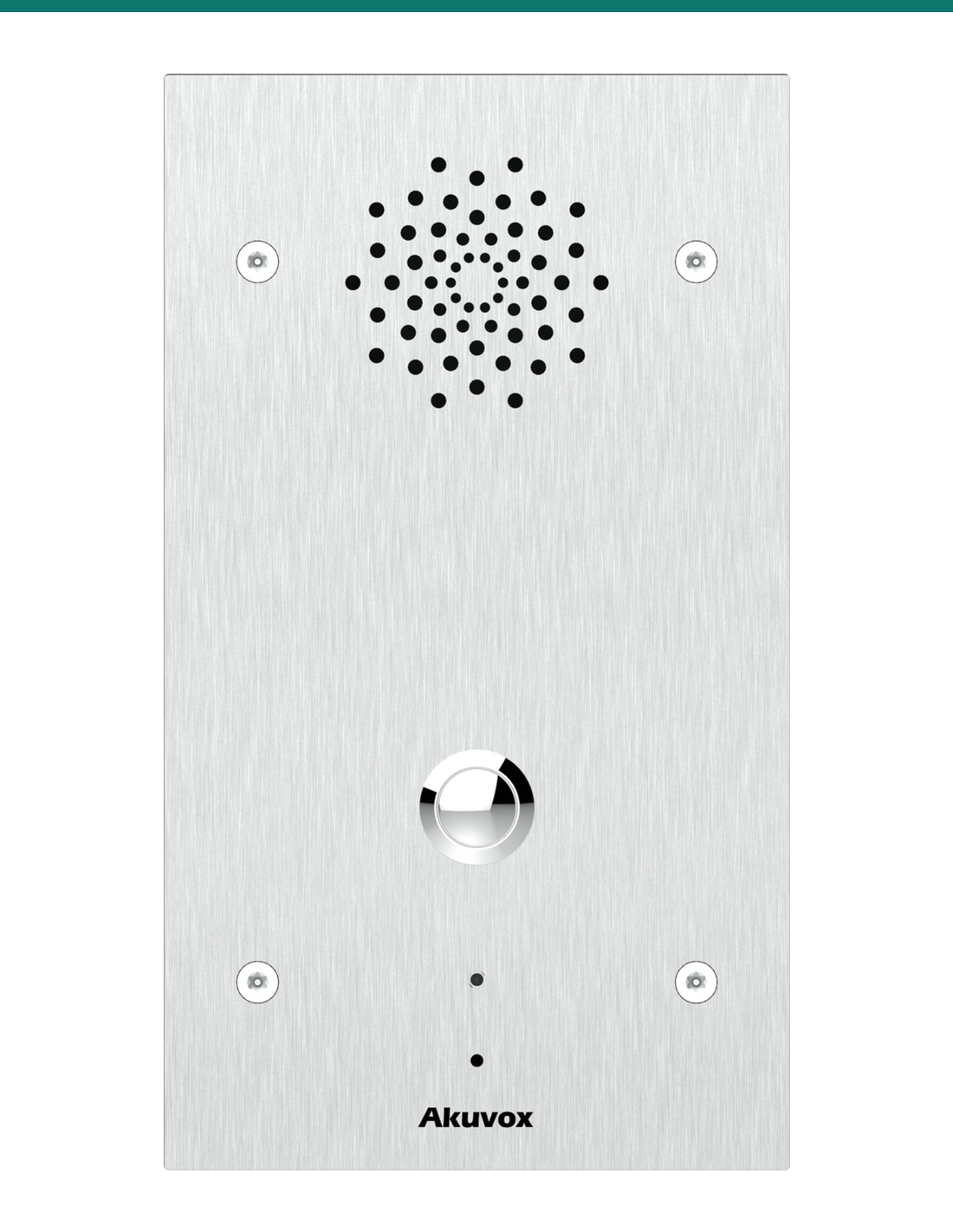

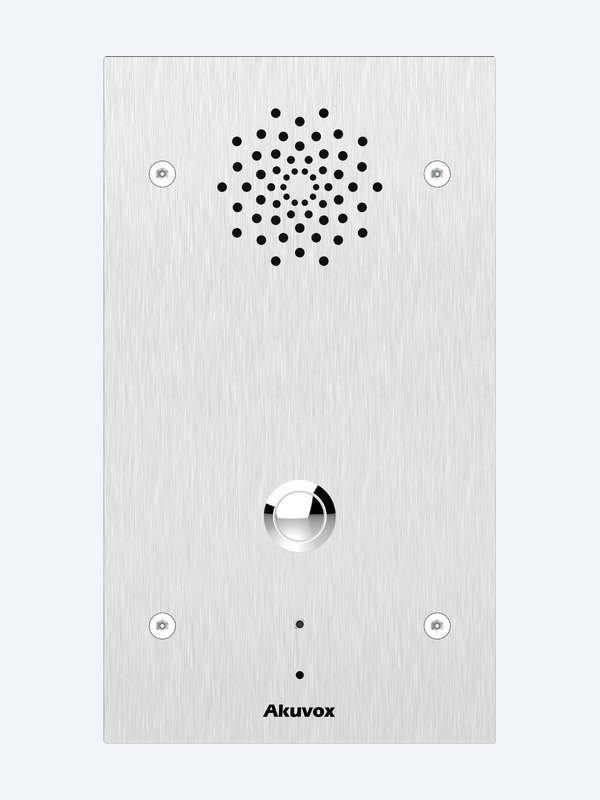

One-button calling with integrated credential presentation

The AK-E21A combines two core entry tasks in a single compact faceplate: visitor call initiation and RF-card-based access. For low to medium complexity doors, that means fewer separate devices on the wall and a cleaner path for users approaching the entrance. A single call button is easy to understand, making it well suited to staff doors, tenancy entrances, foyers, side gates and restricted service areas where a simple “press to call” interaction is preferred over directory browsing.

The built-in RF card reader allows authorised users to present a compatible card or token instead of relying solely on remote release from inside. This is especially useful for mixed traffic environments where residents, staff or approved contractors need repeatable access without creating unnecessary call load on indoor stations or desk phones. For integrators, consolidating call station and card presentation in one SIP endpoint can simplify placement, conduit planning and final handover.

Built for door release workflows, not just voice communication

This station is intended for practical access control duties at the edge of the network. In addition to SIP calling, it supports door release functionality so the intercom can participate directly in a controlled entry sequence. In a typical installation, the visitor presses the button, the call is answered on a compatible indoor monitor, SIP phone or intercom client, and the operator triggers release for the strike, lock or gate interface according to site policy.

That makes the AK-E21A a strong fit where voice verification and credential access must sit together at a single point. Office front doors, apartment pedestrian gates, small business reception entries and after-hours delivery points all benefit from this workflow. Because the unit is SIP based, integrators can also plan around extension mapping, ringing groups and broader networked communications rather than treating the door station as an isolated analogue peripheral.

Vandal-resistant construction for exposed entry locations

The aluminium vandal-resistant faceplate makes the AK-E21A more appropriate for public-facing or lightly exposed entry points than a purely decorative indoor-style panel. Material choice matters at doors that see repeated use, incidental contact, keys, bags, trolleys or attempted misuse. A robust front assembly helps the station maintain usability and appearance over time while supporting consistent button operation and card presentation at the threshold.

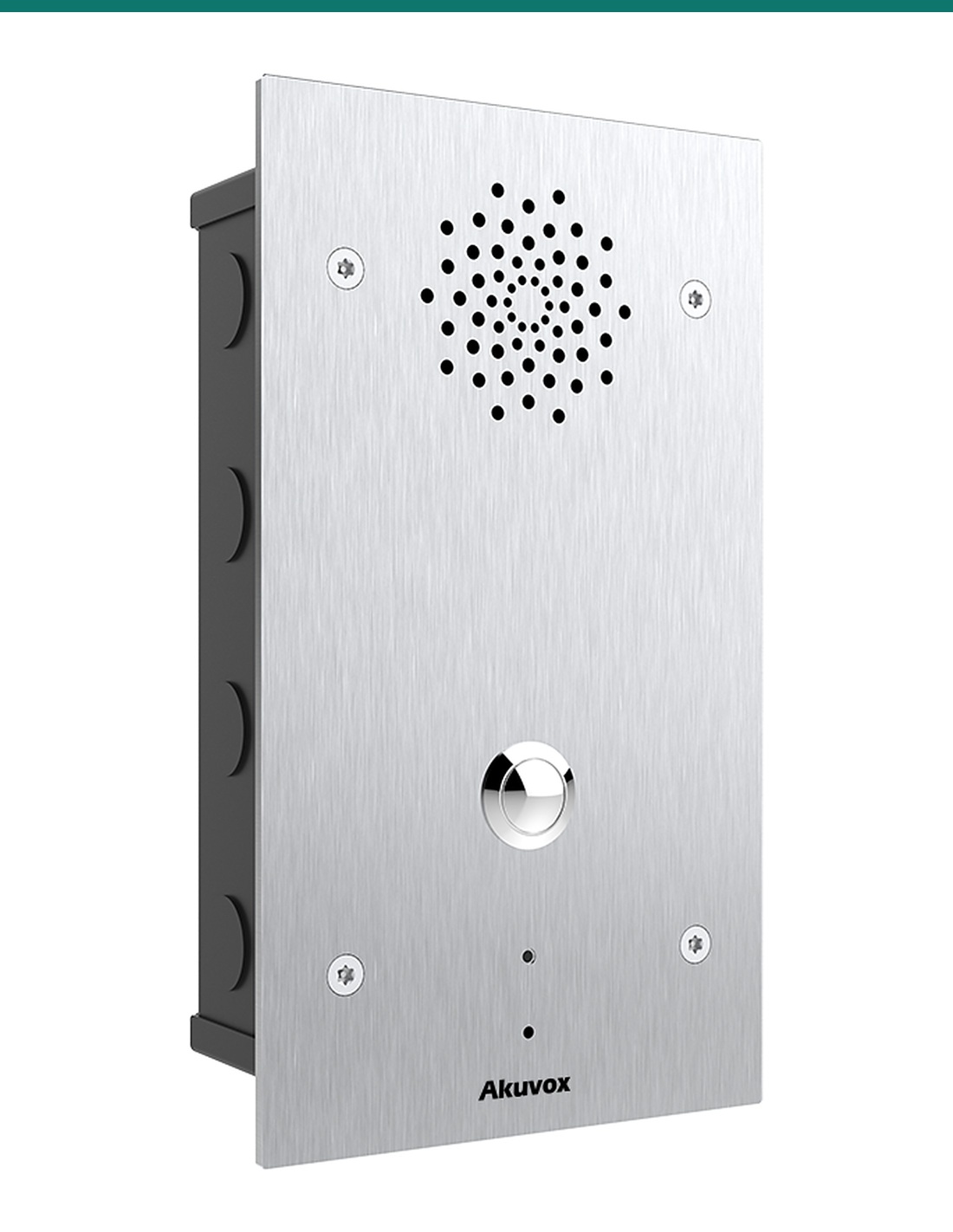

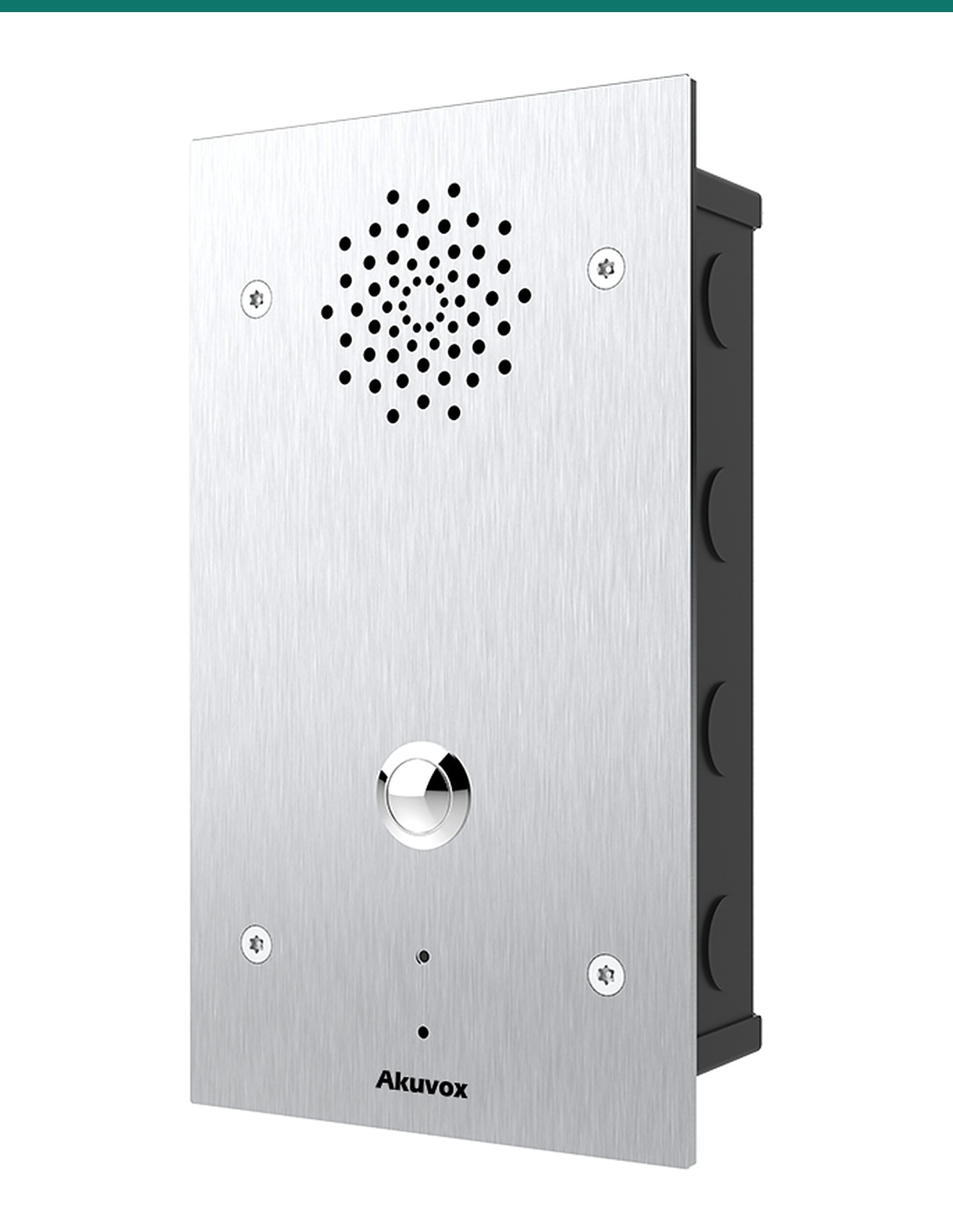

Its compact surface-mount design also reduces installation complexity where wall depth, cladding type or retrofit conditions make flush mounting impractical. On brick, rendered, metal-framed or retrofit surfaces, a neat surface-mount enclosure can significantly reduce labour compared with cutting recesses or building custom back boxes. For installers, that often means faster deployment and less disruption while still delivering a professional entry finish.

How it works on site

The AK-E21A suits straightforward SIP-based access scenarios where calling, identification and release happen at one fixed doorway.

Indoor monitor or SIP handset

Pair with a compatible Akuvox indoor monitor, desk phone or SIP client so occupants can answer calls and initiate remote release.

Locking hardware

Use with a compatible electric strike, maglock interface, gate opener input or access control relay arrangement suited to the door type.

PoE switch or managed LAN

A stable IP network, often with PoE where applicable to the broader system design, helps simplify cabling and centralise endpoint management.

RF cards or key fobs

Provision compatible credentials for authorised staff, residents or contractors who need regular access through the integrated RF reader.

FAQ

Is the AK-E21A a standalone access product or an intercom endpoint?

It is primarily a SIP door intercom station with integrated RF credential capability and door release support. In practice, it is best specified as part of a broader intercom or entry workflow rather than as an isolated mechanical lock substitute.

What sort of site suits a single-button station?

Single-button stations are ideal for dedicated doors or gates where the destination is fixed, such as a reception entry, warehouse personnel door, tenancy entrance, clinic side door or small residential access point.

Can users open the door with a card instead of calling?

Yes. The source confirms a built-in RF card reader, so authorised users can be issued compatible credentials for routine access, reducing the need to place a call every time they enter.

Why is the vandal-resistant aluminium panel important?

It improves suitability for public or semi-public entrances where the station may experience higher wear, impact or tampering risk than protected internal locations. It also helps preserve long-term appearance and serviceability.

Does surface mounting help in retrofit work?

Usually yes. Surface mounting can reduce wall preparation and is often easier on existing brick, rendered façades, gate posts or structures where recessing would increase labour or compromise finishes.

Are detailed electrical and dimensional specs included here?

No. Only features verified from the supplied source are listed above. Confirm the latest Akuvox technical documentation before finalising lock power, relay wiring, network topology, reader credential format and physical mounting constraints.
