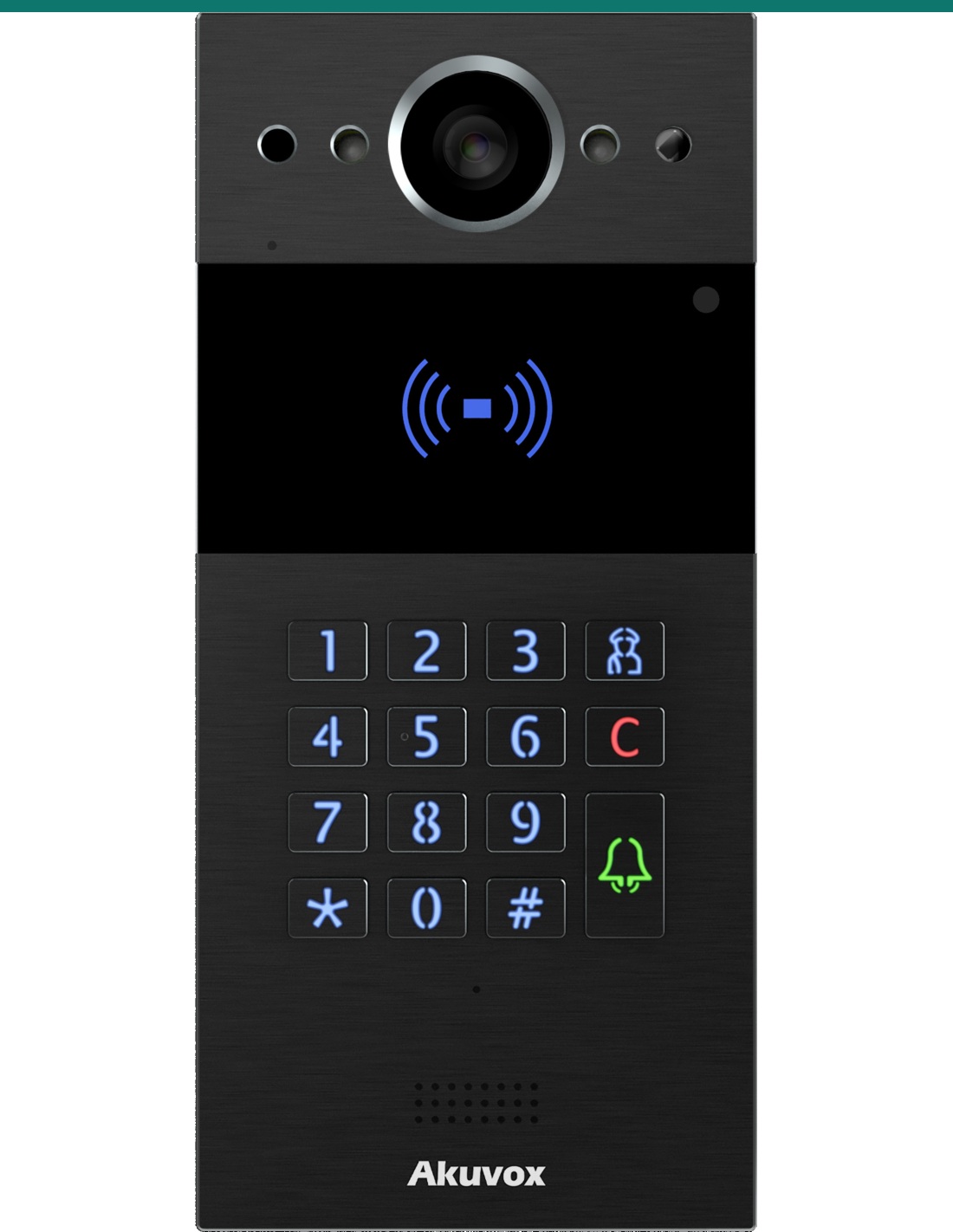

Akuvox R20K black SIP video door phone with keypad and card reader

Akuvox R20K Black SIP Video Door Phone with Keypad — AK-R20K-BLACK

Name: Akuvox R20K Black SIP Video Door Phone with Keypad — AK-R20K-BLACK
Brand: Akuvox
SKU: AK-R20K-BLACK
Price: 492.88 AUD
Availability: InStock

Reference: AK-R20K-BLACK

In Stock - Ready to Ship

$ 492.88

inc-GST

Akuvox R20K-BLACK is the compact black SIP video door phone with a physical keypad and card reader. 2 MP wide-angle camera, two lock relays, IP65 aluminium body, PoE. No LCD — visitors dial a room number or tap a card. Stocked in Australia by Infront Technologies.

✓Black aluminium R20K with numeric keypad, concierge key and call bell
✓2 MP camera, 110° (H) / 58° (V), H.264 up to 1080p / 30 fps
✓13.56 MHz / 125 kHz RFID, PIN unlock, 2 relays / 2 inputs
✓PoE 802.3af, IP65, 185 × 85 × 24 mm, SIP and ONVIF

Akuvox R20K black SIP video door phone with keypad

Akuvox · R20K · Black keypad door station

A compact SIP door phone with a real keypad.
Camera, reader and keys — not a cropped module.

The AK-R20K-BLACK is Akuvox’s R20K in black aluminium: 2 MP camera, numeric keypad, card reader and two relays in a palm-size IP65 plate. Typical for apartments and offices where visitors dial a room number rather than using a directory screen.

This SKU is the door station only.

You receive the black R20K (standard, not the LTE R20K-L). Indoor monitors, in-wall kit, rain hood, PoE and lock hardware are sold separately. The silver R20K is a different listing.

In the box

Akuvox R20K door phone (black)
Mounting hardware (where supplied)
Quick-start documentation

What you also need (sold separately)

Compatible Akuvox indoor monitor or SIP endpoint
In-wall kit / rain hood if the elevation needs them
PoE 802.3af and lock hardware

Unsure what’s compatible? See Pair it with below or contact us before ordering.

Specified on the R20K V4.0 datasheet.

Figures below come from Akuvox’s R20K datasheet V4.0. This listing is the black finish. R20K-L (LTE) and R20K-2 (2-wire) are different part numbers.

Keypad

Room number, PIN, or card.

Numeric keypad with extra buttons (concierge, clear, bell). Unlock paths on the datasheet are EM / Mifare card and PIN. Capacity 4,000 users and 20,000 cards.

There is no LCD on R20K. If the brief wants a directory screen, look at R28A or S535 instead.

Video

See the landing before you open.

2 MP CMOS, 110° × 58°, H.264 up to 1080p / 30 fps, automatic lighting, ONVIF for an NVR.

Two-way SIP audio with echo cancellation (G.711 and G.722).

I/O

Two relays on a compact plate.

2 relays, 2 inputs, Wiegand, RS485, tamper. 13.56 MHz and 125 kHz RFID (EM, Mifare, DESFire EV1/EV2/EV3).

IP65 aluminium. Size 185 × 85 × 24 mm. Surface-mount as supplied; flush work needs the R20K/R20B in-wall kit.

How it works

Dial the flat, see the landing, unlock.

Choose on-wall or flush

This body is the black on-wall R20K. Flush work needs the matching in-wall kit (black kit listed separately).

PoE and SIP

802.3af to the RJ45, then register to indoor monitors or a SIP PBX.

Map room numbers

Visitors dial the flat; map each directory entry to the right indoor station or ring group.

Enrol cards and PINs

Load credentials on the web portal. Capacities are on the attached datasheet.

At a glance

Key specs — AK-R20K-BLACK

Brand: Akuvox
Reference: AK-R20K-BLACK
OS: Linux
Finish: Black aluminium
Camera: 2 MP, 110° (H) / 58° (V)
Video: H.264 up to 1080p / 30 fps
Unlock: EM / Mifare card and PIN
RF: 13.56 MHz and 125 kHz
Relays / inputs: 2 / 2
Power: 802.3af PoE
IP rating: IP65
Size: 185 × 85 × 24 mm
Working temperature: −30 °C to +60 °C
Warranty: Australian via Infront Technologies

Pair it with

Typical building blocks

Indoor

Akuvox indoor monitor

Pair with a compatible Akuvox SIP indoor station so residents can see and speak to visitors.

Flush

R20K/R20B in-wall kit

Black in-wall kit and rain hoods are separate SKUs from this door phone.

Lock

Electric lock / maglock

Door station relays switch a lock PSU — they are not a complete lock kit on their own.

Network

PoE switch or injector

Use a PoE switch or injector that matches the station’s IEEE class (af or at).

Answers

Common questions

Is this a modular screen phone?

No. R20K is a compact keypad door station with a camera. It does not have an LCD directory.

Silver instead of black?

The silver R20K is a different listing. This SKU is AK-R20K-BLACK.

LTE version?

R20K-L / R20K-BLACK-L are different part numbers. This listing is the standard (non-LTE) black R20K.

PoE class?

IEEE 802.3af.

Compact keypad door phone, local stock.

Order R20K black through Infront Technologies when the brief is a small SIP station with a physical keypad — not a 4.3-inch R28A and not a modular screen phone.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE as stated on the Akuvox R20K datasheet. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed structured data / intercom cabling is customer cabling under AS/CA S009 and must be performed by an ACMA-registered cabler. Any electric lock, maglock or dedicated lock PSU is a separate electrical/security install and may require a licensed electrician or security installer.

Specifications in good faith. Firmware features and packing details can change at Akuvox’s discretion — verify the attached datasheet (where provided) for your hardware revision before ordering. Stocked and supported by Infront Technologies.
