Akuvox S562 White 7-inch SIP Indoor Monitor — AK-S562-WHITE

Name: Akuvox S562 White 7-inch SIP Indoor Monitor — AK-S562-WHITE
Brand: Akuvox
SKU: AK-S562-WHITE
Price: 195.5 AUD
Availability: InStock

Reference: AK-S562-WHITE

In Stock - Ready to Ship

$ 195.50

inc-GST

or 4 interest-free payments of $48.88 with

Akuvox S562 in white is a 7-inch Linux SIP indoor monitor. A 1024 × 600 capacitive touch screen and front-facing speaker handle video calls from the door station; the same slim 21.7 mm panel releases the lock, views IP cameras and takes eight alarm inputs. PoE or 12 V DC. Stocked in Australia by Infront Technologies.

✓7-inch IPS capacitive touch screen, 1024 × 600, 300 nits, 85° viewing each way
✓SIP v1 / v2 video intercom: H.264 video, G.722 wideband audio, echo cancellation
✓1 relay output, 8 alarm inputs, bell input and RS485
✓PoE 802.3af or 12 V DC · ≤9 W · Wall or desk mount · 216.4 × 118.8 × 21.7 mm

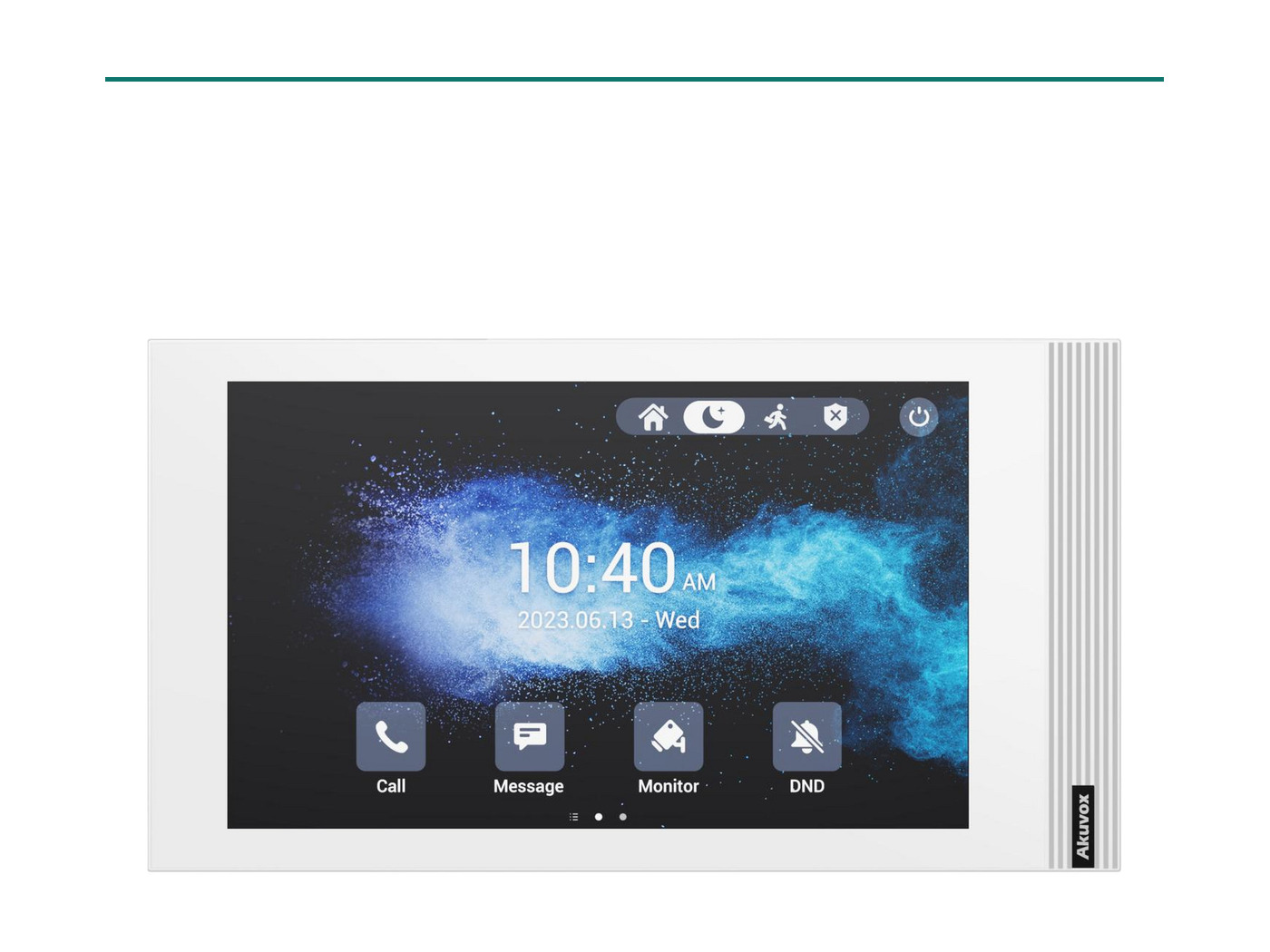

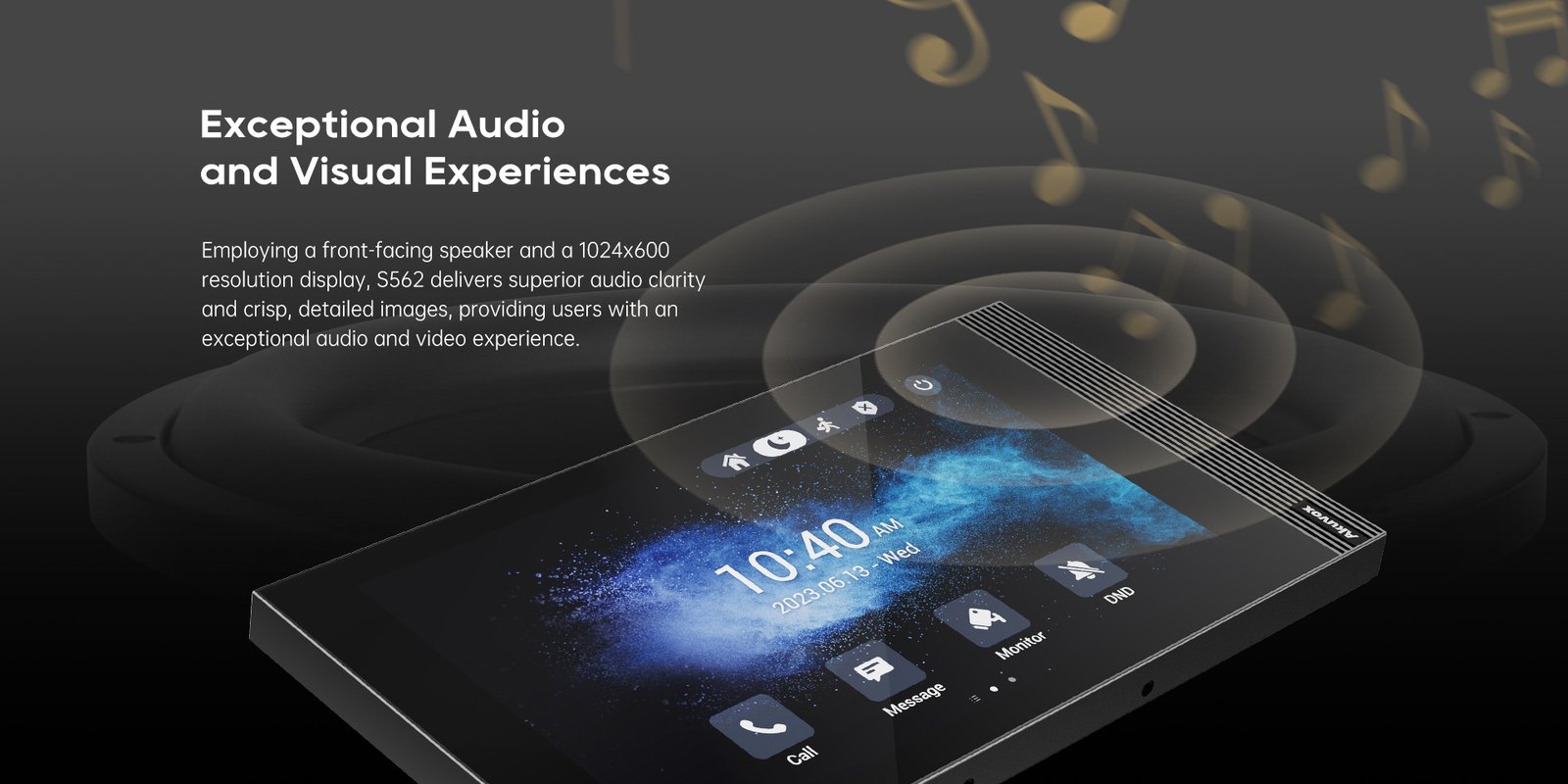

Akuvox S562 indoor monitor — front-facing speaker and 1024 × 600 display

Akuvox · S562 · White 7-inch indoor monitor

A slim 7-inch screen for every door call.
Linux SIP, PoE, 21.7 mm thin.

The AK-S562-WHITE is Akuvox’s S562 indoor monitor in white. A 7-inch 1024 × 600 IPS touch screen and front-facing speaker answer video calls from Akuvox door stations, and the same panel views IP cameras, releases the door relay and monitors eight alarm inputs.

This SKU is the indoor monitor only.

You receive the white S562 with its wall-mounting bracket and fixings. Door stations, the desk stand, surface-mount box, PoE switch and power supply are sold separately.

In the box

Akuvox S562 indoor monitor (white)
Wall-mounting bracket
8-pin and 10-pin wiring cables and a diode
Screws, wall anchors and a screwdriver

What you also need(sold separately)

Akuvox SIP door station, or another SIP door phone
PoE 802.3af switch or injector, or a 12 V DC supply
S562 desk stand or surface-mount angle box if not using a wall box
Electric lock and lock PSU if the relay releases a door

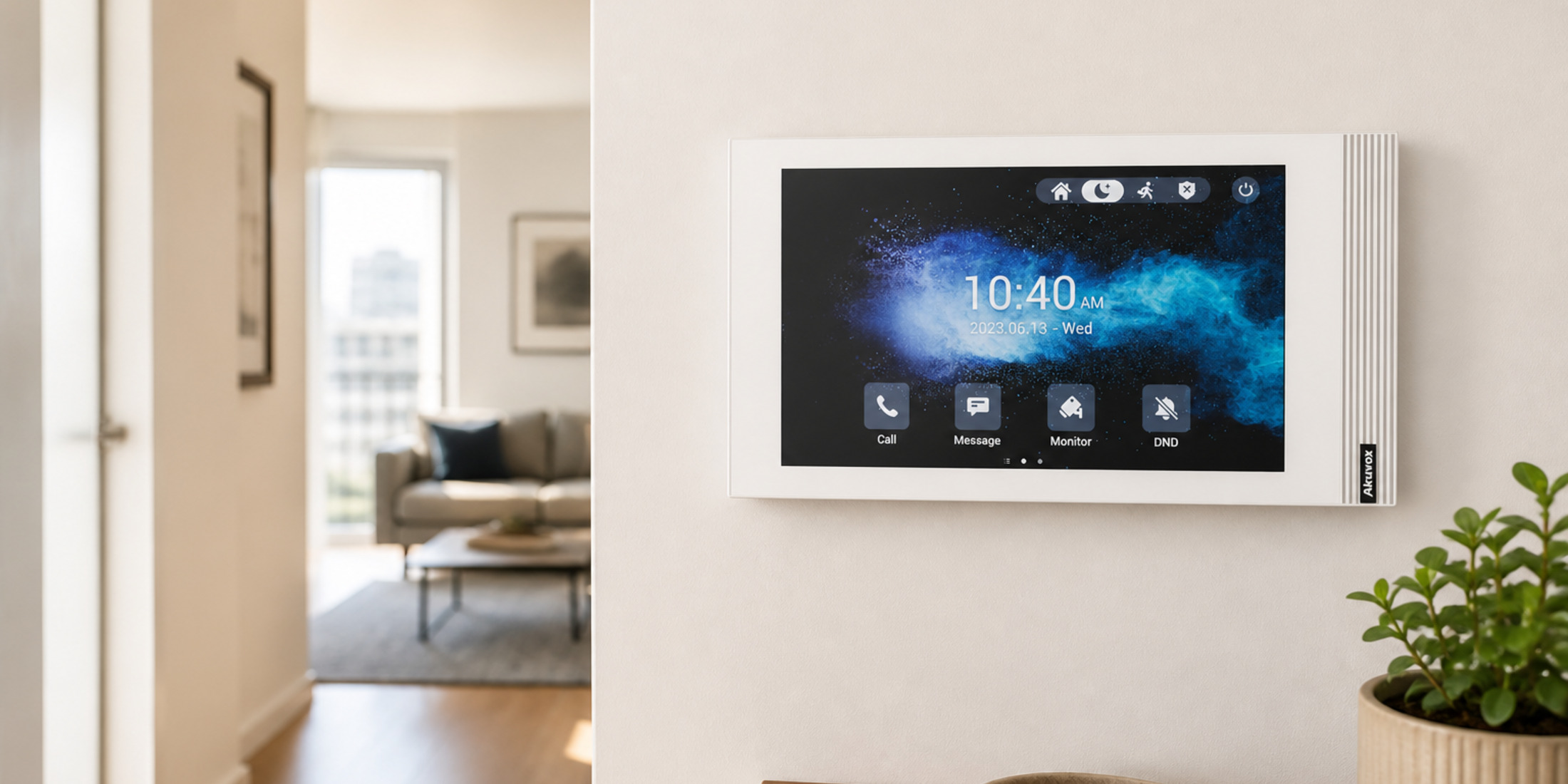

Answer the door from the hallway.

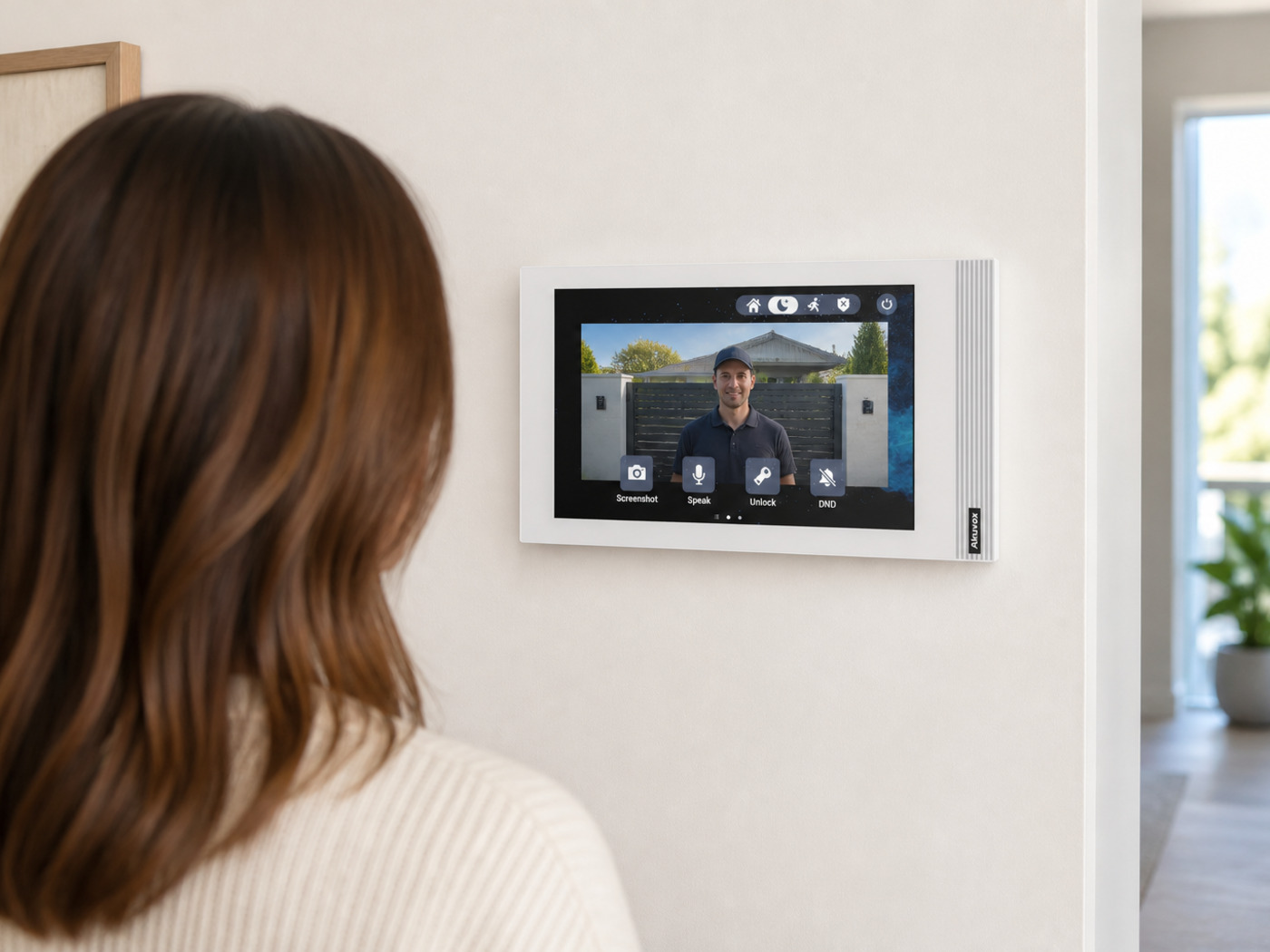

When a visitor presses the call button outside, the S562 rings with live video from the door station. Talk hands-free, tap to release the lock, and check any linked camera before you open up.

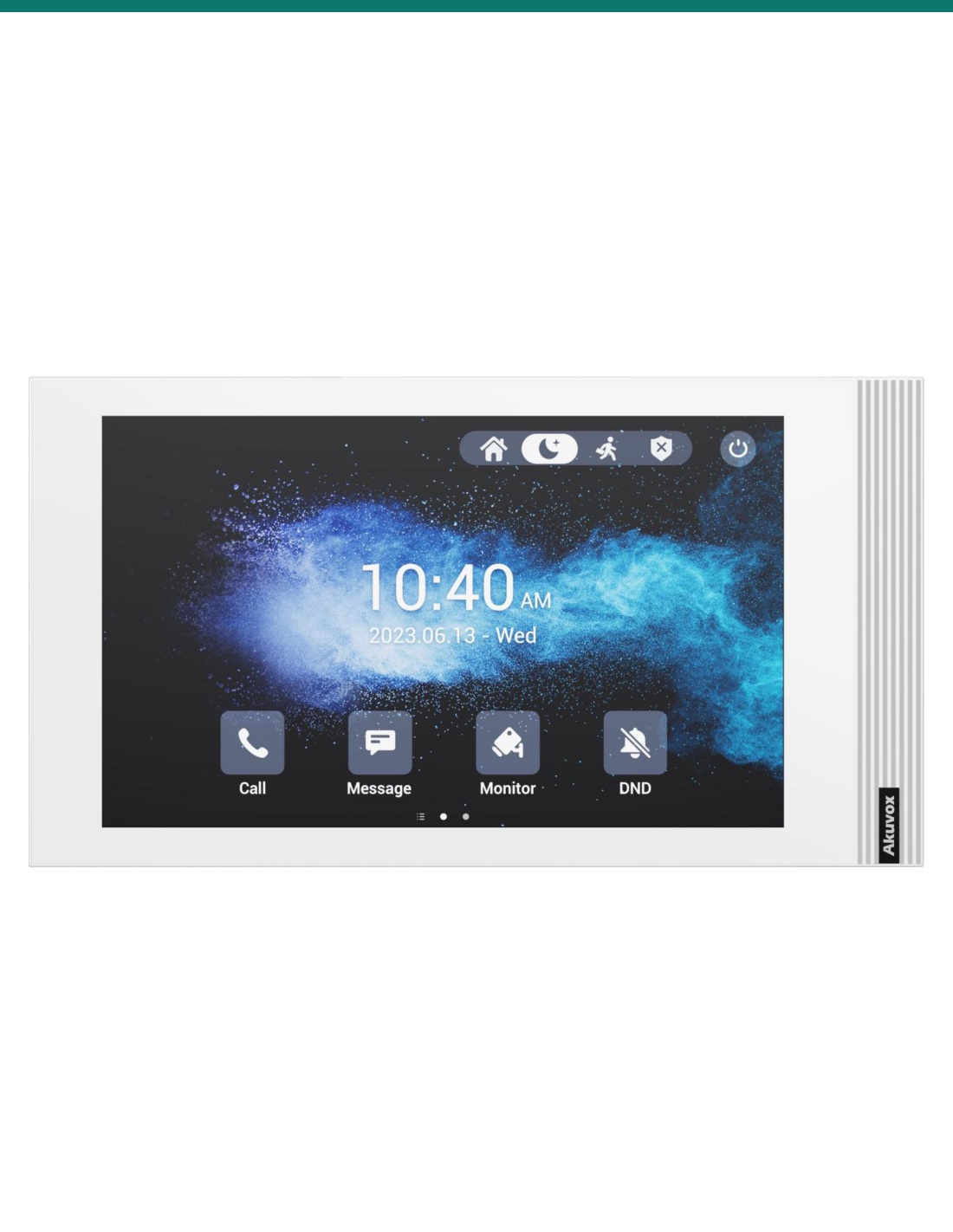

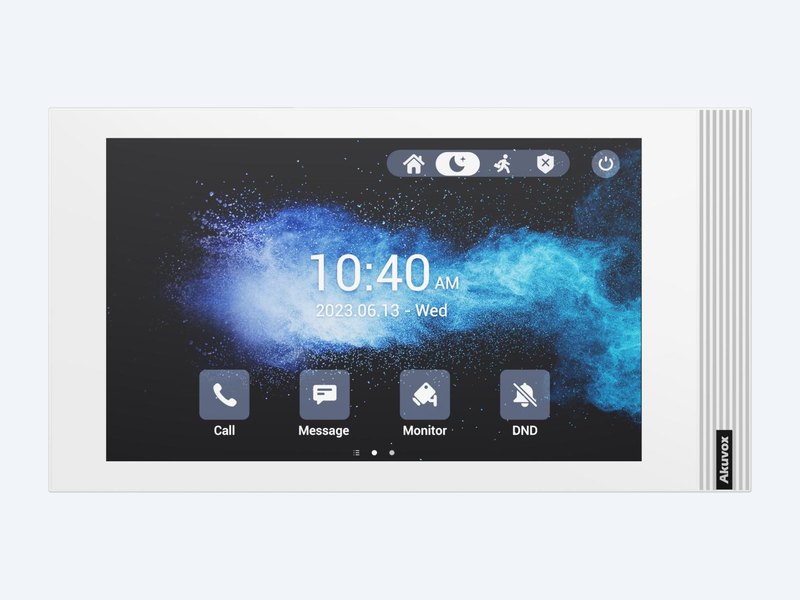

Akuvox S562 white indoor monitor front view

Display

A 7-inch screen that’s easy to read.

7-inch IPS capacitive touch panel at 1024 × 600, 300 nits and 85° viewing in every direction, so the visitor is clear whether you’re standing in front of it or walking past.

Linux keeps it quick and simple to look after: web management portal, auto-provisioning, configuration backup and firmware upgrades from the browser.

Design & audio

Slim body, front-facing speaker.

Just 21.7 mm deep. A linear grille down one edge hides the speaker, which faces the room for clear two-way calls with echo cancellation and automatic gain control.

Eight alarm inputs take door contacts and motion sensors, a bell input suits a wired doorbell button, and one relay plus RS485 cover lock and controller wiring.

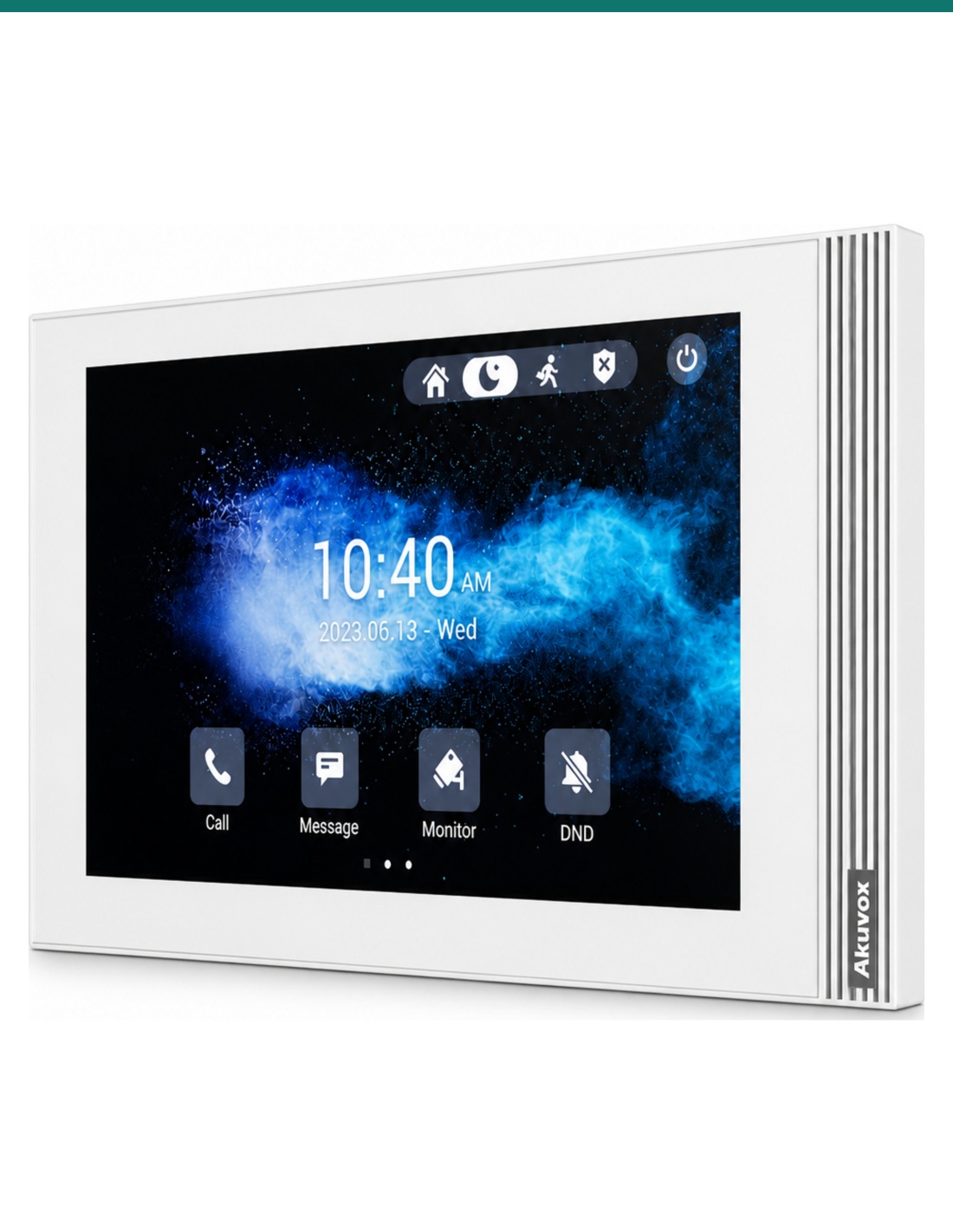

Akuvox S562 white slim body and speaker grille

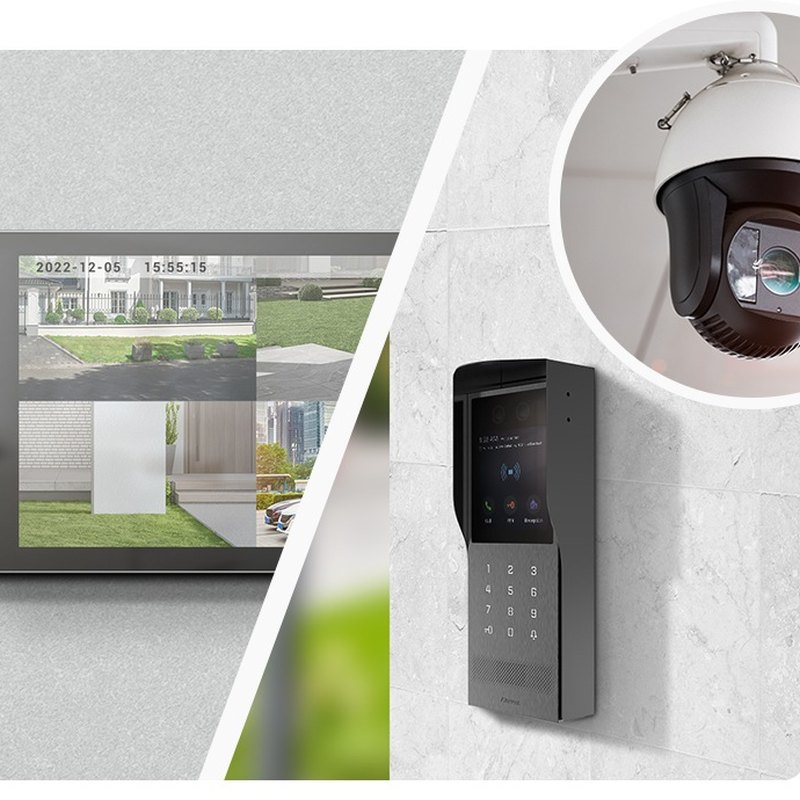

Akuvox S562 showing live camera views alongside a door station and IP camera

Cameras

More than a door intercom.

Akuvox built the S562 to stream live video from its door phones and from third-party IP security cameras, so residents can check the driveway or lobby from the same screen.

Standard SIP v1 / v2 with H.264 video and RTSP support means it registers to Akuvox door stations or a SIP PBX. Two 10/100 Mbps RJ45 ports on the back.

How it works

From door call to open door.

Mount

Fix the bracket to a US or European wall box, or use the S562 desk stand or surface-mount angle box.

Power and network

Run 802.3af PoE to the RJ45, or use 12 V DC.

Pair the door

Test

Call from the door, check video and audio, and confirm the unlock key releases the right lock.

At a glance

Key specs — AK-S562-WHITE

Brand: Akuvox
Reference: AK-S562-WHITE
Model: S562
Colour: White (plastic front panel)
Display: 7-inch IPS LCD, 1024 × 600, 300 nits, 800:1
Touch screen: Projected capacitive
Viewing angle: 85° left / right / up / down
OS: Linux
Memory: 128 MB RAM / 128 MB ROM
Audio: 1 mic, 1 speaker; G.711 (PCMU/PCMA), G.729, G.722; echo cancellation
Video: H.264
SIP: SIP v1 (RFC 2543) and SIP v2 (RFC 3261)
I/O: 1 relay out, 8 alarm inputs, 1 bell in, 1 × RS485
Network: 2 × RJ45, 10/100 Mbps
Power: PoE 802.3af or 12 V DC
Consumption: ≤5 W standby, ≤9 W full load
Mounting: Wall-mounted or desktop; US or European wall box
Size: 216.4 × 118.8 × 21.7 mm (W × H × D)
Working temperature: −10 °C to +45 °C, 10–90% humidity
Warranty: Australian warranty via Infront Technologies

Pair it with

Builds a complete apartment or villa intercom

Door

Akuvox door station

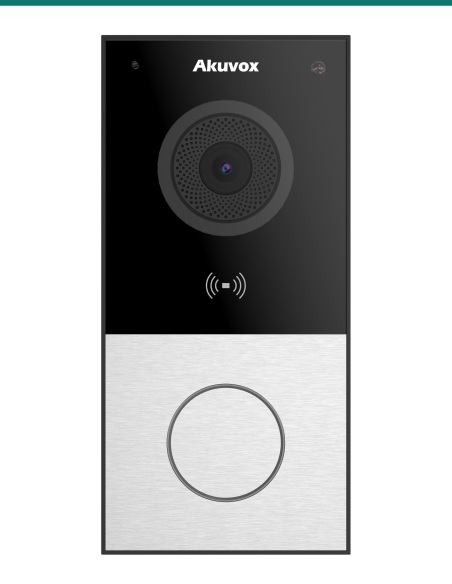

R20K, R25K, E12S or R28A call the monitor with video and let residents release the lock.

Mounting

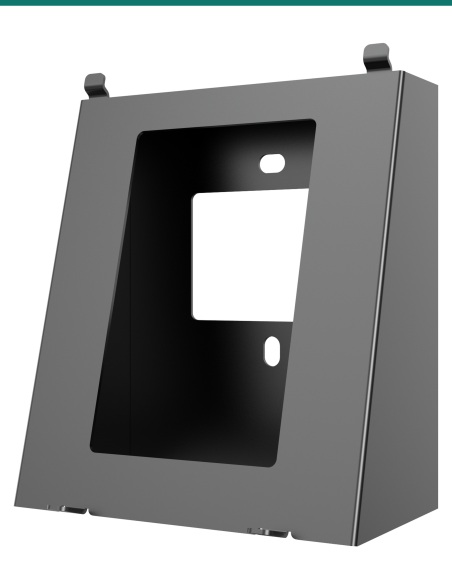

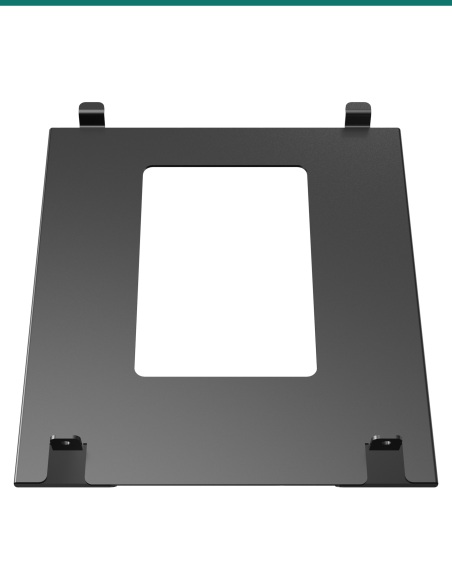

S562 desk stand or angle box

Sit the monitor on a bench, or surface-mount it where there is no wall box.

Network

PoE switch

One 802.3af PoE port powers the monitor and carries the SIP call — no local power point needed.

Cameras

IP security cameras

Add RTSP cameras so residents can check the driveway or lobby from the same screen.

Watch

See it in action

Akuvox S562 7-inch indoor monitor overview

Answers

Common questions

What’s the difference between S562, S562W and S562-V?

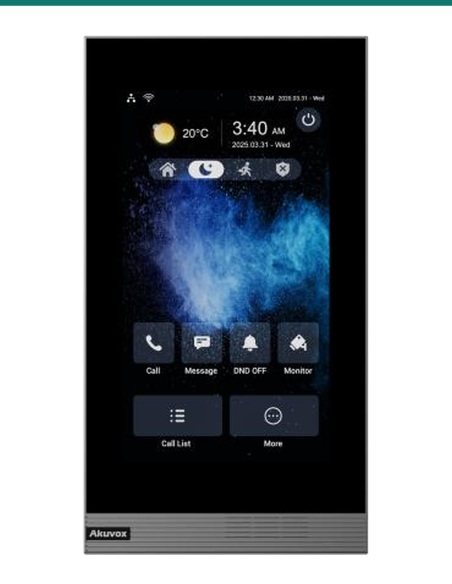

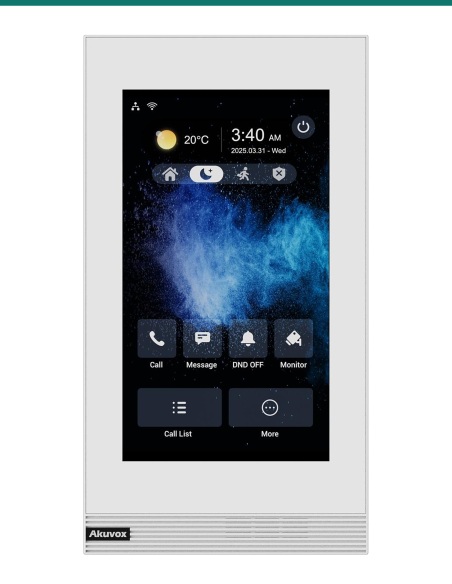

They share the same 7-inch Linux monitor and 216.4 × 118.8 × 21.7 mm body. S562W adds Wi-Fi 6; the -V versions mount in portrait on a European-style wall box and are wall-only. Each comes in white or grey.

Does it need a power supply?

Not if your switch provides 802.3af PoE. Otherwise use a 12 V DC supply; the monitor draws up to 9 W.

Can it sit on a desk?

Yes, with the S562 desk stand (sold separately). The S562 surface-mount angle box suits walls without an electrical box.

Which door stations work with it?

Akuvox SIP door stations such as R20K, R25K, E12S and R28A. Because it uses standard SIP and H.264, other SIP door phones can register too.

Can I watch my CCTV cameras on it?

Yes. Akuvox designed the S562 to stream door phone cameras and third-party IP security cameras alongside intercom calls.

A clean, compact screen at every unit.

White and grey finishes, Wi-Fi and vertical versions all share the same software, so one building can mix them. Order through Infront Technologies for Australian stock and pairing advice.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE, or a 12 V DC supply where PoE isn’t available (≤9 W full load), as stated on the Akuvox S562 datasheet.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
