Dual-frequency support helps bridge old and new card fleets

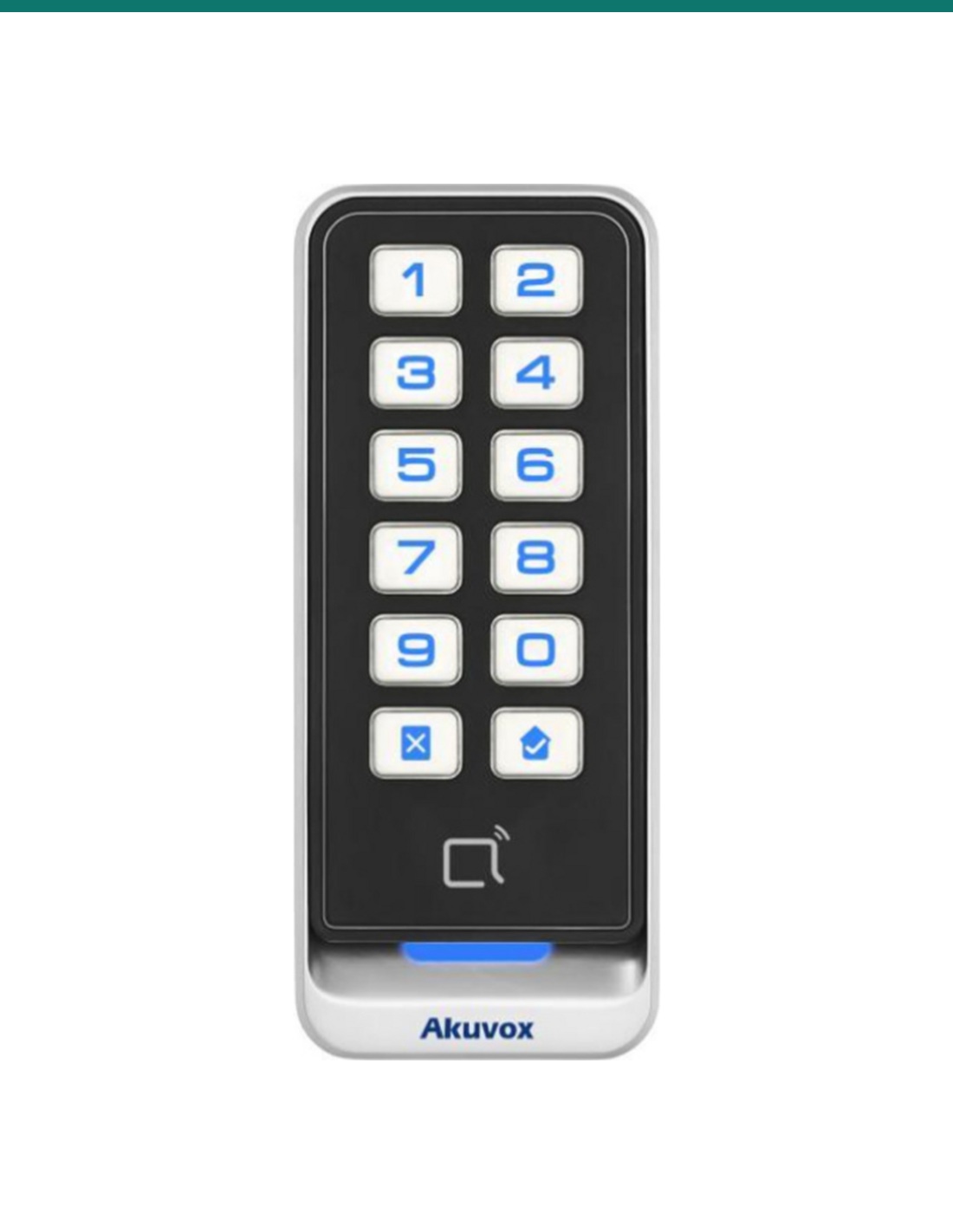

The headline specification here is support for both 13.56MHz and 125kHz RFID credentials. In practical terms, that means the AK-ACR-CRM11 can be deployed where a site already has low-frequency cards in service, but is also adopting higher-frequency credentials for selected users, staged upgrades or a new integrated entry workflow. For apartment common doors, office tenancy entries and service corridors, that kind of dual support reduces the need to split readers by credential type.

Because this is a dedicated card reader rather than an all-in-one controller, it suits structured access installations where credential processing is handled upstream. That keeps field hardware simple at the door while still giving the integrator options at the system level. If the priority is reliable card presentation and output into a compatible access ecosystem, this format is exactly what many installers want.

Wiegand output keeps controller selection straightforward

The AK-ACR-CRM11 uses a Wiegand interface, a familiar connection standard in access control that remains common across door controllers, security panels and intercom-linked access platforms. For the installer, that means less guesswork when tying the reader into an existing control layer. Wiegand remains widely used at the field edge because it is simple, established and easy to accommodate in both new deployments and legacy upgrades.

This is particularly useful in projects where readers are being refreshed for aesthetics, weather resistance or credential compatibility without replacing the entire access backbone. Aluminium construction gives the front-end hardware a more robust physical presence, while the Wiegand connection keeps the electrical and logical integration familiar to technicians already working with controller-based architectures.

Built for exposed entry points where finish and sealing matter

An access reader mounted externally has to cope with more than credential reads. It has to present cleanly on the wall, stand up to repeated daily use and tolerate dust and wet weather. The aluminium housing helps the AK-ACR-CRM11 look appropriate in commercial and apartment environments, while the IP65 rating makes it a better fit for entrance gates, lobbies, side doors and perimeter pedestrian access than indoor-only reader hardware.

For Australian installations, that matters in coastal, dusty or open-air conditions where door hardware is routinely exposed to the elements. Correct mounting position, cable sealing and controller-side configuration still matter, but the reader itself is specified for outdoor duty rather than being adapted to it after the fact.

How it works in an access control chain

The AK-ACR-CRM11 is the credential capture point at the door. It reads the presented card or fob, passes the credential data over Wiegand, and relies on the connected controller or host system to determine whether the lock or door release should activate.
