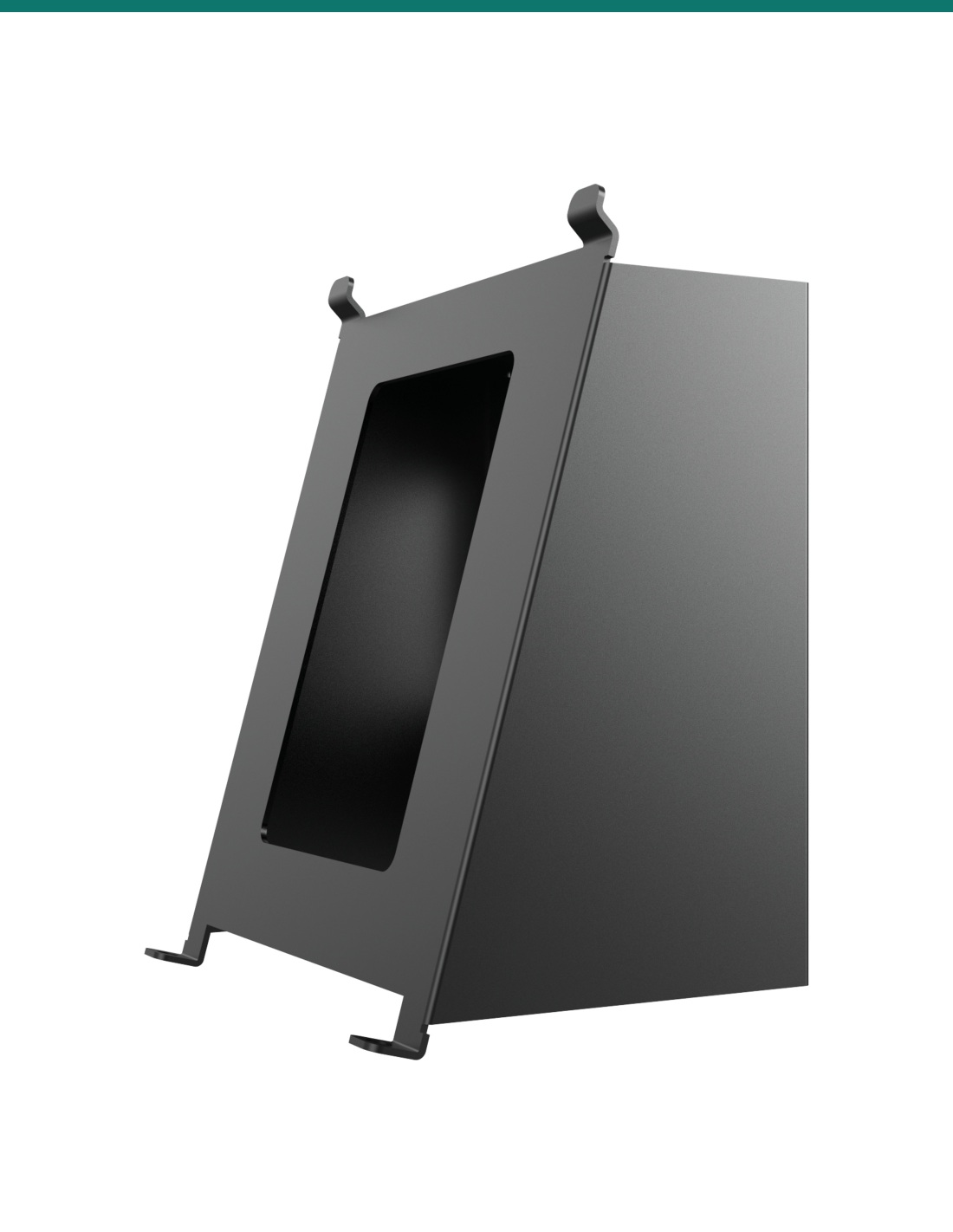

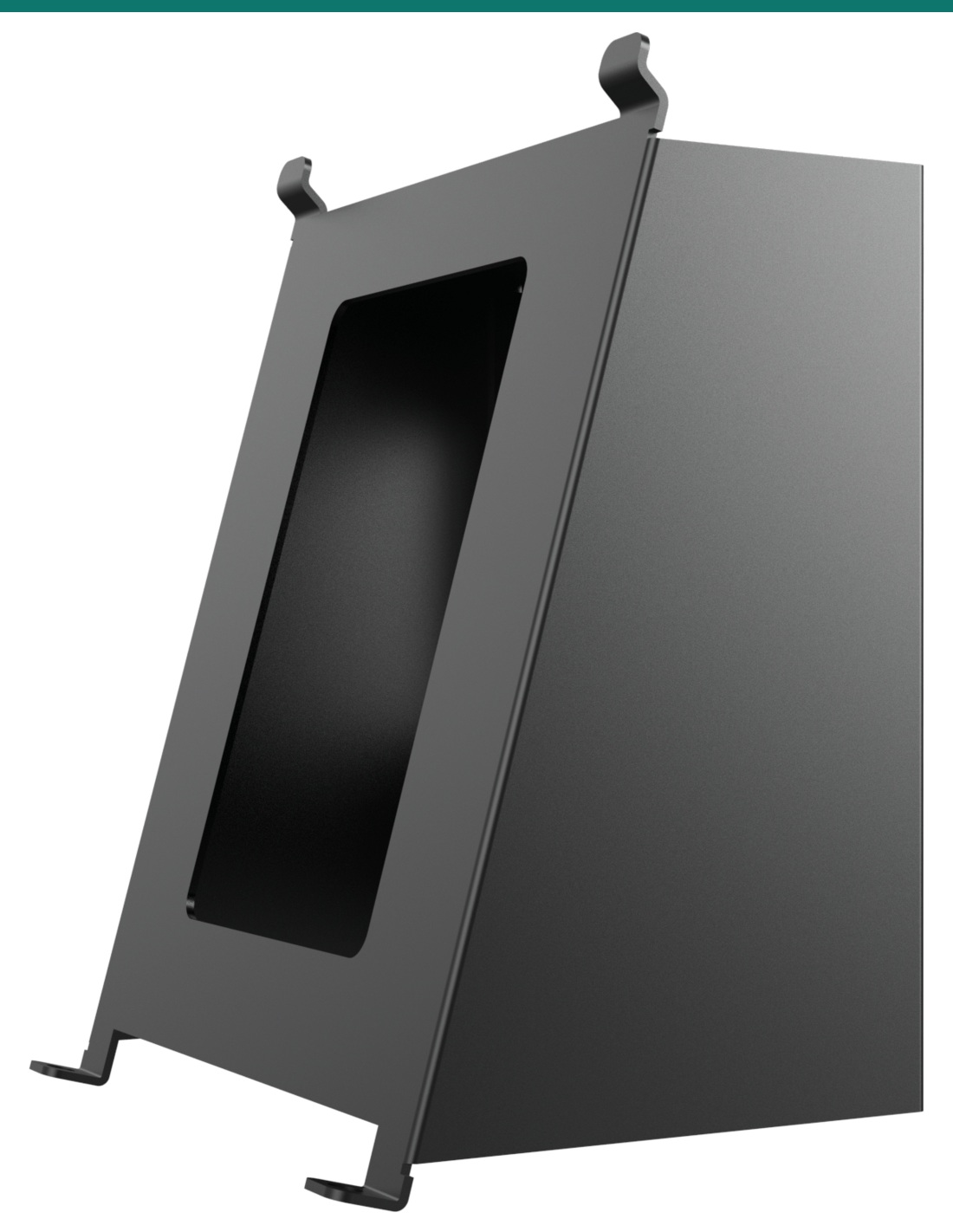

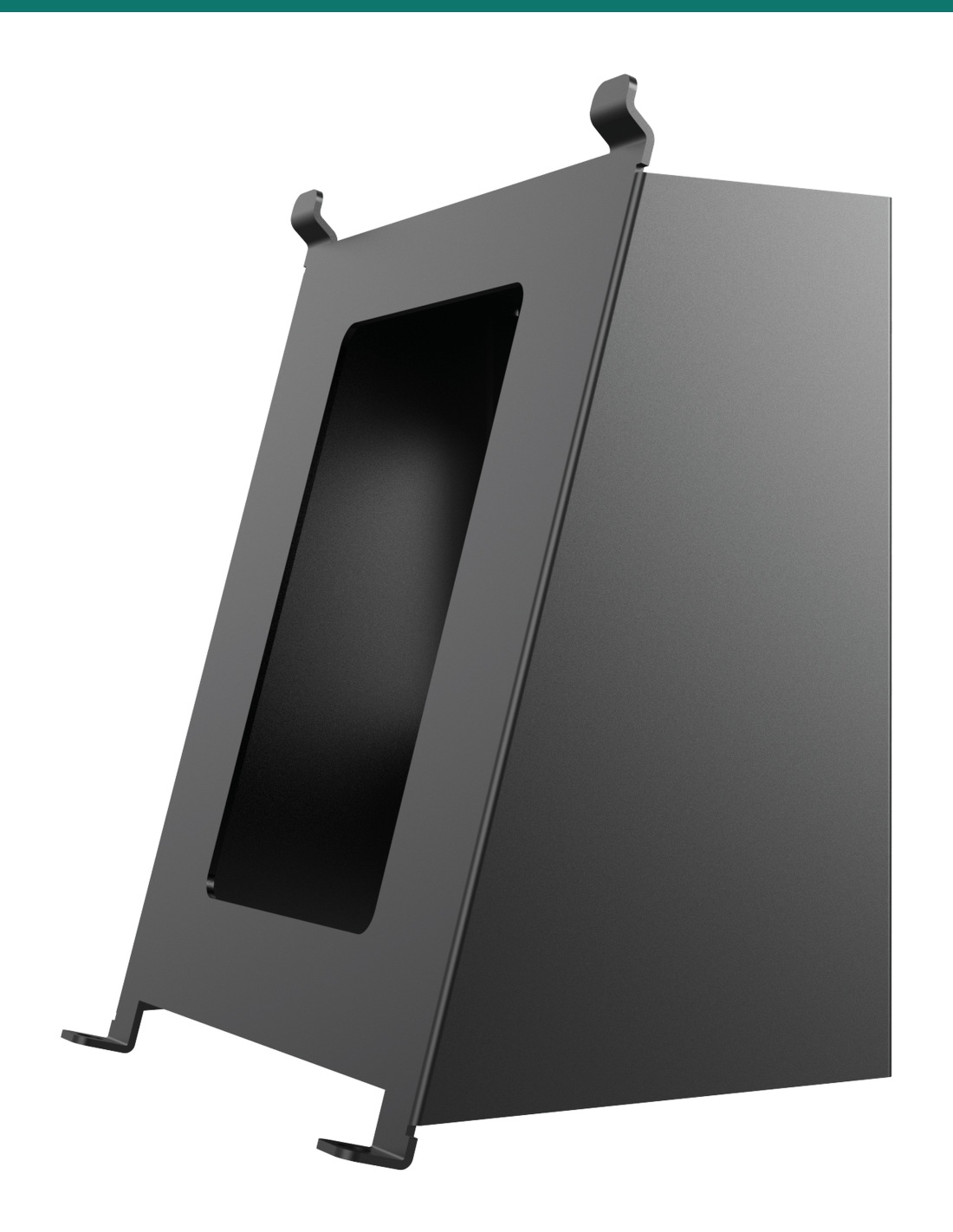

Akuvox S563 surface-mount angle box in black fixes to the wall surface and holds an Akuvox S563 8-inch indoor monitor at an angle instead of flat against the wall, so the screen faces the people using it.
The AK-S563SURFACE is Akuvox’s surface-mount angle box for the S563 indoor monitor. It mounts on the wall surface and presents the 8-inch screen on a sloping face for easier viewing and touch.
When the monitor has to sit high, low or side-on to the user, a flat mount is hard to read. The angle box tilts the S563 towards whoever is answering.
Design

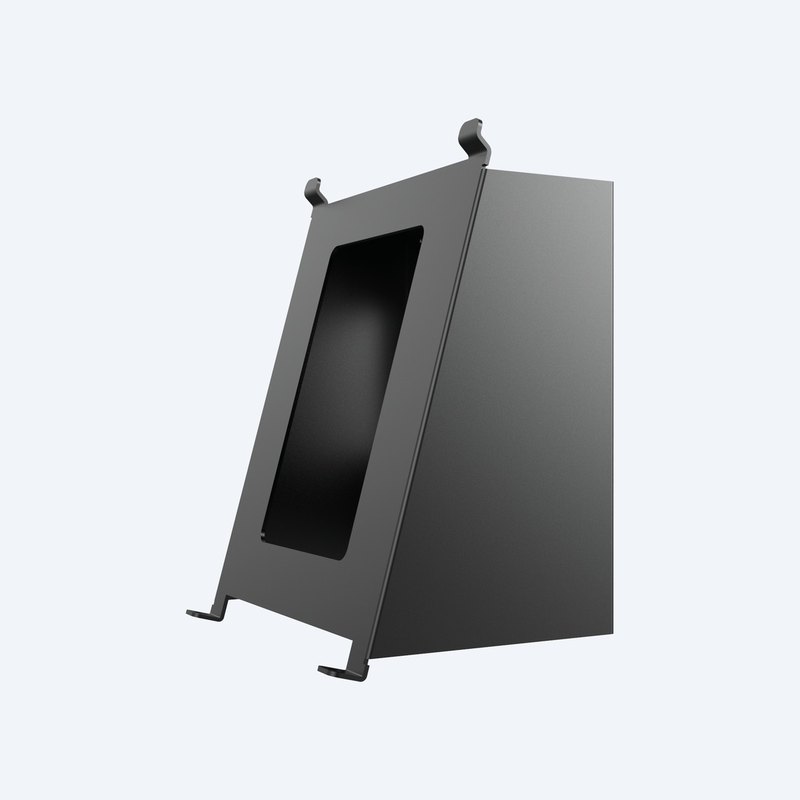

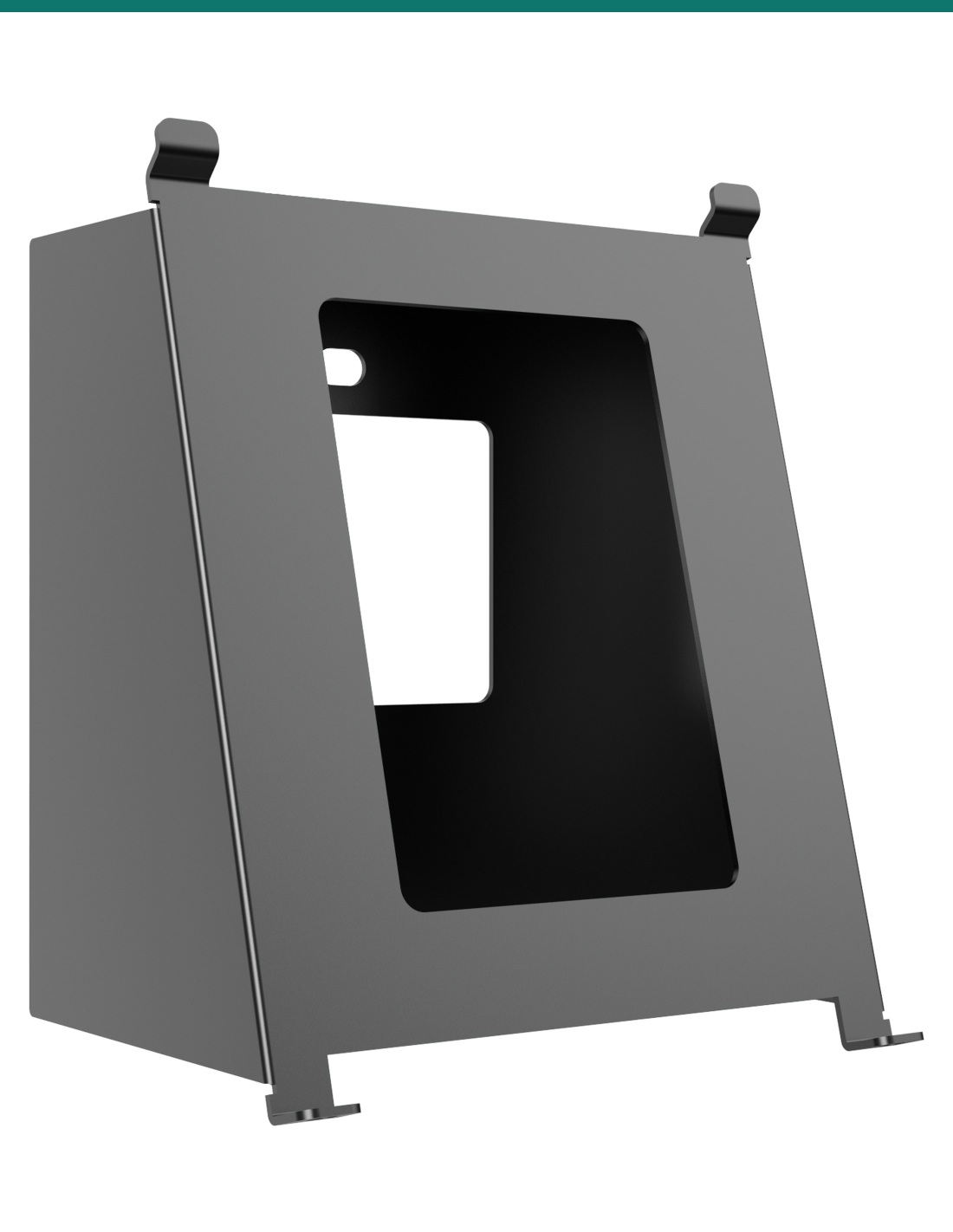

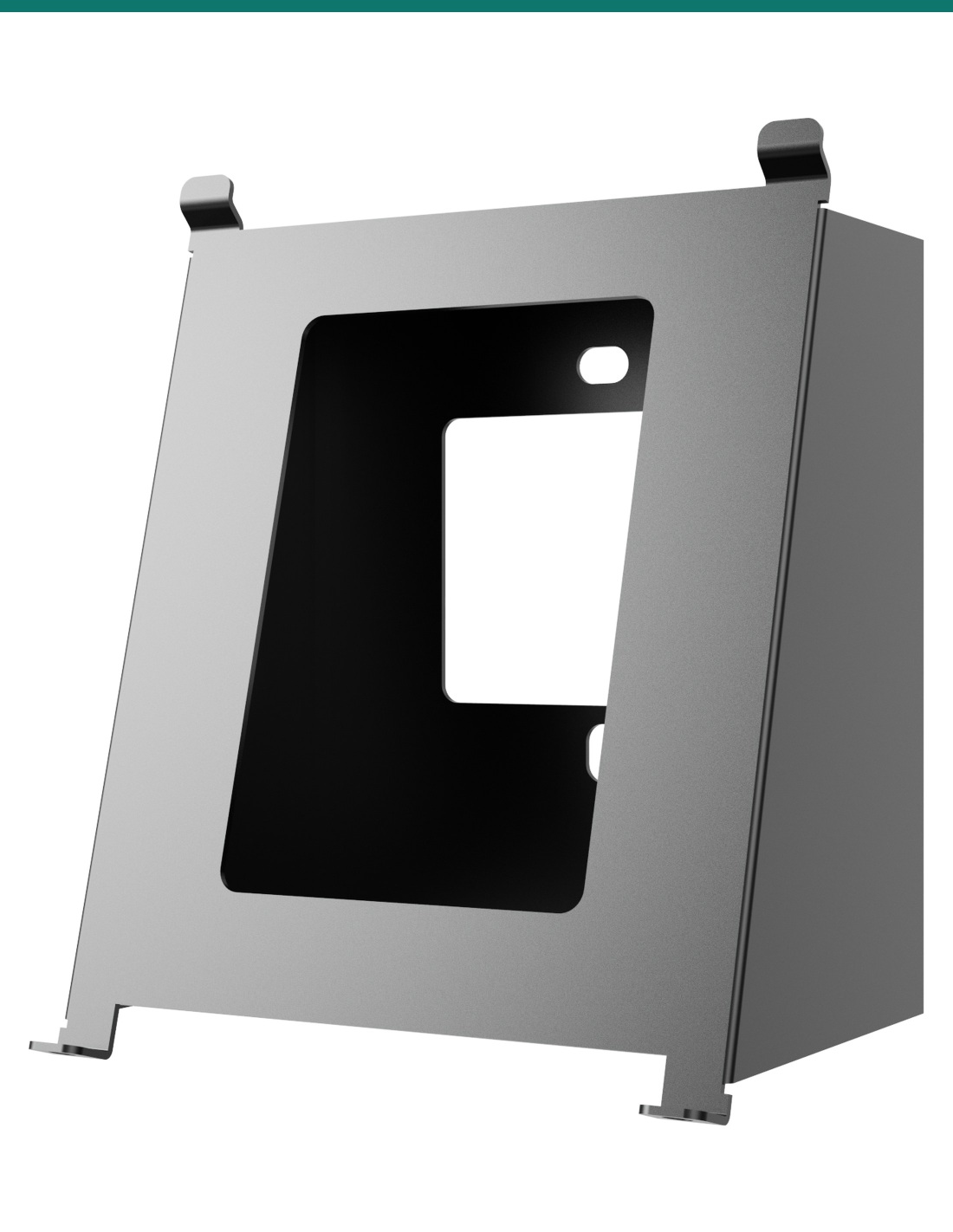

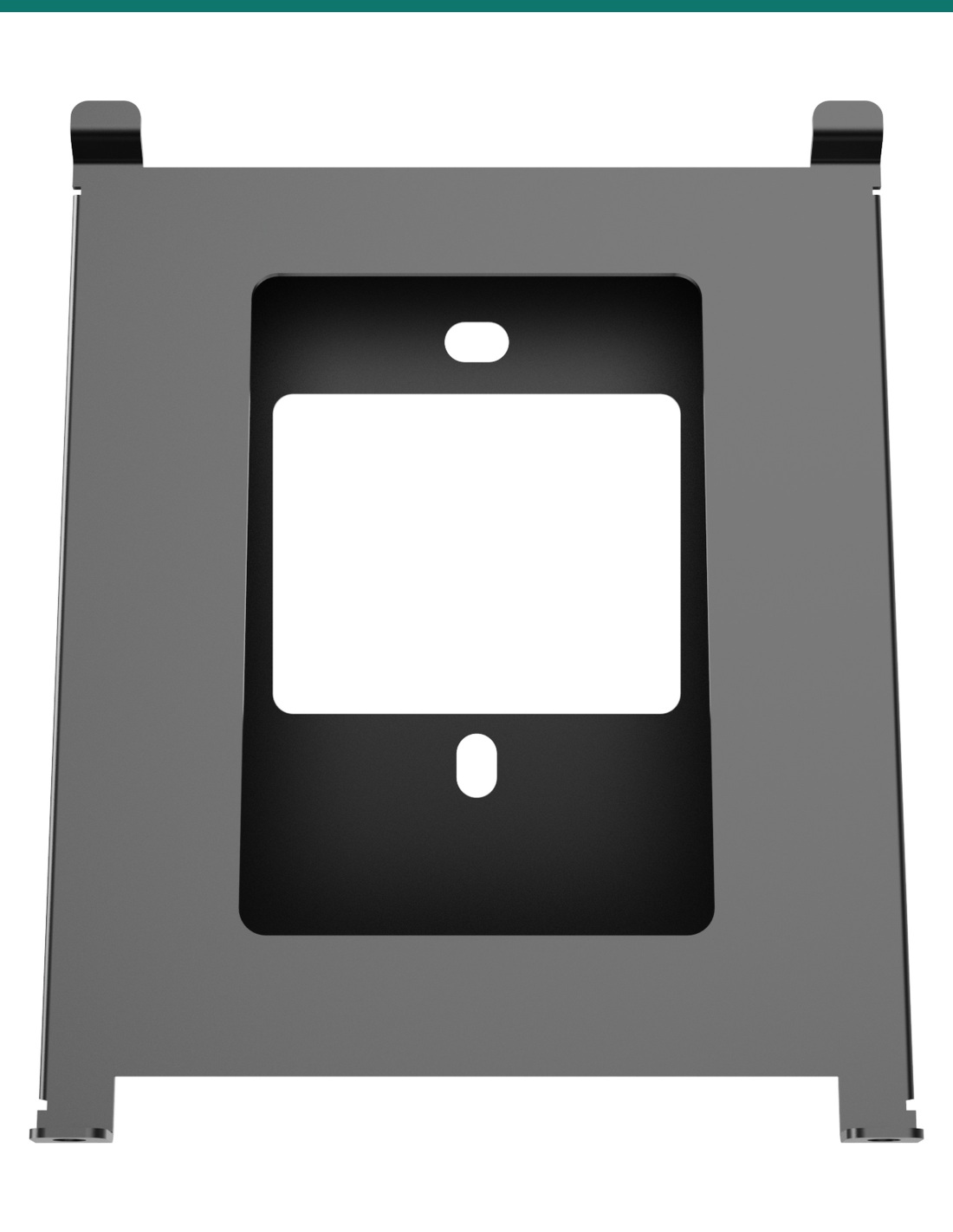

The black angle box mounts on the wall surface and the S563 clips onto its sloping front, with the cable passing through the opening in the face.

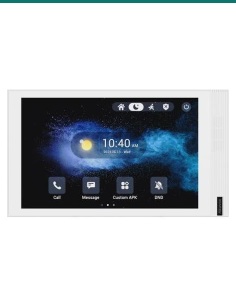

The dark finish suits the grey S563 and frames the white S563W.
Fits

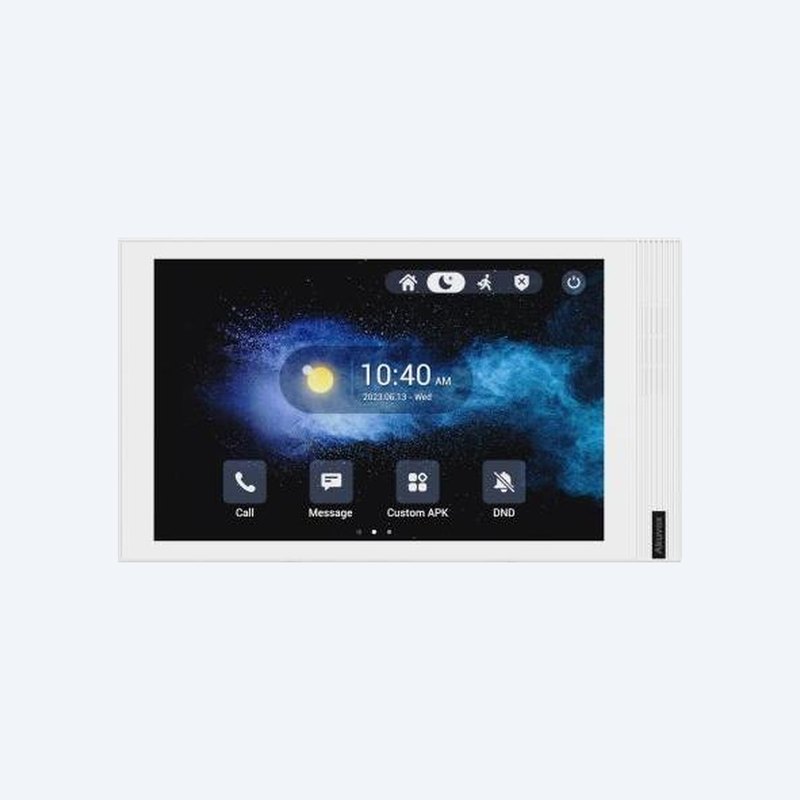

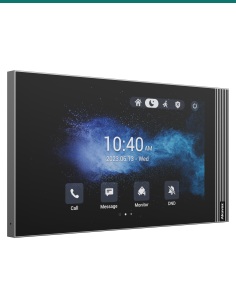

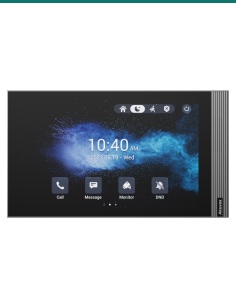

Designed for the Akuvox S563 8-inch Android 12 indoor monitor (216.2 × 124.4 × 22.1 mm), including the Wi-Fi S563W.
Monitor sold separately. PoE delivers power and network over one cable.
At a glance
Show all specifications
Pair it with
Monitor
The 8-inch Android 12 indoor monitor this box is made for.
Desk option
Sits the S563 on a desk or counter instead.
Watch
Downloads
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
The Akuvox S563 and S563W 8-inch indoor monitors in white or grey. It does not suit the S562 family or the S567.
The bracket supplied with the S563 mounts it flat over a wall box. The angle box sits on the wall surface and tilts the screen towards the user — handy when there is no wall box or the monitor is viewed from below or one side.
No. This SKU is the angle box only; the S563 is sold separately.
Bring one network cable to the box: the S563 runs on IEEE 802.3af PoE. A 12 V DC supply is the alternative.
Yes — the Akuvox S563 desk stand (AK-S563DESK) sits the same monitor on a desk or counter.
Choose the angle box for a tilted wall mount, or the S563 desk stand for a free-standing monitor.
