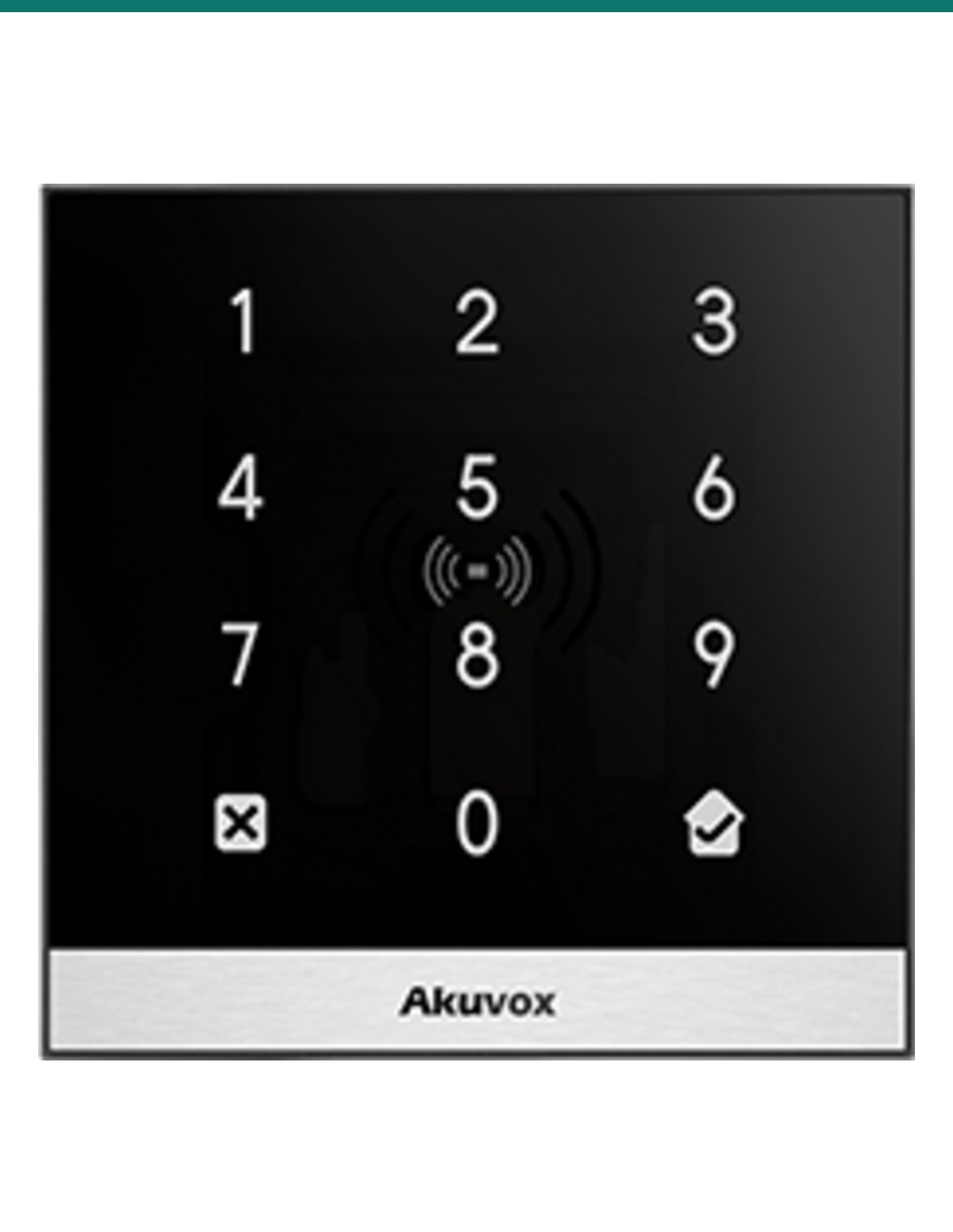

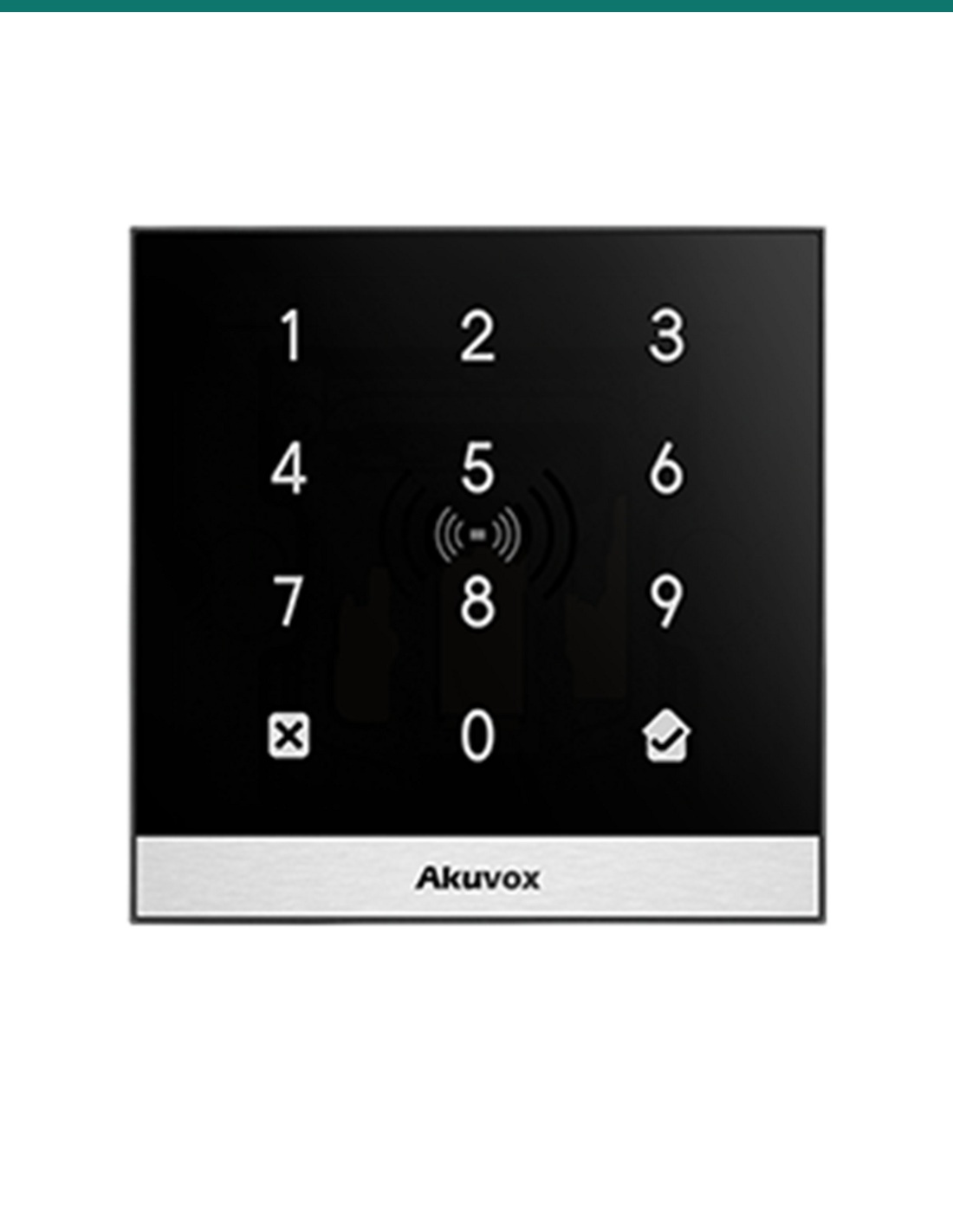

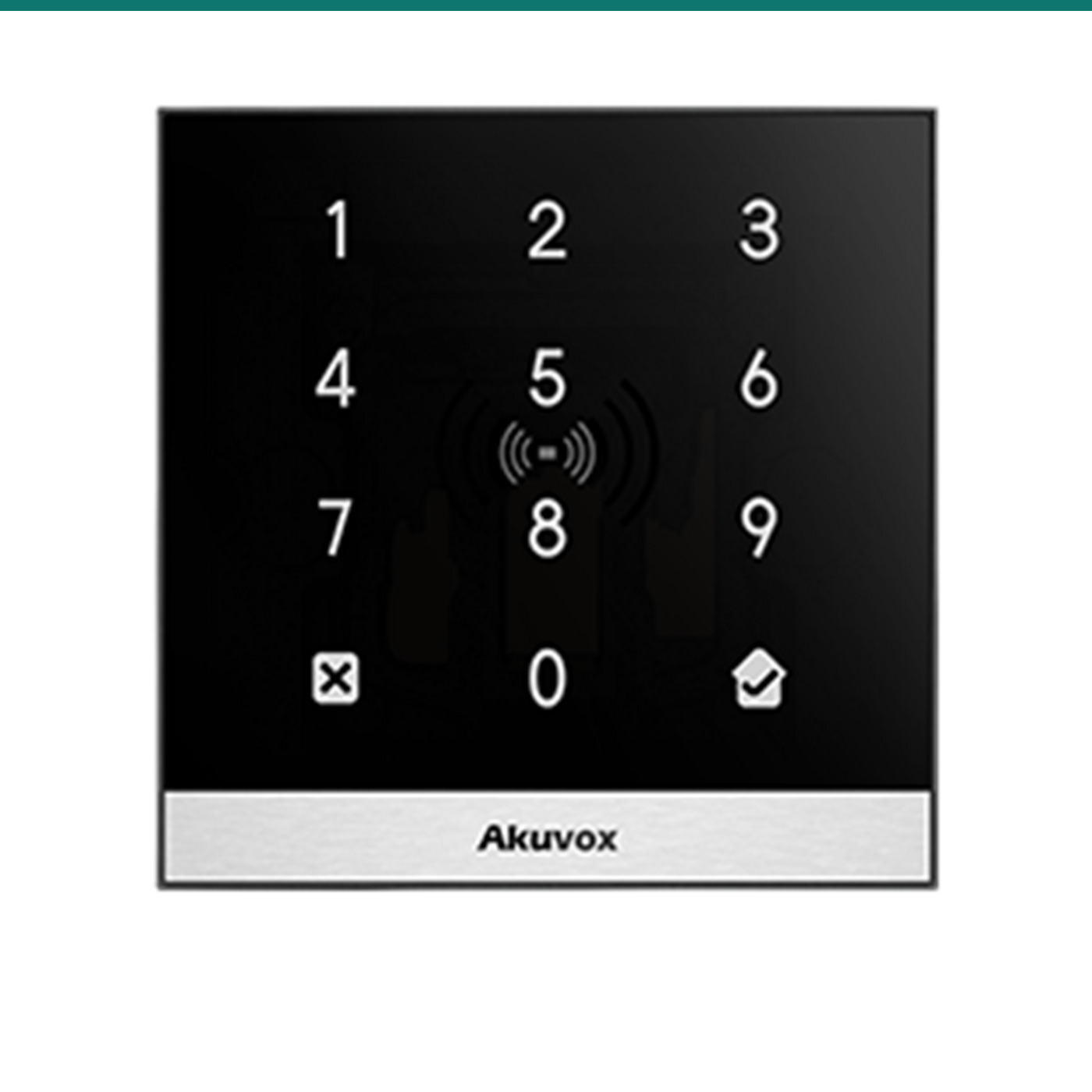

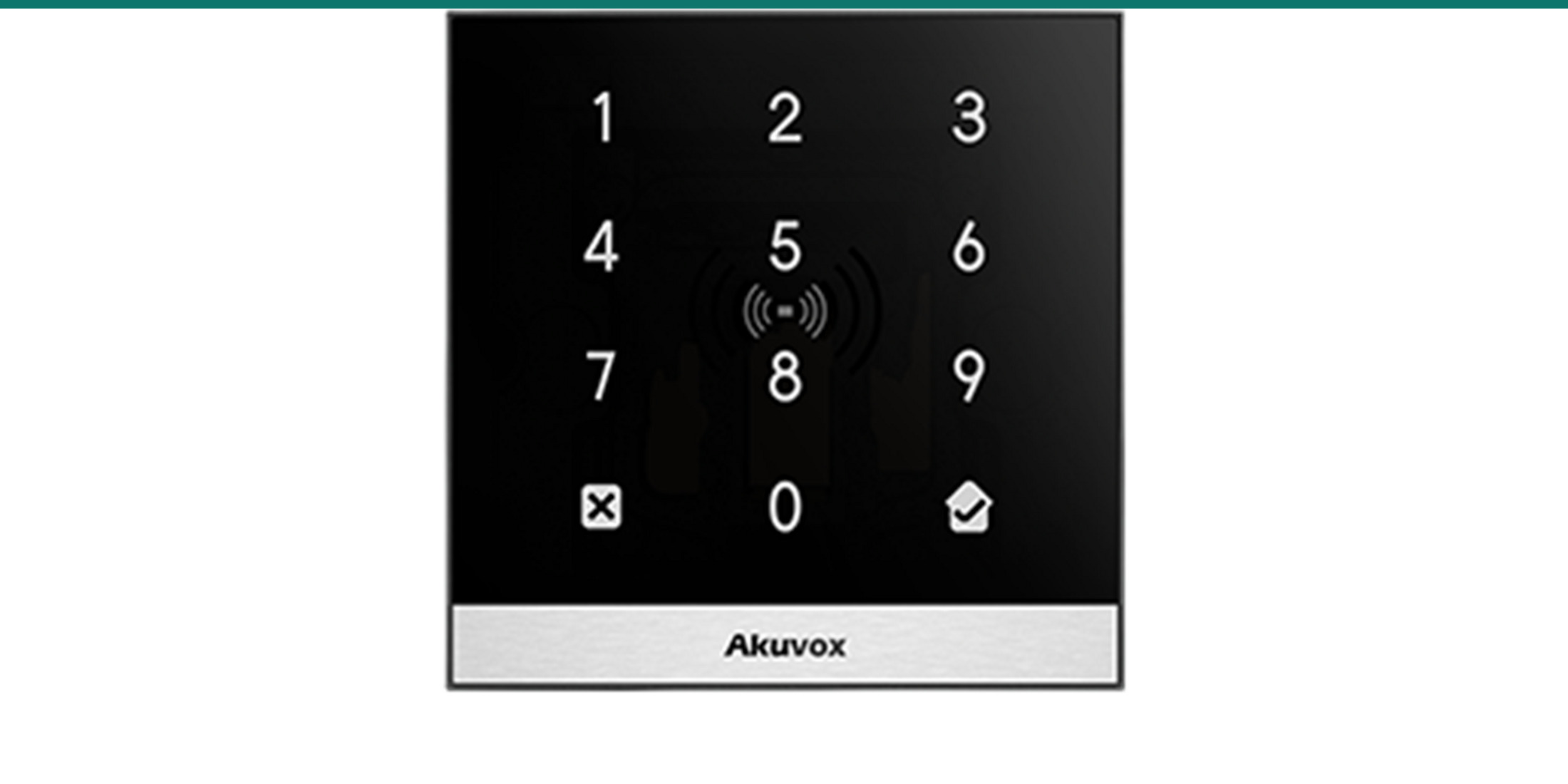

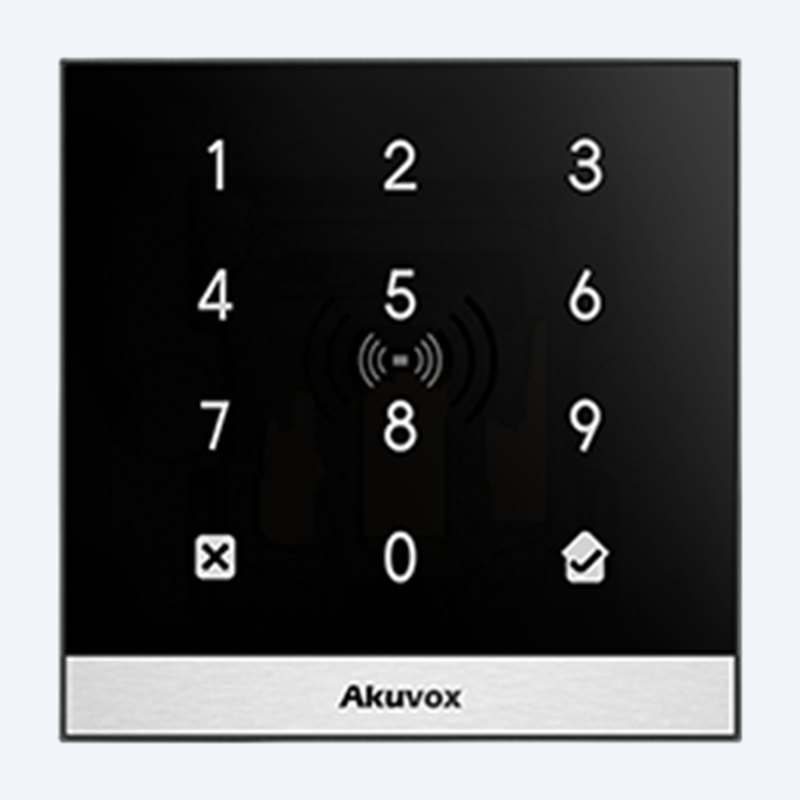

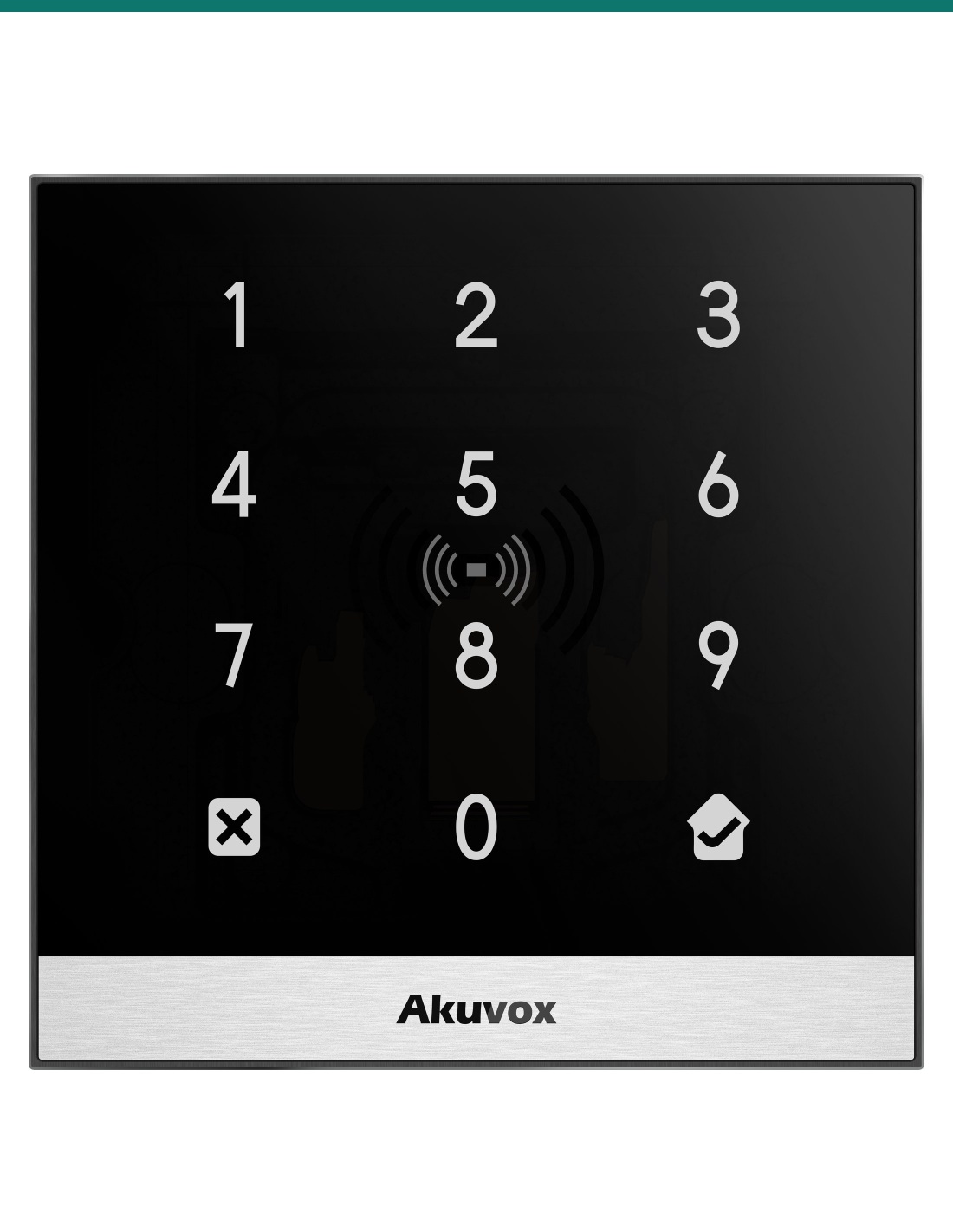

Akuvox A02S keypad access control terminal — front

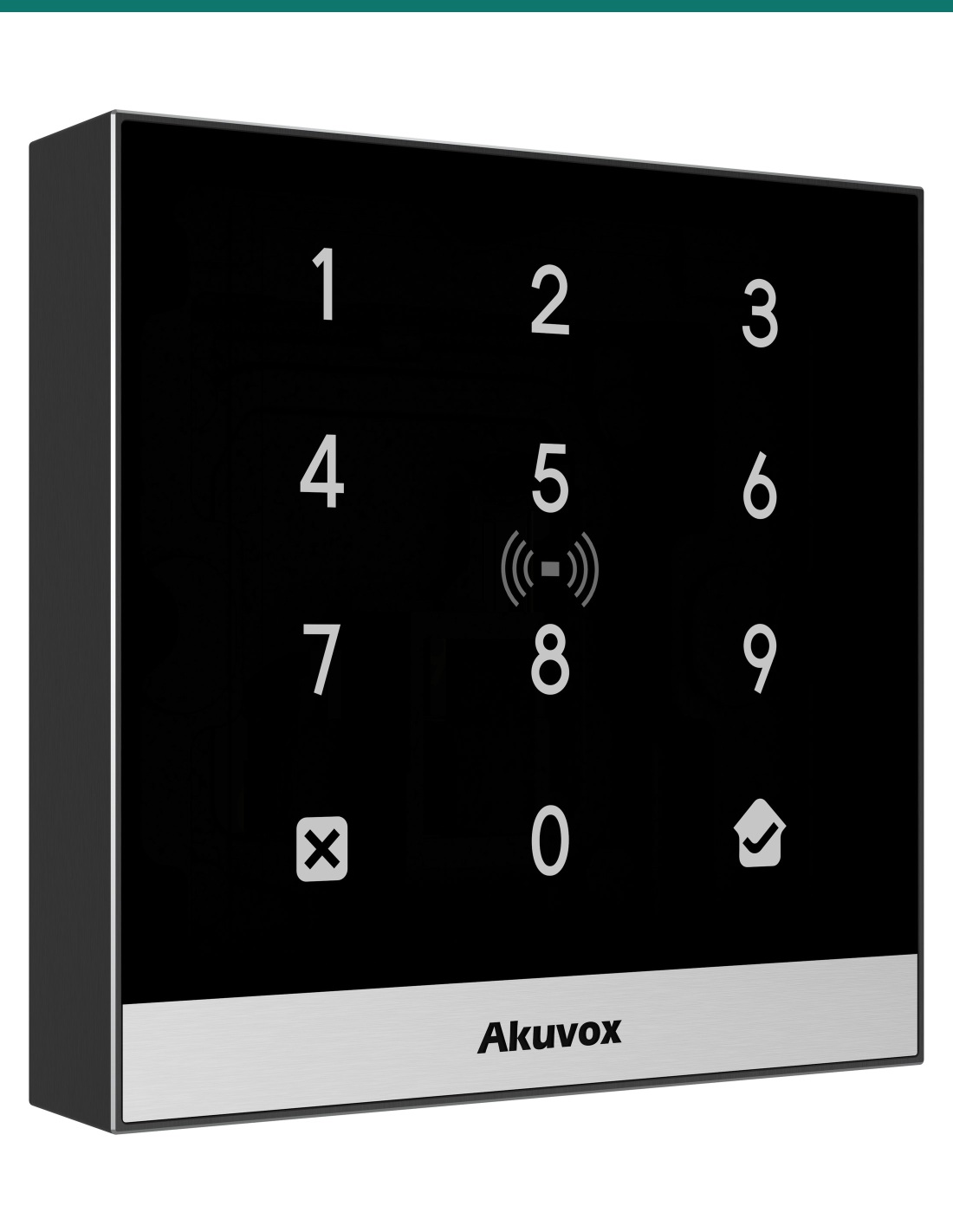

Akuvox A02S keypad access control terminal — left three-quarter view

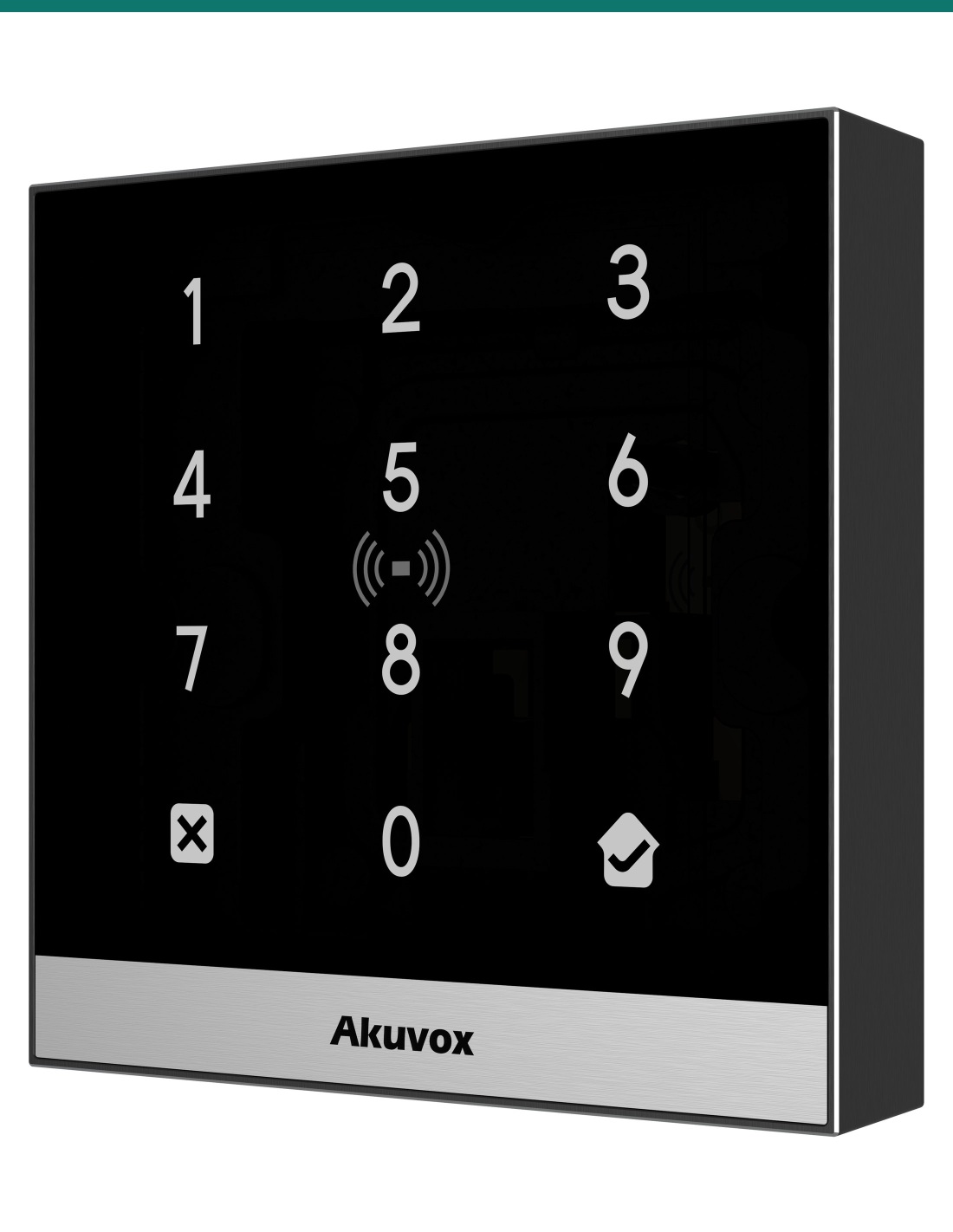

Akuvox A02S keypad access control terminal — right three-quarter view

Akuvox A02S Touch Keypad RFID and NFC IP Access Control Terminal — AK-A02

Name: Akuvox A02S Touch Keypad RFID and NFC IP Access Control Terminal — AK-A02
Brand: Akuvox
SKU: AK-A02
Price: 279 AUD
Availability: InStock

Reference: AK-A02

In Stock - Ready to Ship

$ 279.00

inc-GST

or 4 interest-free payments of $69.75 with

Akuvox A02S adds a touch keypad to the compact 86 × 86 mm access terminal, so people can enter with a PIN, an RFID card or an Android phone over NFC. The built-in relay and inputs control the door directly, and one PoE cable powers it. IP65 and IK07. Stocked in Australia by Infront Technologies.

✓Touch keypad for PIN entry — 20,000 PINs
✓13.56 MHz and 125 kHz card reader plus NFC (Android)
✓Built-in door controller: 1 relay, 2 inputs, selectable Wiegand in/out
✓PoE 802.3af or 12 V DC · IP65 · IK07 · 86 × 86 × 33 mm

Akuvox · A02S · Keypad access terminal

PIN, card or phone at one small door panel.
No card? Key in a code.

The AK-A02 is Akuvox’s A02S. It shares the A01’s 86 × 86 mm glass-and-aluminium body but the glass is a touch keypad, so the same door takes PIN codes as well as RFID cards and NFC phones.

This SKU is the access terminal only.

You receive the A02S terminal. Cards, fobs, the on-wall box, exit button, lock and lock power supply are sold separately.

In the box

Akuvox A02S access control terminal
Mounting hardware
Quick-start guide

What you also need(sold separately)

PoE 802.3af switch or injector (or a 12 V DC supply)
13.56 MHz or 125 kHz cards or fobs if cards are used
Electric strike or maglock with its own power supply
86 junction box in the wall, or the A01/A02/A03 on-wall box

Codes for visitors, cards for staff.

Give cleaners and contractors a PIN instead of a card, and staff a card or phone. The A02S controls the lock itself and logs every entry, whether on its own or managed through Akuvox Cloud.

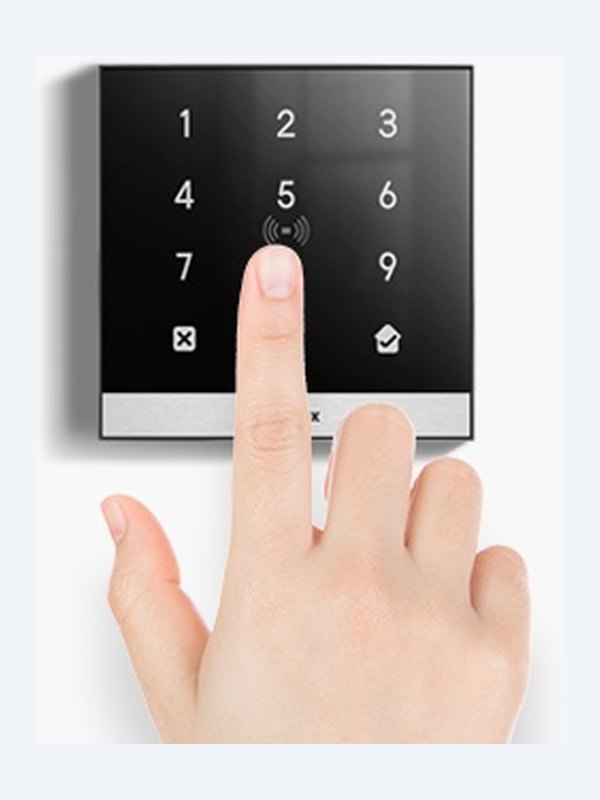

Keypad

A touch keypad under the glass.

The numbers light up on the toughened glass front. There are no buttons to wear out or prise off, and it stores up to 20,000 PINs.

Use PINs on their own, or alongside cards for users who forget theirs. Each code is tied to a user, so the log shows who came in.

Reader

Cards and Android phones too.

The 13.56 MHz and 125 kHz reader takes most building cards and fobs, and Android phones unlock over NFC.

20,000 users and 20,000 cards, with 100,000 access log entries to search and export.

Controller

One relay, two inputs, Wiegand.

The relay drives the lock and the two inputs take an exit button and a door sensor. A tamper alarm covers removal from the wall.

The Wiegand port is selectable as input or output, so the A02S can add a second reader or act as a reader for a larger controller.

How it works

From bare door to managed access.

Mount

Fit the A02S over an 86 junction box or on the A01/A02/A03 on-wall box.

Wire the door

Run PoE to the RJ45, then wire the relay to the lock supply and the inputs to the exit button and door sensor.

Add users

Create users with PINs, cards or both in the web portal, Akuvox Cloud or ACMS, with schedules and access levels.

Test

Try a PIN, a card and an Android phone, press the exit button and check the logs.

At a glance

Key specs — AK-A02

Brand: Akuvox
Reference: AK-A02
Model: A02S
Front: Toughened glass touch keypad
Frame: Aluminium
RF reader: 13.56 MHz and 125 kHz, NFC (Android)
Unlock: PIN, card, NFC
Capacity: 20,000 users · 20,000 cards · 20,000 PINs · 100,000 logs
I/O: 1 relay, 2 inputs, tamper alarm
Wiegand: 1 channel, input or output (selectable)
Network: RJ45 10/100 Mbps
Power: PoE IEEE 802.3af or 12 V DC
Protection: IP65, IK07
Mounting: Flush or wall mounted
Size: 86 × 86 × 33 mm (H × W × D)
Working temperature: −20 °C to +55 °C
Management: Web portal, Akuvox Cloud, ACMS
OS: Linux
Warranty: Australian warranty via Infront Technologies

Pair it with

Builds a complete single-door system

Mounting

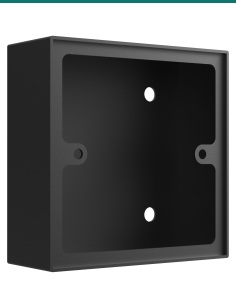

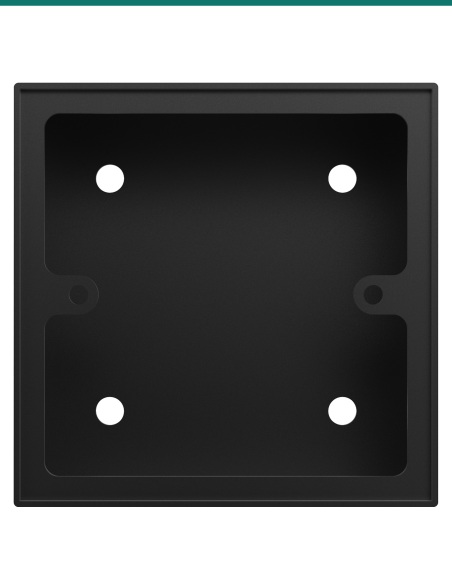

A01/A02/A03 on-wall box

A matching surface box for walls without an 86 junction box.

Credentials

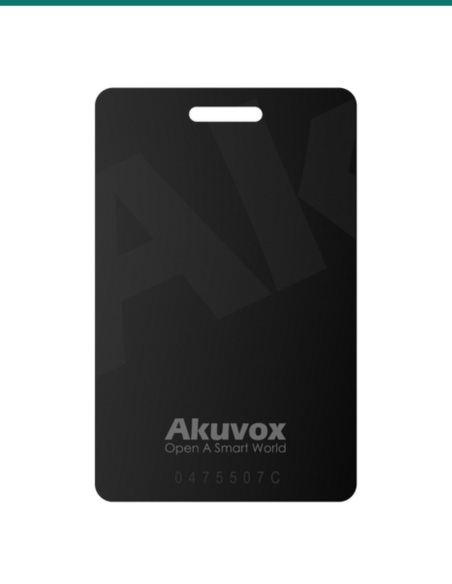

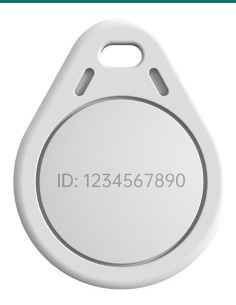

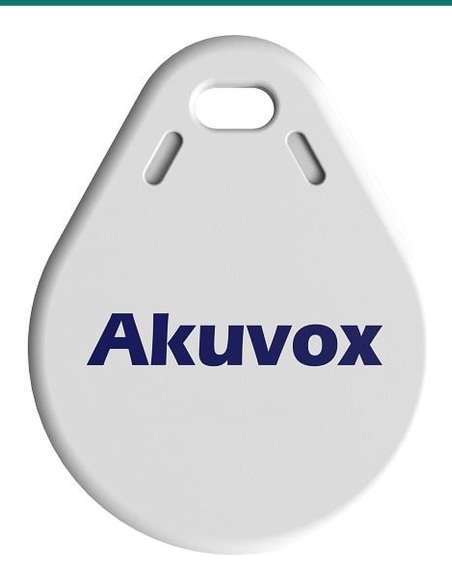

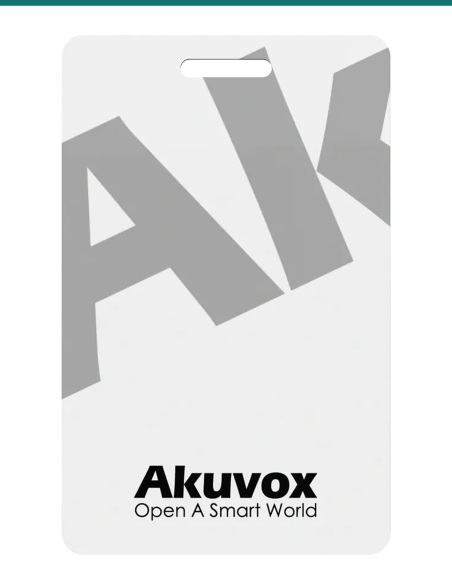

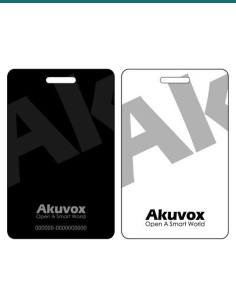

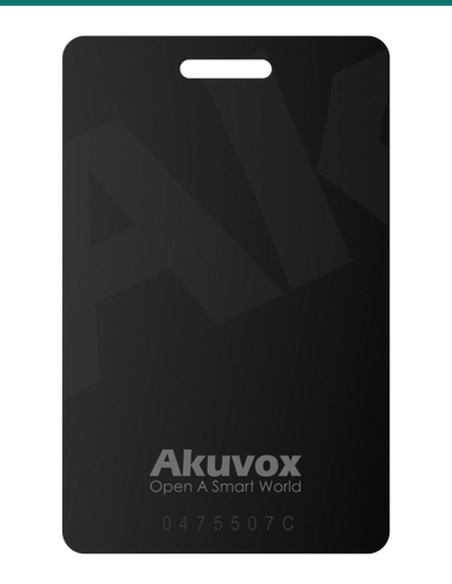

MIFARE cards and fobs

Akuvox 13.56 MHz cards and fobs for users who prefer a card to a code.

Exit

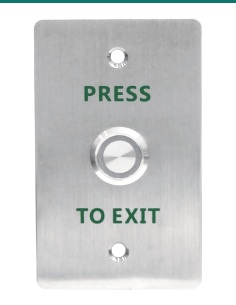

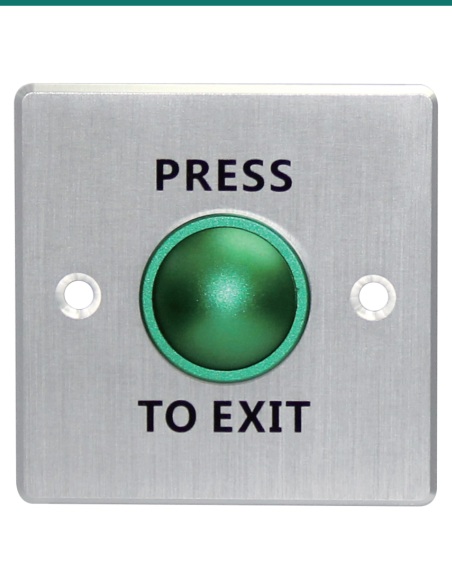

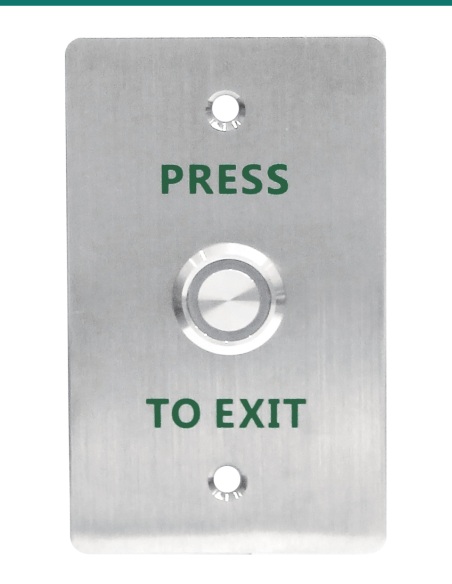

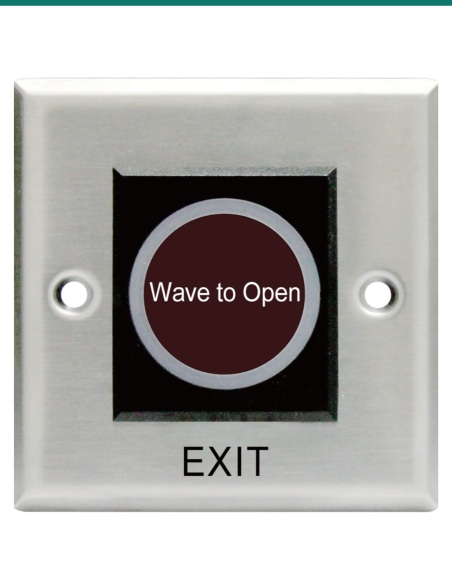

Akuvox exit button

Wire a press-to-exit button to an input for free exit.

Scale up

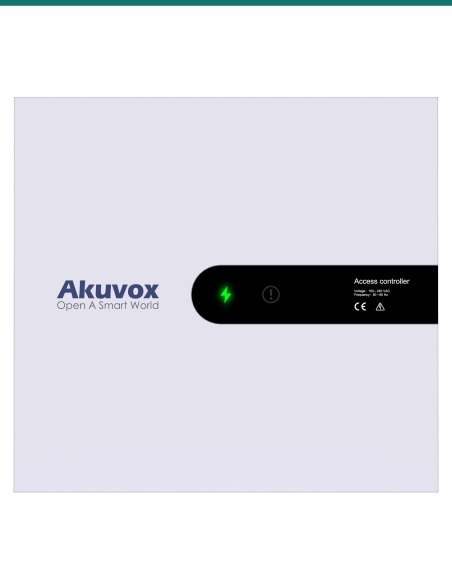

A094S 4-door controller

Use the A02S as a Wiegand keypad reader on a central controller.

Watch

See it in action

Akuvox A01 & A02 access control terminals overview

Answers

Common questions

How many PIN codes can it hold?

Up to 20,000 PINs, alongside 20,000 users and 20,000 cards.

Can a user have both a card and a PIN?

Yes. Each user can be given a PIN, a card or both.

Does it need a separate controller?

No. The relay, two inputs and tamper alarm are built in, so it runs one door by itself.

How is it powered?

From IEEE 802.3af PoE, or a 12 V DC supply.

Is it weatherproof?

Yes — IP65 and IK07, working from −20 °C to +55 °C.

Keypad access in an 86 mm footprint.

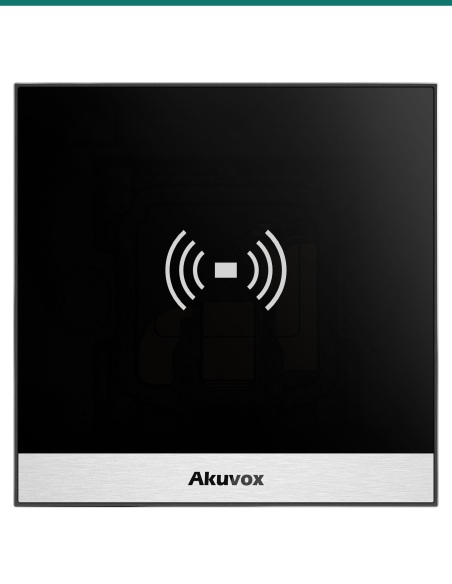

Pick the A02S when some users need PINs. For cards only use the A01; for Bluetooth phone access use the A03. Order through Infront Technologies for Australian stock and setup advice.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE or a 12 V DC supply, as stated on the Akuvox A02S datasheet. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
