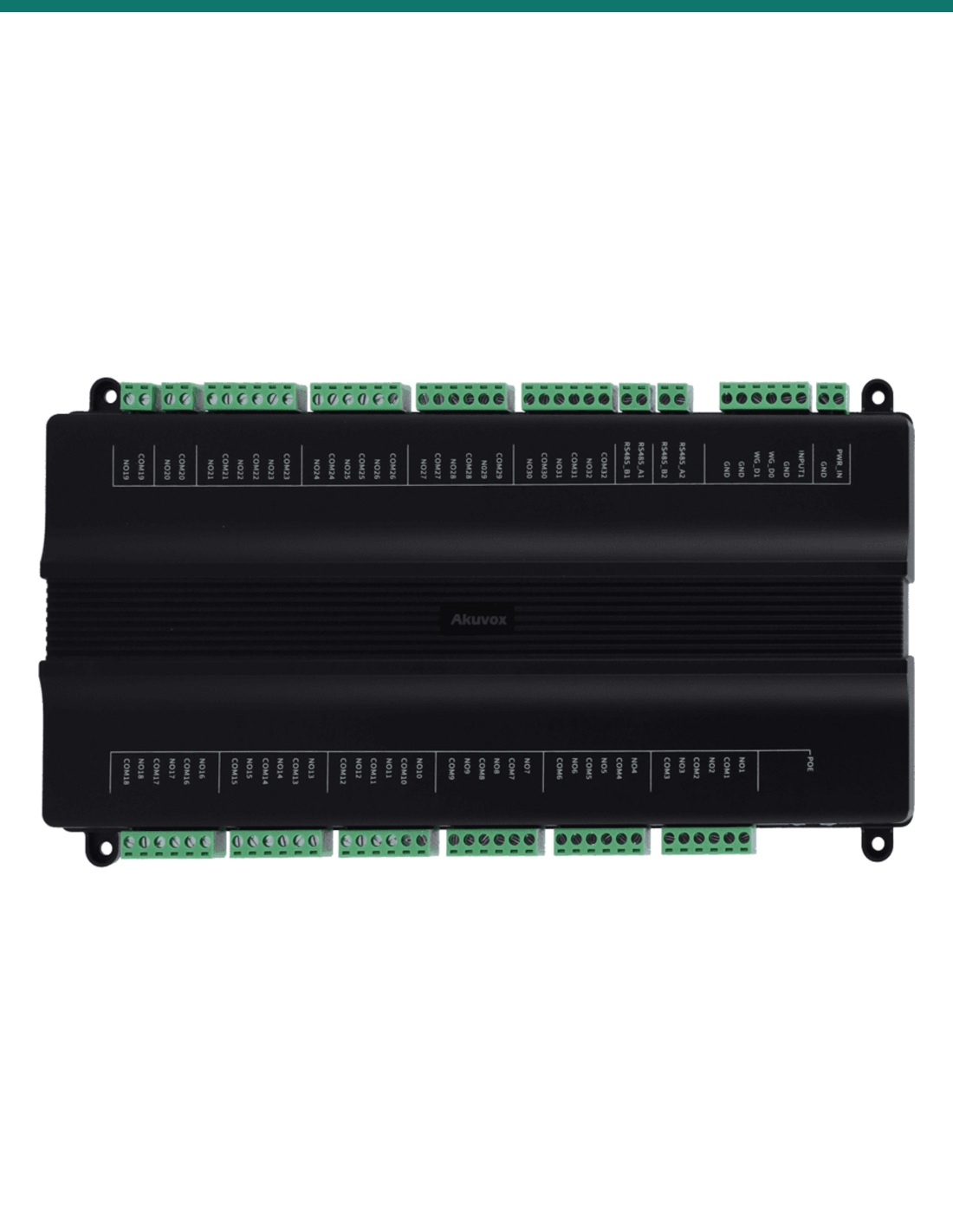

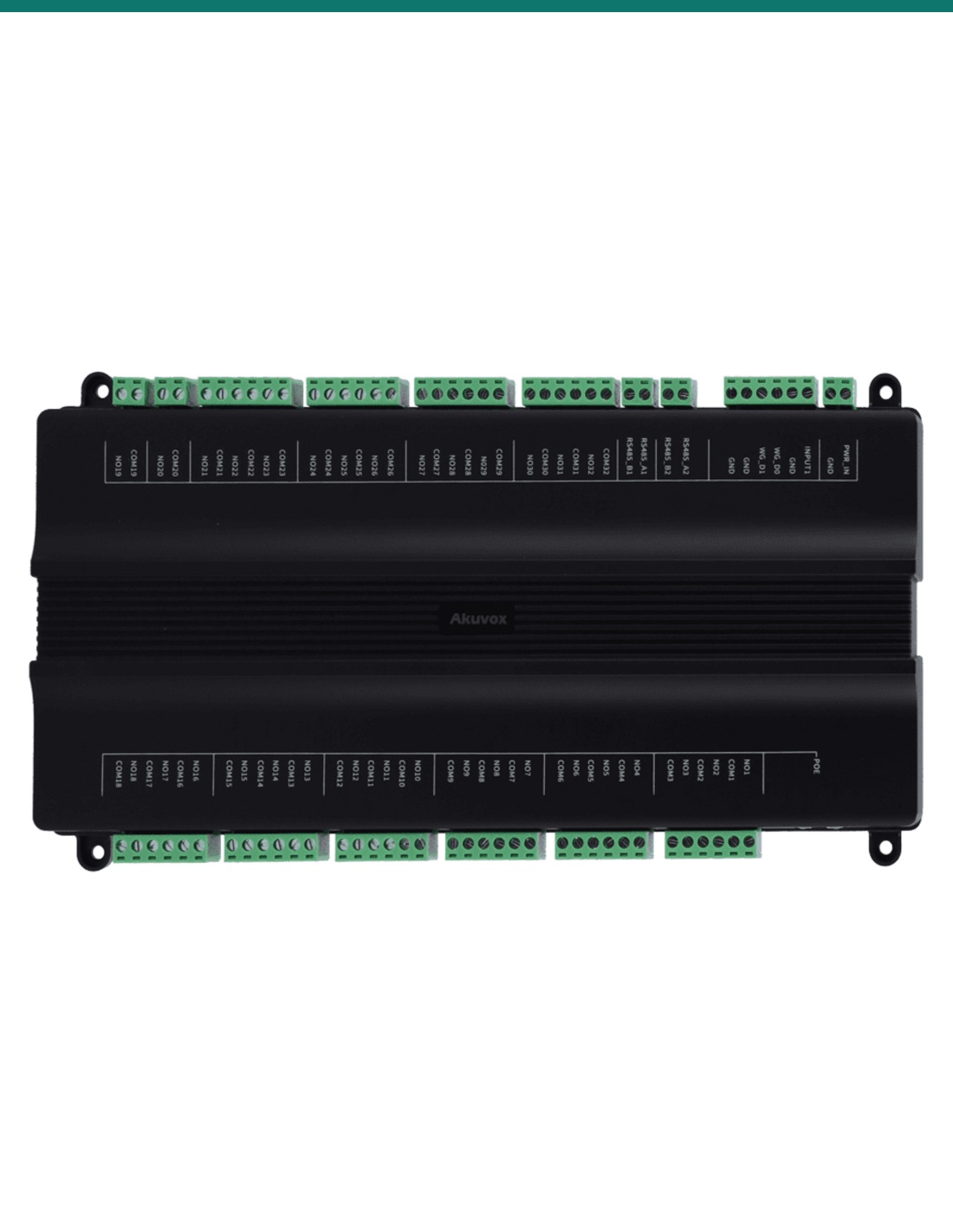

Akuvox EC33P IP lift controller module — top view

Akuvox EC33P 32-Relay IP Lift Controller Module, PoE or 12 V DC — AK-EC33P

Name: Akuvox EC33P 32-Relay IP Lift Controller Module, PoE or 12 V DC — AK-EC33P
Brand: Akuvox
SKU: AK-EC33P
Price: 866.5 AUD
Availability: InStock

Reference: AK-EC33P

In Stock - Ready to Ship

$ 866.50

inc-GST

or 4 interest-free payments of $216.62 with

Akuvox EC33P is the compact module version of the EC33 IP lift controller. It has the same 32 relay outputs (expandable to 128), Wiegand reader input and fire alarm input, but runs from 12 V DC or PoE and fits inside your own enclosure or the lift’s control cabinet. Stocked in Australia by Infront Technologies.

✓32 relay outputs, expandable to 128 over RS485
✓Wiegand 26 / 34 reader input for card floor access
✓20,000 cards, 100,000 logs, fire alarm input
✓12 V DC or PoE 802.3af · 292 × 156 × 32 mm module · Akuvox Cloud

Akuvox · EC33P · Lift controller module

Lift access control that fits in the lift cabinet.
EC33 features, module size.

The AK-EC33P is Akuvox’s EC33P. It does exactly what the cabinet-mounted EC33 does — 32 floor outputs, card access and Akuvox intercom integration — in a 292 × 156 × 32 mm module powered by 12 V DC or PoE.

This SKU is the controller module only.

You receive the EC33P module. An enclosure, in-car card reader, expansion controller and lift interface wiring are sold or arranged separately.

In the box

Akuvox EC33P lift controller module
Quick-start guide

What you also need(sold separately)

Enclosure or space in the lift control cabinet
Wiegand 26 / 34 card reader in the lift car
12 V DC supply or a PoE 802.3af switch
Lift contractor to connect relays to the floor buttons

No room for another cabinet? No problem.

Mount the EC33P alongside the lift’s own controls and power it from PoE. Residents get card-controlled floors, and visitors let in at the door can be sent to the right level.

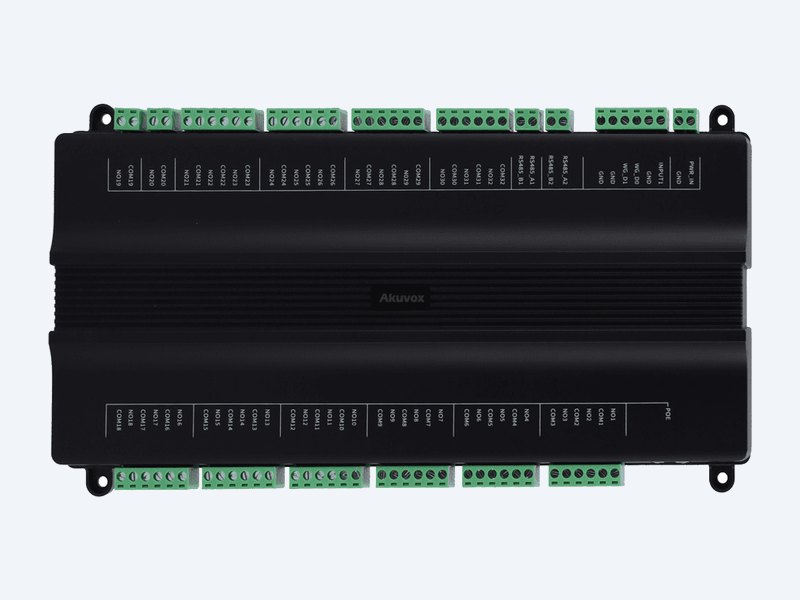

Outputs

32 floor outputs in a compact module.

32 relay outputs each enable one floor button, and an Akuvox expansion controller on RS485 takes it to 128.

Wiegand 26 / 34 connects the reader in the lift car. It stores 20,000 cards and 100,000 log entries.

Access

Cards and intercom calls choose the floor.

Residents present a card in the car and only their floors can be selected.

Akuvox door phones and indoor monitors send the EC33P HTTP commands, so visitors can be sent to the right level. Akuvox Cloud is supported.

Resident at a lift lobby with Akuvox lift control

Power and safety

PoE or 12 V, with a fire alarm input.

Power from 12 V DC or IEEE 802.3af PoE, rated 10 W or less.

The fire alarm input can trigger emergency release or normal lift commands as required on site.

How it works

From lift car to managed floors.

Mount

Fit the EC33P in an enclosure or the lift control cabinet, and connect PoE or 12 V DC.

Wire the lift

The lift contractor connects each relay to a floor button circuit; wire the in-car Wiegand reader.

Program floors

Assign floors to cards and link door phones and indoor monitors in the web portal or Akuvox Cloud.

Test

Present cards, test calls from the door, and confirm the fire alarm input behaviour.

At a glance

Key specs — AK-EC33P

Brand: Akuvox
Reference: AK-EC33P
Model: EC33P
Type: IP lift (elevator) controller module
Relay outputs: 32, expandable to 128 with expansion controller
Wiegand: Wiegand 26 / 34
RS485: Yes (expansion controller)
Fire alarm input: 1
Network: RJ45 10/100 Mbps, TCP/IP
Capacity: 20,000 cards · 100,000 logs
Integration: HTTP commands with Akuvox devices, Akuvox Cloud
Power: 12 V DC or PoE IEEE 802.3af
Rated power: 10 W or less
Size: 292 × 156 × 32 mm
Working temperature: Below 45 °C
Working humidity: 10–90%
Warranty: Australian warranty via Infront Technologies

Pair it with

Builds a complete lift access system

Reader

Akuvox CRP11 or A01

A Wiegand card reader in the lift car identifies each user.

Credentials

MIFARE cards

Akuvox 13.56 MHz cards carry each resident’s floor rights.

Intercom

Akuvox indoor monitor

Residents let visitors in and the lift goes to their floor.

Cabinet

EC33 cabinet version

The same controller in a lockable metal cabinet with mains input.

Watch

See it in action

EC33 elevator control setup for a single lift

Answers

Common questions

How many floors can it control?

Each controller has 32 relay outputs, and an expansion controller on RS485 takes it to 128 outputs.

Which Akuvox devices does it work with?

Akuvox door phones, indoor monitors and access terminals send it HTTP commands over the network, so a resident’s call or card can select the right floor.

What happens in a fire alarm?

The fire alarm input can trigger emergency release or normal lift commands, as set up on site.

How is it powered?

From 12 V DC or IEEE 802.3af PoE, rated 10 W or less.

What is the difference between EC33 and EC33P?

Same controller features. The EC33 comes in a lockable metal cabinet with a 100–240 V AC or PoE input; the EC33P is a compact module powered by 12 V DC or PoE.

Compact lift control, local stock.

Choose the EC33P when the controller will live in an existing enclosure. For a stand-alone lockable cabinet with mains input, choose the EC33. Order through Infront Technologies for Australian stock.

Installation & safety notice

Low-voltage product (SELV). Power from a 12 V DC supply or IEEE 802.3af PoE, as stated on the Akuvox EC33P datasheet. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Connections to the lift’s controls should be made by the lift contractor.
