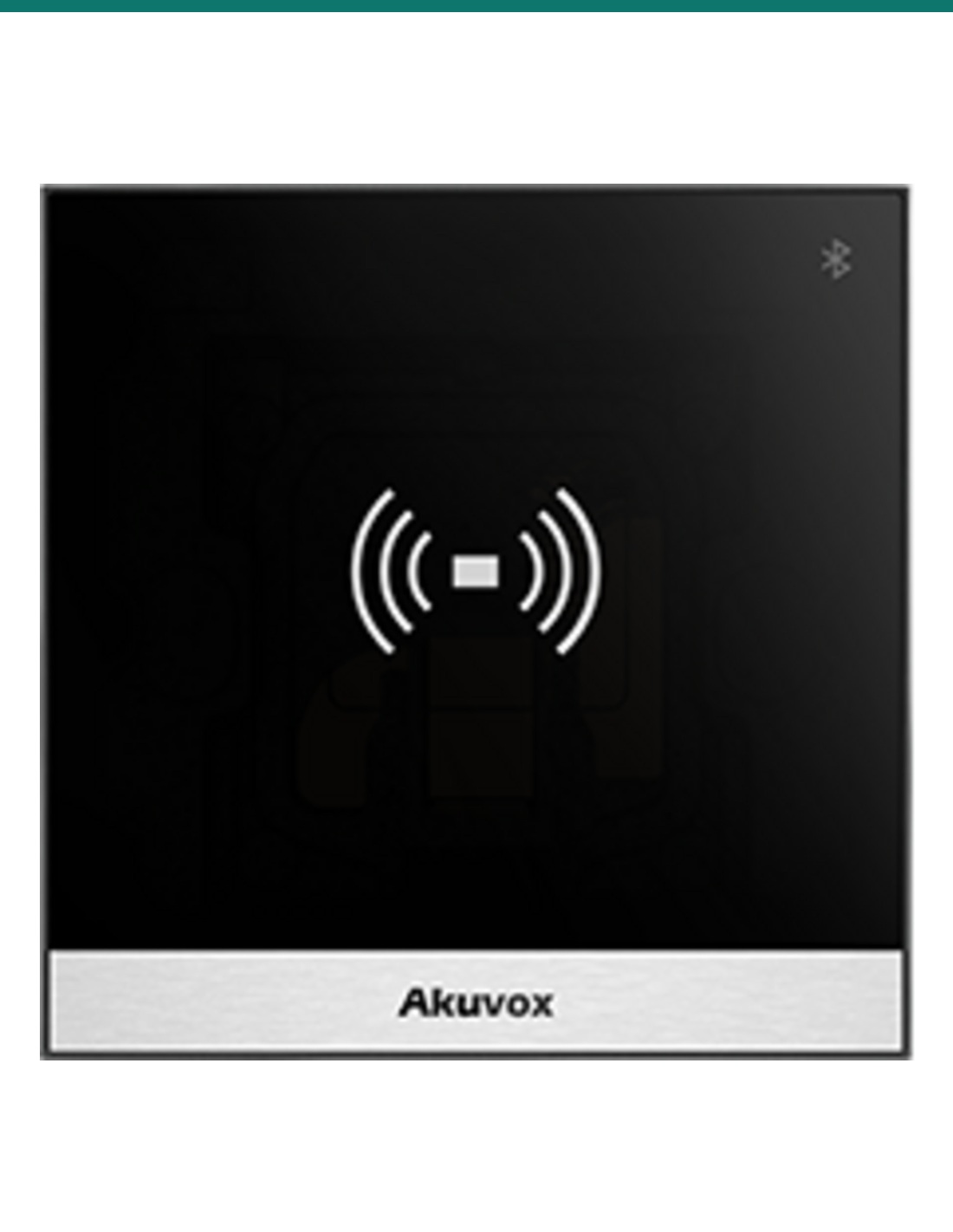

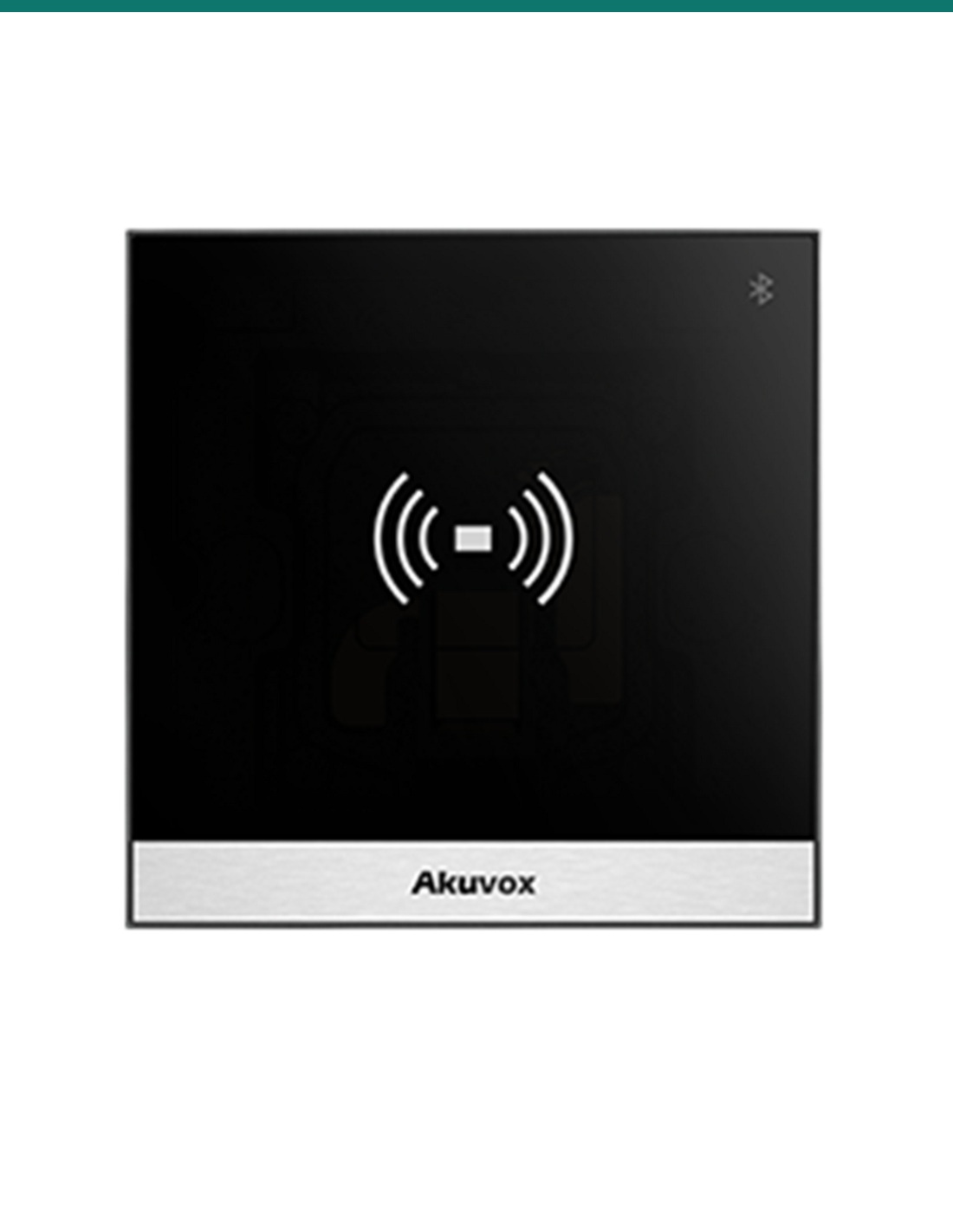

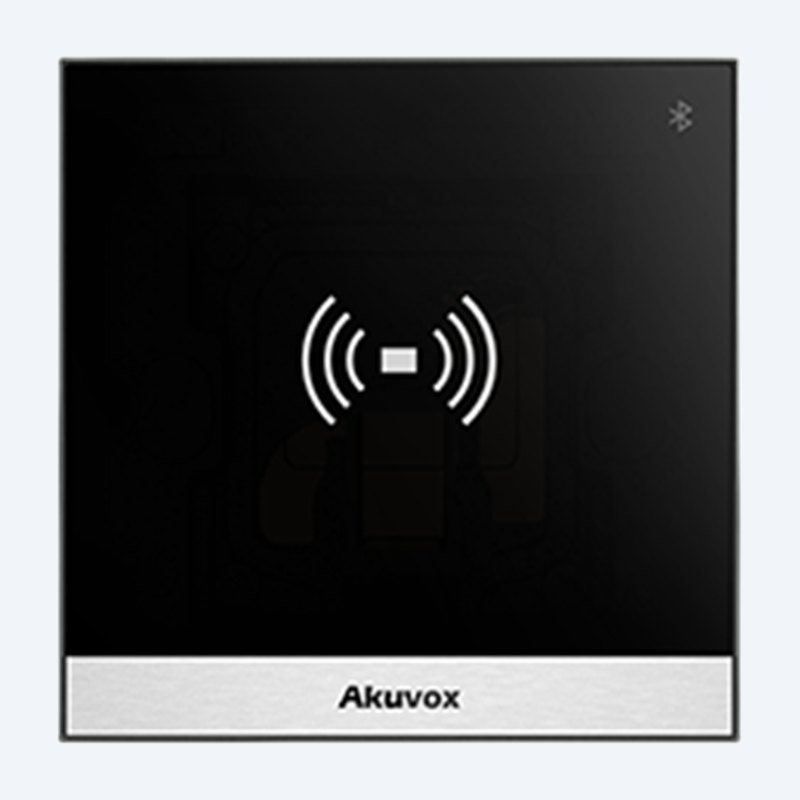

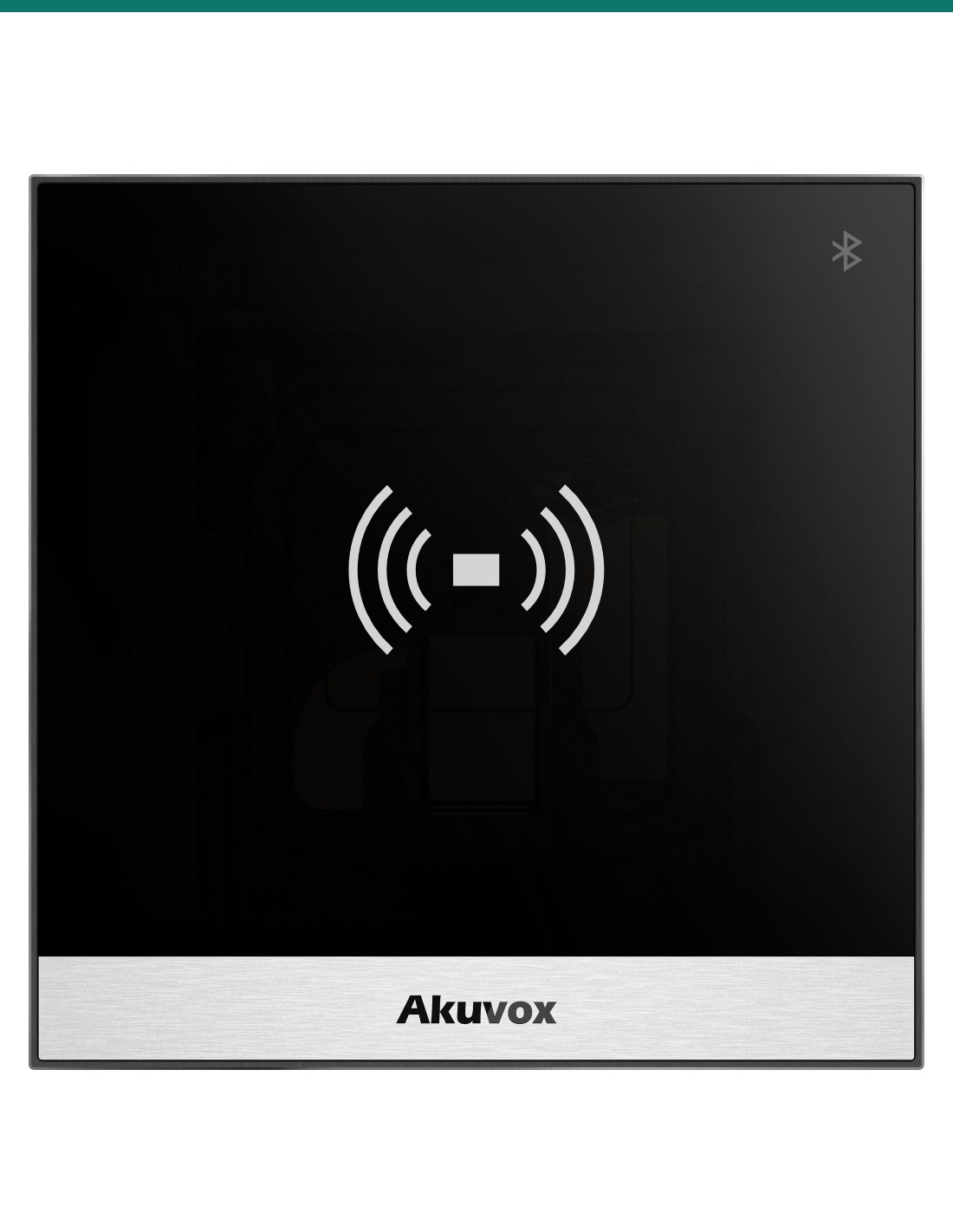

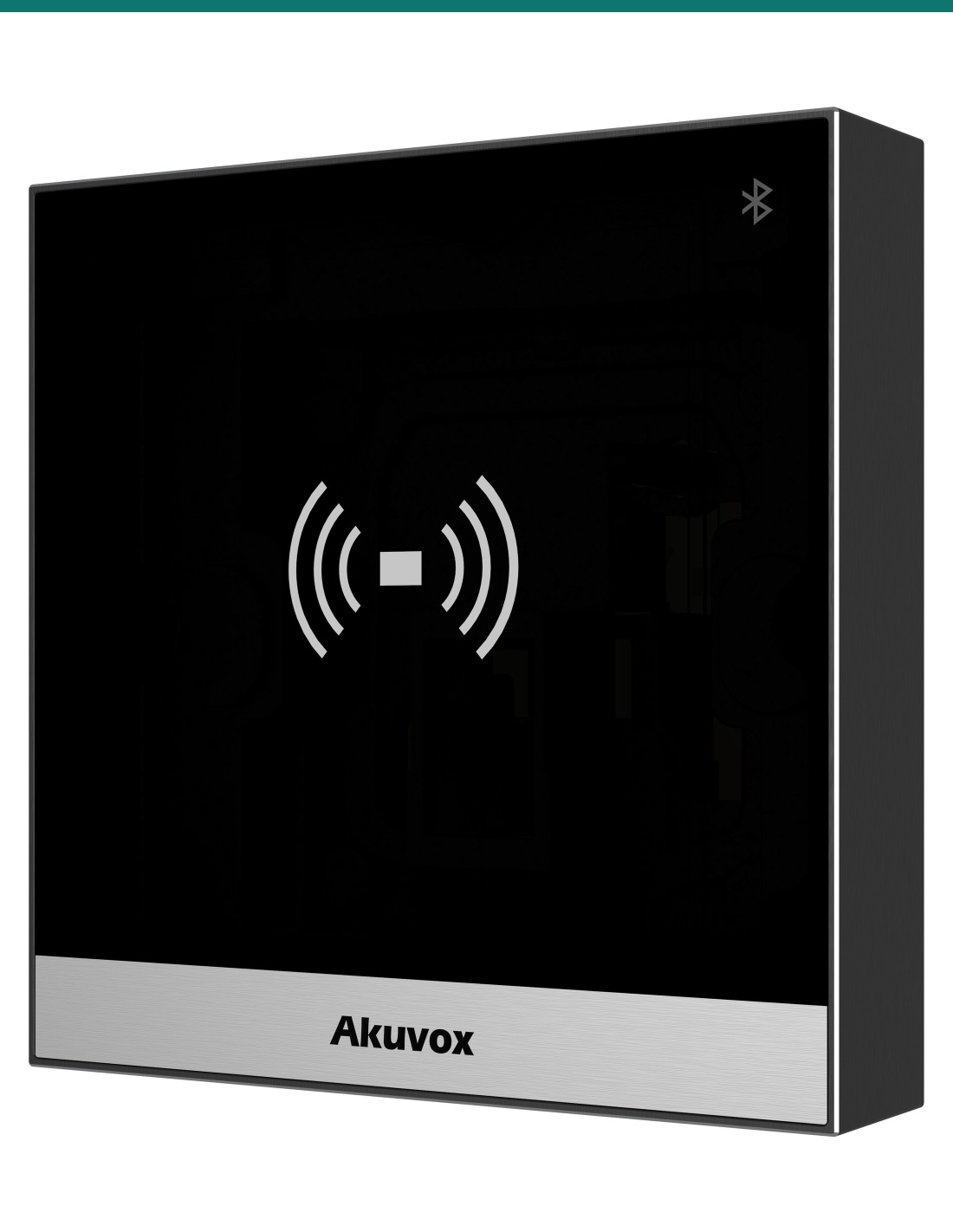

Akuvox A03S Bluetooth access control terminal — front

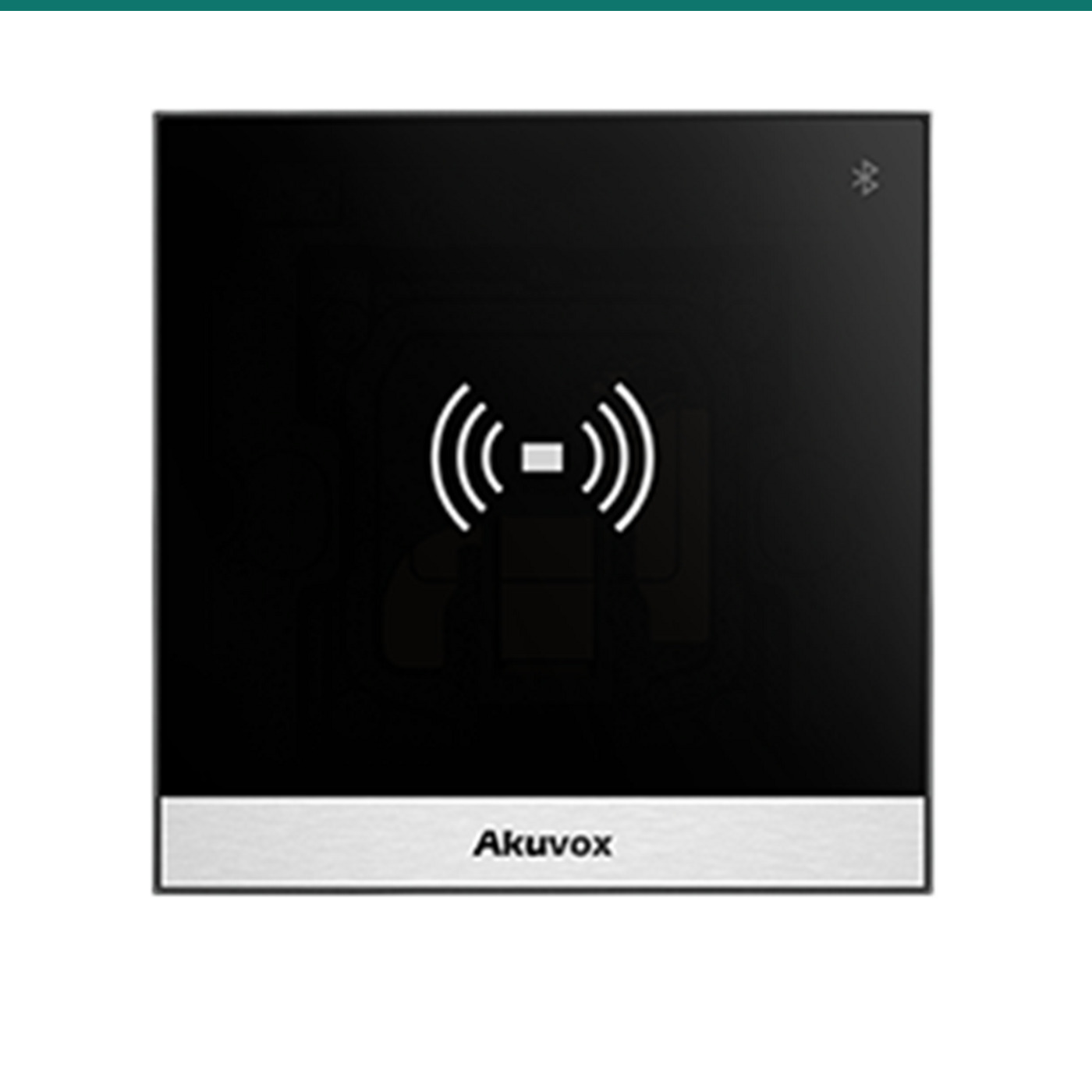

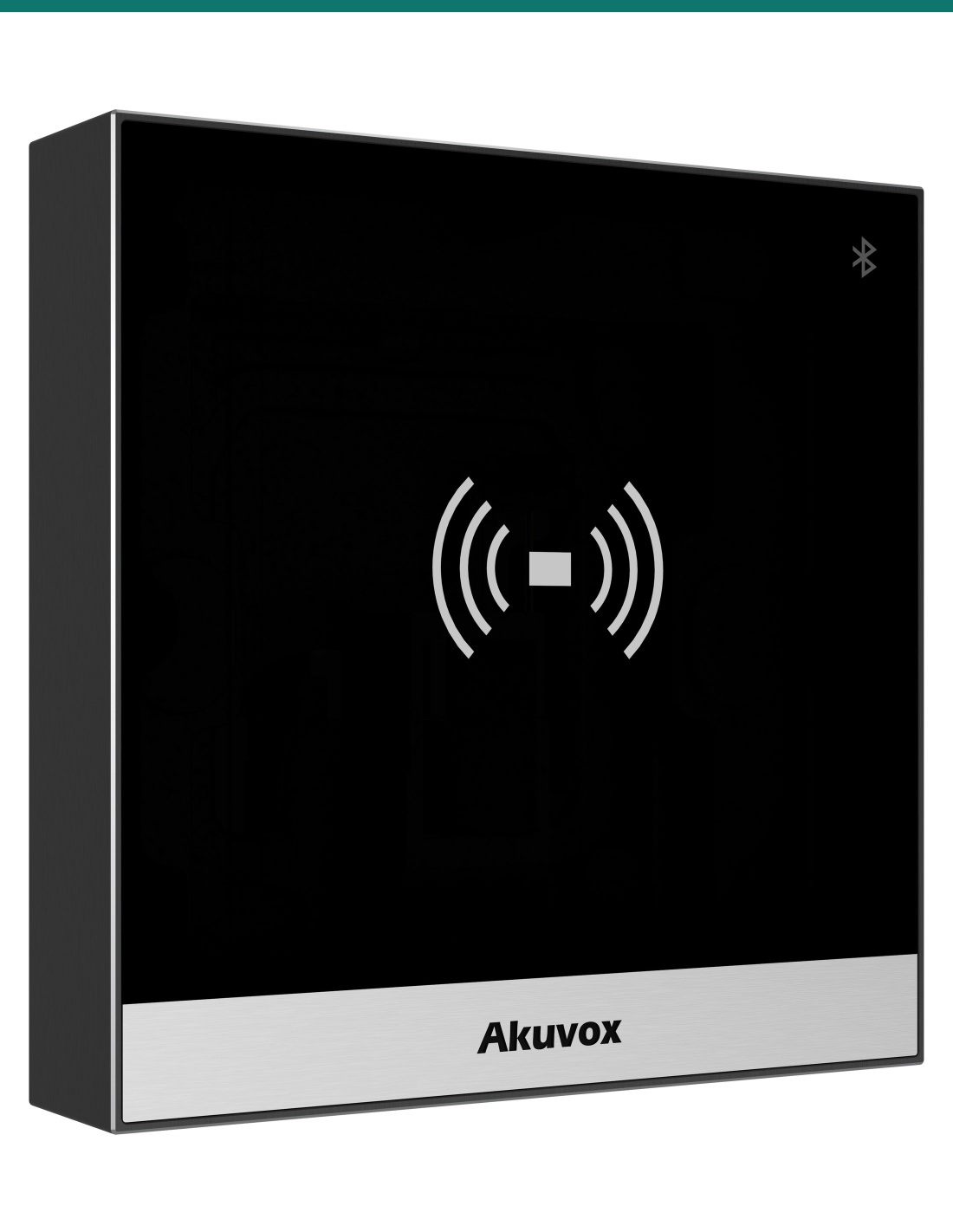

Akuvox A03S Bluetooth access control terminal — left three-quarter view

Akuvox A03S Bluetooth access control terminal — right three-quarter view

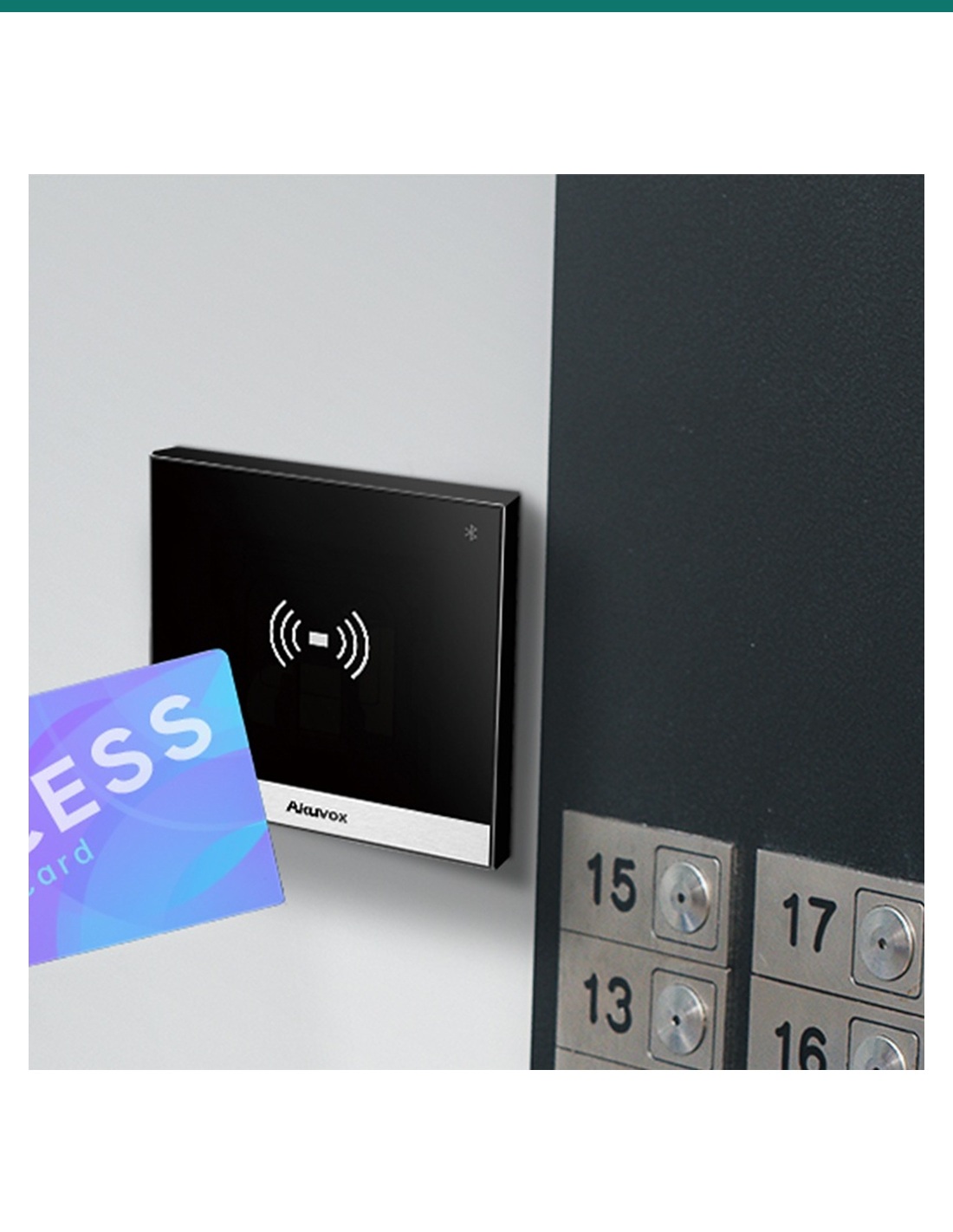

Akuvox A03S with an access card at a lift lobby

Akuvox A03S Bluetooth, RFID and NFC IP Access Control Terminal — AK-A03

Name: Akuvox A03S Bluetooth, RFID and NFC IP Access Control Terminal — AK-A03
Brand: Akuvox
SKU: AK-A03
Price: 393.5 AUD
Availability: InStock

Reference: AK-A03

In Stock - Ready to Ship

$ 393.50

inc-GST

or 4 interest-free payments of $98.38 with

Akuvox A03S is the Bluetooth model of the compact 86 × 86 mm access terminal. Residents and staff can wave a phone or an Akuvox Bkey fob to open the door, or tap a 13.56 MHz / 125 kHz card or an Android phone over NFC. Built-in relay, PoE, IP65 and IK07. Stocked in Australia by Infront Technologies.

✓Bluetooth 5.0 for phone and Bkey unlocking, hands in pockets
✓13.56 MHz and 125 kHz card reader plus NFC (Android)
✓Built-in door controller: 1 relay, 2 inputs, Wiegand
✓PoE 802.3af or 12 V DC · IP65 · IK07 · 86 × 86 × 33 mm

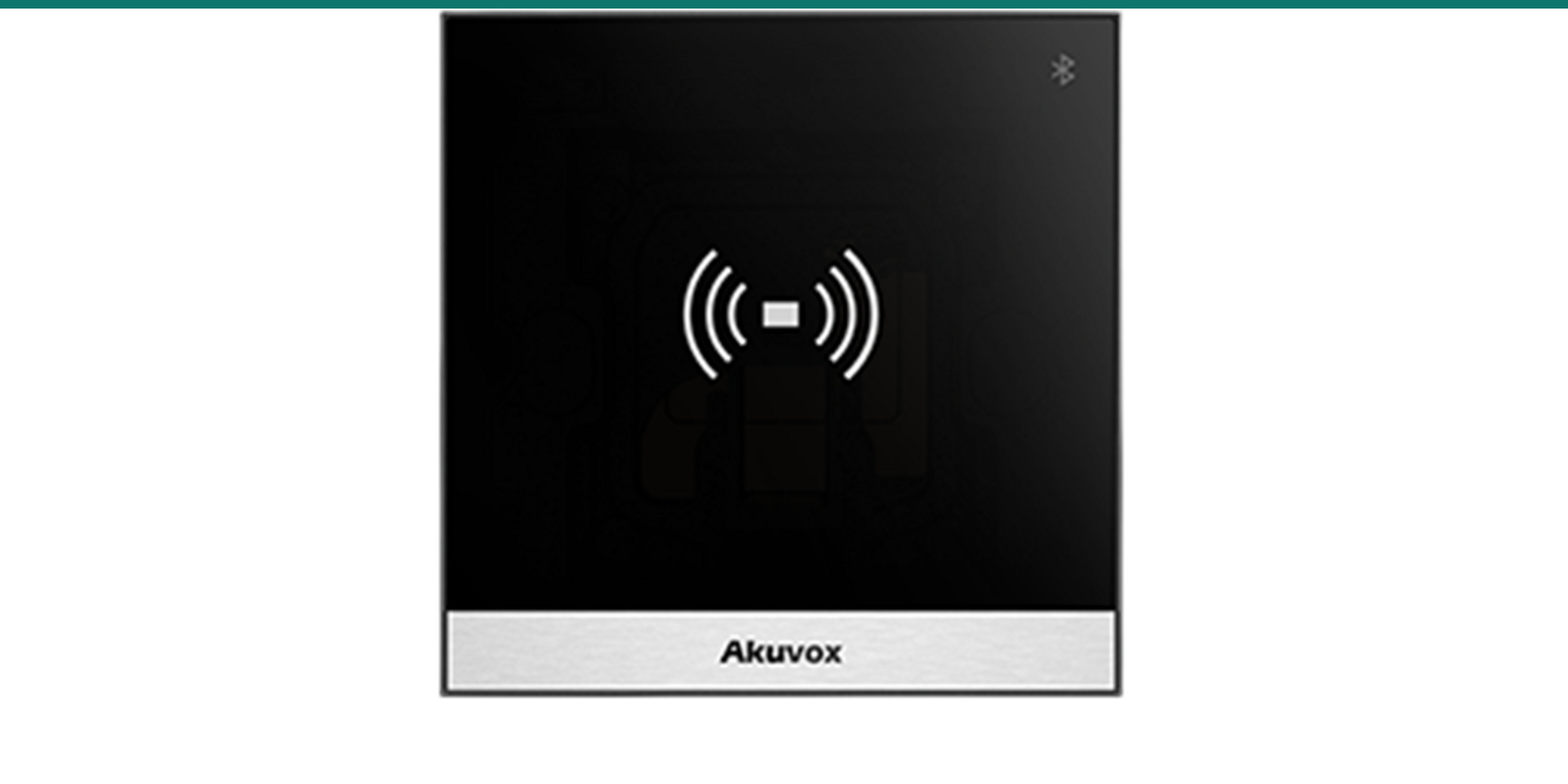

Akuvox · A03S · Bluetooth access terminal

Wave your phone and walk in.
Bluetooth, card and NFC in 86 mm.

The AK-A03 is Akuvox’s A03S. It is the A01’s compact glass-fronted terminal with Bluetooth 5.0 added, so a phone in a pocket or bag becomes the key — and cards and NFC still work for everyone else.

This SKU is the access terminal only.

You receive the A03S terminal. Bkey fobs, cards, the on-wall box, exit button, lock and lock power supply are sold separately.

In the box

Akuvox A03S access control terminal
Mounting hardware
Quick-start guide

What you also need(sold separately)

PoE 802.3af switch or injector (or a 12 V DC supply)
Akuvox SmartPlus app, Bkey fobs or RFID cards
Electric strike or maglock with its own power supply
86 junction box in the wall, or the A01/A02/A03 on-wall box

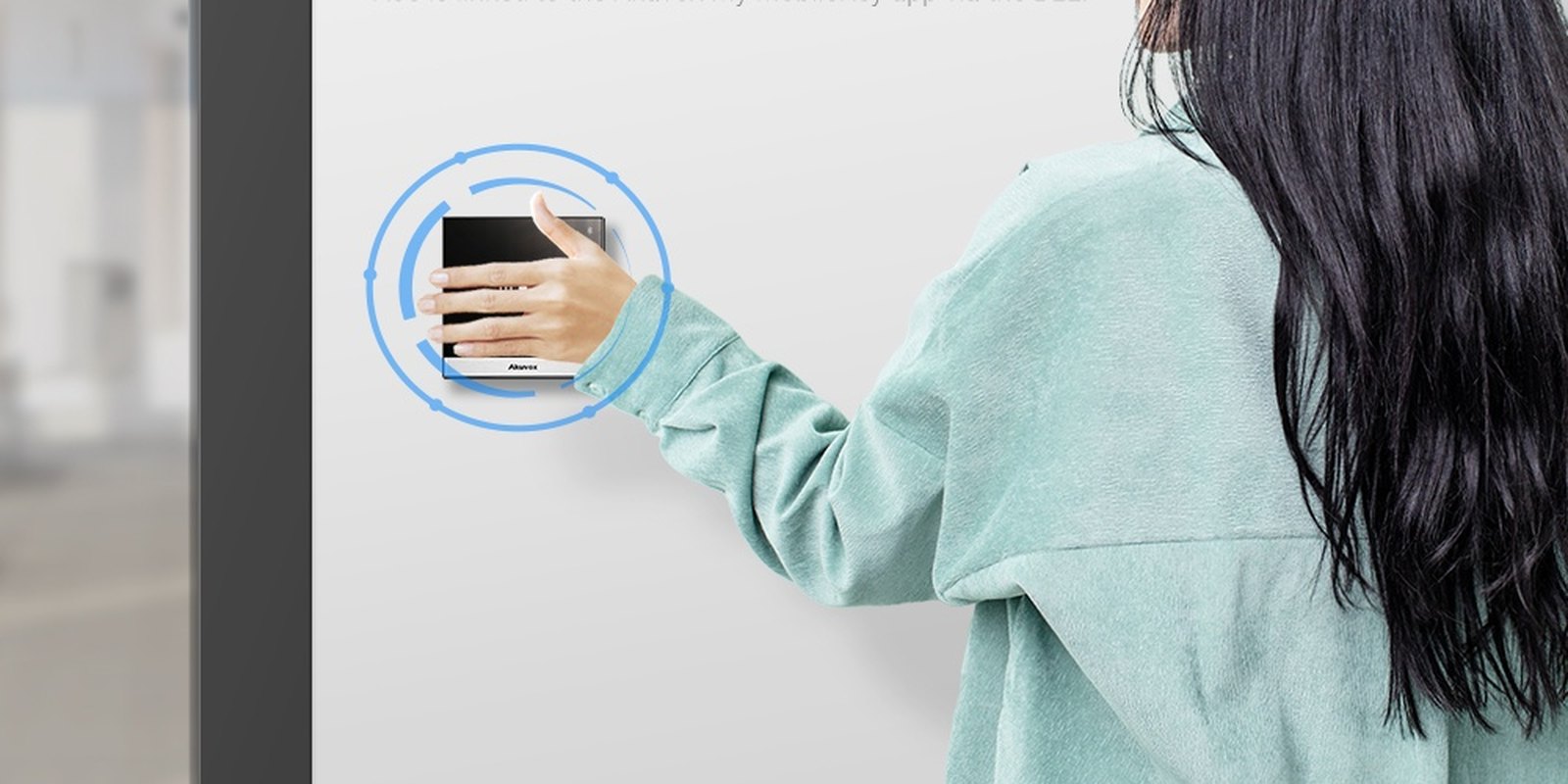

The key is already in your pocket.

With Bluetooth, people open the door from their phone without digging out a card. Cards and Android NFC still work, and the built-in relay means the A03S runs the door on its own.

Bluetooth

Phones and Bkey fobs over BLE 5.0.

Bluetooth Low Energy 5.0 lets an enrolled phone running the Akuvox app open the door with a wave or a tap — no card needed.

The Akuvox Bkey Bluetooth fob also works with the A03 on firmware 103.30.10.105 or later, for users who would rather not use a phone.

Cards and NFC

Every other credential still works.

The reader takes 13.56 MHz and 125 kHz cards and fobs, and Android phones can unlock over NFC.

It holds 20,000 users and 20,000 cards and logs 100,000 entries — use it on doors, gates or lift lobbies.

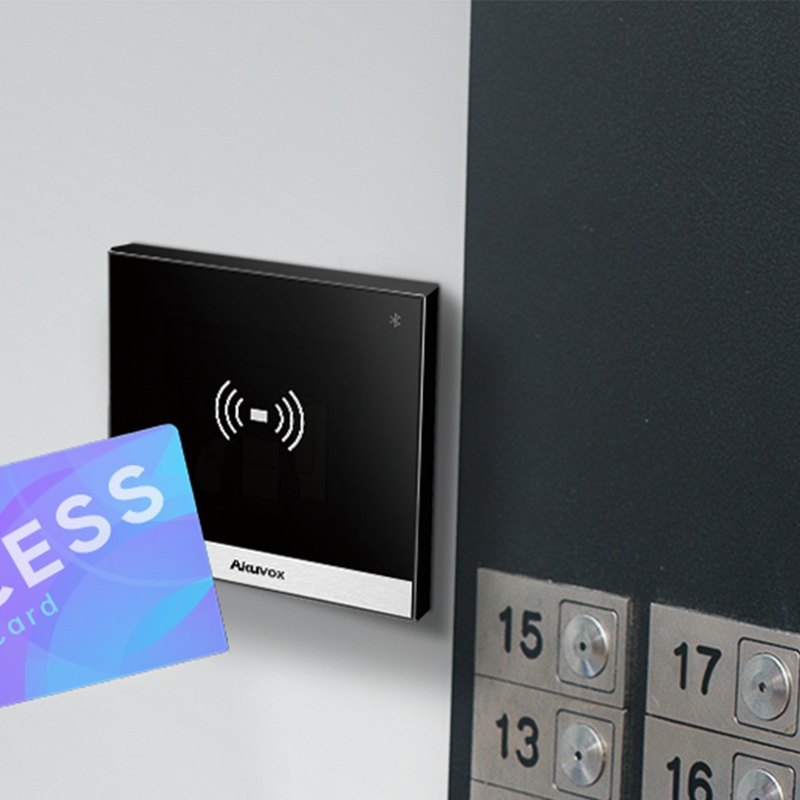

Access card presented beside an Akuvox A03S terminal

Controller

Runs the door by itself.

One relay drives the lock and two inputs take an exit button and a door sensor. A tamper alarm warns if it is removed.

Toughened glass and aluminium, IP65 and IK07, with flush or surface mounting. Manage it in the web portal, Akuvox Cloud or ACMS.

How it works

From bare door to phone access.

Mount

Fit the A03S over an 86 junction box or on the A01/A02/A03 on-wall box.

Wire the door

Run PoE to the RJ45, then wire the relay to the lock supply and the inputs to the exit button and door sensor.

Enrol

Add users, phones, Bkey fobs and cards in Akuvox Cloud, ACMS or the web portal, with schedules and access levels.

Test

Unlock with a phone, a Bkey, a card and NFC, then check the exit button and the access log.

At a glance

Key specs — AK-A03

Brand: Akuvox
Reference: AK-A03
Model: A03S
Front: Toughened glass
Frame: Aluminium
Bluetooth: BLE 5.0
RF reader: 13.56 MHz and 125 kHz, NFC (Android)
Unlock: Bluetooth phone, Bkey fob, card, NFC
Capacity: 20,000 users · 20,000 cards · 100,000 logs
I/O: 1 relay, 2 inputs, Wiegand, tamper alarm
Network: RJ45 10/100 Mbps
Power: PoE IEEE 802.3af or 12 V DC
Protection: IP65, IK07
Mounting: Flush or wall mounted
Size: 86 × 86 × 33 mm (H × W × D)
Working temperature: −20 °C to +55 °C
Management: Web portal, Akuvox Cloud, ACMS
OS: Linux
Warranty: Australian warranty via Infront Technologies

Pair it with

Builds a complete single-door system

Bluetooth

Akuvox Bkey fob

A Bluetooth fob for users who do not want to use a phone.

Mounting

A01/A02/A03 on-wall box

A matching surface box for walls without an 86 junction box.

Credentials

MIFARE and DESFire cards

Akuvox 13.56 MHz cards for visitors and staff without the app.

Exit

Akuvox exit button

Wire a press-to-exit button to an input for free exit.

Watch

See it in action

Akuvox A03 access control terminal overview

Answers

Common questions

How do phones unlock the A03S?

Over Bluetooth 5.0 with the Akuvox app, or by NFC on Android phones.

Does it work with the Akuvox Bkey?

Yes. Akuvox lists the A03 as Bkey-compatible on firmware 103.30.10.105 or later.

Can it still read cards?

Yes — 13.56 MHz and 125 kHz cards and fobs.

Does it have a keypad?

No. For PIN codes choose the A02, which has a touch keypad in the same size housing.

How is it powered?

From IEEE 802.3af PoE, or a 12 V DC supply.

Phone access at the door, local stock.

Choose the A03S when residents or staff want to use their phones. For cards only pick the A01; for PIN codes pick the A02. Order through Infront Technologies for Australian stock and setup advice.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE or a 12 V DC supply, as stated on the Akuvox A03S datasheet. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Power: PoE 802.3af or 12 V DC
Colour: Black glass, silver frame
Capacity: 20,000 users, 20,000 cards, 100,000 logs
Brand: Akuvox
Bluetooth: BLE 5.0
Protection: IP65, IK07
Size: 86 × 86 × 33 mm (H × W × D)
Warranty: Australian Warranty via Infront Technologies
Product Type: IP access control terminal with Bluetooth
Model: A03S
Finish: Toughened glass front, aluminium frame
RF Reader: 13.56 MHz and 125 kHz
I/O: 1 relay, 2 inputs, Wiegand
OS: Linux
Unlock: Bluetooth (phone or Bkey), RFID card, NFC (Android), Akuvox app and cloud
