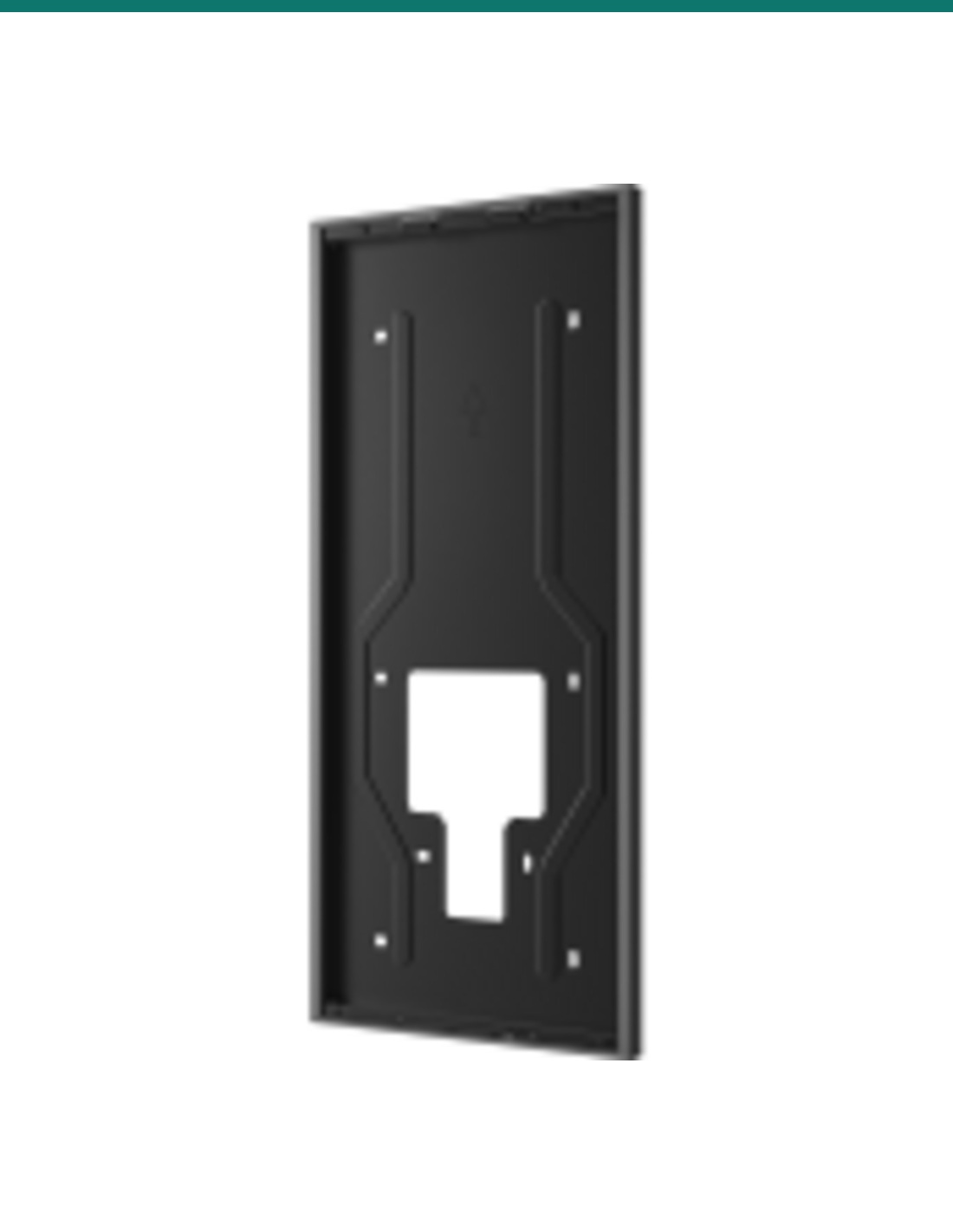

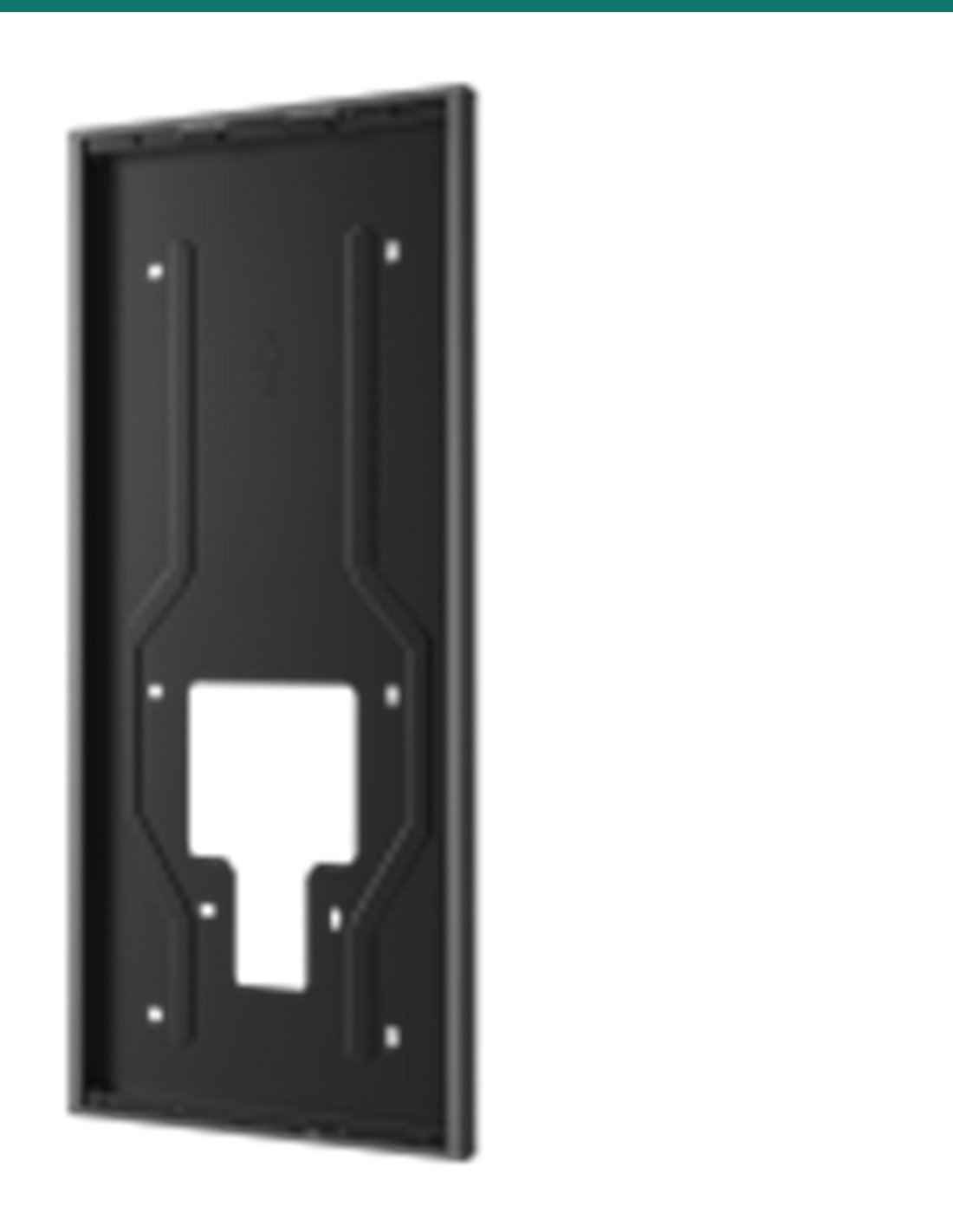

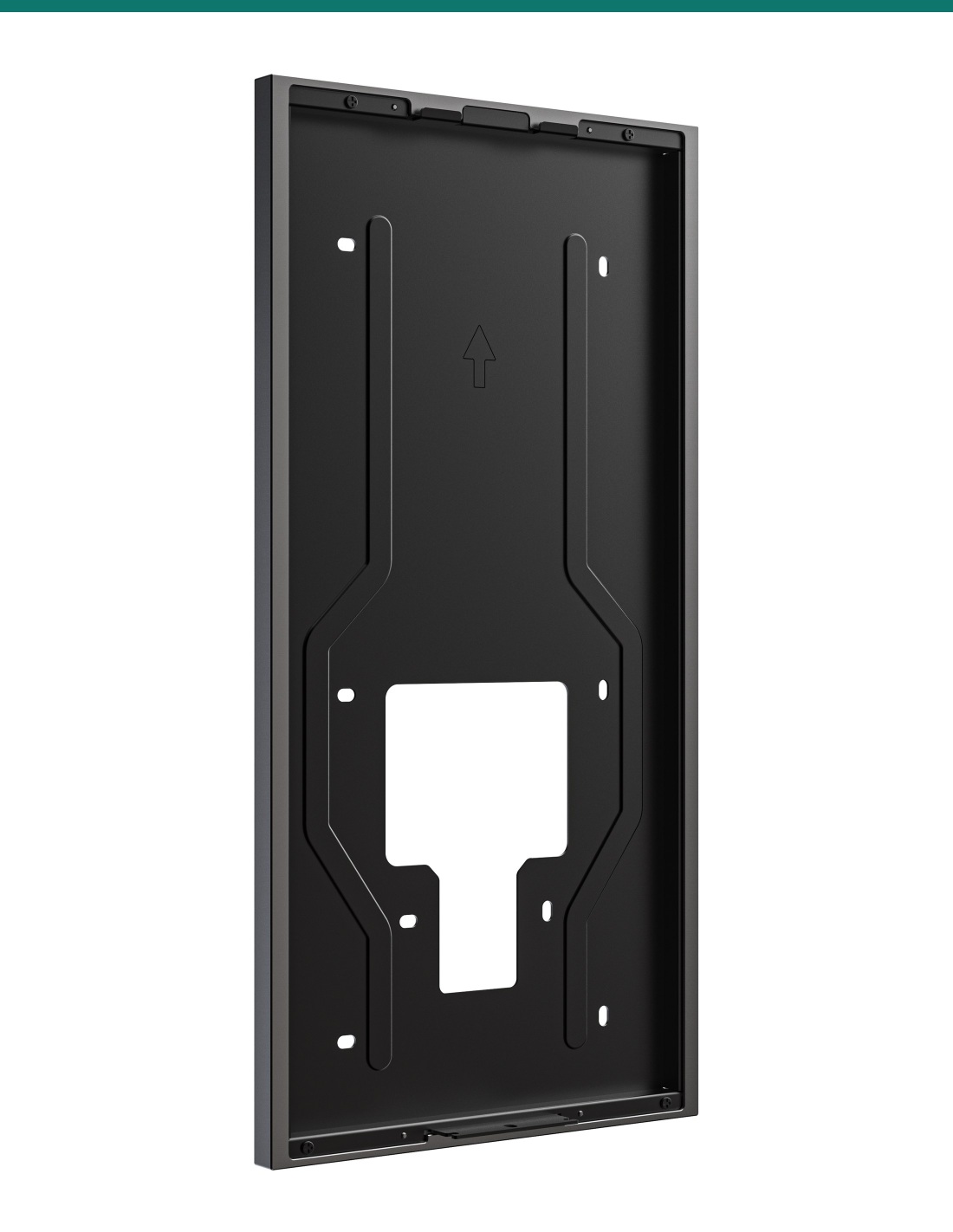

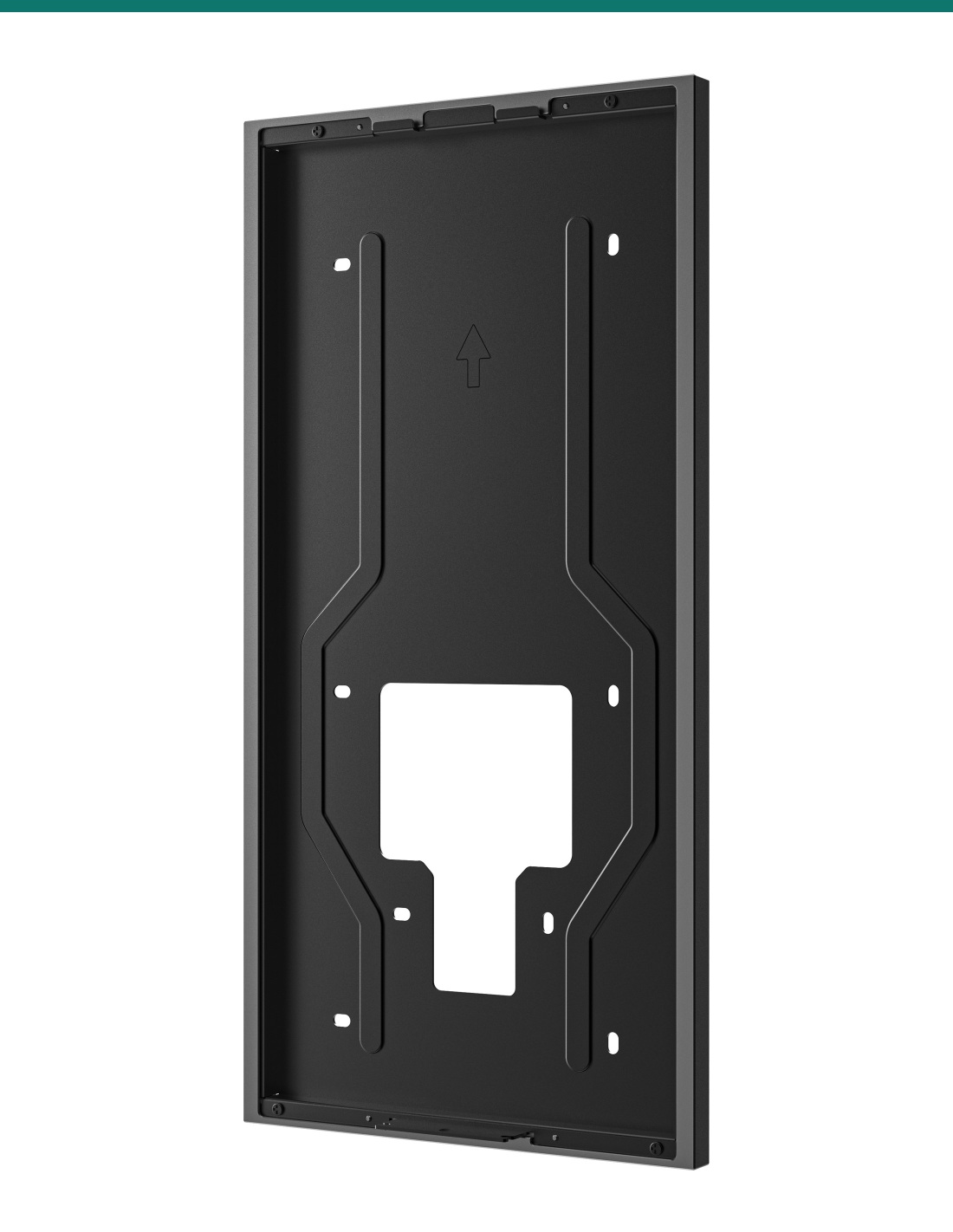

Akuvox S539 Black On-Wall Installation Kit for Surface Mounting — AK-S539ONWALLK

SKU AK-S539ONWALLK In Stock - Ready to Ship
$57.30 inc GST

Akuvox AK-S539ONWALLK is the on-wall installation kit for the S539 10″ Android facial recognition door phone. The S539 ships without a mounting box: this slim black bracket fixes to the wall and the S539 mounts onto it. Template, screws and anchors are included.

  • ✓Surface-mounts the Akuvox S539 (363.5 × 179.8 × 30.8 mm)
  • ✓Black bracket, 367.5 × 183.8 × 11.8 mm (H × W × D)
  • ✓Wall-mounting template, 6 × ST4×20 screws and 6 anchors included
  • ✓2 × M4×30 screws to fix over an existing 86-type wall box


Akuvox · S539 · On-wall installation kit

Surface-mount the S539.
Under 12 mm off the wall.

The AK-S539ONWALLK is Akuvox’s wall-mounting kit for the S539. The door phone is supplied without a box, so every S539 needs either this on-wall kit or the in-wall kit.

This SKU is the on-wall installation kit.

You receive the bracket and fixings listed below, as shown in the Akuvox S539 quick guide. The S539 door phone is sold separately.

In the box
  • Wall-mounting box × 1
  • Wall-mounting template × 1
  • ST4×20 crosshead screws × 6
  • M4×30 crosshead screws × 2
  • Plastic wall anchors × 6
What you also need (sold separately)
  • Akuvox S539 door phone
  • S539 on-wall rain hood for exposed entries (optional)
  • PoE 802.3at switch, or a 12 V DC / 3 A or 24 V DC / 1.5 A supply

A 10″ station without a deep box.

The 11.8 mm bracket keeps the surface-mounted S539 close to the wall, and cables come through the centre opening from behind.

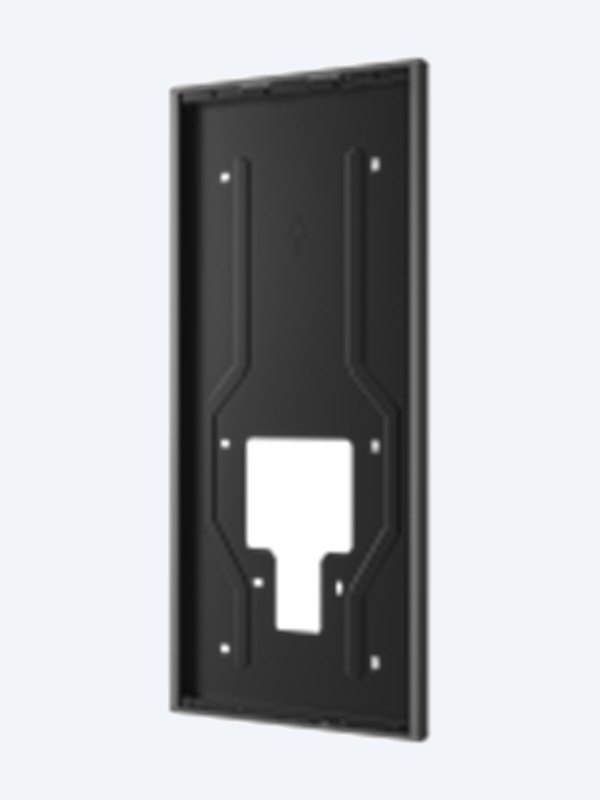

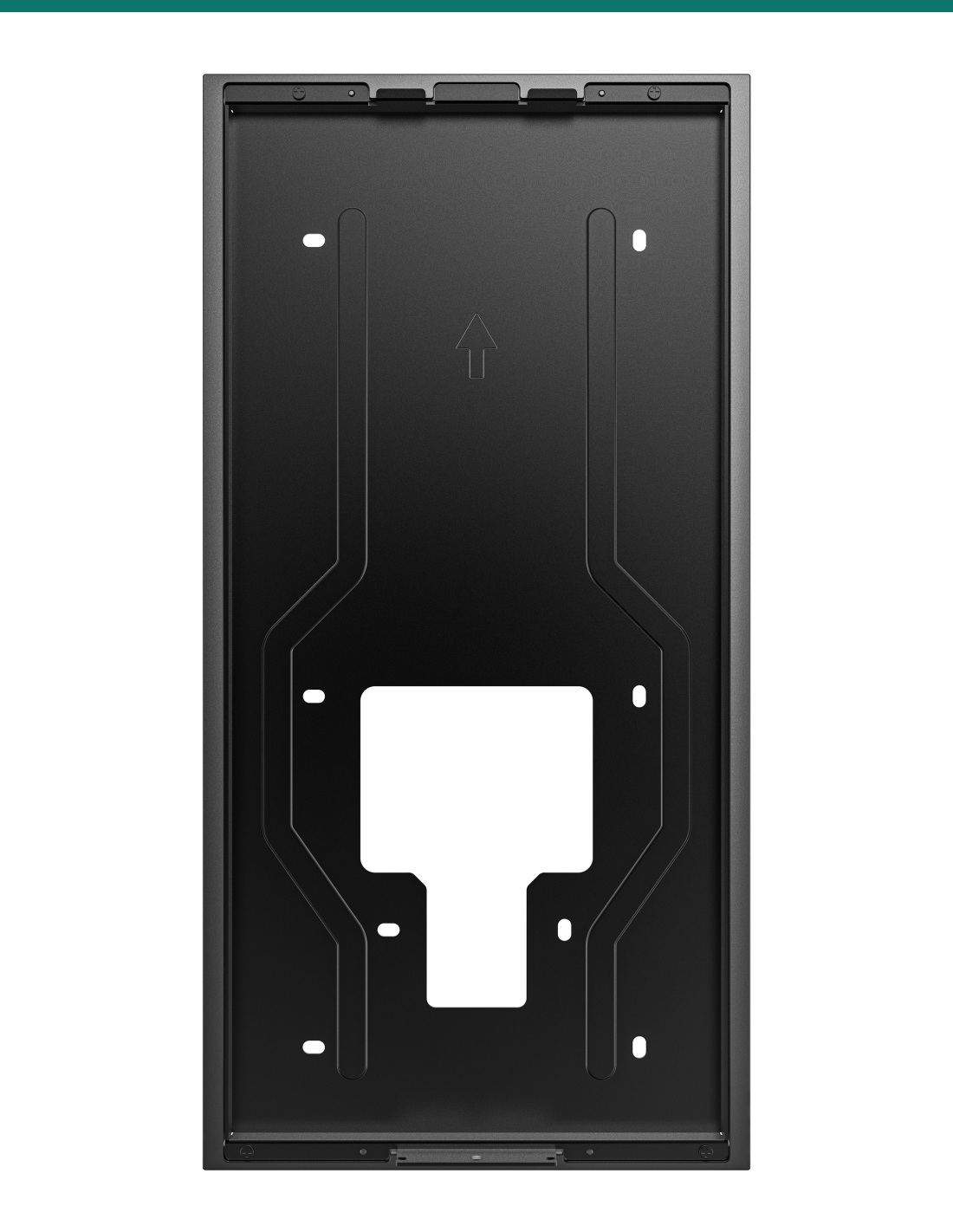

Akuvox S539 black on-wall mounting bracket

In the kit

A slim bracket with fixings.

Black metal bracket with a central cable cut-out and stiffening ribs, 367.5 × 183.8 mm and only 11.8 mm deep.

A drilling template, six ST4×20 screws with anchors, and two M4×30 screws for an existing wall box are included.

Fit

Made for the S539.

Sized to the 363.5 × 179.8 × 30.8 mm S539 10″ Android door phone.

On exposed walls, add the S539 on-wall rain hood.

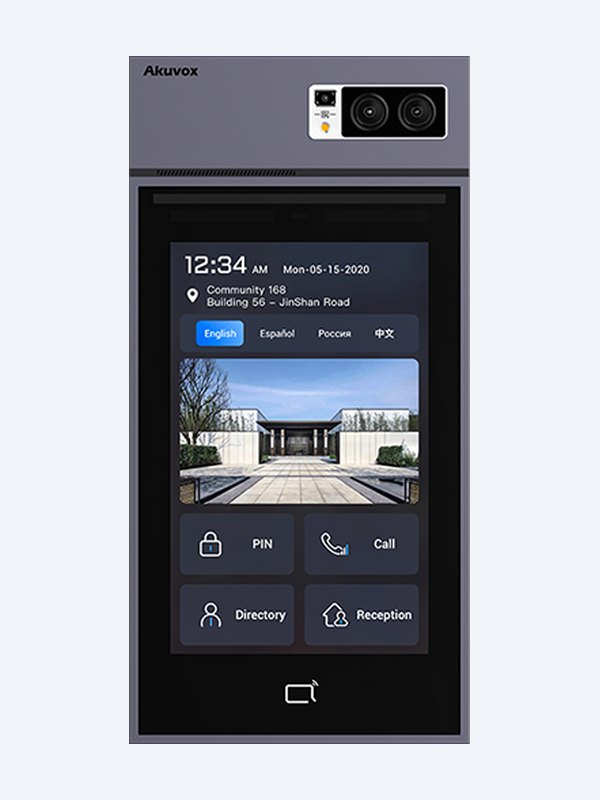

Akuvox S539 10-inch Android door phone

Pair it with

Fits the Akuvox S539

Door phone

Akuvox S539

10″ Android facial recognition door phone.

Weather

S539 on-wall rain hood

Black hood for a surface-mounted S539 on an exposed wall.

Watch

See it in action

Akuvox S539 Android door phone overview
Akuvox S539 camera and picture quality

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Does the S539 come with a mounting box?

No. Every S539 needs either this on-wall kit or the S539 in-wall kit.

Can I mount it over an existing wall box?

Yes. Use four ST4×20 screws into the wall and the two M4×30 screws into an 86-type embedded box (60 mm hole centres).

How far does the S539 stand off the wall?

The bracket is 11.8 mm deep and the S539 panel 30.8 mm, with the panel covering the bracket edges.

What mounting height does Akuvox show?

The Akuvox drawings place the bottom of the S539 at 1,166 mm and the camera centre at 1,500 mm above ground.

Which rain hood goes with this kit?

The S539 on-wall rain hood. The in-wall hood is for recessed units.

Is the door phone included?

No. This SKU is the mounting kit only.

Surface-mount S539 installs.

Choose this kit for surface installs; for a recessed finish use the S539 in-wall kit. Add the S539 on-wall rain hood where the entry is exposed.

Installation & safety notice

Fitting. Apply the template, drill six 6 mm holes 25 mm deep and fix the bracket with the ST4×20 screws and anchors — or ST4×20 into the wall and the two M4×30 into an existing 86-type box — see the Akuvox S539 quick guide.

Colour
Black
Brand
Akuvox
Mounting Height
Bottom of the S539 at 1,166 mm, camera centre at 1,500 mm
Size
367.5 × 183.8 × 11.8 mm (H × W × D)
Warranty
Australian warranty
Product Type
On-wall (surface) mounting bracket
Model
S539 on-wall installation kit
Compatible with
Akuvox S539 door phone
Contents
Wall box, template, 6 × ST4×20 screws, 2 × M4×30 screws, 6 × anchors
Existing Box
Fixes over an 86-type wall box (60 mm hole centres) with 2 × M4×30 screws
Fixing Holes
111 mm apart horizontally, 313.8 mm vertically
