Akuvox A095S 4-Door 8-Reader IP Access Controller with PoE+ and Wi-Fi 6 — AK-A095S

SKU AK-A095S In Stock - Ready to Ship
$758.50 inc GST

Akuvox A095S is a compact 4-door IP access controller with an entry and an exit reader port for every door — eight Wiegand / RS485 ports in all. Eight relays, 12 inputs and eight power outputs run from 12 V DC or a single PoE+ cable, with Wi-Fi 6 and DIN-rail mounting.

  • ✓4 doors with entry and exit readers: 8 Wiegand / RS485 (OSDP v2) ports
  • ✓8 relays, 12 inputs and 8 power outputs — even on PoE+
  • ✓100,000 users, 500,000 cards and 200,000 logs
  • ✓12 V DC or PoE+ 802.3at · 2 × RJ45 · Wi-Fi 6 · wall or DIN rail


Akuvox · A095S · 4-door access controller

Four doors, in and out, on one PoE+ cable.
Eight readers, eight relays.

The AK-A095S is Akuvox’s A095S: a compact controller that handles four doors with a reader on each side. It runs from PoE+ or 12 V DC, mounts on a wall or DIN rail, and connects over Ethernet or Wi-Fi 6.

This SKU is the controller only.

You receive the A095S controller. Readers, exit buttons, locks, lock power supplies and any enclosure or DIN rail are sold separately.

In the box
  • Akuvox A095S access controller
  • Wi-Fi antenna and antenna connector
  • Pluggable terminal blocks
  • Diode
  • Terminal removal tool and flat-head screwdriver
What you also need (sold separately)
  • PoE+ 802.3at switch or a 12 V DC 5 A supply
  • Wiegand or RS485 / OSDP readers (for example A01, A02, A08 or CRP11)
  • Electric strikes or maglocks and their power supplies
  • Exit buttons and door sensors

Track who goes in and who comes out.

With entry and exit readers on all four doors, the A095S can run true anti-passback and accurate occupancy logs. Interlock, first person in and fire-alarm integration are built in, managed from Akuvox Cloud or ACMS.

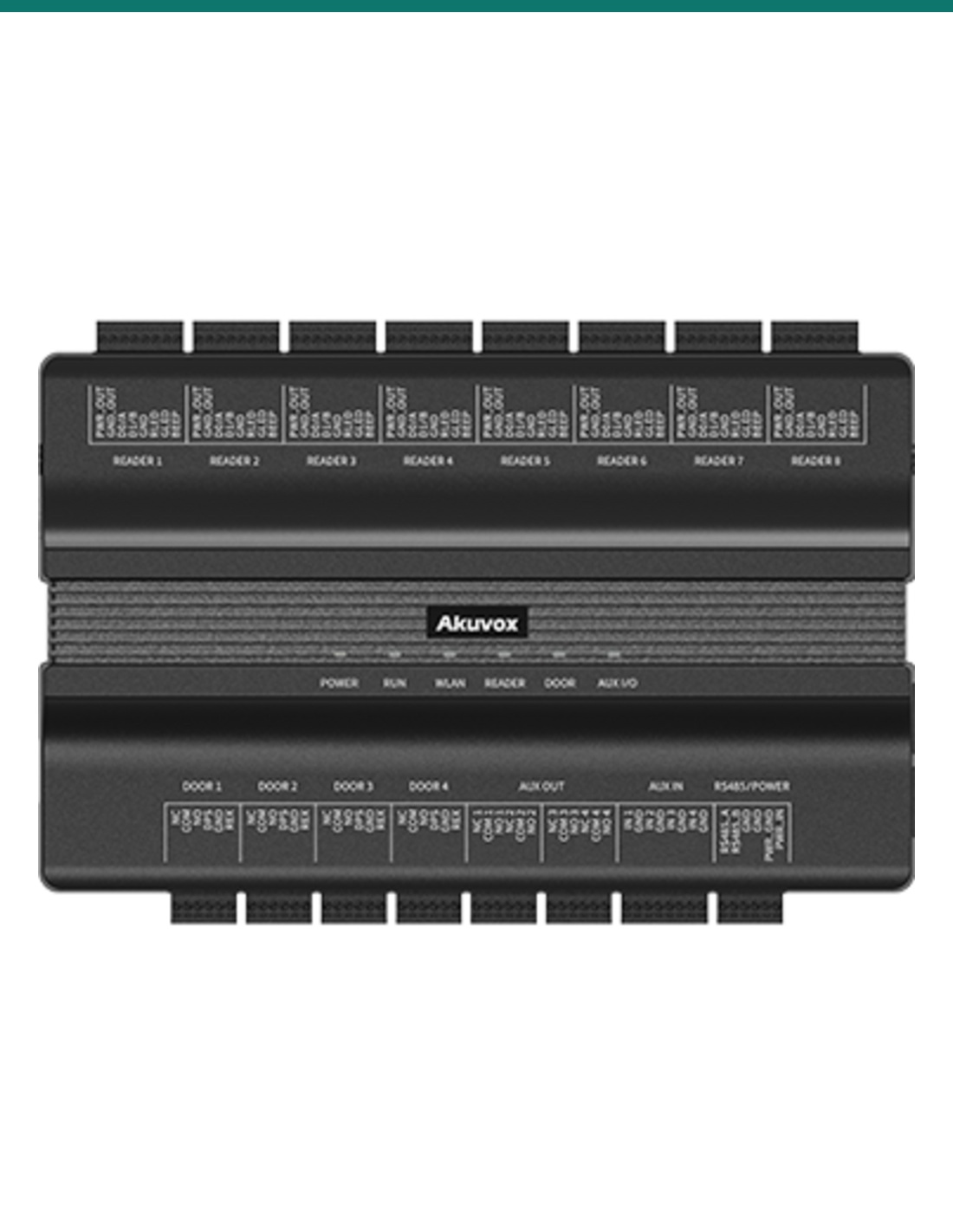

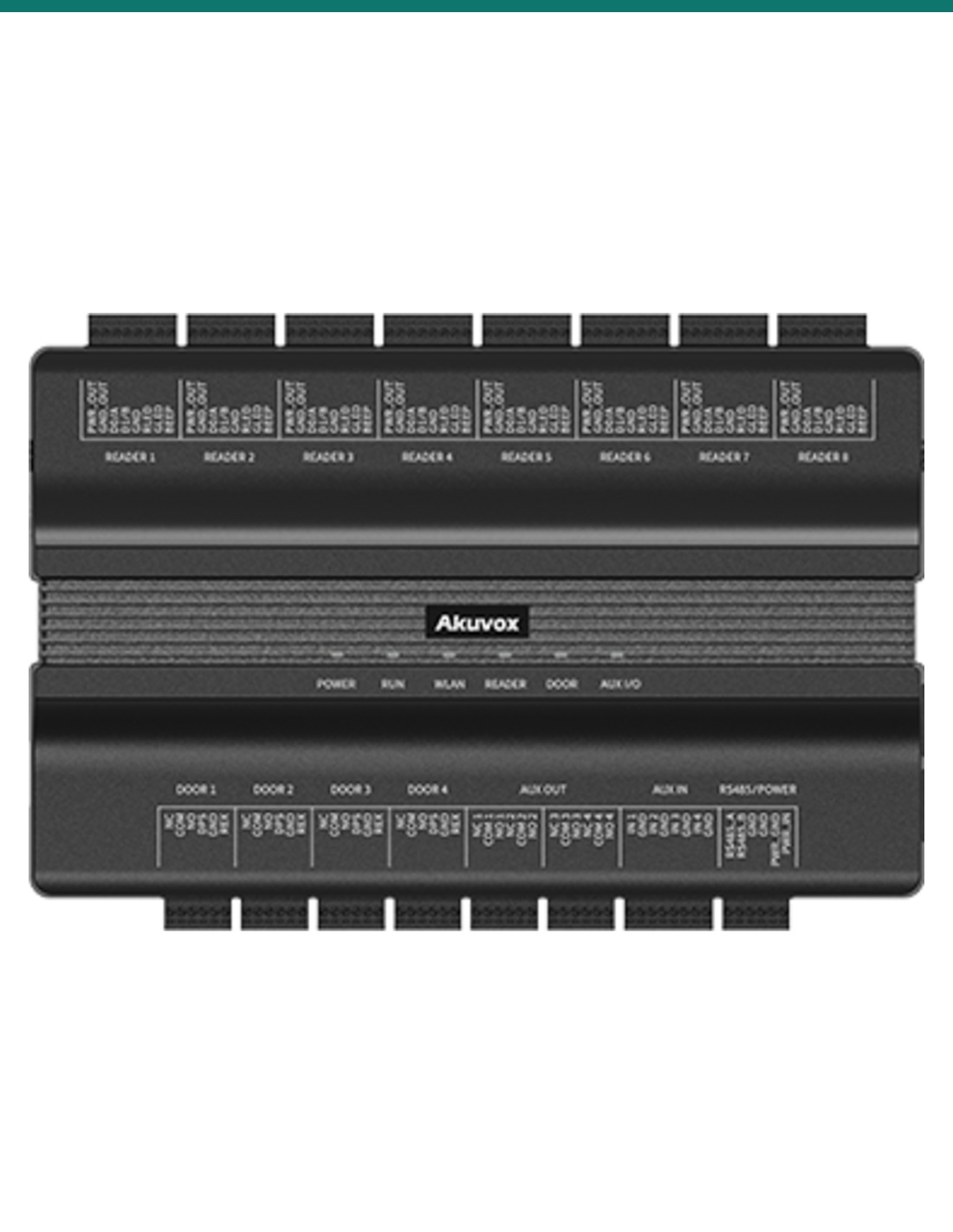

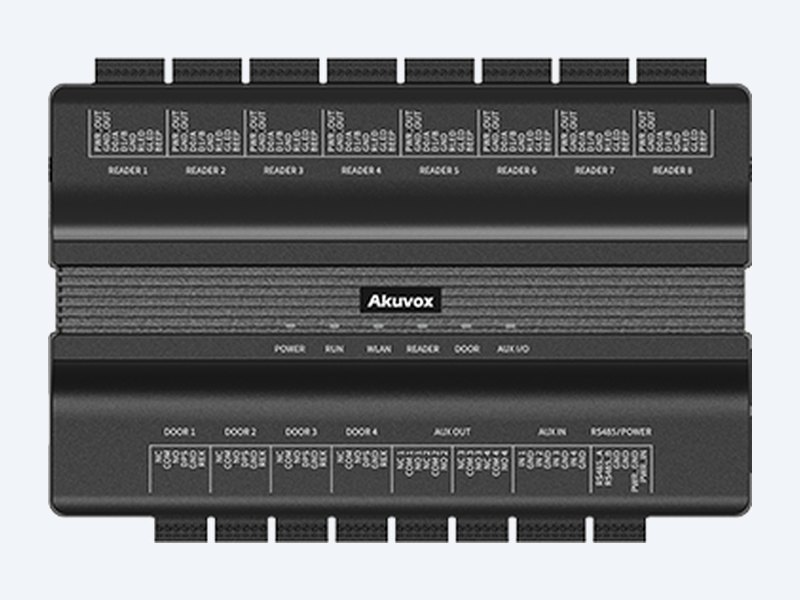

Akuvox A095S access controller front view

Readers

An entry and an exit reader per door.

Eight ports accept Wiegand 26, 34 and 58-bit readers or RS485 readers using OSDP v2 — one on each side of four doors.

Eight power outputs, 500 mA maximum each, feed the readers directly, and Akuvox states they still work when the controller runs on PoE+.

Access logic

Anti-passback and interlock built in.

With readers on both sides, anti-passback stops a card being passed back to let a second person through. Multi-door interlock and first-person-in suit labs, plant rooms and shops.

It holds 100,000 users and PINs, 500,000 cards and 200,000 access logs. Its inputs can take a fire alarm signal to release doors.

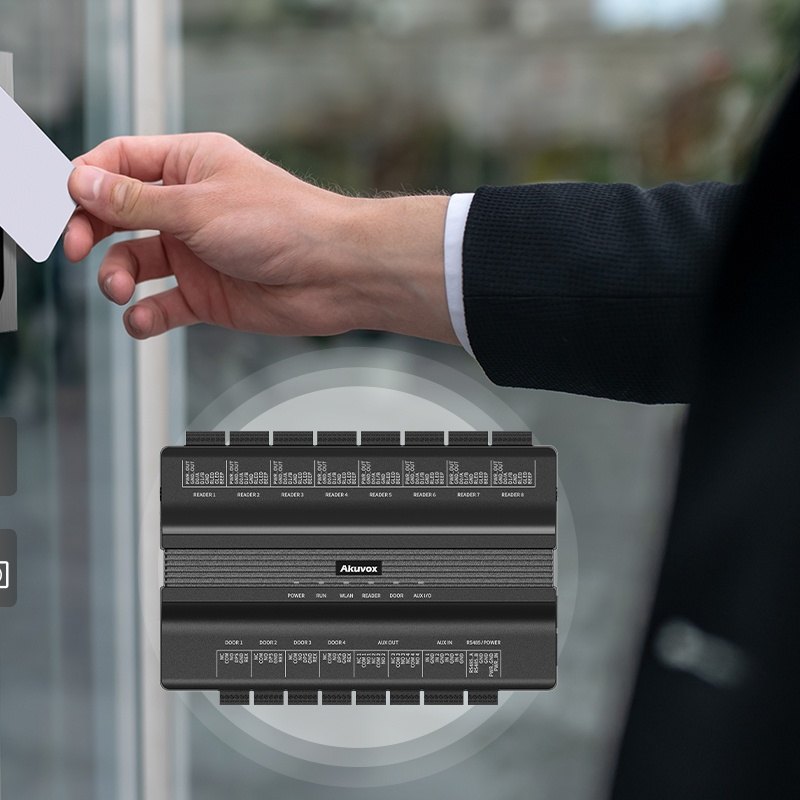

Card presented to an Akuvox reader connected to an A095S controller

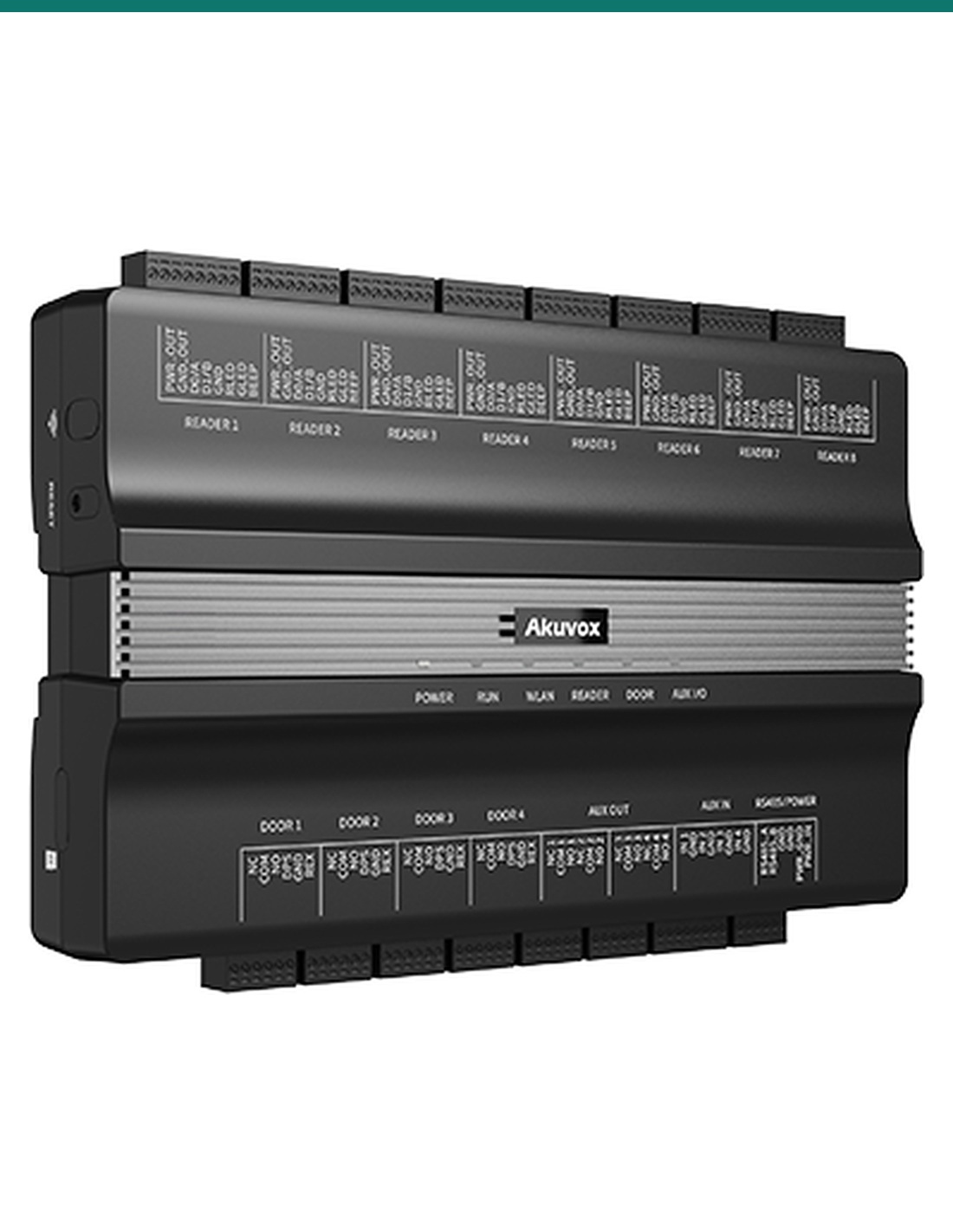

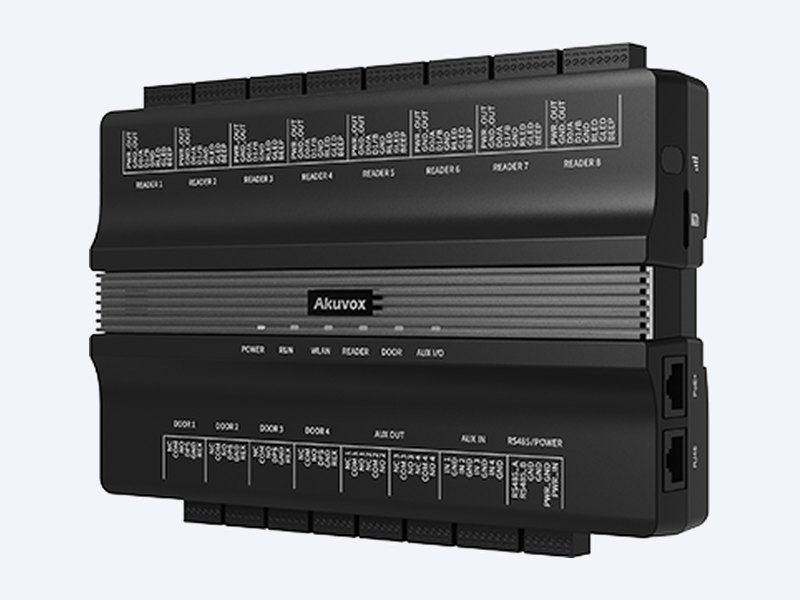

Akuvox A095S access controller three-quarter view

Install

PoE+, Wi-Fi 6 and DIN rail.

Power it from a single IEEE 802.3at PoE+ cable or 12 V DC 5 A. Two RJ45 ports, dual-band Wi-Fi 6 and a TF card slot are built in.

The 208 × 128.5 × 37 mm plastic housing mounts on a wall or a DIN rail inside a comms cabinet.

How it works

From comms cupboard to four managed doors.

01

Mount

Fix the A095S to a wall or clip it to a DIN rail in a secure cabinet.

02

Wire

Connect PoE+ or 12 V DC, then wire entry and exit readers, relays, exit buttons and door contacts.

03

Configure

Set doors, schedules, anti-passback and interlock in the web portal, Akuvox Cloud or ACMS.

04

Commission

Test each reader in both directions, the exit buttons and the door sensors, then check the logs.

Pair it with

Builds a complete 4-door system

Reader

Akuvox CRP11 keypad reader

A low-cost Wiegand card and keypad reader for entry or exit.

Reader

Akuvox A01, A02 or A08

Akuvox terminals in reader mode connect over Wiegand or OSDP.

Exit

Akuvox exit buttons

Press or touch-free exit buttons wire to the inputs.

Lock

Electric strike or maglock

Relays switch your lock supply. Locks and lock PSUs are separate items.

Works with

Platforms and integrations

Akuvox Cloud

Manage users, schedules and door events for every connected door from Akuvox Cloud.

Akuvox ACMS

Build larger multi-controller sites in the Akuvox Access Control Management System.

Third-party Wiegand readers

Existing 26, 34 and 58-bit Wiegand readers on site can be reused at the doors.

OSDP readers

RS485 readers using OSDP or OSDP v2 connect for supervised, encrypted reader links — including Akuvox A01, A02 and A08 terminals in reader mode.

Watch

See it in action

A095 wiring and setup tutorial

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

How many doors and readers does it support?

Four doors with an entry and an exit reader each — eight Wiegand / RS485 reader ports, eight relays and 12 inputs.

Can it run from PoE?

Yes, from a single IEEE 802.3at PoE+ cable, or from a 12 V DC 5 A supply.

Which reader protocols are supported?

Wiegand 26, 34 and 58-bit, and RS485 readers using OSDP or OSDP v2.

How many users and cards does it hold?

100,000 users and 100,000 PINs, 500,000 cards and 200,000 access log entries.

Does it need a network cable?

It has two RJ45 ports, and dual-band Wi-Fi 6 (2.4 and 5 GHz) is built in for sites where a data cable is hard to run. LTE is only on the A095S-L version.

Can it go on a DIN rail?

Yes. It mounts on a wall or a DIN rail inside a comms cabinet.

What comes in the box?

The controller, a Wi-Fi antenna and connector, pluggable terminal blocks, a diode, a terminal removal tool and a small flat-head screwdriver.

How is it different from the A094S?

The A095S is a compact PoE+ / 12 V unit with eight reader ports and Wi-Fi 6. The A094S is a steel cabinet with a mains supply, four Wiegand and four RS485 ports.

A compact 4-door controller.

Choose the A095S when you want entry and exit readers on every door and a single PoE+ cable to the controller. For a mains-powered steel-cabinet controller, see the A094S.

Installation & safety notice

Low-voltage product (SELV). Power from a 12 V DC 5 A supply or IEEE 802.3at PoE+. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Reader Ports
8 Wiegand / RS485 (OSDP / OSDP v2)
Power
12 V DC 5 A or PoE+ 802.3at
Colour
Black
Capacity
100,000 users, 500,000 cards, 100,000 PINs, 200,000 logs
Working Temperature
−10 °C to +55 °C
Brand
Akuvox
Storage
TF card slot
Mounting
Wall or DIN rail
Network
2 × RJ45, Wi-Fi 6 (2.4 / 5 GHz)
Size
208 × 128.5 × 37 mm
Warranty
Australian warranty
Product Type
4-door IP access controller
Model
A095S
Finish
Plastic housing
Relay Outputs
8
Inputs
12
OS
Linux
Doors
4 (entry and exit readers)
Power Outputs
8
Functions
Anti-passback, multi-door interlock, first person in

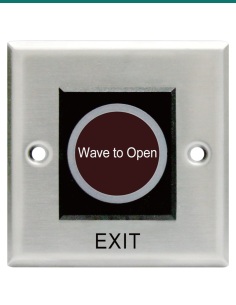

Akuvox EB13 silver stainless touch-free infrared exit button
