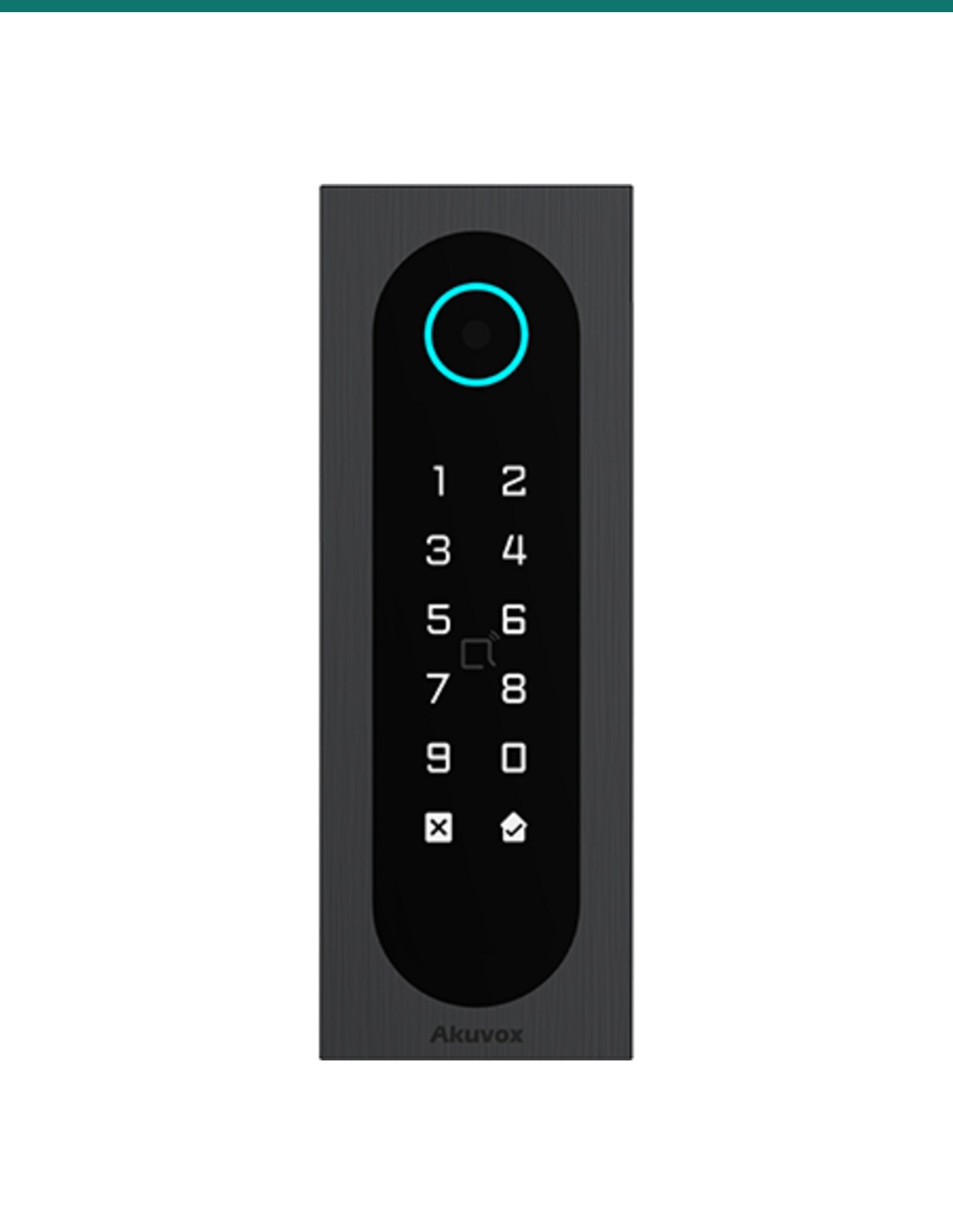

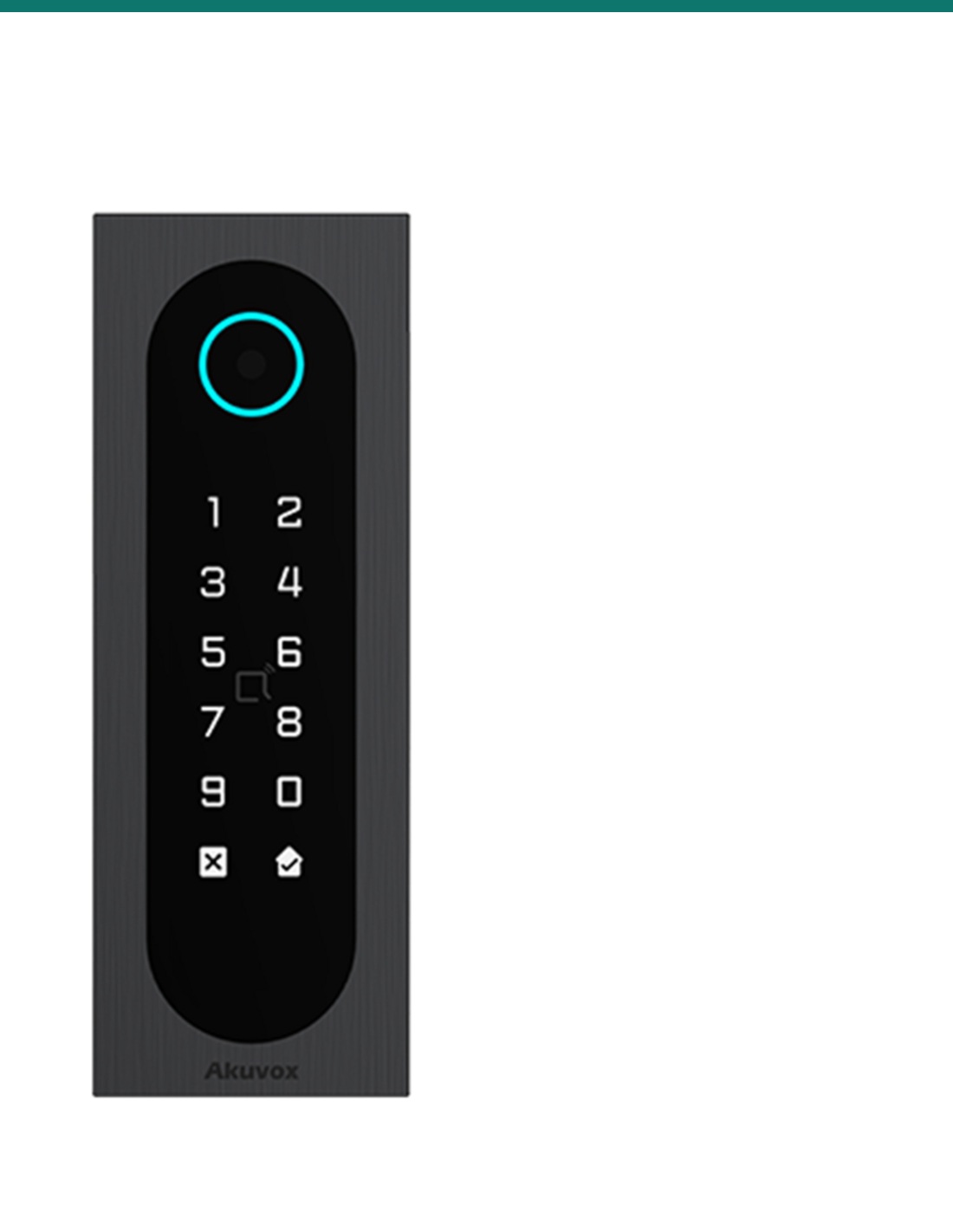

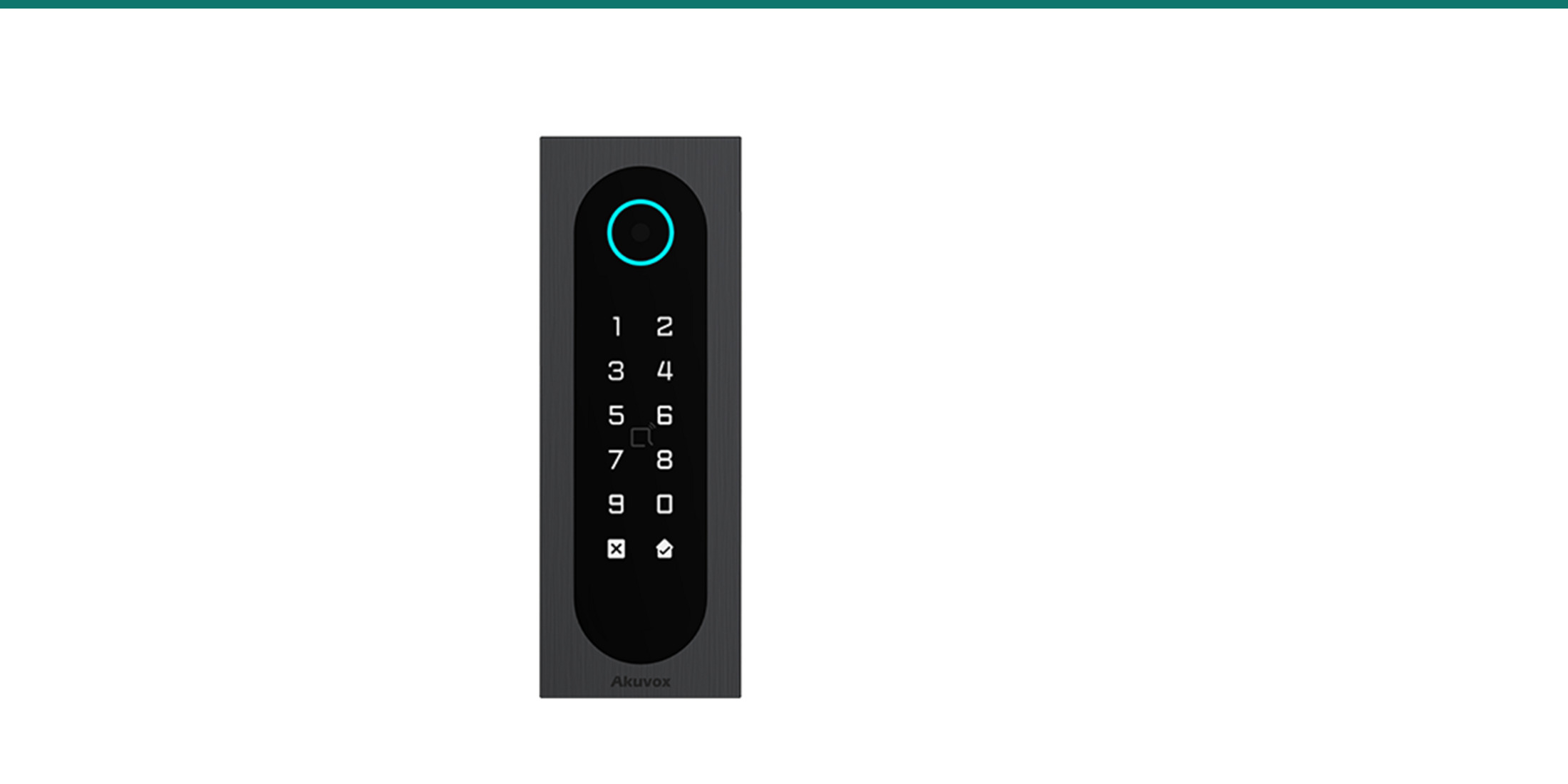

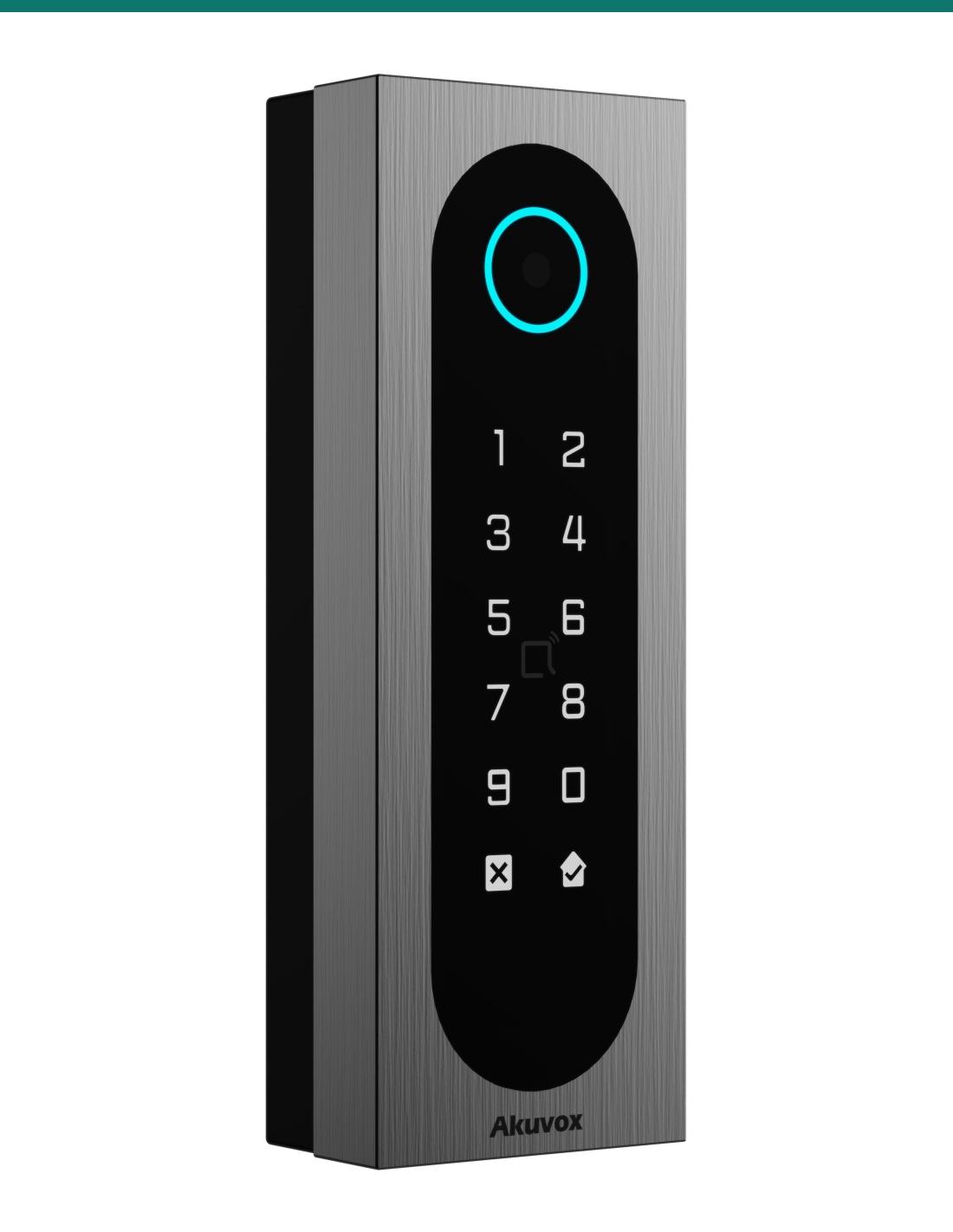

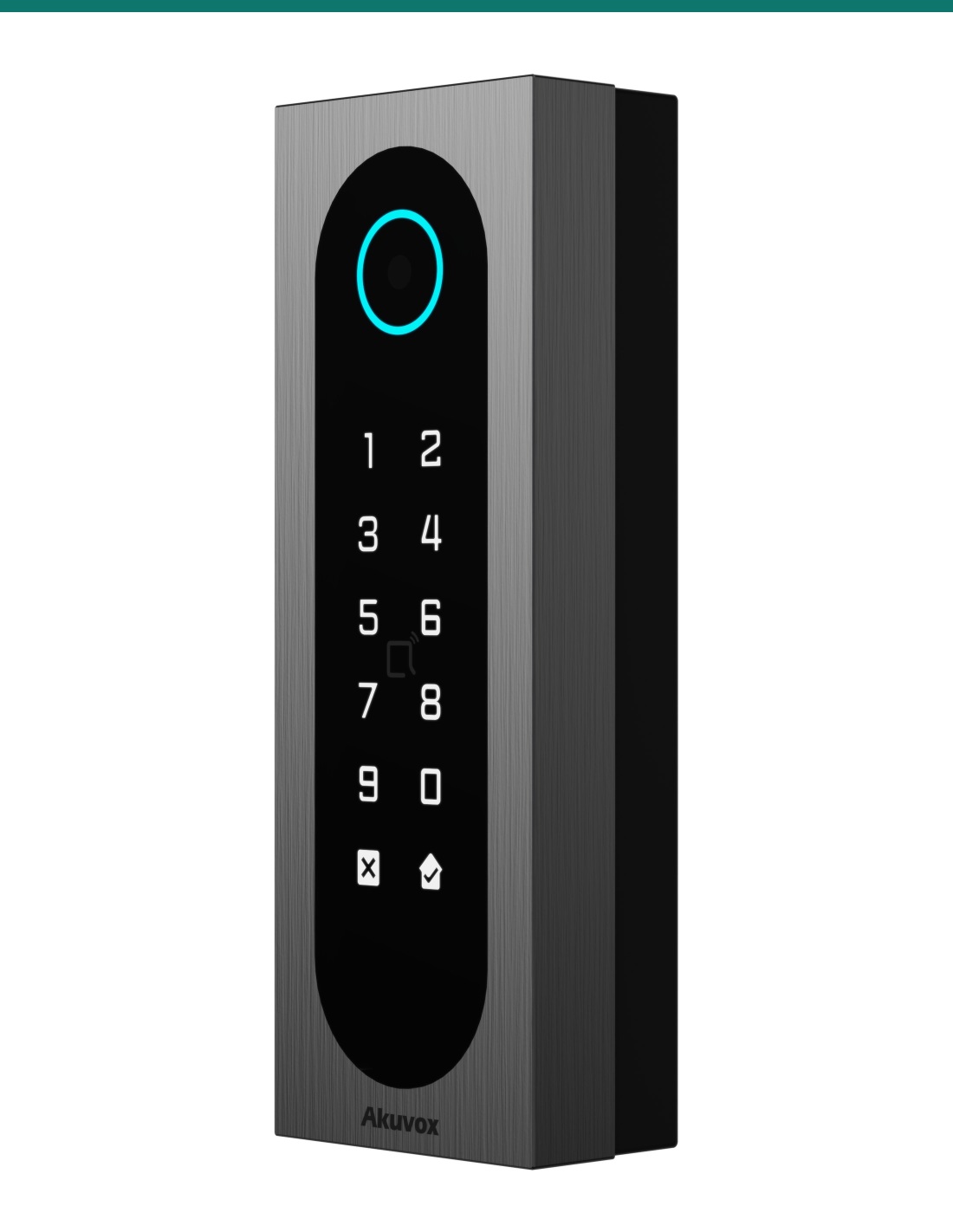

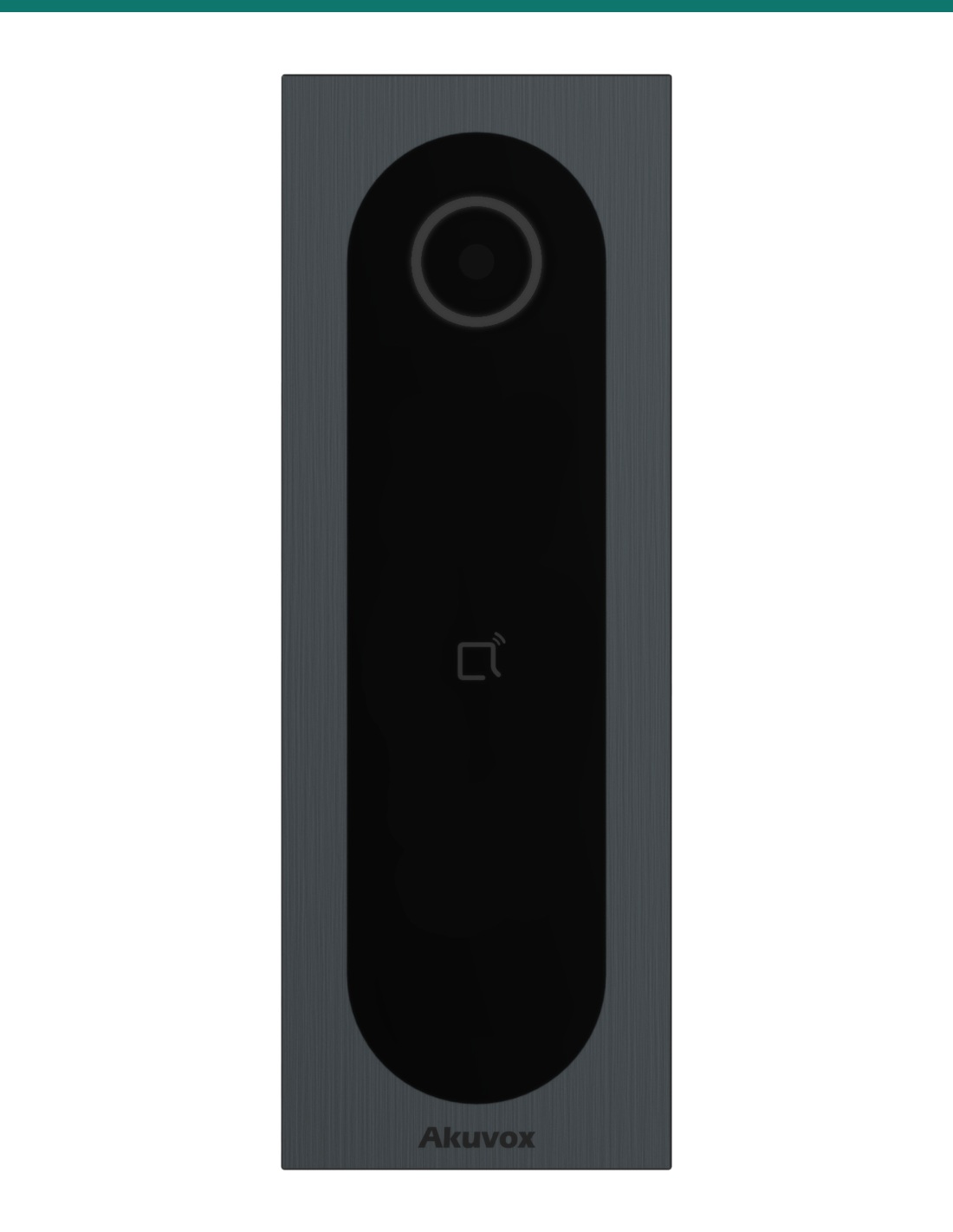

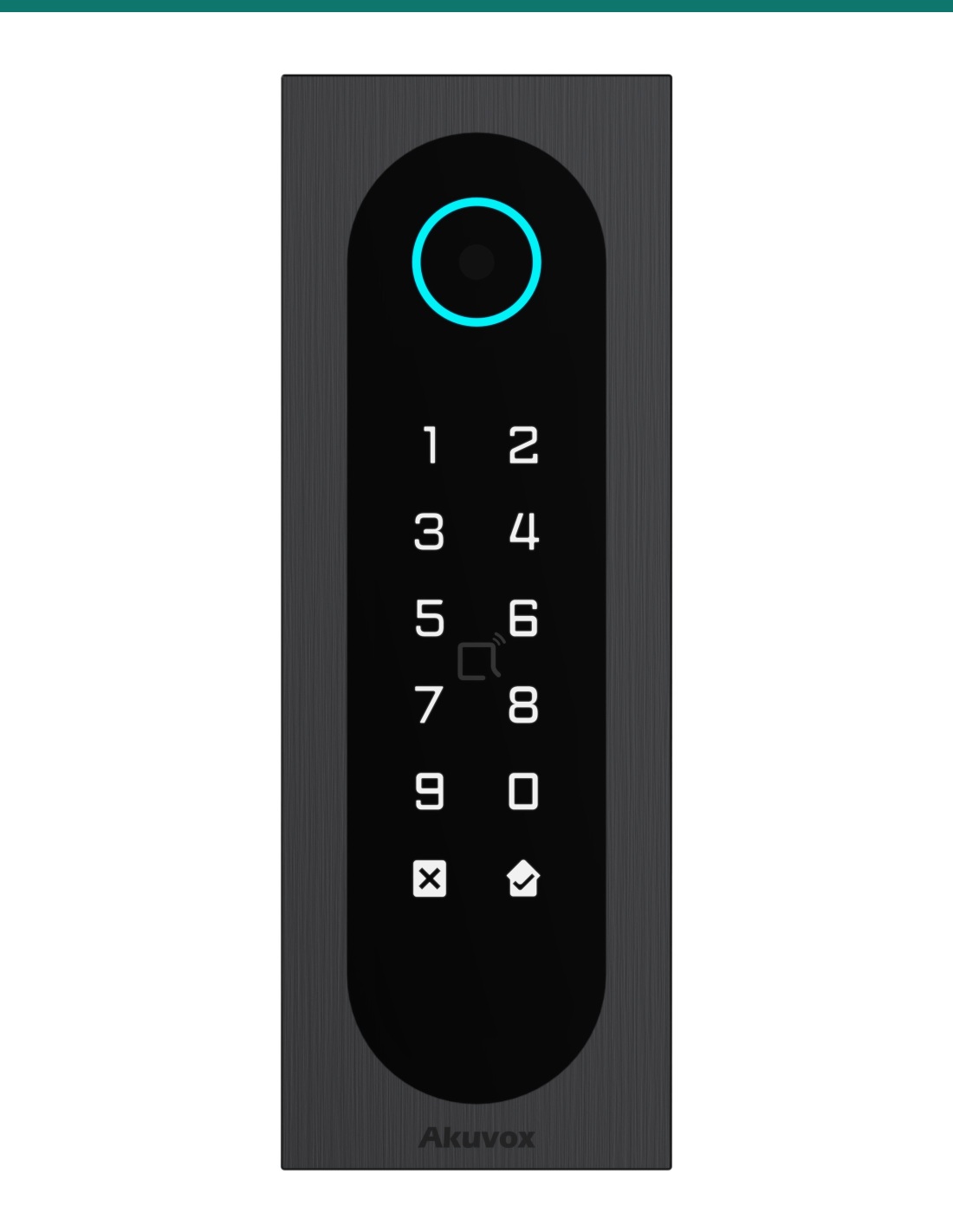

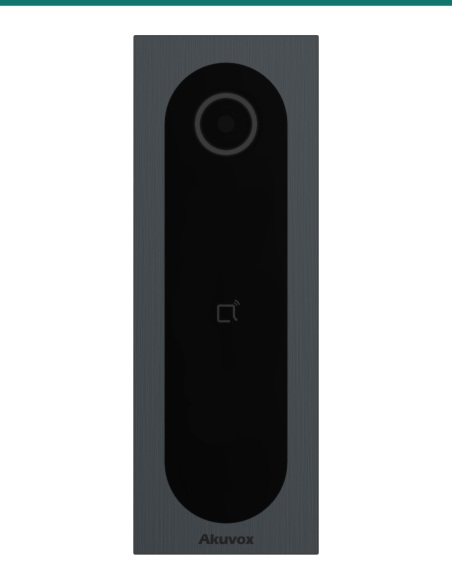

Akuvox A08S HID iCLASS Slim Keypad and Bluetooth Access Control Terminal — AK-A08HI

SKU AK-A08HI In Stock - Ready to Ship
$478.00 inc GST

Akuvox A08S HID iCLASS is the slim 50 mm-wide A08 access terminal with an HID reader module. It reads HID iCLASS and SEOS plus ISO14443A/B and ISO15693 cards, and adds a touch keypad, QR scanner and Bluetooth 5.0. Built-in relay, Wiegand, RS485 and OSDP. IP65, IK09, PoE.

  • ✓Reads HID iCLASS and HID SEOS, plus ISO14443A/B and ISO15693 cards
  • ✓Touch keypad, QR scanner and Bluetooth 5.0 in the same slim unit
  • ✓Built-in door controller with Wiegand, RS485 and OSDP
  • ✓PoE 802.3af or 12 V DC · IP65 · IK09 · 140 × 50 × 26.7 mm


Akuvox · A08S · HID iCLASS version

Keep your HID cards. Upgrade the reader.
iCLASS and SEOS in a slim A08.

The AK-A08HI is the HID iCLASS version of Akuvox’s A08S. The body, keypad, QR scanner and Bluetooth are the same as the standard A08S, but the card reader is an HID module — so sites already issuing HID iCLASS or SEOS cards can move to a networked Akuvox door without reissuing credentials.

This SKU is the access terminal only.

You receive the A08S HID iCLASS terminal. The in-wall box, HID cards, Bkey fobs, exit button, lock and lock power supply are sold separately.

In the box
  • Akuvox A08S HID iCLASS access terminal
  • Mounting hardware
  • Quick-start guide
What you also need (sold separately)
  • PoE 802.3af switch or injector (or a 12 V DC supply)
  • HID iCLASS or SEOS cards
  • Electric strike or maglock with its own power supply
  • A08 in-wall box for flush mounting

Secure HID credentials on a modern IP door.

HID iCLASS and SEOS cards keep working, and the same reader adds PINs, QR codes for visitors and Bluetooth phone access. Manage it alone, in Akuvox Cloud, or as an OSDP reader on your existing controller.

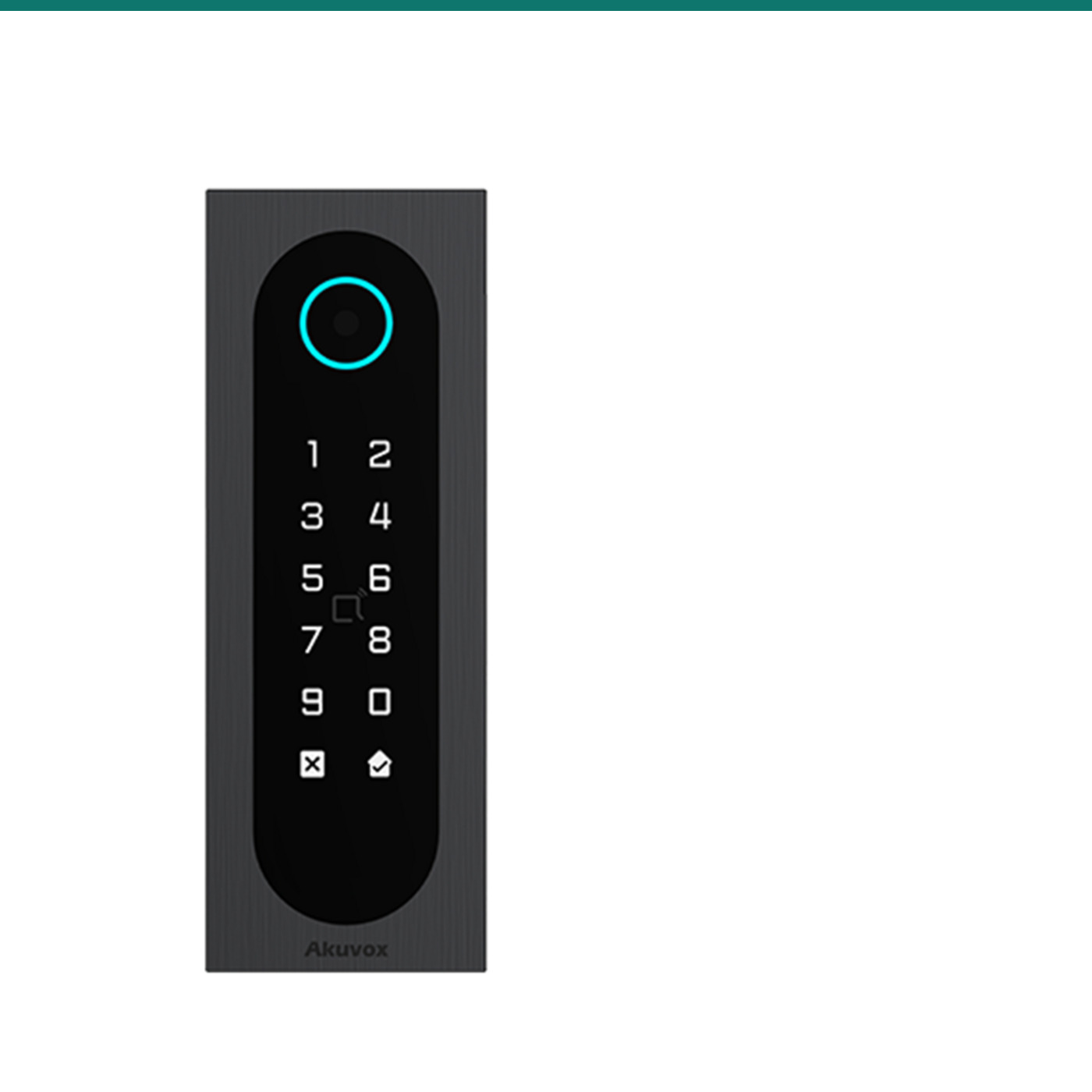

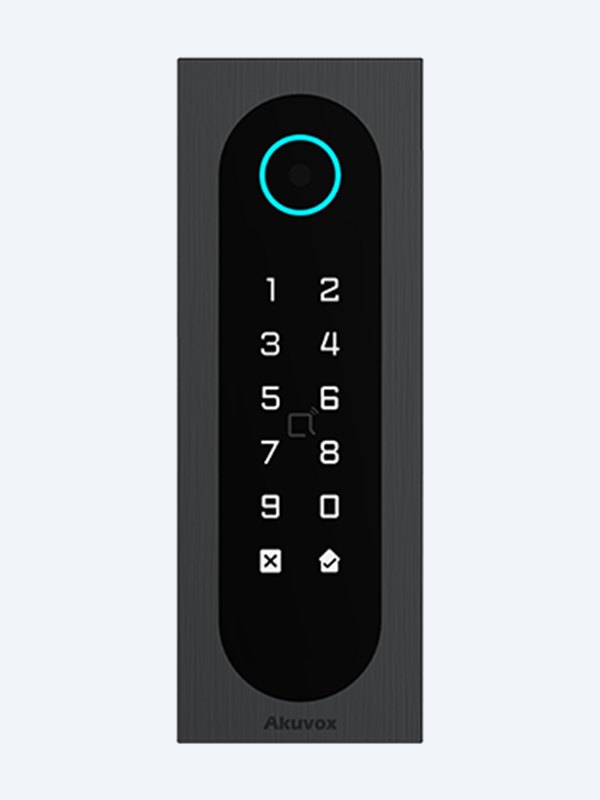

Akuvox A08S HID iCLASS version front view

HID reader

iCLASS, SEOS and ISO cards.

The 13.56 MHz HID module reads HID iCLASS and HID SEOS as well as ISO14443A, ISO14443B and ISO15693 cards.

This version does not read 125 kHz proximity cards. Pair it with HID cards rather than 125 kHz fobs.

More ways in

Keypad, QR and Bluetooth too.

The touch keypad stores 20,000 PINs, the scanner reads QR codes for visitors, and Bluetooth 5.0 supports phones and Akuvox Bkey fobs.

It holds 20,000 users, 100,000 cards and 100,000 access log entries, managed in the web portal, Akuvox Cloud, SDMC or ACMS.

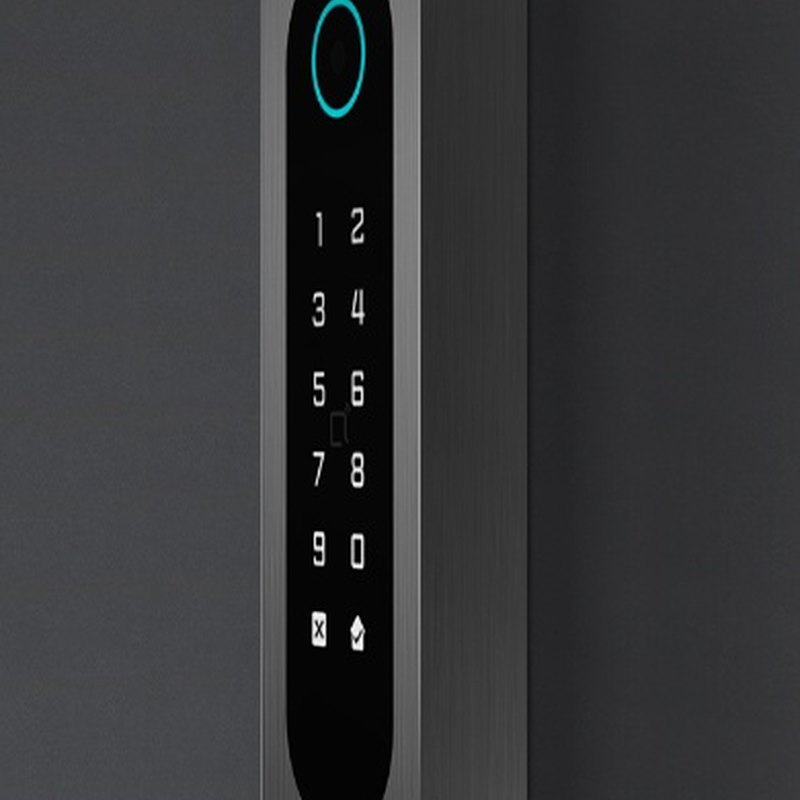

Akuvox A08S HID iCLASS surface-mounted on a wall

Integration

Runs a door or feeds a controller.

One relay, two inputs, a tamper alarm and a 12 V 600 mA output control a door on their own.

Wiegand, RS485 and OSDP connect it as a reader to an Akuvox A094S or a third-party panel. IP65, IK09, flush or surface mounting.

How it works

From HID cards to a managed door.

01

Mount

Flush-mount in the A08 in-wall box, or surface-mount on a frame or mullion.

02

Wire

Run PoE to the RJ45 and wire the relay and inputs, or connect Wiegand / OSDP to your controller.

03

Enrol HID cards

Enrol iCLASS or SEOS cards, PINs and phones in the web portal, Akuvox Cloud or ACMS.

04

Test

Present each card type, try a PIN, a QR code and Bluetooth, and check the log.

Pair it with

Builds a complete HID-ready door

Flush

A08 in-wall box

Recesses the slim reader almost flush with the wall.

Credentials

Akuvox HID iCLASS card

HID iCLASS cards for new users on the site.

Bluetooth

Akuvox Bkey fob

Hands-free Bluetooth credential, no phone needed.

Scale up

A094S 4-door controller

Use the A08S as an OSDP or Wiegand reader on a central controller.

Works with

Platforms and integrations

Akuvox Cloud

Manage users, credentials and entry logs remotely through Akuvox Cloud management.

Akuvox SDMC and ACMS

Run the terminal from Akuvox’s on-premise device management and access control management software.

OSDP and Wiegand controllers

In reader mode it connects to an Akuvox A094S / A095S or a third-party panel over OSDP (RS485) or Wiegand.

Watch

See it in action

Akuvox A08 access control terminal overview
Unlocking the A08 with PIN and QR code

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which cards does it read?

13.56 MHz HID iCLASS and HID SEOS, plus ISO14443A, ISO14443B and ISO15693 cards.

Does it read 125 kHz HID Prox cards?

No. This version is 13.56 MHz only. Akuvox makes a separate A08S HID Prox version for 125 kHz cards.

Can visitors get in without an HID card?

Yes. The built-in scanner reads QR codes, users can key in a PIN, and enrolled phones and Akuvox Bkey fobs unlock over Bluetooth 5.0.

How is it different from the standard A08S?

Same body, keypad, QR scanner, Bluetooth and controller. The standard A08S reads 13.56 MHz and 125 kHz cards with NFC; this version swaps in an HID iCLASS / SEOS reader.

Can it connect to a third-party controller?

Yes. In reader mode it talks to a controller over Wiegand or OSDP on RS485, so an existing HID-based system can keep its panel.

How many users does it hold?

20,000 users and 20,000 PINs, with 100,000 cards and 100,000 access log entries.

How is it powered?

From IEEE 802.3af PoE or a 12 V DC supply. It also has a 12 V 600 mA output.

HID-ready slim reader.

Choose this version when the site already runs HID iCLASS or SEOS. For 125 kHz and general 13.56 MHz cards with NFC, choose the standard A08S (AK-A08).

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE or a 12 V DC supply. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Power
PoE 802.3af or 12 V DC
Colour
Black glass, dark grey frame
Capacity
20,000 users, 100,000 cards, 20,000 PINs, 100,000 logs
Power Output
12 V, 600 mA
Working Temperature
−20 °C to +55 °C
Brand
Akuvox
Bluetooth
BLE 5.0
Management
Web portal, Akuvox Cloud, SDMC, ACMS
Protection
IP65, IK09
Size
140 × 50 × 26.7 mm (H × W × D)
Warranty
Australian warranty
Product Type
Slim IP access control terminal with HID reader
Model
A08S HID iCLASS version
Finish
Toughened glass touch keypad, aluminium frame
Relay Outputs
1
Inputs
2
RF Reader
13.56 MHz: ISO14443A/B, ISO15693, HID iCLASS, HID SEOS
Unlock
HID iCLASS / SEOS card, PIN, QR code, Bluetooth
Interfaces
Wiegand in/out, RS485, OSDP
Speaker
8 Ω / 0.5 W
Akuvox EB11 silver stainless press-to-exit button with blue LED
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox EB11 Silver Stainless Steel Press-to-Exit Button with Blue LED — AK-EB11-SILVER

Akuvox
AK-EB11-SILVER
$ 25.00
Akuvox EB11 is a brushed stainless steel exit button with a vandal-resistant push button and blue LED ring. Clear “PRESS TO EXIT” wording, IK10 impact rating and a tall 115 × 70 mm plate for single-gang wall boxes.✓Vandal-resistant mechanical push button with blue LED✓Brushed 1.7 mm stainless steel plate, “PRESS TO EXIT” print✓IK10...
Akuvox F08 white MIFARE 1K key fob — front Akuvox F08 white MIFARE 1K key fob — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox F08 White 13.56 MHz MIFARE 1K Key Fob — AK-FOB-F08

Akuvox
AK-FOB-F08
$ 1.40
Akuvox F08 is a white teardrop key fob with a 13.56 MHz MIFARE 1K-compatible chip. Clip it on a key ring and tap it on an Akuvox door phone or access terminal. Sold as a single fob.✓Fudan F08 chip, MIFARE Classic 1K compatible, 13.56 MHz✓ISO 14443A · 1K EEPROM · 100,000 write cycles✓White PVC teardrop with key-ring hole, 40.9 × 32.5 ×...
Akuvox S50 black MIFARE Classic 1K card — front Akuvox S50 black MIFARE Classic 1K card — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox S50 Black 13.56 MHz MIFARE Classic 1K ISO Card — AK-CARD-S50

Akuvox
AK-CARD-S50
$ 6.20
Akuvox S50 is a 13.56 MHz MIFARE Classic 1K card in standard ISO card size, slot-punched for a lanyard. It is Akuvox’s everyday card for its door phones and access terminals. Sold as a single card.✓MIFARE Classic 1K (S50), 13.56 MHz, ISO 14443A✓Reads on Akuvox door phones and access terminals with 13.56 MHz readers✓Slot-punched PVC...
Akuvox Bkey Bluetooth key fob — front Akuvox Bkey Bluetooth key fob — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox Bkey Black Bluetooth Door-Opening Key Fob — AK-BKEY

Akuvox
AK-BKEY
$ 19.50
Akuvox Bkey is a Bluetooth key fob with one button. Press it as you approach and a compatible Akuvox door phone or access terminal unlocks — up to 15 m away on long-range models. Encrypted BLE, a CR2032 battery and a key-ring loop. Sold as one fob.✓Press-to-open over encrypted Bluetooth Low Energy✓Akuvox-tested range up to 15 m (R29C, X915...

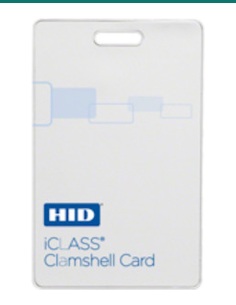

HID iCLASS white 13.56 MHz clamshell card for Akuvox
