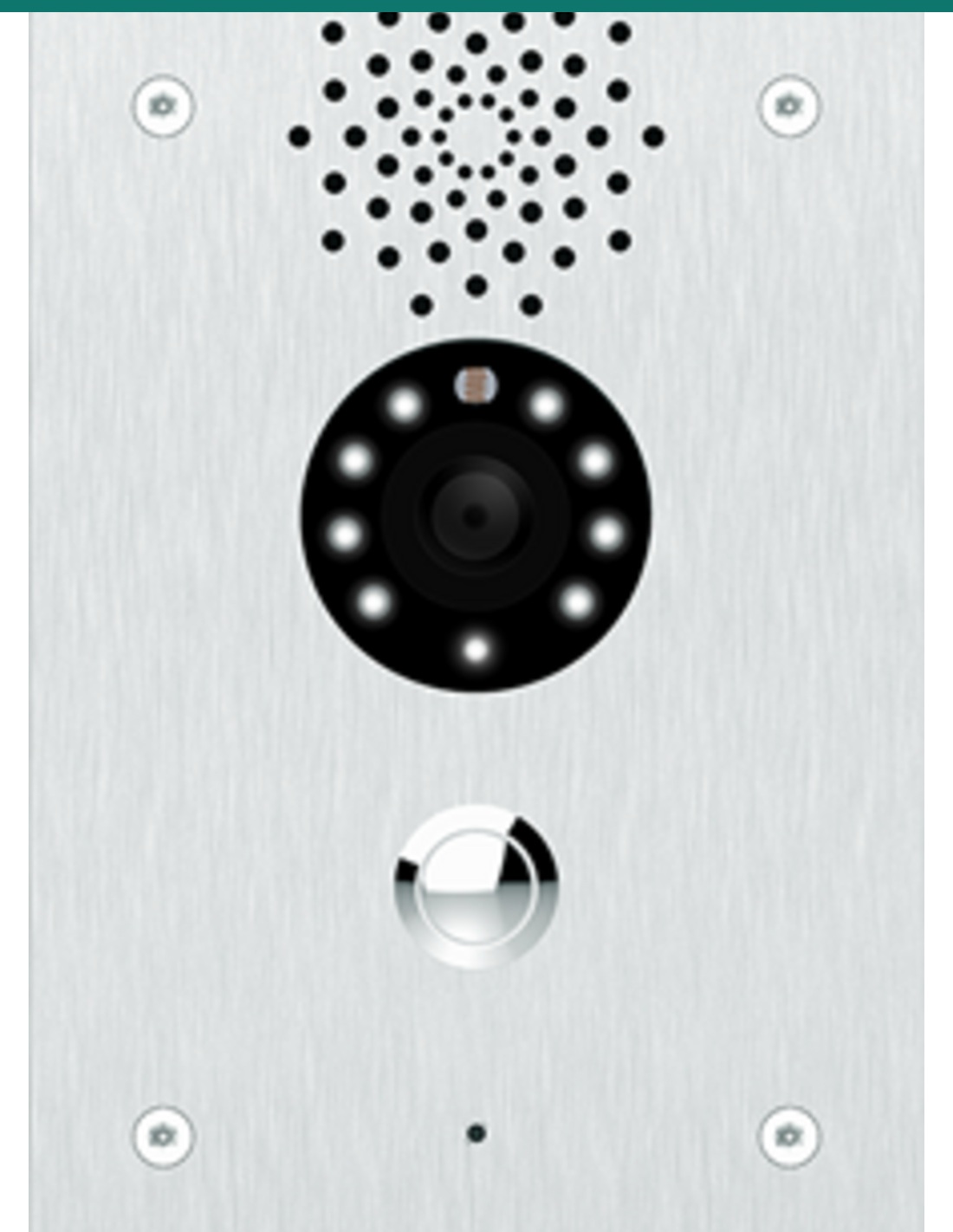

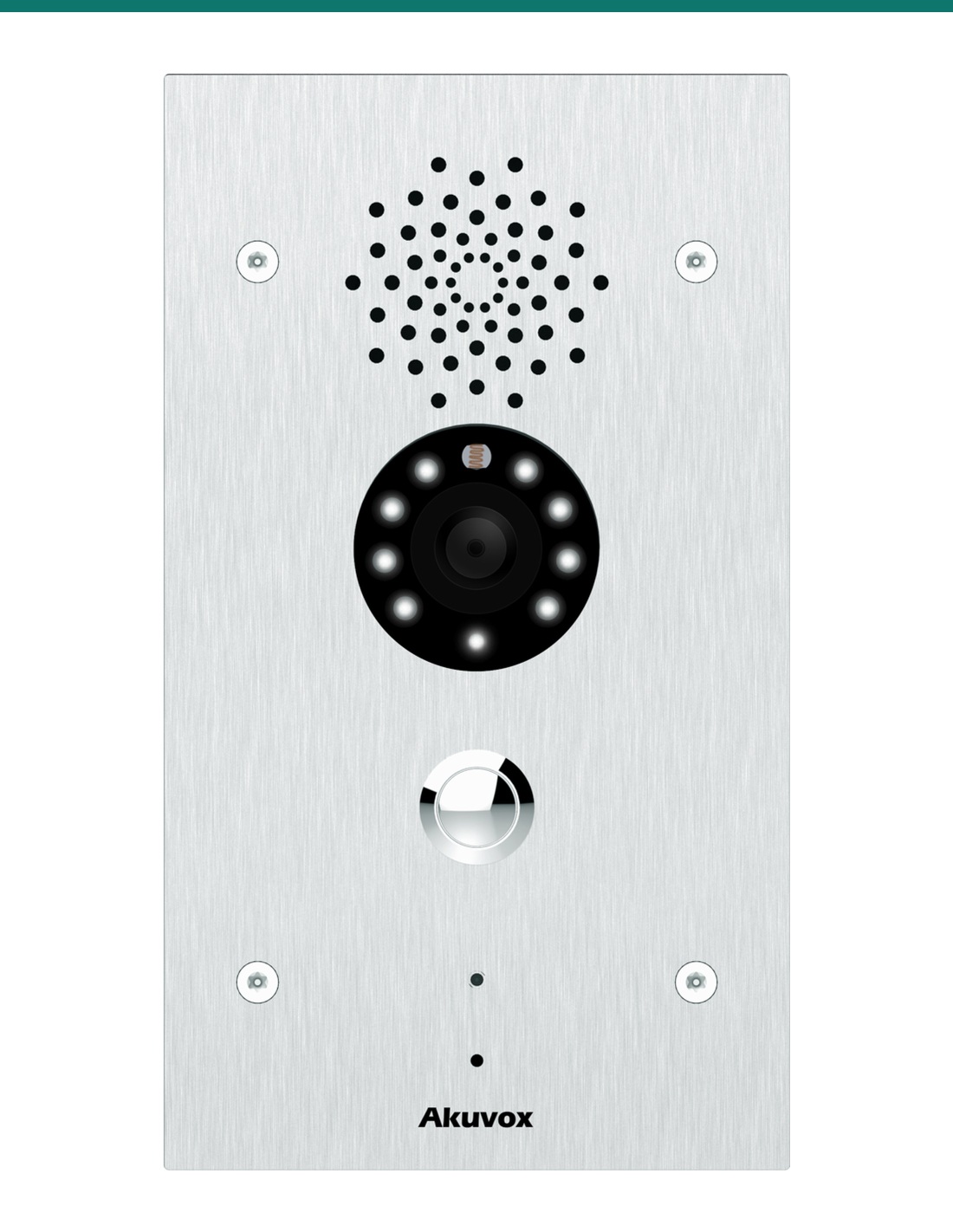

Akuvox E21V stainless steel video emergency intercom — front

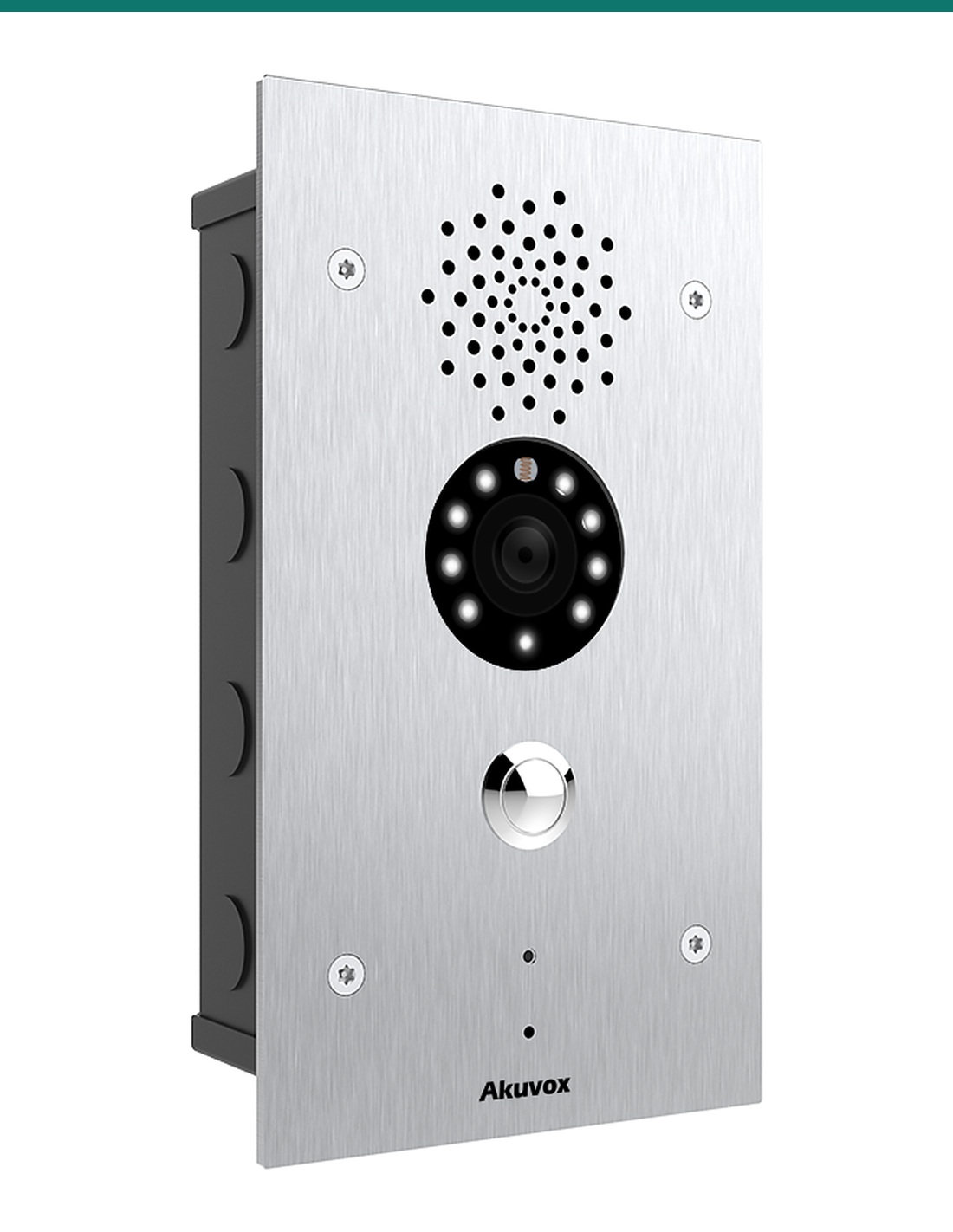

Akuvox E21V video emergency intercom — left three-quarter view

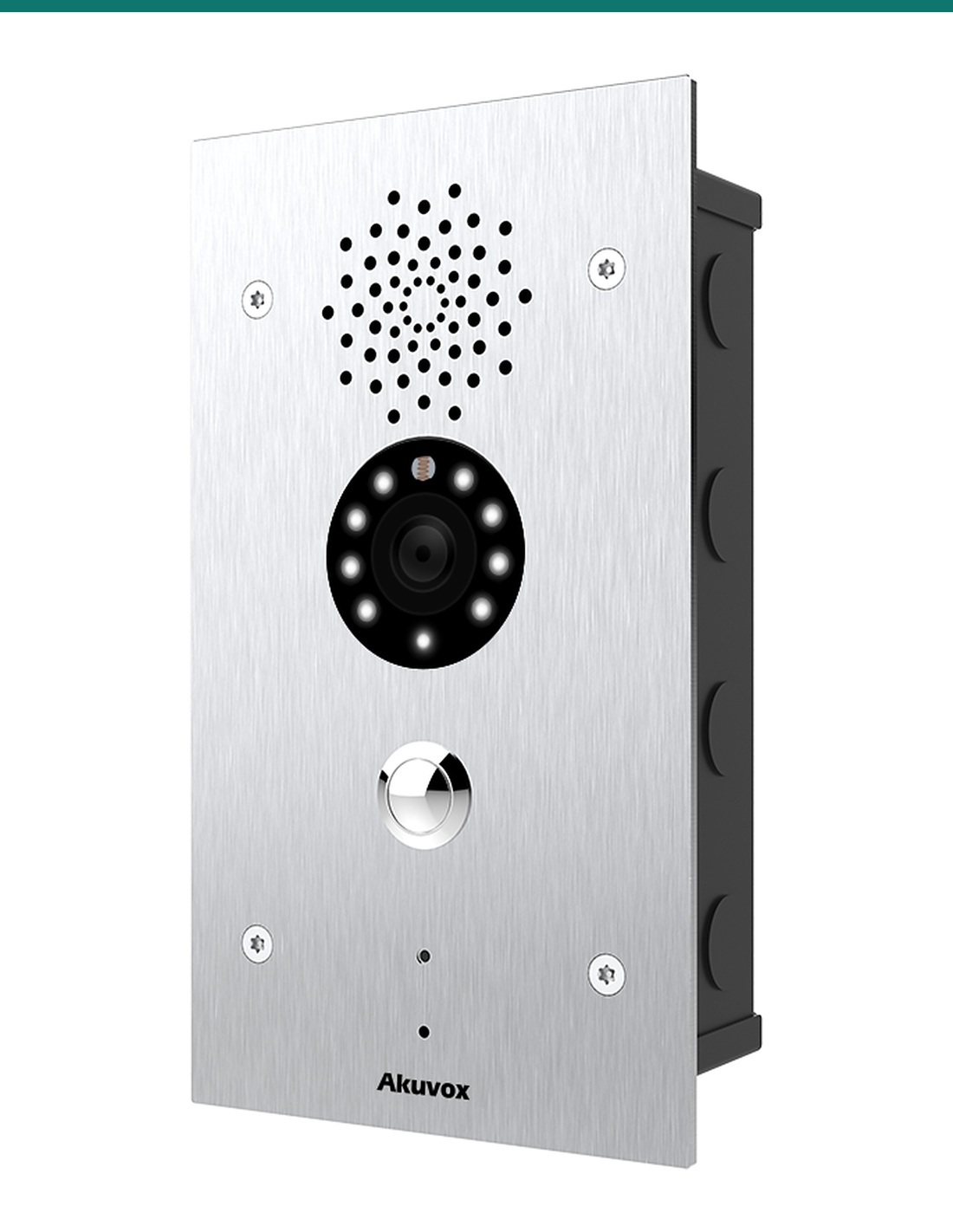

Akuvox E21V video emergency intercom — right three-quarter view

Akuvox E21V Vandal-Resistant 2MP SIP Video Emergency Intercom — AK-E21V

Name: Akuvox E21V Vandal-Resistant 2MP SIP Video Emergency Intercom — AK-E21V
Brand: Akuvox
SKU: AK-E21V
Price: 576.5 AUD
Availability: InStock

Reference: AK-E21V

In Stock - Ready to Ship

$ 576.50

inc-GST

or 4 interest-free payments of $144.12 with

Akuvox E21V is a vandal-resistant SIP emergency intercom with a 2 MP camera: one call button, hands-free audio, a 316-grade stainless steel front rated IP65 and IK10, and two relays. For car parks, campuses and gates. Stocked in Australia by Infront Technologies.

✓2 MP camera, 116° (H) / 60° (V), 1080p at 30 fps, IR night lighting and motion sensor
✓One call button, hands-free audio with echo cancellation, line out
✓316-grade stainless steel · IP65 · IK10 · 210 × 120 × 45.6 mm
✓2 relays, 2 inputs · PoE 802.3af or 12–24 V DC · SIP and ONVIF

Akuvox · E21V · Video emergency intercom

A help point that sees and hears.
2 MP video, IP65, IK10.

The AK-E21V is Akuvox’s E21V: the E21 vandal-resistant emergency intercom with a 2 MP camera. One press calls security hands-free, and the guard sees who is asking for help.

This SKU is the intercom station only.

You receive the E21V station. The E21 in-wall box or on-wall rain cover, PoE switch and the answering endpoint are sold separately.

In the box

Akuvox E21V emergency intercom
Quick-start guide

What you also need(sold separately)

E21 in-wall box (flush) or E21 on-wall rain cover (surface)
PoE 802.3af switch or injector (or 12–24 V DC)
SIP endpoint to answer: guard station, Akuvox indoor monitor or PBX

Press once. Security answers.

Car parks, campuses, medical centres, subways and industrial parks: wherever people need to call for help, the E21 gives them one big button and a clear voice line to the guard.

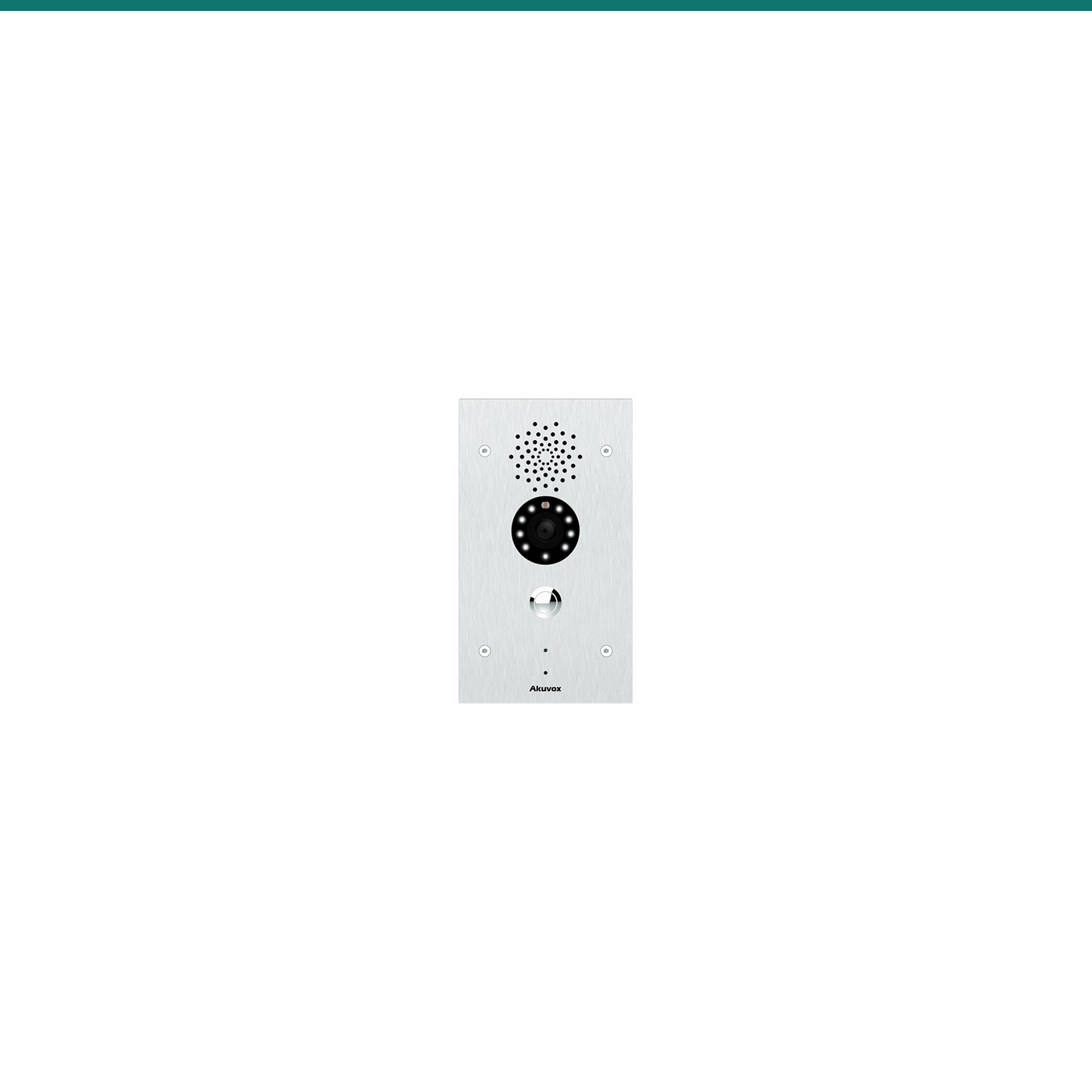

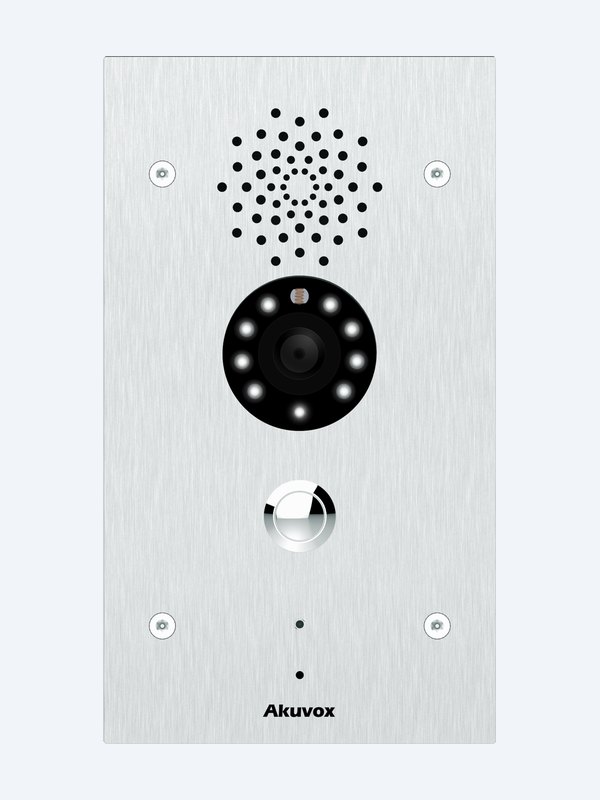

Akuvox E21V emergency intercom front view

Video

See who is calling for help.

A 2 MP 1/2.8″ camera covers 116° × 60° and streams H.264 up to 1920 × 1080 at 30 fps. IR LEDs and a light sensor keep the picture usable at night, down to 0.1 lux.

ONVIF and RTSP let you record the help point on your NVR. A motion sensor is built in.

Audio

Clear speech in noisy places.

Hands-free speaker and microphone with echo cancellation, voice activity detection and G.722 wideband audio carry a clear conversation in car parks and stations.

A line-out port is provided for external audio equipment, and calls go over SIP to any guard station, indoor monitor or PBX.

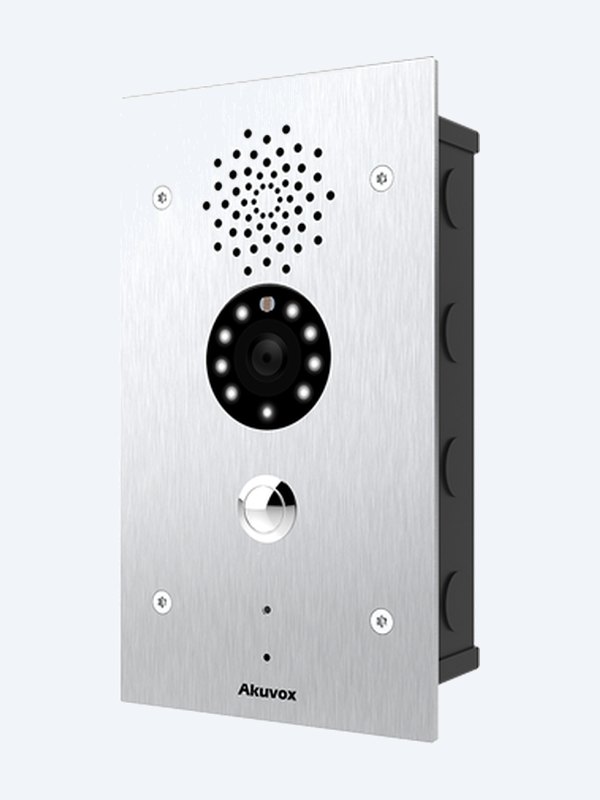

Akuvox E21V flush-mounted in its in-wall box

Install

Flush in its box, or on the wall.

210 × 120 × 45.6 mm, IP65 and IK10, −20 °C to +55 °C. Flush-mount with the E21 in-wall box, or surface-mount with the E21 on-wall rain cover.

Two relays (DTMF controlled) and two inputs open a gate or boom and take a door sensor. Power from 802.3af PoE or 12–24 V DC.

How it works

From wall to first call.

Mount

Set the E21 in-wall box for a flush finish, or fix the on-wall rain cover for surface mounting.

Power

Run Cat5e/Cat6 with 802.3af PoE to the RJ45, or land 12–24 V DC.

SIP

Test

Press the button, check audio and video, and confirm any relay opens the gate or boom.

At a glance

Key specs — AK-E21V

Brand: Akuvox
Reference: AK-E21V
Front panel: 316-grade stainless steel
Camera: 2 MP, 1/2.8″ CMOS
Field of view: 116° (H) / 60° (V)
Video: H.264, up to 1920 × 1080 at 30 fps
Night: IR LED, light sensor, 0.1 lux minimum
Motion sensor: Yes
Button: 1 call button
Audio: 1 microphone, 1 speaker, line out, echo cancellation
Codecs: SIP v1 / v2, G.711a, G.711μ, G.722
I/O: 2 relays, 2 inputs, DTMF relay control
Network: RJ45 10/100 Mbps, ONVIF, RTSP
Power: PoE 802.3af or 12–24 V DC
Protection: IP65 / IK10
Mounting: Flush (E21 in-wall box) or surface (E21 on-wall rain cover)
Size: 210 × 120 × 45.6 mm (H × W × D)
Working temperature: −20 °C to +55 °C
OS: Linux
Warranty: Australian warranty via Infront Technologies

Pair it with

Completes a help-point system

Flush

E21 in-wall box

Recesses the station into the wall.

Surface

E21 on-wall rain cover

Surface mount with a built-in rain hood.

Answer

Akuvox indoor monitor

A guard room monitor can answer E21 calls over SIP.

Watch

See it in action

Installing the E21 emergency intercom

Answers

Common questions

What is the difference between E21V and E21A?

Same 316 stainless IP65 / IK10 body, button, audio and relays. E21V adds a 2 MP camera with IR night lighting and a motion sensor; E21A is audio-only.

Can it be used outdoors?

Yes. The front is IP65 and IK10, rated −20 °C to +55 °C.

How is it powered?

IEEE 802.3af PoE, or a 12–24 V DC supply.

How is it mounted?

Flush with the E21 in-wall box, or on the surface with the E21 on-wall rain cover. Both are sold separately.

Can the guard open a gate?

Yes. The two relays can be triggered by DTMF tones from the answering phone during the call.

An outdoor help point, local stock.

Choose E21V when the guard needs to see the caller — or E21A when audio is enough. Order through Infront Technologies for Australian stock and SIP setup advice.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE or a 12–24 V DC supply as stated on the Akuvox E21V datasheet. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
