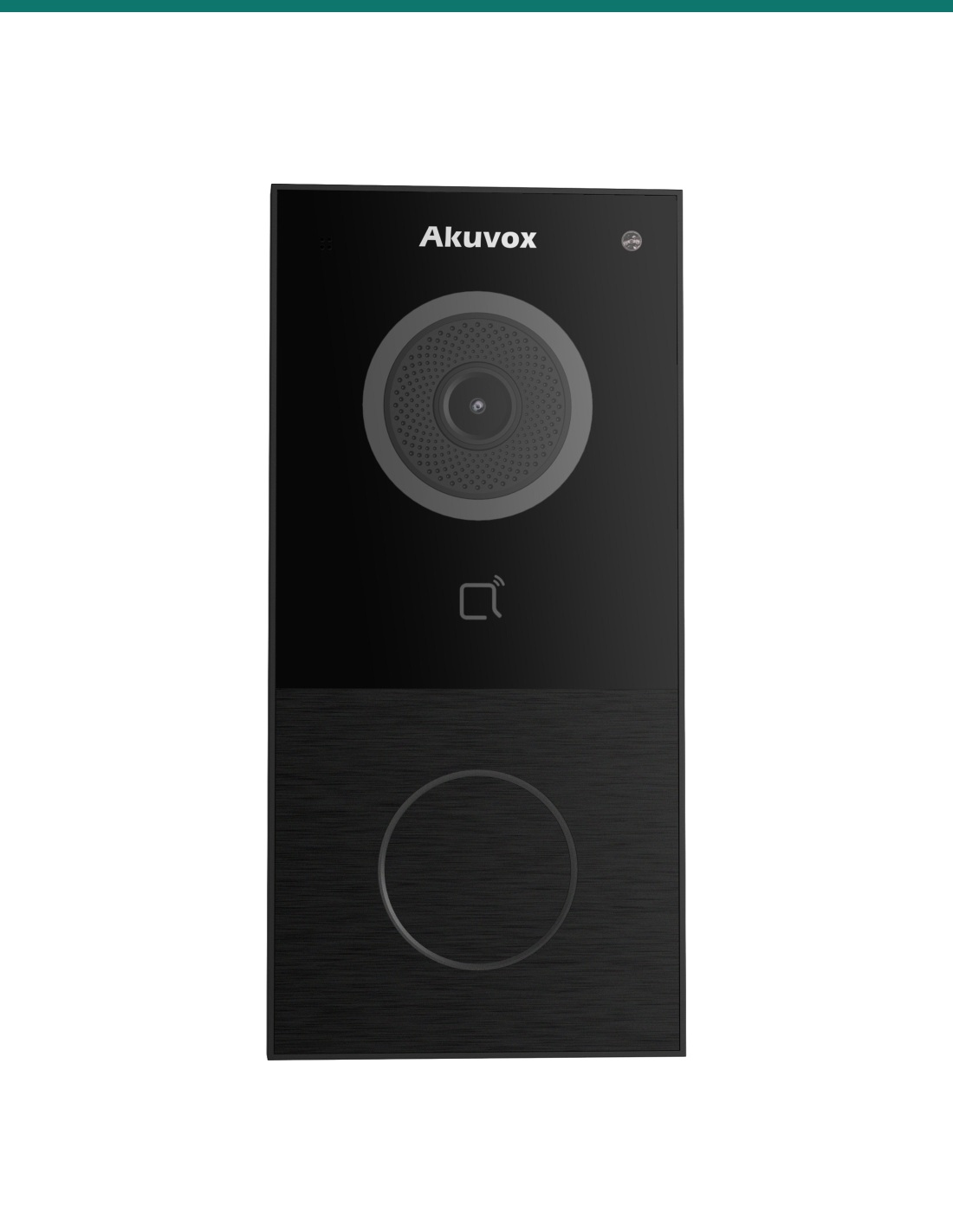

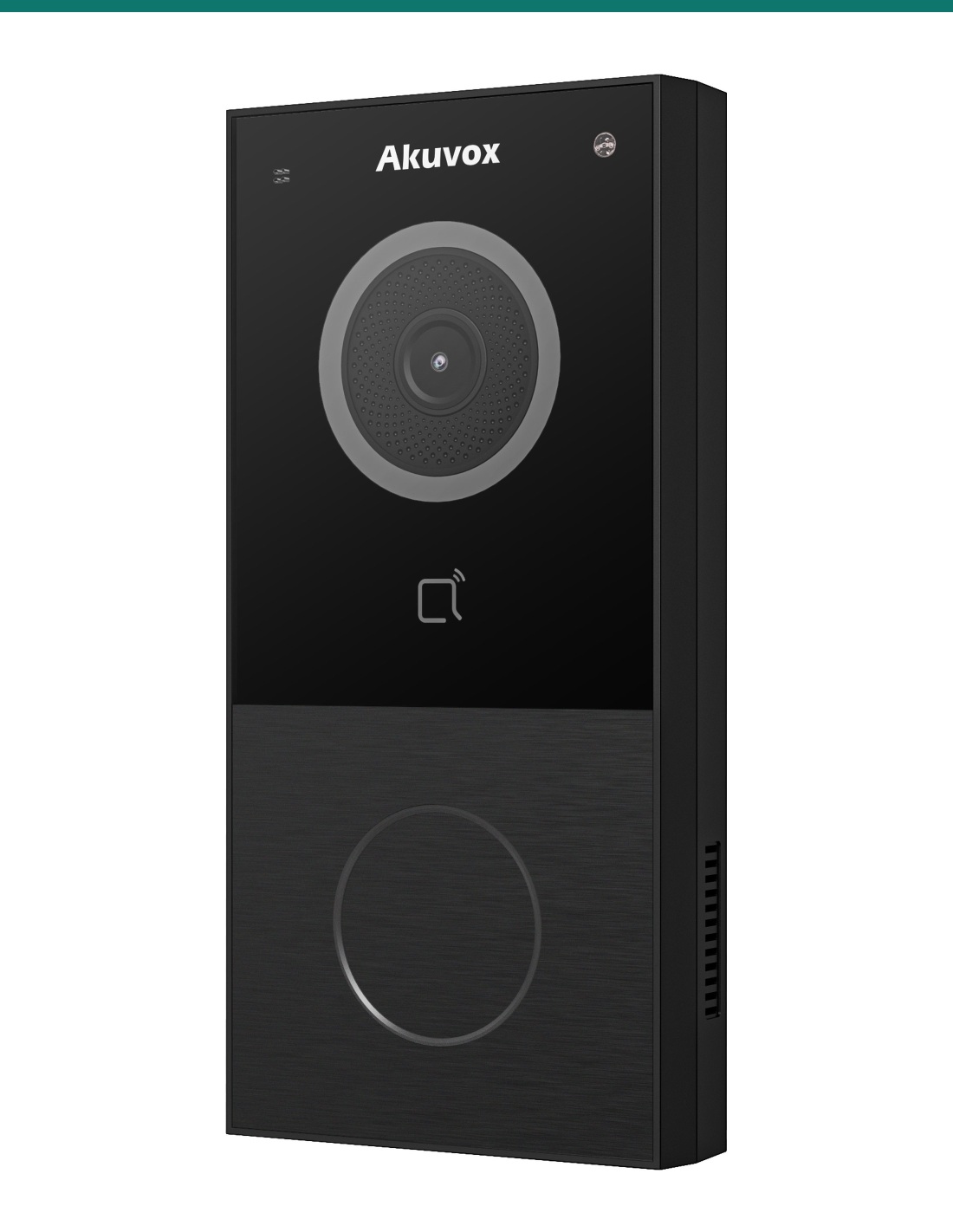

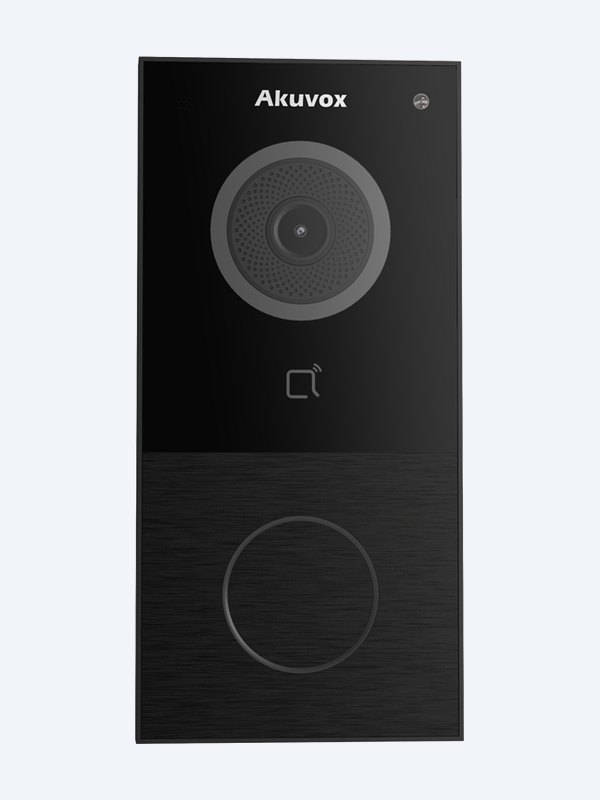

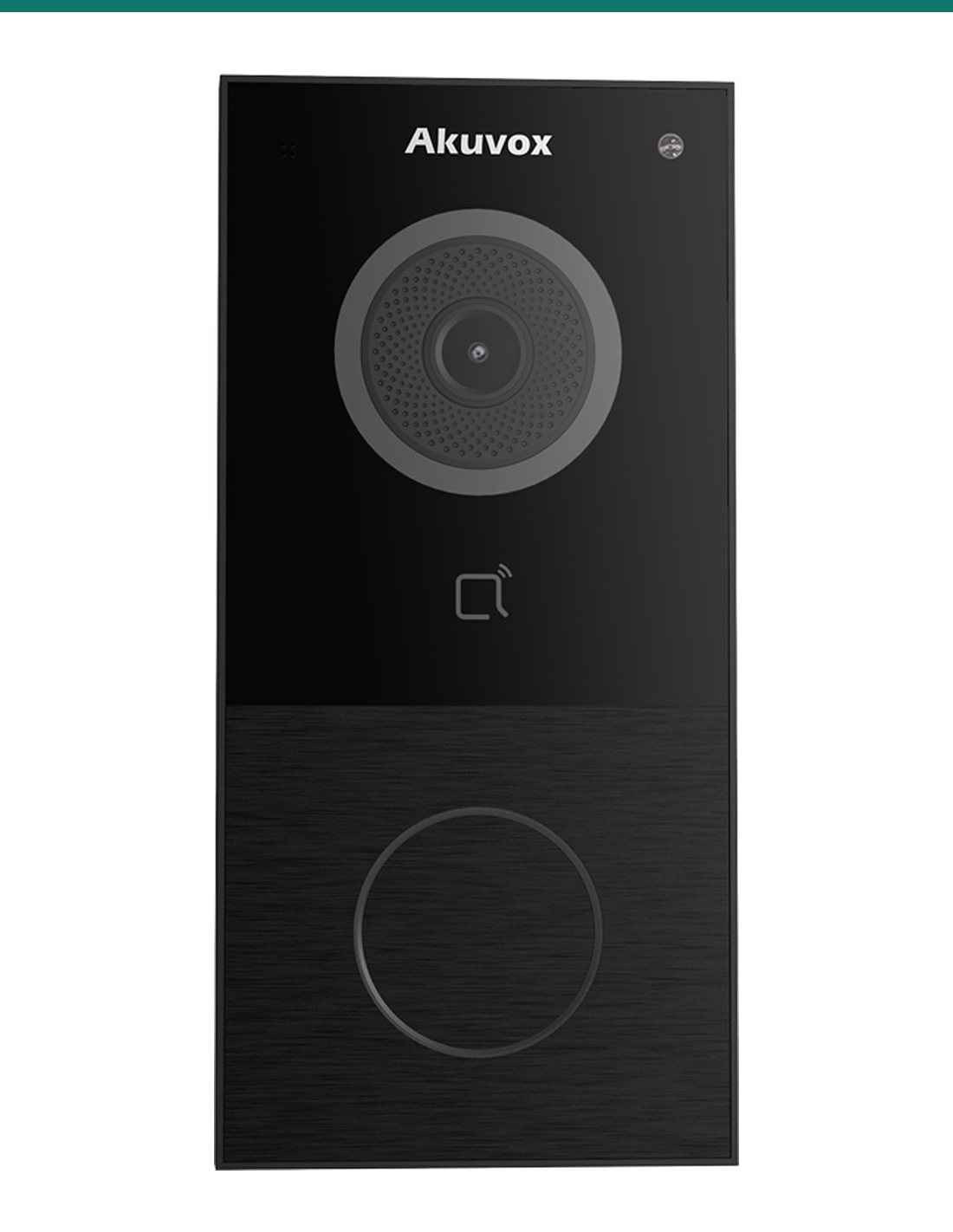

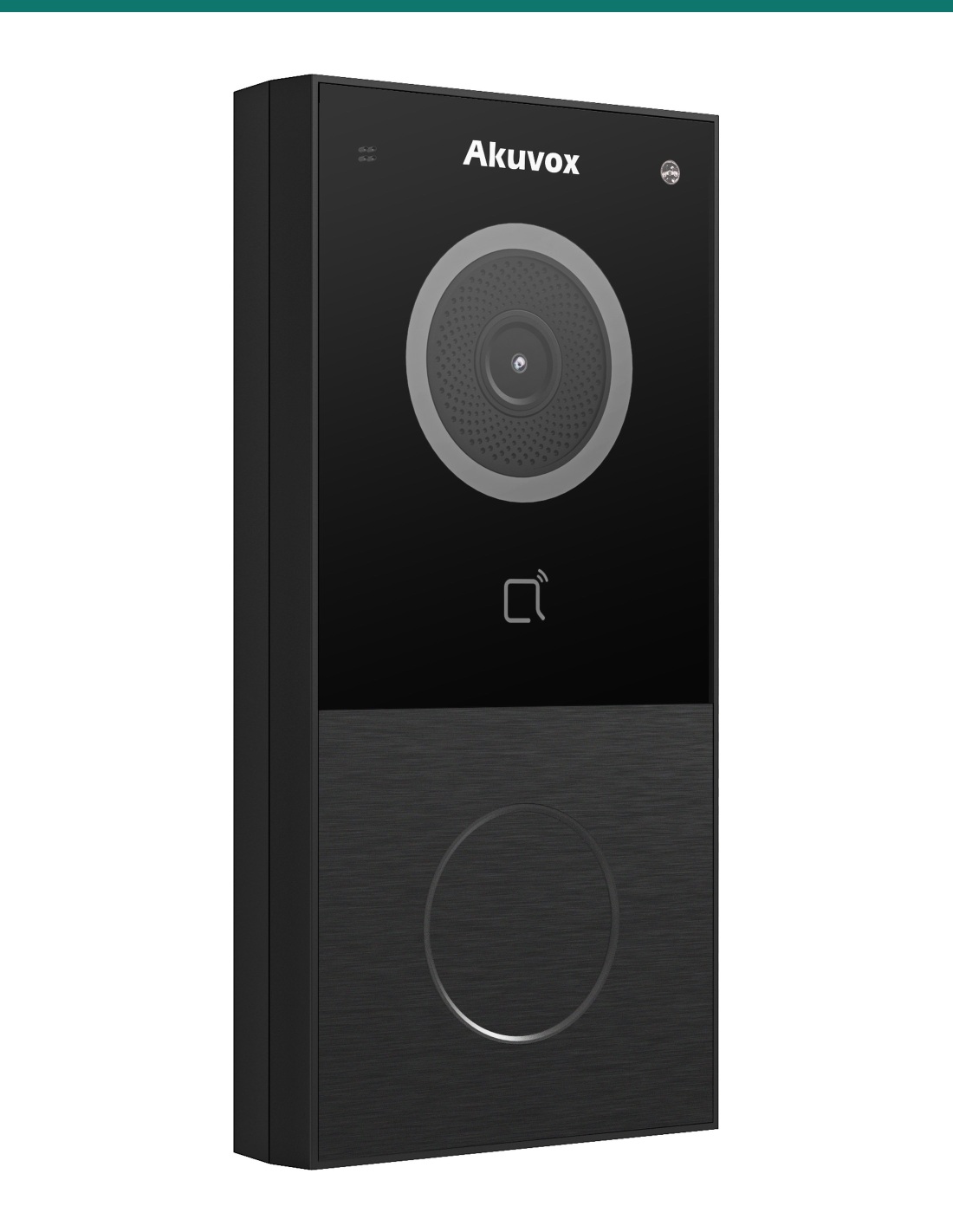

Akuvox E12S in black is a compact single-button SIP video doorbell for houses, townhouses and apartment entries. 2 MP wide-angle camera, 13.56 MHz card and NFC reader, one lock relay and an IP65 body, powered by PoE over a single cable.

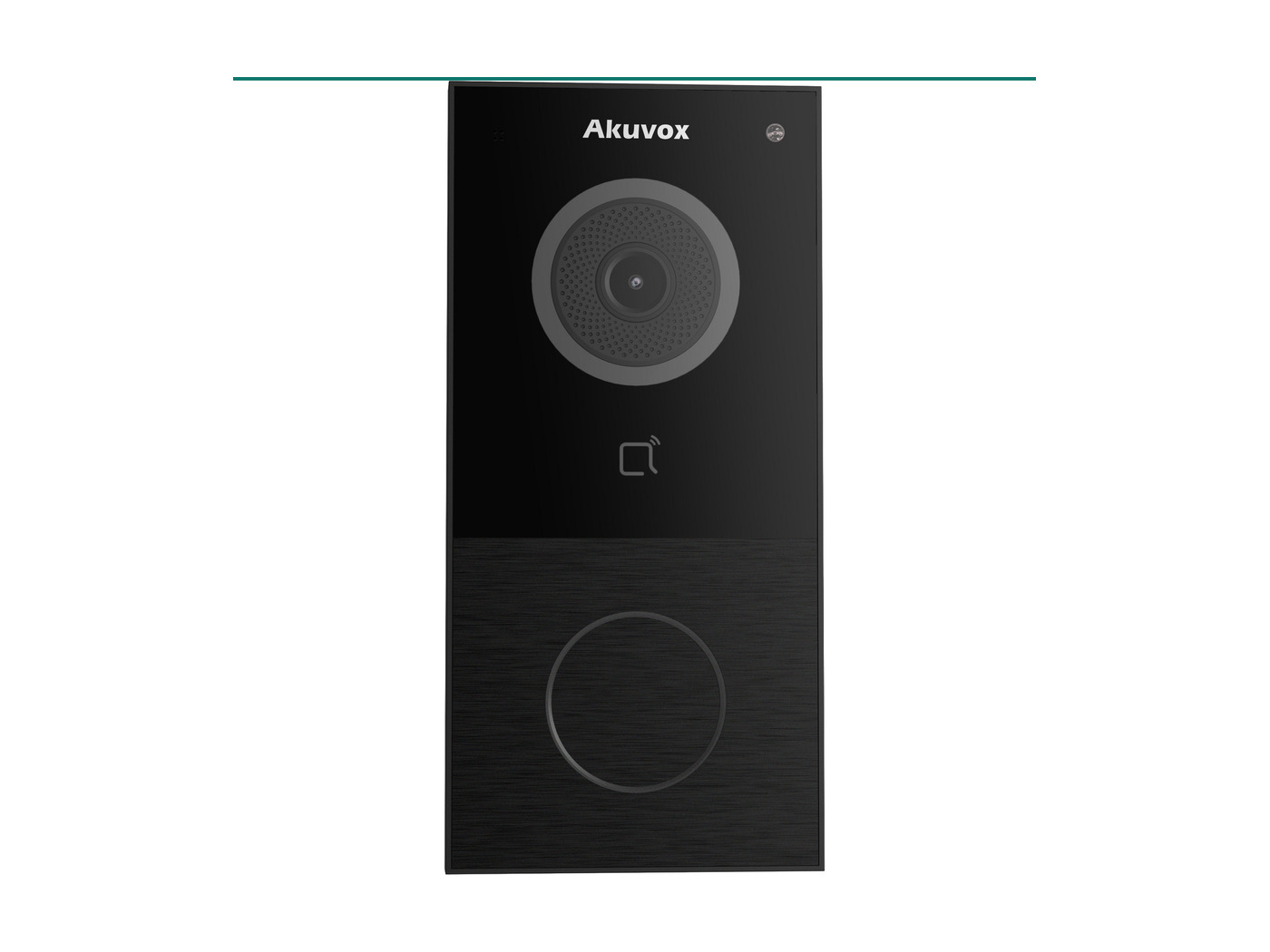

The AK-E12S-BLACK is Akuvox’s E12S in black: the award-winning E12 single-button doorbell in its wired Ethernet version. One cable carries data and 802.3af PoE, so the door station is powered and networked from the switch.
This SKU is the door station only.
You receive the black E12S surface-mount doorbell. Indoor monitors, rain hood, angle bracket, power supply and lock hardware are sold separately.
Visitors press once and the call rings an Akuvox monitor or the SmartPlus app. Residents skip the call — tap a card, tap an Android phone (NFC), or unlock from the app.
Camera
A 2 MP 1/2.7″ CMOS camera covers 123° horizontally and 69° vertically and streams H.264 up to 1920 × 1080 at 30 fps.
A light sensor switches on the white-light LED for night calls, down to 0.1 lux. Echo cancellation keeps two-way audio clear on a busy street.
Access
The 13.56 MHz reader takes MIFARE and DESFire EV1 / EV2 / EV3 credentials, Android phones unlock over NFC, and the station also has Bluetooth (BLE 5.0). The station holds 1,000 users and 5,000 cards.
One relay releases a strike or maglock; two inputs take an exit button and door sensor, and the Wiegand port is selectable as input or output.
Built for outside

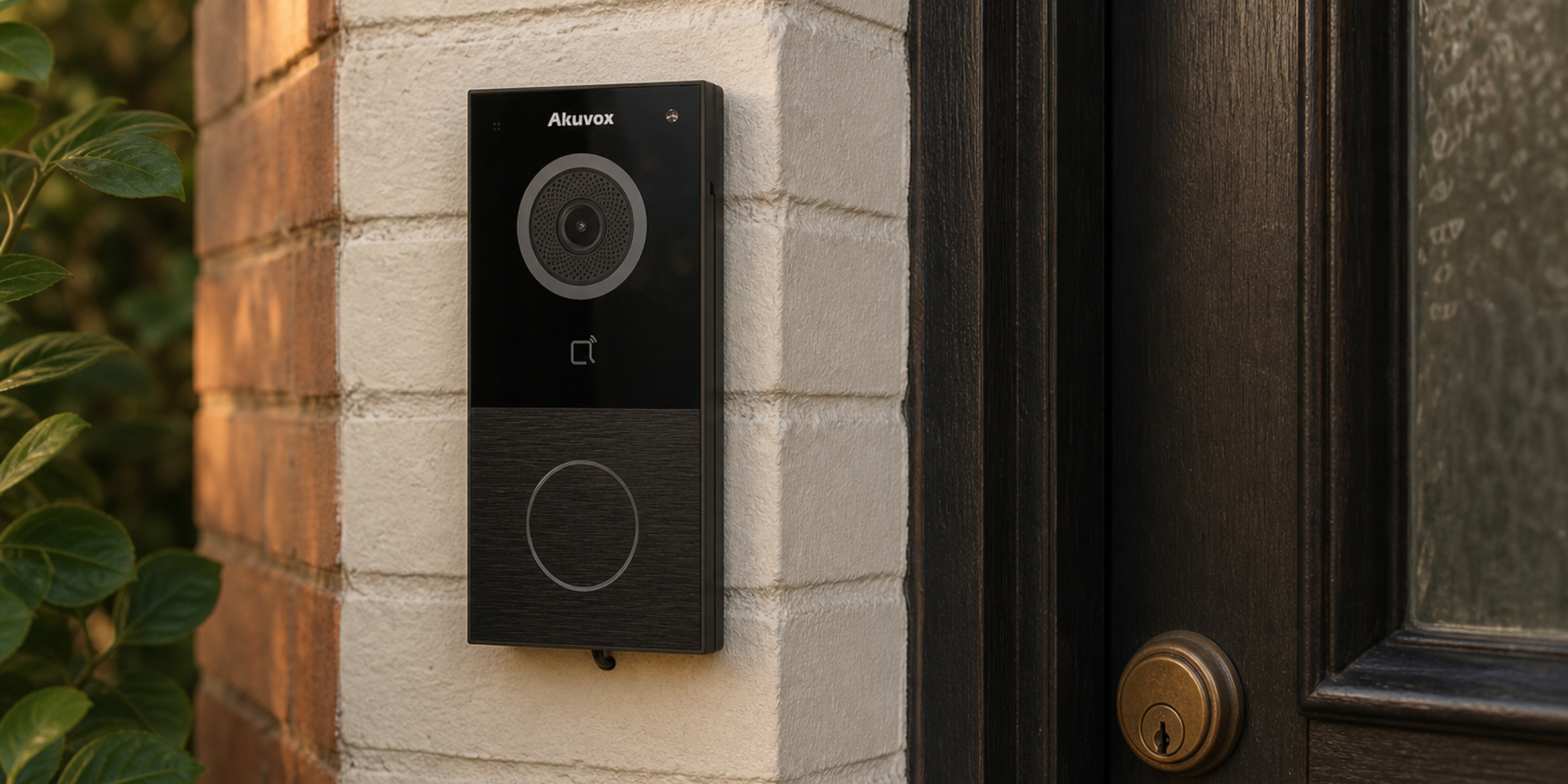

146 × 70 × 23 mm, IP65, rated −40 °C to +60 °C, with a tamper alarm. The slim plate fits a door frame or narrow pier.
Add the E12 rain hood on exposed doors, or the angle bracket to turn the camera towards the path.
How it works
01
Fix the station to the door frame or pier. Add the E12 rain hood on exposed elevations or the angle bracket to aim the camera.
02

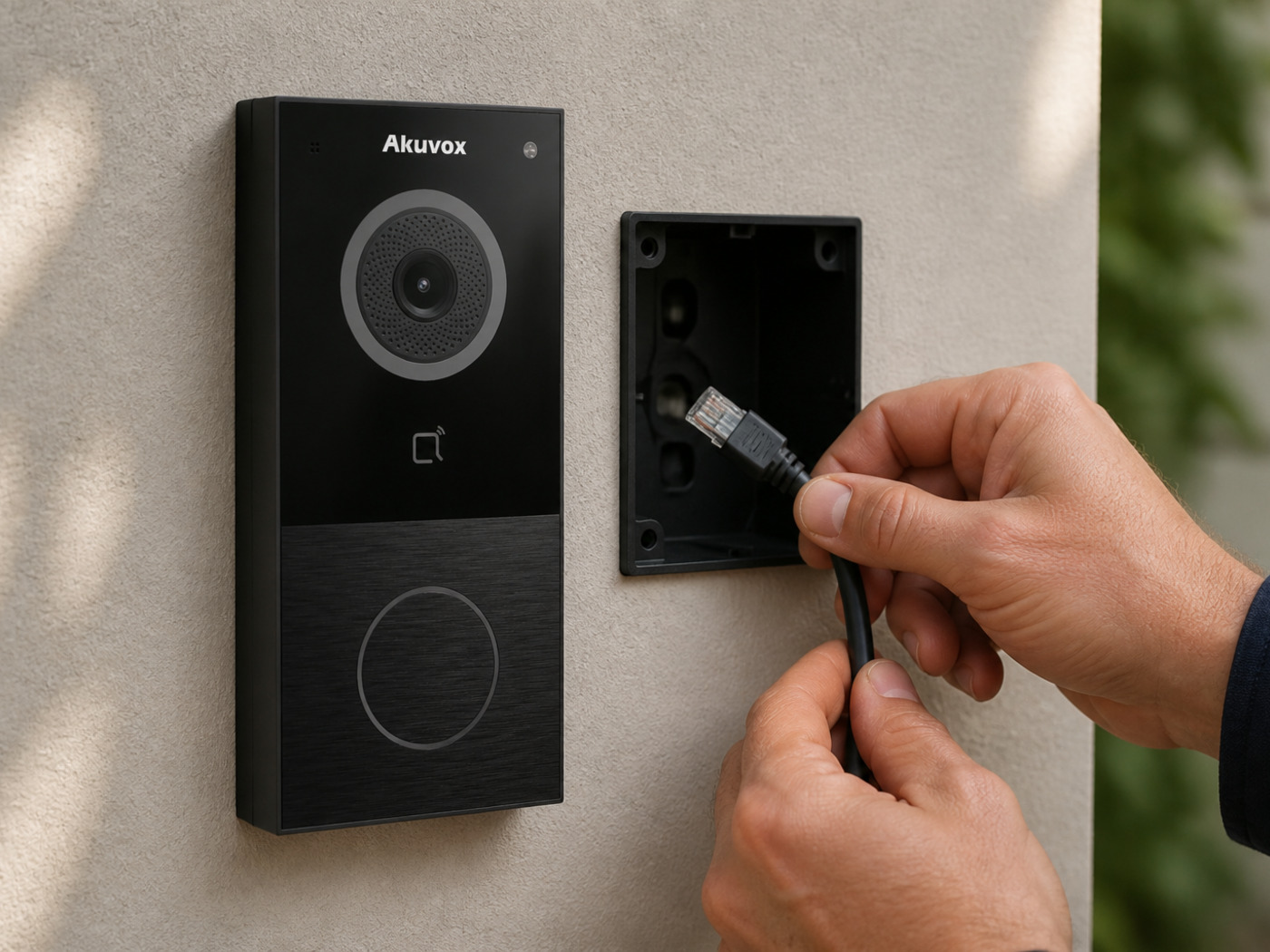

Run Cat5e/Cat6 with 802.3af PoE to the RJ45, or use a local 12 V DC supply.
03
Pair it with Akuvox indoor monitors, SmartPlus or your SIP PBX and enrol cards and users.
04
Press the button, check the picture day and night, and confirm the relay releases the lock.
At a glance
Show all specifications
Pair it with
Indoor

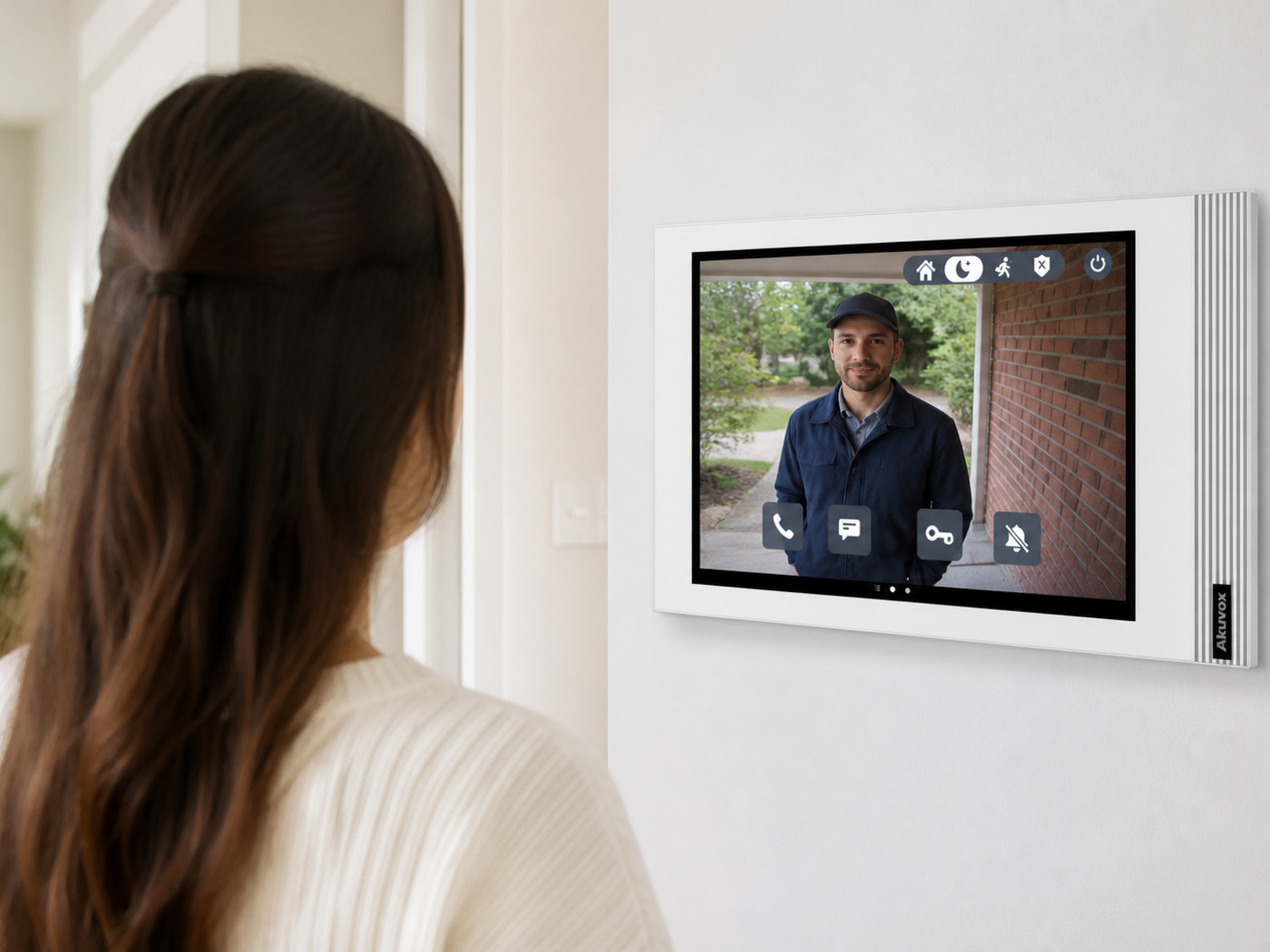

Residents answer, see the visitor and release the door from an Akuvox SIP indoor monitor or the SmartPlus app.
Weather
Shelters the plate on an exposed door. The E12 angle bracket turns the camera towards the approach.
Credentials
Akuvox 13.56 MHz cards and key fobs work with the E12 reader once enrolled.
Lock
The relay switches your lock power supply. Strike, maglock and lock PSU are separate items.
Works with
Residents answer the E12S, see the visitor and open the door from the SmartPlus app on iOS or Android.
Standard SIP v1 / v2 lets it call Akuvox indoor monitors, IP phones or extensions on your own PBX.
Record the 1080p door camera on an ONVIF or RTSP-capable NVR alongside your CCTV.
The selectable Wiegand port sends card reads to, or takes them from, a third-party access controller.
Watch
Downloads
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Same housing, camera and reader. E12W adds dual-band Wi-Fi 6 (2.4 / 5 GHz) alongside RJ45; E12S is the wired Ethernet version. This listing is the E12S — it has no Wi-Fi.
Yes. The E12 comes in silver (black glass over a brushed silver panel) and all black. This listing is black; the silver E12S is a separate SKU.
IEEE 802.3af PoE over the network cable, or a local 12 V DC supply.
13.56 MHz MIFARE and DESFire EV1 / EV2 / EV3 cards and fobs, plus NFC from Android phones. It does not read 125 kHz EM cards. It stores up to 1,000 users and 5,000 cards.
Yes. SmartPlus app users can answer calls and unlock from anywhere, and Android phones can also unlock over NFC at the door.
Yes. The E12S supports ONVIF and RTSP, so most ONVIF-capable NVRs can add the 1080p door camera as a channel.
Akuvox's drawings put the camera centre 1,500 mm above the ground. Add the E12 rain hood on exposed doors, or the angle bracket when the doorbell sits side-on to visitors.
No. Pair it with a compatible Akuvox indoor monitor, the SmartPlus app or any SIP endpoint.
Choose E12S when the door already has a network cable and you want one-cable PoE — or E12W when it does not.
Low-voltage product (SELV). Power from IEEE 802.3af PoE or a 12 V DC supply. Treat as SELV low-voltage equipment.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
