Akuvox R20K / R25K / R20B Black In-Wall Installation Kit — AK-R20KINWALLK-B

SKU AK-R20KINWALLK-B In Stock - Ready to Ship
$58.00 inc GST

Akuvox AK-R20KINWALLK-B: the black in-wall kit that recesses an R20K, R20K-L, R25K or R20B door phone into the wall.

  • ✓Fits Akuvox R20K, R20K-L, R25K and R20B
  • ✓Wall recess 207 × 89 × 40 mm
  • ✓Flush-mounting box 225 × 106 × 39 mm
  • ✓Black frame 226 × 108 × 3 mm
  • ✓Torx screws and wrench included



Description

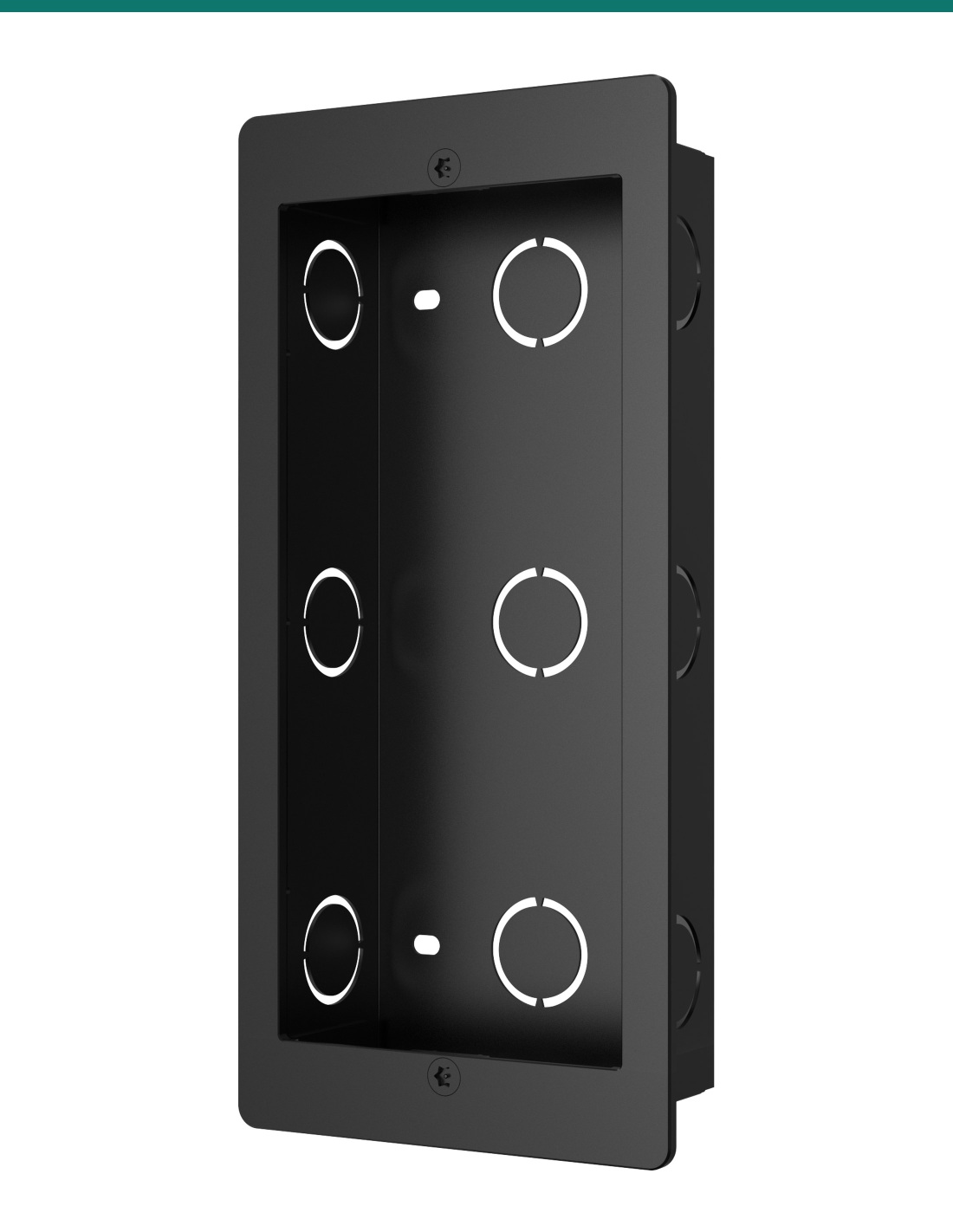

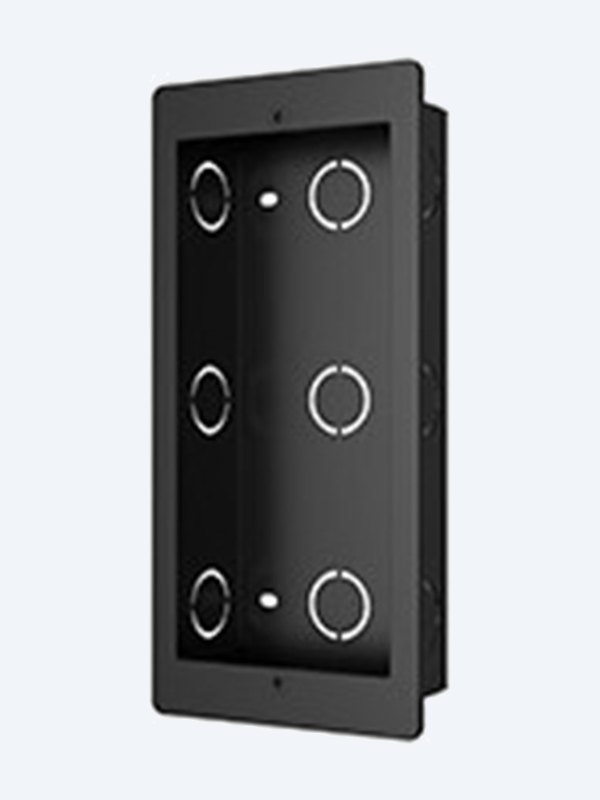

Akuvox black in-wall box with its decorative frame fitted, three-quarter view, for R20K, R25K and R20B door phones
Akuvox · R20K / R25K / R20B · In-wall kit

Set the door phone into the wall.
Black frame, flush finish.

The Akuvox AK-R20KINWALLK-B is the flush-mounting kit for door phones in the 185 × 84.5 mm R20K housing: the R20K, R20K-L, R25K and R20B. A steel box goes into the wall and a black frame finishes the opening.

In one sentence: the AK-R20KINWALLK-B is Akuvox's black in-wall kit for the R20K, R20K-L, R25K and R20B door phones: a 225 × 106 × 39 mm flush-mounting box for a 207 × 89 × 40 mm recess, a 226 × 108 mm black frame and Torx fixings.

Mounting kit only. The door phone is separate.

The kit recesses one R20K, R20K-L, R25K or R20B into the wall. The parts below are the flush-mounting accessories listed in Akuvox's R20K/R20B in-wall guide. It does not fit the shorter R20A or R25A, which have their own in-wall kit.

In the box
  • Flush-mounting box
  • Black flush-mounting bracket (the decorative frame)
  • 2 × M4×15 Torx screws
  • 4 × ST4×20 crosshead screws and 4 plastic wall anchors
  • Torx wrench
You also need
  • An Akuvox R20K, R20K-L, R25K or R20B door phone
  • A 207 × 89 × 40 mm recess in the wall with the cables inside it
  • A 6 mm drill and a crosshead screwdriver
  • Cat5e or Cat6 cable to the door phone

Flush, neat and harder to tamper with.

On its standard wall bracket the door phone stands off the wall. With this kit it sits inside a steel box, its cables stay in the wall, and only a slim black frame shows around it. Two M4 Torx screws hold the door phone in the box.

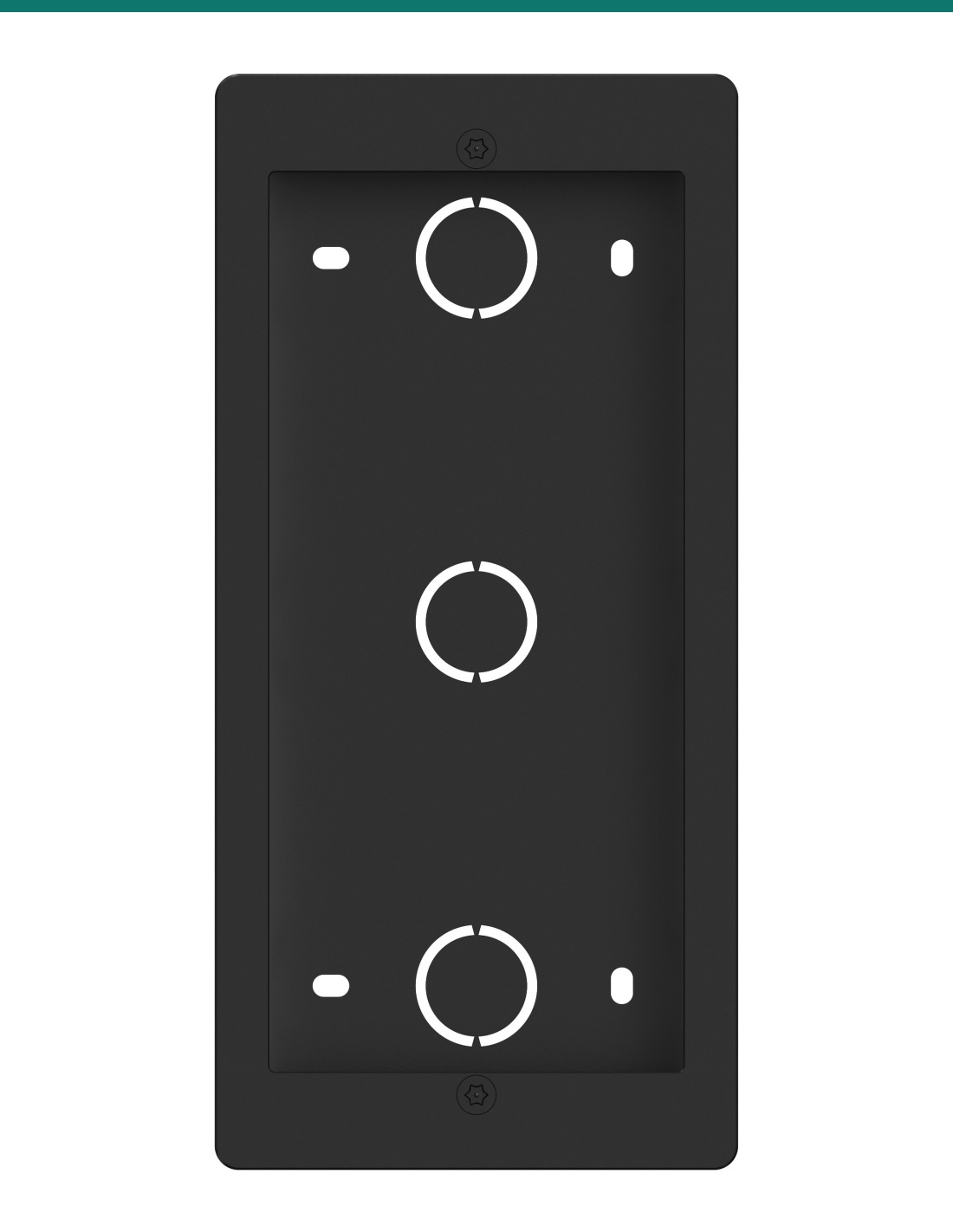

Akuvox black in-wall box and frame from the front, showing the cable knock-outs and fixing holes

Front

Knock-outs for the cables, four wall fixings.

The box has knock-outs in the back and both sides for the cables. Its four wall-fixing holes are 60 mm apart across and 150 mm apart top to bottom, and the Torx points at the top and bottom take the door phone.

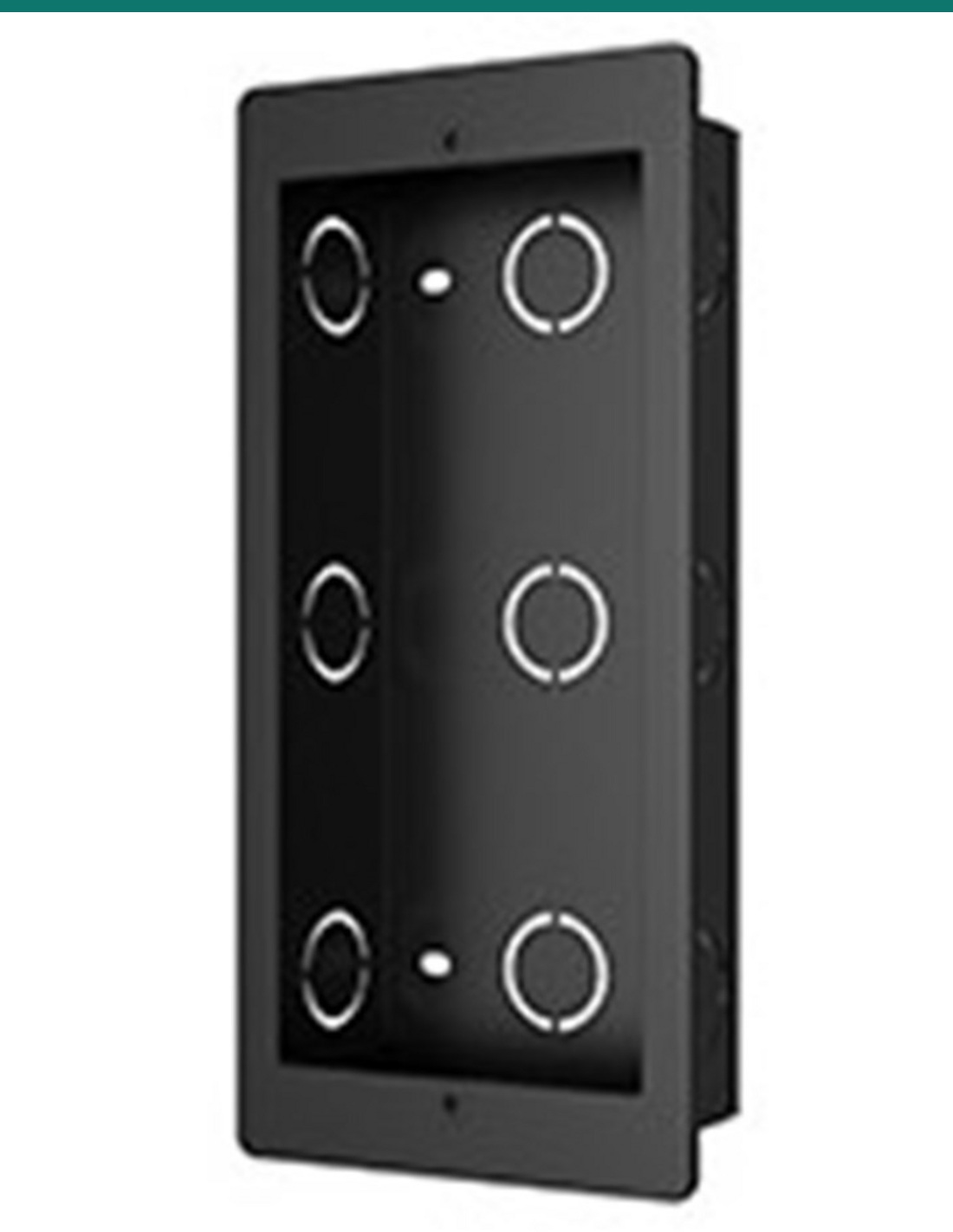

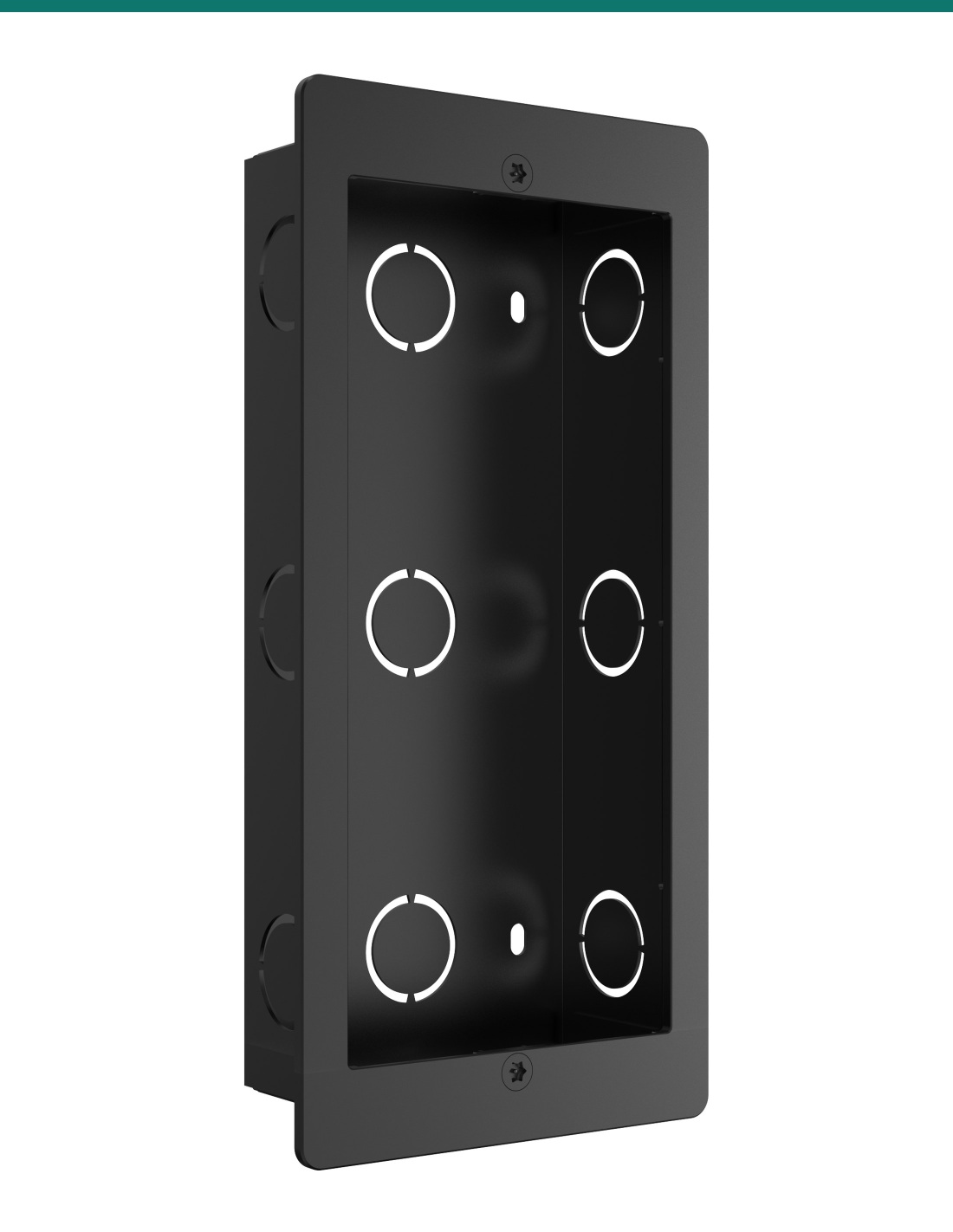

Akuvox R20K series flush-mounting box on its own, three-quarter view

The box

225 × 106 mm, 39 mm deep.

The box body is 207 × 88 mm and goes into the recess. A 1 mm flange brings the overall size to 225 × 106 mm. Akuvox's guide fixes it with four ST4×20 screws in plastic anchors, in 6 mm holes drilled 25 mm deep.

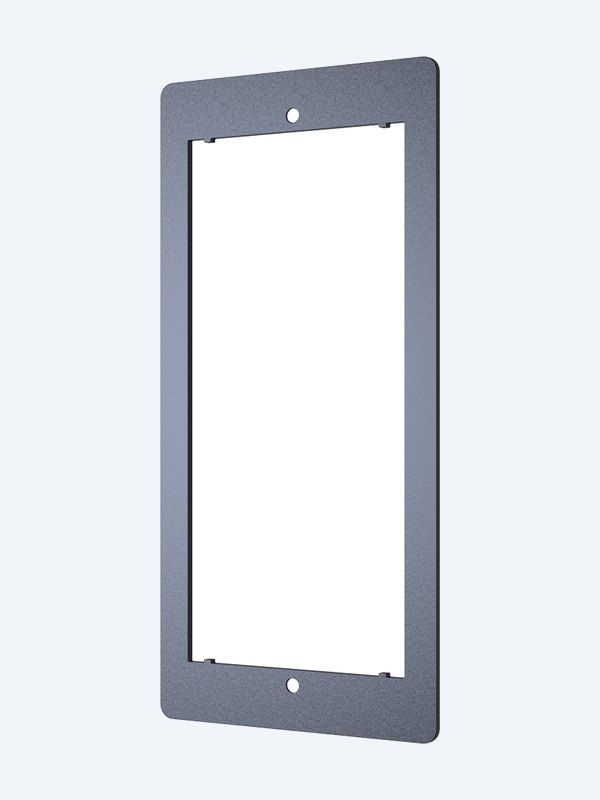

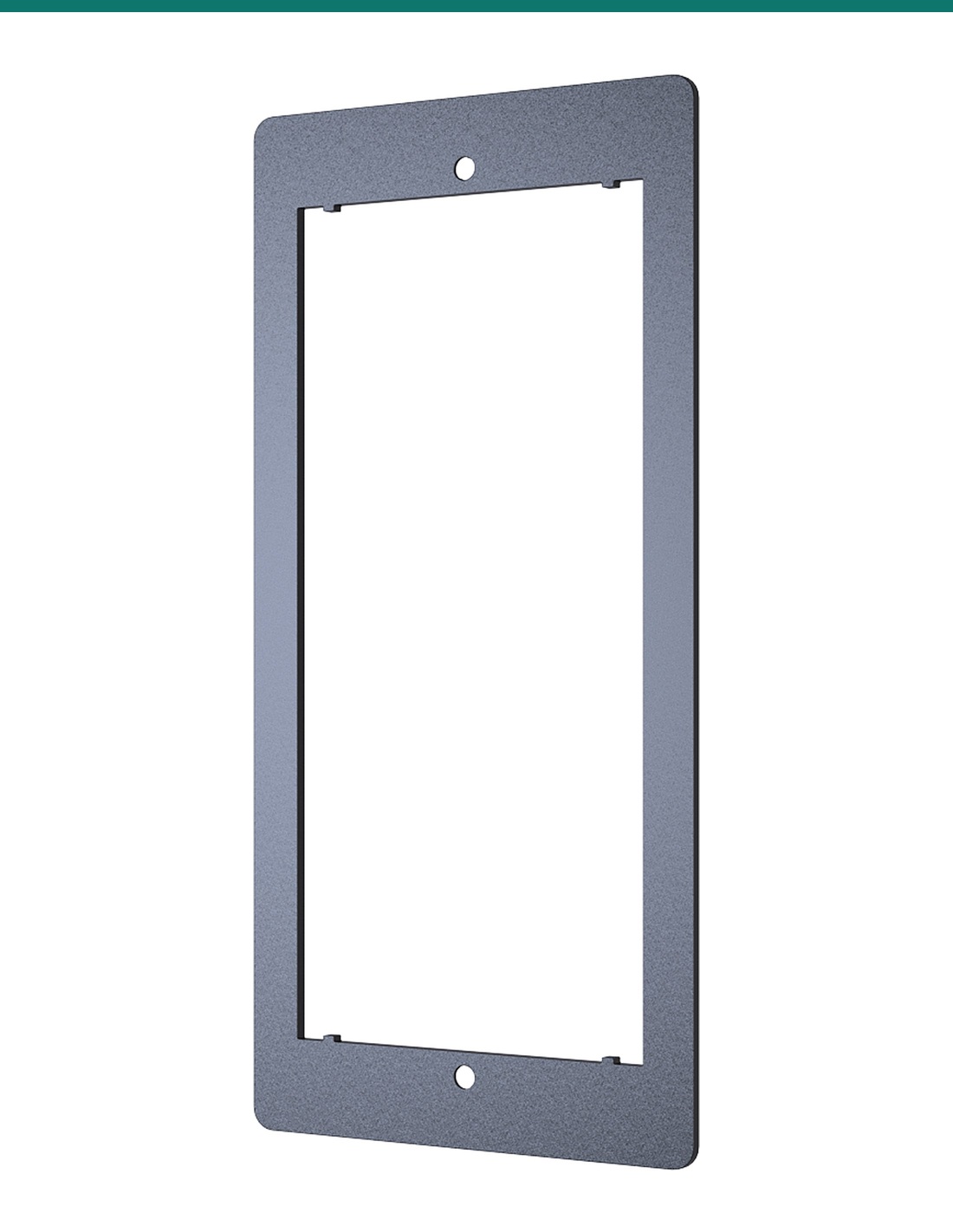

Akuvox R20K series black decorative frame (flush-mounting bracket)

The frame

The only part you see.

The black frame is 226 × 108 × 3 mm. The door phone screws onto it before it goes into the box, and it covers the edge of the recess at the wall face.

How it goes in

From bare wall to flush door phone.

01

Cut and fix the box

Cut a 207 × 89 × 40 mm (H × W × D) recess that takes all the cables. Fit the box, mark and drill four 6 mm holes 25 mm deep, and fix it with the ST4×20 screws and anchors.

02

Fit the frame

Place the black frame on the door phone the way Akuvox's guide shows and tighten it with the door phone's four wall-mounting screws.

03

Wire the door phone

Feed the cables through the wiring cover, connect them, fit a rubber plug and the sealing plate, then screw the wiring cover on.

04

Lock it in

Set the door phone into the box and fix it with the two M4×15 Torx screws using the Torx wrench.

Pair it with

What goes with the kit

Door phone

Akuvox R20K or R25K

Keypad door phones in the 185 × 84.5 mm housing, including the black R25K and the R20K-L.

Door phone

Akuvox R20B

Multi-button door phones with 3, 4 or 5 call buttons and a card reader, same housing.

Weather

R20K / R25K / R20B in-wall rain hood

Akuvox's guide suggests a rain cover, or filling the gaps with waterproof material, to keep water out of the back of the door phone.

Cabling

Cat6 cable and a PoE switch

The door phones run over one network cable. Plan the run before you cut the recess.

Where it is used

Where a flush door phone fits.

Front entries

Homes where the door phone should sit flat beside the door.

Apartment lobbies

Keypad entry for residents and visitors on small blocks.

Gate pillars

Rendered or brick pillars with room for a 40 mm deep recess.

Offices

Reception and staff doors where a flat finish looks tidier.

New builds

Recesses formed before the wall is finished.

Renovations

Replacing a surface door phone with a neater flush one.

In-wall kit or on-wall bracket

In-wall with AK-R20KINWALLK-BOn-wall with the standard bracket
Wall work207 × 89 × 40 mm recessFour screw holes, no recess
What shows on the wall226 × 108 mm black frameThe door phone on a 183 × 83.6 mm bracket
CablesInside the box, in the wallThrough a hole in the wall behind the bracket
Door phone fixing2 × M4×15 Torx screws into the boxHangs on the bracket
Rain hood to matchR20K / R25K / R20B in-wall rain hoodR20K / R25K / R20B on-wall rain hood

Figures from Akuvox's R20K/R20B in-wall guide, R20K wall-mounting guide and R20K dimension drawings.

Common questions

Which door phones does it fit?

The Akuvox R20K, R20K-L, R25K and R20B with 2 to 5 buttons. All share the 185 × 84.5 × 24 mm housing.

Does it fit the R20A or R25A?

No. They have a shorter housing and their own in-wall kit.

What size hole do I cut?

207 × 89 × 40 mm (height × width × depth), big enough to take all the cables.

How much wall does the frame cover?

226 × 108 mm. The frame is 3 mm thick.

What is in the kit?

The flush-mounting box, the black frame, two M4×15 Torx screws, four ST4×20 screws with plastic anchors and a Torx wrench, as listed in Akuvox's in-wall guide.

Is a door phone included?

No. This listing is the in-wall kit only.

How is the box fixed?

With four ST4×20 screws in plastic anchors, in 6 mm holes drilled 25 mm deep. Akuvox also describes a simpler install with the box set in cement or adhesive, which is less vandal resistant.

How is the door phone held in?

It screws onto the black frame, sits in the box and is locked with two M4×15 Torx screws.

Does it make the door phone weatherproof?

Akuvox recommends filling the gaps around the box with waterproof material or adding a rain cover, so water can't get into the back of the door phone.

Does it fit the 2-wire R20K-2?

The R20K-2 has the same housing size, but Akuvox does not list it for this kit. Ask us before you order.

Is there a silver version?

Akuvox makes the frame in silver as well. Ask us if you need silver to match a silver door phone.

How high should the door phone go?

Akuvox's in-wall drawing puts the bottom of the box 1073.5 mm above the ground, with the centre of the keypad and card reader area at about 1219 mm.

Supported by InFront Technologies.

Not sure which kit suits your door phone or wall? Call 1300 736 970 or email [email protected] with your model number. Akuvox's in-wall installation guide is on the Attachments tab.

Installation and safety

Cutting walls. Check for cables, pipes and studs before you cut the recess.

Water. Fill the gaps around the box with waterproof material or fit a rain hood on exposed entries, as Akuvox recommends.

Cabling. Concealed data cabling to the door phone is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Mains wiring, including a power point for a PoE switch or lock supply, needs a licensed electrician.

What it does not do. It is a passive mounting kit: no power, no wiring and no weather seal of its own.

Figures. From Akuvox's R20K/R20B in-wall installation guide and Akuvox's R20K, R20K-L, R25K and R20B dimension drawings.
