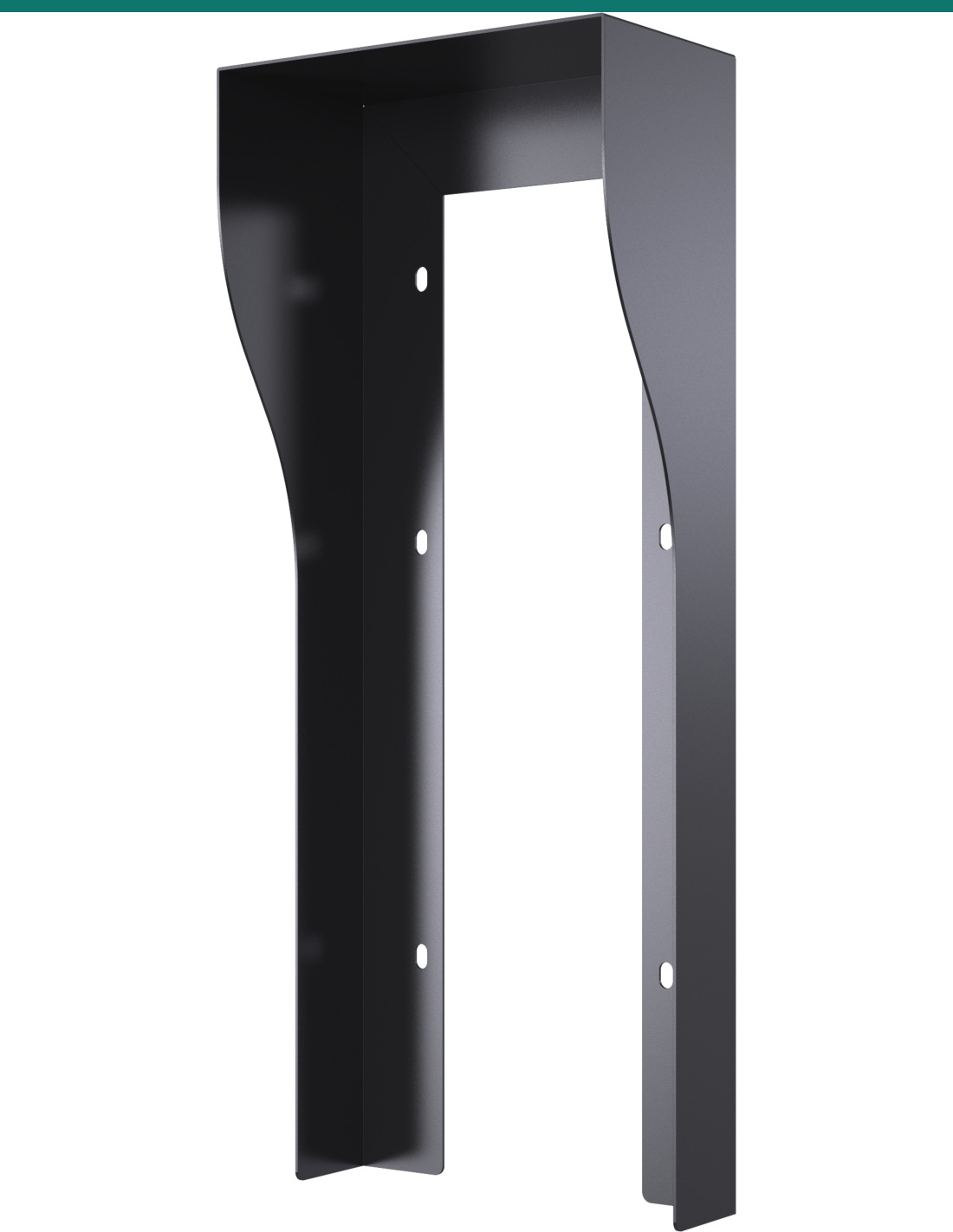

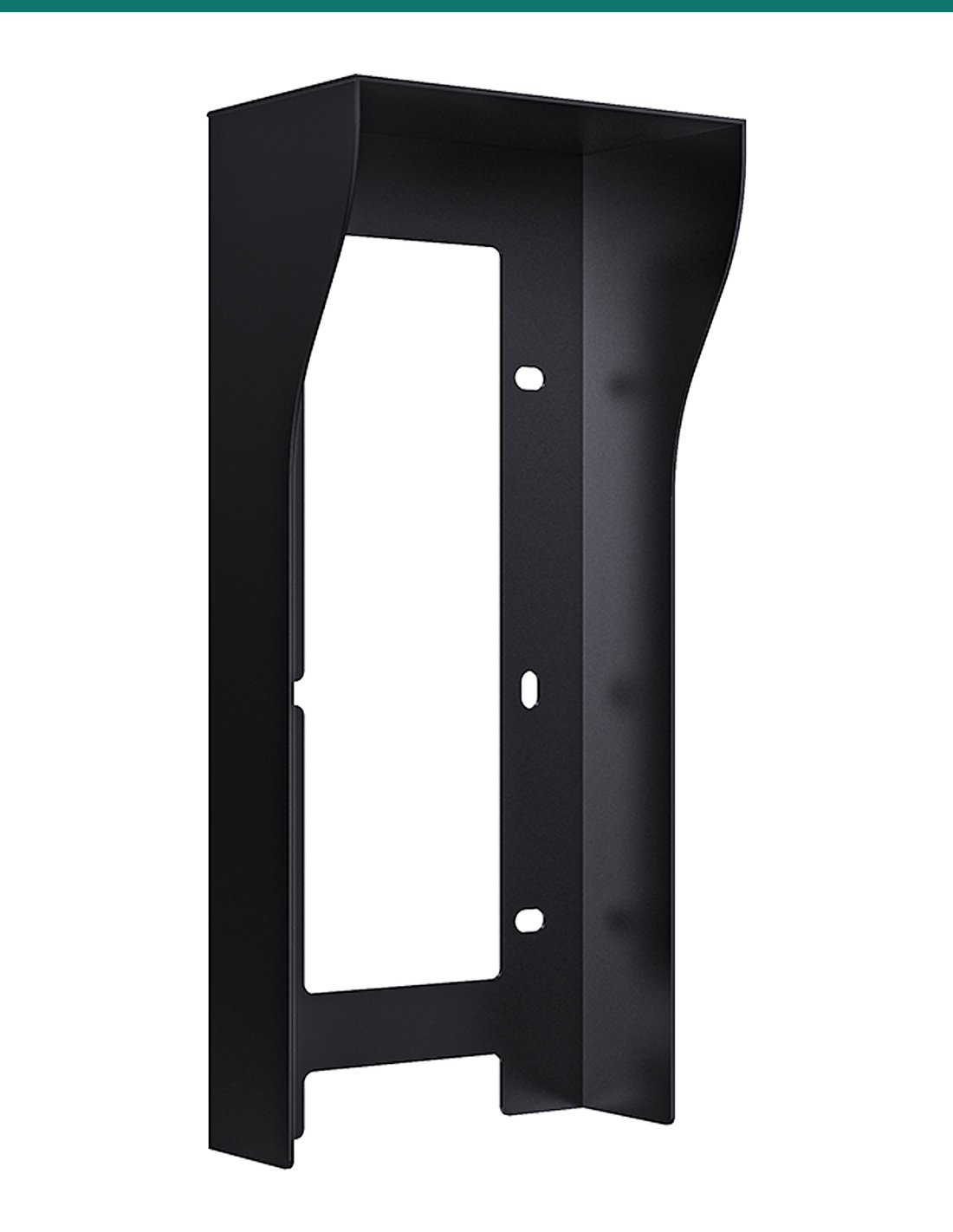

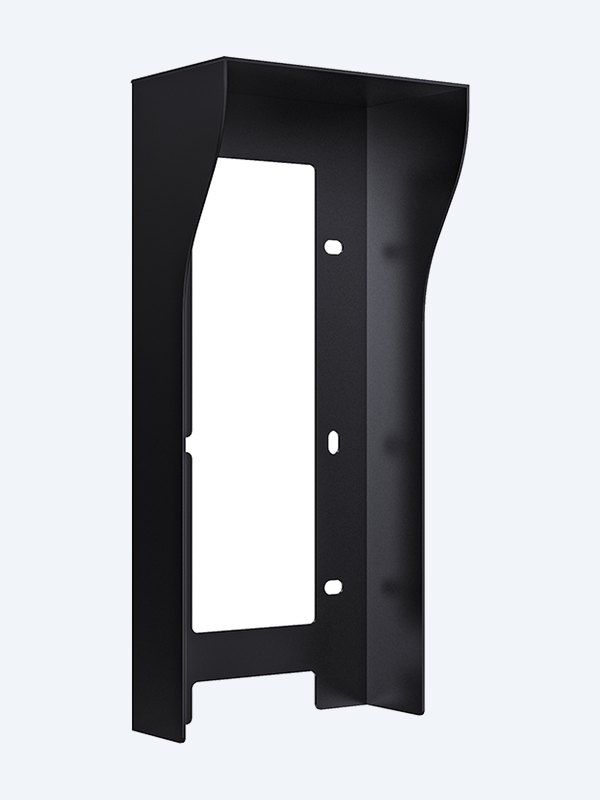

Akuvox AK-R20KBONH-BLACK: the black on-wall rain hood for R20K, R20K-L, R25K and R20B door phones.
- ✓Fits Akuvox R20K, R20K-L, R25K and R20B on the wall
- ✓193 × 88 mm, black
- ✓51 mm deep at the top, 29.5 mm at the bottom
- ✓Fixes behind the door phone's wall bracket
- ✓Keypad, camera and card reader stay open
Description

A black hood over the door phone.
Rain and sun kept off the front.
The Akuvox AK-R20KBONH-BLACK is the black on-wall rain hood for door phones in the R20K housing: the R20K, R20K-L, R25K and R20B. It fixes behind the door phone's wall bracket and shelters the top and sides of the unit.
In one sentence: the AK-R20KBONH-BLACK is Akuvox's black on-wall rain hood for the R20K, R20K-L, R25K and R20B door phones: 193 × 88 mm, 51 mm deep at the top and 29.5 mm at the bottom, fixed behind the door phone's wall bracket.
Rain hood only. The door phone and bracket are separate.
This hood is for door phones mounted on the wall with their standard bracket. For a door phone set into the wall, use the R20K / R25K / R20B in-wall rain hood instead.
- Black on-wall rain hood
- An Akuvox R20K, R20K-L, R25K or R20B door phone with its wall bracket
- The wall fixings that come with the door phone
- A 6 mm drill and a crosshead screwdriver
- Cat5e or Cat6 cable to the door phone
Shelter for a door phone on an open wall.
Door phones on gate posts and open entries take the weather head on. The hood wraps the top and sides of the door phone, so rain runs off its canopy instead of down the keypad, card reader and camera window.

Canopy
51 mm deep at the top.
The hood is deepest at the top, where the rain comes from, so the canopy reaches past the front of the door phone.

Sides
Tapers to 29.5 mm at the bottom.
The sides narrow towards the bottom so the keypad and buttons stay easy to reach. The hood is 193 mm tall and 88 mm wide.
How it goes on
Hood first, then the bracket and door phone.
01
Mark the wall
Hold the hood at the mounting height with the door phone's wall bracket inside it and mark the fixing holes. They are 60 mm apart across.
02
Drill and run the cable
Drill 6 mm holes 25 mm deep for the anchors and bring the cable through the wall inside the hood area, as the door phone's wall-mounting guide shows.
03
Fix hood and bracket
Screw the wall bracket to the wall through the hood with the door phone's screws, so the hood is held between the wall and the bracket.
04
Hang the door phone
Wire the door phone, seal the cable entry and hang it on the bracket as in Akuvox's wall-mounting guide.
At a glance
AK-R20KBONH-BLACK
Show specs
Type
On-wall rain hood
Fits
Akuvox R20K, R20K-L, R25K and R20B (2 to 5 buttons), on-wall
Colour
Black
Size
193 × 88 mm
Depth
51 mm at the top, 29.5 mm at the bottom
Fixing holes
60 mm across, matching the door phone's wall bracket
Mounts
Between the wall and the door phone's wall bracket
Door phone size
185 × 84.5 × 24 mm
Wall bracket (with door phone)
183 × 83.6 × 5 mm
Not for
In-wall installs, R20A and R25A
Works with
Door phones it fits
Akuvox's drawings show this hood on every on-wall model below.
Show all models
Akuvox R20K (silver or black)
Fits, mounted on the wall bracket.
Akuvox R20K-L and R20K-L kits
Fits. Same hood on Akuvox's R20K-L drawings.
Akuvox R25K
Fits. Same hood on Akuvox's R25K drawings.
Akuvox R20B, 2, 3, 4 or 5 buttons
Fits. Same hood on Akuvox's R20B drawings.
Akuvox R20K-2 (2-wire)
Same housing size, but Akuvox does not list it for this hood. Confirm fit with us.
Any of the above set into the wall
Use the in-wall rain hood instead.
Akuvox R20A, R20A-2 and R25A
Does not fit. They have their own rain hood.
Pair it with
What goes with the hood
Door phone
Akuvox R20K or R25K
Keypad door phones in the 185 × 84.5 mm housing. The black R25K matches the black hood.
Door phone
Akuvox R20B
Door phones with 3, 4 or 5 call buttons and a card reader, same housing.
Mounting
R20K / R25K / R20B angle bracket
Tilts the door phone towards visitors when it has to go beside a door at an awkward angle.
Cabling
Cat6 cable and a PoE switch
The door phones run over one network cable from a PoE switch or injector.
Where it is used
Where a rain hood helps.
Gate posts
Door phones on open driveway and pedestrian gates.
Front doors
Entries with little or no porch roof.
Apartment entries
Keypad and button panels on exposed lobby walls.
West-facing walls
Some shade for the camera window from afternoon sun.
Coastal homes
Wind-driven rain on exposed walls.
Offices and warehouses
Staff and delivery doors on open walls.
On-wall hood or in-wall hood
| AK-R20KBONH-BLACK on-wall hood | R20K / R25K / R20B in-wall hood | |
|---|---|---|
| For | Door phone on its wall bracket | Door phone set into the wall with the in-wall kit |
| Size | 193 × 88 mm | 229.5 × 111 mm |
| Depth | 51 mm top, 29.5 mm bottom | 33 mm top, 10.3 mm bottom |
| Fixing | Behind the wall bracket | With the in-wall box and frame |
Figures from Akuvox's R20K series dimension drawings.
Common questions
Which door phones does it fit?
The Akuvox R20K, R20K-L, R25K and R20B with 2 to 5 buttons, mounted on the wall with their standard bracket.
Does it fit a door phone set into the wall?
No. Use the in-wall rain hood, which suits the in-wall box and frame.
Does it fit the R20A or R25A?
No. They have a smaller housing and their own rain hood.
How big is it?
193 mm tall and 88 mm wide, 51 mm deep at the top and 29.5 mm deep at the bottom.
How is it fixed?
Akuvox's drawing shows it between the wall and the door phone's wall bracket. Its fixing holes are 60 mm apart, the same as the bracket, so the bracket screws hold both.
Are screws included?
Use the wall fixings that come with the door phone for its wall bracket.
Is there a fitting guide?
Akuvox doesn't publish a separate guide for this hood. The door phone's wall-mounting guide is on the Attachments tab, and we can talk you through the hood.
Does it make the door phone waterproof?
It sheds rain from the top and sides. Seal the cable entry as the door phone's guide shows.
Is a door phone included?
No. This listing is the rain hood only.
Does it block the camera?
The hood surrounds the door phone and leaves the front open, so the camera, keypad and card reader are not covered.
Is there a silver version?
Akuvox also makes the hood in silver. Ask us if you need silver to match a silver door phone.
What colour is it?
Black, to match the black R25K and black R20K and R20B door phones.
Supported by InFront Technologies.
Not sure which hood suits your door phone? Call 1300 736 970 or email [email protected] with your model number and how it is mounted. Akuvox's R20K wall-mounting guide is on the Attachments tab.
Installation and safety
Drilling. Check for cables and pipes in the wall before you drill.
Water. The hood sheds rain but does not seal the door phone. Seal the cable entry as Akuvox's wall-mounting guide shows.
Cabling. Concealed data cabling to the door phone is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Mains wiring, including a power point for a PoE switch or lock supply, needs a licensed electrician.
What it does not do. It is a passive hood: no power, no wiring and no fixings of its own.
Figures. From Akuvox's R20K, R20K-L, R25K and R20B dimension drawings and the R20K wall-mounting installation guide.
- Colour
- Black
- Brand
- Akuvox
- Mounting
- On-Wall (surface) installs
- Size
- 193 × 88 × 51 mm (H × W × D)
- Warranty
- Australian warranty
- Product Type
- Rain hood
- Model
- R20K / R20B on-wall rain hood
- Compatible with
- Akuvox R20K, R20K-L, R25K and R20B (2–5 buttons)
- Fixing
- Shares the door phone wall-bracket screws
