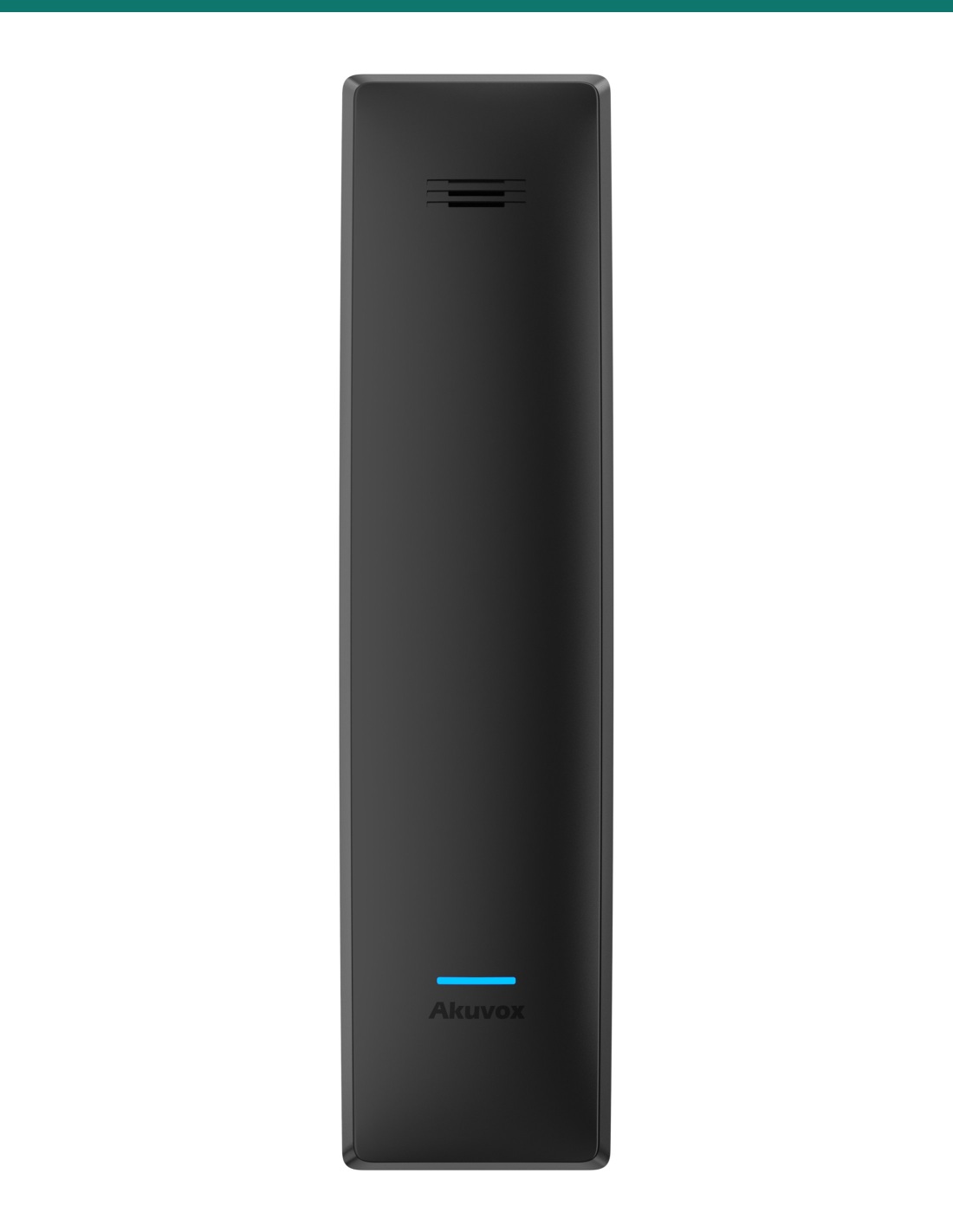

Akuvox S560 black audio indoor handset — front

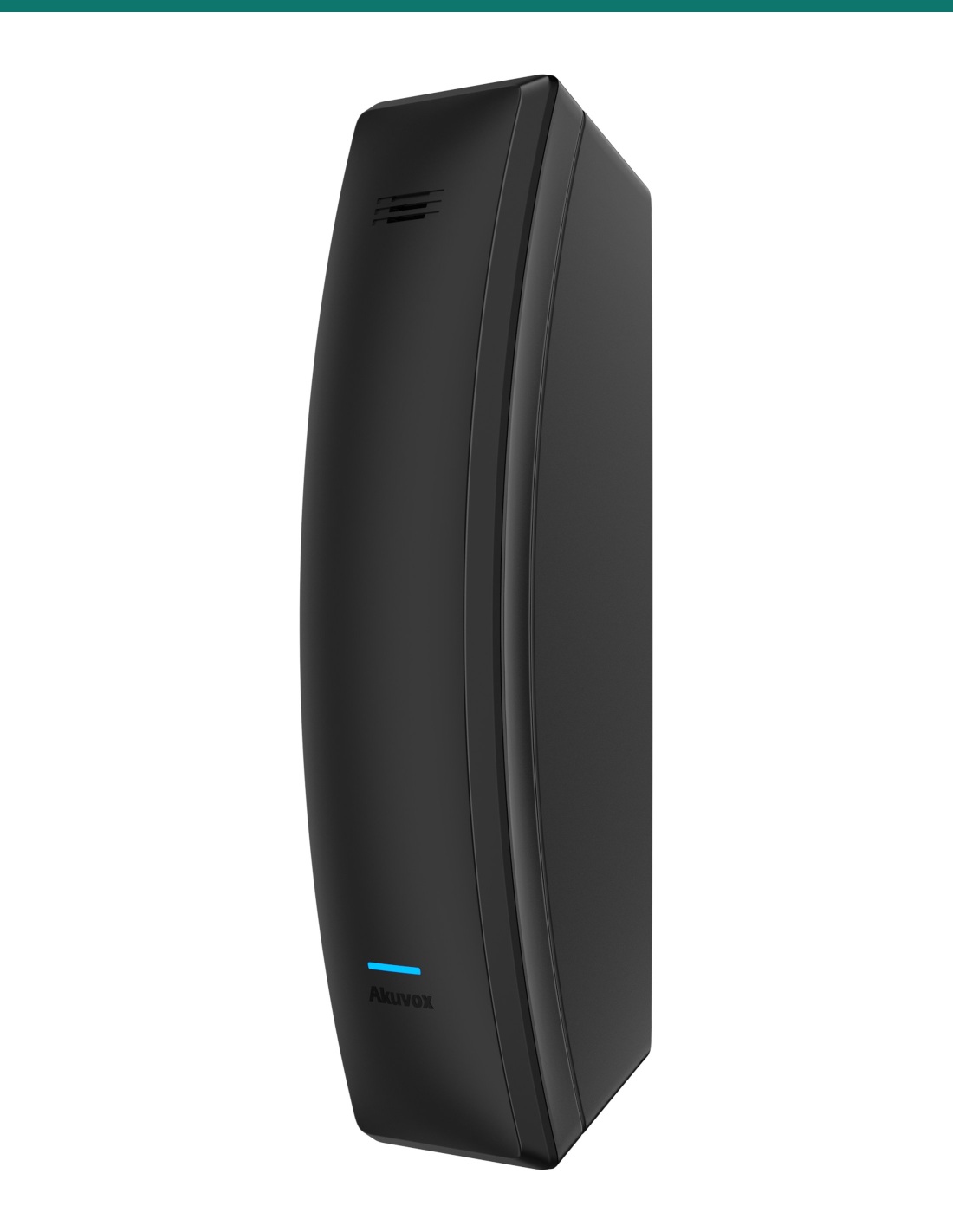

Akuvox S560 black audio indoor handset — left three-quarter view

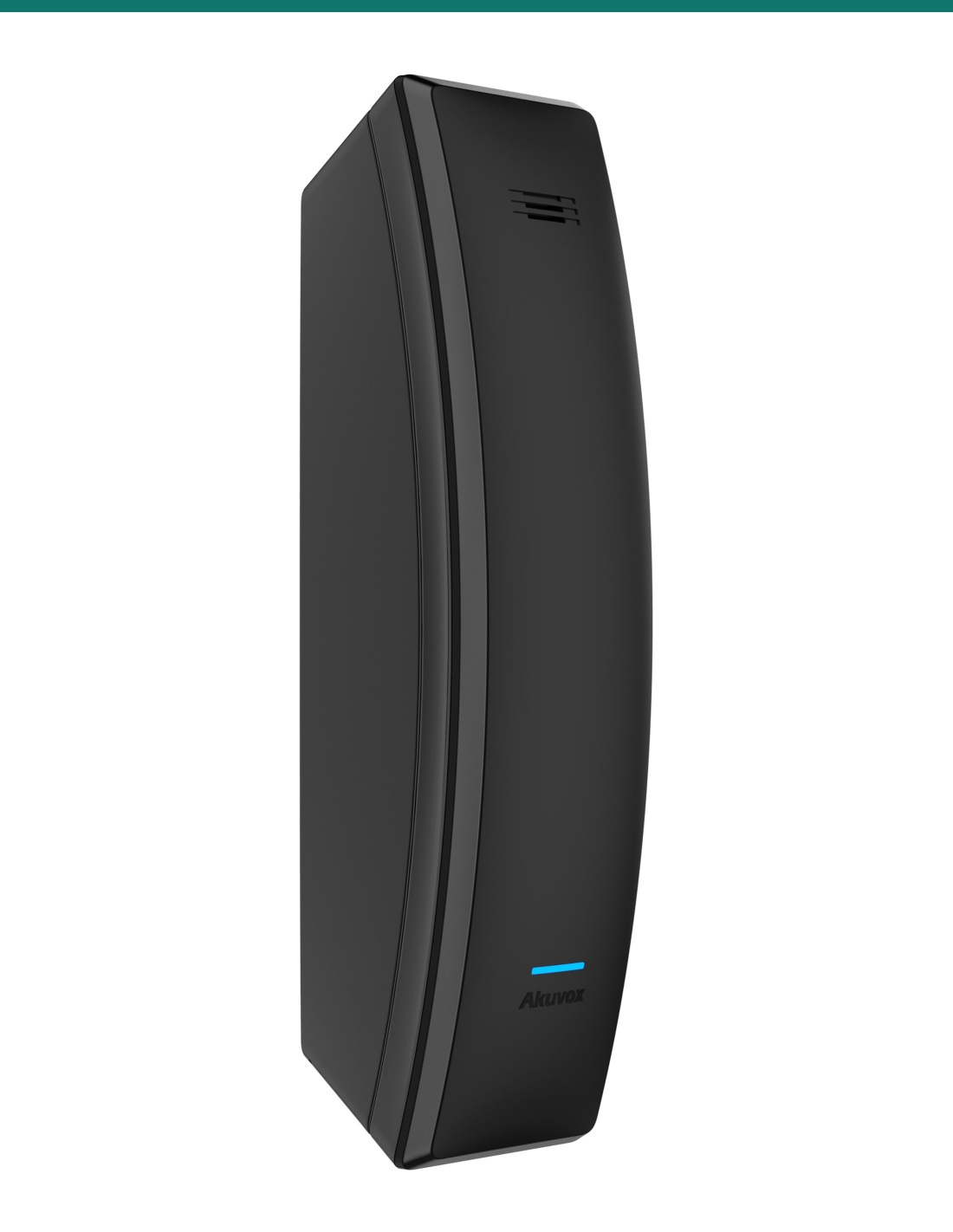

Akuvox S560 black audio indoor handset — right three-quarter view

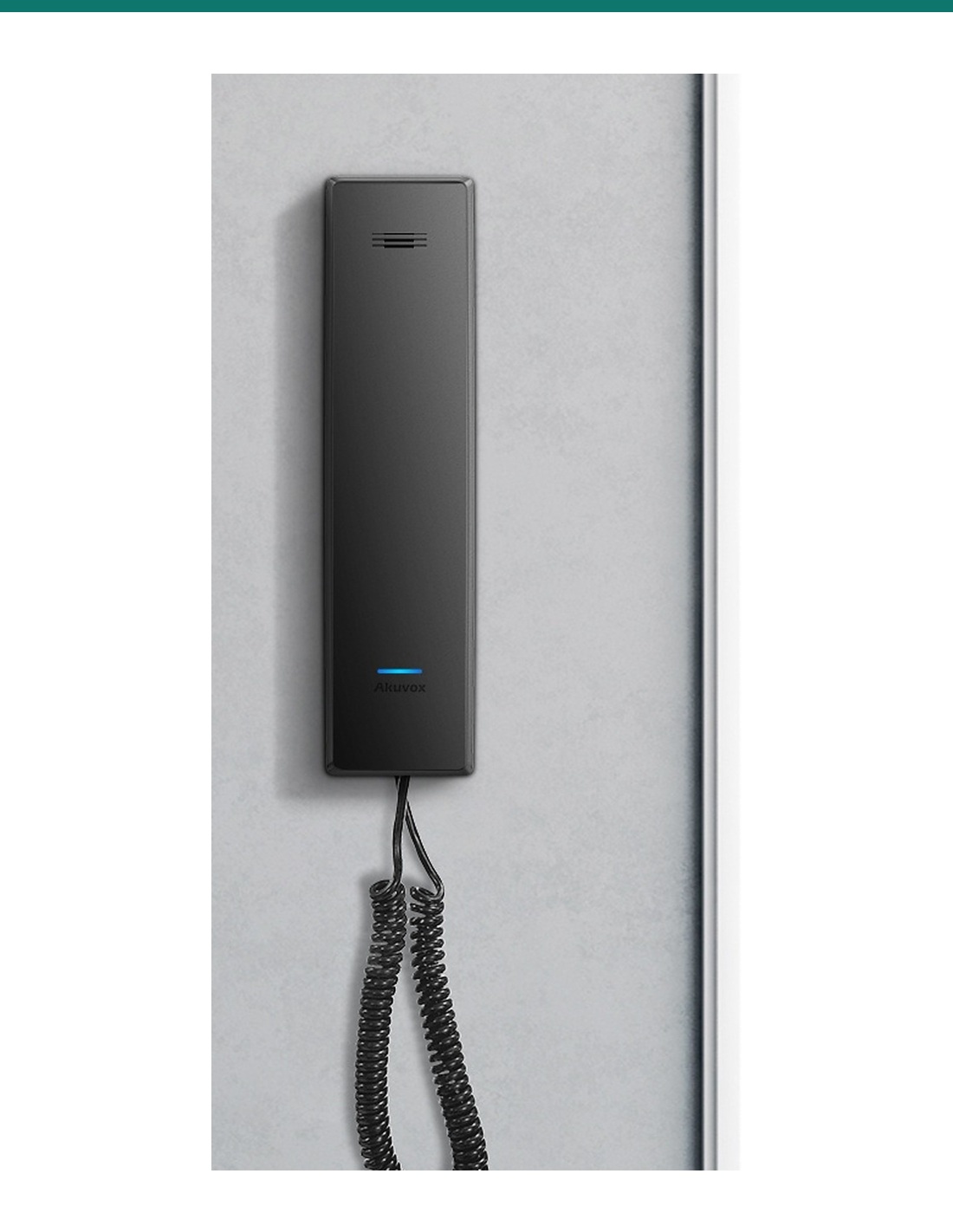

Akuvox S560 black SIP audio handset mounted on a wall — front

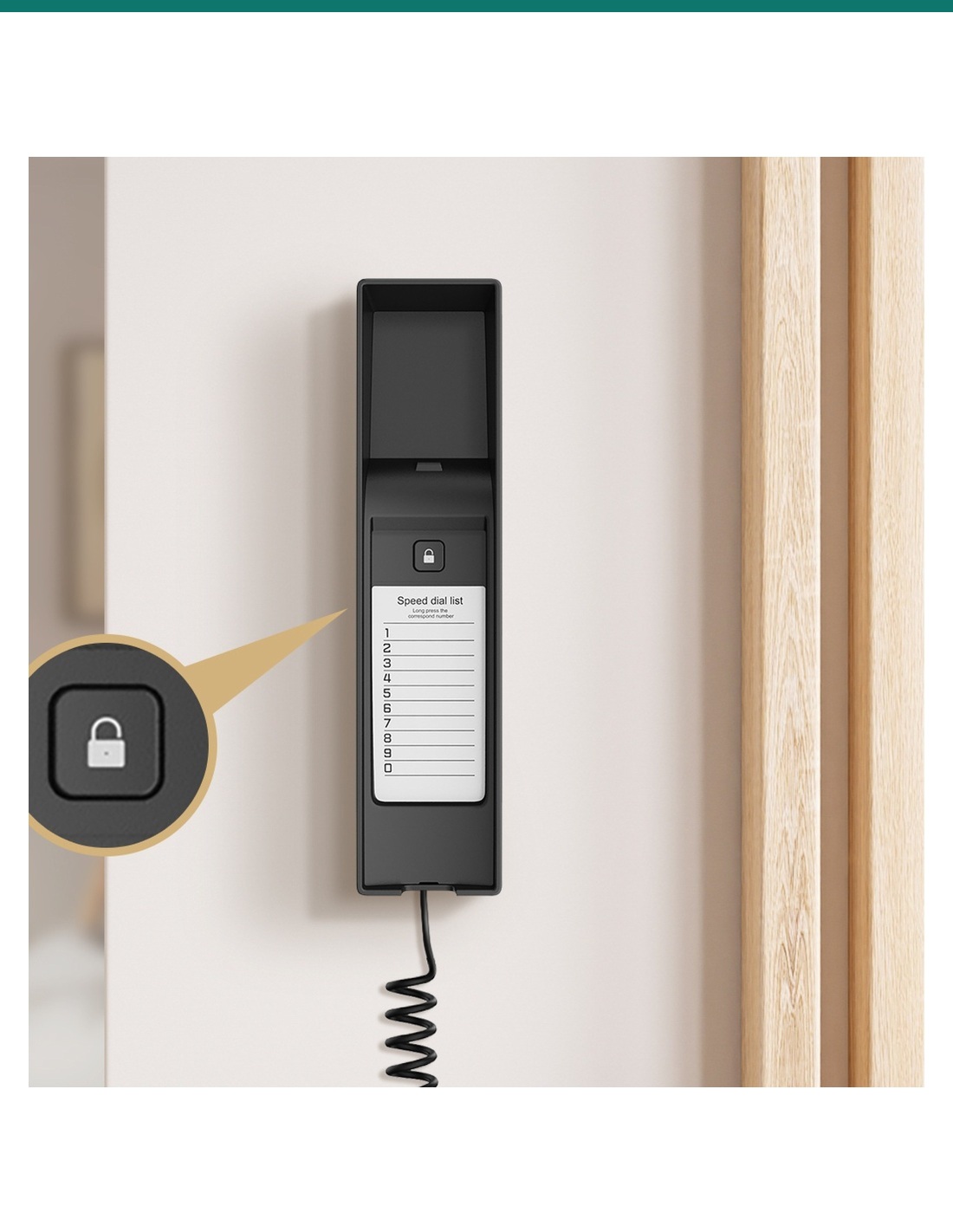

Akuvox S560 base unlock button beside the handset cradle

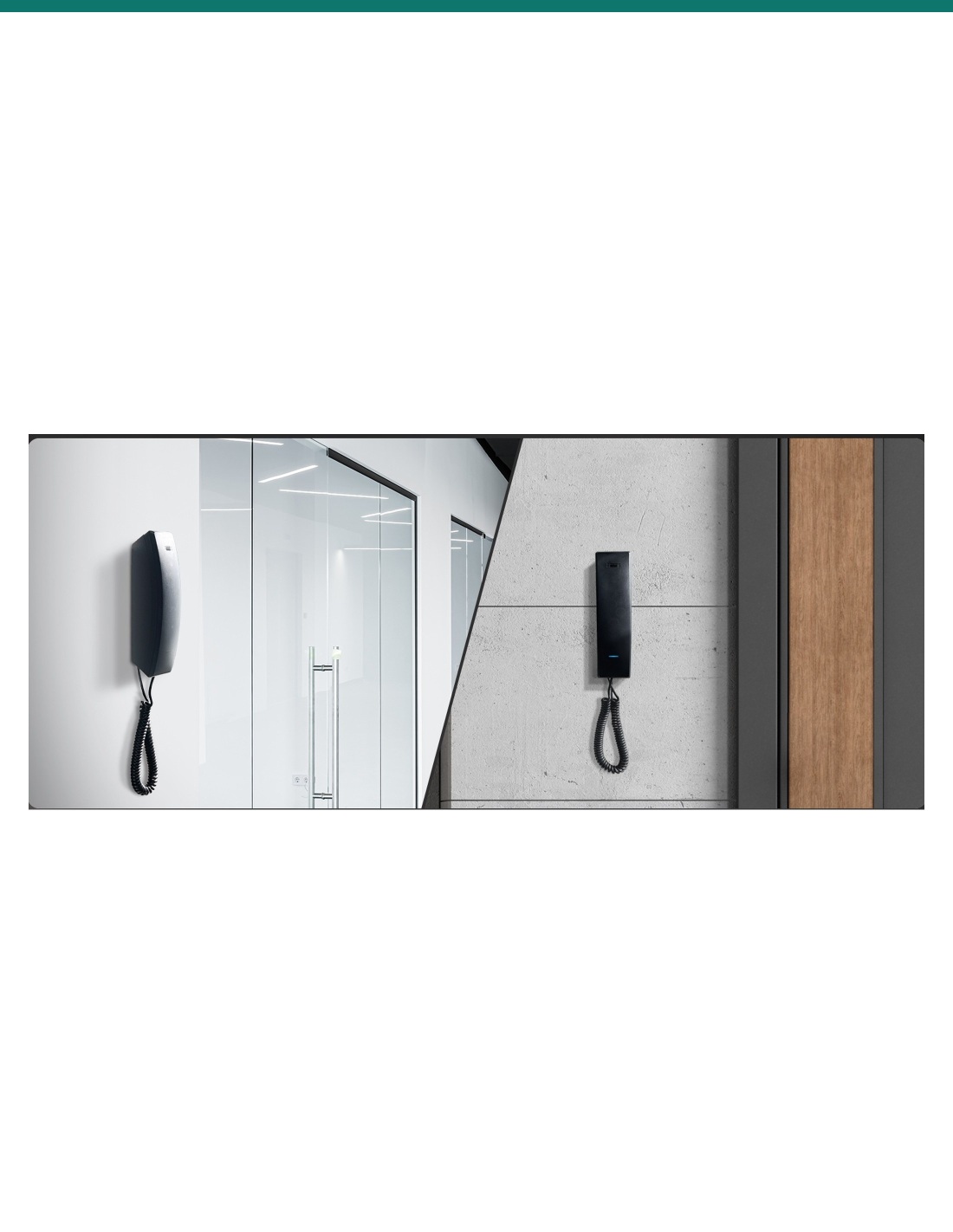

Akuvox S560 handsets installed in an office and an apartment lobby

Akuvox S560 Black SIP Audio Indoor Handset with Speed-Dial Keypad — AK-S560

Name: Akuvox S560 Black SIP Audio Indoor Handset with Speed-Dial Keypad — AK-S560
Brand: Akuvox
SKU: AK-S560
Price: 95.5 AUD
Availability: InStock

Reference: AK-S560

In Stock - Ready to Ship

$ 95.50

inc-GST

or 4 interest-free payments of $23.88 with

Akuvox S560 is a black SIP audio handset for apartments and offices that don’t need a screen. Lift the handset to talk to the door, press the unlock button on the base, or long-press one of ten speed-dial keys to call reception. PoE or 12 V DC, wall or desk mount. Stocked in Australia by Infront Technologies.

✓SIP v1 / v2 audio handset with G.722 wideband audio and echo cancellation
✓Numeric keypad, 10 speed-dial keys and a DSS key for one-press calls to the manager
✓Unlock button on the base — release the door while still holding the handset
✓PoE 802.3af (≤2.5 W) or 12 V DC · 216.2 × 63.1 × 53 mm · wall or desk

Resident talking on an Akuvox S560 SIP audio handset

Akuvox · S560 · Black SIP audio handset

The simple way to answer the door.
SIP handset, keypad, one-press unlock.

The AK-S560 is Akuvox’s entry-level SIP indoor answering unit: a classic handset on a slim base, built for large residential projects, staff areas and secondary rooms where audio is all you need. It takes calls from Akuvox door stations, unlocks with one press and dials preset numbers from its keypad.

This SKU is the handset only.

You receive the black S560 handset and base with its standard mounting hardware. Door stations, PoE switch and power supply are sold separately.

In the box

Akuvox S560 handset and base (black)
Coiled handset cord
Standard mounting hardware

What you also need(sold separately)

Akuvox SIP door station, or another SIP door phone or PBX
PoE 802.3af switch or injector, or a 12 V DC supply
Electric lock and lock PSU at the door if you want to release it

Lift, talk, unlock.

When a visitor calls, the S560 rings through its ringtone speaker. Pick up the handset, speak to the door station, and press the lock button on the base to let them in — one hand on the phone, one on the button.

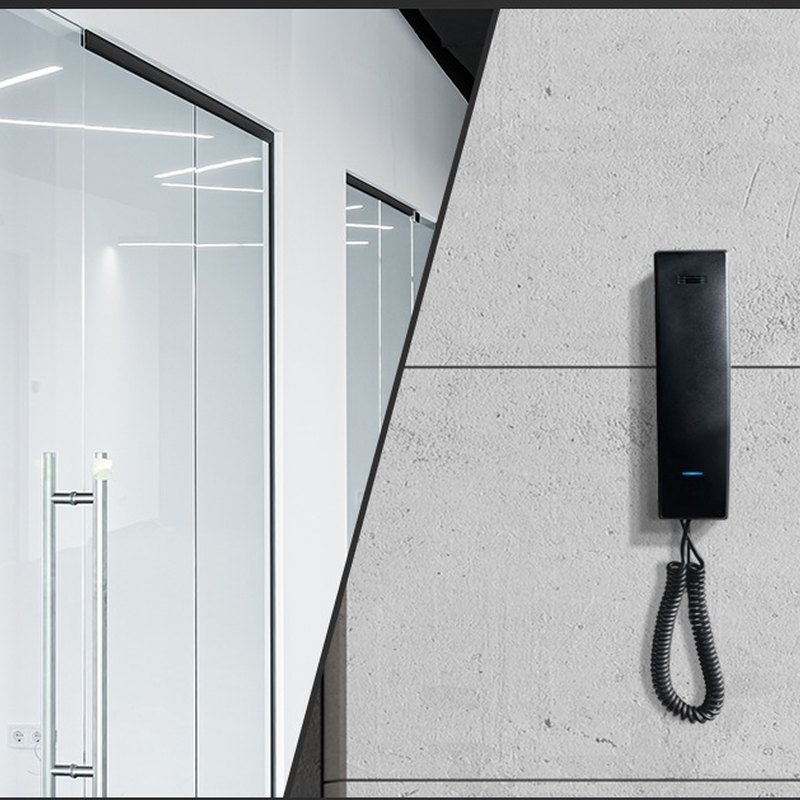

Akuvox S560 handsets wall-mounted in an office and a lobby

Audio

Clear calls, no screen needed.

Separate speakers for the ringtone and the handset, plus echo cancellation, voice activity detection and automatic gain control, keep conversations with the door clear.

Standard SIP v1 / v2 with PCMU, PCMA, G.729 and G.722 means it registers to Akuvox door stations or a SIP PBX like any IP phone.

Keypad

Ten speed-dials and a manager key.

Long-press any of the ten speed-dial keys to call a preset number — the base has a printed card to label them. The DSS key calls the property manager, concierge or security office in one press.

A programmable key can be set for DND, call forwarding, voicemail access or redial.

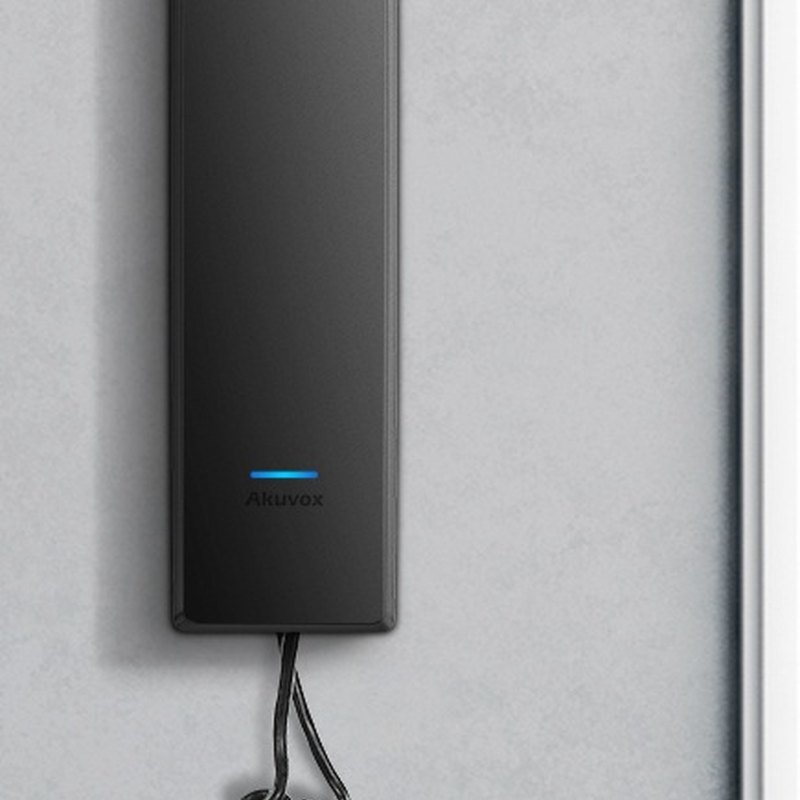

Akuvox S560 black handset mounted on a wall

Unlock

The door button is on the base.

The unlock button sits on the base, so residents can keep talking with one hand and release the door with the other.

Akuvox supports cloud-based deployment, so building managers can provision and maintain S560 handsets remotely instead of visiting each unit.

How it works

From door call to open door.

Mount

Fix the base to the wall or stand it on a desk.

Power and network

Run 802.3af PoE to the RJ45, or use a 12 V DC supply.

Register

Test

Call from the door, check audio both ways and confirm the unlock button releases the lock.

At a glance

Key specs — AK-S560

Brand: Akuvox
Reference: AK-S560
Colour: Black (plastic front panel)
Type: SIP audio handset (no screen, no camera)
Keys: Numeric keypad, 10 speed-dial keys, DSS key, programmable key, unlock button
Memory: 64 MB RAM / 16 MB ROM
Audio: 1 mic; ringtone speaker + handset speaker
Codecs: PCMU, PCMA, G.729, G.722
SIP: SIP v1 (RFC 2543) and SIP v2 (RFC 3261)
DTMF: Out-of-band (RFC 2833), SIP INFO
Network: 1 × RJ45, 10/100 Mbps
Power: PoE 802.3af or 12 V DC
Consumption: PoE ≤1.13 W standby / ≤2.5 W full; 12 V ≤0.73 W / ≤2 W
Mounting: Wall-mounted or desktop
Size: 216.2 × 63.1 × 53 mm (H × W × D)
Working temperature: −10 °C to +45 °C, 10–90% humidity
Warranty: Australian warranty via Infront Technologies

Pair it with

Builds a complete apartment intercom

Door

Akuvox door station

E12S, R20K, R20B, R25K or R28A call the handset and release the lock on command.

Network

PoE switch

One 802.3af PoE port powers the handset and carries the call.

Video

Akuvox indoor monitor

Mix S560 handsets with S562 or S563 video monitors in the same building.

Watch

See it in action

Akuvox S560 SIP intercom overview

Answers

Common questions

Does the S560 show video?

No. It is an audio-only handset. Choose an S562 or S563 indoor monitor if residents need to see the visitor.

Will it work with a video door station?

Yes. It takes the audio from any Akuvox SIP door station, such as E12S, R20K or R25K, and can release the door relay.

Does it need a power supply?

Not if your switch provides 802.3af PoE — it draws at most 2.5 W. Otherwise use a 12 V DC supply.

Can it sit on a desk?

Yes. The S560 can be wall-mounted or placed on a desktop.

What are the speed-dial keys for?

Long-press a key to call a preset number, such as reception, a neighbour or security. The DSS key gives one-press access to the property manager.

An affordable answering point for every unit.

Choose the S560 for budget-conscious apartment blocks, staff rooms and extension points alongside Akuvox video monitors. Order through Infront Technologies for Australian stock and pairing advice.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE (≤2.5 W full load), or a 12 V DC supply where PoE isn’t available, as stated on the Akuvox S560 datasheet.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
