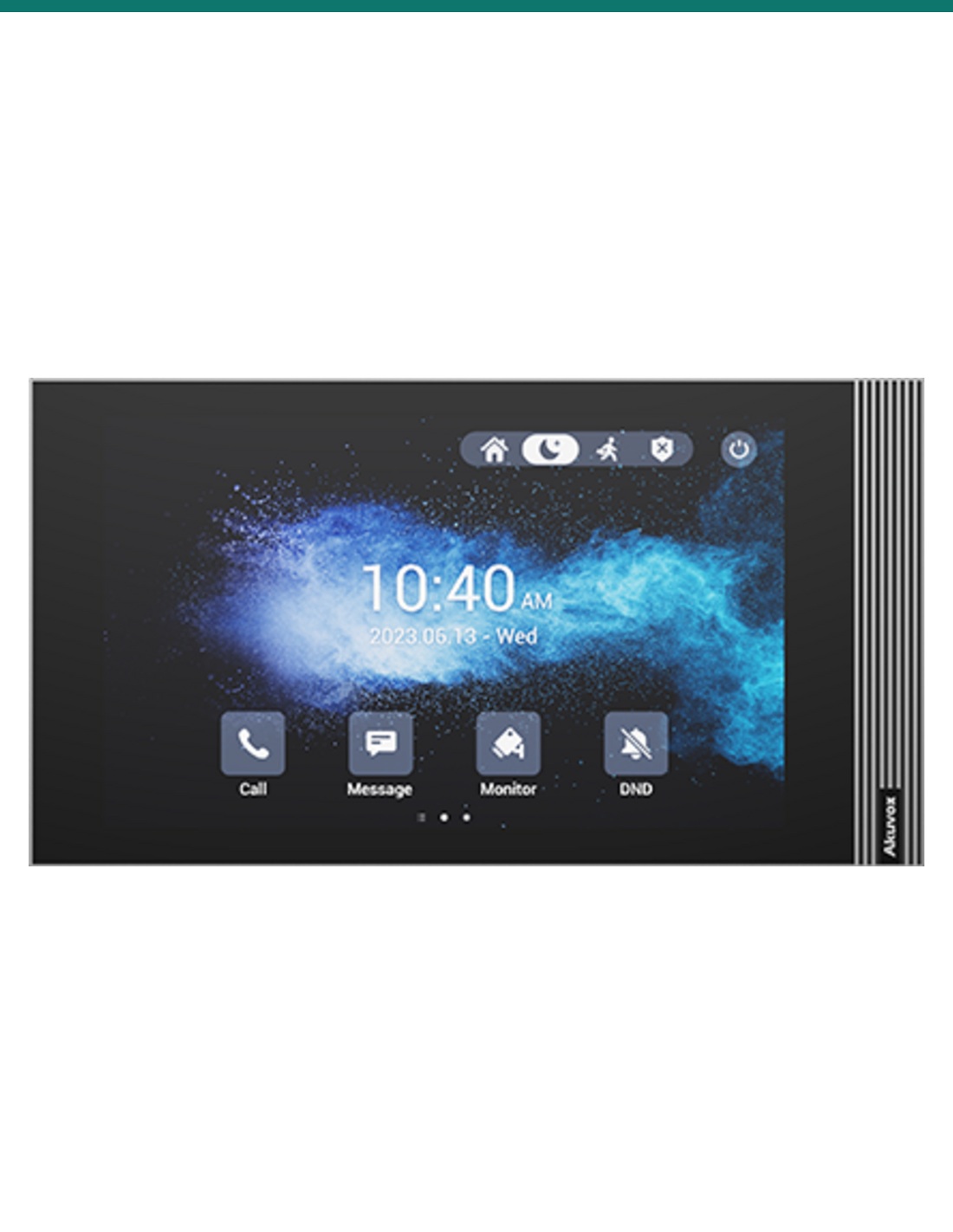

Akuvox S562W grey Wi-Fi indoor monitor — front

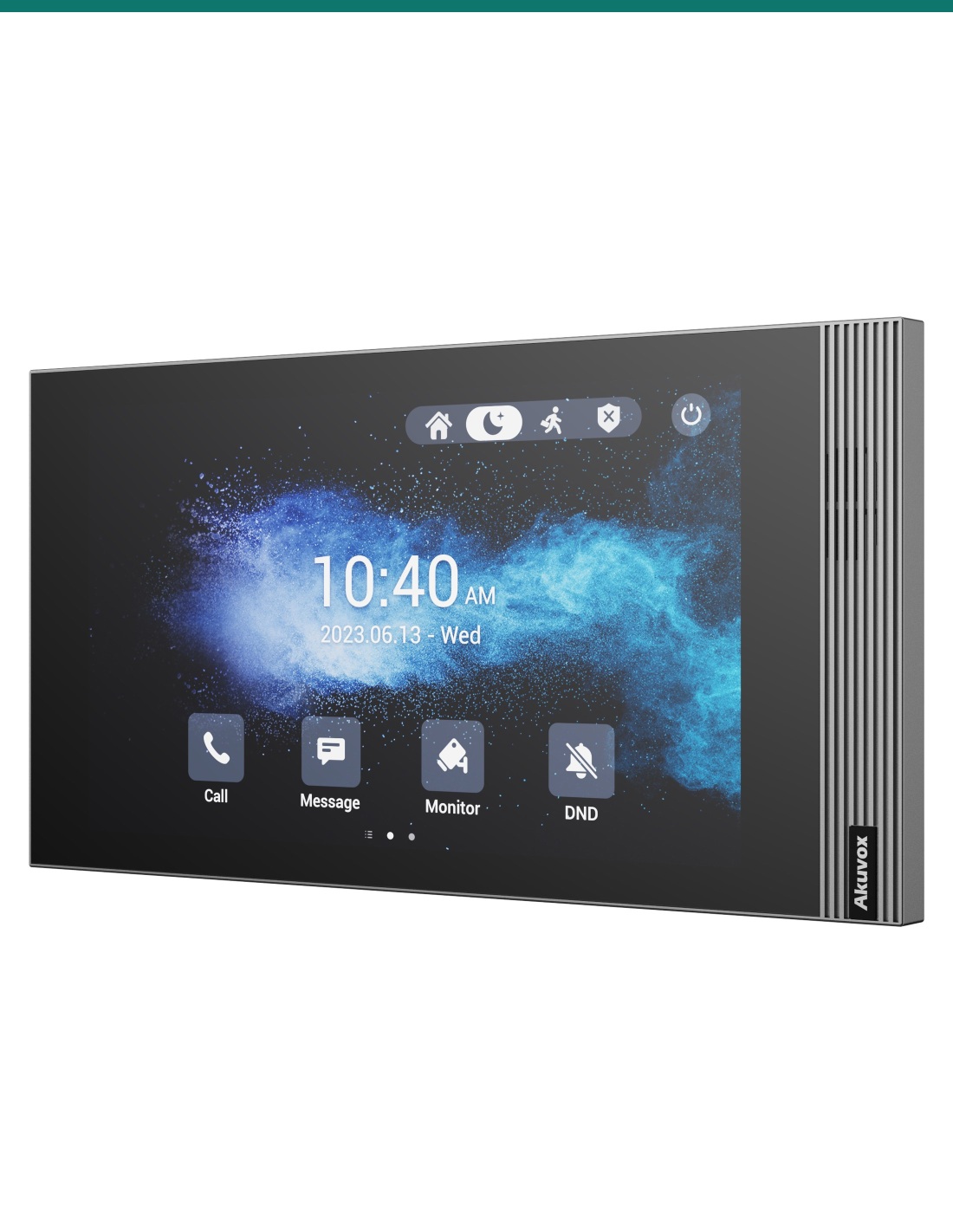

Akuvox S562W grey Wi-Fi indoor monitor — left three-quarter view

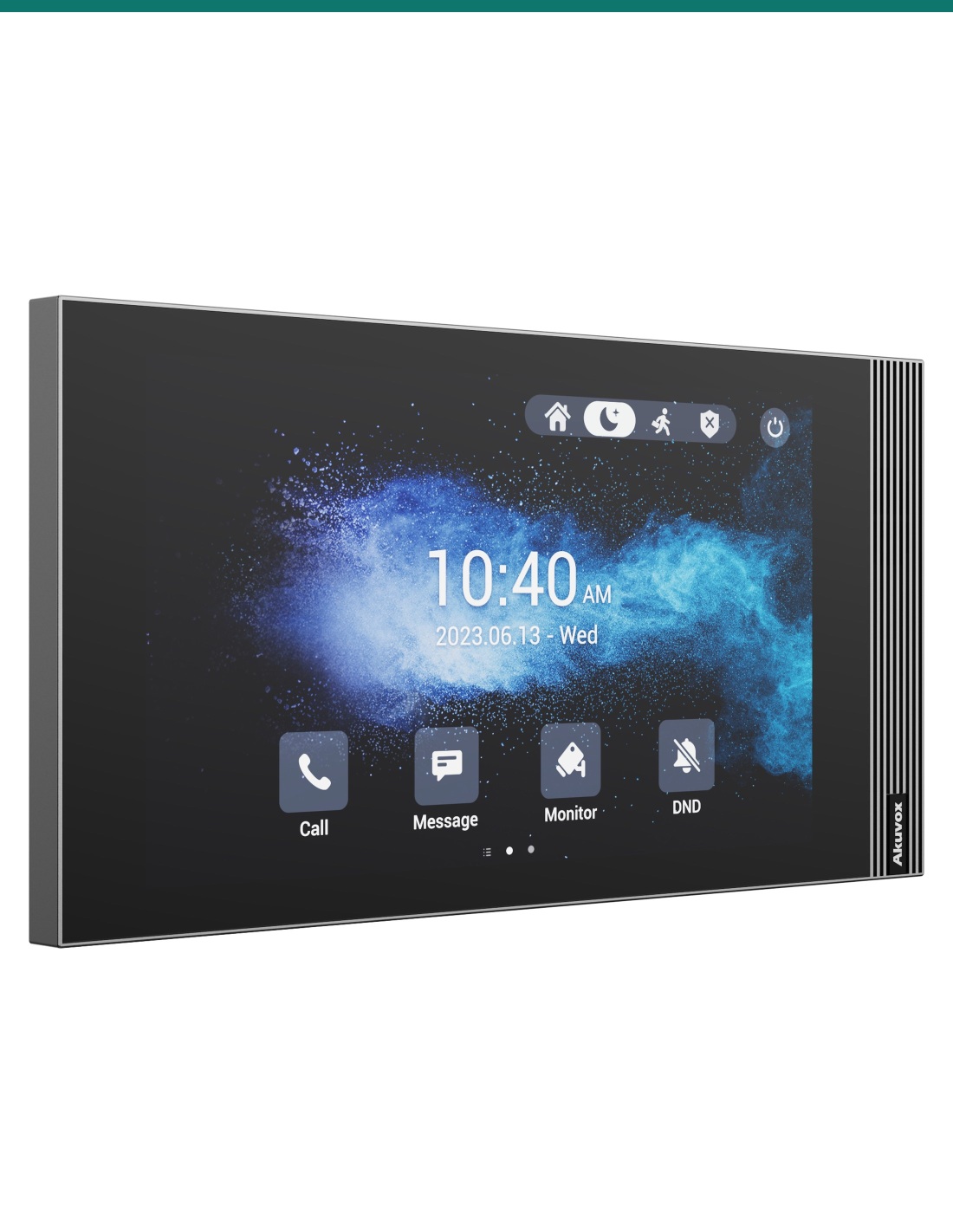

Akuvox S562W grey Wi-Fi indoor monitor — right three-quarter view

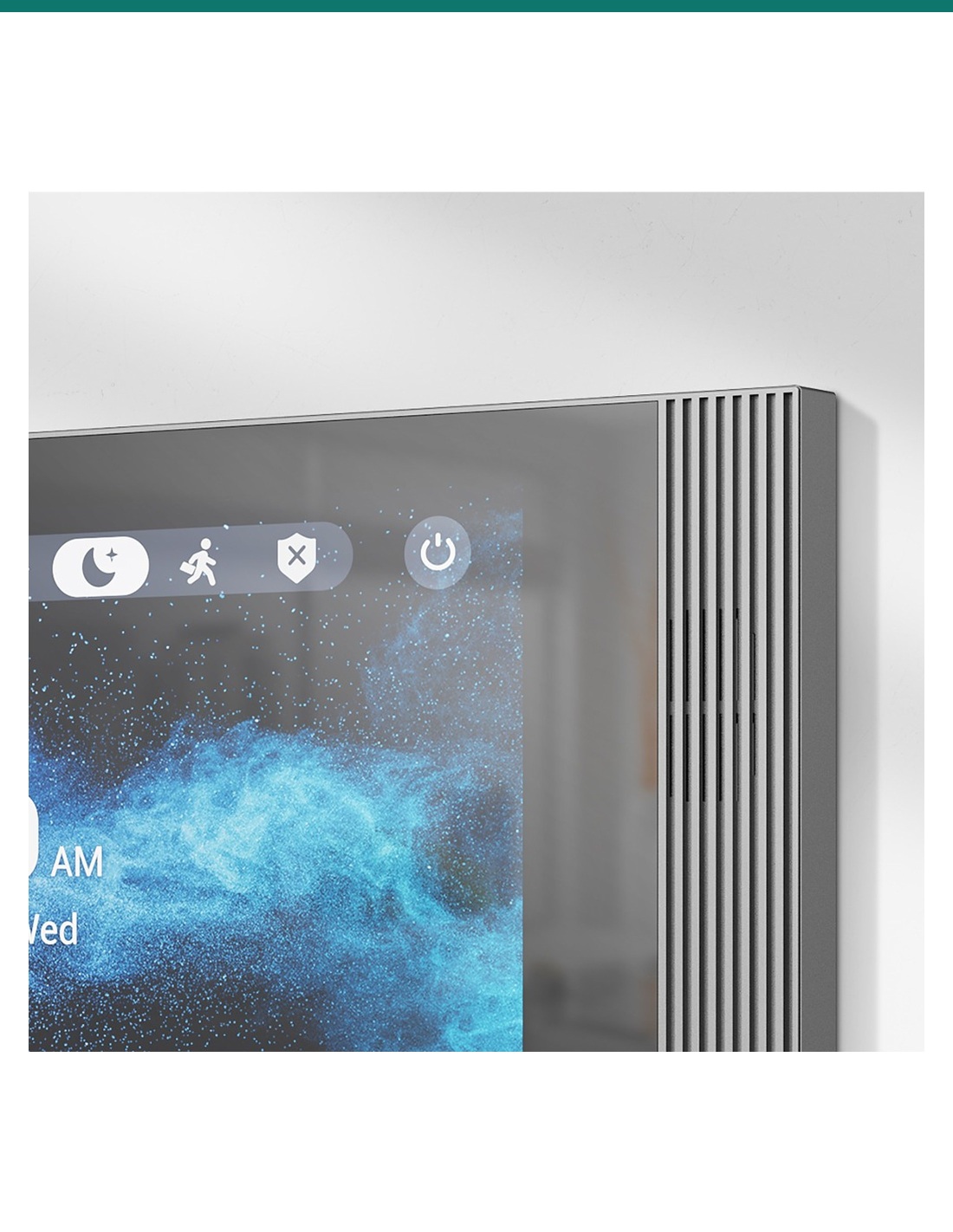

Akuvox S562W grey — slim body and linear speaker grille

Akuvox S562W Grey 7-inch Linux Wi-Fi 6 SIP Indoor Monitor — AK-S562W-GREY

AK-S562W-GREY
In Stock - Ready to Ship
$ 237.00
inc-GST

or 4 interest-free payments of $59.25 with

Akuvox S562W in grey is a 7-inch Linux SIP indoor monitor with built-in Wi-Fi 6. Its 1024 × 600 IPS touch screen and front-facing speaker answer video calls from the door station, and the slim 21.7 mm panel releases the lock, shows IP cameras and monitors eight alarm inputs. 802.3af PoE or 12 V DC, ≤9 W. Wall or desk.

  • ✓7-inch IPS capacitive touch screen, 1024 × 600, 300 nits, 85° viewing each way
  • ✓Wi-Fi 6 (IEEE 802.11 b/g/n/ax, 2.4 GHz) plus 2 × 10/100 Mbps RJ45
  • ✓SIP v1 / v2 video intercom: H.264 video, G.722 wideband audio, echo cancellation
  • ✓1 relay output, 8 alarm inputs, bell input and RS485
  • ✓PoE 802.3af or 12 V DC · ≤9 W · wall or desk mount · 216.4 × 118.8 × 21.7 mm

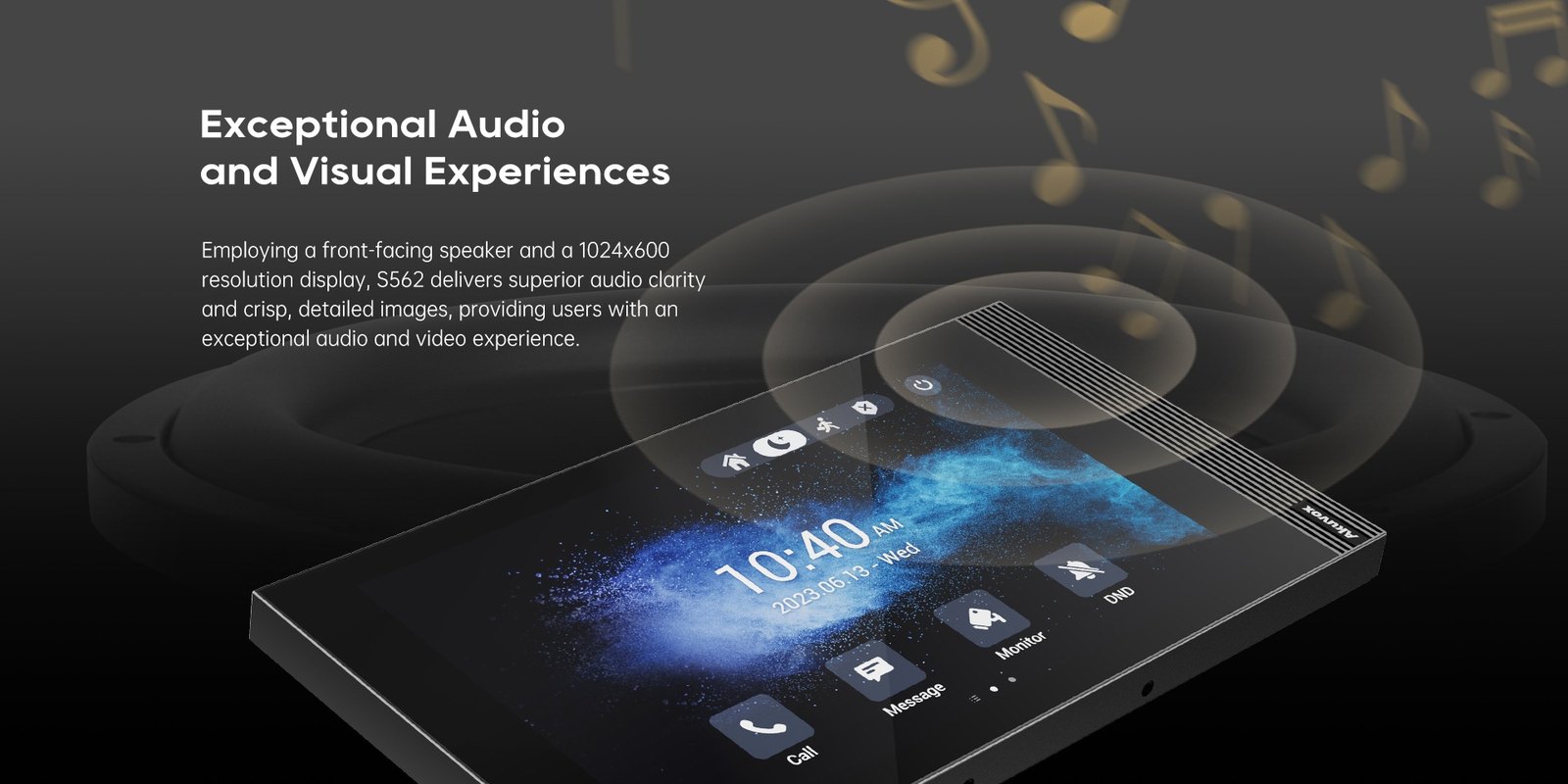

Akuvox S562 indoor monitor — front-facing speaker and 1024 × 600 display
Akuvox · S562W · Grey 7-inch indoor monitor

A slim 7-inch screen for every door call.
Linux SIP, PoE, 21.7 mm thin.

The AK-S562W-GREY is Akuvox’s S562W indoor monitor in grey. A 7-inch 1024 × 600 IPS touch screen and front-facing speaker answer video calls from Akuvox door stations, and the same panel views IP cameras, releases the door relay and monitors eight alarm inputs. Wi-Fi 6 is built in for sites where a data cable is hard to run.

This SKU is the indoor monitor only.

You receive the grey S562W with its wall-mounting bracket and fixings. Door stations, the desk stand, surface-mount box, PoE switch and power supply are sold separately.

In the box
  • Akuvox S562W indoor monitor (grey)
  • Wall-mounting bracket
  • 8-pin and 10-pin wiring cables and a diode
  • Screws for US and European wall boxes, wall anchors and a crosshead screwdriver
What you also need (sold separately)
  • Akuvox SIP door station, or another SIP door phone
  • PoE 802.3af switch or injector, or a 12 V DC supply
  • S562 desk stand or surface-mount angle box if not using a wall box
  • Electric lock and lock PSU if the relay releases a door

Answer the door from the hallway.

When a visitor presses the call button outside, the S562W rings with live video from the door station. Talk hands-free, tap to release the lock, and check any linked camera before you open up.

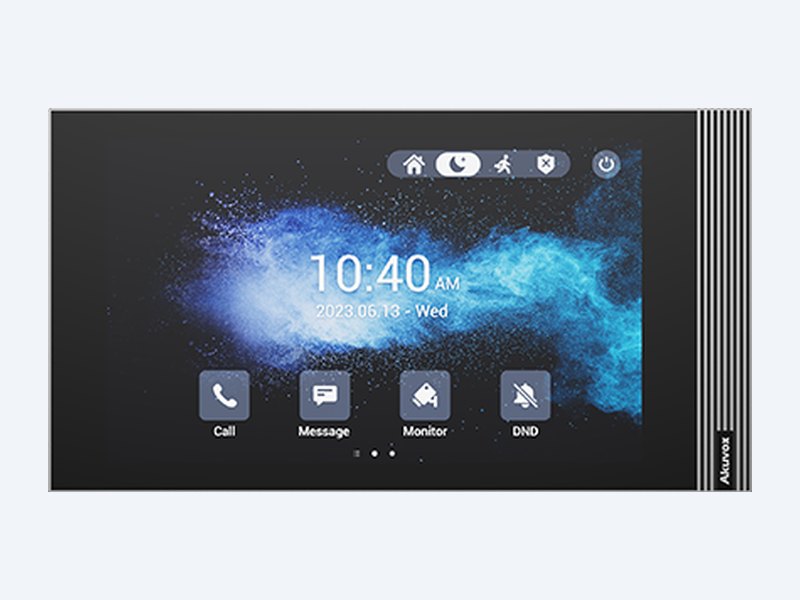

Akuvox S562W grey indoor monitor front view

Display

A 7-inch screen that’s easy to read.

7-inch IPS capacitive touch panel at 1024 × 600, 300 nits and 85° viewing in every direction, so the visitor is clear whether you’re standing in front of it or walking past.

Linux keeps it quick and simple to look after: web management portal, auto-provisioning, configuration backup and firmware upgrades from the browser.

Cameras

More than a door intercom.

Akuvox built the S562W to stream live video from its door phones and from third-party IP security cameras, so residents can check the driveway or lobby from the same screen.

Standard SIP v1 / v2 with H.264 video and RTSP support means it registers to Akuvox door stations or a SIP PBX. Two 10/100 Mbps RJ45 ports on the back.

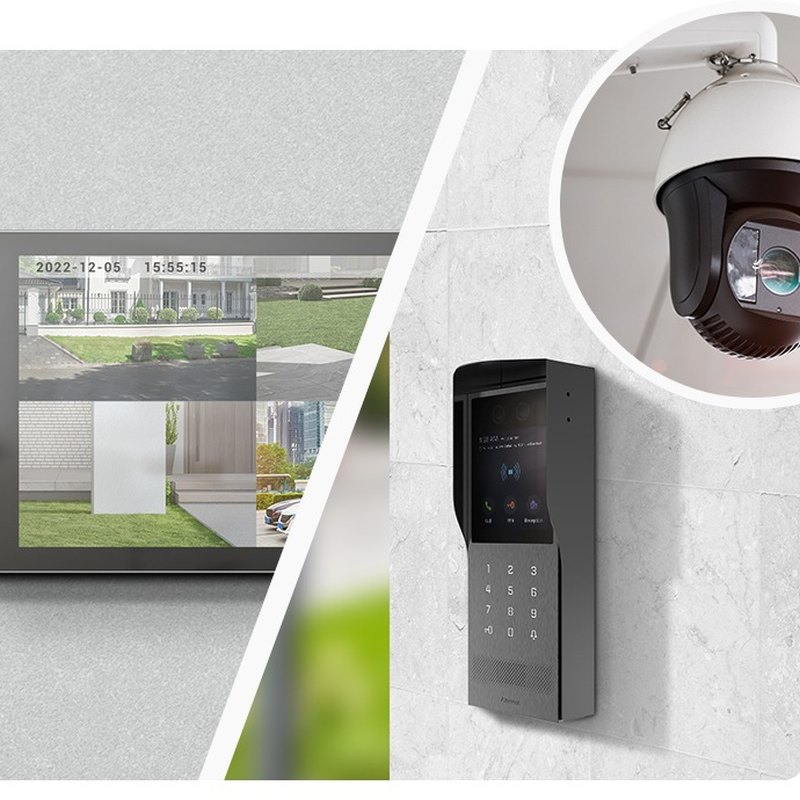

Akuvox S562 showing live camera views alongside a door station and IP camera
Wi-Fi 6 on the Akuvox S562W indoor monitor

Wi-Fi 6

Wi-Fi 6 where cable is hard.

The S562W adds Wi-Fi 6 (IEEE 802.11 b/g/n/ax, 2.4 GHz), giving a steadier wireless link than older Wi-Fi standards.

Run it on Wi-Fi with a 12 V DC supply, or ignore Wi-Fi and use 802.3af PoE over the RJ45 like the standard model.

How it works

From door call to open door.

01

Mount

Fix the bracket to a US, European, 118 mm or round wall box, or straight to the wall; or use the S562 desk stand or surface-mount angle box.

02

Power and network

Run 802.3af PoE to the RJ45, or use 12 V DC with Wi-Fi 6 for the network.

03

Pair the door

Register the monitor and door station to each other, or to your SIP PBX, in the web portal.

04

Test

Call from the door, check video and audio, and confirm the unlock key releases the right lock.

Pair it with

Builds a complete apartment or villa intercom

Door

Akuvox door station

R20K, R25K, E12S or R28A call the monitor with video and let residents release the lock.

Mounting

S562 desk stand or angle box

Sit the monitor on a bench, or surface-mount it where there is no wall box.

Network

PoE switch

One 802.3af PoE port powers the monitor and carries the SIP call — no local power point needed.

Cameras

IP security cameras

Add RTSP cameras so residents can check the driveway or lobby from the same screen.

Works with

Platforms and integrations

Akuvox SIP door stations

Pairs with Akuvox door phones such as R20K, R25K, E12S and R28A for video calls and one-touch door release.

SIP PBX and IP phones

Standard SIP v1 / v2 lets the S562W register to a SIP PBX and call IP phones or other monitors on the network.

IP cameras and NVRs over RTSP

RTSP support lets residents view third-party IP cameras and NVR channels on the monitor alongside door calls.

Watch

See it in action

Akuvox S562 7-inch indoor monitor overview
Mounting an Akuvox indoor monitor
Viewing third-party NVR cameras on Akuvox indoor monitors

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

What’s the difference between S562, S562W, S562-V and S562W-V?

All four are the same 7-inch Linux monitor with the same screen, I/O and 216.4 × 118.8 × 21.7 mm body. The W models add Wi-Fi 6 (2.4 GHz). The -V models are built to hang in portrait and are wall-only; the others are landscape and can also sit on the S562 desk stand. Each comes in white or grey. This one is the S562W in grey.

How is it powered, and how much does it draw?

From an IEEE 802.3af PoE switch or injector, or a 12 V DC supply (Akuvox recommends a 12 V 1 A adapter). It draws up to 5 W in standby and 9 W at full load either way.

What can I mount it on?

The supplied bracket fits US and European wall boxes, including 86 mm, 118 mm and round boxes, or screws straight onto the wall with the supplied anchors. For a desk, add the S562 desk stand; to tilt it on a wall without a box, use the S562 surface-mount angle box.

Can it run on Wi-Fi instead of a network cable?

Yes. Wi-Fi 6 (IEEE 802.11 b/g/n/ax) on the 2.4 GHz band carries the SIP calls, with the monitor powered from a 12 V DC supply. You can still use the RJ45 ports and PoE if a cable is available.

Which door stations work with it?

Akuvox SIP door stations such as the R20K, R25K, E12S and R28A. It also registers to SIP PBXes, so other standard SIP door phones using H.264 video can call it.

Can I watch my CCTV cameras on it?

Yes. It supports RTSP, so it can show door phone cameras and third-party IP cameras or NVR channels. The embedded Akuvox video shows how to add NVR cameras.

What can I wire to the inputs and relay?

Eight alarm inputs take door contacts, motion sensors and similar dry-contact devices, the bell input takes a wired doorbell button, and the relay output can switch a lock or gate. RS485 is also provided.

What’s in the box?

The monitor, its wall-mounting bracket, 8-pin and 10-pin wiring cables, a diode for the lock circuit and screws, wall anchors and a crosshead screwdriver. Door station, PoE switch and power supply are separate.

A clean, compact screen at every unit.

White and grey finishes, Wi-Fi and vertical versions all share the same software, so one building can mix them.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE, or a 12 V DC supply (12 V 1 A recommended) where PoE isn’t available. ≤5 W standby, ≤9 W full load.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Ethernet
2 × RJ45, 10/100 Mbps
Memory
128 MB RAM / 128 MB ROM
Audio
SIP v1 / v2; PCMU, PCMA, G.729, G.722; echo cancellation
Power
PoE 802.3af or 12 V DC; ≤5 W standby, ≤9 W full load
Colour
Grey
Working Temperature
−10 °C to +45 °C
Brand
Akuvox
Display
300 nits, 800:1, 85° viewing
Mounting
Wall (US or European wall box) or desk
Size
216.4 × 118.8 × 21.7 mm (W × H × D)
Warranty
Australian warranty
Video
H.264
Product Type
SIP indoor monitor
Model
S562W
Wi-Fi
Wi-Fi 6, IEEE 802.11 b/g/n/ax, 2.4 GHz
I/O
1 relay, 8 alarm inputs, bell input, RS485
OS
Linux
Screen
7-inch IPS capacitive touch, 1024 × 600
Orientation
Landscape
