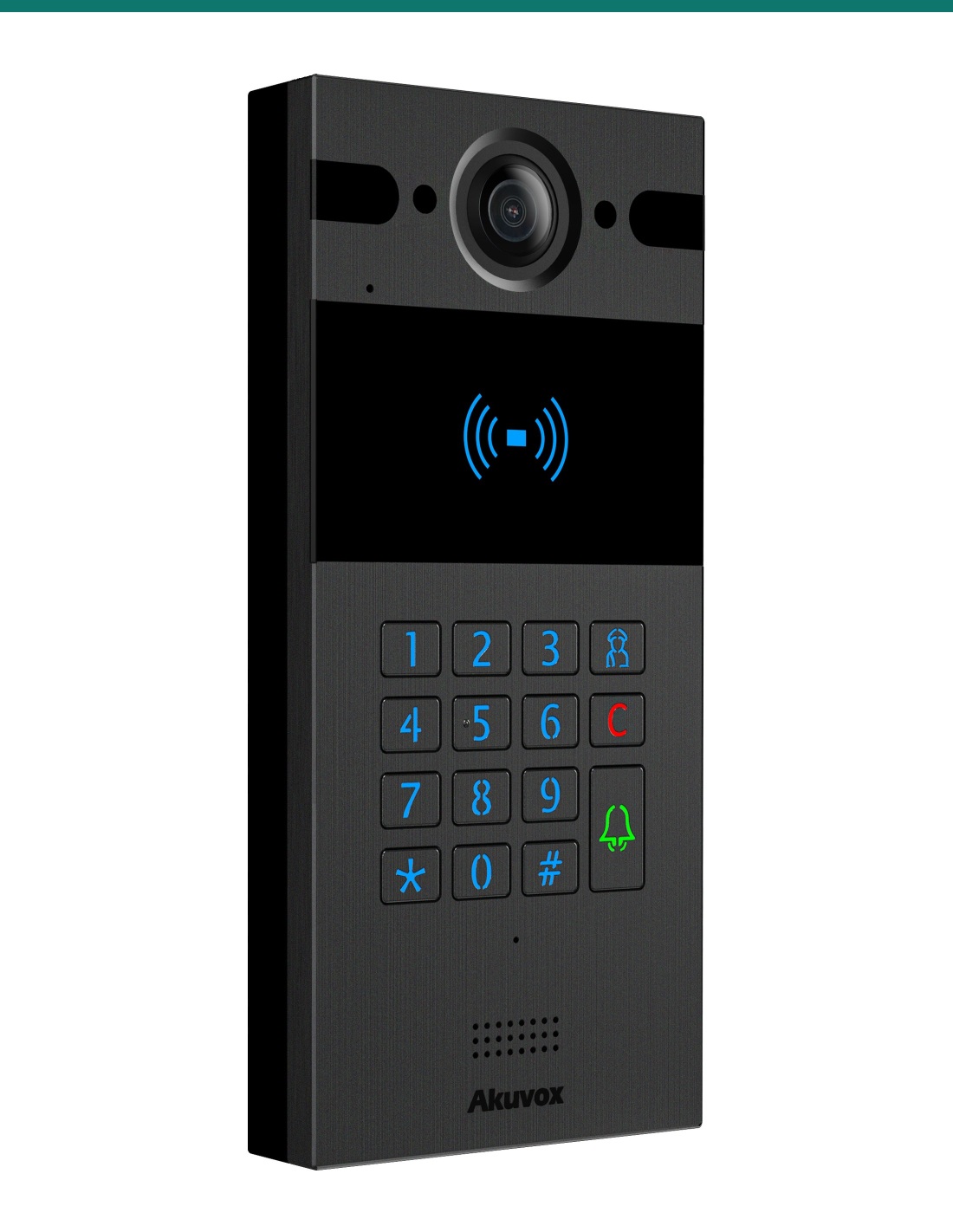

Akuvox R25K black door phone — left three-quarter view

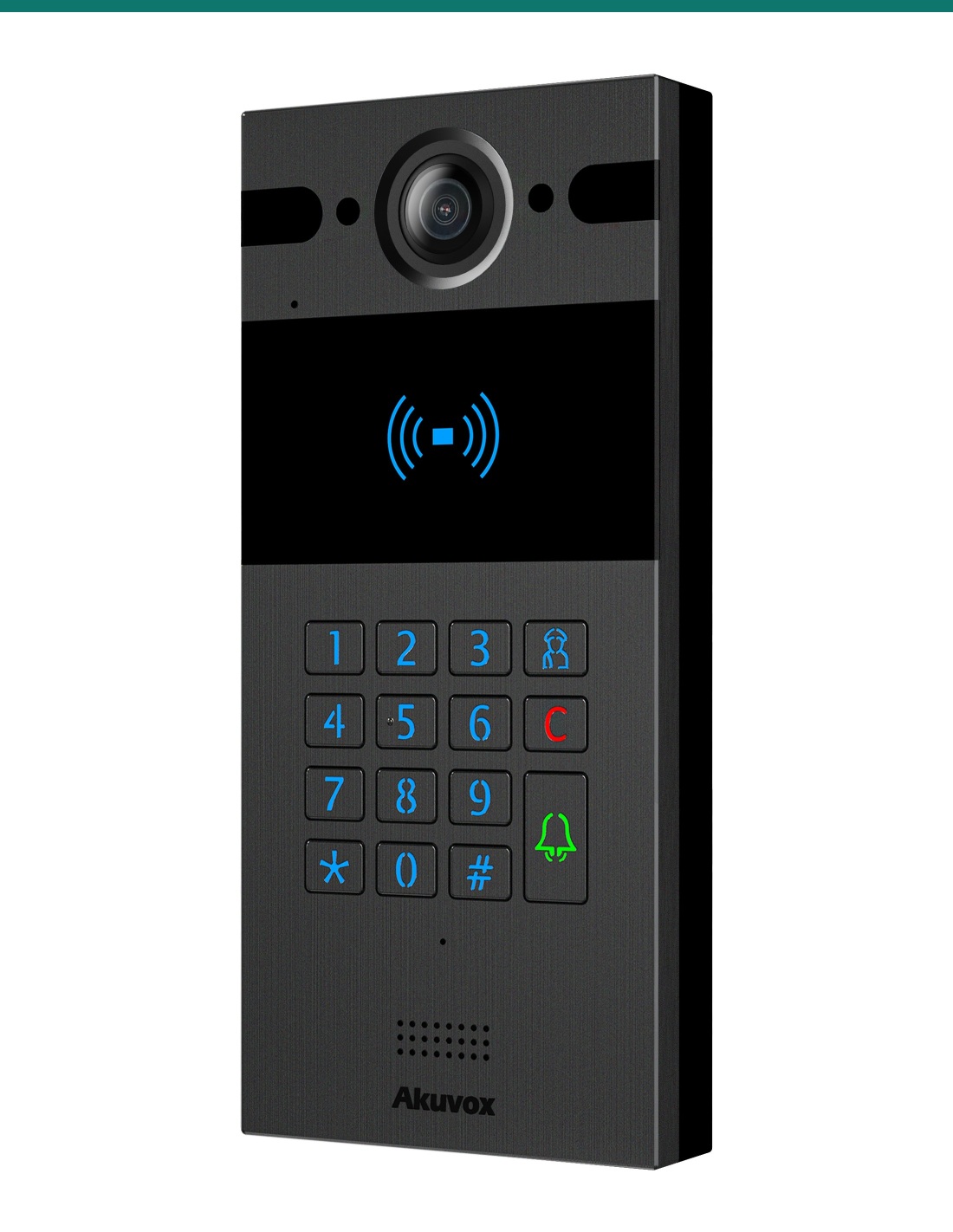

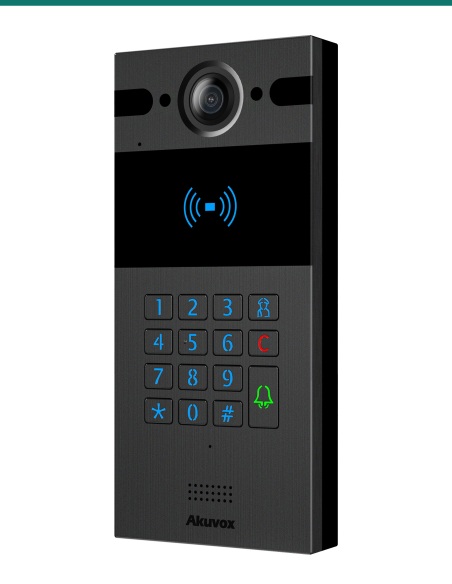

Akuvox R25K black door phone — right three-quarter view

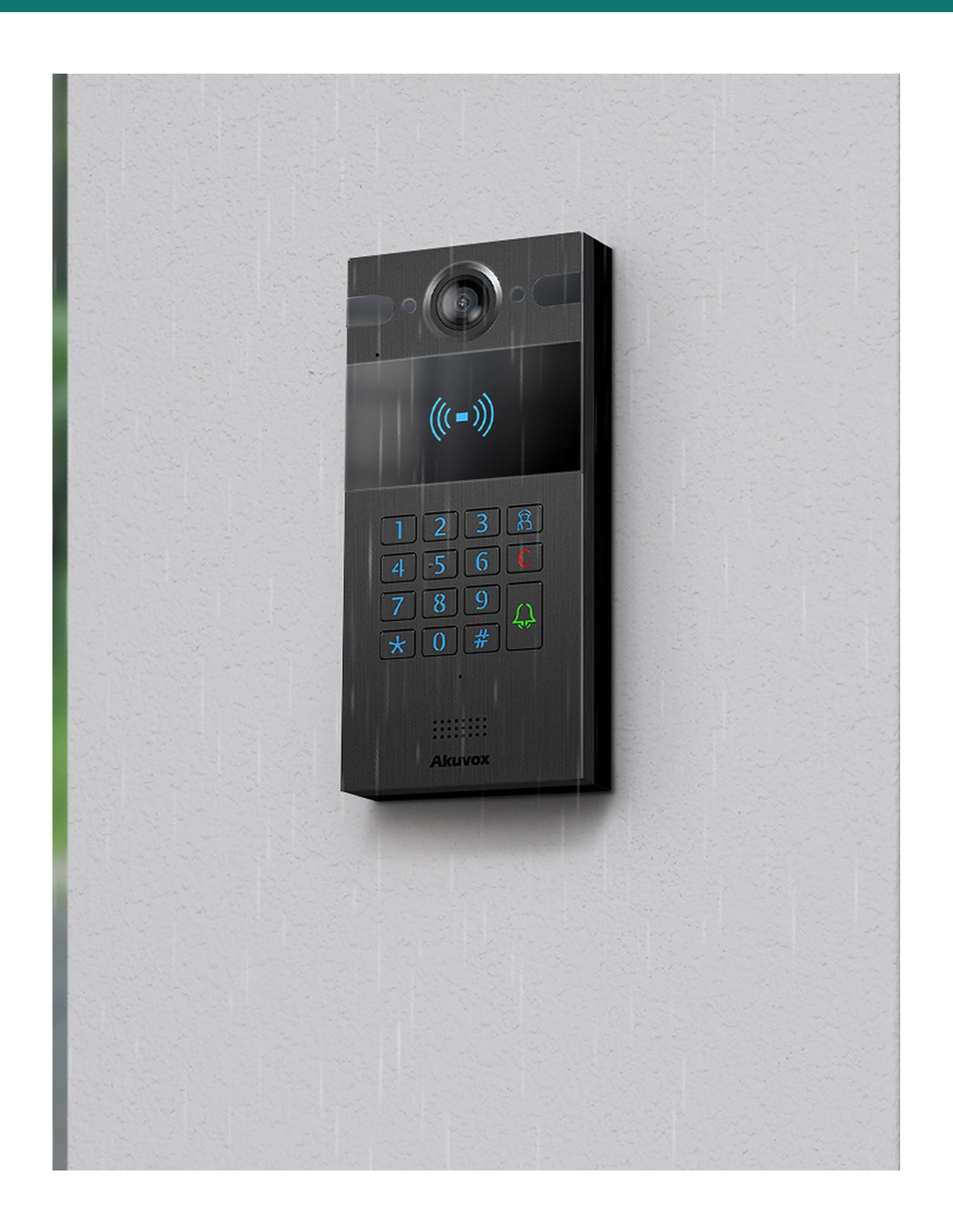

Akuvox R25K black door phone surface-mounted on an outdoor wall

Akuvox R25K Black 4MP Wide-Angle SIP Video Door Phone with Keypad — AK-R25K-BLACK

Name: Akuvox R25K Black 4MP Wide-Angle SIP Video Door Phone with Keypad — AK-R25K-BLACK
Brand: Akuvox
SKU: AK-R25K-BLACK
Price: 568.5 AUD
Availability: InStock

Reference: AK-R25K-BLACK

In Stock - Ready to Ship

$ 568.50

inc-GST

or 4 interest-free payments of $142.12 with

Akuvox R25K in black is a keypad SIP video door phone with a 4 MP fisheye camera that sees 150° both across and top to bottom — faces, the whole porch and parcels at the door. Card, NFC and PIN entry, two lock relays, IP65 aluminium, PoE. Stocked in Australia by Infront Technologies.

✓4 MP fisheye camera, 150° (H) / 150° (V), 2K at 30 fps, IR night lighting

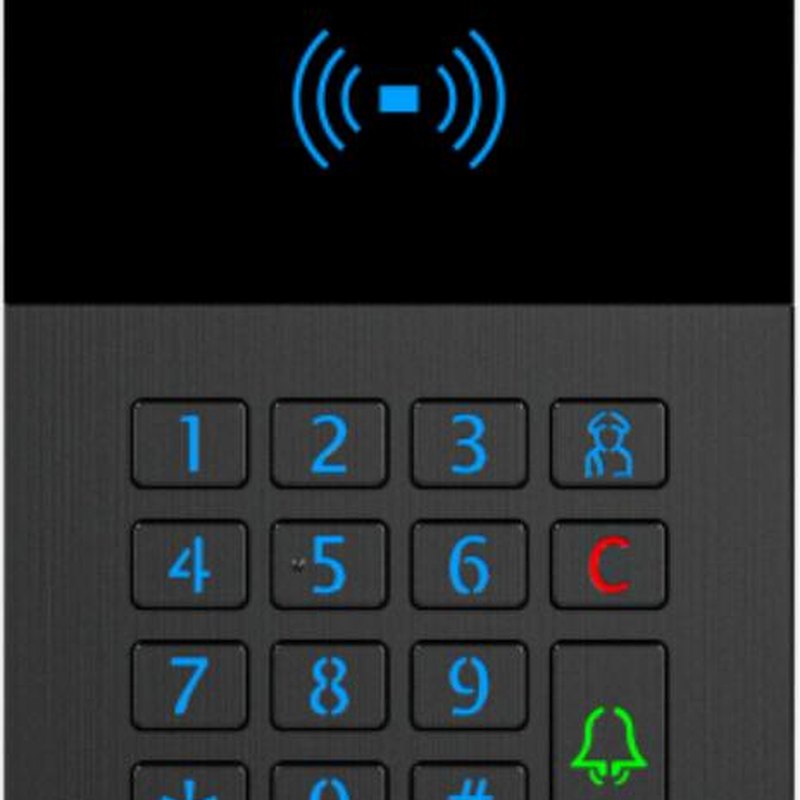

✓Backlit keypad plus 13.56 MHz / 125 kHz card reader and NFC
✓2 relays, 2 inputs, Wiegand and RS485 for access-control integration
✓PoE 802.3af · IP65 · 185 × 85 × 24 mm · SIP and ONVIF

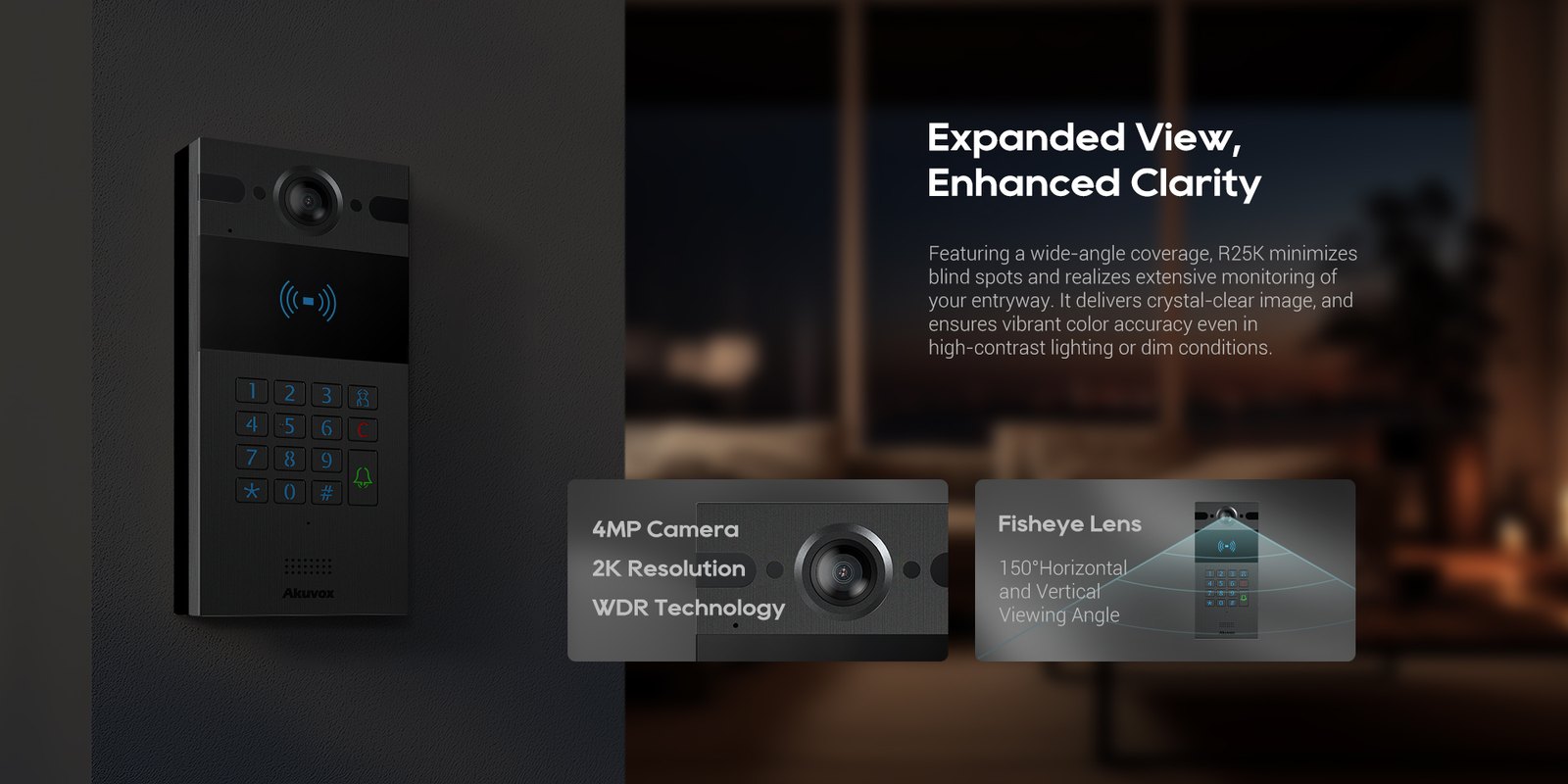

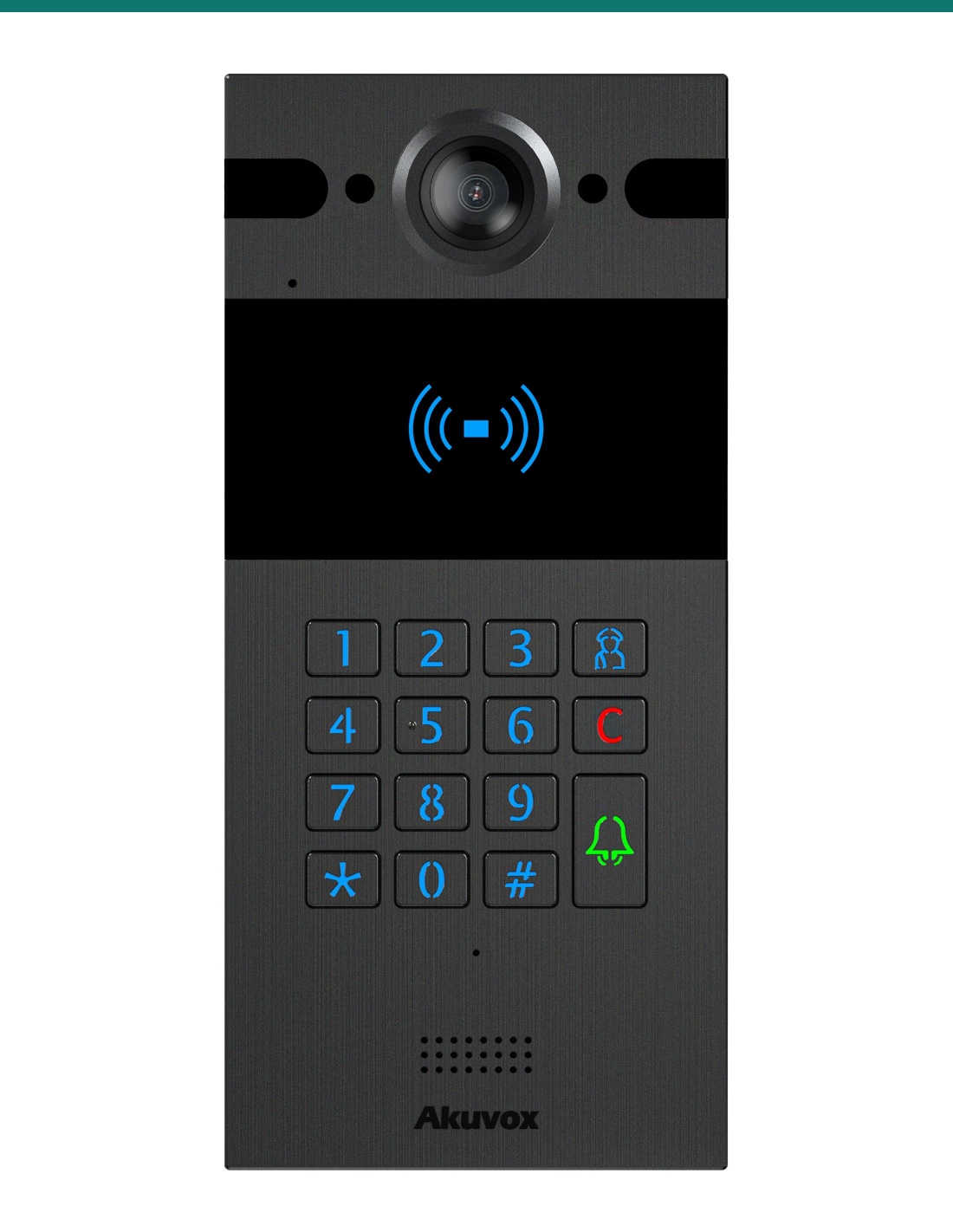

Akuvox R25K black door phone with 4MP wide-angle camera

Akuvox · R25K · Black keypad door station

A keypad door phone that sees the whole doorstep.
4 MP fisheye, 150° each way.

The AK-R25K-BLACK is Akuvox’s R25K in black brushed aluminium. It keeps the compact keypad format of the R20K, but swaps in a 4 MP fisheye camera with a 150° vertical view — so residents see the visitor’s face, the path behind them and the parcel left at their feet.

This SKU is the door station only.

You receive the black R25K surface-mount door phone. Indoor monitors, the in-wall kit, rain hood, PoE switch and lock hardware are sold separately.

In the box

Akuvox R25K door phone (black)
Surface-mount hardware
Quick-start guide

What you also need(sold separately)

Compatible Akuvox indoor monitor, SmartPlus app or SIP endpoint
PoE 802.3af switch or injector
Electric lock / maglock and lock PSU if the door is released
R20K/R25K in-wall kit for flush mounting

One door station. Every way in.

Visitors dial a flat and residents see them in 4 MP before they open up. Residents and staff skip the call entirely — tap a card, key in a PIN, or unlock from their phone.

Camera

Face to feet in one frame.

4 MP 1/3.2″ CMOS behind a fisheye lens covers 150° horizontally and 150° vertically. Video streams in H.264 at up to 2000 × 2000, 2K at 30 fps.

WDR handles a bright street behind a shaded porch. IR LEDs, a light sensor and 0.1 lux minimum illumination keep night calls usable. ONVIF and RTSP let you record the door on your NVR.

Built for outside

IP65 aluminium in a slim plate.

Brushed black aluminium front, IP65 rated, −30 °C to +60 °C. 185 × 85 × 24 mm — the same footprint as the R20K.

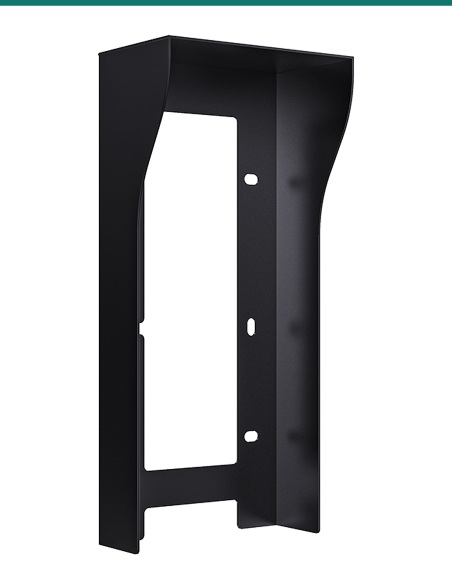

Surface-mounts as supplied. For a flush finish use the black R20K/R25K in-wall kit, and add a rain hood on exposed elevations.

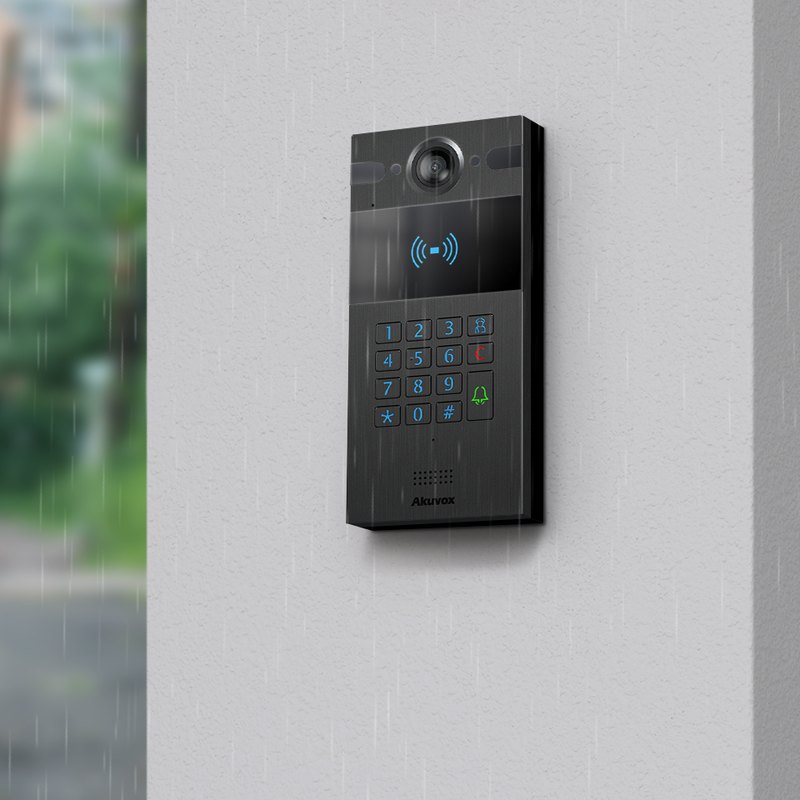

Akuvox R25K black door phone mounted on an outdoor wall

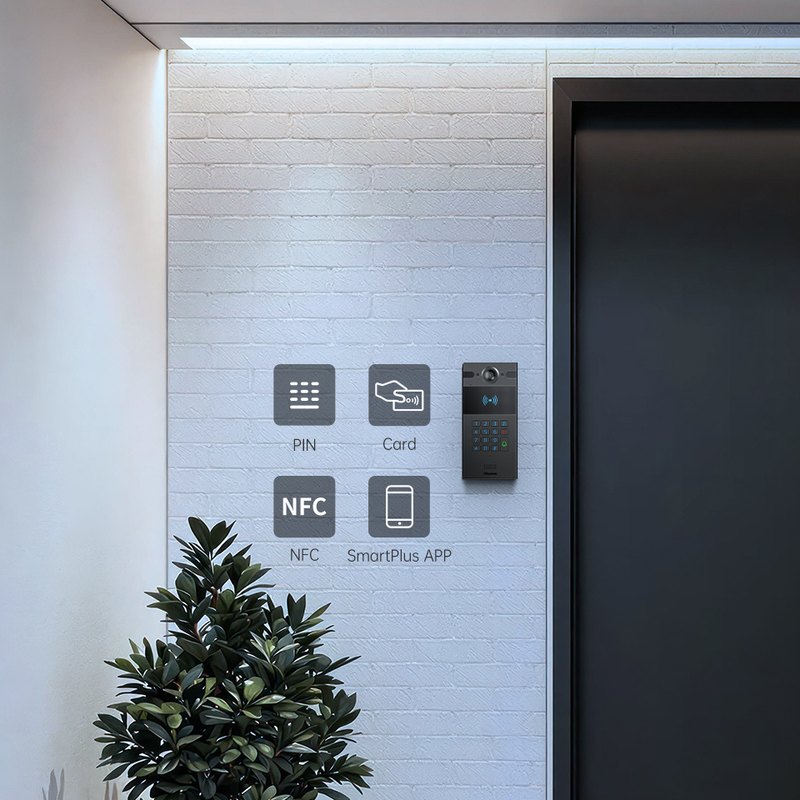

Access

PIN, card, NFC or app.

The 13.56 MHz and 125 kHz reader takes EM, MIFARE and DESFire EV1 / EV2 / EV3 credentials, plus NFC from Android phones. Up to 5,000 cards and 1,000 PINs.

Two relays drive two doors or a door and a gate. Two inputs, selectable Wiegand in/out and RS485 connect exit buttons, door sensors and access controllers.

How it works

From dialled flat to open door.

Mount

Surface-mount as supplied, or fit the black R20K/R25K in-wall kit for flush. Add a rain hood where the door is exposed.

PoE and SIP

Run 802.3af PoE to the RJ45, then register the station to Akuvox indoor monitors, SmartPlus or your SIP PBX.

Enrol credentials

Load cards, PINs and room numbers in the web portal: up to 5,000 cards and 1,000 PINs.

Test the door

Place a call, check the fisheye picture day and night, and confirm each relay releases the right lock.

At a glance

Key specs — AK-R25K-BLACK

Brand: Akuvox
Reference: AK-R25K-BLACK
Finish: Black brushed aluminium
Camera: 4 MP, 1/3.2″ CMOS, fisheye lens
Field of view: 150° (H) / 150° (V)
Video: H.264, up to 2000 × 2000, 2K at 30 fps
Night: IR LED, light sensor, 0.1 lux minimum
Keypad: Backlit numeric keypad with concierge, clear and call keys
RF reader: 13.56 MHz and 125 kHz, NFC (Android)
Card types: EM, MIFARE, DESFire EV1 / EV2 / EV3
Unlock: Card, PIN, NFC, SmartPlus app, DTMF
Capacity: 5,000 cards · 1,000 PINs · 1,000 users
I/O: 2 relays, 2 inputs, Wiegand in/out, RS485, tamper
Audio: SIP v1 / v2, G.711, G.722, echo cancellation
Network: RJ45 10/100 Mbps, ONVIF, RTSP
Power: PoE IEEE 802.3af
Protection: IP65
Mounting: Surface mount; flush with in-wall kit
Size: 185 × 85 × 24 mm (H × W × D)
Working temperature: −30 °C to +60 °C
OS: Linux
Warranty: Australian warranty via Infront Technologies

Pair it with

Builds a complete door entry system

Indoor

Akuvox indoor monitor

Residents answer, see the visitor and release the door from a compatible Akuvox SIP indoor station or the SmartPlus app.

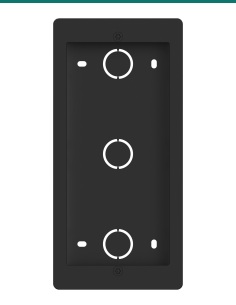

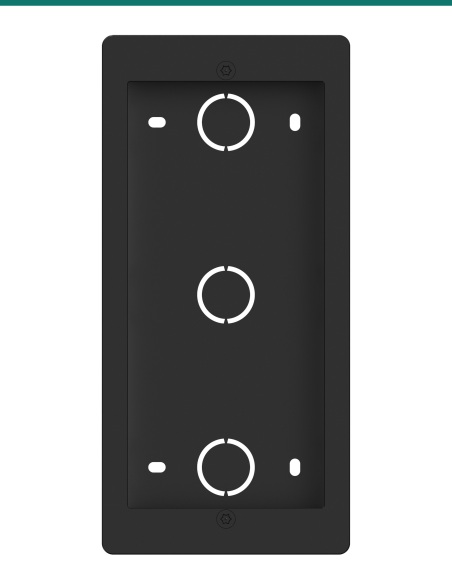

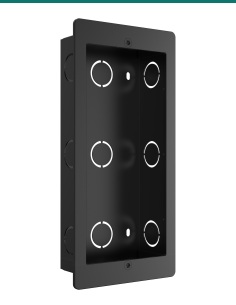

Flush

R20K/R25K in-wall kit (black)

Recesses the station into the wall. Pair with the black rain hood on exposed doors.

Credentials

MIFARE cards and fobs

Akuvox 13.56 MHz cards work with the R25K reader once enrolled.

Lock

Electric lock / maglock

The two relays switch your lock power supply. Strike, maglock and lock PSU are separate items.

Answers

Common questions

How is R25K different from R20K?

Same keypad format and footprint. R25K has a 4 MP fisheye camera covering 150° × 150°; R20K has a 2 MP camera covering 110° × 58°.

Can I open the door from my phone?

Yes. Akuvox SmartPlus app users can answer calls and unlock, and Android phones can also unlock over NFC.

What PoE does it need?

IEEE 802.3af PoE from a switch or injector.

Can it be flush-mounted?

Yes, with the black R20K/R25K in-wall installation kit, which is sold separately.

Is an indoor monitor included?

No. Pair it with a compatible Akuvox indoor monitor, the SmartPlus app or any SIP endpoint.

A wider view at the door, local stock.

Choose R25K over R20K when you want the 4 MP fisheye picture — deliveries, small children and anyone standing close to the door stay in frame. Order through Infront Technologies for Australian stock and pairing advice.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE as stated on the Akuvox R25K datasheet. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
