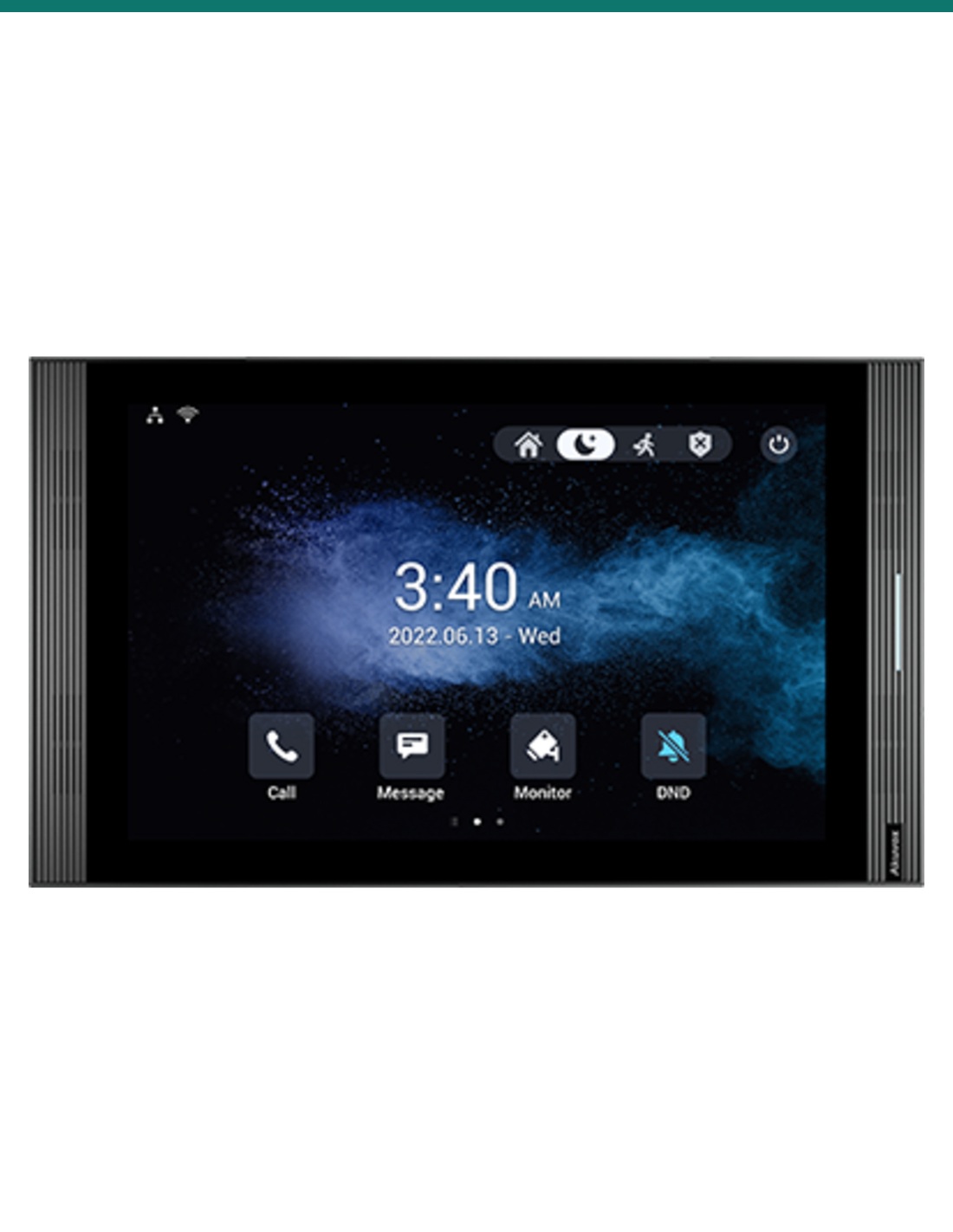

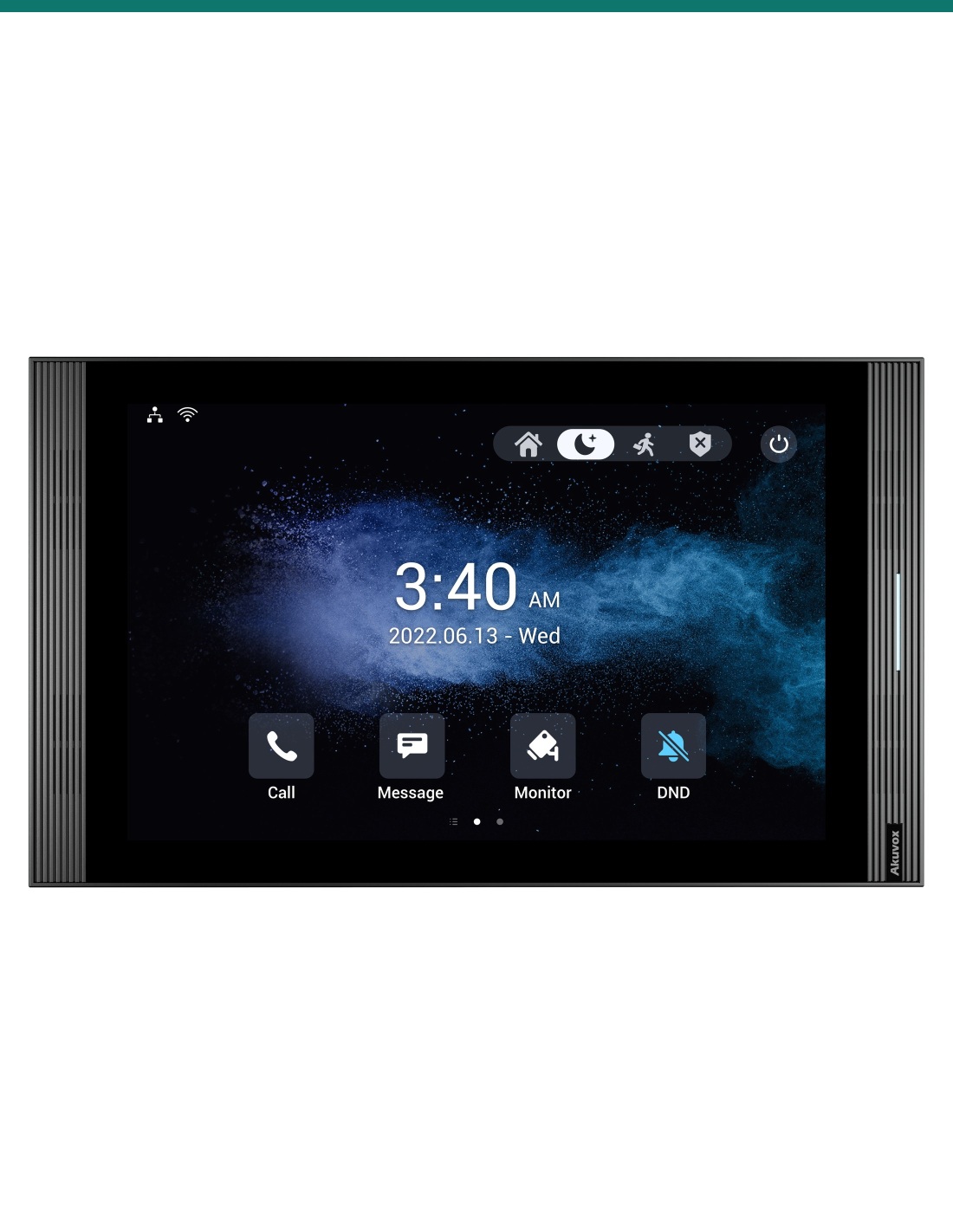

Akuvox S567G grey indoor monitor — front

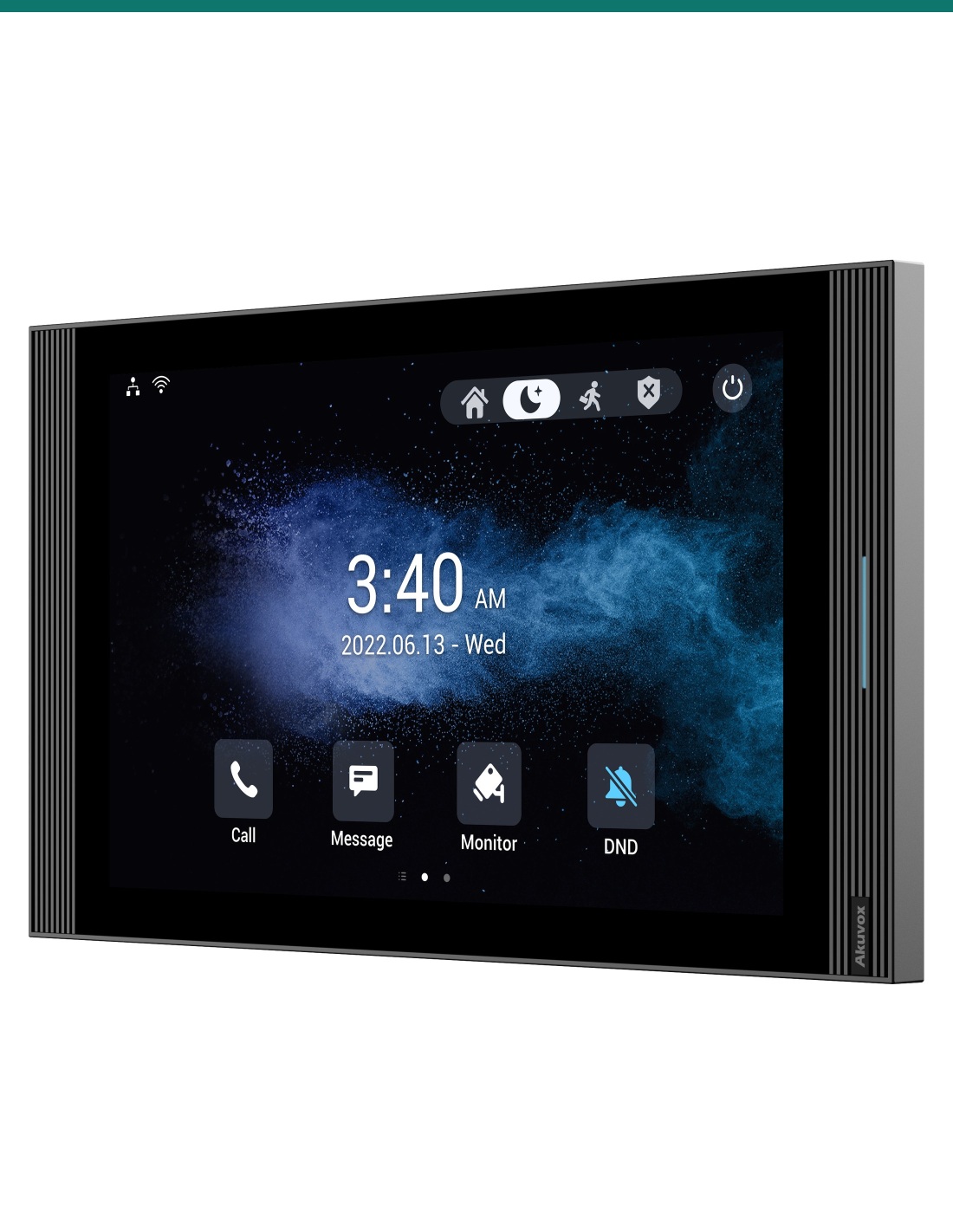

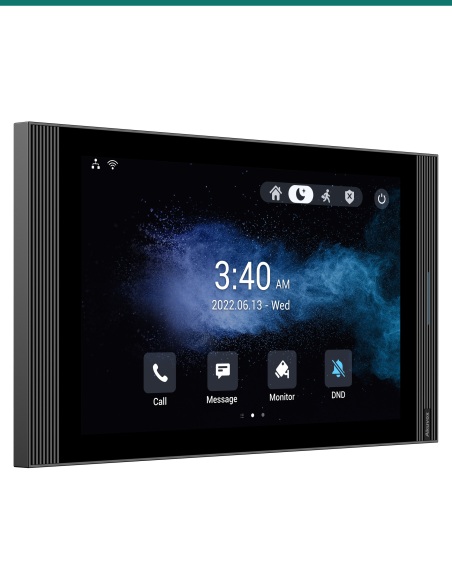

Akuvox S567G grey indoor monitor — left three-quarter view

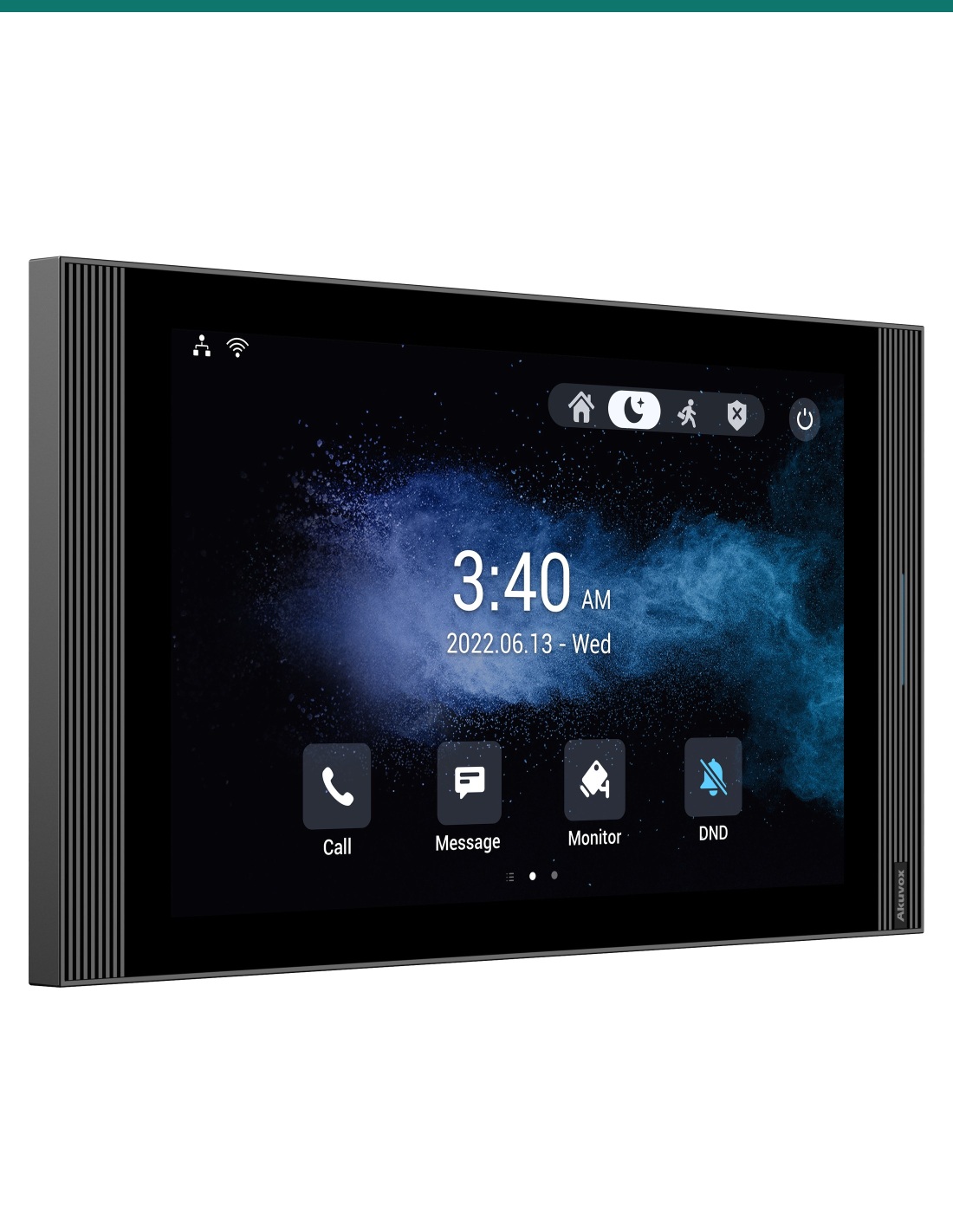

Akuvox S567G grey indoor monitor — right three-quarter view

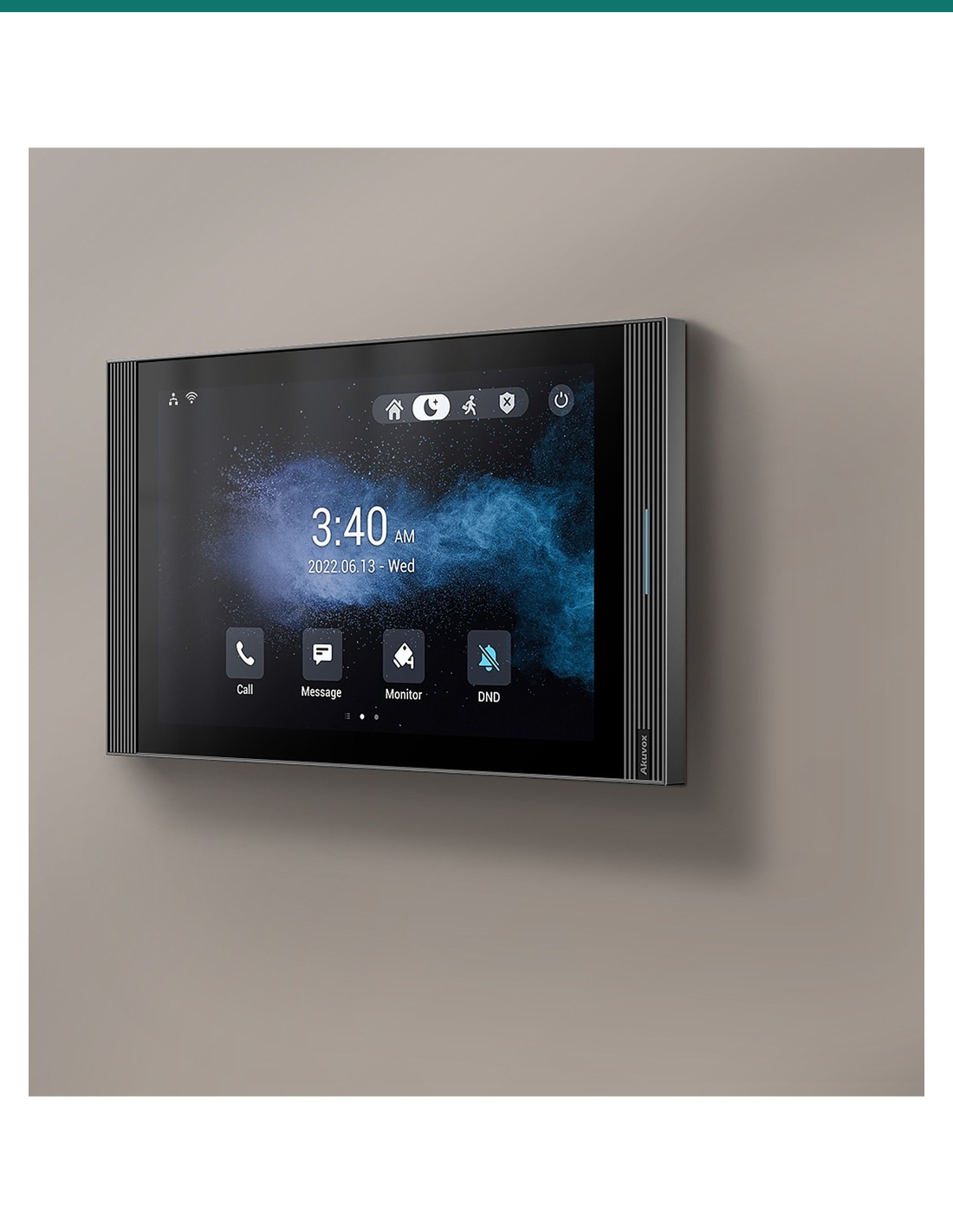

Akuvox S567G grey indoor monitor mounted on a living-room wall

Akuvox S567G Grey 10-inch Android SIP Indoor Monitor with Google GMS and Wi-Fi 6 — AK-S567G-GREY

AK-S567G-GREY
In Stock - Ready to Ship
$ 898.50
inc-GST

or 4 interest-free payments of $224.62 with

Akuvox S567G in grey is a 10-inch Android SIP indoor monitor with a 1280 × 800 touch screen, dual microphones and quad speakers for clear door calls. The G is Google GMS certified, so Google Play and Google services run on it, with Wi-Fi 6, Bluetooth 5.0 and 4 GB RAM / 16 GB ROM. PoE or 12 V DC, wall or desk mount.

  • ✓10-inch IPS capacitive touch screen, 1280 × 800, auto brightness
  • ✓Google GMS certified Android 12 · Wi-Fi 6 · Bluetooth 5.0 · 4 GB / 16 GB
  • ✓Dual mics, quad speakers, voice changer · 1 relay, 8 alarm inputs, bell input, RS485
  • ✓PoE 802.3af or 12 V DC · Wall or desk mount · 278.5 × 165.1 × 22.8 mm

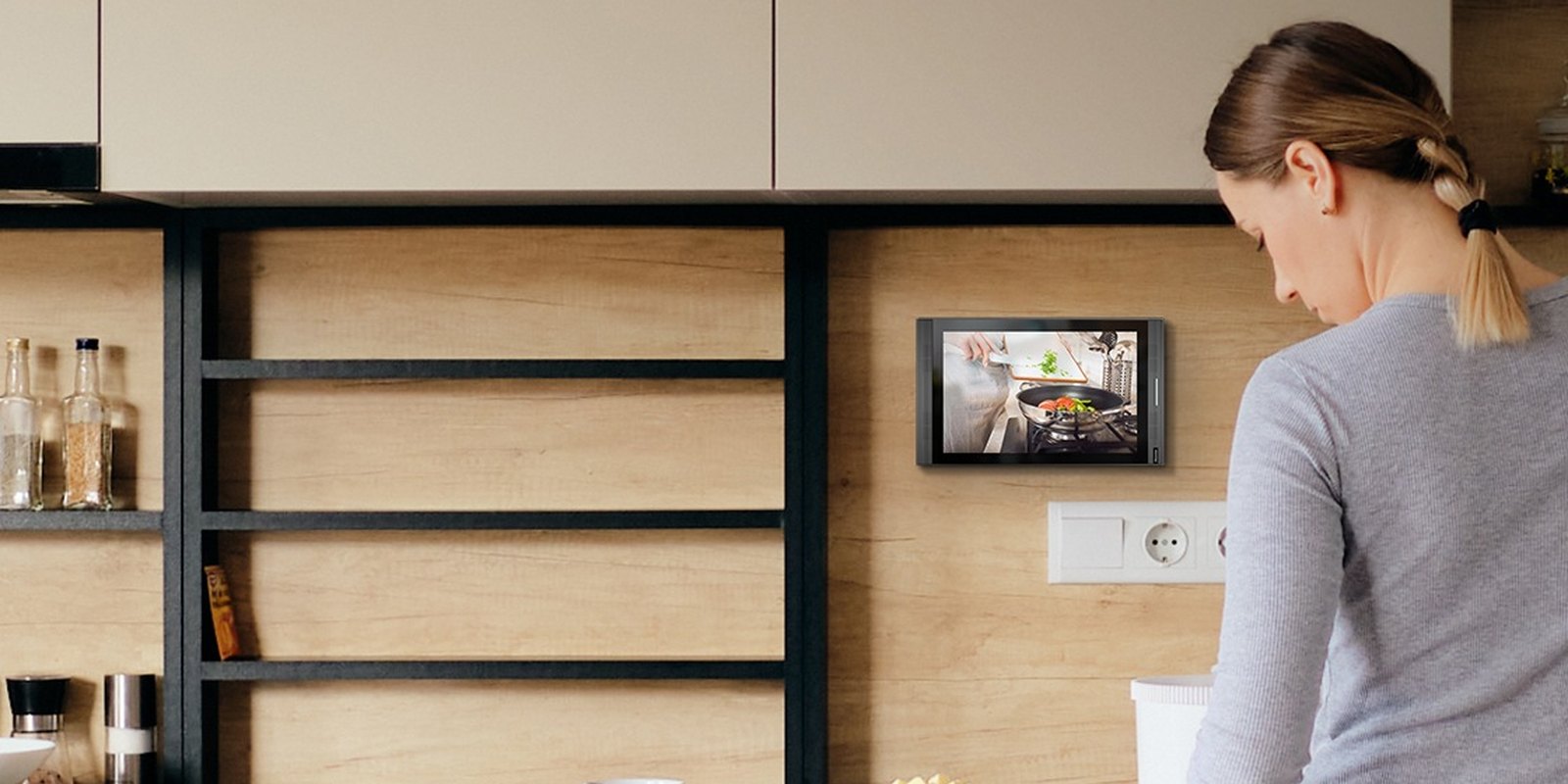

Akuvox S567G indoor monitor in a home
Akuvox · S567G · Grey 10-inch Google GMS indoor monitor

A 10-inch Android screen for every door call.
Google Play, Wi-Fi 6, quad speakers.

The AK-S567G-GREY is Akuvox’s S567G indoor monitor in grey. A 10-inch 1280 × 800 IPS touch screen, two microphones and four speakers handle video calls from Akuvox door stations, and Android lets the same panel run third-party apps, view IP cameras and control smart-home systems. The G is Google GMS certified, so Google Play and Google services run on it, with Wi-Fi 6, Bluetooth 5.0 and 4 GB RAM / 16 GB ROM.

This SKU is the indoor monitor only.

You receive the grey S567G with US and EU wall brackets, cables and fixings. Door stations, the desk stand, surface-mount box, PoE switch and power supply are sold separately.

In the box
  • Akuvox S567G indoor monitor (grey)
  • US and EU wall-mounting brackets
  • 8-pin and 10-pin wiring cables
  • Screws, foam pads and an Allen key
What you also need (sold separately)
  • Akuvox SIP door station, or another SIP door phone
  • PoE 802.3af switch or injector, or a 12 V DC 1.5 A supply (data can run over Wi-Fi 6)
  • S565/S567 desk stand or surface-mount angle box if not using a wall box
  • Electric lock and lock PSU if a relay releases a door

Answer the door from anywhere in the room.

When a visitor presses the call button outside, the S567G rings with live video from the door station. Talk hands-free through four speakers, tap to release the lock, and check any linked camera before you open up.

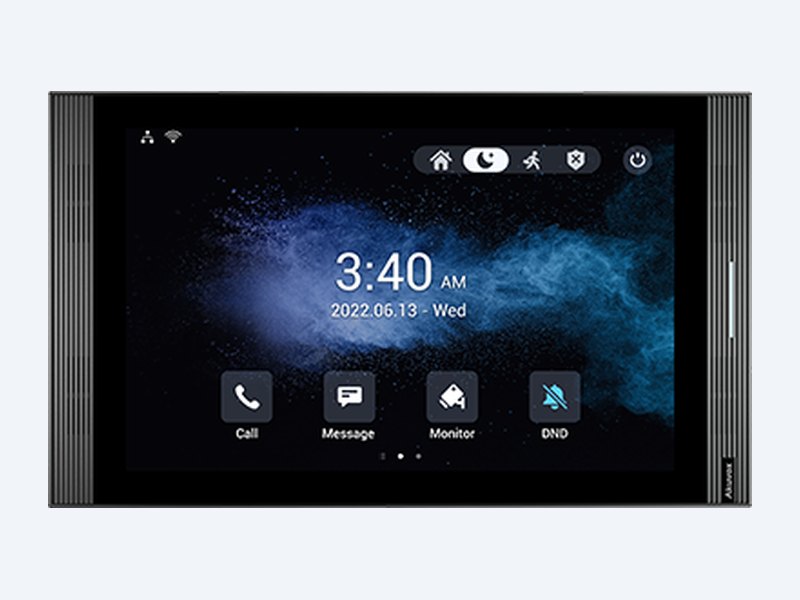

Akuvox S567G grey indoor monitor front view

Display

A 10-inch screen that fills the doorway.

10-inch IPS capacitive touch panel at 1280 × 800 with 80° viewing each way. A light sensor adjusts brightness to the room, which is easier on the eyes at night and saves power.

Google GMS certification means Google Play and Google services are built in, so residents can install their own apps on 4 GB RAM / 16 GB ROM.

Design & mounting

Slim on the wall, or on the desk.

The plastic front measures 278.5 × 165.1 × 22.8 mm and sits about 17 mm off the wall. The US and EU brackets in the box fit common wall boxes, and a status light runs down the right-hand edge.

No wall box? Use the S565/S567 surface-mount angle box, or the S565/S567 desk stand for a bench or reception desk.

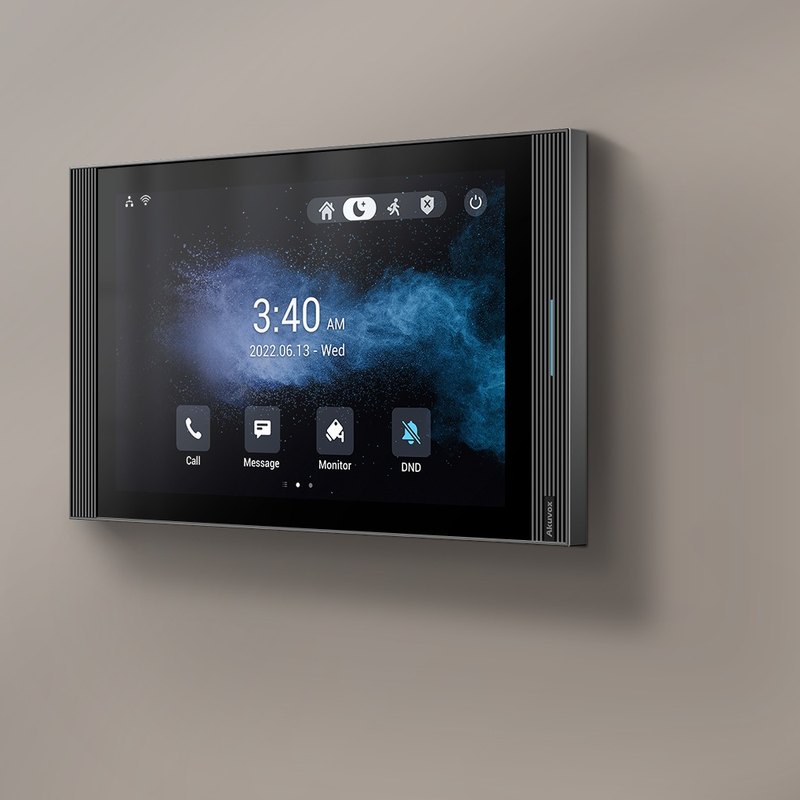

Akuvox S567G indoor monitor mounted on a wall

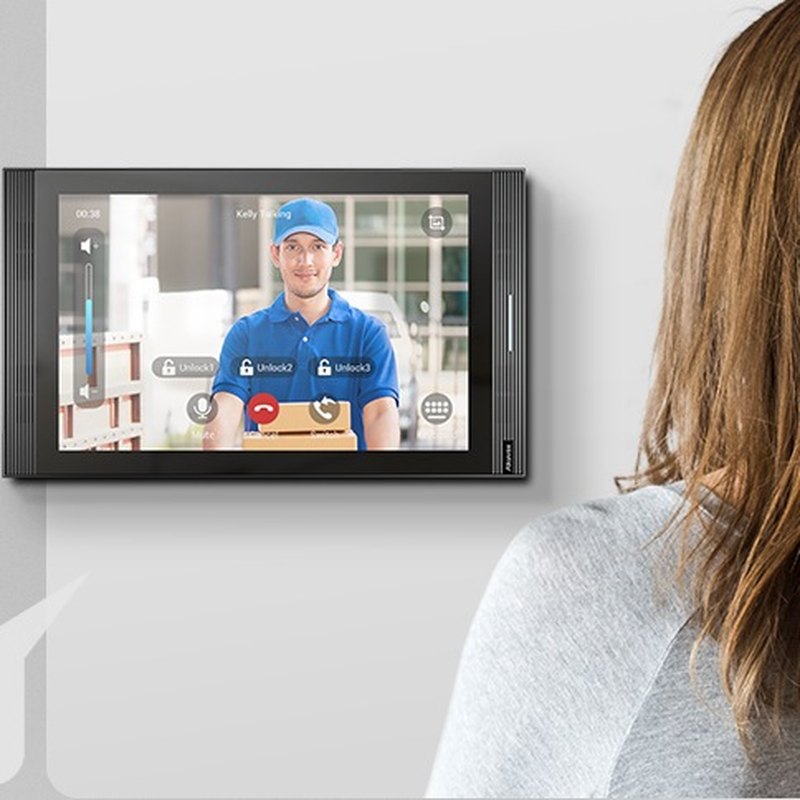

Akuvox S567 voice changer answering a delivery at the door

Audio & I/O

Four speakers, two mics, real wiring.

Quad speakers and dual microphones with echo cancellation give full, clear calls. A voice changer lets children or anyone home alone answer without giving their voice away.

1 relay output, 8 alarm inputs, a bell input and RS485 cover locks, door contacts, sensors and controllers. Standard SIP v1 / v2 registers to Akuvox door stations or a SIP PBX.

How it works

From door call to open door.

01

Mount

Fix the US or EU bracket to the wall box, or use the S565/S567 desk stand or surface-mount angle box.

02

Power and network

Run 802.3af PoE to the RJ45, or use 12 V DC. Wi-Fi 6 can carry data where cable is hard to run.

03

Pair the door

Register the monitor and door station to each other, or to your SIP PBX, in the web portal.

04

Test

Call from the door, check video and audio, and confirm the unlock key releases the right lock.

Pair it with

Builds a complete apartment or villa intercom

Door

Akuvox door station

R25K, R29C, S535 or X915S call the monitor with video and let residents release the lock.

Mounting

S565/S567 desk stand or angle box

Sit the monitor on a bench, or surface-mount it at an angle where there is no wall box.

Network

PoE switch

One 802.3af PoE port powers the monitor and carries the SIP call — no local power point needed.

Cameras

IP security cameras

Add RTSP cameras so residents can check the driveway or lobby from the same screen.

Works with

Platforms and integrations

SIP PBX and IP phones

Standard SIP v1 / v2 registers the S567G to Akuvox door stations, IP phones or extensions on any SIP-capable PBX.

Built-in SIP server

Akuvox lists the S567 range among its monitors with a built-in PBX, so on a small site the monitor itself can register door stations and other indoor units.

IP cameras over RTSP

RTSP support brings live video from IP cameras onto the 10-inch screen beside door calls.

Google Play apps

Google GMS certification puts Google Play and Google services on the panel, so residents can install the smart-home apps they already use.

Watch

See it in action

Akuvox S567 indoor monitor overview
Installing the S567 indoor monitor
Adding or removing buttons on the S567 indoor monitor
Adding a door phone to the S567 by LAN scan
Viewing third-party NVR cameras on Akuvox indoor monitors

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

How do S567, S567W, S567A and S567G differ?

Same 10-inch Android body, screen and quad speakers. S567 is wired only with 2 GB / 8 GB. S567W adds Wi-Fi 6 and Bluetooth 5.0 with 4 GB / 16 GB. S567A adds a 5 MP camera to the S567W spec. S567G is Google GMS certified (Google Play) with Wi-Fi 6, Bluetooth and one relay instead of two.

Is it available in white?

Yes — AK-S567G-WHITE is the same Google-certified monitor with a white front.

Does it need a power supply?

Not if your switch provides 802.3af PoE. Otherwise use a 12 V DC supply; Akuvox suggests 1.5 A. Wi-Fi carries data only, so the monitor still needs PoE or 12 V DC.

Can it sit on a desk or go on a wall without a box?

Yes. The S565/S567 desk stand holds it on a bench, and the S565/S567 surface-mount angle box suits walls without an electrical box. Both are sold separately.

Does the S567G have the voice assistant?

No. The voice assistant belongs to the S567, S567W and S567A; the S567G swaps it for Google GMS with Google Play and Google services.

Can the monitor act as the SIP server?

Yes. Akuvox lists the S567 range among its monitors with a built-in PBX, so it can register door stations and other indoor units on a small site without a separate server.

What’s in the box?

The grey monitor, US and EU wall-mounting brackets, 8-pin and 10-pin wiring cables, screws, foam pads and an Allen key.

Which door stations work with it?

Akuvox SIP door stations such as R25K, R29C, S535 and X915S. Because it uses standard SIP, other SIP door phones can register too.

A premium 10-inch screen.

Choose the S567G when residents want Google Play apps on the wall panel.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE, or a 12 V DC supply where PoE isn’t available.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Memory
4 GB RAM / 16 GB ROM
Audio
Dual microphones, quad speakers (8 Ω / 2 W)
Power
PoE 802.3af or 12 V DC
Colour
Grey
Working Temperature
−10 °C to +45 °C
Brand
Akuvox
Bluetooth
5.0
Mounting
Wall or desk
Network
1 × RJ45, 10/100 Mbps
Size
278.5 × 165.1 × 22.8 mm (W × H × D)
Warranty
Australian warranty
Product Type
SIP indoor monitor
Model
S567G
Wi-Fi
Wi-Fi 6 (802.11 b/g/n/ax)
Audio Codecs
G.711a, G.711μ, G.729, G.722
I/O
1 relay, 8 alarm inputs, bell input, RS485
OS
Android 12, Google GMS certified
Screen
10-inch IPS capacitive touch, 1280 × 800
Brightness / Contrast
290 cd/m², 900:1, automatic brightness
Video Formats
H.263, H.264
