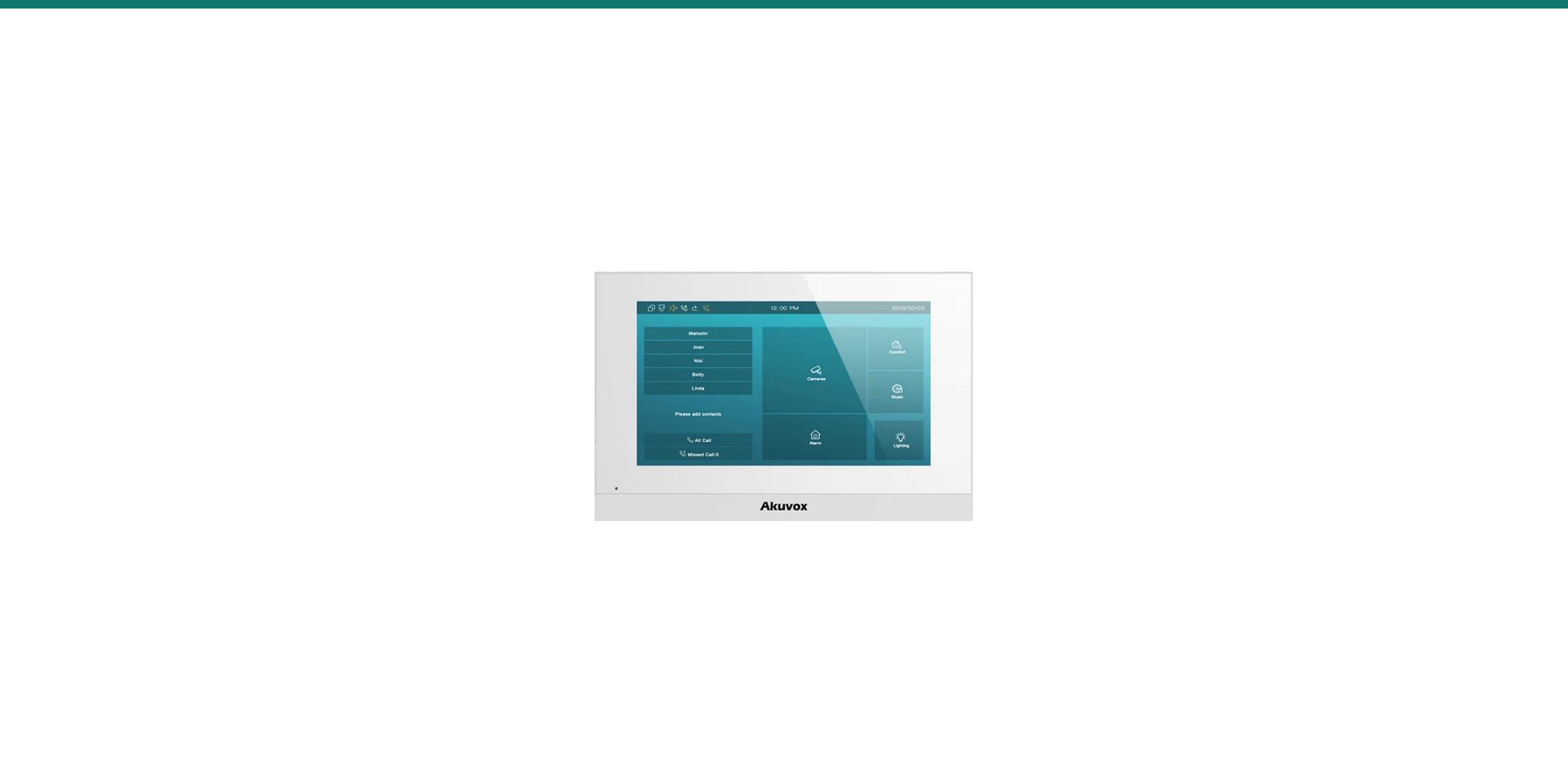

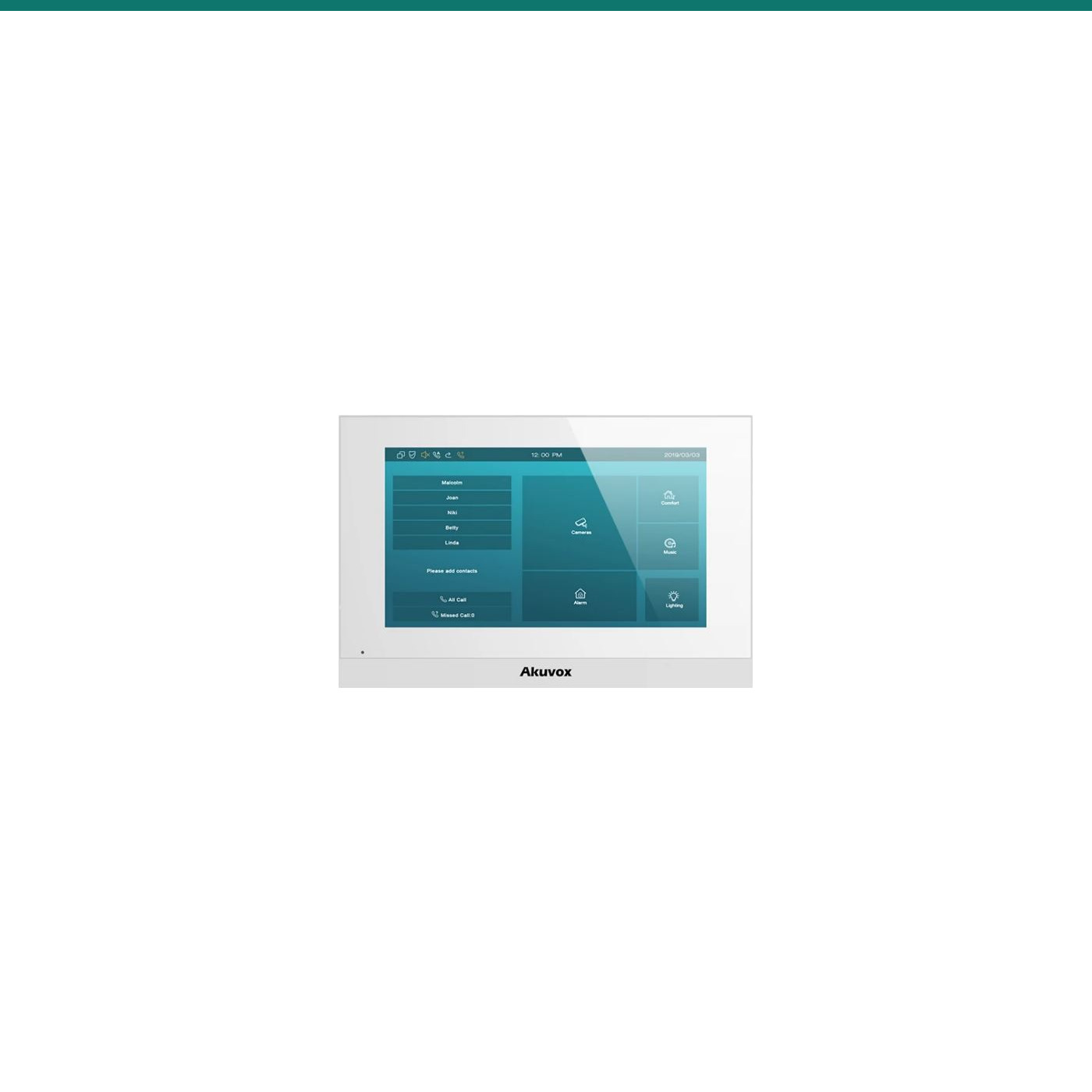

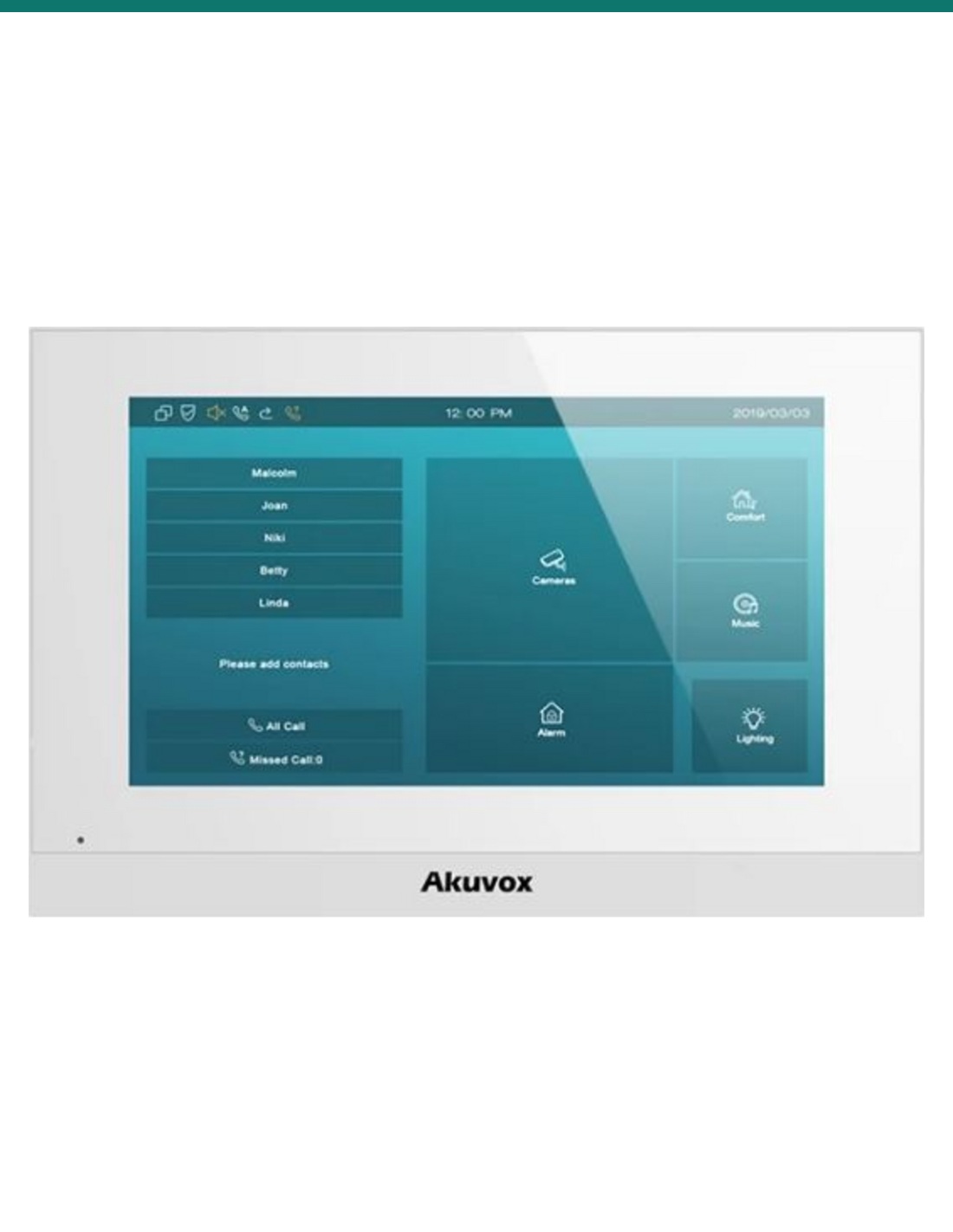

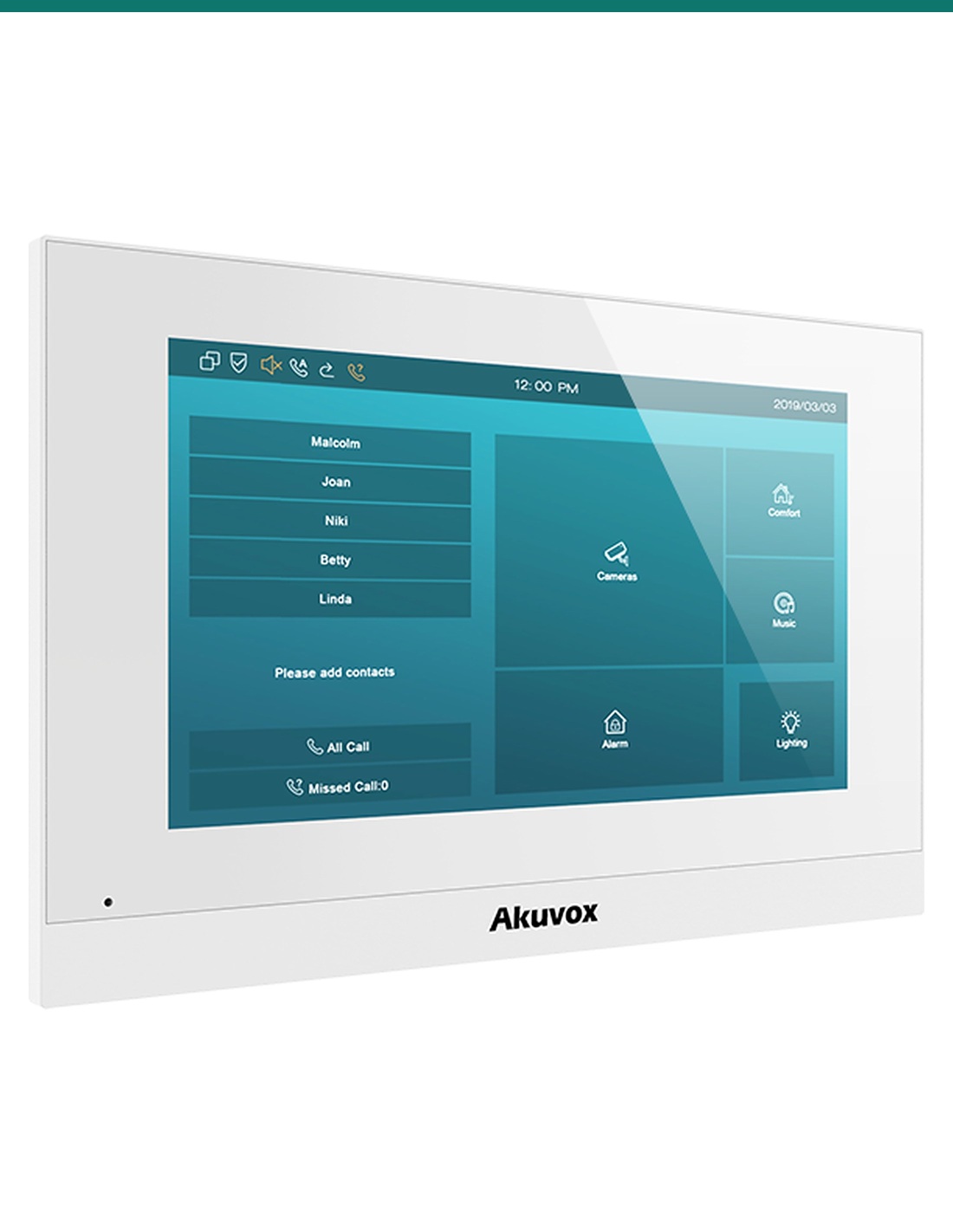

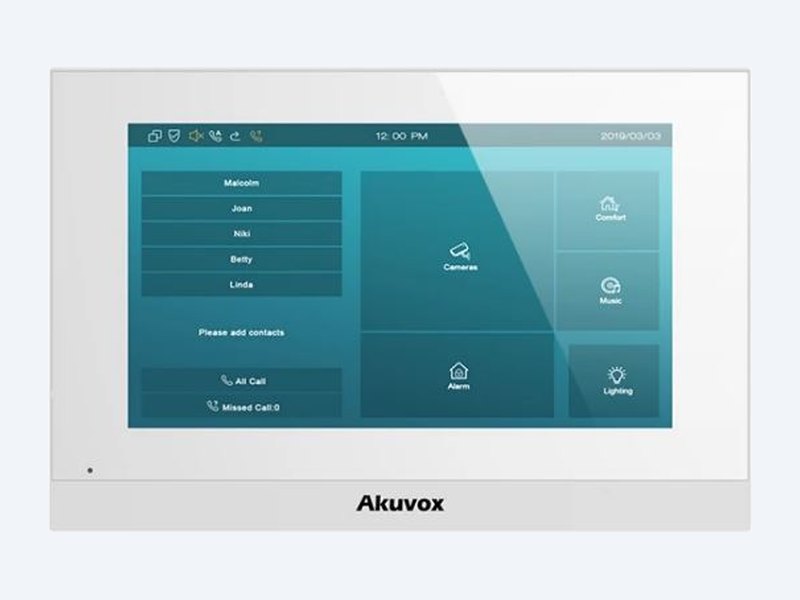

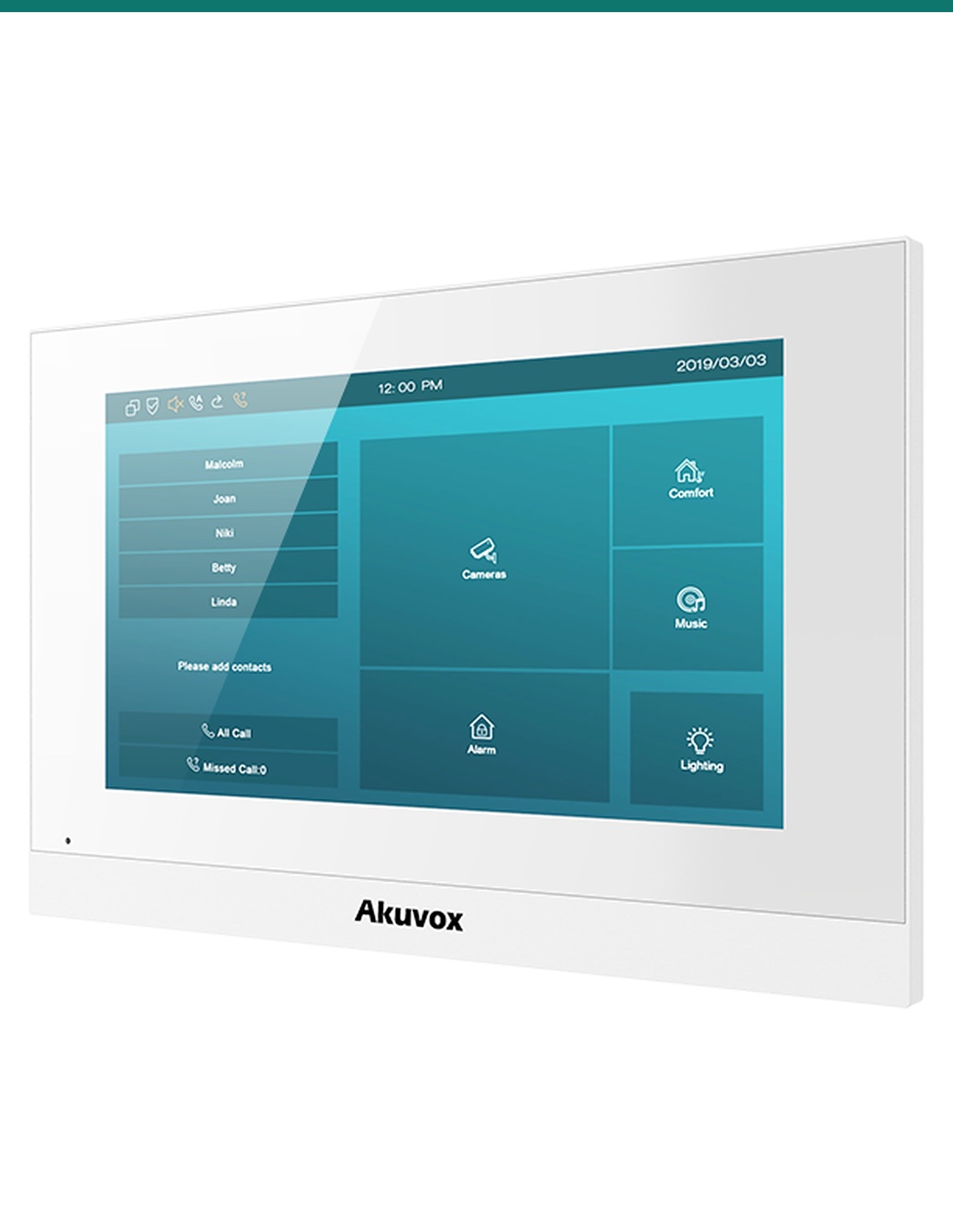

Akuvox C313W White 7-inch Linux SIP Indoor Monitor with Wi-Fi — AK-C313W-WHITE
AK-C313W-WHITE
In Stock - Ready to Ship $ 237.00
inc-GST
or 4 interest-free payments of $59.25 with
Akuvox C313W is a white 7-inch touch screen SIP indoor monitor running Linux, with built-in 2.4 GHz Wi-Fi. See and talk to visitors at your Akuvox door station, unlock from the screen, and monitor eight alarm zones.
- ✓7-inch 1024 × 600 capacitive touch screen in a slim white housing
- ✓Wi-Fi 802.11 b/g/n (2.4 GHz) plus 2 × RJ45 10/100 ports
- ✓PoE 802.3af (≤6 W) or 12 V DC · 8 alarm inputs, bell in, relay out, RS485
- ✓Wall box or desk mount · 200.2 × 132.2 × 27.2 mm
Akuvox · C313W · White 7-inch Linux monitor
See who’s at the door.
7-inch touch screen, Wi-Fi, white.

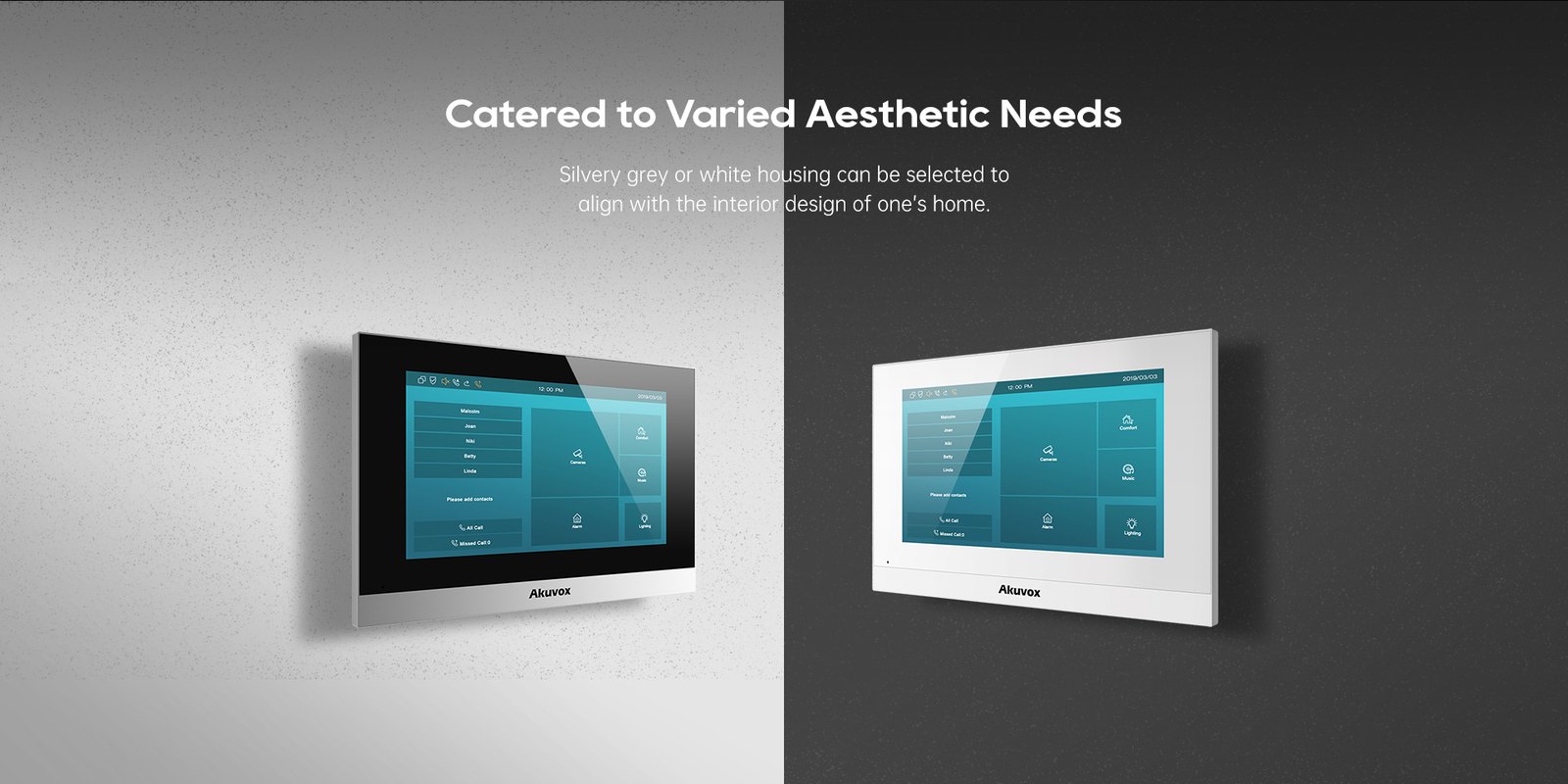

The AK-C313W-WHITE is Akuvox’s compact Linux indoor monitor with built-in Wi-Fi. A 7-inch capacitive touch screen shows video from your SIP door station, you talk hands-free, and one tap releases the lock. The white housing suits light interiors, and the thin profile sits neatly on a standard wall box.
This SKU is the indoor monitor only.
You receive the white C313W monitor with its standard mounting hardware. Door stations, PoE switch, power supply and the optional desk bracket are sold separately.
In the box
- Akuvox C313W indoor monitor (white)
- Standard mounting hardware
What you also need(sold separately)
- Akuvox SIP door station, or another SIP door phone or PBX
- PoE 802.3af switch or injector, or a 12 V DC 1 A supply (needed when running on Wi-Fi)
- Cat Ethernet cable and a crosshead screwdriver
- C313 / C315 table bracket if you want it on a desk
Answer, see, unlock.
When a visitor presses the button, the C313W rings and shows the door camera. Tap to answer, talk through the built-in speaker and microphone, then tap unlock — all from the touch screen.
Display
Seven inches of touch screen.
A 7-inch projected-capacitive touch screen at 1024 × 600 shows H.264 video from your door station and gives you one-tap answer, unlock and monitoring.
Echo cancellation, voice activity detection and automatic gain control keep two-way audio clear, with G.722 wideband audio over SIP v1 / v2.
Install
Wi-Fi or cable, wall or desk.
Built-in 802.11 b/g/n Wi-Fi at 2.4 GHz means the monitor can go where there’s no data cable, or use one of its two RJ45 ports with PoE.
It fits a US or European electrical wall box, or stands on a desk with the C313 / C315 table bracket. Eight alarm inputs, a bell input, a relay and RS485 connect local sensors and devices.
How it works
From door call to open door.
01
Mount
Fix to a US or European wall box, or use the C313 / C315 table bracket on a desk.
02
Power and network
Run 802.3af PoE to an RJ45 port, or use a 12 V DC supply with Wi-Fi.
03
Register
Register the monitor to your Akuvox door station or SIP PBX in the web portal.
04
Test
Call from the door, check video and audio, and confirm unlock works.
At a glance
Key specs — AK-C313W-WHITE
Show all specifications
- Colour
- White (plastic front panel)
- Display
- 7-inch TFT, 1024 × 600, 800:1, 180 nits
- Touch screen
- Projected capacitive
- Operating system
- Linux · 128 MB RAM / 128 MB ROM
- Network
- 2 × RJ45, 10/100 Mbps + Wi-Fi 802.11 b/g/n, 2.4 GHz
- I/O
- 1 relay, 8 alarm inputs, 1 bell input, RS485
- Audio
- 1 mic, 1 speaker · G.722 wideband · echo cancellation
- Video
- H.264
- Power
- PoE 802.3af (≤6 W) or 12 V DC (≤6.59 W)
- Mounting
- Wall (US or European wall box) or desktop
- Size
- 200.2 × 132.2 × 27.2 mm (W × H × D)
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-C313W-WHITE
Physical
- Front panel
- Plastic
- Operating system
- Linux
- RAM / ROM
- 128 MB / 128 MB
- Microphone
- 1
- Speaker
- 1
- Installation
- Wall-mounted (US or European wall box) or desktop
- Dimensions (W × H × D)
- 200.2 × 132.2 × 27.2 mm
- Working temperature
- −10 °C to +45 °C
- Storage temperature
- −20 °C to +70 °C
- Working humidity
- 10–90%
Power
- PoE
- IEEE 802.3af
- DC input
- 12 V DC connector (when not using PoE)
- PoE consumption
- ≤1.44 W standby, ≤6 W full load
- 12 V DC consumption
- ≤2.77 W standby, ≤6.59 W full load
Interfaces
- Ethernet
- 2 × RJ45, 10/100 Mbps adaptive
- Wi-Fi
- IEEE 802.11 b/g/n, 2.4 GHz
- RS485
- 1
- Relay output
- 1
- Bell input
- 1
- Alarm inputs
- 8
Touch screen display
- Panel
- 7-inch TFT LCD (diagonal), normally white, transmissive
- Resolution
- 1024 × 600
- Contrast ratio
- 800:1
- Luminance
- 180 nits
- Viewing angle
- 50° left and right, 40° up, 50° down
- Touch screen
- Projected capacitive
- Power saving
- Energy-saving screen mode
Audio and video
- SIP
- SIP v1 (RFC 2543), SIP v2 (RFC 3261)
- Narrowband codecs
- PCMU, PCMA
- Wideband codec
- G.722
- DTMF
- Out-of-band (RFC 2833), SIP INFO
- Audio processing
- Echo cancellation, voice activity detection, comfort noise generator, automatic gain control
- Video codec
- H.264
Network and management
- Protocols
- IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- Provisioning
- Auto-provisioning
- Management
- Web management portal, configuration backup / restore, firmware upgrade
- Diagnostics
- Web-based packet capture, system logs
Pair it with
Builds a complete video intercom
Door
Akuvox door station
E12S, R20K, R25K or R28A call the monitor with video and let residents release the lock.
Desk
C313 / C315 table bracket
Stand the monitor on a bench or bedside table instead of the wall.
Network
PoE switch
One 802.3af PoE port powers the monitor and carries the call.
Works with
Platforms and integrations
SIP PBX and IP phones
Standard SIP v1 / v2 registers the C313W to Akuvox door stations, IP phones or extensions on any SIP-capable PBX.
Akuvox SmartPlus (hybrid)
Akuvox uses the C313W to show its hybrid set-up: door calls keep working offline in the building while residents also answer through the SmartPlus cloud app.
Auto-provisioning
Auto-provisioning and the web portal let installers configure and update every monitor in a building from one server.
Downloads
Datasheets and guides
PDFC313 quick guideOfficial Akuvox C313 quick guide (PDF) · 1.6 MBPDFC313W White DatasheetAkuvox C313W white datasheet V3.0, June 2026 edition · 232 KBPDFC313 dimension drawingsPanel, wall bracket and mounting-height drawings in mm, May 2022 · 301 KB
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
Does the C313W have a camera?
No. It shows video from the door station; residents are heard but not seen.
What does the W mean?
W is the Wi-Fi model. It has 802.11 b/g/n Wi-Fi at 2.4 GHz as well as two RJ45 ports.
Can it run on PoE?
Yes. It takes 802.3af PoE (≤6 W) or a 12 V DC supply — Akuvox suggests a 12 V DC 1 A adapter. On Wi-Fi you need the 12 V supply.
Does it fit an Australian wall plate box?
It is designed for US or European electrical wall boxes. It can also be desk-mounted with the C313 / C315 table bracket.
How does it differ from the C313W-2?
The C313W is the IP version with Ethernet, PoE and Wi-Fi. The C313W-2 is the two-wire version for retrofits on existing two-core intercom cabling.
Can residents also answer on their phones?
Yes, with Akuvox SmartPlus: the building intercom works locally while residents can also take door calls in the SmartPlus app.
Is it Android?
No, the C313W runs Linux. Choose an Android model such as the S567 if you need apps.
A tidy white monitor for every apartment.
Choose the C313W where you want video intercom on a budget, with Wi-Fi for spots that are hard to cable.
Installation & safety notice
Low-voltage product (SELV). Power from IEEE 802.3af PoE (≤6 W full load), or a 12 V DC supply (≤6.59 W) when running on Wi-Fi or without PoE.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
- Memory
- 128 MB RAM / 128 MB ROM
- Audio
- 1 microphone, 1 speaker
- Power
- PoE 802.3af or 12 V DC
- Colour
- White
- Operating System
- Linux
- Working Temperature
- −10 °C to +45 °C
- Brand
- Akuvox
- Consumption
- PoE ≤6 W, 12 V DC ≤6.59 W full load
- Mounting
- Wall (US or European wall box) or desk
- Network
- 2 × RJ45, 10/100 Mbps
- Size
- 200.2 × 132.2 × 27.2 mm
- Warranty
- Australian warranty
- Product Type
- SIP video indoor monitor
- Model
- C313W
- Wi-Fi
- IEEE 802.11 b/g/n, 2.4 GHz
- Audio Codecs
- PCMU, PCMA, G.722
- Screen
- 7-inch capacitive touch screen, 1024 × 600
- Inputs / Outputs
- 8 alarm inputs, 1 bell input, 1 relay out, RS485
- Brightness / Contrast
- 180 nits, 800:1
- Video Codec
- H.264
