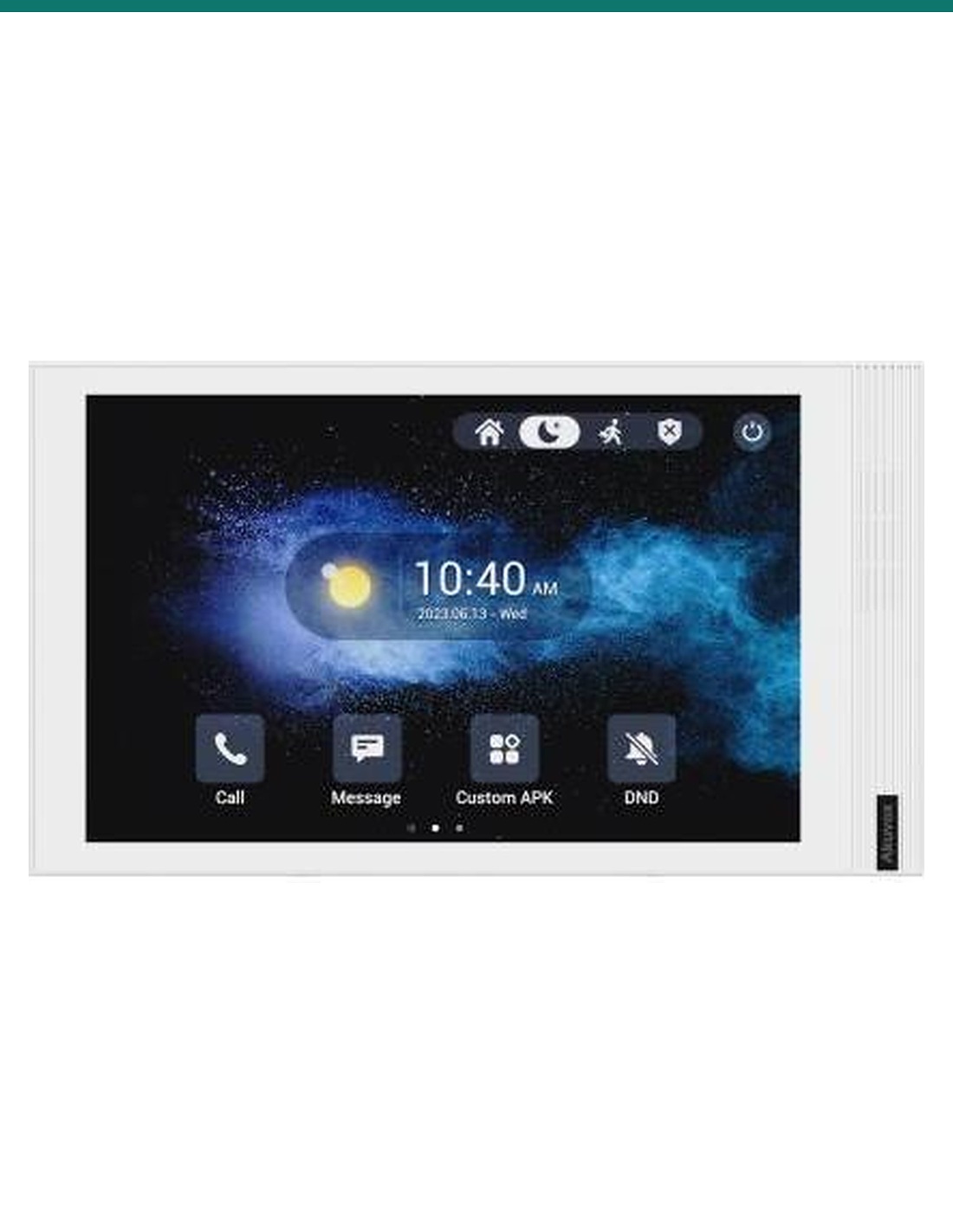

Akuvox S563W white 8-inch Android SIP indoor monitor — front

Akuvox S563W White 8-inch Android 12 Wi-Fi 6 SIP Indoor Monitor — AK-S563W-WHITE

Name: Akuvox S563W White 8-inch Android 12 Wi-Fi 6 SIP Indoor Monitor — AK-S563W-WHITE
Brand: Akuvox
SKU: AK-S563W-WHITE
Price: 458 AUD
Availability: InStock

Reference: AK-S563W-WHITE

In Stock - Ready to Ship

$ 458.00

inc-GST

or 4 interest-free payments of $114.50 with

Akuvox S563W in white is an 8-inch Android 12 SIP indoor monitor with Wi-Fi 6 and Bluetooth. A 1280 × 800 touch screen and front-facing 2 W speaker carry door calls in detail, an offline English voice assistant answers from up to 5 m, and a voice changer helps residents who live alone. Stocked in Australia by Infront Technologies.

✓8-inch IPS capacitive touch screen, 1280 × 800, 310 cd/m², 1200:1
✓Android 12 with 2 GB RAM / 8 GB storage — add third-party smart-home apps
✓Wi-Fi 6 (IEEE 802.11 b/g/n/ax) and Bluetooth 4.2
✓1 relay, 8 alarm inputs, doorbell input, RS485, tamper alarm
✓PoE 802.3af or 12 V DC · wall or desk · 216.2 × 124.4 × 22.1 mm

Resident answering the door on an Akuvox S563 8-inch indoor monitor

Akuvox · S563W · White 8-inch indoor monitor

A bigger screen for the front door.
8-inch, Android 12, voice control.

The AK-S563W-WHITE is Akuvox’s S563W indoor monitor in white. It answers SIP video calls from Akuvox door stations on a bright 8-inch 1280 × 800 screen, runs Android 12 so residents can add smart-home apps, and adds a voice assistant and voice changer you won’t find on the 7-inch S562. Wi-Fi 6 and Bluetooth 4.2 are built in.

This SKU is the indoor monitor only.

You receive the white S563W with its standard mounting hardware. Door stations, the desk stand, surface-mount box, PoE switch and power supply are sold separately.

In the box

Akuvox S563W indoor monitor (white)
Standard mounting hardware

What you also need(sold separately)

Akuvox SIP door station, or another SIP door phone
PoE 802.3af switch or injector, or a 12 V DC supply
S563 desk stand or surface-mount angle box if not using a wall box
Electric lock and lock PSU if the relay releases a door

See who’s there, then decide.

Door calls arrive in full 1280 × 800 video with on-screen unlock buttons. Talk hands-free, disguise your voice if you’d rather, and open the door with one tap.

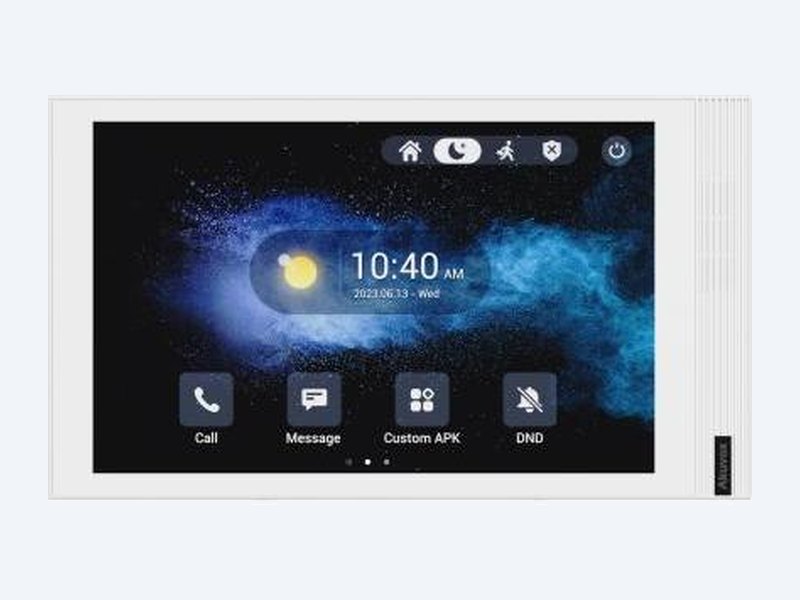

Akuvox S563W white 8-inch indoor monitor front view

Display

Eight inches, 1280 × 800.

An 8-inch 16:10 IPS touch screen at 1280 × 800, 310 cd/m² and 1200:1 contrast, viewable 80° in every direction. Visitors are sharp enough to recognise at a glance.

The front-facing 4 Ω / 2 W speaker and echo cancellation keep two-way calls clear, with G.722 wideband audio and H.264 video.

Android 12

One screen for the door and the home.

Android 12 with 2 GB RAM and 8 GB storage lets you install third-party apps, so the monitor can double as a smart-home panel for lighting, security and more.

The built-in voice assistant works offline, picks up commands from up to 5 m with up to 95% recognition accuracy, keeps voice data on the device and understands English.

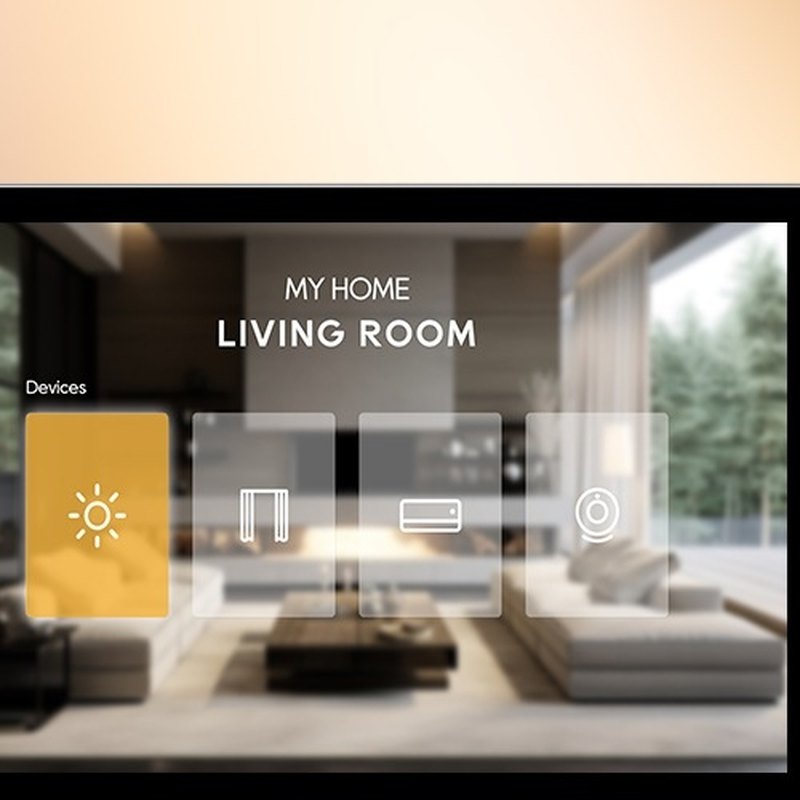

Akuvox S563 running a third-party smart-home app

Wi-Fi 6 on the Akuvox S563W indoor monitor

Wi-Fi 6 & Bluetooth

Wi-Fi 6 where cable is hard.

The S563W adds Wi-Fi 6 (IEEE 802.11 b/g/n/ax) with WPA3 encryption for a stable link on busy home networks, plus Bluetooth 4.2.

Run it on Wi-Fi with a 12 V DC supply, or use 802.3af PoE over the RJ45 like the standard S563. The voice changer and voice assistant are on every S563.

How it works

From door call to open door.

Mount

Fix to a US or European wall box, or use the S563 desk stand or surface-mount angle box.

Power and network

Run 802.3af PoE to the RJ45, or use 12 V DC with Wi-Fi 6 for the network.

Pair the door

Test

Call from the door, check video and audio, and confirm each unlock button releases the right lock.

At a glance

Key specs — AK-S563W-WHITE

Brand: Akuvox
Reference: AK-S563W-WHITE
Model: S563W
Colour: White (plastic front panel)
Display: 8-inch IPS LCD, 1280 × 800 (16:10), 310 cd/m², 1200:1
Touch screen: Projected capacitive
Viewing angle: 80° left / right / up / down
OS: Android 12
Memory: 2 GB RAM / 8 GB ROM
Audio: 1 mic (−26 dB), 1 speaker 4 Ω / 2 W; G.711a/μ, G.729, G.722; echo cancellation
Video: H.263, H.264
SIP: SIP v1 (RFC 2543) and SIP v2 (RFC 3261)
Wi-Fi / Bluetooth: IEEE 802.11 b/g/n/ax (Wi-Fi 6) · Bluetooth 4.2
Voice assistant: Offline, English, up to 5 m pickup, up to 95% accuracy
I/O: 1 relay out, 8 alarm inputs, 1 bell in, RS485, tamper
Network: 2 × RJ45, 10/100 Mbps
Power: PoE 802.3af or 12 V DC
Mounting: Wall-mounted or desktop; US or European wall box
Size: 216.2 × 124.4 × 22.1 mm (W × H × D)
Working temperature: −10 °C to +45 °C, 10–90% humidity
Warranty: Australian warranty via Infront Technologies

Pair it with

Builds a complete apartment or villa intercom

Door

Akuvox door station

R20K, R25K, E12S or R28A call the monitor with video and let residents release the lock.

Mounting

S563 desk stand or angle box

Sit the monitor on a bench, or surface-mount it where there is no wall box.

Network

PoE switch

One 802.3af PoE port powers the monitor and carries the SIP call.

Credentials

Akuvox cards and fobs

Enrol cards at the door station so residents can skip the call entirely.

Watch

See it in action

Akuvox S563 indoor monitor overview

Answers

Common questions

How is the S563 different from the S562?

S563 has a larger 8-inch 1280 × 800 screen, Android 12 instead of Linux, a voice assistant and a voice changer. S562 is the 7-inch, 1024 × 600 Linux model.

What’s the difference between S563 and S563W?

Same monitor; S563W adds Wi-Fi 6 and Bluetooth 4.2. Both take 802.3af PoE or a 12 V DC supply.

Does it need a power supply?

Not if your switch provides 802.3af PoE. Otherwise use a 12 V DC supply, which you’ll also need when running on Wi-Fi.

Can it sit on a desk?

Yes, with the S563 desk stand (sold separately). The S563 surface-mount angle box suits walls without an electrical box.

Which door stations work with it?

Akuvox SIP door stations such as R20K, R25K, E12S and R28A, plus other SIP door phones using standard SIP and H.264.

The 8-inch step up from S562.

Pick the S563 when residents want a larger screen, Android apps and voice control. Order through Infront Technologies for Australian stock and pairing advice.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE, or a 12 V DC supply where PoE isn’t available, as stated on the Akuvox S563W datasheet.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
