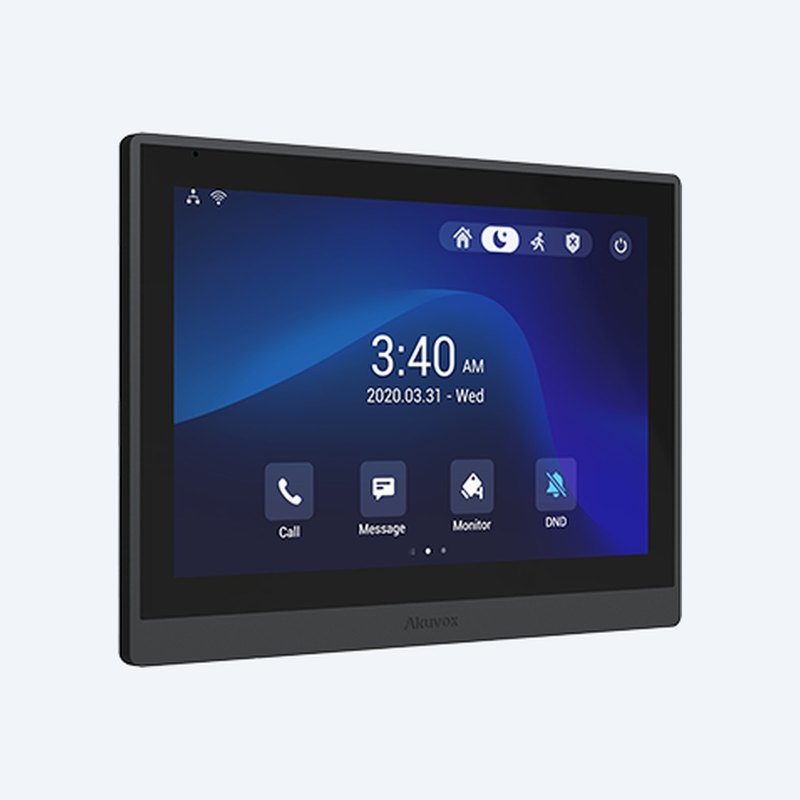

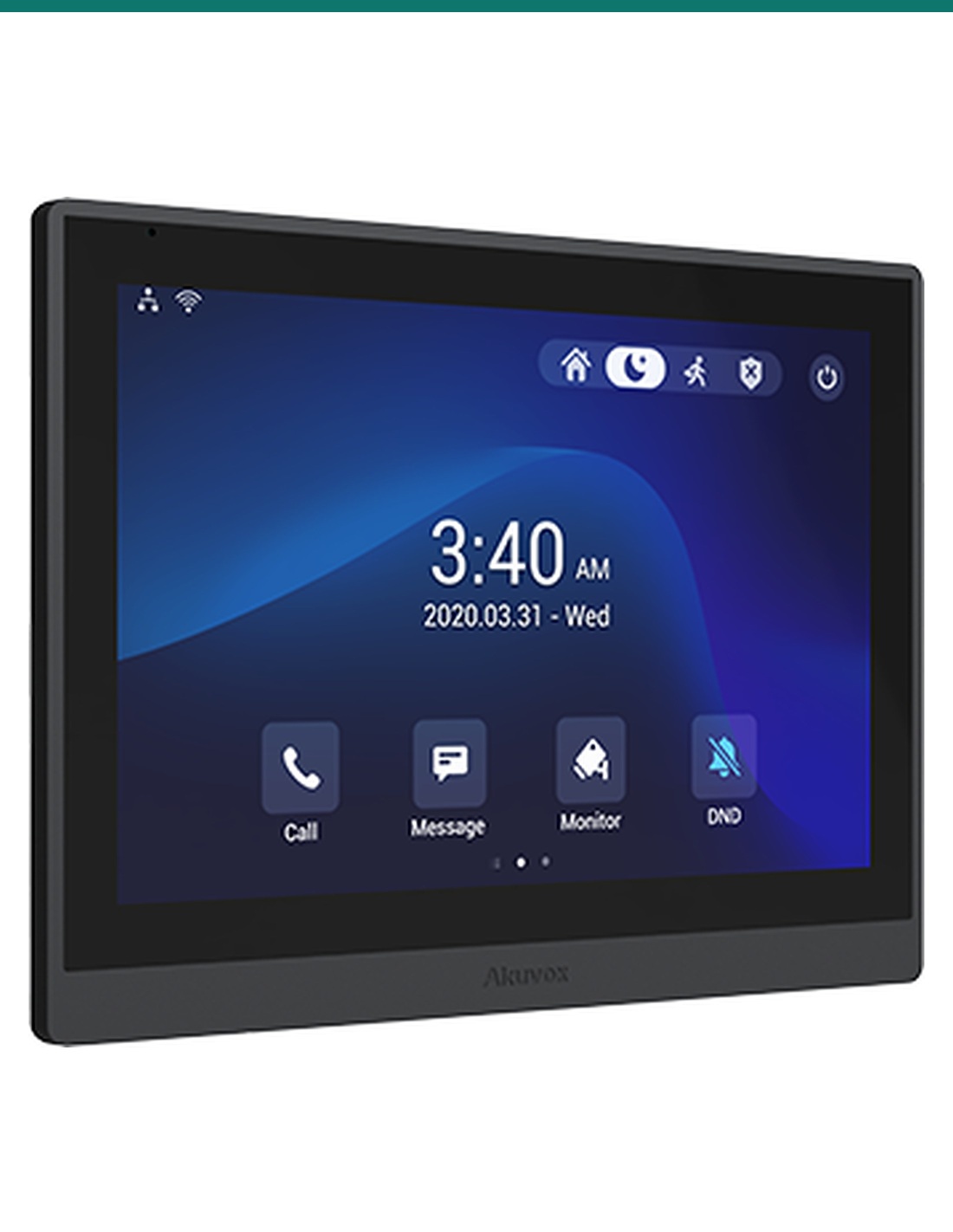

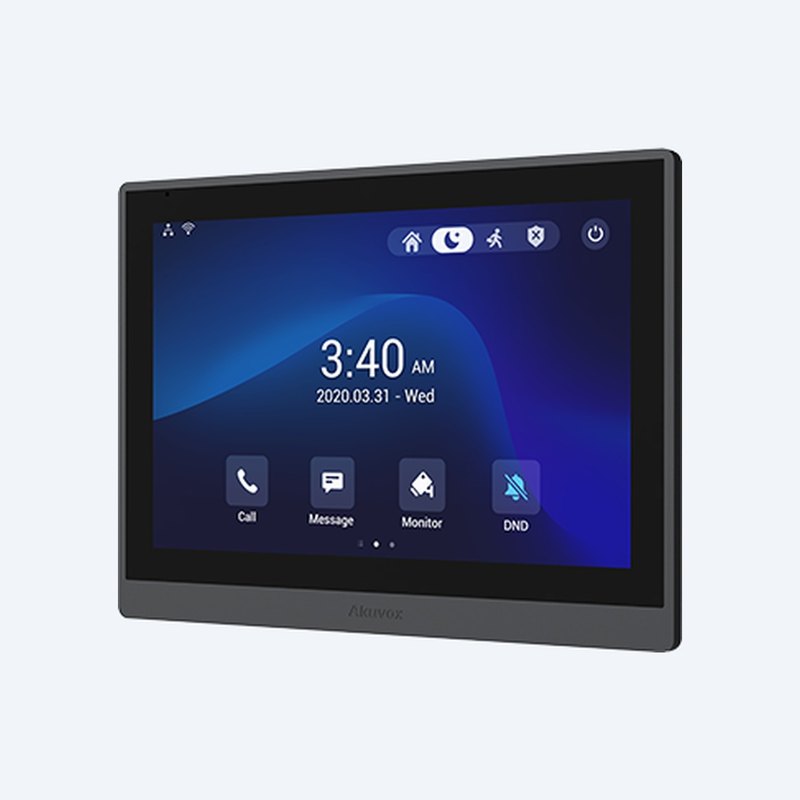

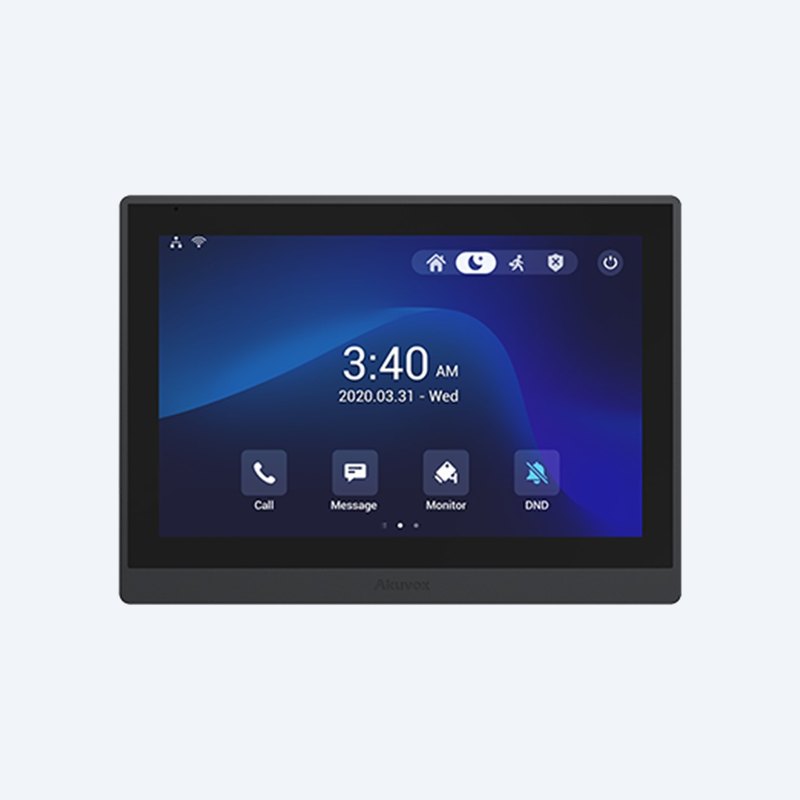

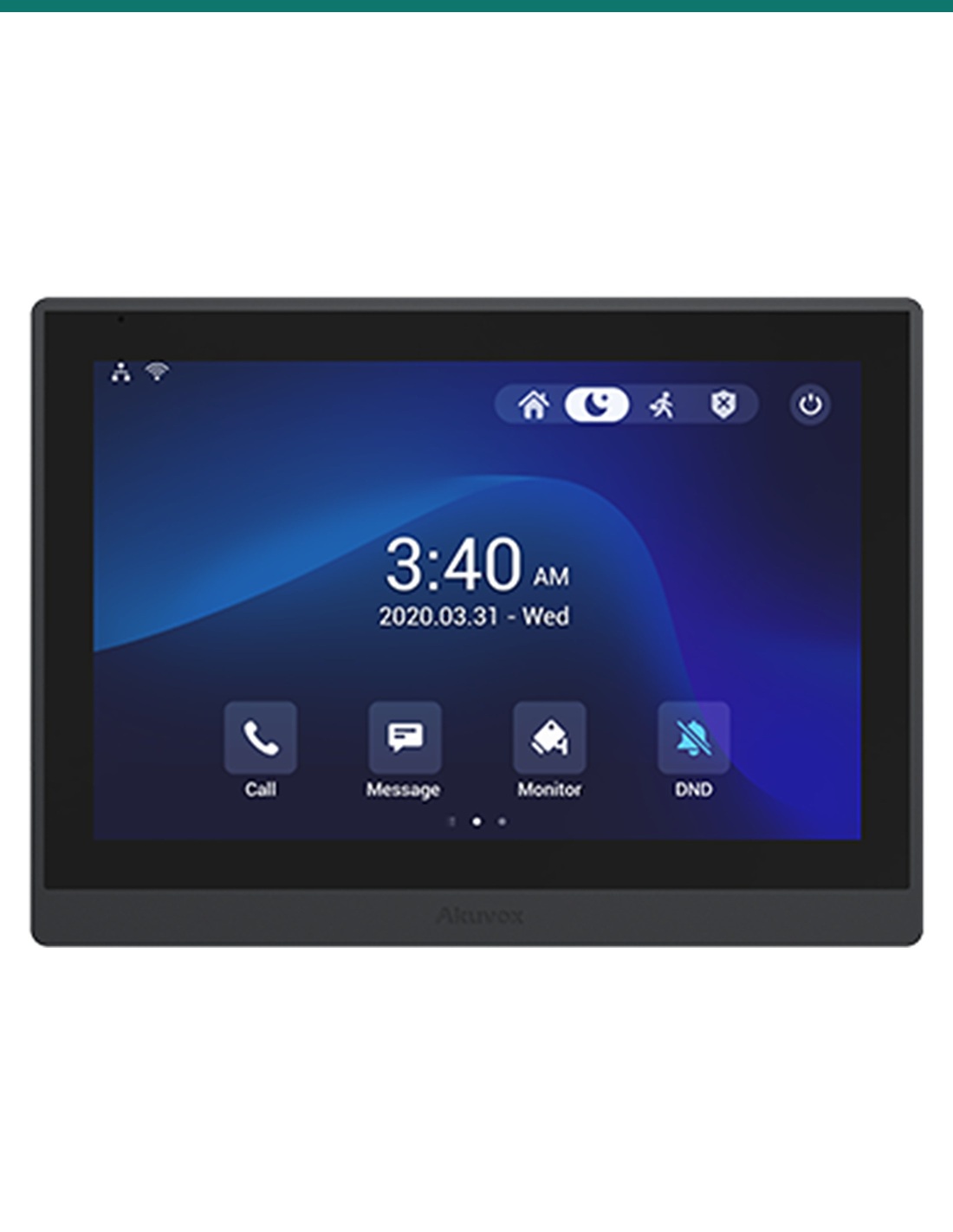

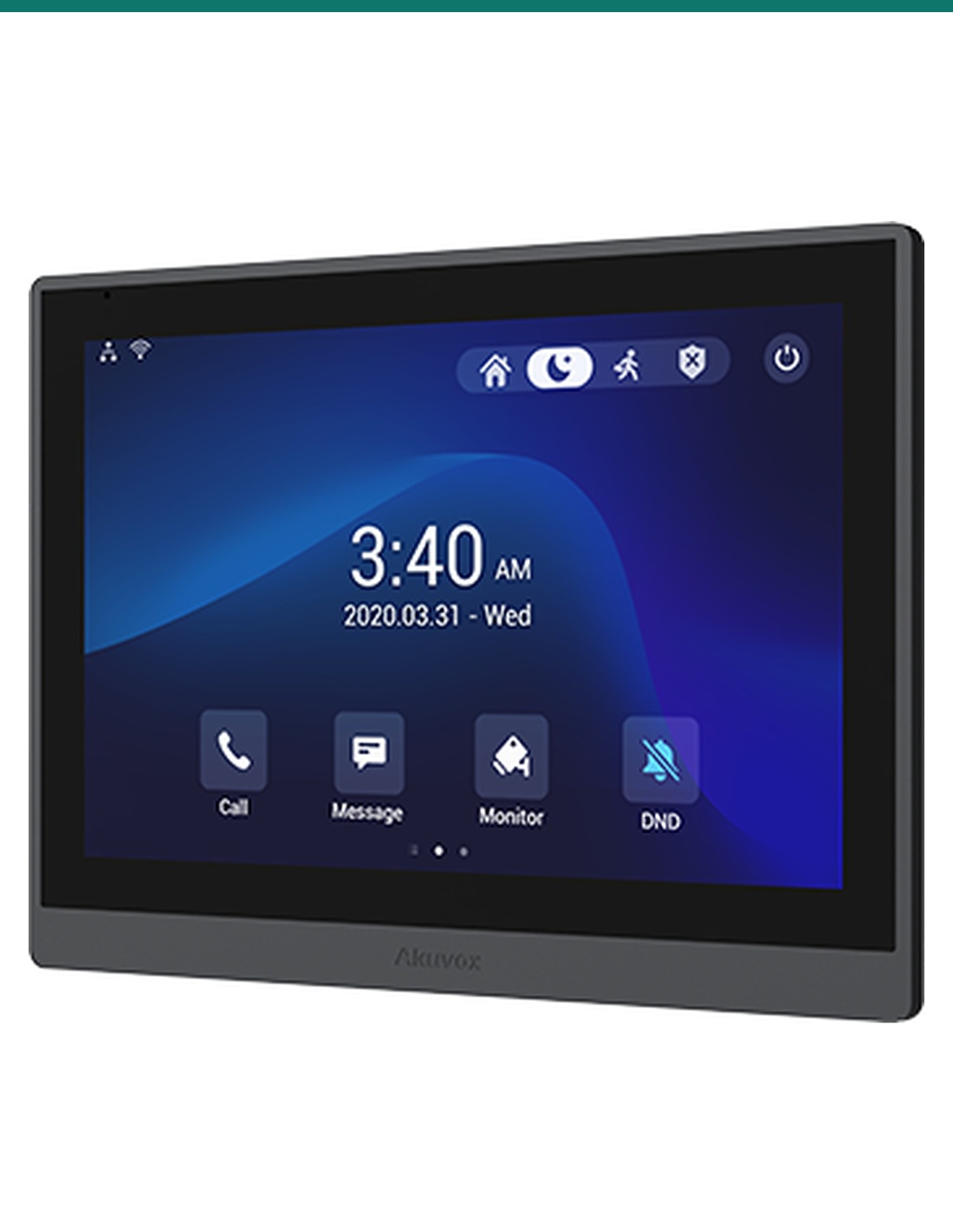

Akuvox IT88P is the Full-HD member of the IT88 family: a 10-inch Android 9 indoor monitor with a 1920 × 1200 capacitive touch screen, a built-in SIP PBX, offline voice assistant, two relays and eight inputs. This is the on-wall version, supplied with its surface-mount bracket. PoE powered.
The AK-IT88P-ONWALL is Akuvox’s IT88P in the on-wall (surface-mount) version. It shares the IT88 housing and I/O, but steps the screen up to 1920 × 1200 and adds a built-in SIP PBX — a premium answering and smart-home panel for villas, luxury homes and apartments.
This SKU is the on-wall indoor monitor only.
You receive the IT88P monitor with its wall-mounting bracket, cables and fixings. Door stations, PoE switch and lock hardware are sold separately.
Answer the door with HD video, unlock with a tap, talk to other rooms and run your smart-home apps — all from a 10-inch Android touch screen.
Screen
A 10-inch IPS panel at 1920 × 1200 (16:10), 350 cd/m² and 80° viewing each way, under a projected-capacitive touch layer with an energy-saving mode — sharper than the 1280 × 800 IT88S.
Android 9 with 2 GB RAM and 8 GB storage runs the Akuvox intercom app alongside third-party smart-home apps.
Integration
Akuvox lists the IT88 series among its monitors with a built-in SIP PBX, so the IT88P can host calls between door stations and other indoor units on a small site, and it registers to any SIP-capable PBX on larger ones.
An offline voice assistant (English, up to 5 m pickup) answers commands without sending voice data to the cloud.
Install
This on-wall version mounts on its supplied bracket over a standard electrical wall box or straight onto the wall. Two relays, eight alarm inputs, a doorbell input and RS485 connect locks, sensors and a local bell.
For a desktop position, add the Akuvox IT88 / C319 desktop stand.
How it works
01
Fix the supplied bracket over a wall box or onto the wall, connect the 10/11-pin cables and hang the monitor.
02
Run 802.3af PoE to the RJ45, or use a 12 V DC supply.
03
Add your Akuvox door stations, or register the IT88P to your SIP PBX, from the web portal.
04
Call from the door, check video and audio, and confirm the relays release the right lock.
At a glance
Show all specifications
Pair it with
Door
Pair with an Akuvox SIP door phone such as the R25K, R20K or E12S for video calls and door release.
Desk
Stands this monitor on a desk or counter.
Sibling
1280 × 800 IT88 for a flush, recessed finish.
Works with
Standard SIP v1 / v2 registers the IT88P to Akuvox door stations, IP phones or extensions on any SIP-capable PBX.
Akuvox lists the IT88 series among its monitors with a built-in PBX, so on a small site the monitor can register the door stations and other indoor units itself.
RTSP support brings live video from IP cameras onto the 10-inch screen beside door calls.
Android 9 runs third-party smart-home apps alongside the Akuvox intercom interface.
Downloads
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
It is the IT88P indoor monitor itself. “On-wall” is the version: it comes with the surface-mount bracket rather than a flush in-wall frame.
Same 10-inch Android 9 housing, I/O and voice assistant. IT88P has a sharper 1920 × 1200 screen, an aluminium-alloy front and dual microphones; the IT88S has a 1280 × 800 screen, plastic front and a single microphone.
Yes. Akuvox lists the IT88 series among its monitors with a built-in PBX, so it can register door stations and other indoor units on a small site without a separate server.
IEEE 802.3af PoE, or a 12 V DC supply if PoE is not available.
Yes, with the Akuvox IT88 / C319 desktop stand, sold separately.
The monitor, its wall-mounting bracket, 10-pin and 11-pin cables, two diodes for lock circuits, wall anchors, screws and an Allen key.
No — it connects by Ethernet and has no camera. Wi-Fi, Bluetooth and a 1 MP camera belong to the IT88A version.
Choose the IT88P for the sharpest picture in the IT88 range and a built-in PBX.
Low-voltage product (SELV). Power from IEEE 802.3af PoE, or a 12 V DC supply when PoE is not used. Treat as SELV low-voltage equipment.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
