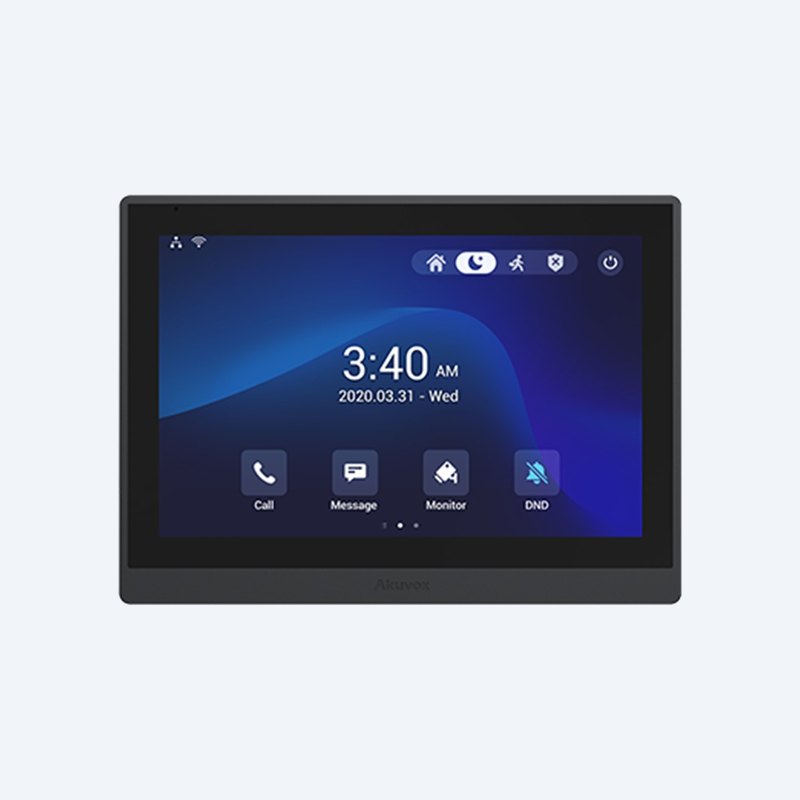

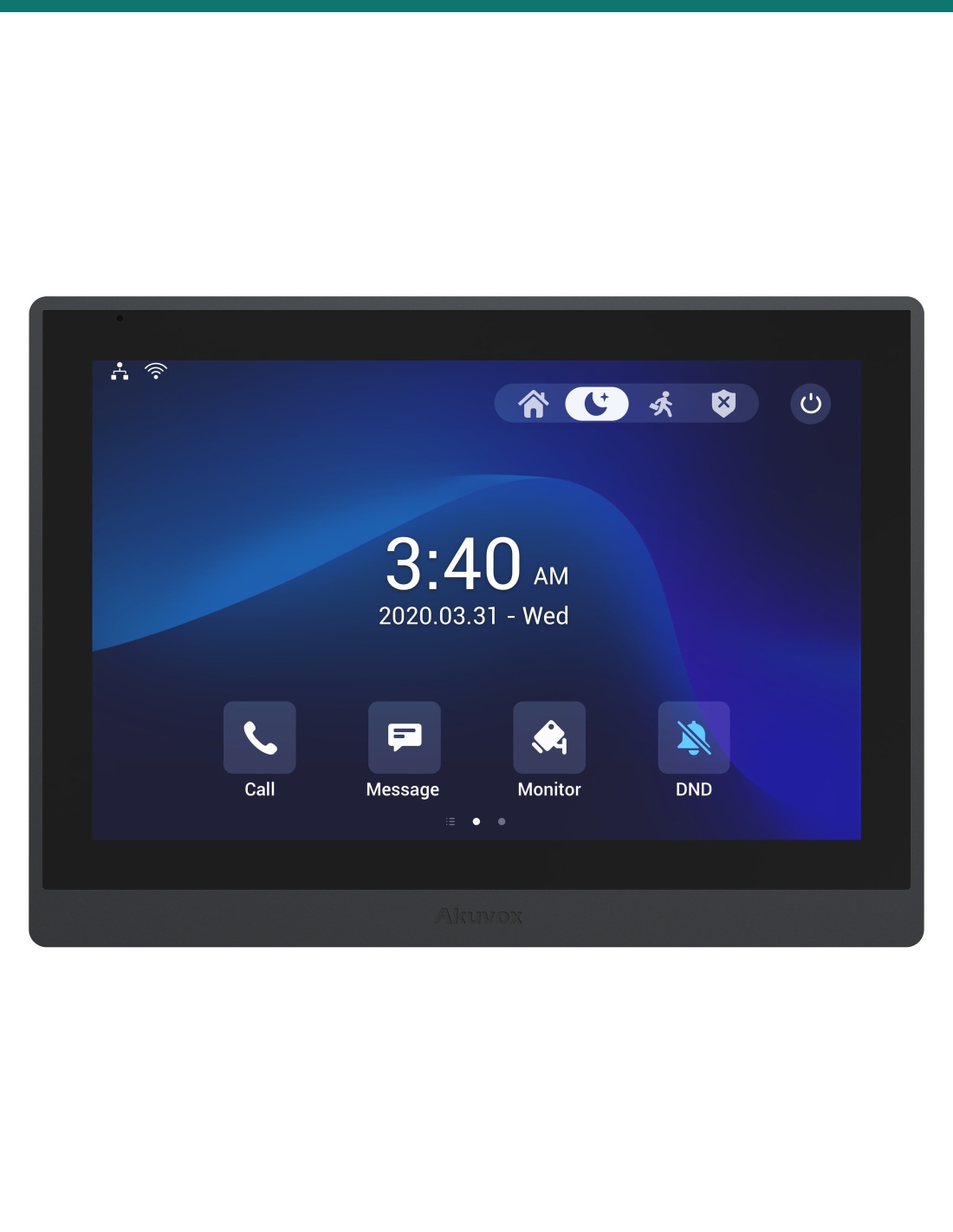

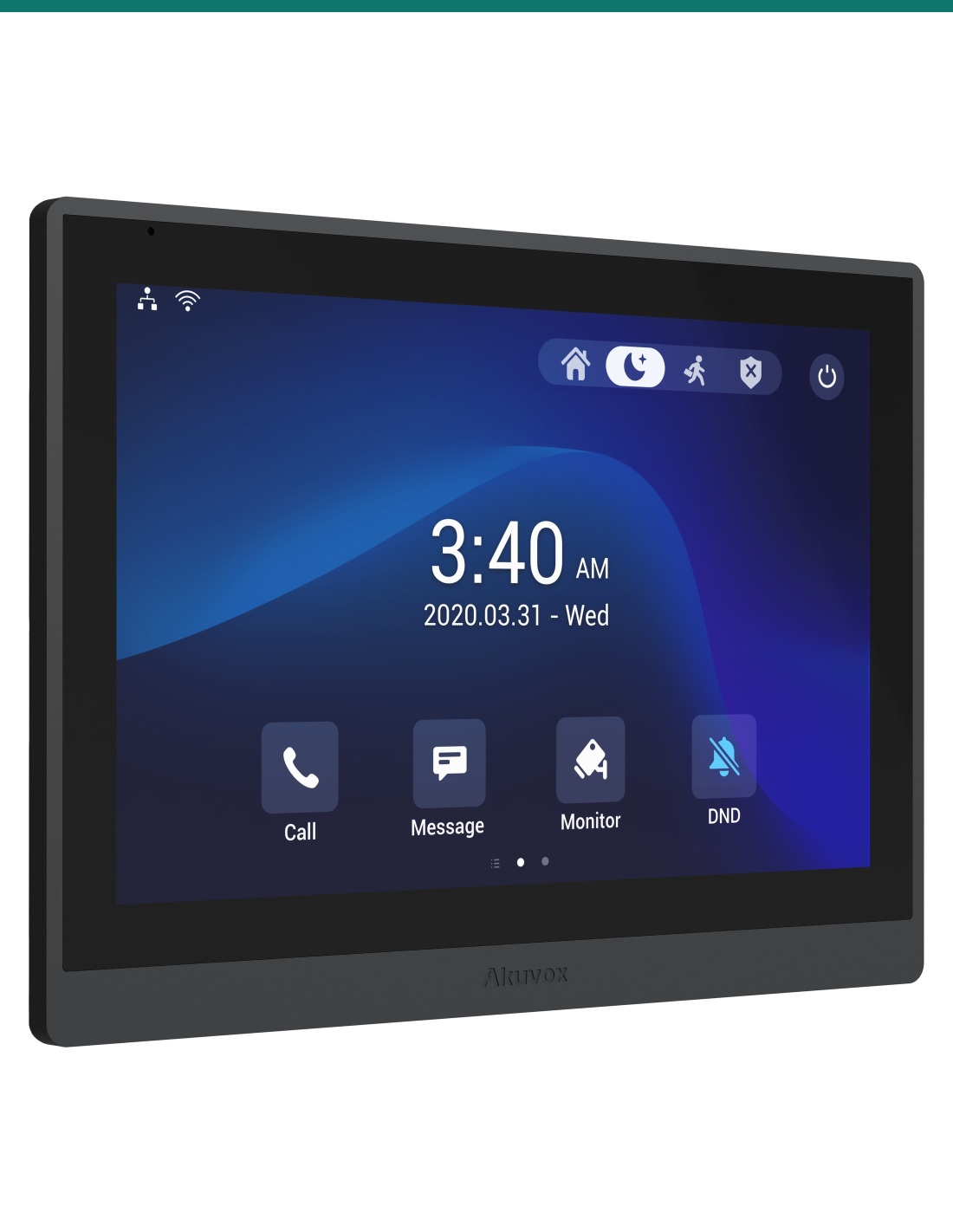

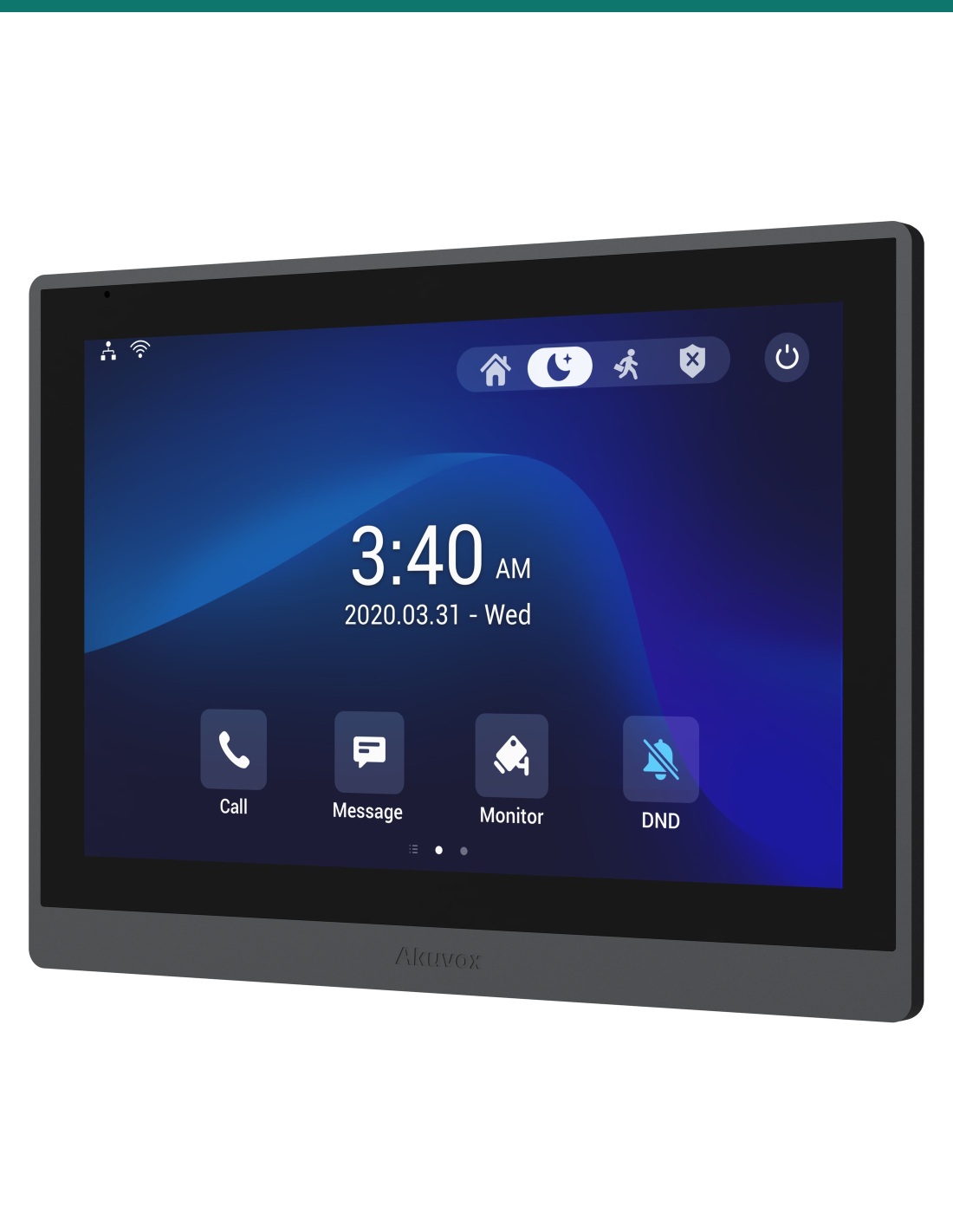

Akuvox IT88S is a 10-inch Android 9 SIP indoor monitor with a capacitive touch screen, dual speakers, offline voice assistant, two relays and eight alarm inputs. This is the in-wall version: it is supplied with a flush-mounting bracket so the monitor sits recessed in the wall. PoE powered.
The AK-IT88S-INWALL is Akuvox’s IT88S in the in-wall (flush-mount) version. It has the same Android 9 electronics and I/O as the on-wall IT88S, but is supplied with a flush-mounting bracket so the screen sits recessed for a cleaner, built-in look.
This SKU is the in-wall indoor monitor only.
You receive the IT88S monitor with its flush-mounting bracket, cables and screws. The in-wall mounting box, door stations, PoE switch and lock hardware are sold separately.
Answer the door with HD video, unlock with a tap, talk to other rooms and run your smart-home apps — all from a 10-inch Android touch screen.
Install

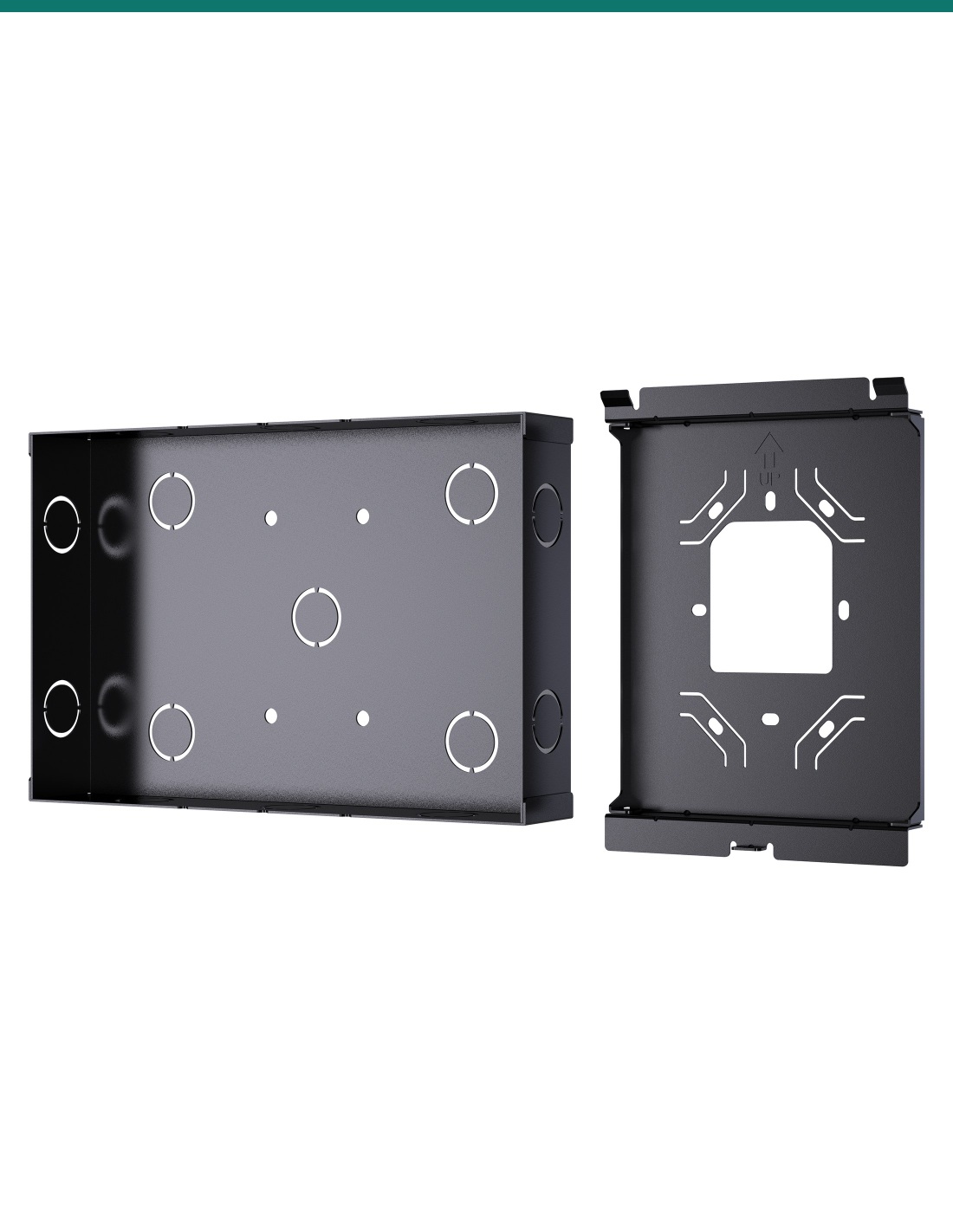

The in-wall IT88S is supplied with a flush-mounting bracket. A dedicated in-wall box is fitted in the wall first, then the bracket and monitor fit into it so the screen sits close to the wall surface.
Plan the box at the framing or plastering stage — new builds and renovations suit this version best.
Screen and audio
10-inch IPS capacitive touch screen at 1280 × 800, 350 cd/m² and 80° viewing each way, with energy-saving mode and HD video from the door station.
Dual 4 Ω / 3 W speakers with echo cancellation, plus an offline English voice assistant (up to 5 m pickup) that keeps voice data on the device.
Control
Two relays, eight alarm inputs, a doorbell input and RS485 connect locks, sensors and a local bell. Android 9 with 2 GB RAM / 8 GB storage runs third-party smart-home apps.
Complies with SIP, so it works with Akuvox door stations and any SIP-capable PBX.
How it works
01
Install the IT88 in-wall box in the wall cavity and bring the cabling into it.
02
Fix the flush-mounting bracket, connect the 10/11-pin cables and seat the monitor.
03
Run 802.3af PoE (or 12 V DC), then add your Akuvox door stations or SIP PBX in the web portal.
04
Call from the door, check video and audio, and confirm the relays release the right lock.
At a glance
Show all specifications
Pair it with
Door
Pair with an Akuvox SIP door phone such as the R25K, R20K or E12S for video calls and door release.
Sibling
Full-HD IT88 with built-in PBX on a surface bracket.
Works with
Standard SIP v1 / v2 registers the IT88S to Akuvox door stations, IP phones or extensions on any SIP-capable PBX.
Akuvox lists the IT88 series among its monitors with a built-in PBX, so on a small site the monitor can register the door stations and other indoor units itself.
RTSP support brings live video from IP cameras onto the 10-inch screen beside door calls.
Android 9 runs third-party smart-home apps alongside the Akuvox intercom interface.
Downloads
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
It is the IT88S indoor monitor itself. “In-wall” is the version: it is supplied with a flush-mounting bracket for a recessed install.
A dedicated IT88 in-wall (flush-mounting) box installed in the wall cavity, sold separately. The dimension drawings below give the box position and mounting heights.
Same 10-inch Android 9 housing, I/O and voice assistant. IT88S has a 1280 × 800 screen, plastic front and single microphone; IT88P steps up to 1920 × 1200 with an aluminium-alloy front and dual microphones.
Yes. Akuvox lists the IT88 series among its monitors with a built-in PBX, so it can register door stations and other indoor units on a small site without a separate server.
IEEE 802.3af PoE, or a 12 V DC supply if PoE is not available.
The monitor, its flush-mounting bracket, 10-pin and 11-pin cables, two diodes for lock circuits, M4 screws, a headless screw and an Allen key.
Choose an on-wall IT88 such as the IT88P for desk use with the IT88 / C319 stand. The in-wall version is designed to sit flush in its wall box.
Choose the in-wall IT88S for a flush, built-in finish in new builds and renovations.
Low-voltage product (SELV). Power from IEEE 802.3af PoE, or a 12 V DC supply when PoE is not used. Treat as SELV low-voltage equipment.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
