VIP Vision 4-port Unmanaged Fast Hi-PoE Ethernet Switch - VSPOE-SWA4F
VSPOE-SWA4F
In Stock - Ready to Ship
$ 74.90
inc-GST
- 3 x 10/100Mbps PoE+ device ports
- 1 x 10/100Mbps Hi-PoE device port
- 2 x 10/100Mbps uplink ports
- Total PoE power load up to 60W
- Extend mode takes Ethernet cable runs up to 250m
- Unmanaged switch for plug & play applications
- Desktop mount for home and SOHO use
- Professional appearance full metal enclosure

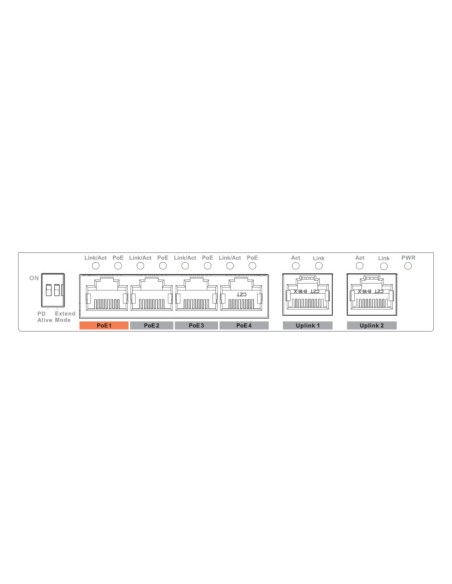

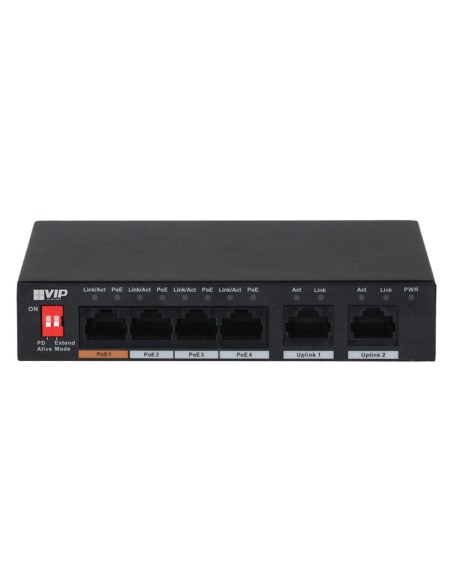

VIP Vision 4-port Unmanaged Fast Hi-PoE Ethernet Switch
VSPOE-SWA4F
The VSPOE-SWA4F is a desktop mount, fast Hi-PoE switch in 4 ports. It is ideal for building secondary networks - providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.
Product Features:
• 3 x 10/100Mbps PoE+ device ports
• 1 x 10/100Mbps Hi-PoE device port
• 2 x 10/100Mbps uplink ports
• Total PoE power load up to 60W
• Extend mode takes Ethernet cable runs up to 250m
• Unmanaged switch for plug & play applications
• Desktop mount for home and SOHO use
• Professional appearance full metal enclosure

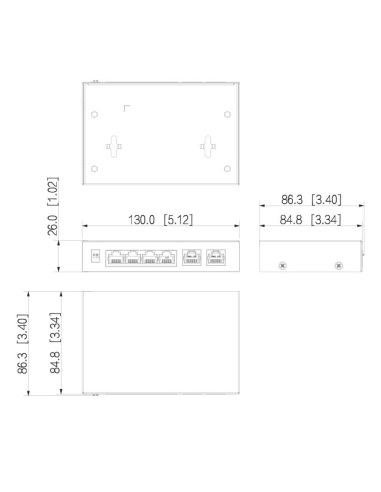

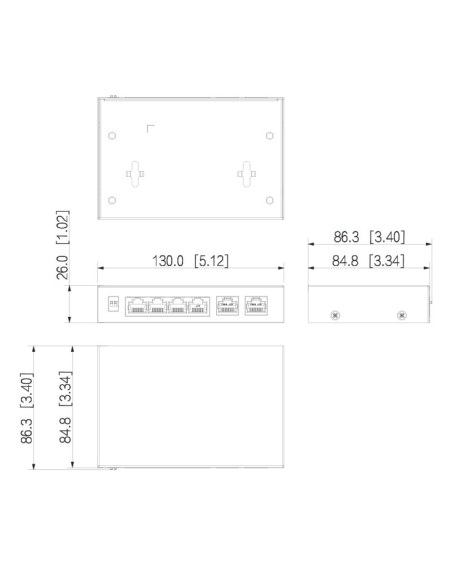

- Dimensions
- 130 x 85 x 26mm
- Operating Environment
- -10°C~55°C / RH5%~95%
- Weight
- 0.30kg
- Ports
- 4 ports
- PoE
- Yes
- Mounting Options
- Desktop
- DHCP
- N/A
- PoE Protocol
- PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE
- Device Ports
- 4 x 10/100 Base-T (PoE power supply ports)
- Exchange Mode
- N/A
- Extend Mode
- Up to 250m range at 10Mbps (all ports via device switch)
- Flow Control
- N/A
- Input Power
- 53VDC
- Lightning Protection
- Common Mode: 2kV / Differential Mode: 1kV
- LLDP
- N/A
- MAC Address Capacity
- 2K
- Network Management
- N/A
- Network Time Protocol
- N/A
- Packet Forwarding Rate
- 0.89Mbps
- PoE Management
- N/A
- Port Aggregation
- N/A
- Port Mirroring
- N/A
- Quality of Service
- N/A
- Security Features
- N/A
- Spanning Tree Protocol
- N/A
- Speed
- Fast 10/100
- Switch Management
- Unmanaged
- Switch Power Load
- Ports 1: ≤60W / Port 2-4: ≤30W (Total: ≤60W)
- Switching Capacity
- 1.8Gbps
- System Maintenance
- N/A
- Uplink Ports
- 2 x 10/100 Base-T
- Virtual LAN
- N/A
