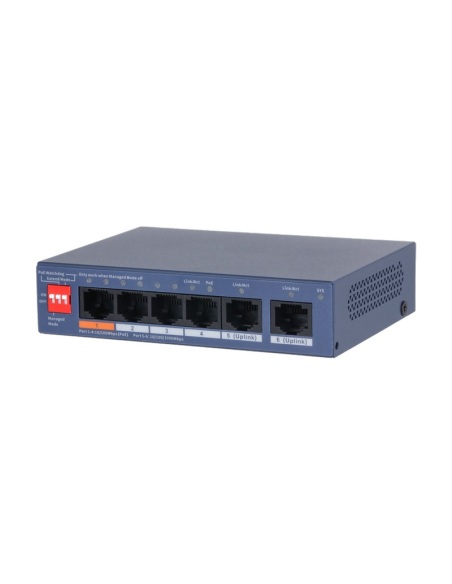

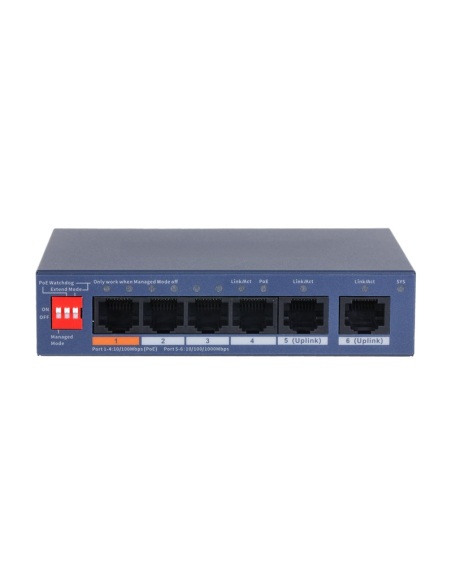

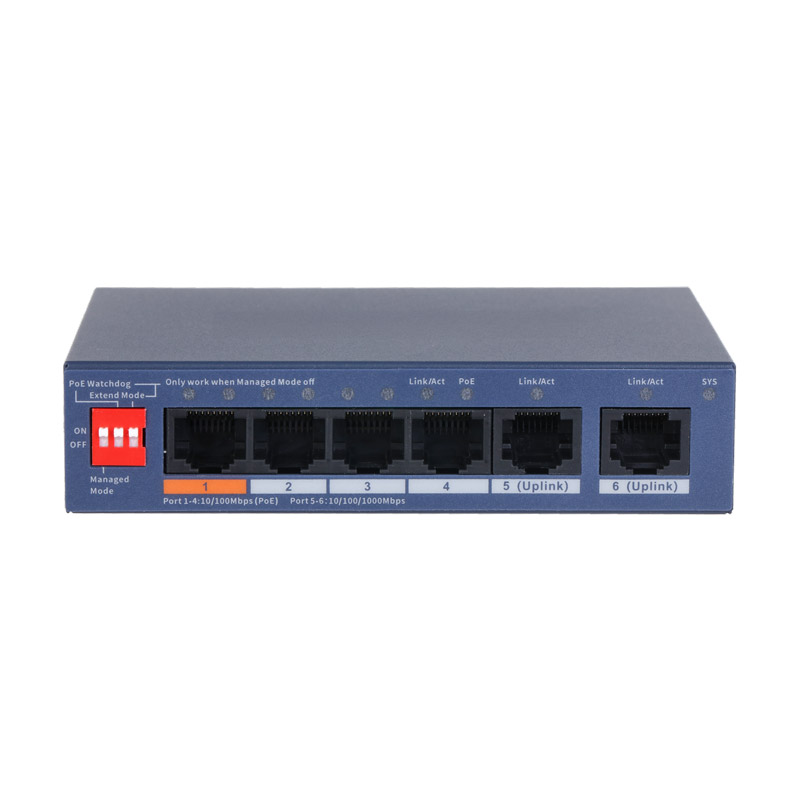

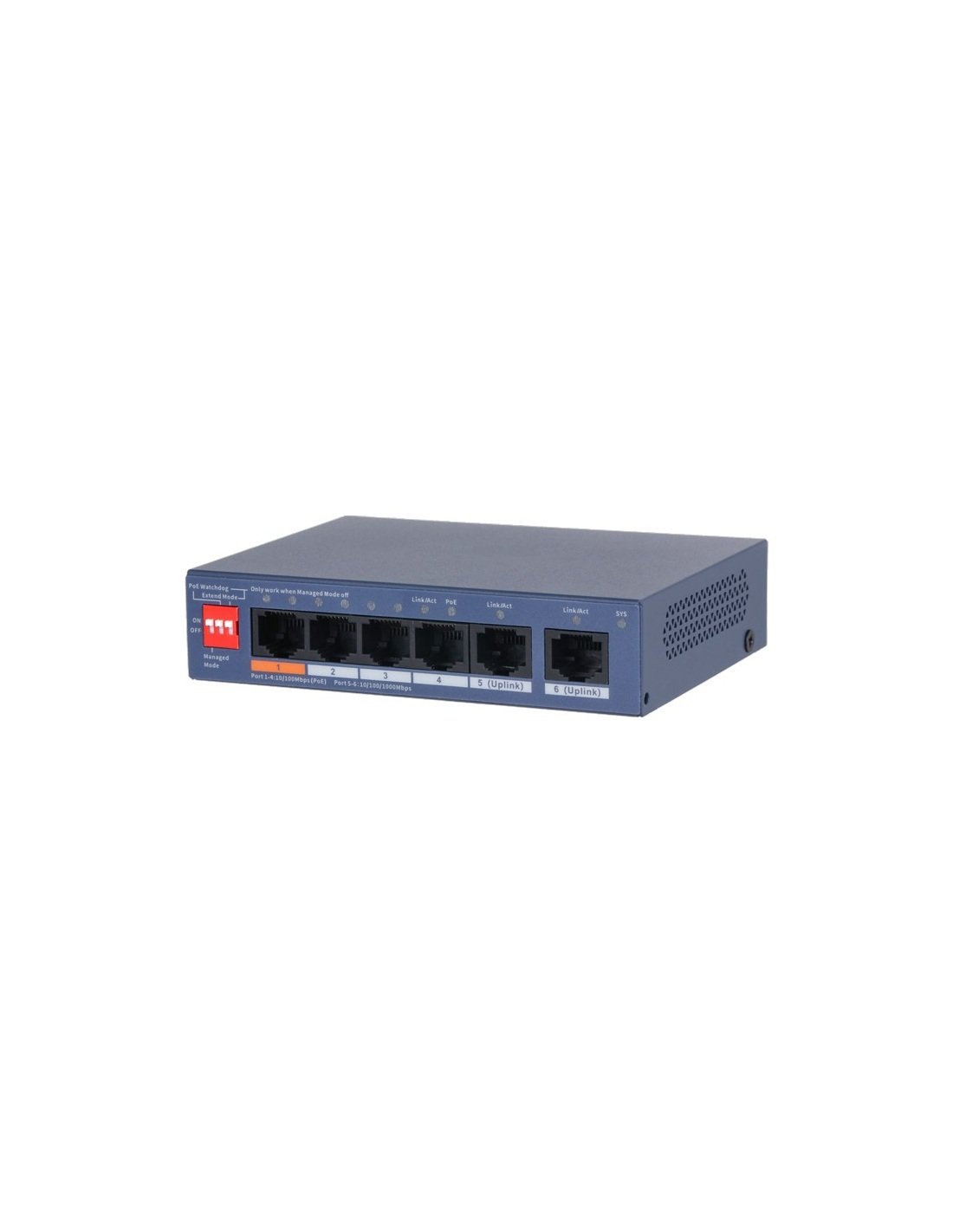

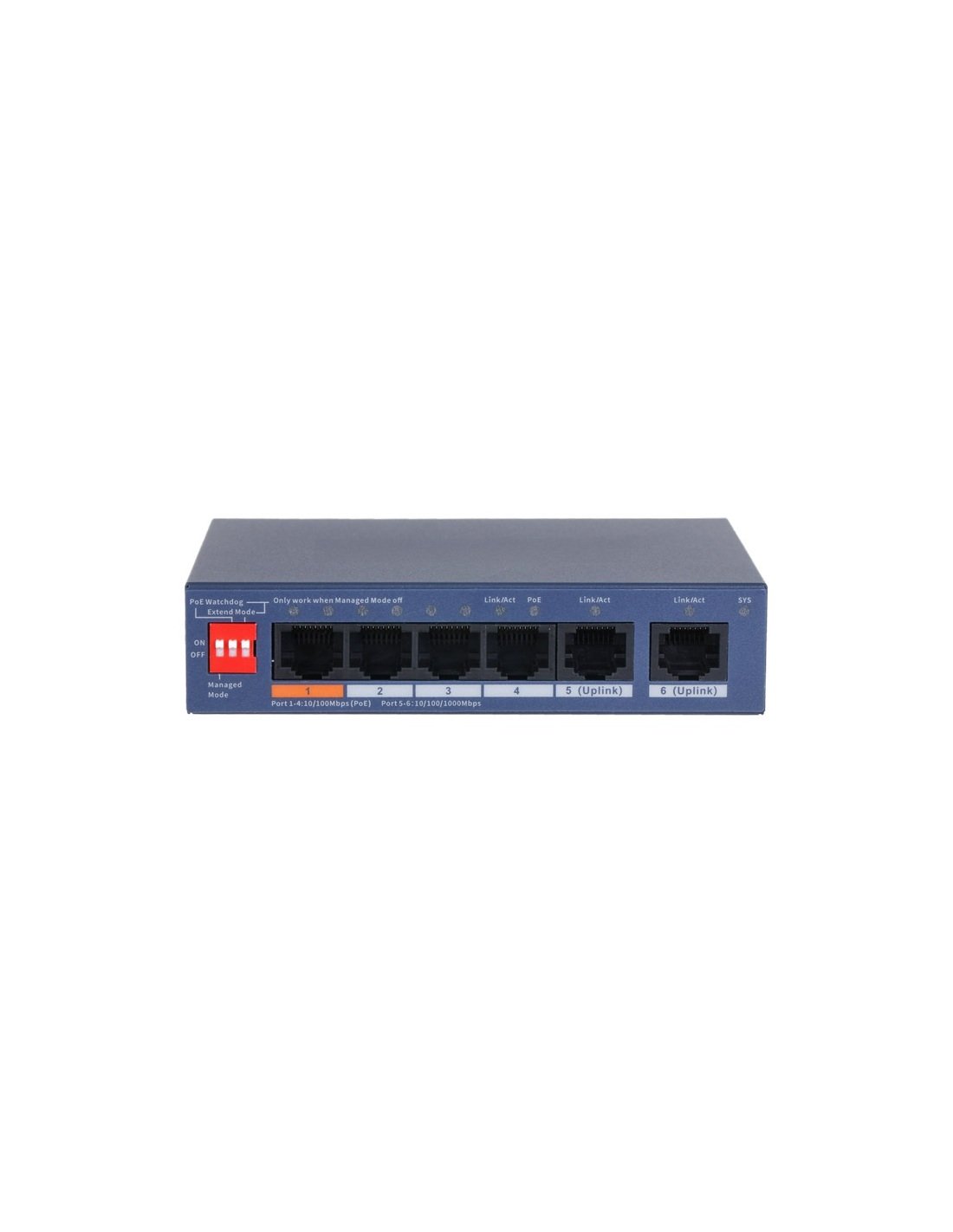

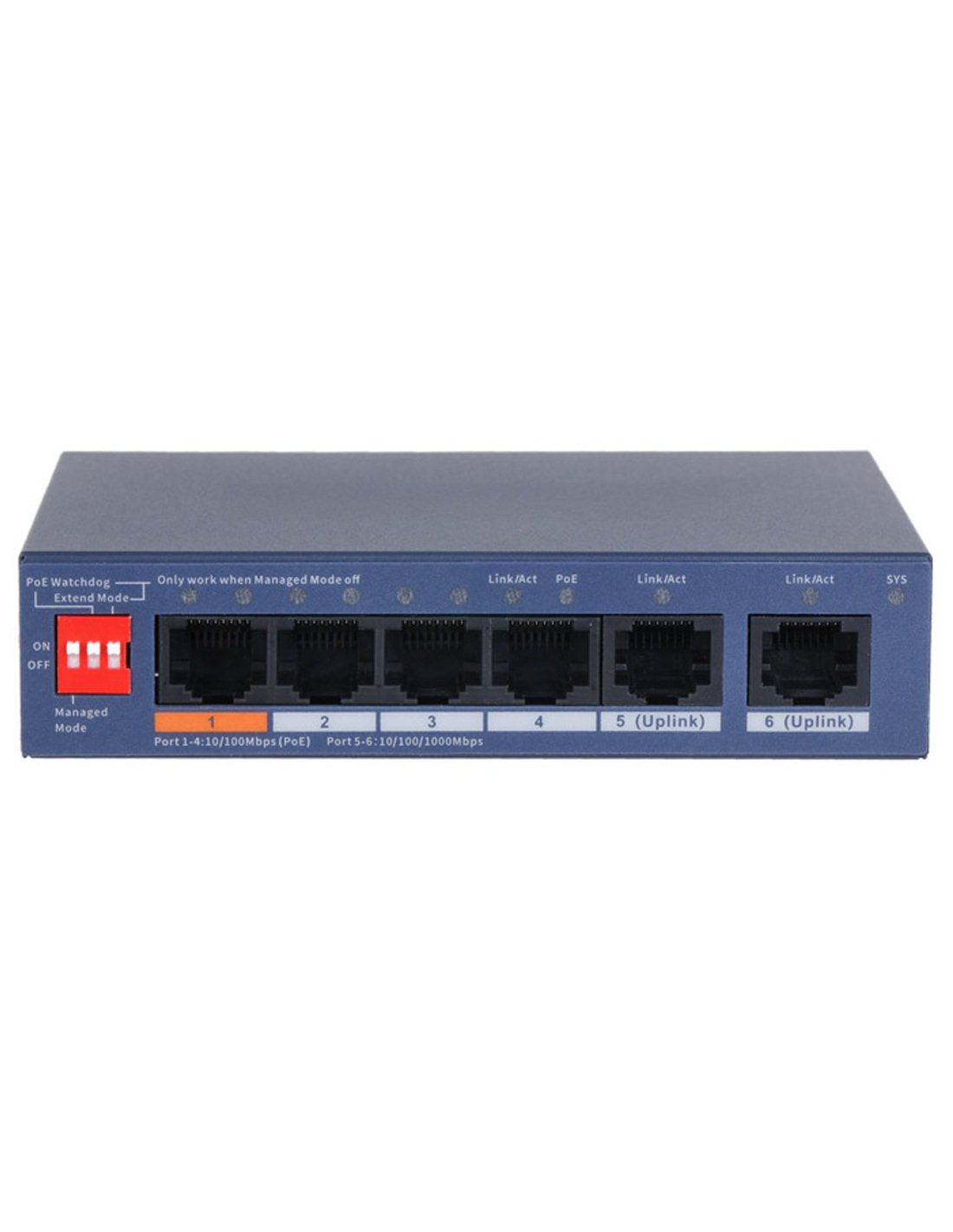

VIP Vision 4-Port Fast PoE Network IP Switch 100Mbps 60W Per-Port - VSPOE-SWA4C

SKU VSPOE-SWA4C In Stock - Ready to Ship
$84.37 inc GST
  • PoE, PoE+ and Hi-PoE support for up to 60W per port
  • Total PoE power load up to 60W
  • Fast PoE+ device ports with 100Mbps per port
  • Extend mode takes Ethernet cable runs up to 250m
  • Wall and desk mount installation
  • Professional appearance full metal enclosure
  • Lightning overvoltage protection up to 6kV



Description

VIP Vision VSPOE-SWA4C | 4‑Port Fast PoE Switch • Hi‑PoE 60W (P1) • 250m Extend Mode

VIP Vision VSPOE-SWA4C 4‑Port Fast PoE Switch

The VIP Vision VSPOE‑SWA4C is a compact 4‑port Fast (10/100) PoE switch designed for edge deployments. It delivers PoE/PoE+/Hi‑PoE power with Gigabit uplinks and an Extend mode for long‑distance PoE runs, making it ideal for powering IP cameras and other security devices.

Key Features & Benefits

  • 4 × Fast PoE Ports — 10/100Mbps device ports for CCTV & edge networking
  • 2 × Gigabit Uplinks — 10/100/1000 RJ45 for LAN/NVR connectivity
  • Hi‑PoE up to 60W (Port 1) — Ports 2–4 up to 30W each; 60W total budget
  • Extend Mode to 250m — Long‑reach PoE at 10Mbps for distant cameras
  • Security‑ready build — Full‑metal enclosure with 6kV surge protection (common mode)
  • Unmanaged, plug‑and‑play — No configuration required for rapid installs
  • Desktop/Wall mount — Ultra‑compact form factor for tidy edge installs
  • 4‑Year Warranty — Long‑term reliability for professional systems

Ideal Applications

  • Powering IP cameras on small/remote sites
  • Wireless access points, intercoms & IP phones
  • Access control doors & edge security devices
  • Temporary or outbuilding CCTV networks

Specifications at a Glance

  • Model: VSPOE‑SWA4C
  • Device Ports: 4 × 10/100 Base‑T (PoE power supply ports)
  • Uplink Ports: 2 × 10/100/1000 Base‑T
  • PoE Protocols: IEEE 802.3af / 802.3at / Hi‑PoE (802.3bt)
  • Power Budget: Port 1 ≤ 60W; Ports 2–4 ≤ 30W; Total ≤ 60W
  • Switching Capacity: 4.8 Gbps • Forwarding: 3.57 Mpps
  • Extend Mode: Up to 250m @ 10Mbps
  • Lightning Protection: 6kV (common mode)
  • Input Power: 53VDC
  • Mounting: Desktop / Wall mount
  • Operating Environment: –10°C to +55°C; RH ≤ 90%
  • Dimensions / Weight: 115 × 84 × 27 mm; 0.20 kg
  • Warranty: 4 Years

Edge power made simple. VSPOE‑SWA4C delivers Hi‑PoE power, long‑reach cabling and Gigabit uplinks in a palm‑sized switch.

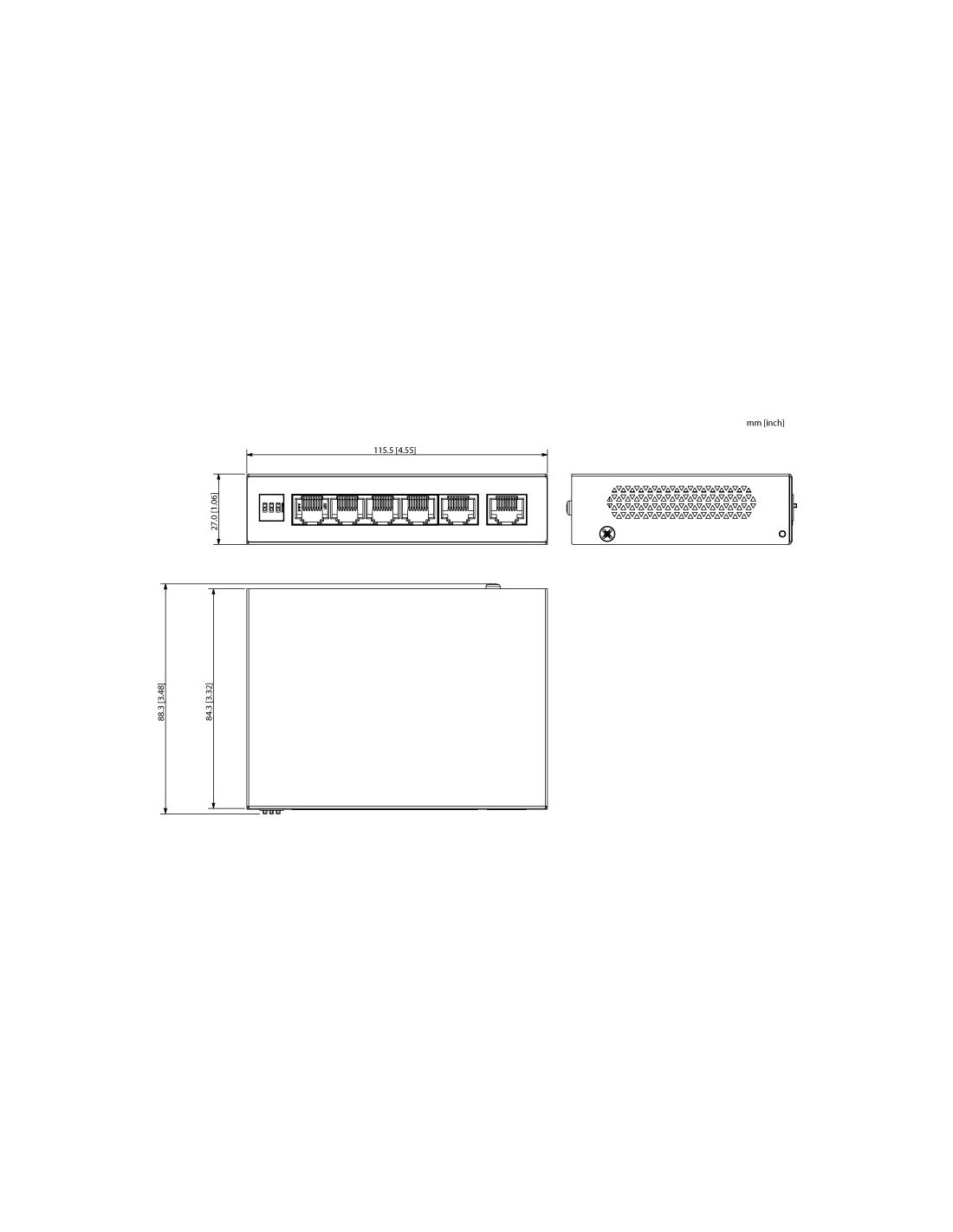

Dimensions
115 x 84 x 27mm
Operating Environment
-10° ~ 55°C / RH95% (max)
Weight
0.20kg
Ports
4 ports
PoE
Yes
Mounting Options
Rackmount Tabs (1RU) / Desktop Mount
DHCP
N/A
Management
Unmanaged
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE (IEEE802.3bt)
Device Ports
4 x 10/100 Base-T (PoE power supply ports)
Exchange Mode
-
Extend Mode
Up to 250m range at 10Mbps
Flow Control
N/A
Input Power
53VDC
Lightning Protection
Common Mode: 6kV / Differential Mode: 0kV
LLDP
N/A
MAC Address Capacity
2K
Network Management
N/A
Network Time Protocol
N/A
Packet Forwarding Rate
3.57 Mpps
PoE Management
N/A
Port Aggregation
N/A
Port Mirroring
N/A
Quality of Service
N/A
Security Features
N/A
Spanning Tree Protocol
N/A
Speed
Fast 10/100
Switch Management
N/A
Switch Power Load
Port 1: ?60W / Port 2-4: ?30W / Total: ?60W
Switching Capacity
4.8 Gbps
System Maintenance
N/A
Uplink Ports
2 x 10/100/1000 Base-T
Virtual LAN
N/A
