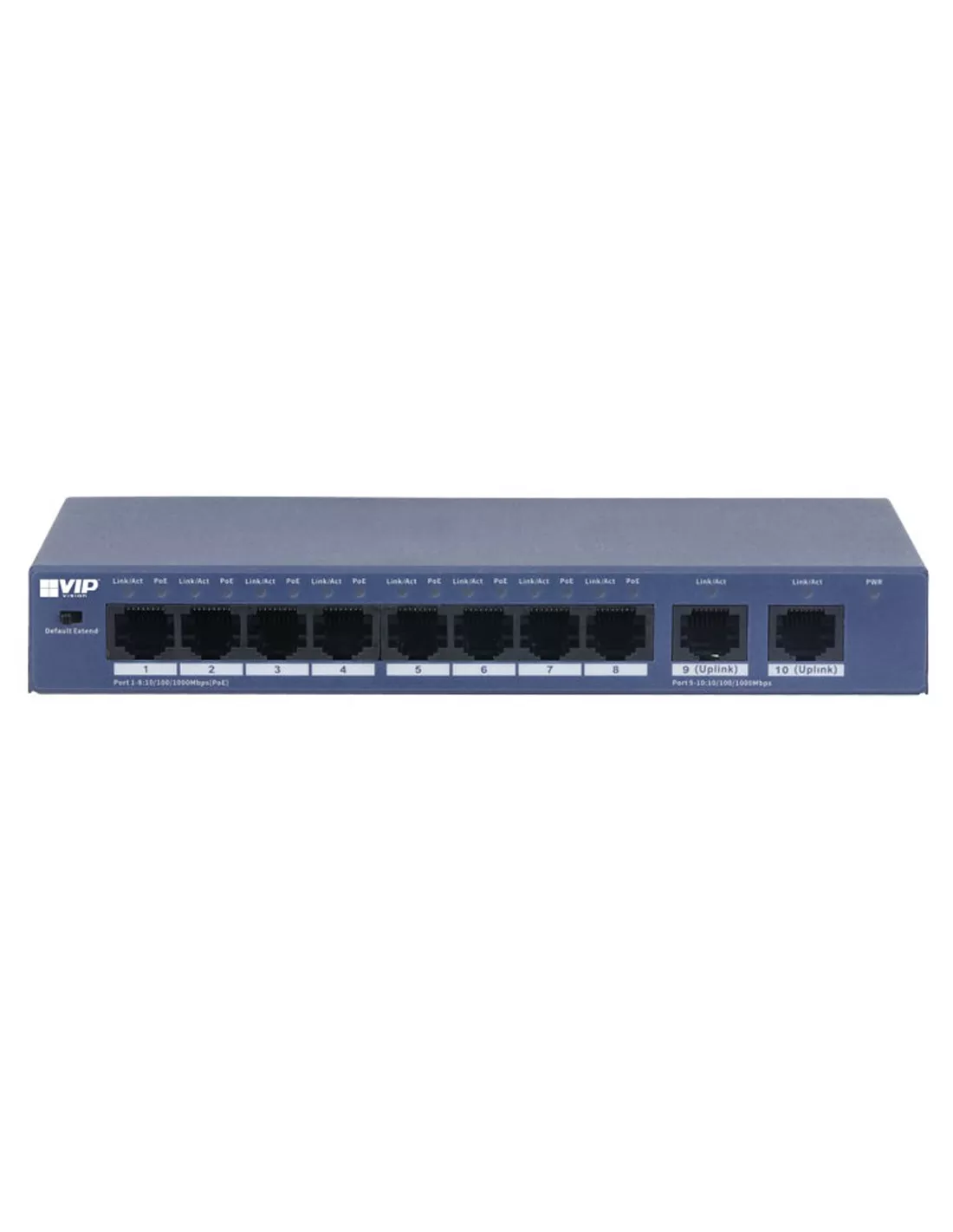

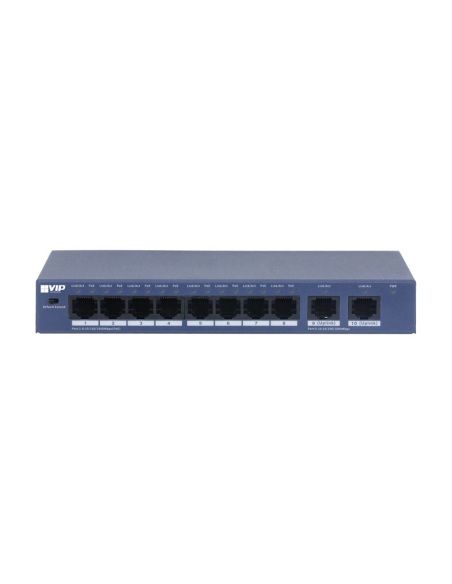

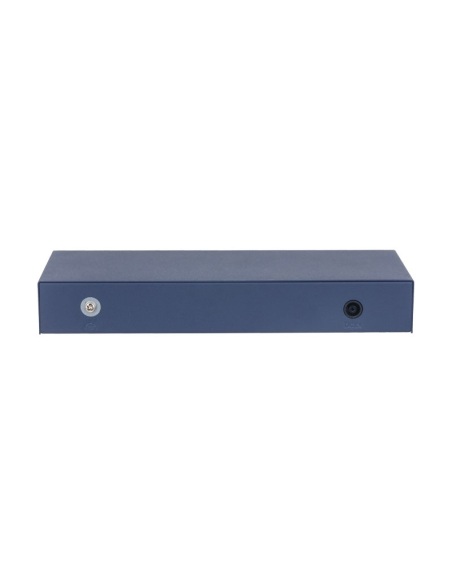

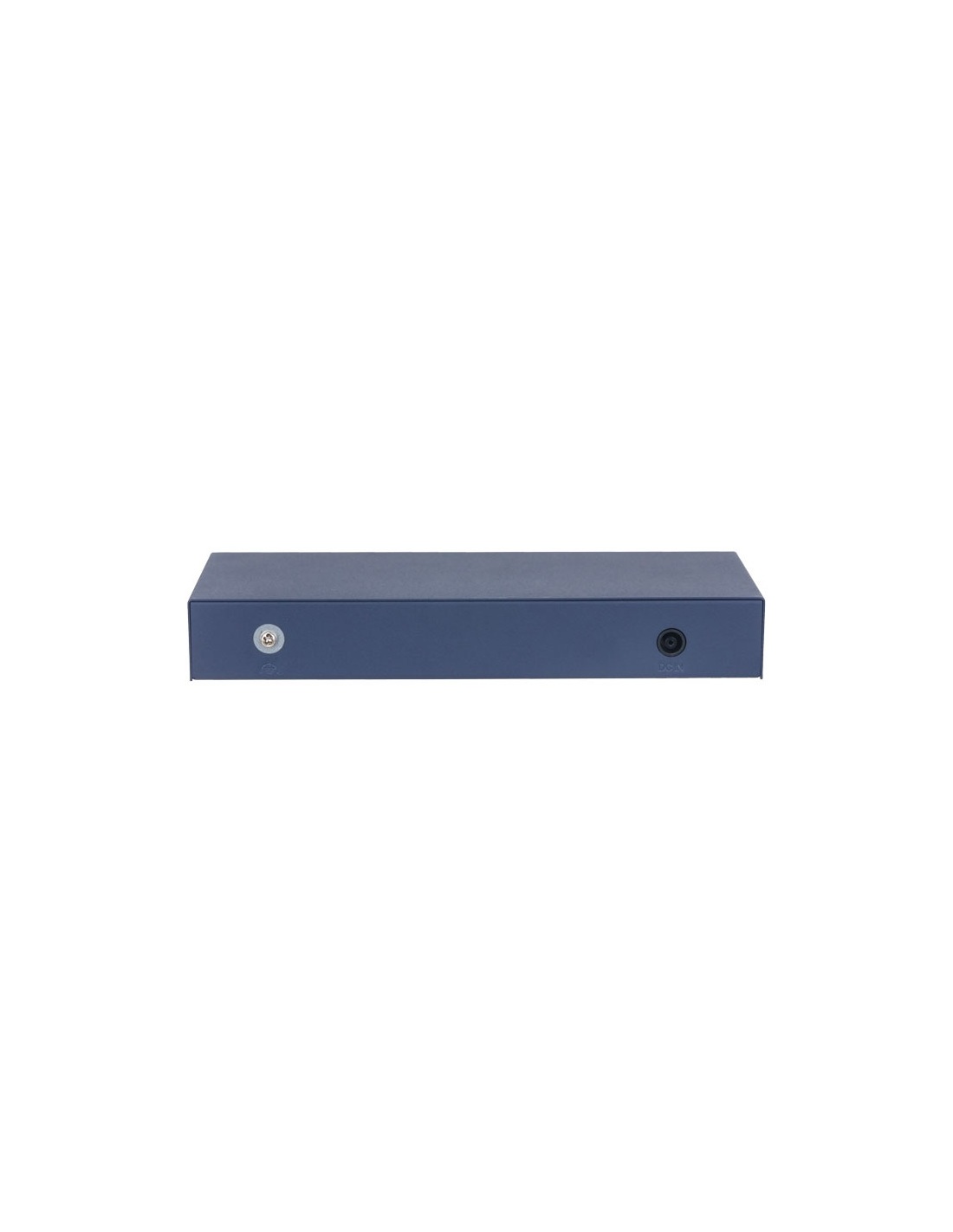

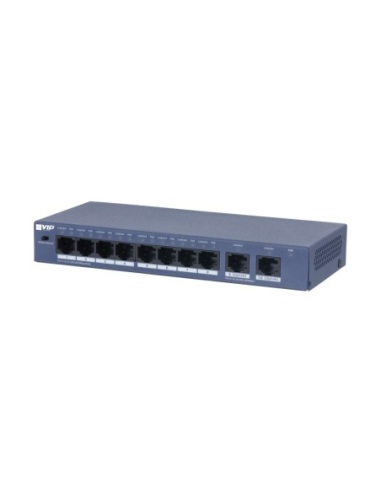

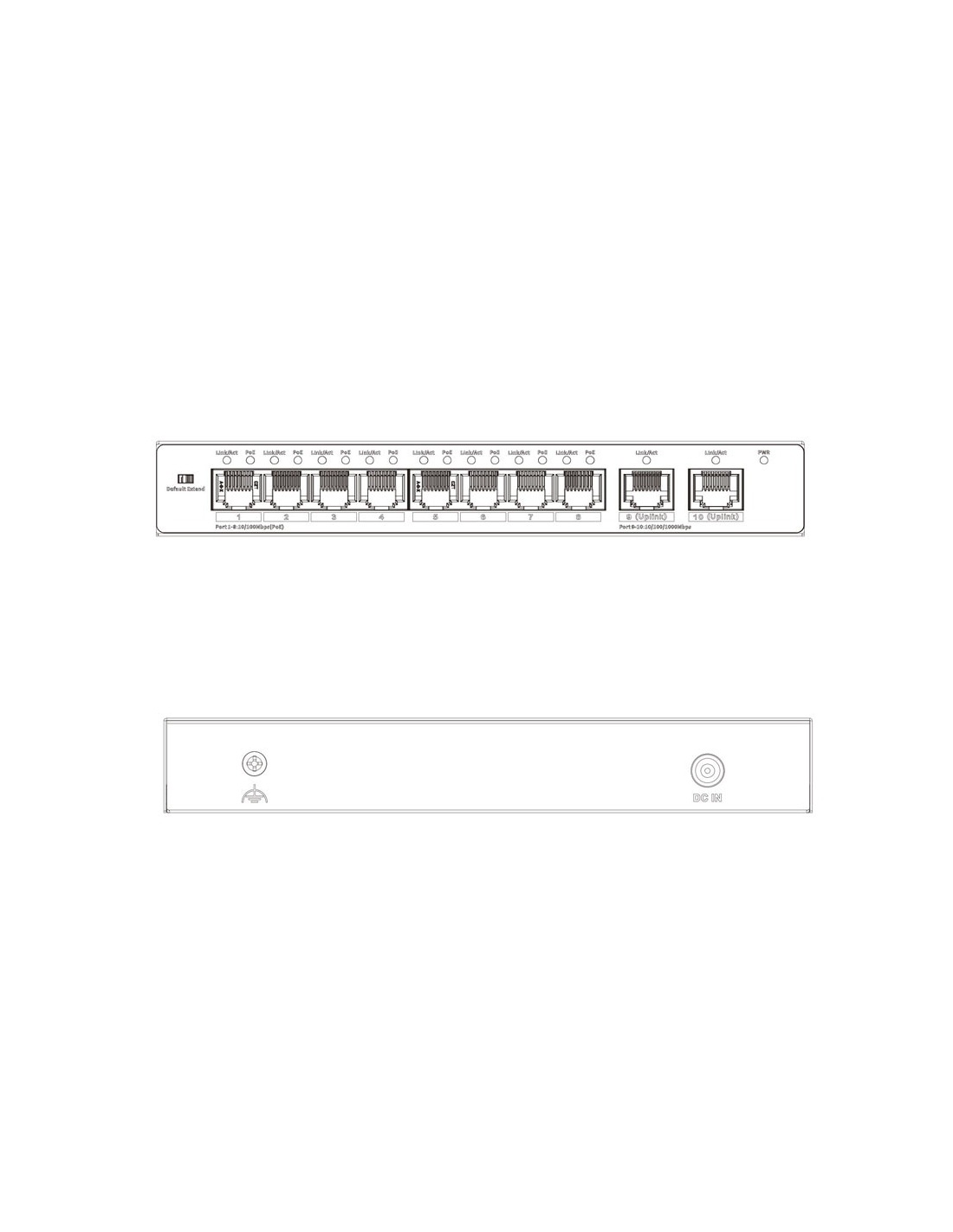

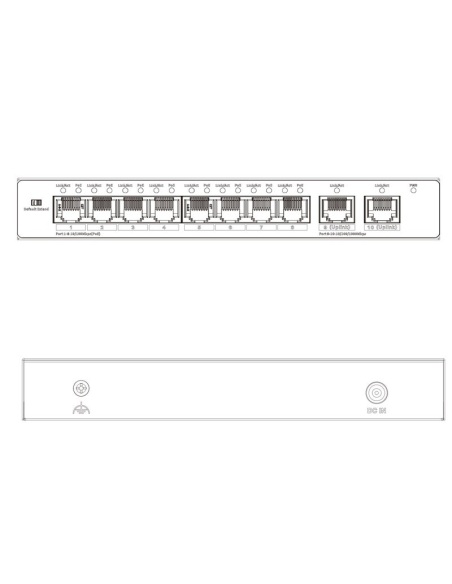

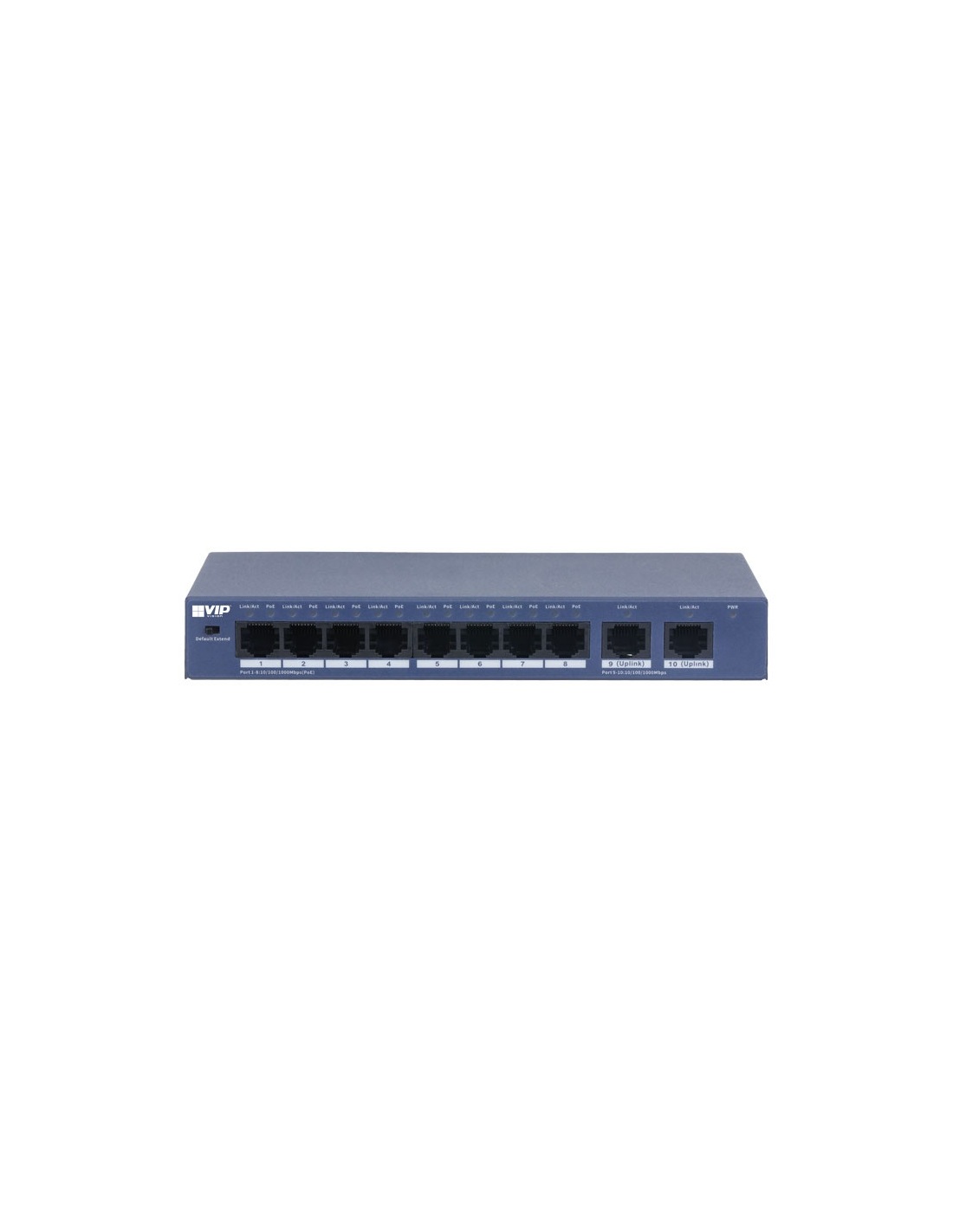

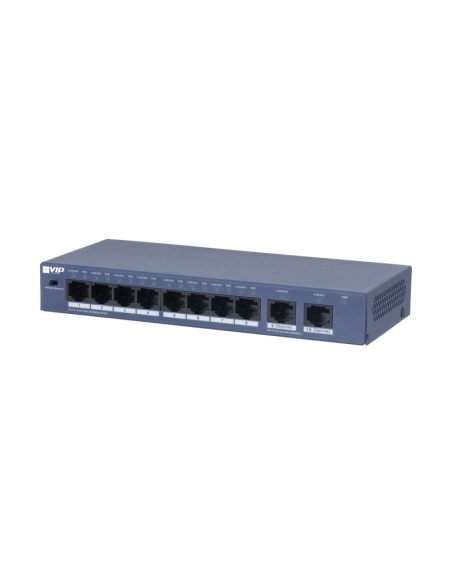

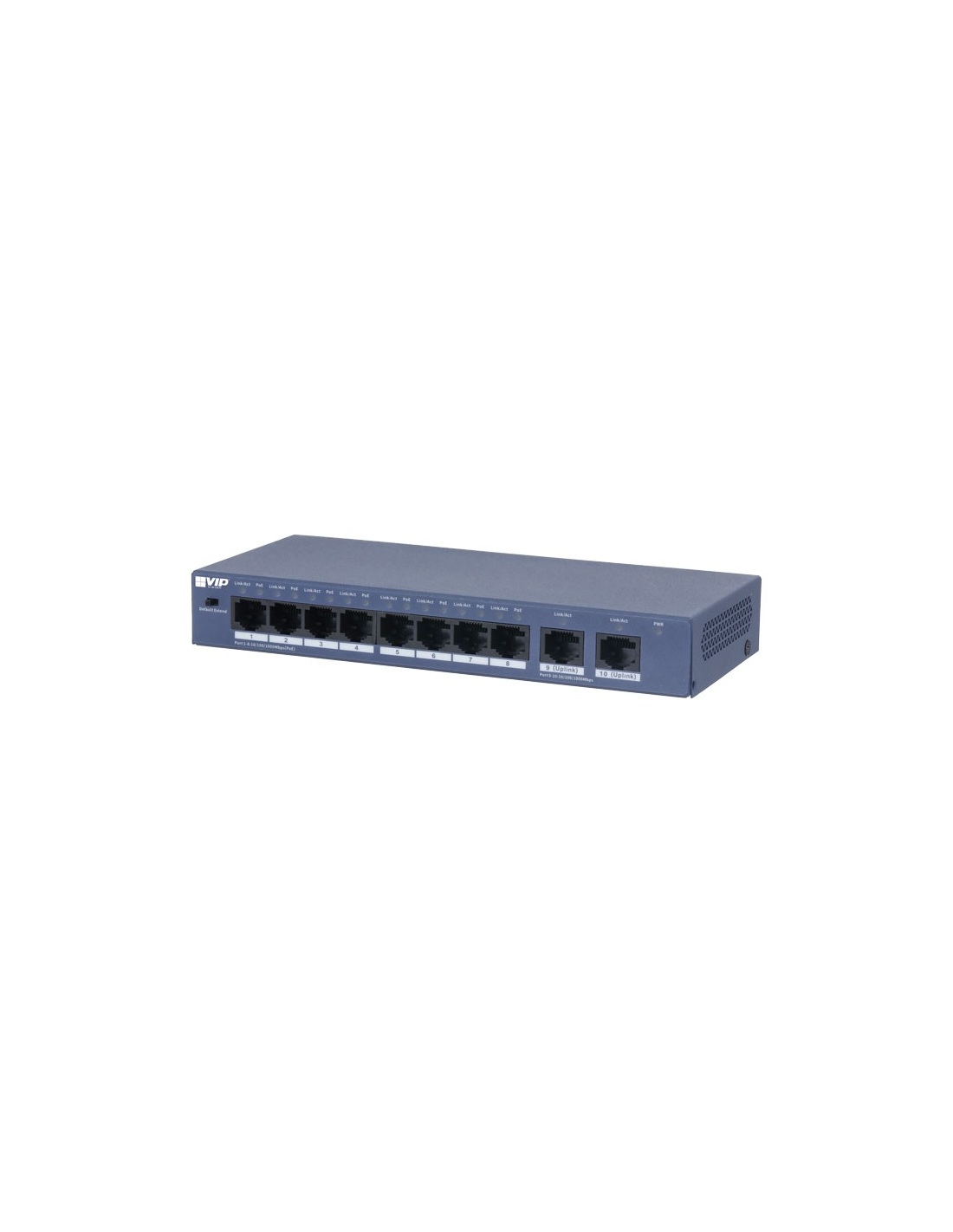

VIP Vision 8-Port Fast PoE+ Switch with 2× Gigabit Uplink Ports — VSPOE-SWA8U
Model VSPOE-SWA8U
The VIP Vision VSPOE-SWA8U is an unmanaged fast Ethernet PoE+ switch designed to power and connect multiple edge devices over 100 Mbps links with two high-speed Gigabit uplinks.
With 8× 10/100 Mbps PoE+ ports, 2× Gigabit uplinks, a 90 W total PoE budget, full metal enclosure, and simple plug-and-play operation, it’s ideal for CCTV cameras, wireless access points, IP phones and other networked devices. :contentReference[oaicite:0]{index=0}
Key Features & Benefits
- 8× 10/100 Mbps PoE+ RJ45 device ports for powered edge connectivity.
- 2× Gigabit 10/100/1000 Mbps RJ45 uplinks for network backhaul.
- Up to 30 W PoE+ per port with 90 W total PoE budget. :contentReference[oaicite:1]{index=1}
- Extend mode support (via DIP switch) up to ~250 m at 10 Mbps. :contentReference[oaicite:2]{index=2}
- Unmanaged, plug-and-play for quick installs.
- Professional metal enclosure for durability.
- Included 53 VDC power supply for immediate deployment. :contentReference[oaicite:3]{index=3}
- Lightning overvoltage protection up to 6 kV. :contentReference[oaicite:4]{index=4}
- Fast switching performance for surveillance and access networks. :contentReference[oaicite:5]{index=5}
Reliable Fast PoE+ for edge networking.
Ideal when multiple devices need both power and data with dual Gigabit uplinks.
Real-World Applications
CCTV Surveillance — power and connect multiple cameras with stable PoE support.
Enterprise Edge Networks — add PoE devices with dual Gigabit uplinks for backbone connectivity.
VoIP Deployments — support IP phones without separate power injectors.
Wireless Access Points — feed APs with PoE while keeping gigabit connections back to core networks.
Quick Specs
| Switch Type |
Unmanaged Fast PoE+ Switch |
| Device Ports |
8× 10/100 Mbps RJ45 (PoE+) |
| Uplink Ports |
2× 10/100/1000 Mbps RJ45 |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at (PoE+) |
| Total PoE Budget |
Up to 90 W |
| Switching Capacity |
5.6 Gbps |
| Packet Forwarding Rate |
4.17 Mpps |
| Extend Mode |
Up to ~250 m @ 10 Mbps |
| Input Power |
53 VDC |
| Lightning Protection |
Common: 6 kV / Differential: 1 kV |
What’s in the Box
- 1× VIP Vision VSPOE-SWA8U 8-port PoE+ switch
- Power supply (53 VDC)
Choose the VSPOE-SWA8U for uncomplicated, high-value Fast PoE+ switching with dual uplinks and extend support.
