    Network Switch 10-Port (8x PoE+) Input 12~48VDC Industrial Ethernet - IF-108PU12/48

    IF-108PU12/48
    In Stock - Ready to Ship
    $ 238.00
    inc-GST

    Industrial 10/100/1000 PoE+ Ethernet Switch perfect for any environment from a 12-48V Input Supply.

    • Top Selling Remote Low Voltage Networking Switch
    • Perfect Solution for Solar Powered CCTV where you require 48VPoE+ from a 12V, 24V up to 48V source
    • Perfect for Caravan's that require a Network Switch with PoE from a 12V or 24V Battery Setup
    • Hardened Industrial Switch where extreme temperature and other harsh environmental operation is required
    • 100/1000BASE-X Ports with Upload Port
    • 8x 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3af/at PoE+ Injector (Port-1-8)
    • 12~48VDC wide range power input boosting to 48V PoE+
    • Supports 802.3x Flow control
    • Supports DIN Rail install
    • Very Low Power Consumption
    • 3 Year Warranty
    • TRADE / COMMERCIAL QTY Available

    Various Payment Types at Checkout.

    All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep


    Industrial PoE+ · 12–48 VDC Native

    Mini Industrial 8-Port PoE+ Gigabit Switch

    A compact, fanless switch that powers cameras, radios and sensors straight from solar, battery and off-grid DC — no mains, no bulky converters, no fuss.

    Model IF-108PU12/48 · 8× PoE+ & 2× Gigabit Uplink
    10Gigabit Ports
    240WMax PoE Budget
    12–48VDC Input
    IP40Hardened & Fanless

    The IF-108PU12/48 runs natively on 12–48 VDC, making it ideal for solar arrays, battery banks, vehicles and remote enclosures. It delivers 10/100/1000 Mb/s across all ports, up to 30 W PoE+ per port (802.3af/at), and two dedicated Gigabit uplinks — all inside a rugged IP40 aluminium chassis built for Australian conditions.

    Key Features

    10× Gigabit RJ45

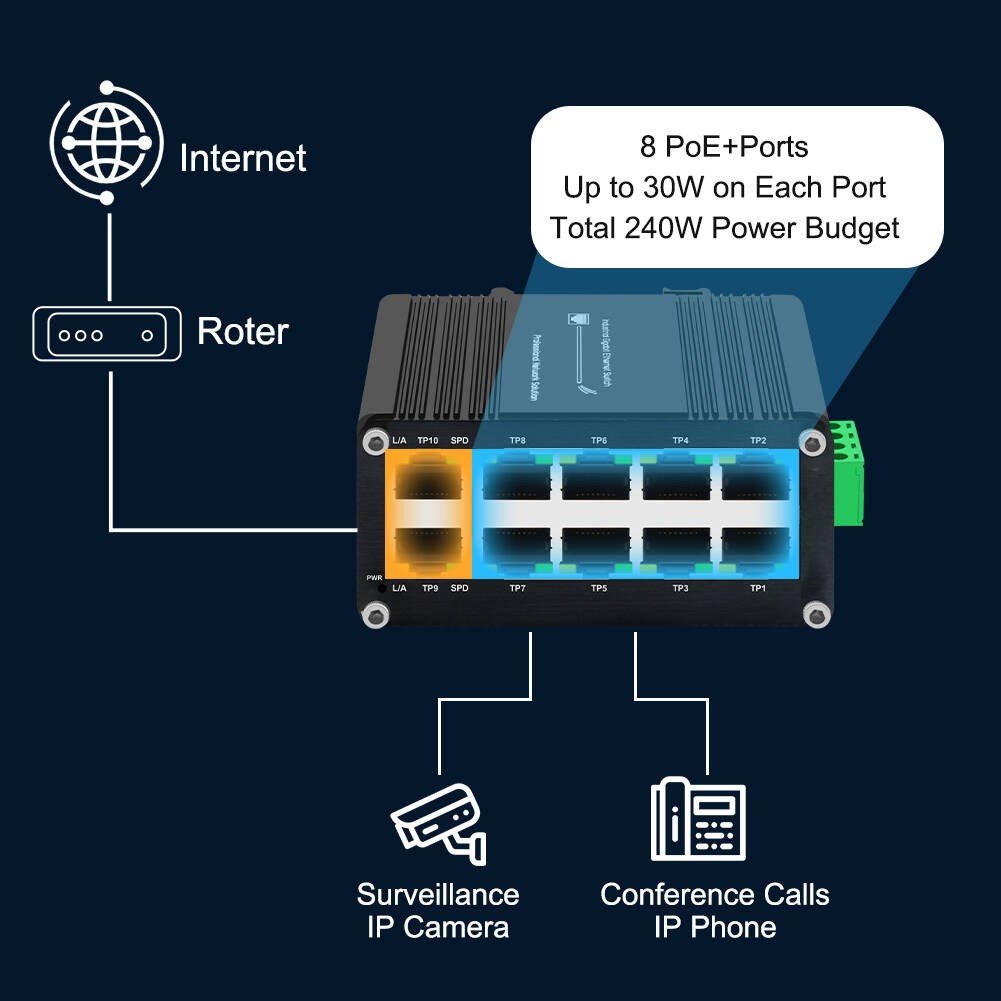

    8× PoE+ (802.3af/at) ports for cameras and APs, plus 2× Gigabit uplink ports for backhaul.

    Smart PoE Budget

    Up to 240 W @ 48V, 90 W @ 24V or 60 W @ 12V — max 30 W per port to power demanding PDs.

    12–48 VDC Redundant

    Dual low-voltage inputs with reverse-polarity and overload protection for reliable off-grid power.

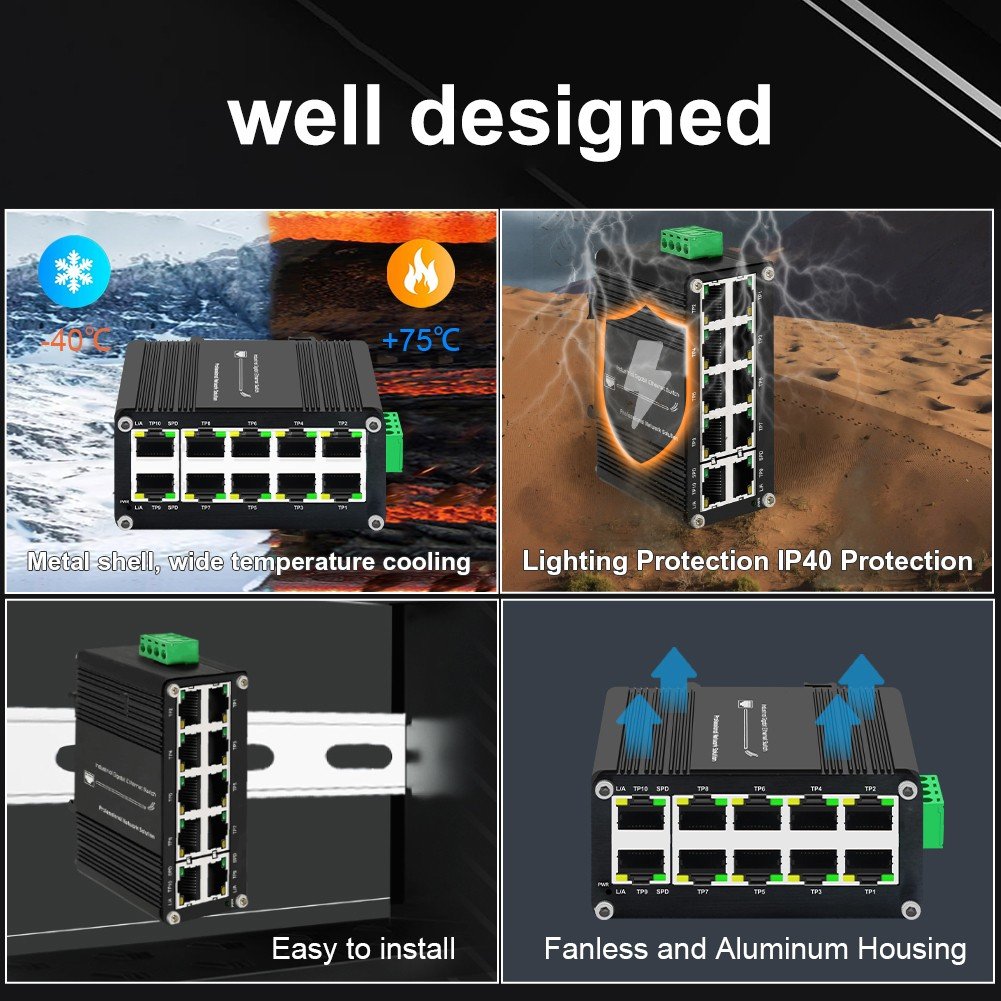

    Hardened IP40 Build

    Fanless aluminium chassis rated −40 °C to 80 °C, with an included DIN-rail bracket.

    Industrial Silicon

    20 Gbps non-blocking fabric, 2 Mbit buffer, 4K MAC, 9,216-byte jumbo frames and EEE 802.3az.

    Surge & EMC Hardened

    8 kV surge protection on Ethernet with full CE / FCC / EMS compliance.

    Why 12–48 VDC Input?

    Running direct from low-voltage DC cuts conversion losses and removes parts from off-grid builds — fewer points of failure, more uptime.

    Solar & Battery

    Pair with a PV charge controller and battery bank for remote CCTV or IoT — higher efficiency, fewer converters.

    Vehicles & Marine

    Drops straight onto 12/24 V systems in trucks, trailers, caravans and boats.

    Temporary & Remote

    Pop-up networks for building sites, farms and events — fast to deploy, easy to power.

    Product Gallery

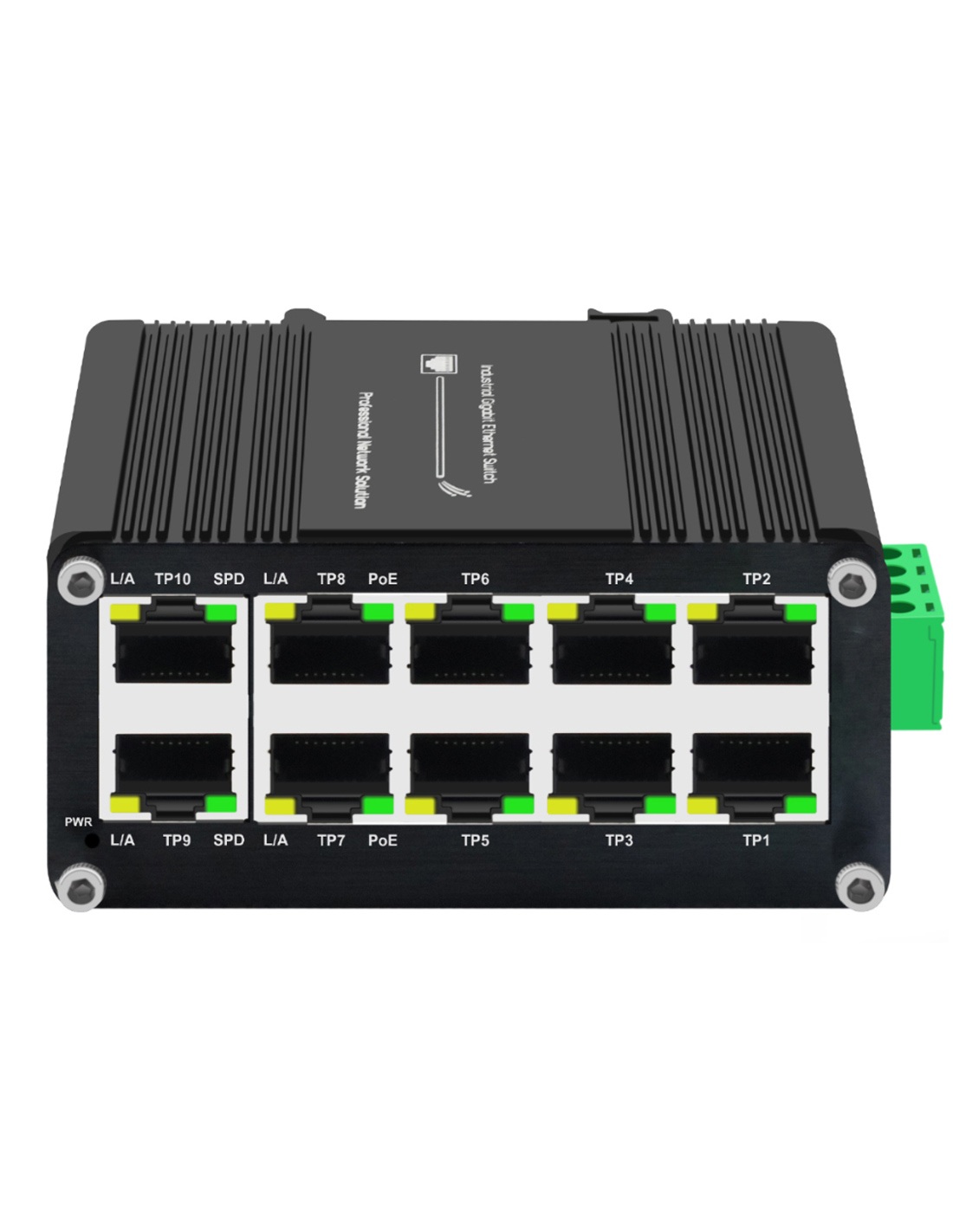

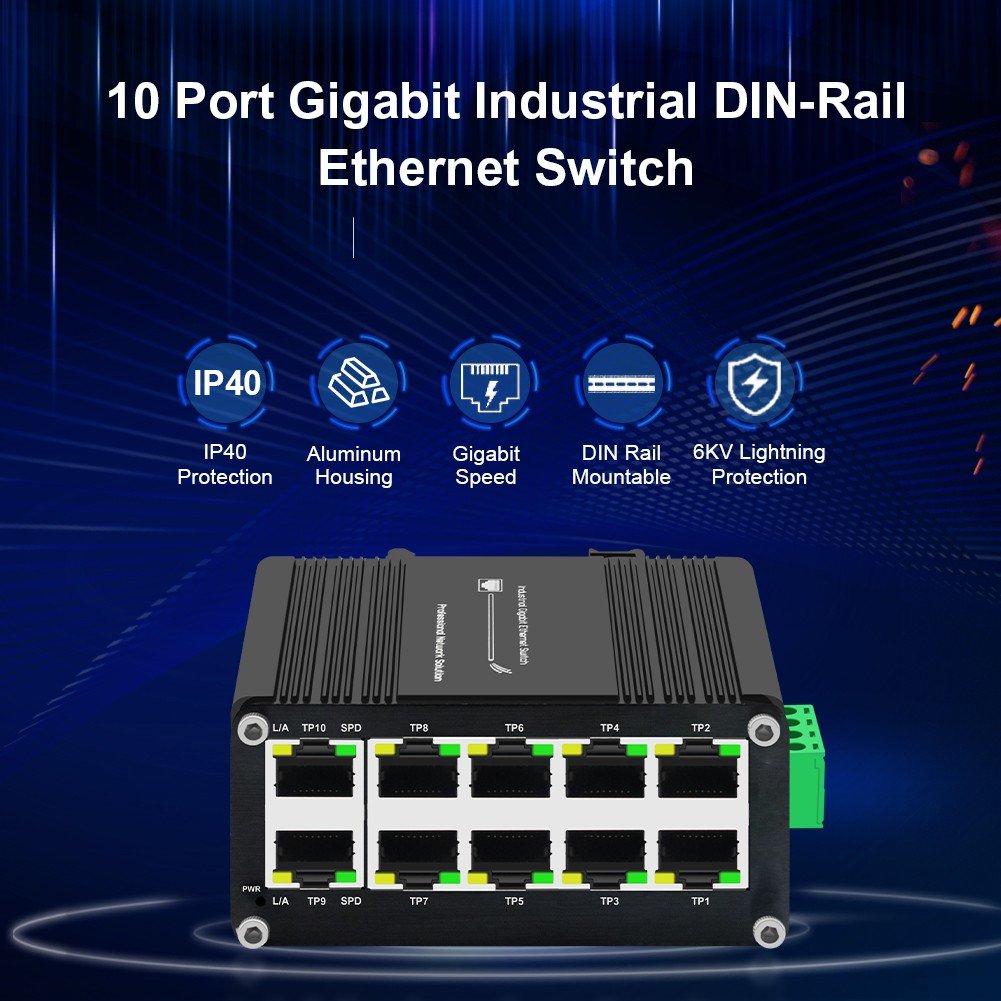

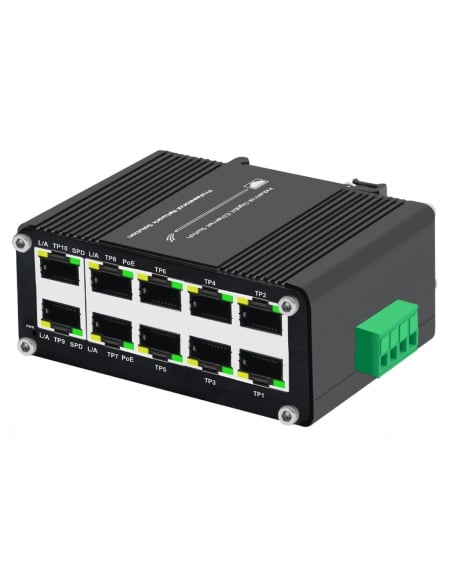

    IF-108PU12/48 Mini Industrial 10-port PoE+ Gigabit Switch — front angle
    IF-108PU12/48 port panel — 8× PoE+ and 2× Gigabit uplink

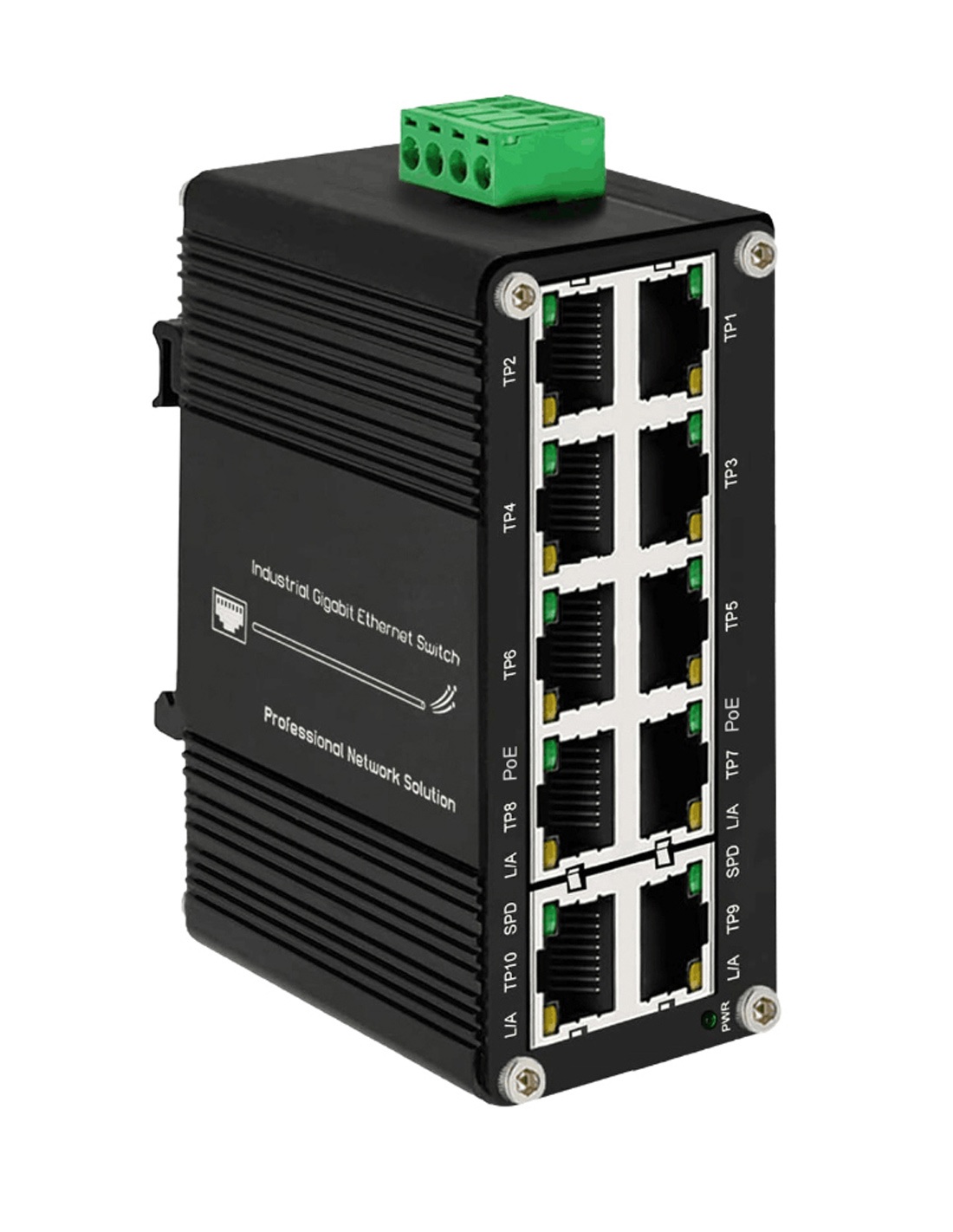

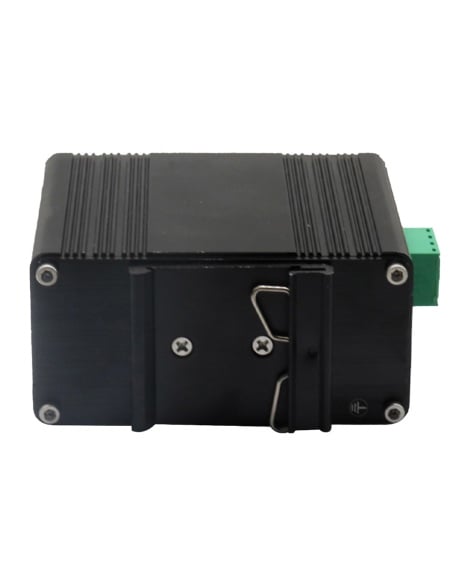

    Hardened compact PoE+ switch — side profile and DIN-rail mount
    IF-108PU12/48 industrial PoE+ switch — detail view

    Technical Specifications

    FeatureSpecification
    ModelIF-108PU12/48 — Mini Industrial 8-Port PoE+ + 2-Port Gigabit Uplink Switch
    Ethernet StandardsIEEE 802.3 (10M), 802.3u (100M), 802.3ab (1000M), 802.3x (Flow Control), 802.3az (EEE)
    Ports10 × 10/100/1000BASE-T RJ45 (auto-MDI/MDI-X): 8 × PoE+ (Ports 1–8) + 2 × Gigabit uplink
    PoEIEEE 802.3af/at (PSE), up to 30 W/port, pins 4/5(+), 7/8(−), up to 8× Class 4 PDs
    Total PoE Budget60 W @ 12 VDC · 90 W @ 24 VDC · 240 W @ 48 VDC (input-voltage dependent)
    Switching Performance20 Gbps fabric (non-blocking); 14.88 Mpps @ 64 B; 2 Mbit buffer; 4K MAC; jumbo frames to 9,216 bytes
    Power Input12–48 VDC (redundant), reverse-polarity protection, overload auto-reset; non-PoE draw < 10 W
    IndicatorsPWR (Power), L/A (Link/Activity), SPD (Speed), PoE (Status)
    Enclosure & MountIP40 aluminium case; DIN-rail bracket included
    Dimensions / Weight95 × 88 × 46 mm; approx. 400 g
    EnvironmentalOperating −40 °C to 80 °C; storage −40 °C to 85 °C; humidity 5–95% RH (non-cond.)
    ReliabilityMTBF > 100,000 hrs (fanless)
    ComplianceCE / FCC; EMS (EN61000-4-2/3/4/5/6/8/11); 8 kV surge on Ethernet
    In the BoxSwitch + DIN-rail bracket. DC power supply sold separately.

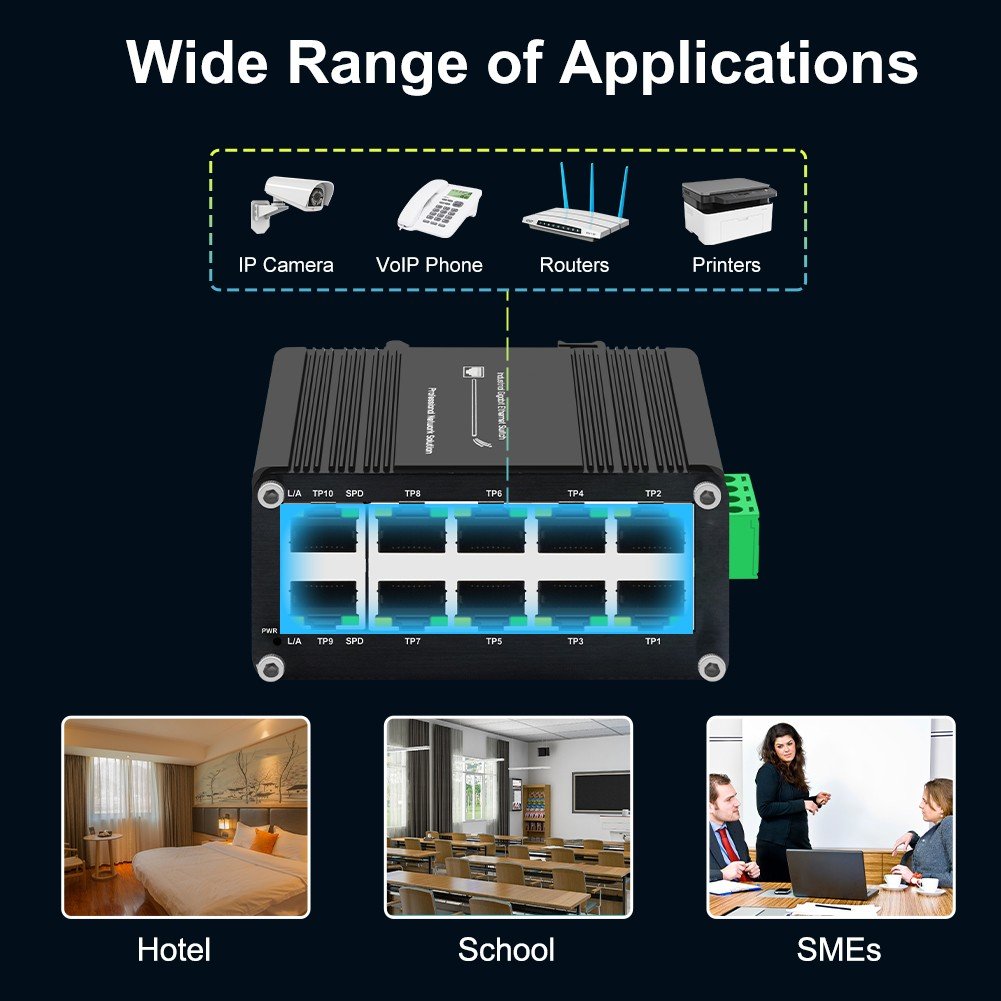

    Common Applications

    Solar-powered CCTV & NVR podsRemote wireless bridges & APsIndustrial & agricultural IoTVehicle, caravan & marine networksTemporary & off-grid sites

    Ready to deploy?

    Add the IF-108PU12/48 to your cart, or contact our team for a quick power-budget check tailored to your site. (48 V input recommended for the full PoE budget.)

    Talk to our team →

    PoE budget depends on DC input voltage (12 / 24 / 48 V). Power supply sold separately.
