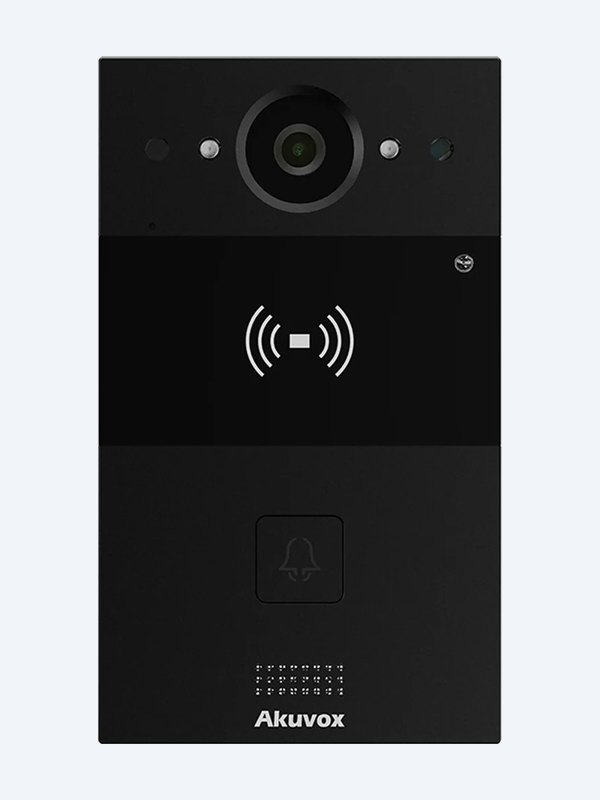

Akuvox R20A black single-button SIP video door phone — front

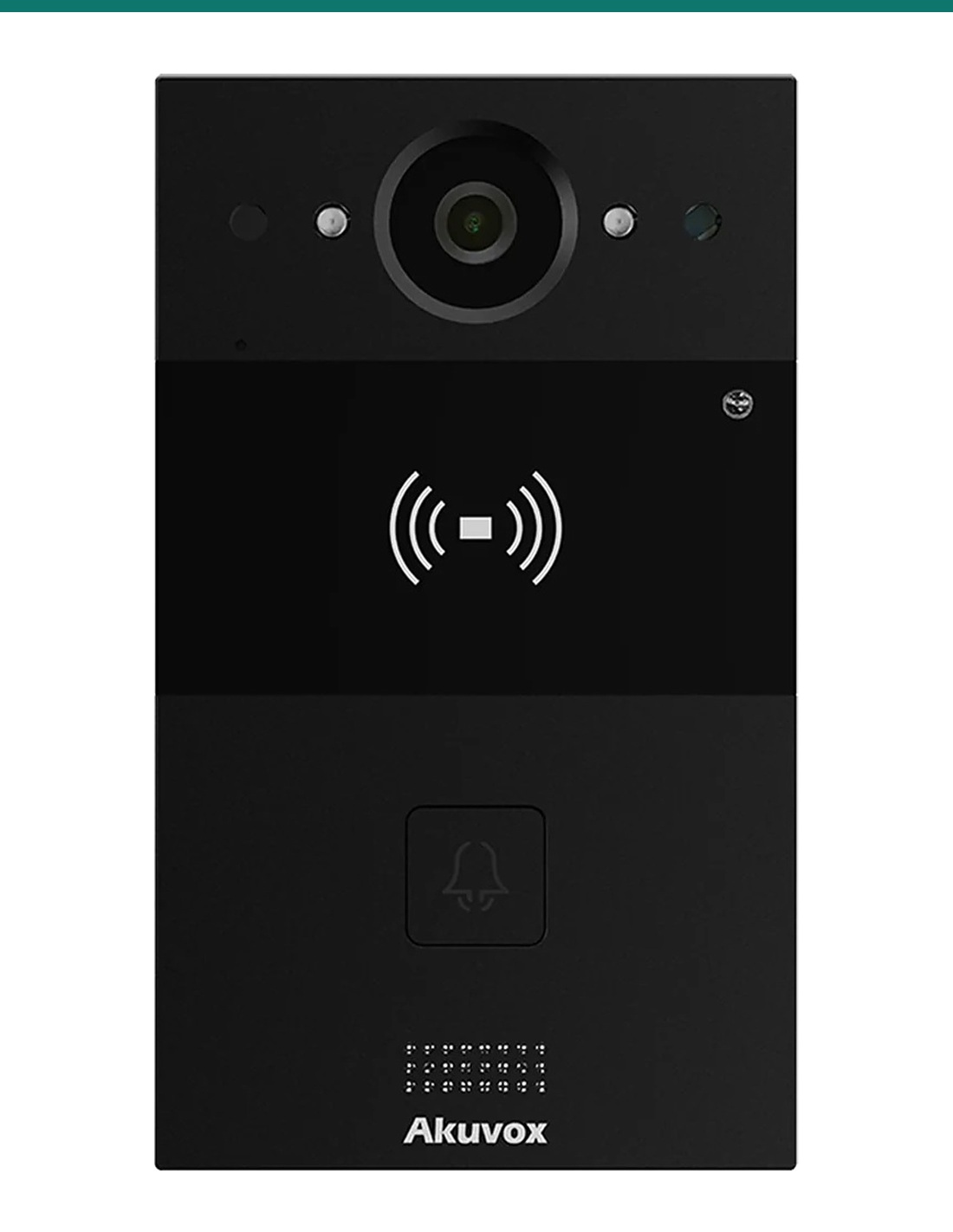

Akuvox R20A Black Single-Button SIP Video Door Phone with Card Reader — AK-R20ABLK-ONWALL

Name: Akuvox R20A Black Single-Button SIP Video Door Phone with Card Reader — AK-R20ABLK-ONWALL
Brand: Akuvox
SKU: AK-R20ABLK-ONWALL
Price: 386.5 AUD
Availability: InStock

Reference: AK-R20ABLK-ONWALL

In Stock - Ready to Ship

$ 386.50

inc-GST

or 4 interest-free payments of $96.62 with

Akuvox R20A in black is a palm-size, single-button SIP video door phone — about the size of a smartphone — for houses, townhouses and single-tenant offices. 2 MP camera, card and NFC entry, two lock relays and IP65 aluminium. Surface-mount model, PoE powered. Stocked in Australia by Infront Technologies.

✓One call button with blue backlight
✓2 MP camera, 110° (H) / 58° (V), 1080p at 30 fps, IR night lighting
✓13.56 MHz / 125 kHz card reader and NFC (Android), 2 relays, Wiegand, RS485
✓PoE 802.3af · IP65 · 145 × 85 × 24 mm

Akuvox · R20A · Black single-button door station

Smartphone-size door phone.
One button, full video entry.

The AK-R20ABLK-ONWALL is Akuvox’s R20A in black aluminium alloy: one backlit call button, a 2 MP camera and a dual-frequency card reader in a 145 × 85 mm plate. It fits door frames and gate posts where most door stations won’t.

This SKU is the surface-mount door station only.

You receive the black R20A surface-mount door phone. Indoor monitor, in-wall kit, rain hood, PoE switch and lock hardware are sold separately.

In the box

Akuvox R20A door phone (black)
Surface-mount hardware
Quick-start guide

What you also need(sold separately)

Compatible Akuvox indoor monitor, SmartPlus app or SIP endpoint
PoE 802.3af switch or injector
Electric lock / maglock and lock PSU if the door is released
Black R20A / R25A in-wall kit for flush mounting

Press once. See them. Let them in.

Visitors press the single call button and you answer on an Akuvox indoor monitor, the SmartPlus app or a SIP phone. Family and staff let themselves in with a card or an Android phone.

Compact

Fits a door frame.

145 × 85 × 24 mm, black aluminium alloy, IP65 rated, −30 °C to +60 °C, with a tamper alarm.

Surface-mounts as supplied. Use the black R20A / R25A in-wall kit for flush, and a rain hood on exposed doors.

Video and audio

Clear picture, clear speech.

2 MP 1/2.8″ camera, 110° (H) / 58° (V), H.264 up to 1920 × 1080 at 30 fps, with IR LEDs and a light sensor for night calls.

Two-way audio with echo cancellation and noise suppression, G.722 wideband. ONVIF and RTSP let you record the door on your NVR.

Access

Card, NFC or app.

The 13.56 MHz and 125 kHz reader takes EM, MIFARE and DESFire EV1 / EV2 / EV3 credentials, plus NFC from Android phones. Up to 20,000 cards and 4,000 users.

Two relays drive two doors or a door and a gate. Two inputs, Wiegand in/out and RS485 connect exit buttons, door sensors and controllers.

How it works

From button press to open door.

Mount

Surface-mount as supplied, or flush with the R20A / R25A in-wall kit. Add a rain hood where exposed.

PoE and SIP

Run 802.3af PoE to the RJ45 and register to an Akuvox indoor monitor, SmartPlus or your SIP PBX.

Enrol cards

Add residents and their cards in the web portal: up to 20,000 cards.

Test the door

Press the button, check the picture day and night, and confirm each relay releases the right lock.

At a glance

Key specs — AK-R20ABLK-ONWALL

Brand: Akuvox
Reference: AK-R20ABLK-ONWALL
Finish: Black aluminium alloy
Call button: 1, blue backlight
Camera: 2 MP, 1/2.8″ CMOS, automatic lighting
Field of view: 110° (H) / 58° (V)
Video: H.264, up to 1920 × 1080, 1080p at 30 fps
Night: IR LED, light sensor, 0.1 lux minimum
RF reader: 13.56 MHz and 125 kHz, NFC (Android)
Card types: EM, MIFARE, DESFire EV1 / EV2 / EV3
Unlock: Card, NFC, SmartPlus app, DTMF
Capacity: 20,000 cards · 4,000 users
I/O: 2 relays, 2 inputs, Wiegand in/out, RS485, tamper
Audio: SIP v1 / v2, G.711, G.722, echo cancellation, noise suppression
Network: RJ45 10/100 Mbps, ONVIF, RTSP
Power: PoE IEEE 802.3af
Protection: IP65
Mounting: Surface mount; flush with in-wall kit
Size: 145 × 85 × 24 mm (H × W × D)
Working temperature: −30 °C to +60 °C
OS: Linux
Warranty: Australian warranty via Infront Technologies

Pair it with

Builds a complete door entry system

Indoor

Akuvox indoor monitor

Answer, see the visitor and release the door from a compatible Akuvox SIP indoor station or the SmartPlus app.

Flush

R20A / R25A in-wall kit (black)

Recesses the station into the wall in a matching finish.

Weather

R20A / R25A rain hood (black)

On-wall and in-wall hoods keep driving rain off the camera and button.

Angle

R20A / R25A angle bracket

Turns the camera towards visitors where the station sits side-on to the path.

Answers

Common questions

How is the black R20A different from the silver R20A?

Only the finish. Camera, reader, relays and housing are the same; pick matching black mounting accessories.

How does R20A compare with R25A?

Same 145 × 85 mm single-button format. R25A has a 4 MP fisheye camera covering 150° × 150°; R20A has a 2 MP camera covering 110° × 58°.

What power does it need?

IEEE 802.3af PoE from a switch or injector.

Can it be flush-mounted?

Yes, with the black R20A / R25A in-wall installation kit, sold separately.

Is an indoor monitor included?

No. Pair it with a compatible Akuvox indoor monitor, the SmartPlus app or any SIP endpoint.

A video door phone for tight spots, local stock.

Choose the black R20A to suit the entry; the silver R20A has identical electronics. Want a wider fisheye picture? See the R25A. Order through Infront Technologies for Australian stock.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE as stated on the Akuvox R20A datasheet. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
