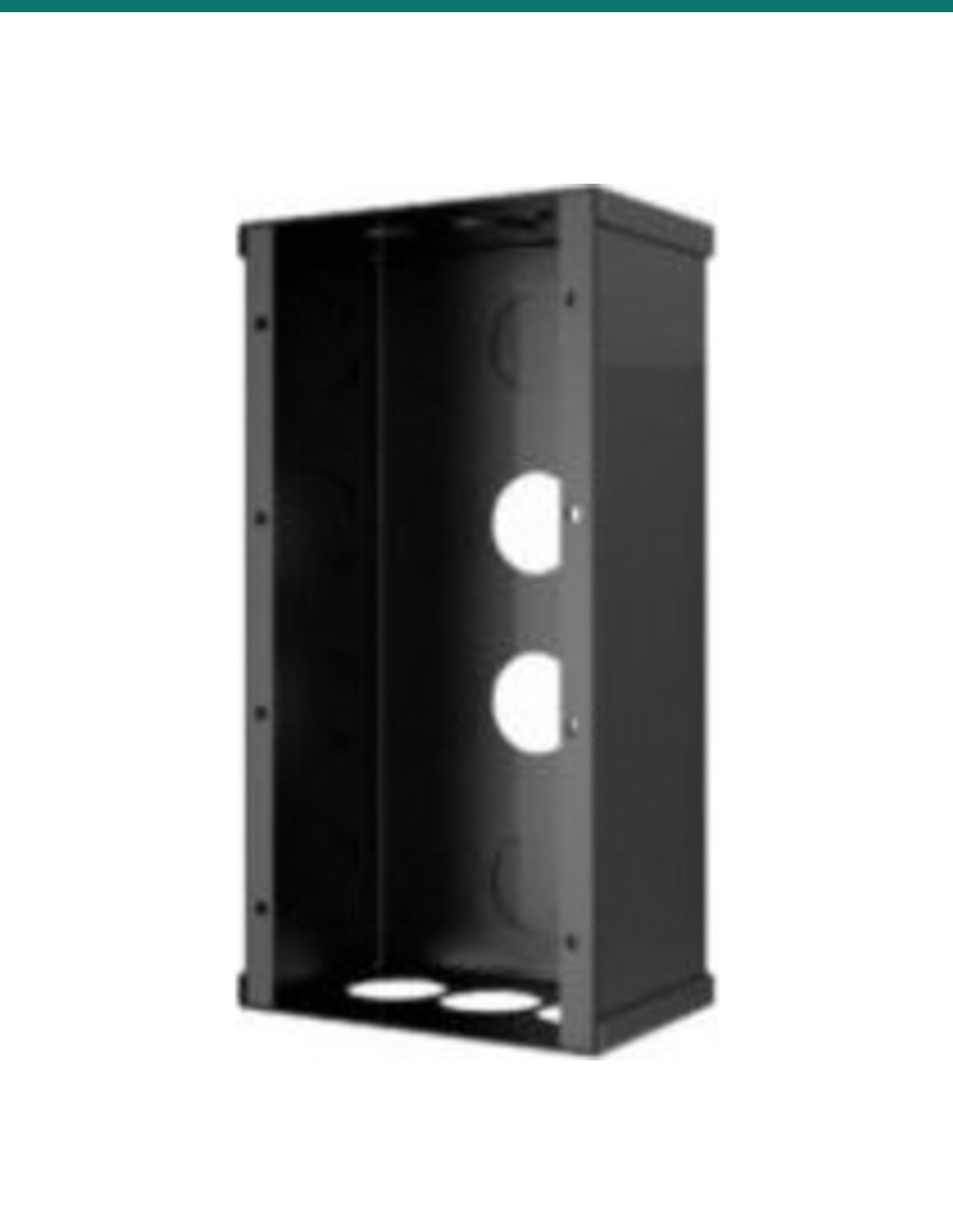

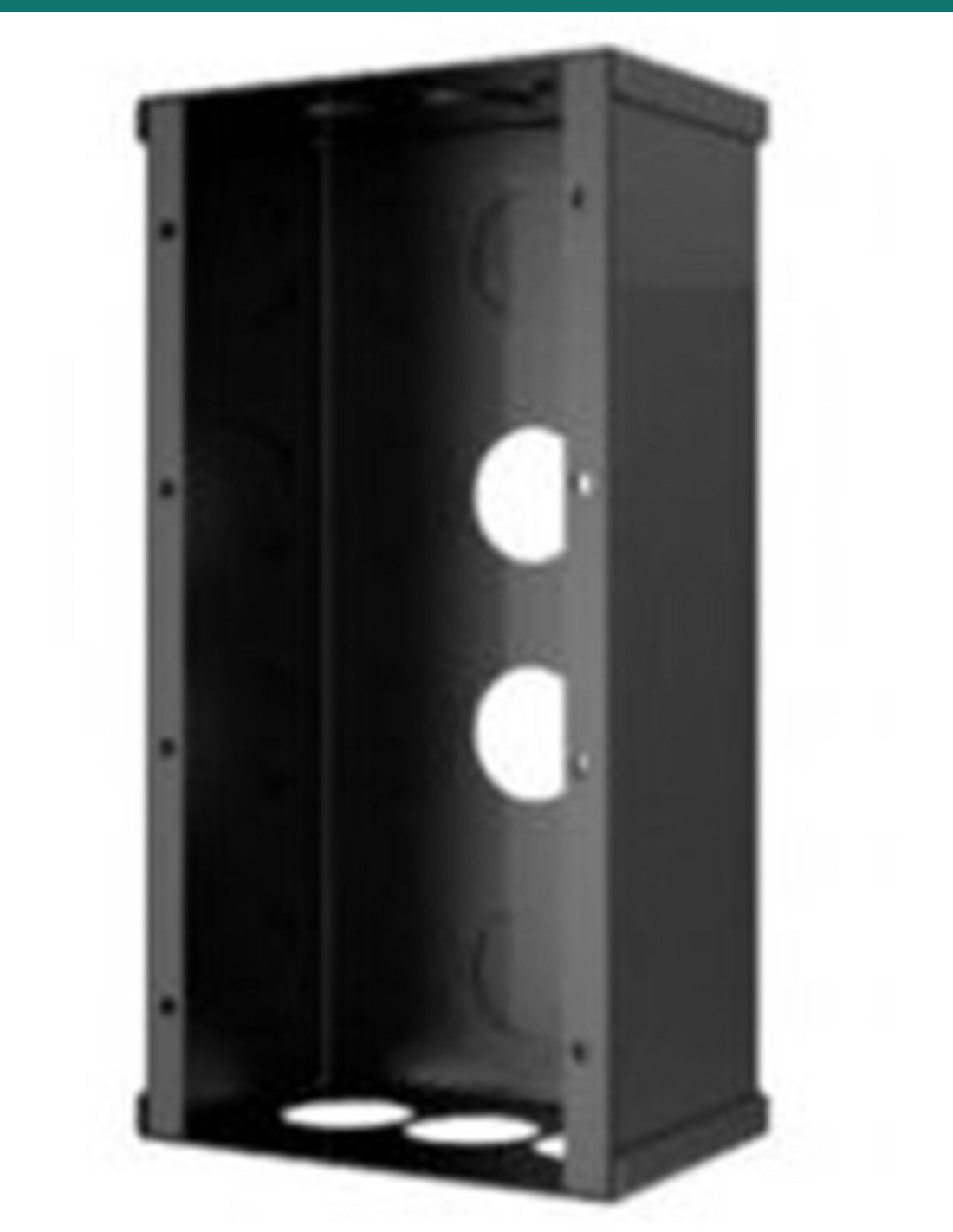

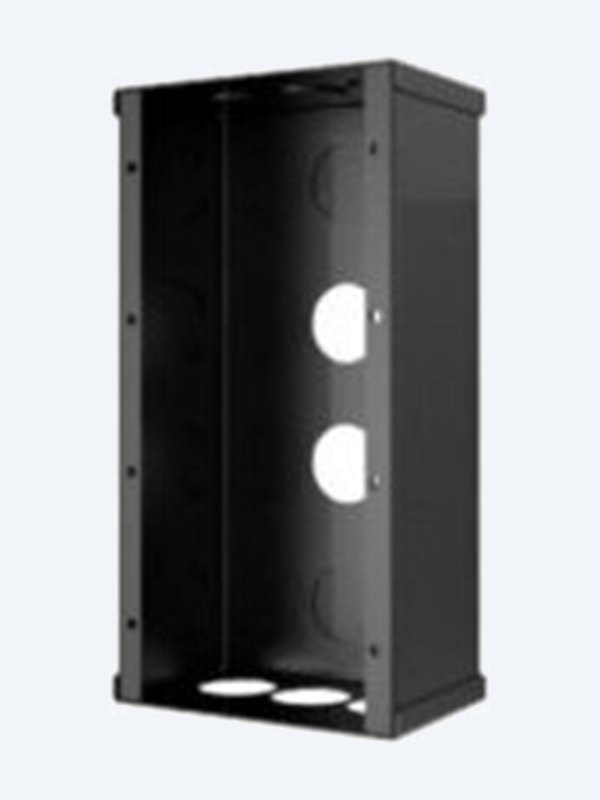

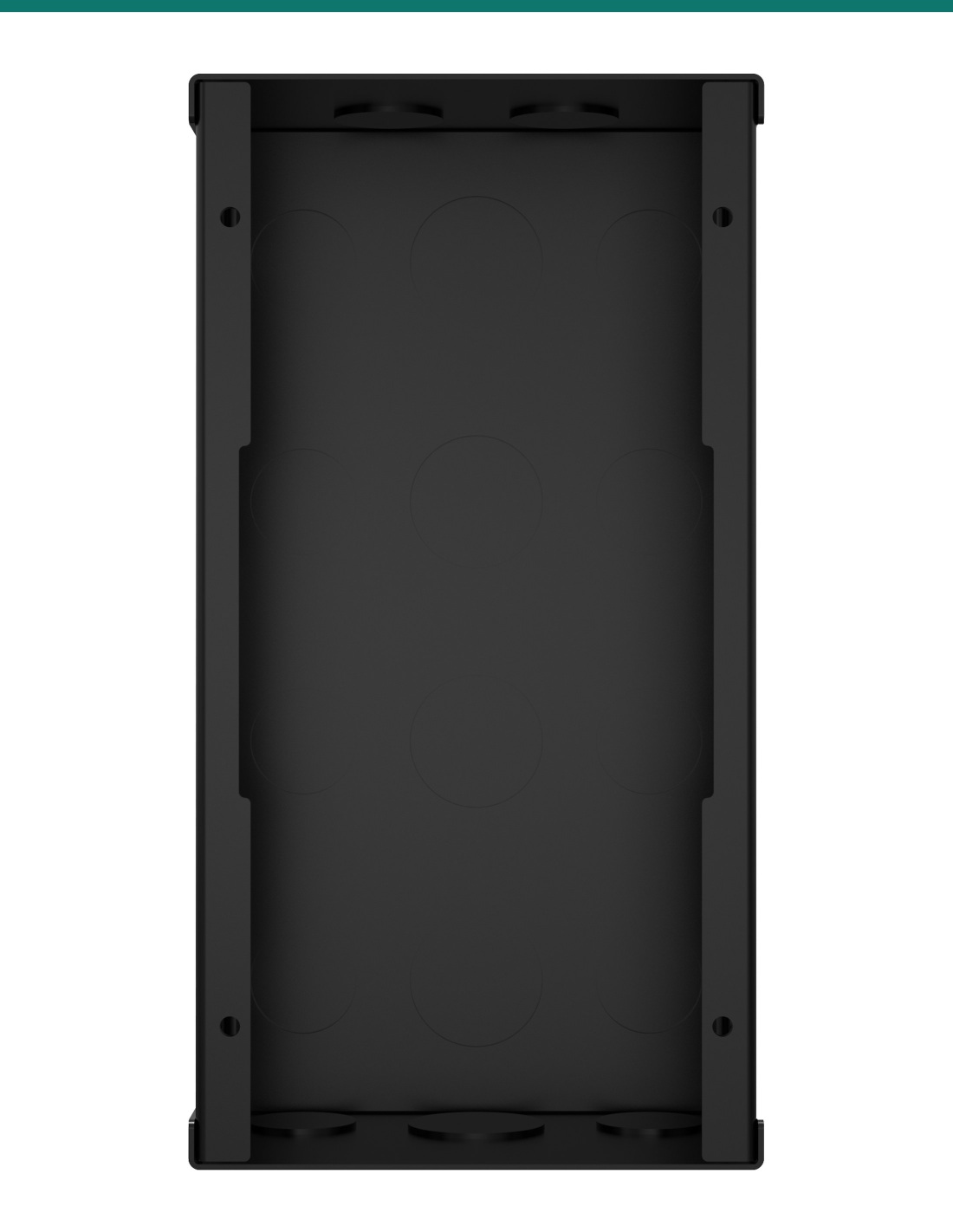

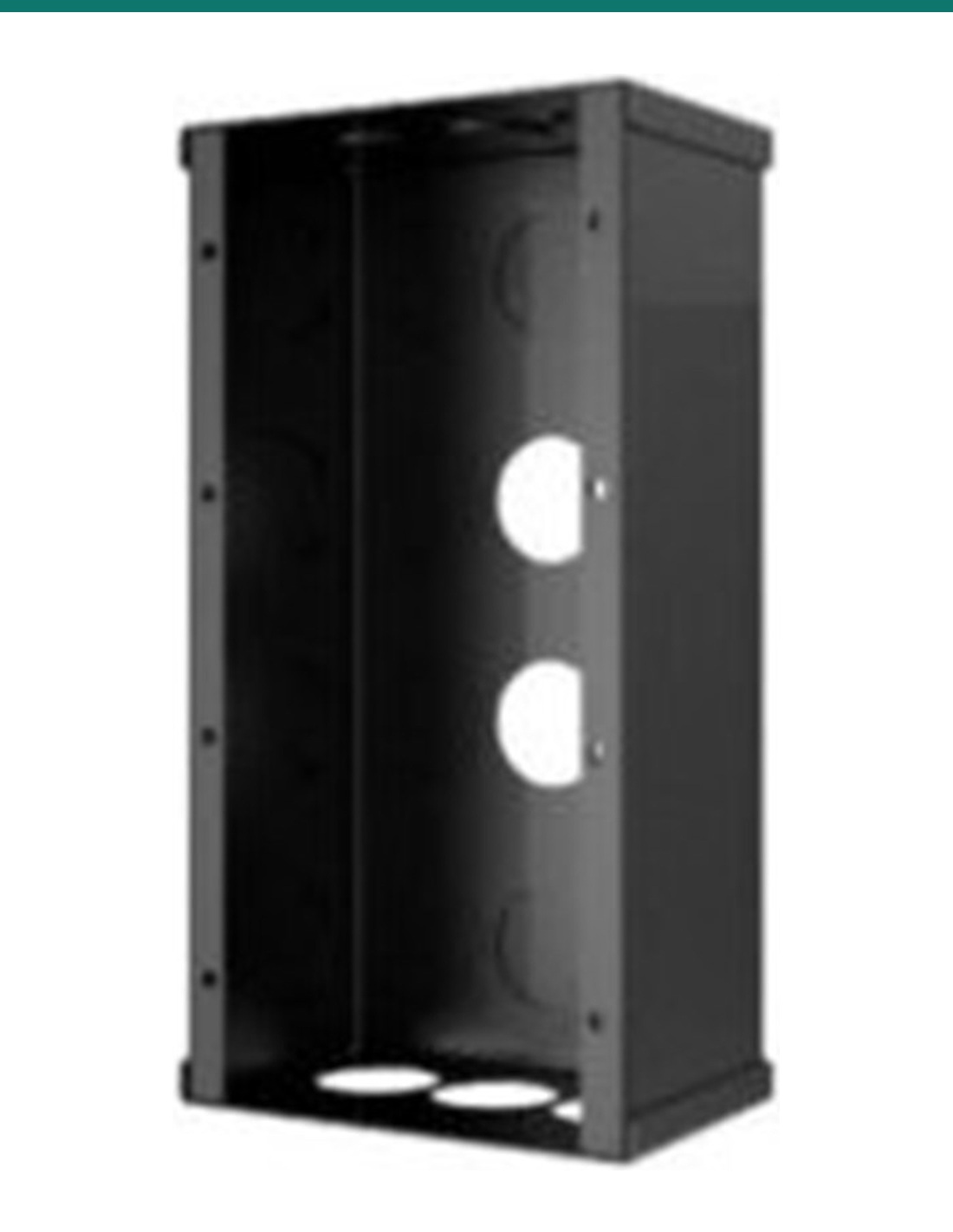

Akuvox AK-E21INWALL is the in-wall box for the E21A and E21V vandal-resistant emergency intercoms. The E21 is a flush-mount panel; this box goes into a 190 × 100 × 60 mm cut-out and the 210 × 120 mm stainless faceplate fixes to it with four Torx screws.
The AK-E21INWALL is Akuvox’s in-wall mounting box for the E21 series. The E21A (audio) and E21V (with camera) are flush-mount only, so every E21 needs either this box or the E21 on-wall rain hood housing.
This SKU is the in-wall box only.
You receive the E21 in-wall mounting box. The E21A or E21V, which comes with its four M4×16 Torx screws and Torx wrench, is sold separately.
Car parks, stairwells, lift lobbies and station platforms: a flush E21 sits neatly in masonry or concrete with only the faceplate showing.
Fit

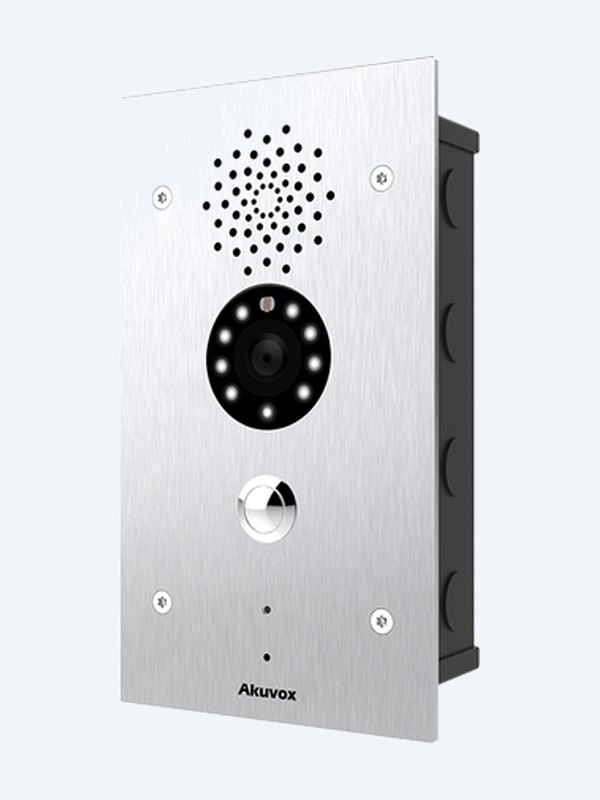

Both E21 models share a 210 × 120 × 45.6 mm stainless steel faceplate and are flush-mount only. This box takes the body of the unit; the faceplate covers the opening.
Knock out the cable entries you need for the network and lock cables.
Install
Cut a 190 × 100 × 60 mm opening and bed the box in cement or structural adhesive. The E21 then fixes to it with four M4×16 Torx screws.
Outdoors, a bead of waterproof adhesive around the faceplate stops water getting in behind it.
At a glance
Show all specifications
Pair it with
Audio
Vandal-resistant stainless steel SIP emergency intercom, IK10.
Video
The same help point with a 2 MP camera.
Surface
Use instead of this box where the wall can’t be cut.
Watch
Downloads
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
The Akuvox E21A and E21V. Both use the same 210 × 120 mm faceplate and are flush-mount only.
190 mm high, 100 mm wide and 60 mm deep. The box itself is 187 × 98.2 × 58.1 mm.

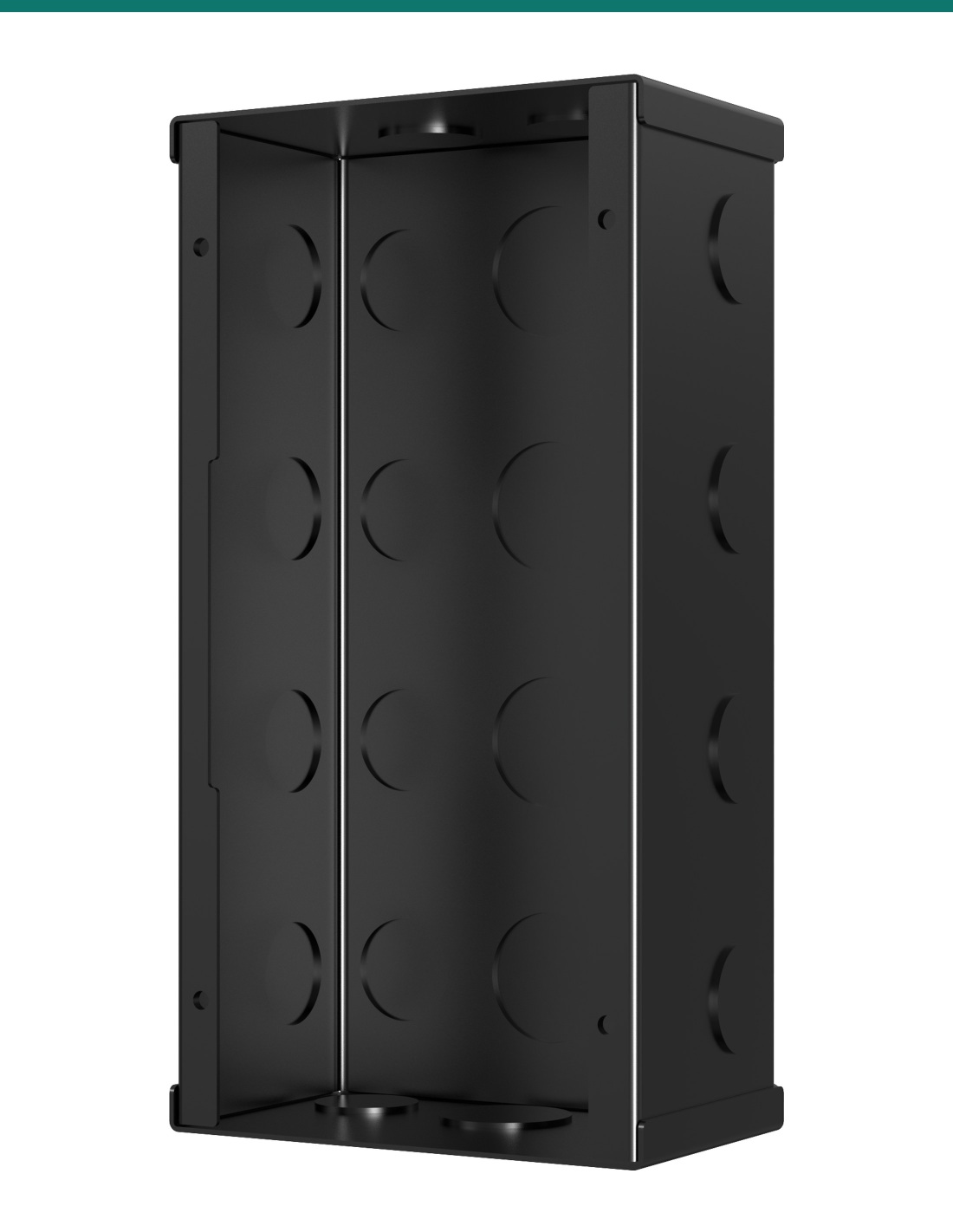

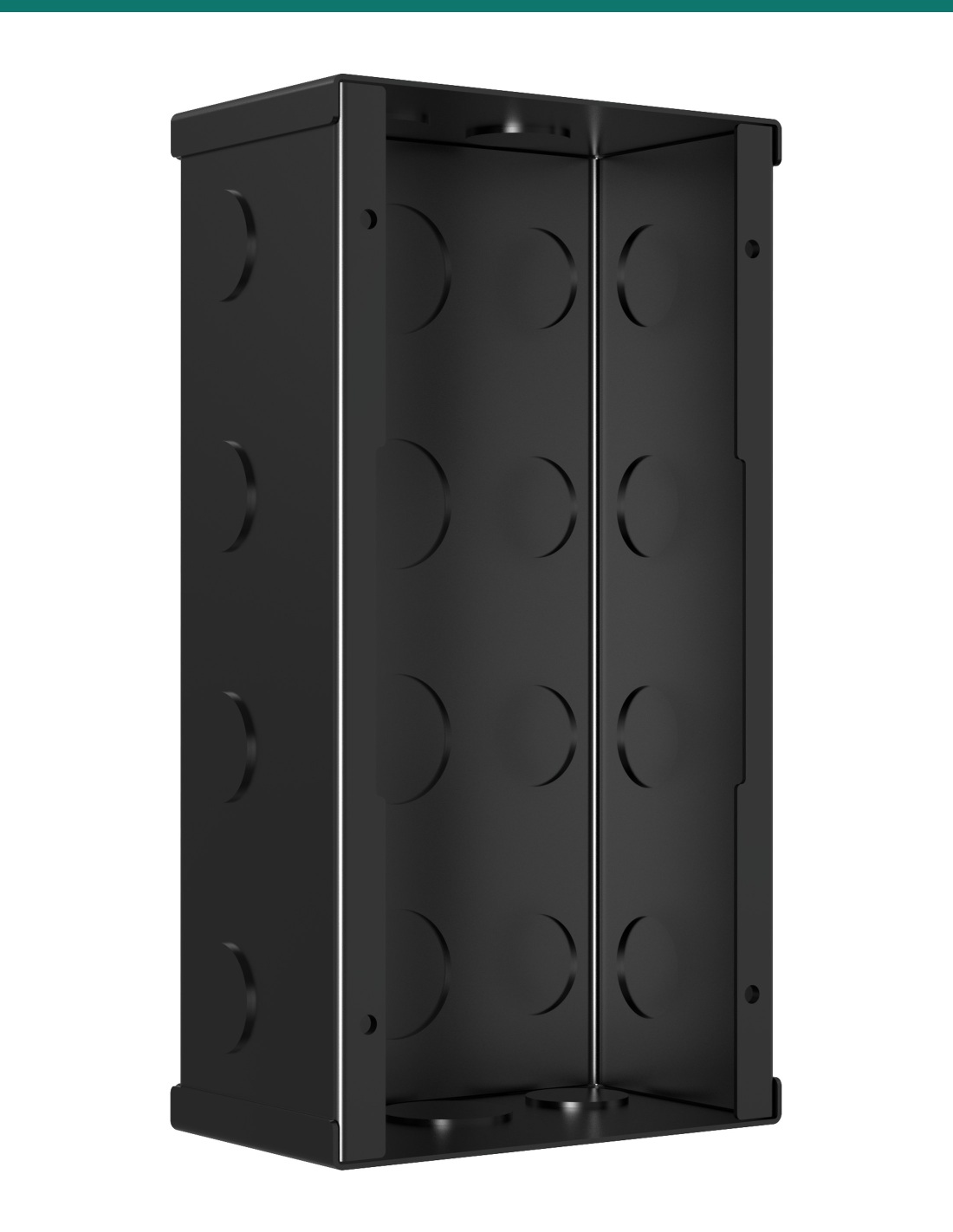

Knock out any of the 25 mm or 20 mm entries on the back, sides or ends for the network, power and lock cables.
Akuvox's placement drawing has the bottom of the box at about 1,140 mm, which puts the E21 button centre no higher than 1,200 mm.
Use the E21 on-wall rain cover, which surface-mounts the E21 under a hood.
No. This SKU is the in-wall box only; the E21 comes with its fixing screws.
Order one box per E21A or E21V you are building into a wall; for surface mounting use the E21 on-wall rain hood housing instead.
Fitting. Cut a 190 × 100 × 60 mm (H × W × D) hole at the cable position, knock out the cable entries you need and set the box in. Fill any gap between box and wall with cement or non-corrosive structural adhesive and let it set. Fix the E21 to the box with its four M4×16 Torx screws, then run waterproof adhesive along the joint between faceplate and wall to keep water out — see the Akuvox E21 quick guide.
