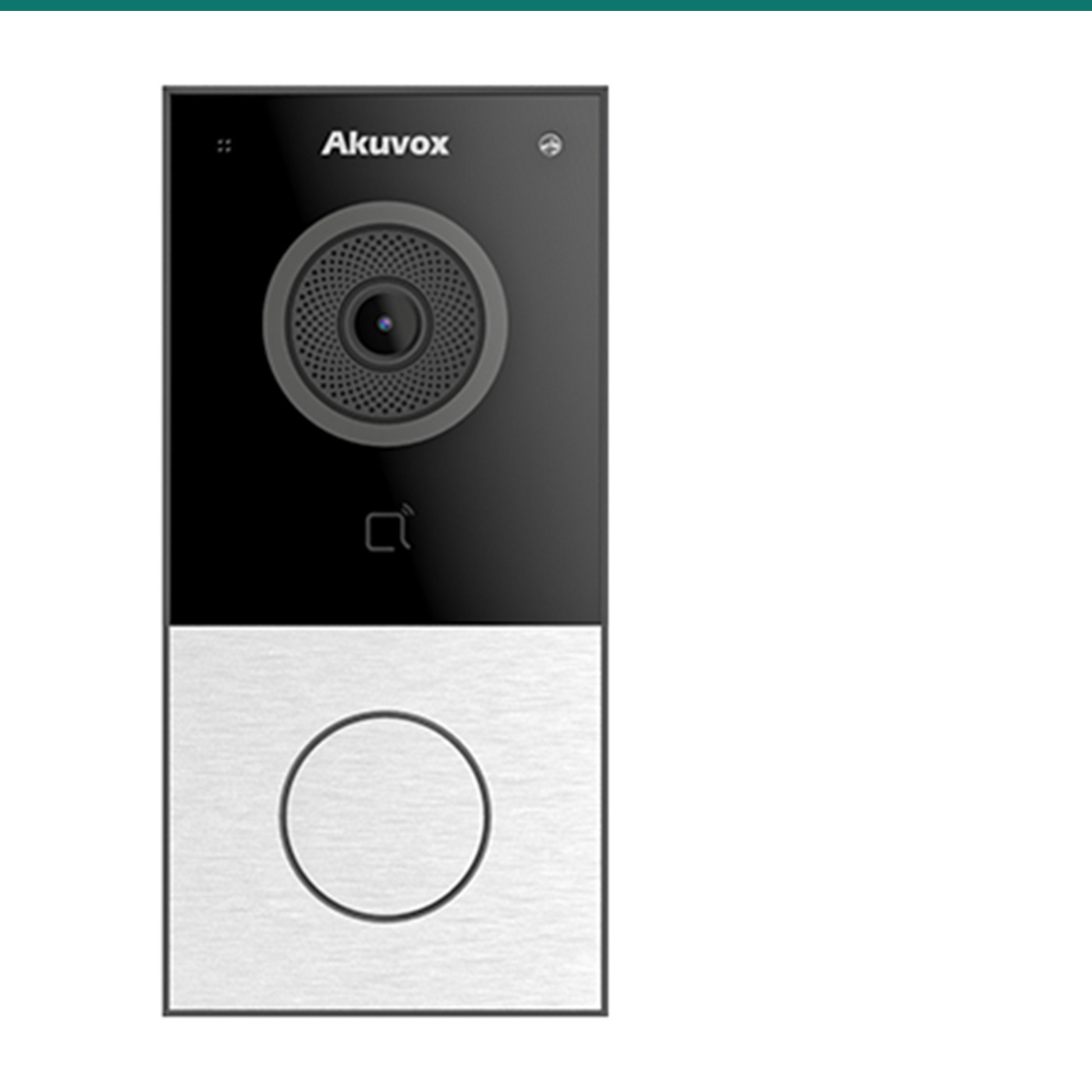

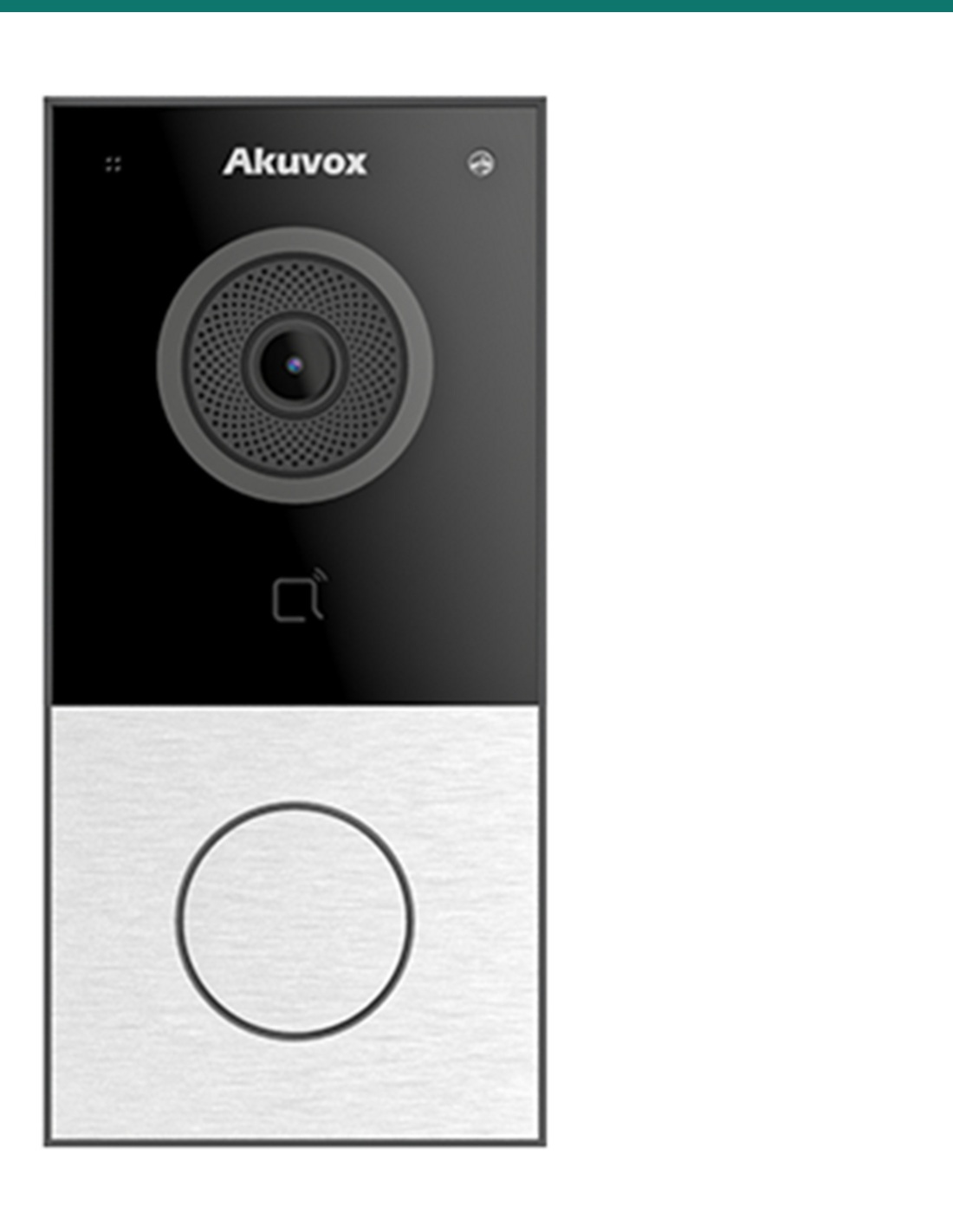

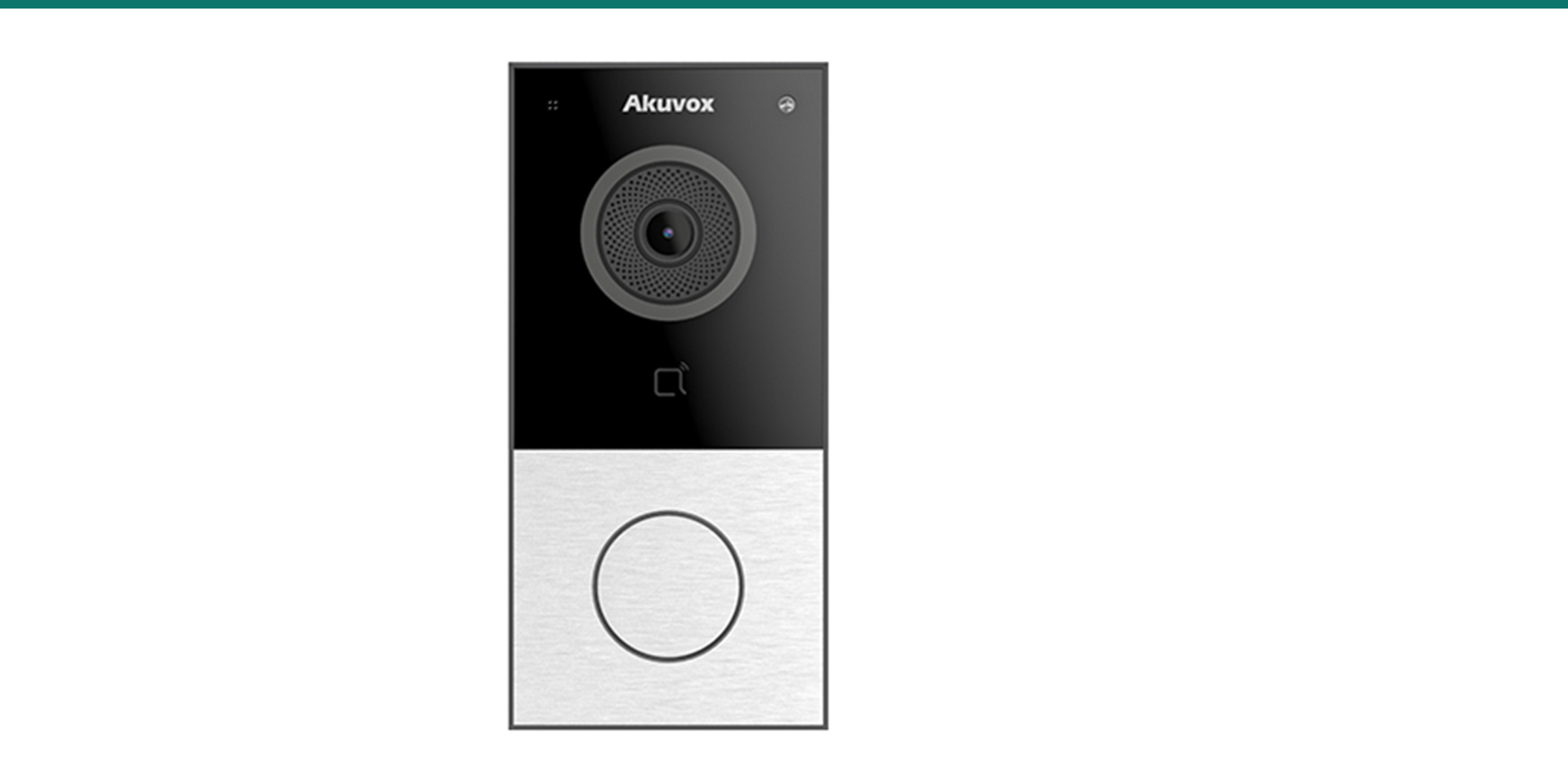

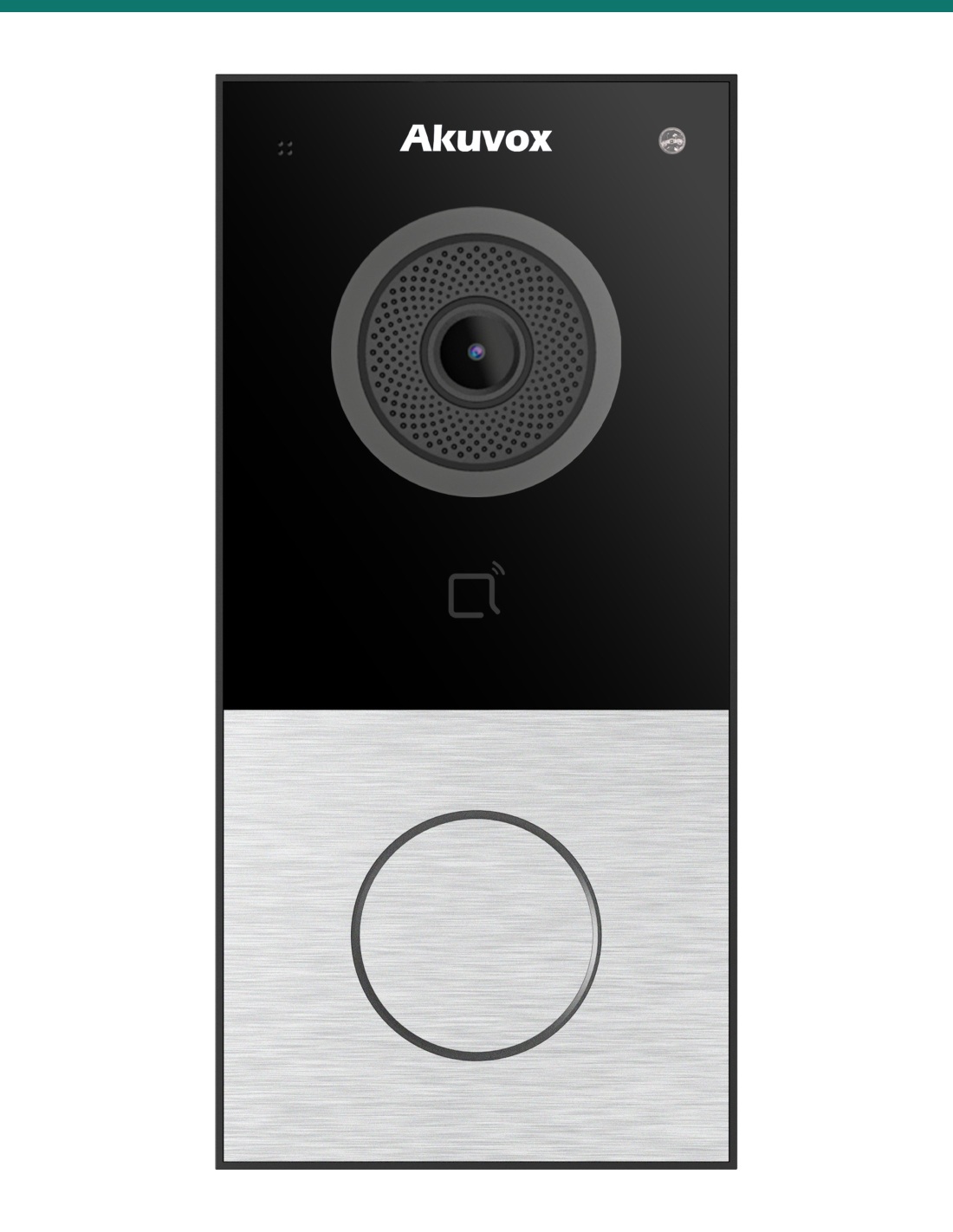

Akuvox E12S-2 2-wire video doorbell — front

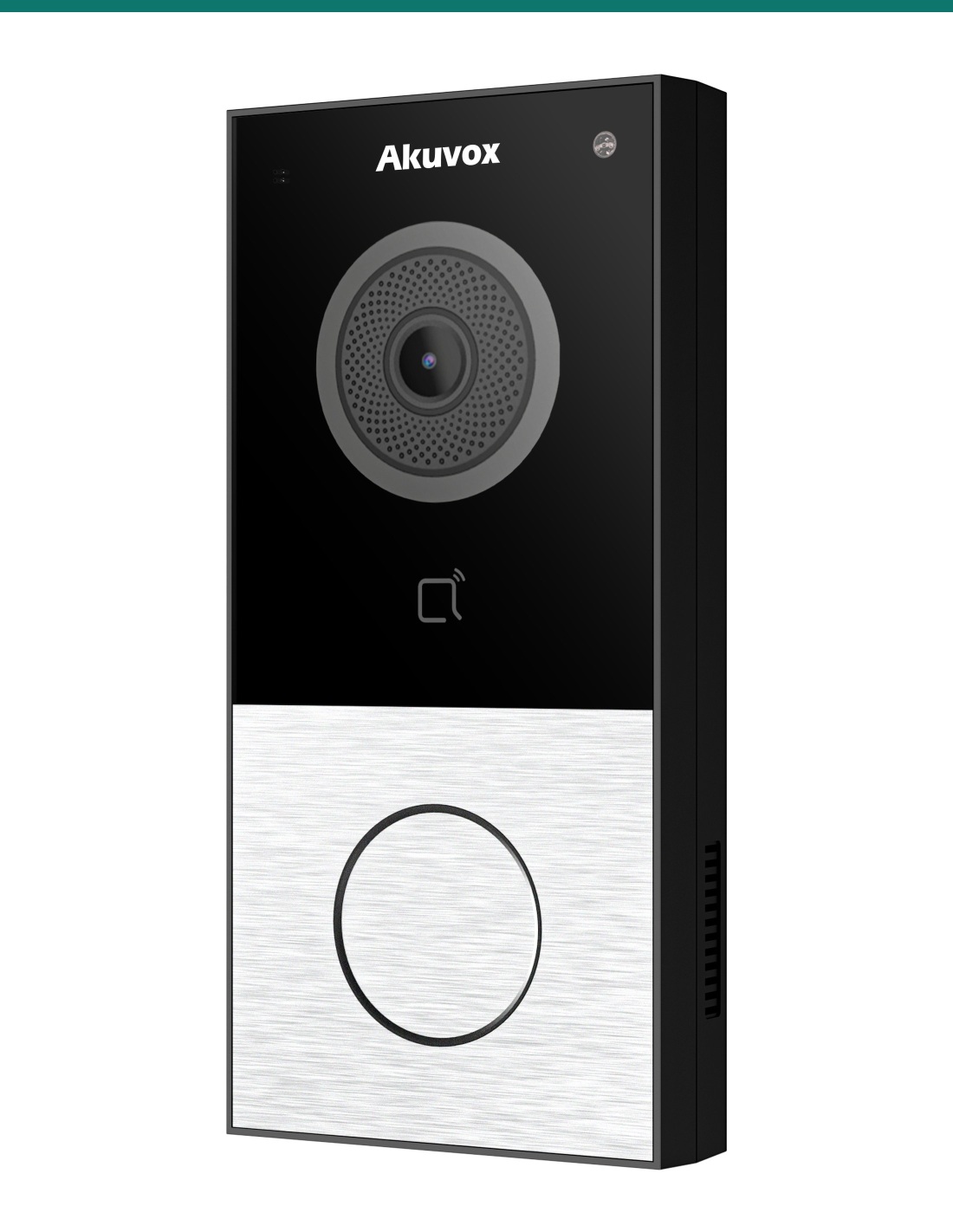

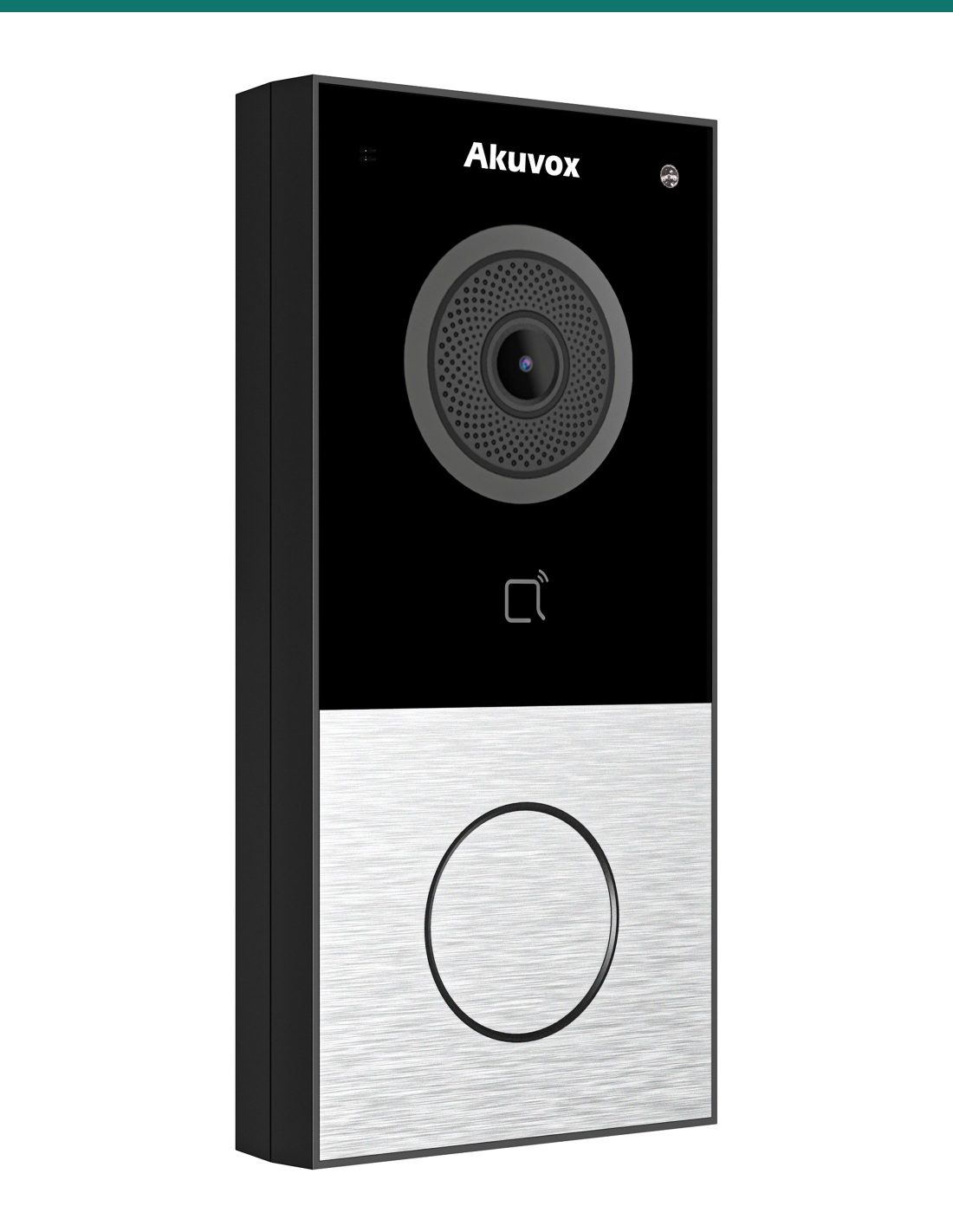

Akuvox E12S-2 2-wire video doorbell — left three-quarter view
Akuvox E12S-2 2-wire video doorbell — right three-quarter view

Akuvox E12S-2 Silver 2-Wire SIP Video Doorbell with Card Reader — AK-E12S-2-SILVER

AK-E12S-2-SILVER
In Stock - Ready to Ship
$ 209.00
inc-GST

or 4 interest-free payments of $52.25 with

Akuvox E12S-2 is a slim single-button SIP video doorbell for houses and townhouses, built for Akuvox 2-wire systems — power and network both arrive on the existing two-wire doorbell or intercom cable.

  • ✓2 MP camera, 123° (H) / 69° (V), 1080p at 30 fps, white-light LED for night
  • ✓13.56 MHz MIFARE / DESFire reader and NFC (Android); 1,000 users, 5,000 cards
  • ✓Power and network over 2-wire from an Akuvox NS-2 or 2-wire monitor
  • ✓1 relay, 2 inputs, Wiegand, TF card slot · IP65 · 146 × 70 × 23 mm

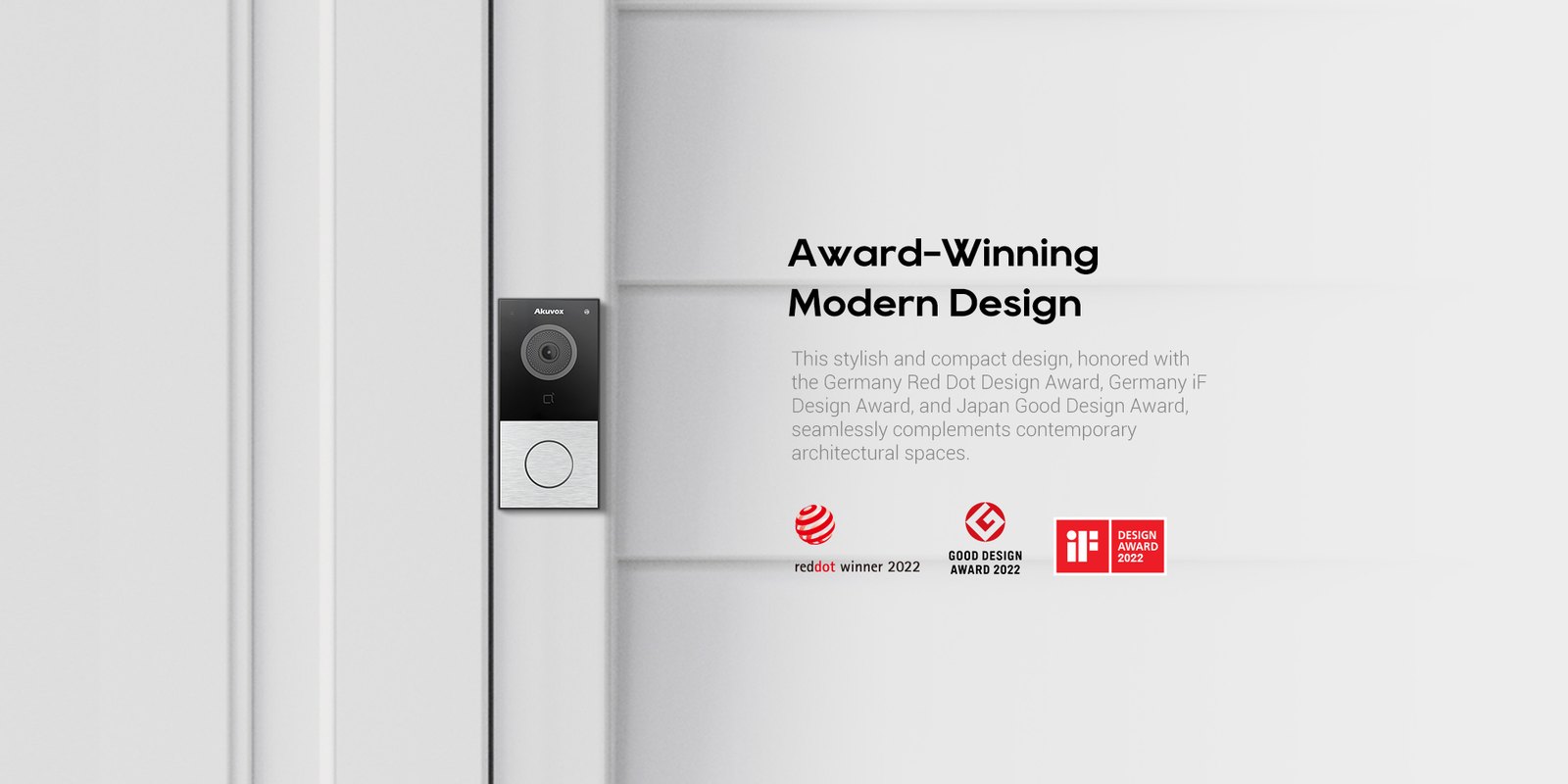

Akuvox E12S-2 video doorbell mounted beside a white front door
Akuvox · E12S-2 · 2-wire video doorbell

Award-winning doorbell design.
On the wires you already have.

The AK-E12S-2-SILVER is Akuvox’s E12S-2: the compact E12 villa doorbell with black glass and a brushed silver panel, re-engineered for 2-wire. It upgrades an old analogue door station to a smart SIP intercom without running new cable.

This SKU is the doorbell only.

You receive the E12S-2 door phone with its standard mounting hardware. Indoor monitors, an NS-2 switch, power supply and lock hardware are sold separately.

In the box
    What you also need (sold separately)
    • Akuvox 2-wire indoor monitor (C313W-2 or S562W-2)
    • Akuvox NS-2 switch with 48 V supply for multi-device sites
    • E12 rain hood or angle bracket if the wall is exposed or offset
    • Electric strike or gate lock with its own power supply

    A smart doorbell without rewiring.

    Visitors press the button, residents answer on a monitor or the SmartPlus app, and family tap a card or phone to come in — all over the two wires already at the door.

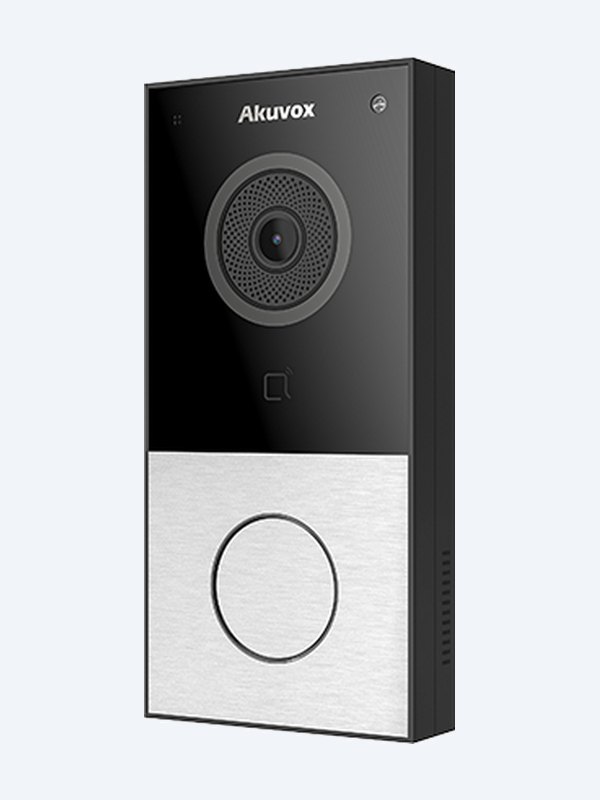

    Akuvox E12S-2 doorbell angle view

    Design

    Compact enough for any entry.

    Plastic body just 146 × 70 × 23 mm with a black glass top and brushed silver call-button panel, surface-mounted beside the door.

    IP65 rated and working from −40 °C to +55 °C, with a tamper alarm.

    App

    Answer from anywhere.

    Calls ring the C313W-2 or S562W-2 indoor monitor and, through it, the Akuvox SmartPlus app — so you can see visitors and open the door from your phone.

    Family and staff can also enter with a 13.56 MHz MIFARE or DESFire card, or by NFC on Android phones.

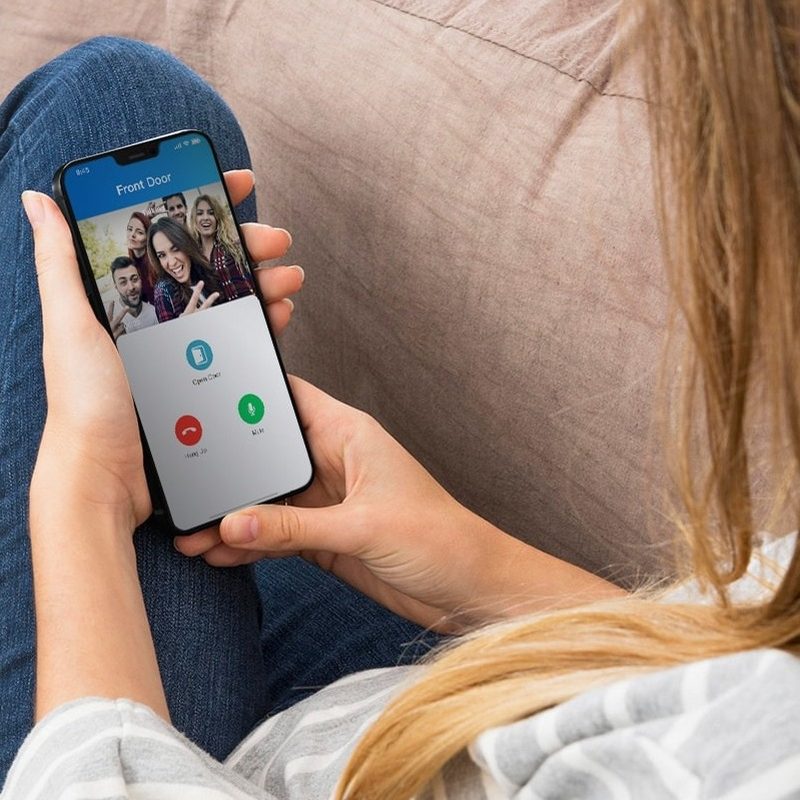

    Answering a front door call on the SmartPlus app

    Camera

    Wide view, day and night.

    2 MP 1/2.7″ sensor with a 123° × 69° view and 1080p video at 30 fps, plus automatic white-light LED for night.

    One relay, two inputs, Wiegand, BLE 5.0 and a TF card slot; holds 1,000 users and 5,000 cards.

    How it works

    Replacing an old door station.

    01

    Find the pair

    Identify the two wires at the old doorbell or door station.

    02

    Mount

    Surface-mount on the wall; add an angle bracket or rain hood if needed.

    03

    Connect

    Land the pair on the two-pin input and wire the relay to the lock.

    04

    Configure

    Register to the monitor, add cards and test a call and door release.

    Pair it with

    Completes a 2-wire video intercom

    Monitor

    C313W-2 or S562W-2

    Akuvox 2-wire indoor monitors answer calls and release the door.

    Power hub

    Akuvox NS-2

    Feeds up to six 2-wire devices from a DIN-rail switch.

    Mounting

    E12 rain hood or angle bracket

    Shelter the doorbell or angle it toward the approach.

    Works with

    Platforms and integrations

    Akuvox 2-wire system

    Connects straight to a C313W-2 or S562W-2 indoor monitor, or to an NS-2 switch for multi-device sites.

    Akuvox SmartPlus

    Calls reach the SmartPlus app through the 2-wire indoor monitor, so residents can answer and unlock from their phone.

    NVRs over ONVIF / RTSP

    The door camera supports ONVIF and RTSP, so it can be added to a compatible NVR on the same network.

    Wiegand access control

    The selectable Wiegand port links the card reader to a third-party access controller.

    Watch

    See it in action

    Akuvox E12 video door phone overview
    Akuvox 2-wire SIP video intercom overview
    Wiring Akuvox 2-wire devices for a villa

    Downloads

    Datasheets and guides

    Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

    Answers

    Common questions

    How is the E12S-2 different from the E12S?

    Same compact housing, camera and reader, but the E12S-2 takes power and network over a 2-wire pair instead of Ethernet/PoE, so it can reuse old doorbell or analogue intercom cabling.

    What does it connect to?

    Akuvox 2-wire indoor monitors (C313W-2, S562W-2) directly, or an Akuvox NS-2 switch when several 2-wire devices share the system.

    Do I need a separate power supply at the door?

    No. The two-pin connection carries both power and network, fed from the NS-2 switch or the 2-wire indoor monitor's power adapter.

    How many cards and users does it hold?

    Up to 1,000 users and 5,000 cards (13.56 MHz MIFARE and DESFire EV1 / EV2 / EV3). It does not read 125 kHz EM cards — choose the R20A-2 or R20K-2 for those.

    Can it open a gate or door?

    Yes. One relay drives a strike or gate lock, triggered by card, NFC, the indoor monitor or the SmartPlus app.

    Is it weatherproof?

    Yes — IP65, working from −40 °C to +55 °C. Add the E12 rain hood on exposed doors, or the angle bracket where it sits side-on to visitors.

    Is an indoor monitor included?

    No. This SKU is the doorbell only; the 2-wire monitor and NS-2 switch are sold separately or as part of an Akuvox 2-wire kit.

    A slim 2-wire doorbell.

    Choose the E12S-2 for houses and townhouses where a compact doorbell suits the entry; the R20A-2 is an aluminium single-button alternative and the R20K-2 adds a keypad.

    Installation & safety notice

    Low-voltage product (SELV). Powered over the 2-wire pair — the two-pin connection carries both power and network — from an Akuvox NS-2 switch or a 2-wire indoor monitor fed by its power adapter.

    When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

    The E12S-2 has one relay for a strike or gate lock; power the lock from its own supply and fit a suppression diode across DC lock coils.

    Colour
    Silver
    Capacity
    1,000 users, 5,000 cards
    Working Temperature
    −40 °C to +55 °C
    Brand
    Akuvox
    Bluetooth
    BLE 5.0
    Protection
    IP65
    Camera
    2 MP, 1/2.7″ CMOS, 123° (H) / 69° (V)
    Size
    146 × 70 × 23 mm (H × W × D)
    Warranty
    Australian warranty
    Video
    H.264, up to 1920 × 1080 at 30 fps
    Product Type
    2-wire SIP video doorbell
    Call Buttons
    1
    Model
    E12S-2
    Finish
    Black glass top, brushed silver lower panel
    Night Vision
    Light sensor and white-light LED, 0.1 lux
    I/O
    1 relay, 2 inputs, Wiegand in/out
    Unlock
    13.56 MHz card, NFC (Android), SmartPlus app, DTMF
    Network & Power
    2-wire (two-pin) for power and network
    Card Types
    MIFARE, DESFire EV1 / EV2 / EV3
